About Sander Maschinenbau GmbH & Co. KG
Who we are
The company Sander Maschinenbau GmbH & Co. KG since 1848 operates very successfully in the metalworking industry and has expanded its range continuously. We offer extensive possibilities of conventional machining and assembly CNC machining to problem solving in special machines and tooling. Our options range in CNC milling up to dimensions of 12000 mm x 3300 mm x 1500 mm and a mass of 64 t. When CNC turning with driven tools, we offer a working range up to 500 mm x 1000 mm, and on turning we can to diameter 820 mm x 4000 mm machine workpieces. We can manufacture welded constructions up to 10 tons unit weight. Our welding certificate according to DIN 18800-7:2002-09, class C is constantly renewed. Through the use of Tebis 3-D and 2.5-D CAD / CAM software, we are able to customize your order very quickly and accurately from your-supplied CAD data. We provide our highly qualified staff, modern equipment and our vast experience available and support you, according to your wishes, in the development of practical and cost-optimized structures. Today we have a team of 30 employees, including two apprentices for precision mechanics / mechanical engineering. Contract Manufacturing * Guide vane of a gas turbine * Housing with non-planar subdivision * Complete machining of a compressor housing * Machining of turbine housing * Welded construction with inclined surfaces * Segments for thrust bearings with ball-Ø280mm * Turbine half shell * Machine housing * Spherical Plain Bearings * Tools for sheet metal processing * Axle beam Special machine * Machining and partial assembly of a wind machine. * Form-cleaning machine * Bucket for elimination of fines in the gravel and sand processing. * Traverse crane with 65 t capacity. * Interior and exterior formwork for precast concrete transformer station. * Conveyor belt for the Rohkiesgewinnung, * Stack machine * Transportable container in stainless steel with agitator. * Annex to the surface coating of concrete blocks in the run. * Automatic color filter system for spraying of concrete products in the run. * Machine for producing glossy paper bags. Key words: large-volume items, large items, large parts production, large parts manufacturing

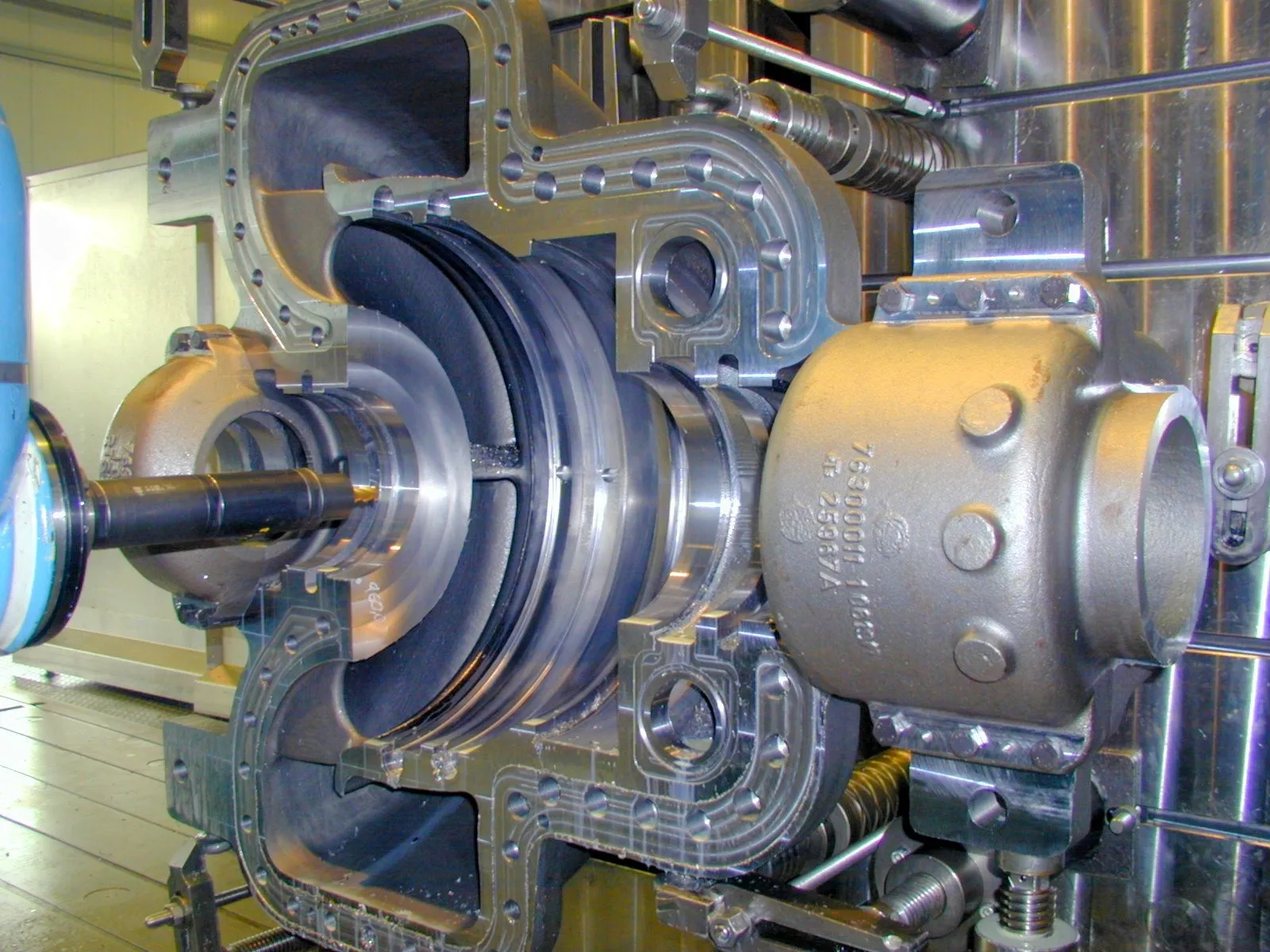

1 / 6

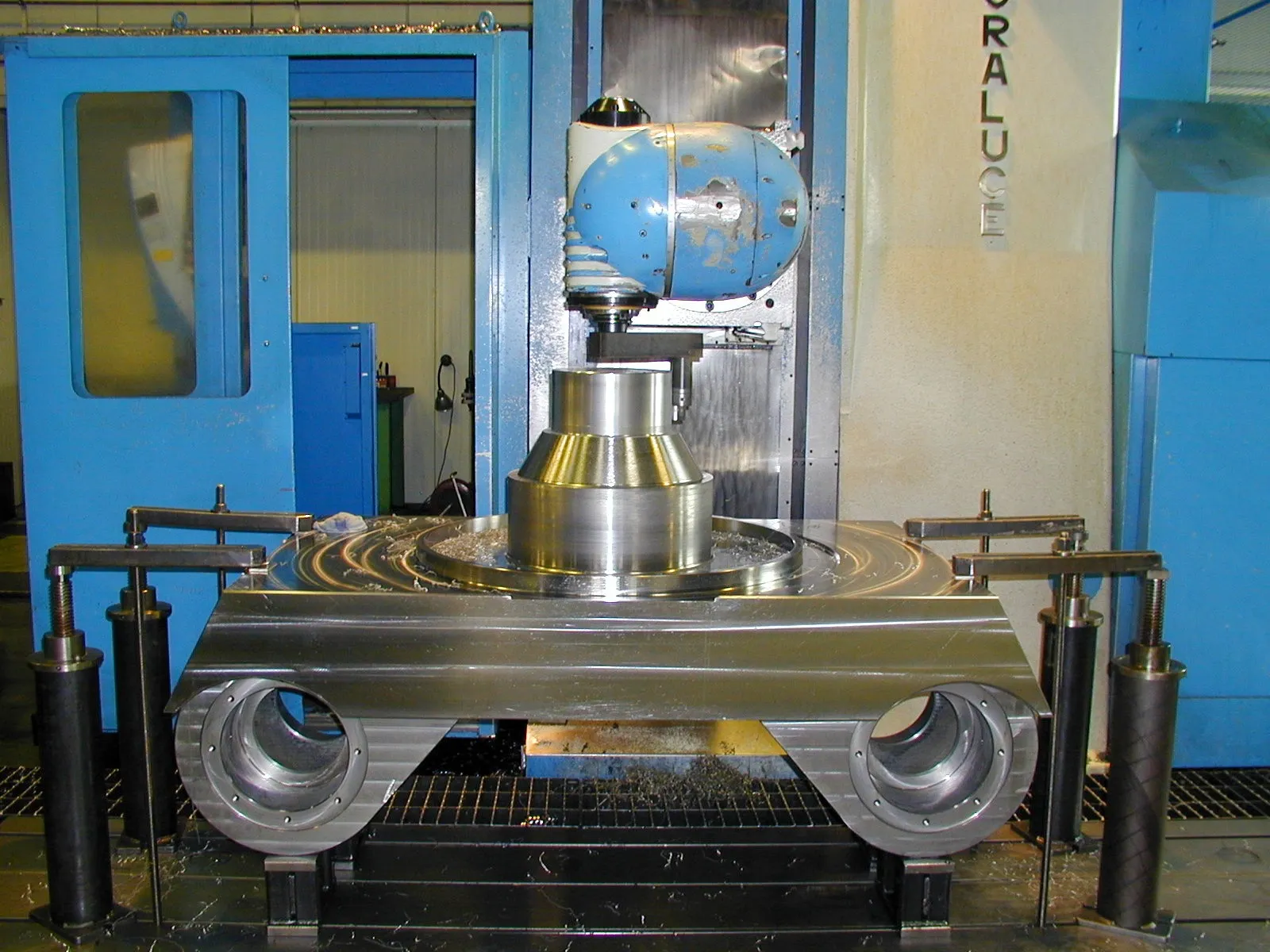

2 / 6

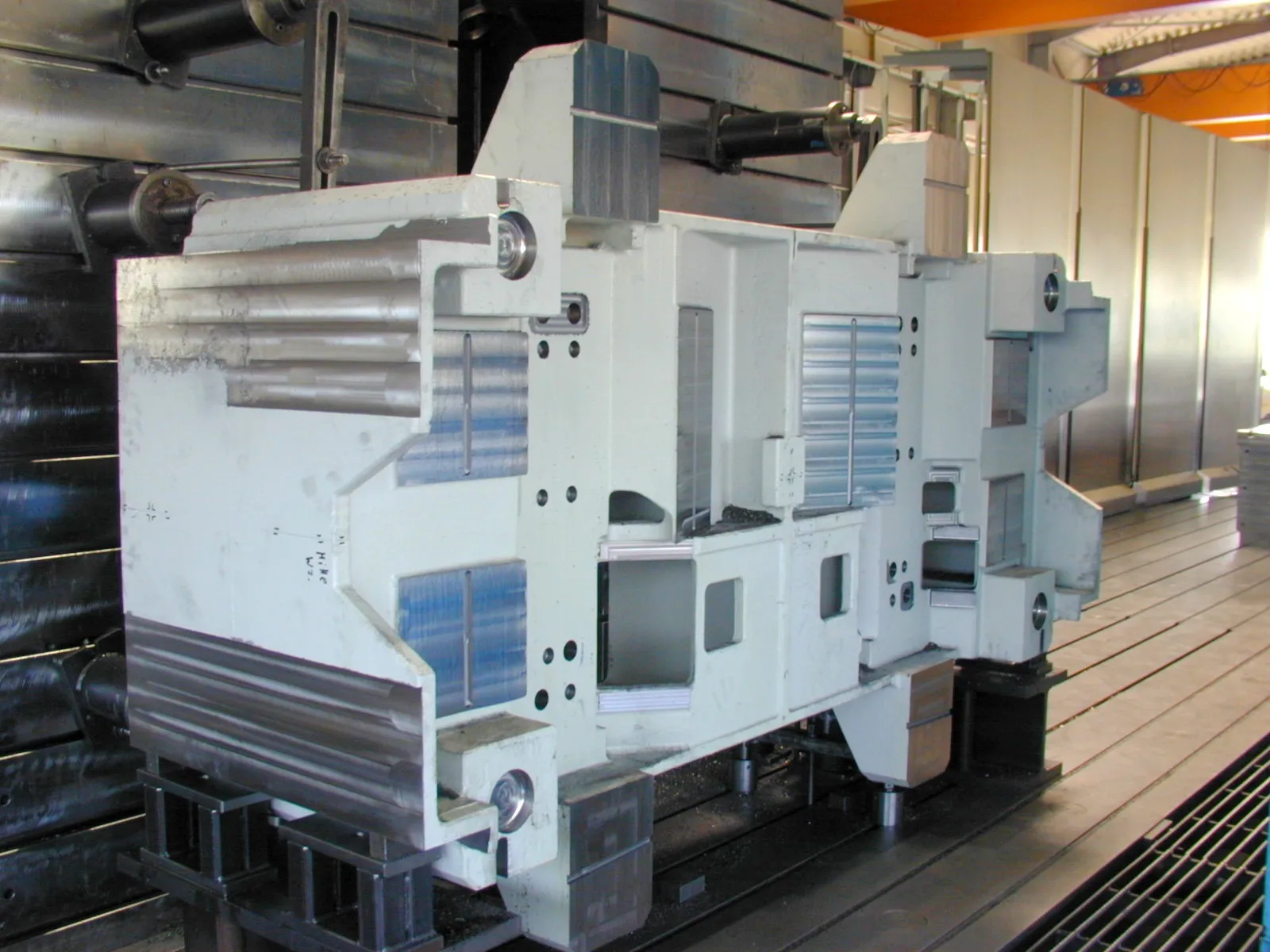

3 / 6

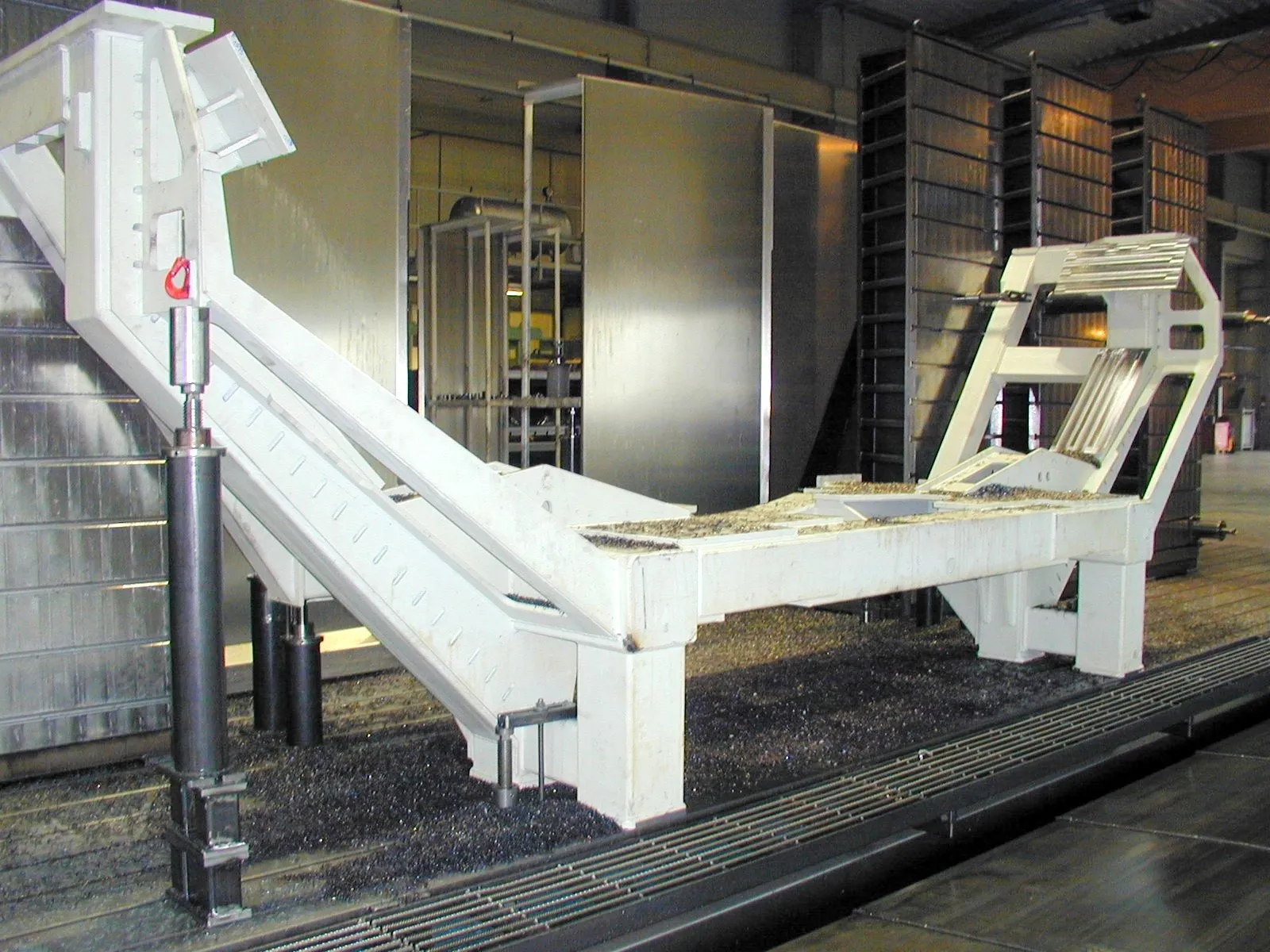

4 / 6

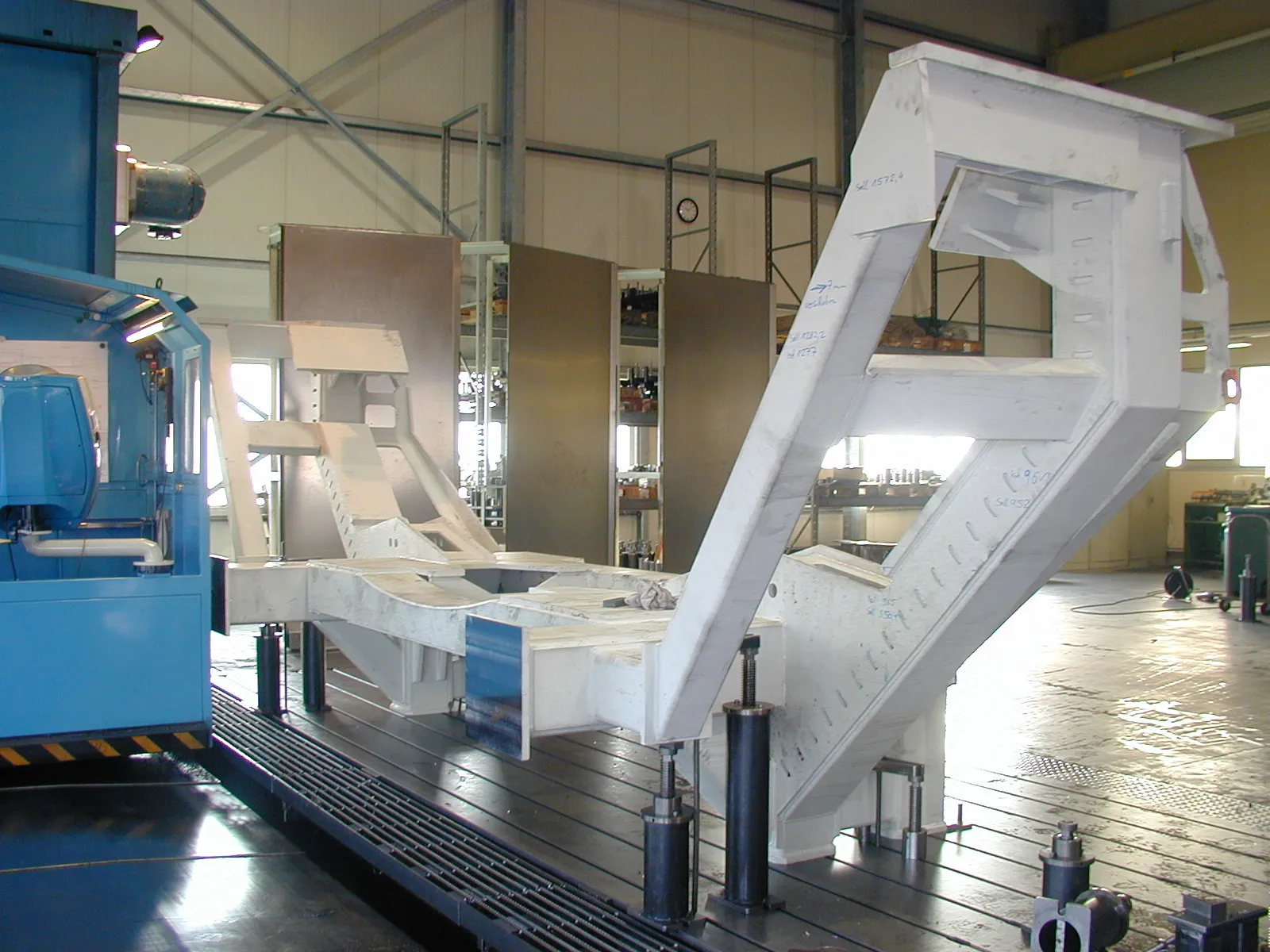

5 / 6

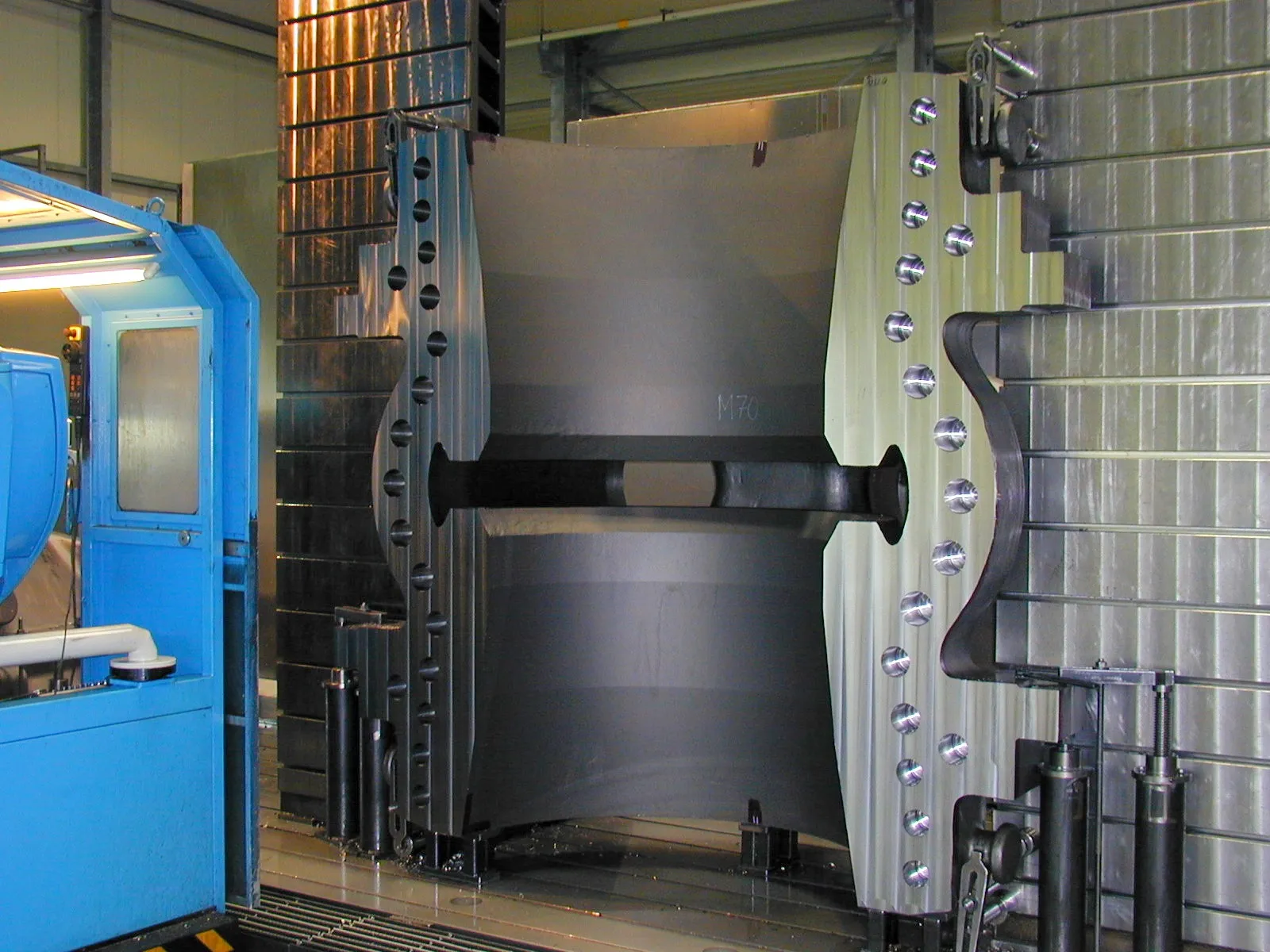

6 / 6
Rinteln, Germany
Member since 2001
Employees20 - 50
Certificates1
Year of foundation1848
Competencies
Technologies
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|
Welded constructions (weldments) | 111–7,777 mm | 111–1,111 mm | 111–2,222 mm | from 0 mm | 0–10,000 kg | from 0 mm |
Machine frames / bases / racks | 111–7,777 mm | 111–1,111 mm | 111–2,222 mm | from 0 mm | 0–10,000 kg | from 0 mm |
Turning
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Turning | 4–200 | 10–1,500 mm | from 0 mm | from 0 mm | 30–560 mm | 0–500 kg | from 0 mm |
Full-range turning (including milling) | 4–200 | 30–300 mm | from 0 mm | from 0 mm | 30–300 mm | from 0 kg | from 0 mm |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Milling | 1–100 | 10–12,000 mm | 10–1,500 mm | 10–2,800 mm | from 0 mm | 0–60,000 kg | from 0 mm |
Form milling (3 D) | 1–100 | 10–12,000 mm | 10–1,500 mm | 10–2,800 mm | from 0 mm | 0–60,000 kg | from 0 mm |
Sheet Metal Processing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Oxyacetylene cutting | 100–10,000 | 150–3,000 mm | 150–1,500 mm | from 0 mm | from 0 mm | 0–1,000 kg | 5–100 mm |
Finishing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Surface grinding machine | 1–1,000 | 10–900 mm | 10–600 mm | 10–300 mm | from 0 mm | 0–250 kg | from 0 mm |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Drilling / threading / tapping | 1–100 | 10–12,000 mm | 10–1,500 mm | 10–2,800 mm | from 0 mm | 0–60,000 kg | from 0 mm |
Materials
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Precious metals
SilverGoldPlatinumOther precious metals
Sintered materials
Metal powder for formed partsMetal powder for hard metal
Natural materials
Wood/timberRock
Cast metals
Cast steelCast iron
Plastics/synthetic materials
ThermoplasticsThermosetsElastomersGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materials
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Non-metal inorganic materials
CeramicsGlassConcreteCast mineralsGraphite
Industries
Mining and tunnel engineeringBuilding, agricultural and forestry machinery manufacturingApparatus engineeringBoiler, container and tank construction Military engineeringShipbuilding industryMeasurement and control technique, laboratory equipmentAutomotive and vehicle constructionPower generation and transmission industryHydraulic and pneumatic industryConstruction and architectural suppliesAerospace and aviation industryDrive and gear engineeringChemical industryMedical technologyElectrical industryPaper and printing machinery industryPlant engineering and constructionMechanical engineeringMachine tool manufacturingAir conditioning, refrigeration and ventilation industryPackaging industryRailway and rail vehicles industrySpecial purpose machinery manufacturing
Certificates
ISO 9001:2008
Parts & Machines
Machinery (7)
1 / 7
FS-12000
ManufacturerSORALUCE
ControlTNC 430 (Heidenhain)
Year of Construction2001
Technology
Form milling (3 D)MillingDrilling / threading / tapping
2 / 7
FS-10000
ManufacturerSORALUCE
ControlTNC 430 (Heidenhain)
Year of Construction2002
Technology
Drilling / threading / tappingMillingForm milling (3 D)
3 / 7
vdf cm250
Manufacturerboehringer
Controlfanuc
Year of Construction2000
Technology
Full-range turning (including milling)Turning
4 / 7
./.
ManufacturerOkamoto
Control-
Technology
Surface grinding machine
5 / 7
FP 5 NC
ManufacturerDECKEL
ControlDialog 4
Technology
MillingDrilling / threading / tappingForm milling (3 D)
6 / 7
WF 1200
ManufacturerHermle
ControlHeidenhain 415
Technology
Drilling / threading / tappingMillingForm milling (3 D)
7 / 7
./.
ManufacturerMesser Griesheim
ControlSiemens
Technology
Oxyacetylene cutting
7 Machinery
Form milling (3 D)4
Milling4
Drilling / threading / tapping4
Full-range turning (including milling)1
Turning1
Surface grinding machine1
Oxyacetylene cutting1
Contact
Location
Main locationBraasstraße 34, 31737 Rinteln, Germany
