Schigan GmbH

Austria, 8504 Preding

Competencies

Technologies

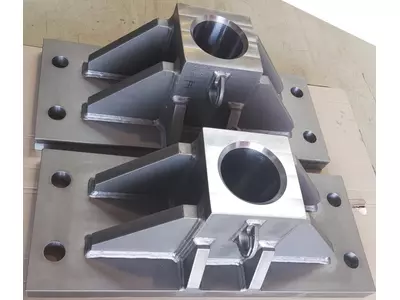

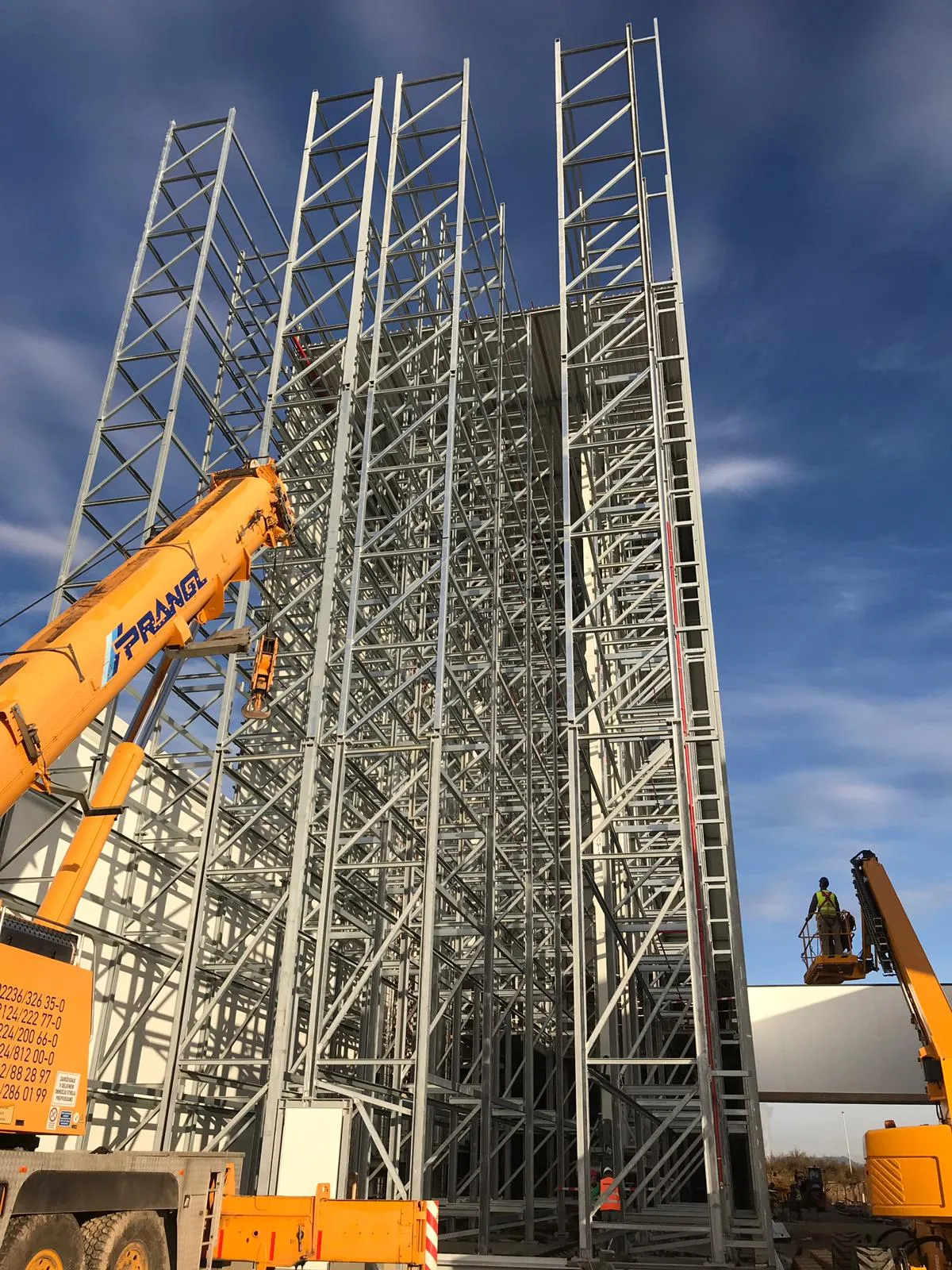

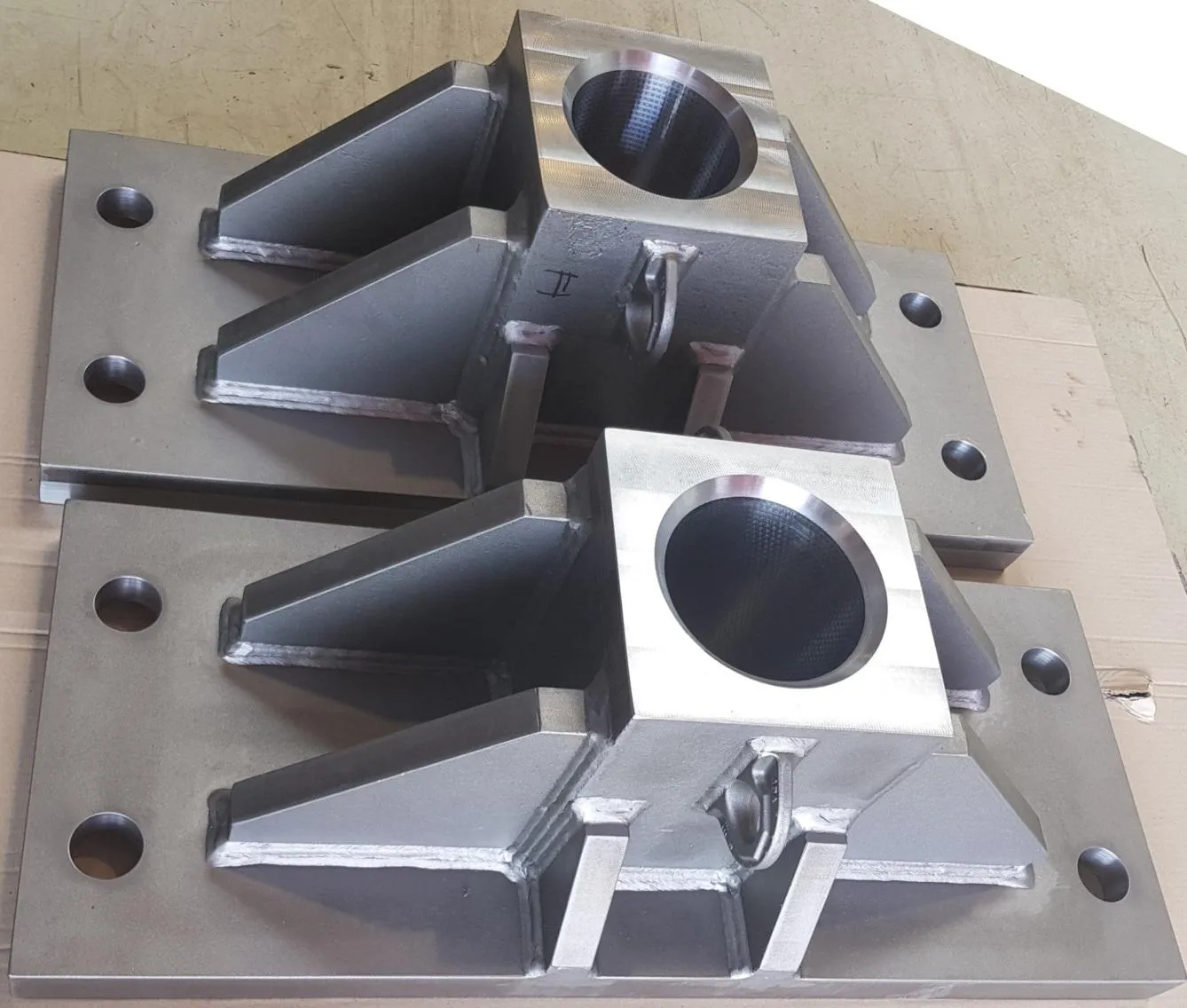

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	1–7,000 mm	1–1,500 mm	1–2,500 mm	0–16,000 kg

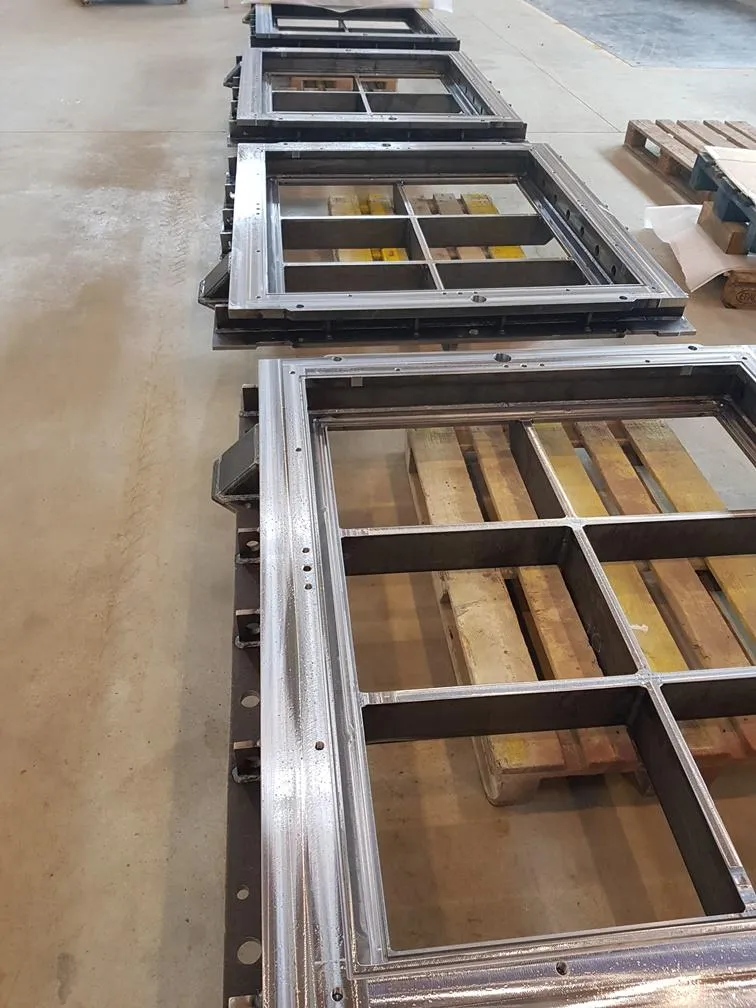

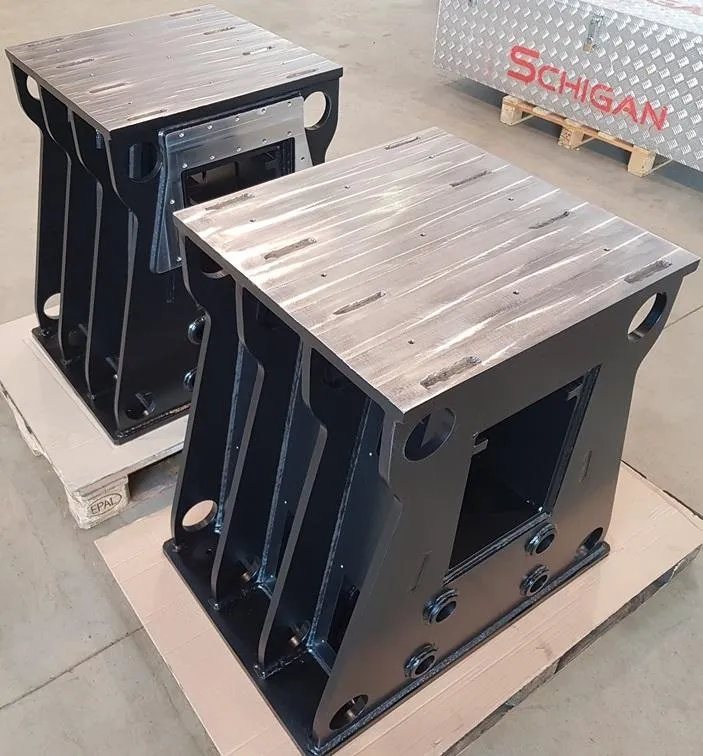

Machine frames / bases / racks	100–6,000 mm	100–2,100 mm	100–1,500 mm	0–16,000 kg

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Material thickness

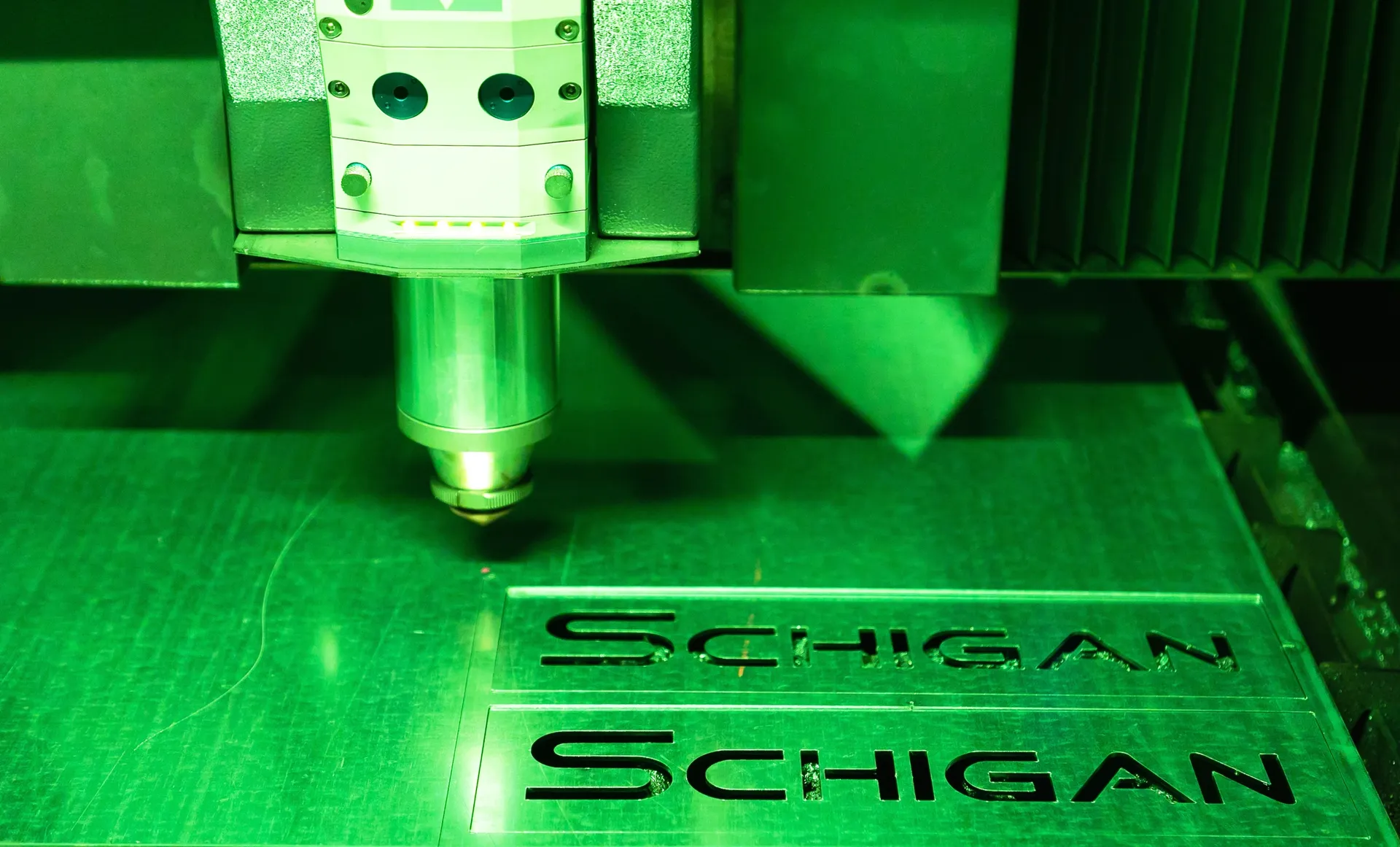

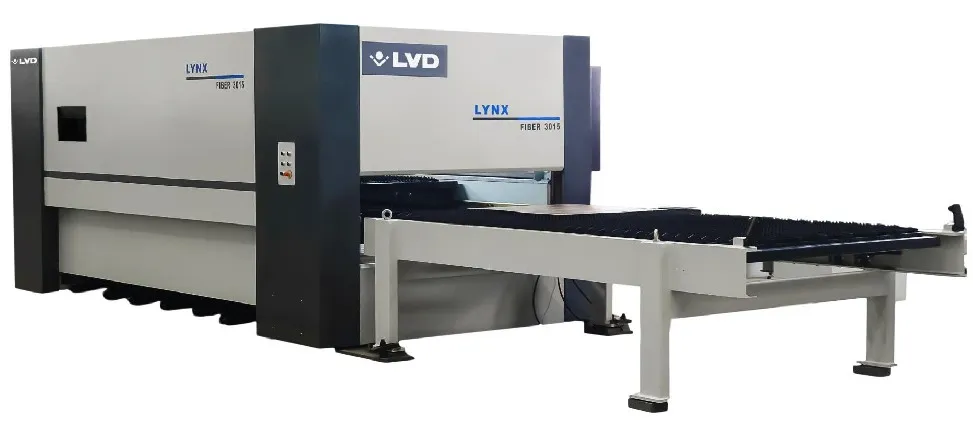

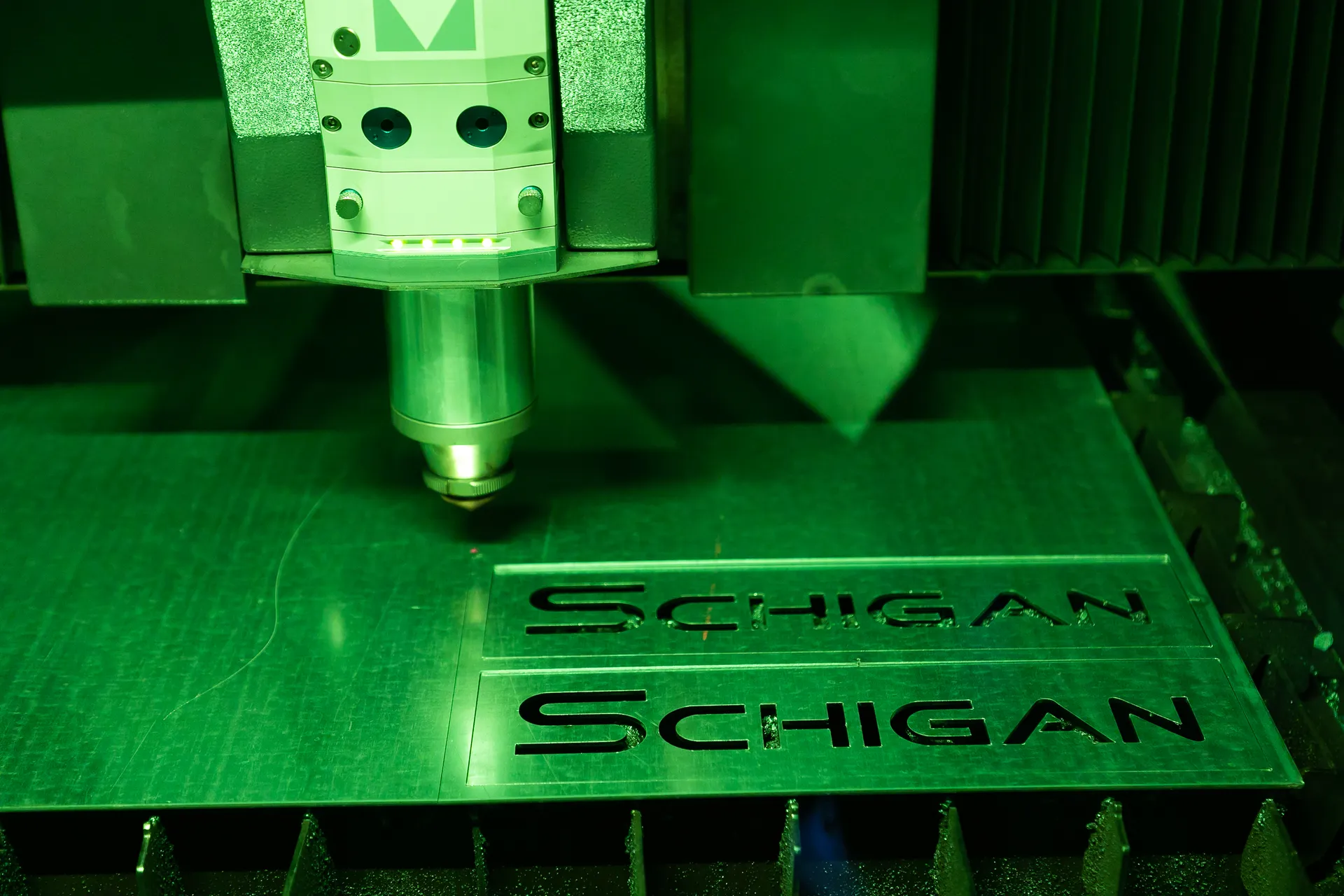

Laser cutting 2D	1–5,000	10–3,050 mm	10–1,525 mm	1–20 mm
Bending / folding	1–5,000	10–3,000 mm	—	0.8–12 mm
Plate straightening	1–1,000	—	10–3,000 mm	0.5–15 mm
Shearing (rectangular blank/strip)	1–5,000	—	—	0.5–10 mm

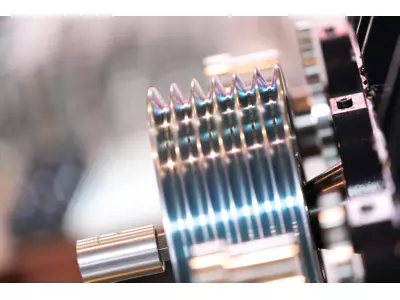

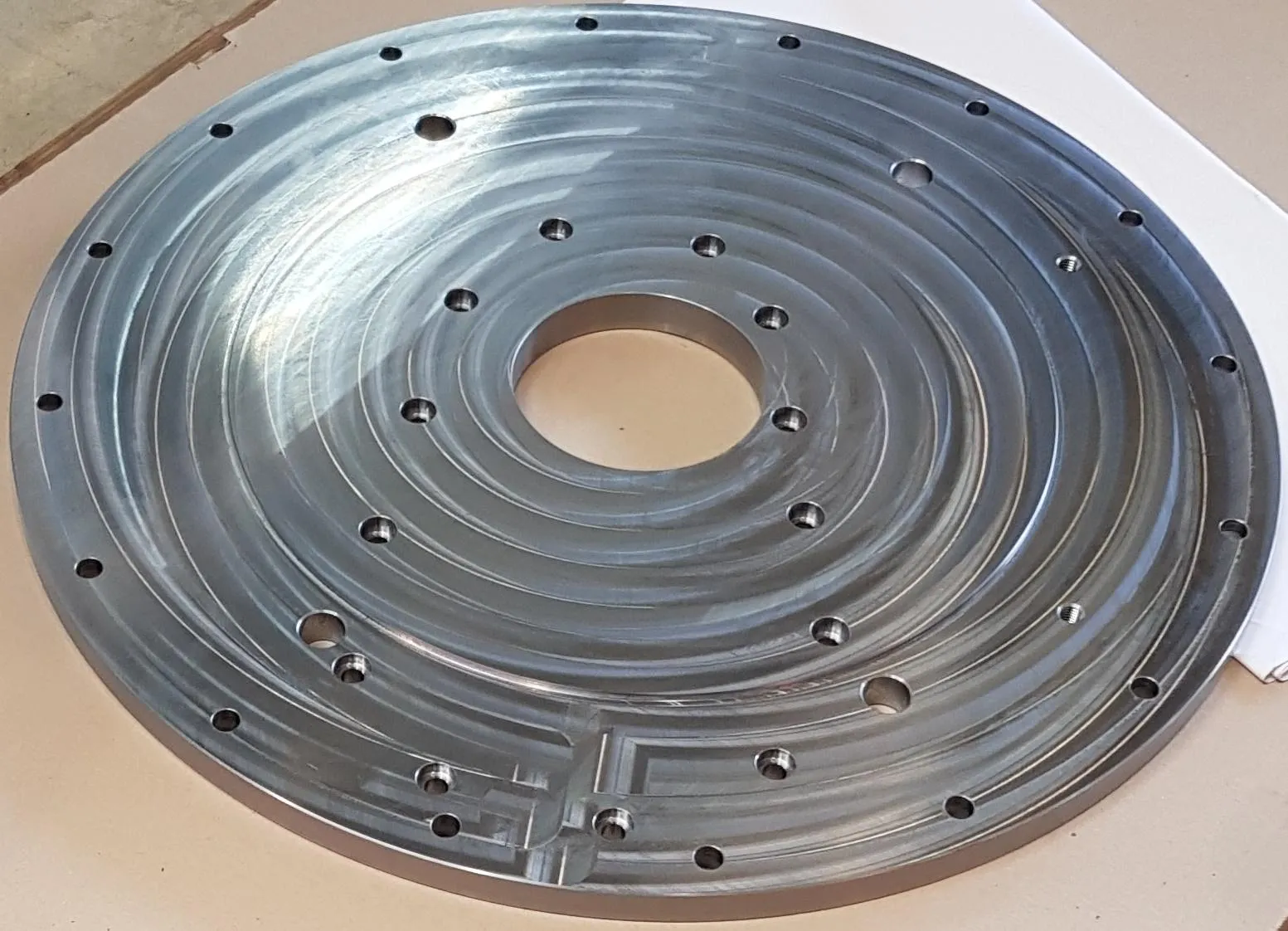

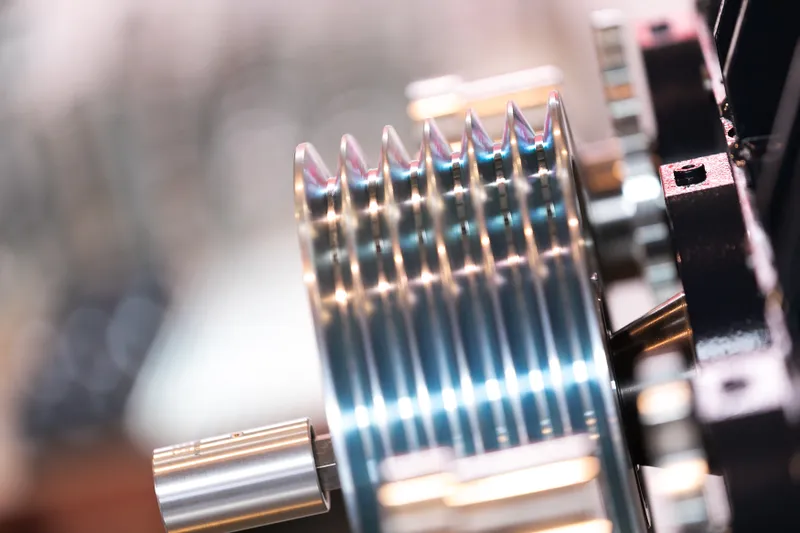

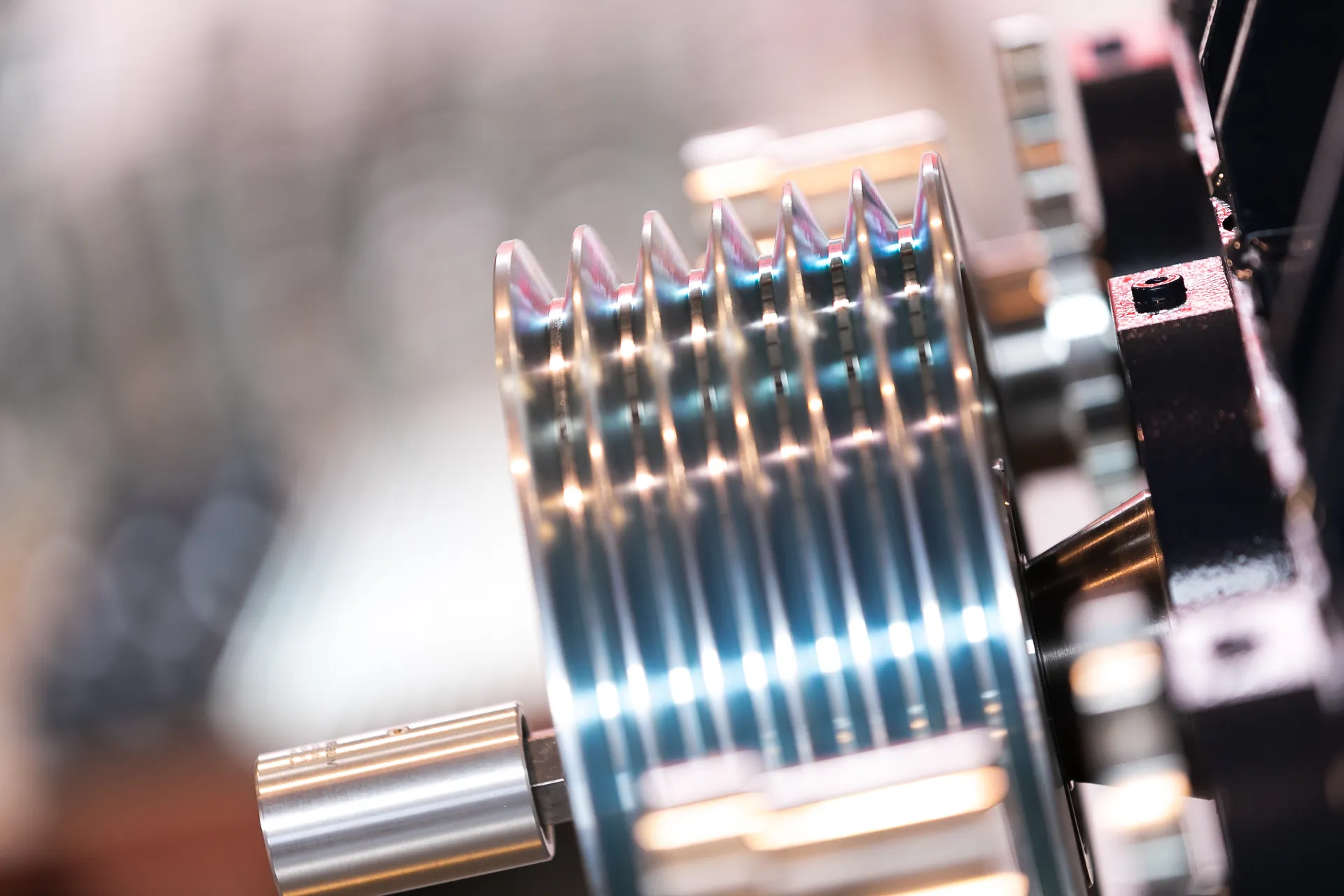

Turning

Technologies	Lotsize	Length	Diameter	Weight
Turning	1–5,000	5–1,250 mm	5–600 mm	—
Automatic turning (bar)	1–2,500	1–1,000 mm	5–600 mm	—
Full-range turning (including milling)	1–5,000	5–1,250 mm	5–600 mm	—
Shaft machining	1–5,000	100–1,250 mm	30–580 mm	0–2,000 kg

Welding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Inert gas shielded arc welding (MIG/MAG)	1–5,000	5–12,000 mm	5–2,500 mm	5–2,500 mm	—	0–10,000 kg	—
Inert gas shielded arc welding (TIG)	1–5,000	5–12,000 mm	5–2,500 mm	5–2,500 mm	—	0–10,000 kg	—
Manual electrode welding	1–2,500	10–15,000 mm	10–6,000 mm	10–6,000 mm	5–1,000 mm	0–16,000 kg	1–100 mm

Assembly

Technologies	Weight
Mechanical assembly	0–20,000 kg
Industrial / On-site-assembly	0–100,000 kg

Mechanical Engineering

Technologies	Lotsize	Length	Width	Height	Weight
Mechanical engineering	1–5,000	100–3,500 mm	100–2,500 mm	100–2,500 mm	0–3,500 kg
Hydraulic engineering	1–5,000	100–2,500 mm	100–2,500 mm	100–2,500 mm	0–3,500 kg
Pneumatic engineering	1–5,000	100–2,500 mm	100–2,500 mm	100–2,500 mm	0–3,500 kg
Apparatus engineering	1–5,000	100–3,500 mm	100–2,500 mm	100–2,500 mm	0–2,500 kg
Tool building	1–5,000	100–2,500 mm	100–2,500 mm	100–2,500 mm	0–3,500 kg
Handling technology	1–5,000	500–2,500 mm	500–2,500 mm	500–2,500 mm	0–1,000 kg

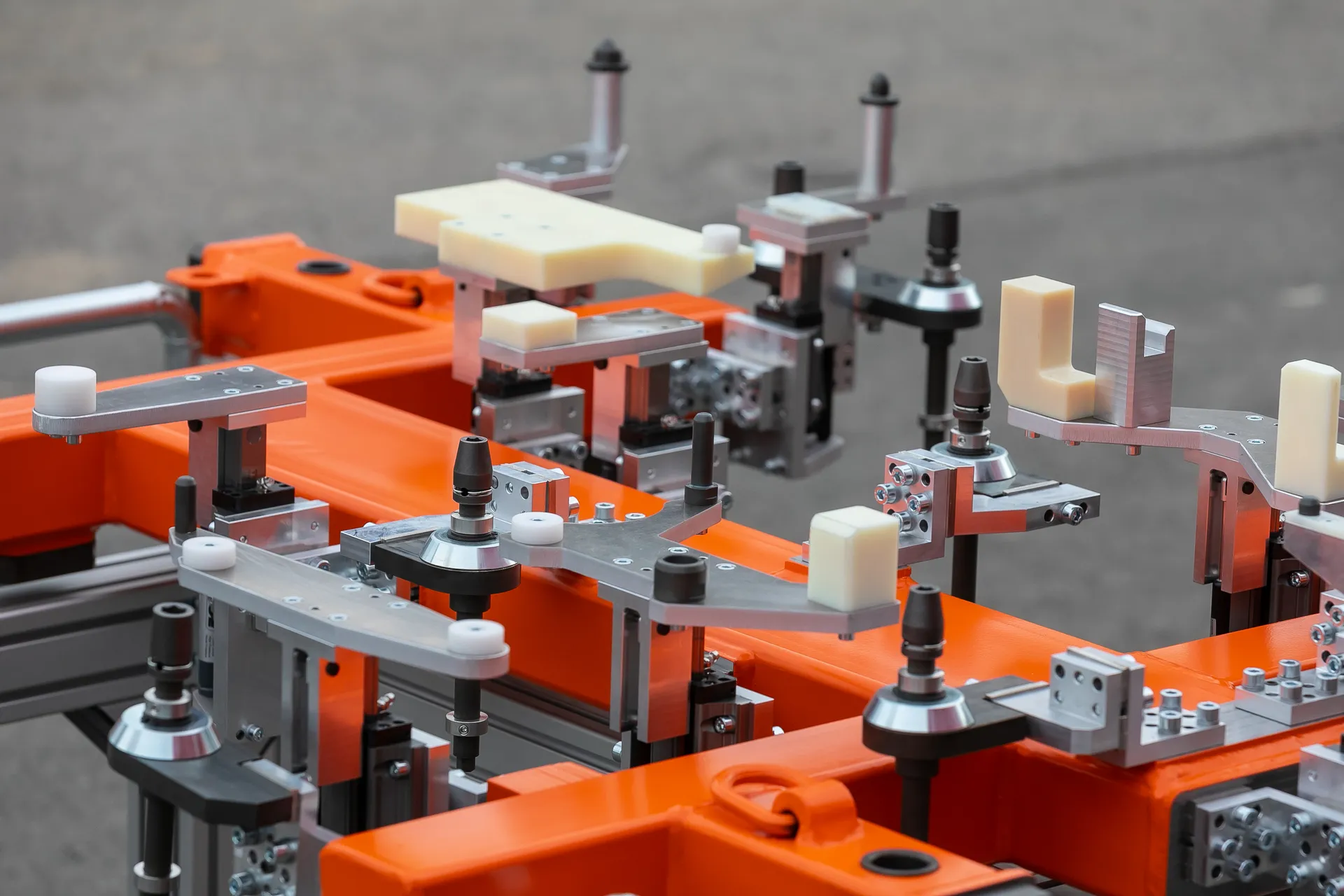

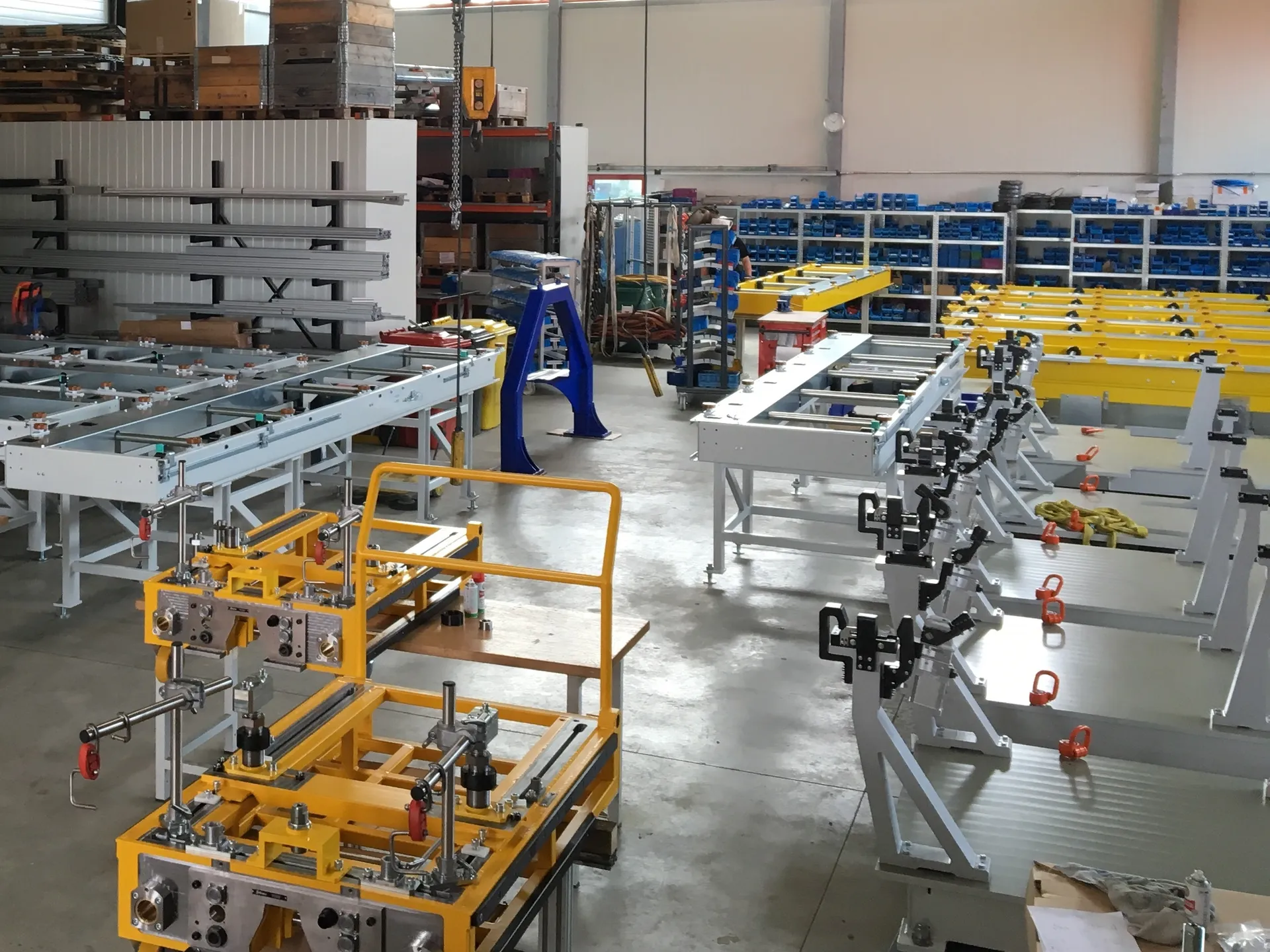

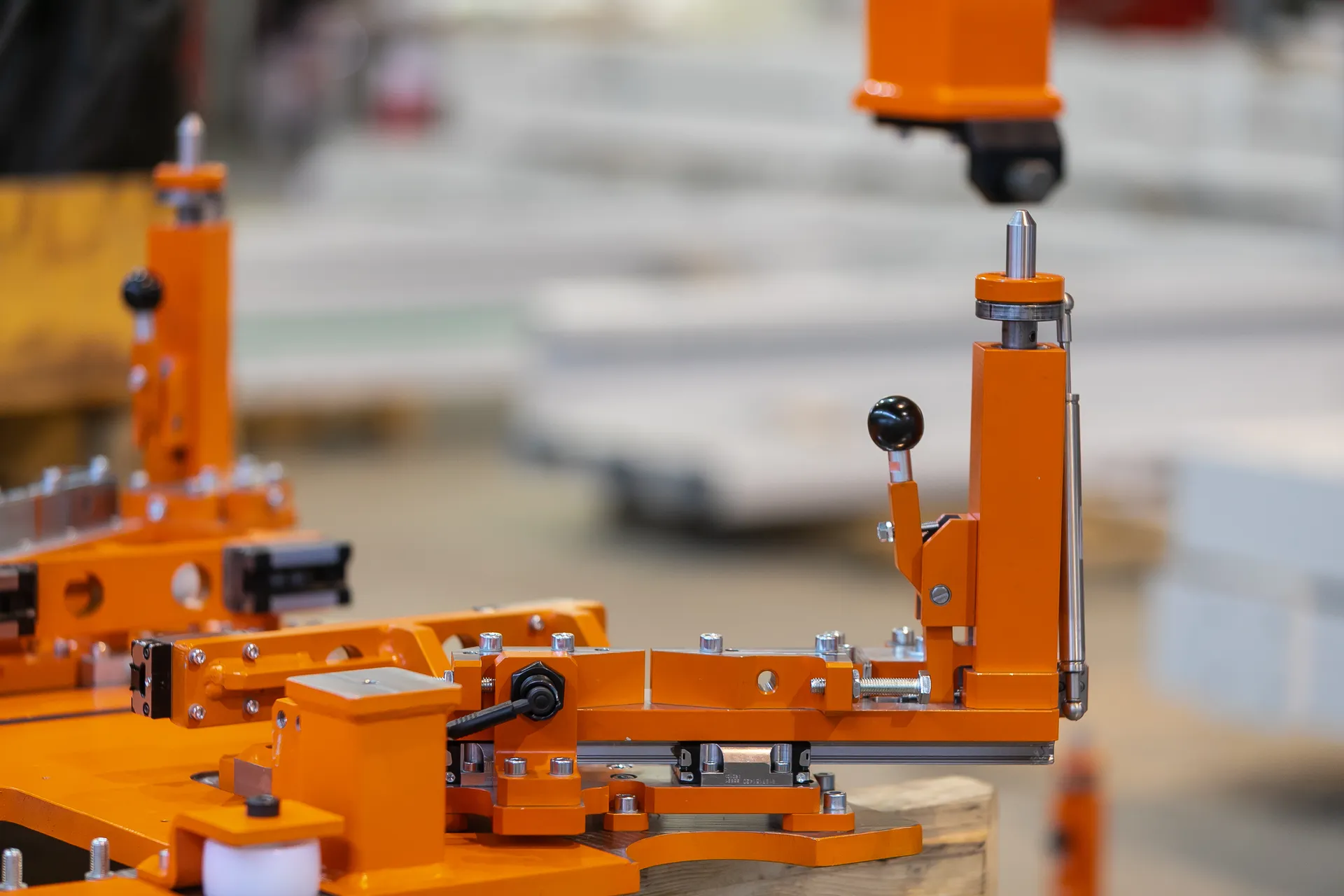

Jigmaking

Technologies	Length	Width	Height	Weight
Gauges	100–3,500 mm	100–2,500 mm	100–2,500 mm	0–500 kg
Measuring / testing jigs	100–3,500 mm	100–2,500 mm	100–2,500 mm	0–500 kg

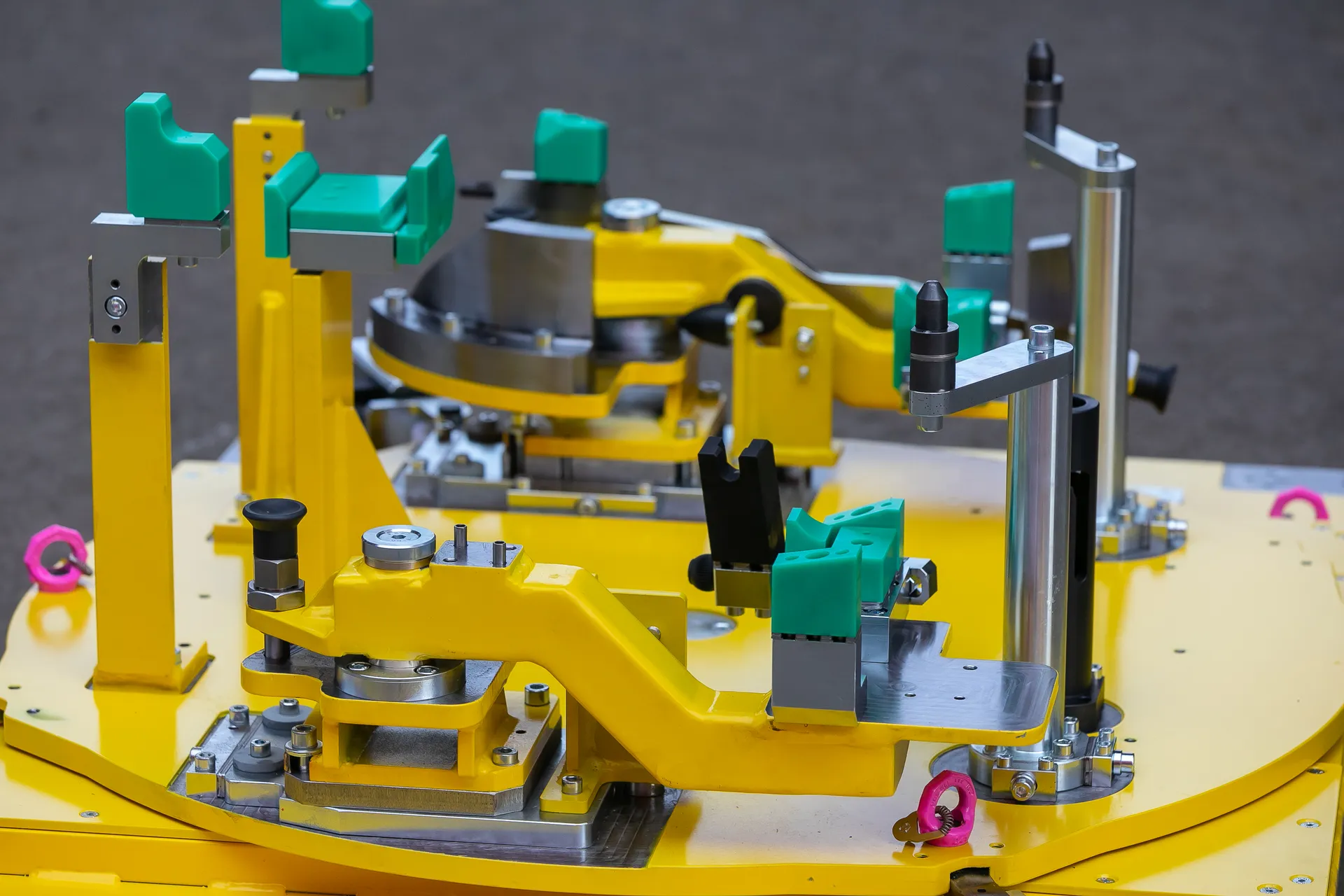

Assembly jigs	100–3,500 mm	100–2,500 mm	100–2,500 mm	0–2,000 kg
Welding jigs	100–3,500 mm	100–2,500 mm	100–2,500 mm	0–2,000 kg
Clamping devices	100–3,500 mm	100–2,500 mm	100–2,500 mm	0–2,500 kg

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Surfacing / build-up welding	1–5,000	10–5,000 mm	10–5,000 mm	10–5,000 mm	5–500 mm	0–15,000 kg	5–50 mm
Spray-painting	1–5,000	10–6,000 mm	10–3,500 mm	10–3,500 mm	—	0–5,000 kg	—

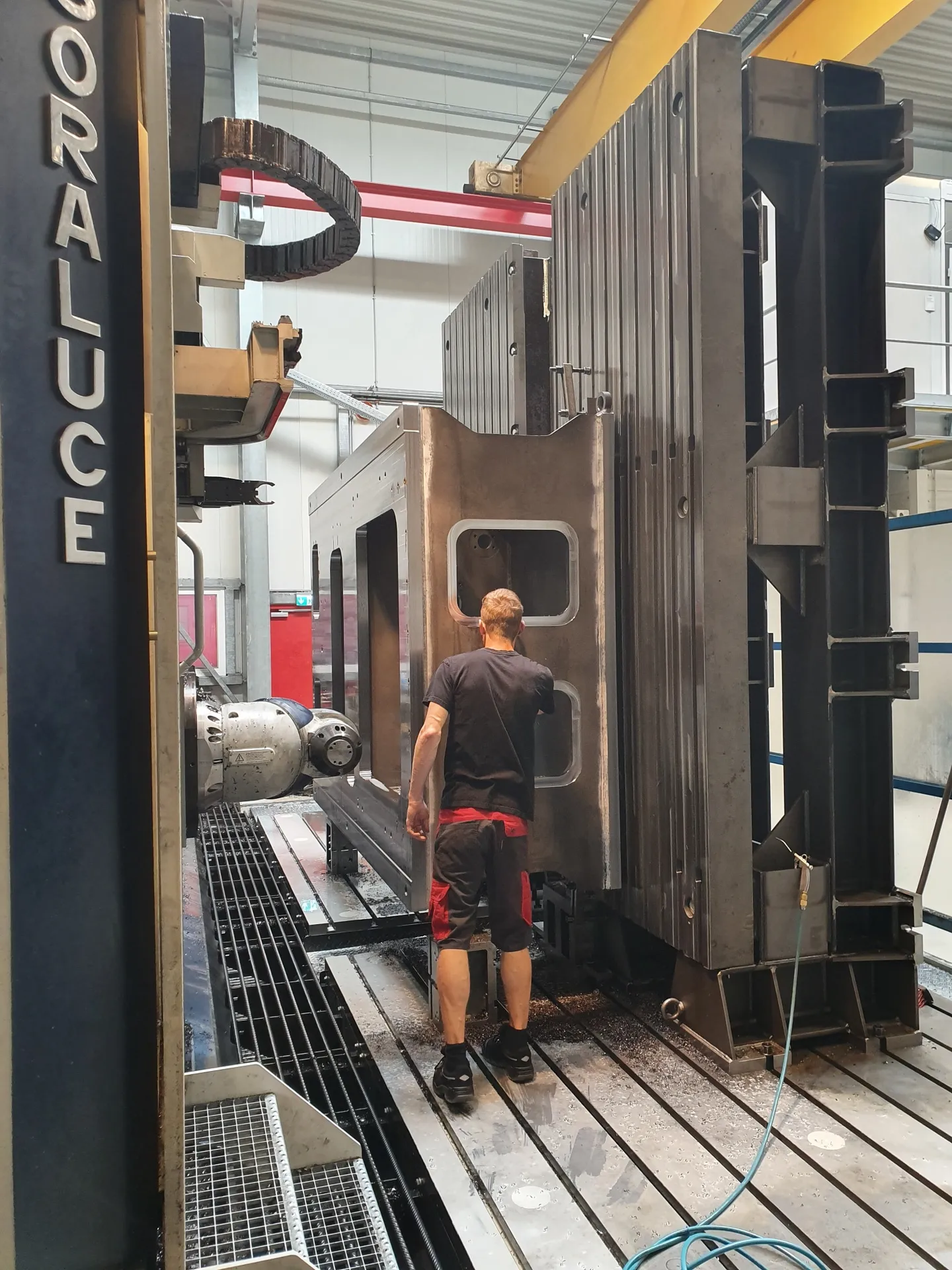

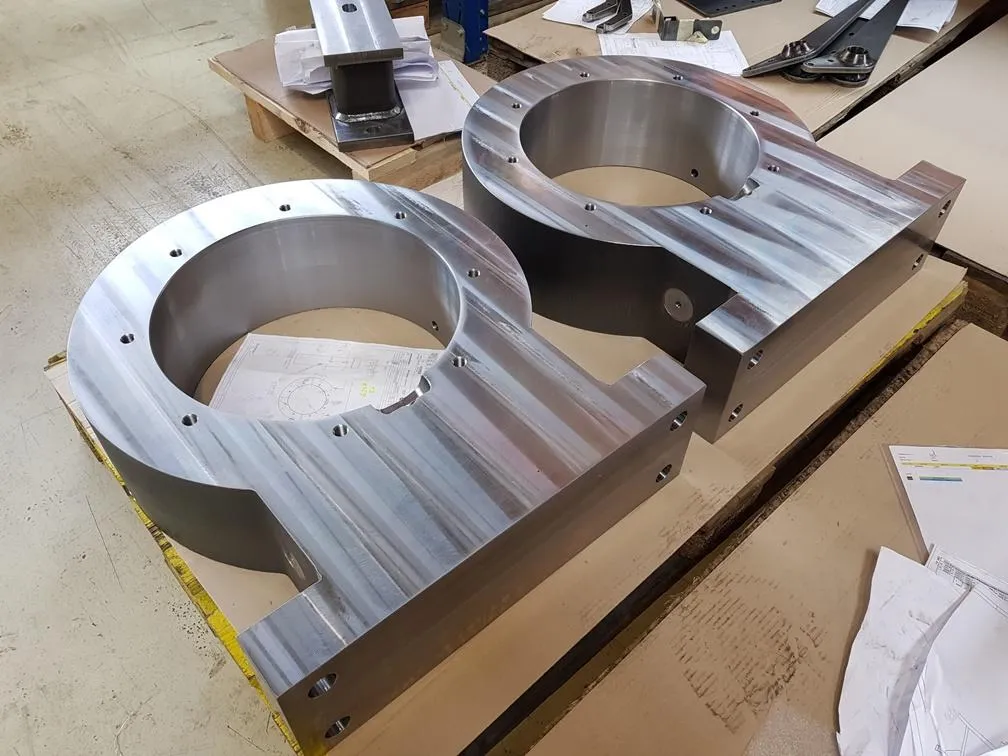

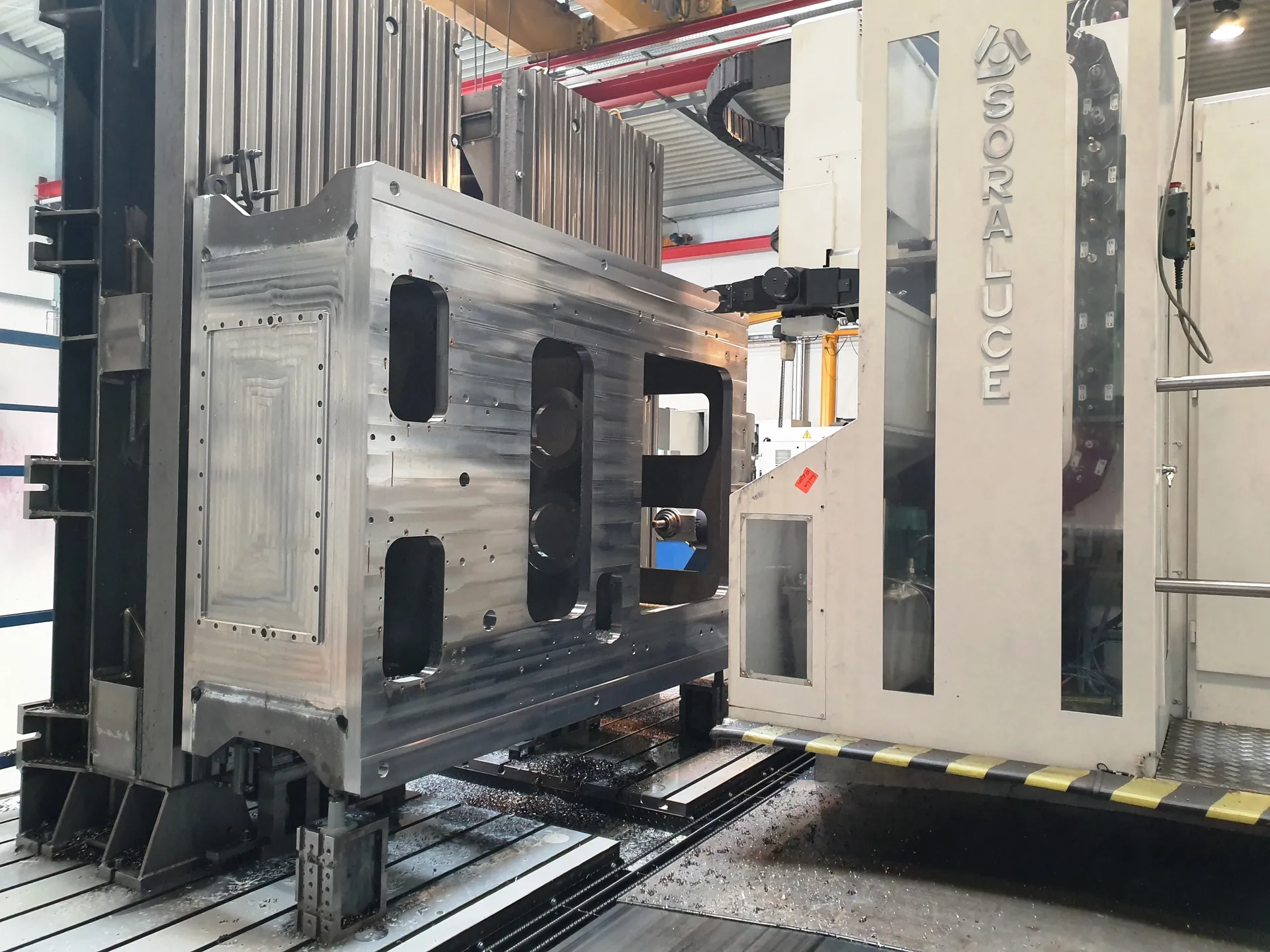

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight

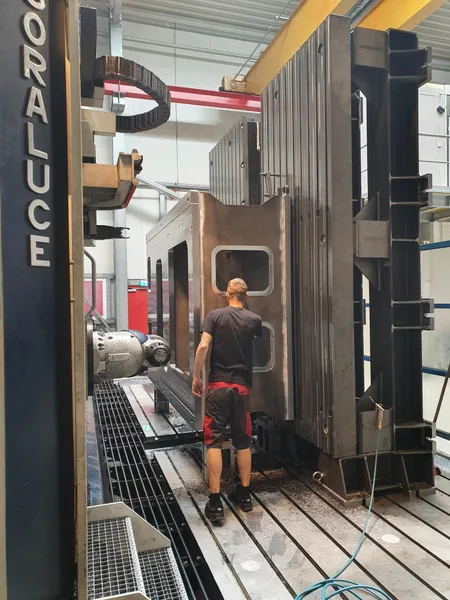

Milling	1–5,000	10–6,000 mm	10–2,100 mm	10–1,300 mm	—	—
5-axis milling machines	1–5,000	1–800 mm	1–800 mm	1–800 mm	—	0–500 kg
Full-range milling (including turning)	1–5,000	10–1,250 mm	10–580 mm	10–580 mm	3–600 mm	—

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Sawing	1–5,000	10–6,000 mm	10–400 mm	10–300 mm	5–300 mm	—
Drilling / threading / tapping	1–5,000	10–6,000 mm	10–2,100 mm	10–1,300 mm	—	0–16,000 kg

Materials

Plastics/synthetic materials

ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsElastomers

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Cast metals

Cast steelCast iron

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Industries

Paper and printing machinery industrySpecial purpose machinery manufacturingPlant engineering and constructionBoiler, container and tank construction Mining and tunnel engineeringApparatus engineeringRailway and rail vehicles industryAutomation and control engineeringBuilding, agricultural and forestry machinery manufacturingAutomotive and vehicle constructionMechanical engineering

+3 moreShow less
