Schink Blechbearbeitung u. Metallbau GmbH & Co.KG
Germany, 96476 Bad Rodach
Overview
About Schink Blechbearbeitung u. Metallbau GmbH & Co.KG
Who we are
The HAM GmbH & Co. KG is an owner-managed medium-sized family. The core manufacturing processes of modern sheet metal processing (lasers, bending, welding). Programming The manufacturing process begins with the powerful 3D software, SheetAdvisor. This is specially designed for sheet metal processing. Settlements for manufacturing accurate modules are thus generated automatically. Using data acquisitions in all popular formats 2D or 3D designs are easily programmable. Lasers Two CNC Laser Cutting Systems (L5030 and L3040) guarantee a high degree of flexibility. Plates with a size of 4000x2000 or 3000x1500 mm are processed by these machines. In the steel sheets up to 25 mm material thickness and stainless steel sheets up to 20 mm still good cutting results are achieved. The 6 KW - laser steel sheets up to 6mm "scale-free" lasered, this guarantees good adhesion when coating. Bending The latest technologies guarantee you also in the bending process dimensionally accurate products. The measuring system ACB our V5230 checks when bending the dimensional accuracy of the angle and corrected automatically. Complex parts are the 6 - axes - easy to program stop. With an edge length of 4000 mm and a pressure of 230 tons, we can serve a wide range of products. A V130 with an edge length of 3000 mm and a pressure of 130 tons completes the machinery. Welding Excellent welder get your products in the form. At seven welding stations steel and stainless steel components are assembled and welded. The welding procedures are MAG, MIG and TIG. Certified staff guarantees high process reliability. Surface finishing Stainless steel parts up to a width of 1000 mm burr and we grind machine with a deburring machine from Weber. To ensure that your products get the right outfit we have partners that the parts coating.Powders, painting, priming galvanizing, galvanizing or radiation, these services are provided by external partners. Product range Individual production and small batch sizes to be as efficient as supplied small recurring series. Parts being manufactured for are: cover plate, cover, flange, housing, Abrasives, cover, flow sheet, shelf sheet, gutter, support tray, exhaust hood, exhaust duct, push units, end plate, end cover, final slide, crowd barriers, spacers, scrapers, weld on, weld flange, welding tongue, Anschweißscheibe , locking plate, drip tray, suspension, support, mounting plate, mounting plate, Ausbrennring, mounting plate, sheet metal, mounting bracket, containers, shim, bend part, sheet metal strip, sheet metal part, sheet metal pan, metal angles, sheet metal blank, visor, blind cover, base, base plate, base plate, bracket, C profile, roof panel, roof segment, cover plate, cover plate, spacer plate, distance
1 / 7
2 / 7
3 / 7
4 / 7
5 / 7
6 / 7
7 / 7
Bad Rodach, Germany
Member since 2001
Premium Member since 2025
Employees20 - 50
Certificates1
Turnover5 - 10 Mil.
Year of foundation1995
Competencies
Technologies
Sheet Metal Processing
| Technologies | Lotsize | Length | Width | Material thickness |
|---|---|---|---|---|
Laser cutting 2D | 1–10 M | 1–4,000 mm | 1–2,000 mm | 0.3–25 mm |
Bending / folding | 1–10 M | 10–4,000 mm | — | 0.3–15 mm |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–150 kg |
Industrial / On-site-assembly | 0–150 kg |
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 1–50,000 | 1–4,000 mm | 1–4,000 mm | 1–4,000 mm | — | 0–3,000 kg |
Inert gas shielded arc welding (TIG) | 1–50,000 | 1–3,000 mm | 1–3,000 mm | 1–3,000 mm | — | 0–3,000 kg |
Laser-beam welding | 1–10 M | 1–1,000 mm | 1–1,000 mm | 1–1,000 mm | 1–500 mm | 0–100 kg |
Robot welding | 1–10 M | 1–2,550 mm | 1–1,250 mm | 1–1,000 mm | — | 0–250 kg |
Stud welding | 1–10 M | — | — | — | — | — |
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Welded constructions (weldments) | 1–10,000 mm | 1–10,000 mm | 1–10,000 mm | 0–3,000 kg |
Machine frames / bases / racks | 1–10,000 mm | 1–10,000 mm | 1–10,000 mm | 0–3,000 kg |
Assembly Group Manufacturing
| Technologies | Lotsize | Material thickness |
|---|---|---|
Folding | 1–10 M | 0.3–2 mm |
Materials
Light metals
Aluminium and aluminium alloys
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steel
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloys
Industries
Construction and architectural suppliesBoiler, container and tank construction Power generation and transmission industryFittings engineeringPlant engineering and constructionHousehold appliance industryOffice machinery and suppliesRailway and rail vehicles industryClean room technologyLighting industryInformation technology (hardware)Electrical industryMedical technologyChemical industryDrive and gear engineeringMining and tunnel engineeringTelecommunication industryMechanical engineeringShipbuilding industryFurniture industryAerospace and aviation industryMachine tool manufacturingApparatus engineeringHydraulic and pneumatic industrySpecial purpose machinery manufacturingPrecision engineering, mechatronics and opticsAutomotive and vehicle constructionBuilding, agricultural and forestry machinery manufacturingAutomation and control engineeringAir conditioning, refrigeration and ventilation industryMeasurement and control technique, laboratory equipmentMilitary engineeringPaper and printing machinery industryPackaging industry
Certificates
No certificates
Parts & Machines
Parts (8)
1 / 8

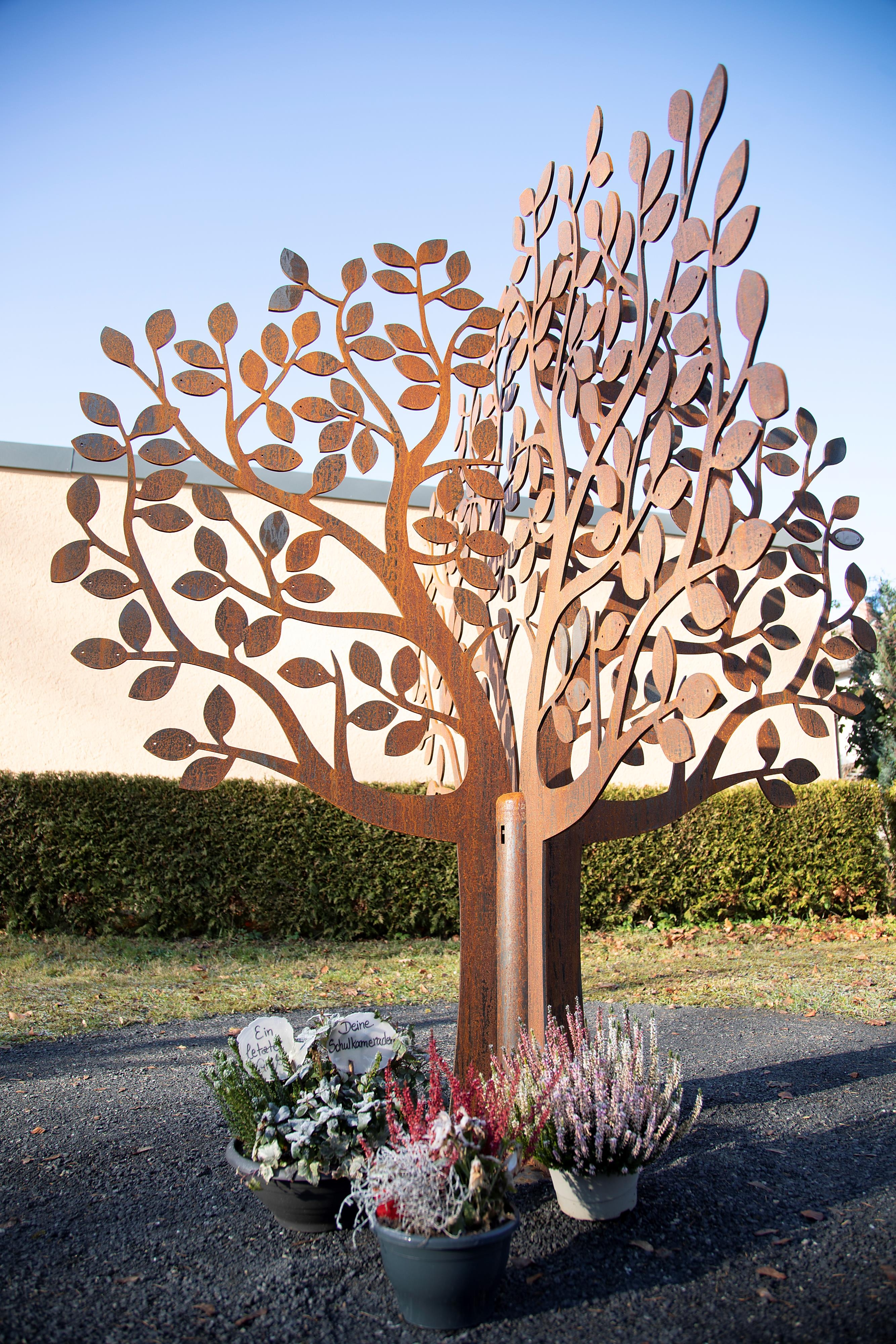

Gedenkbaum
TechnologyLaser cutting 2D
MaterialStructural steel
Dimensions
Material thickness8 mm
Length2500 mm
Width2500 mm
Lotsize1
2 / 8

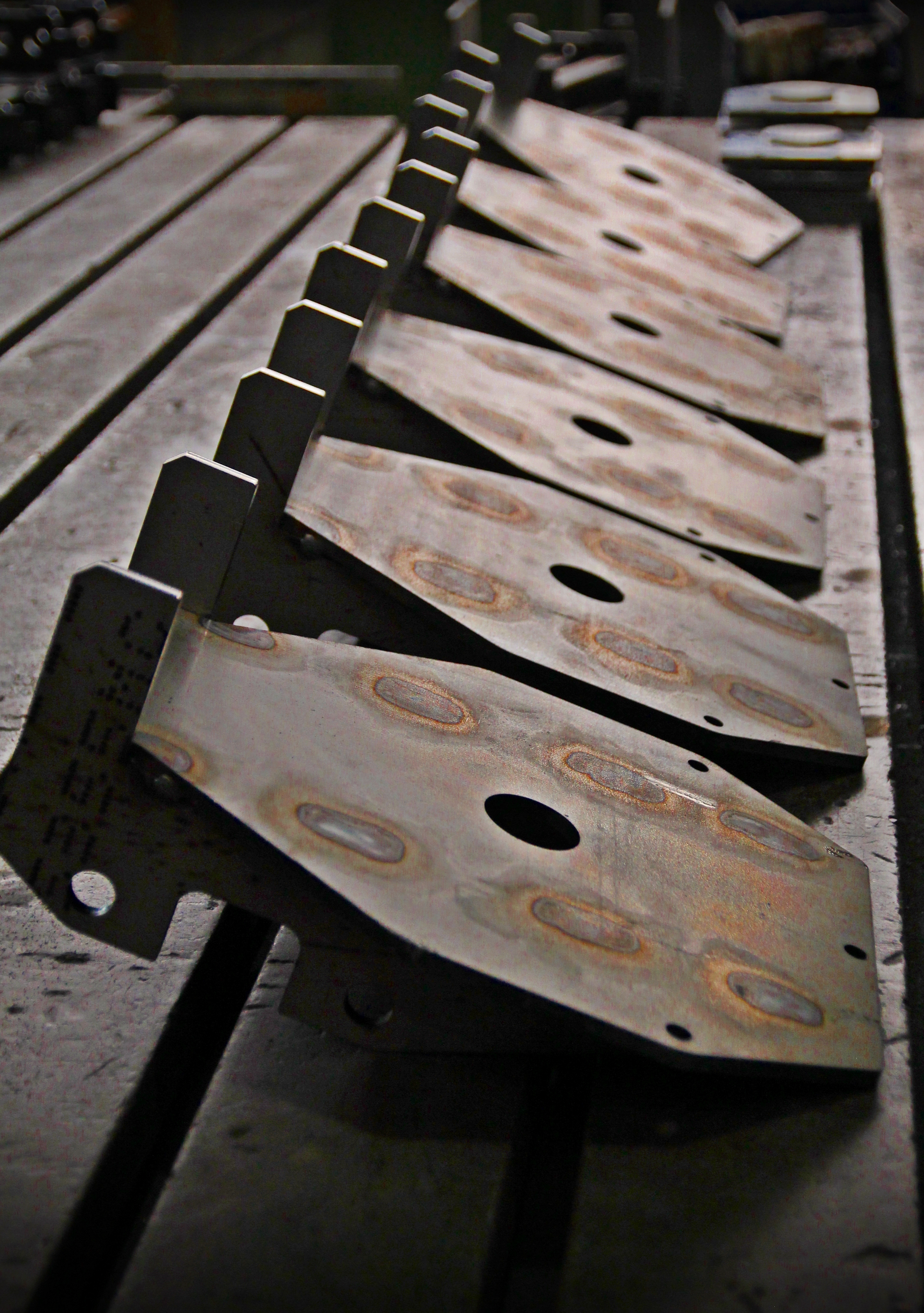

Grundplatte
TechnologyInert gas shielded arc welding (MIG/MAG)
MaterialStructural steel
Dimensions
Height300 mm
Length300 mm
Width300 mm
Weight15 mm
Lotsize30
IndustriesAutomotive and vehicle construction
3 / 8

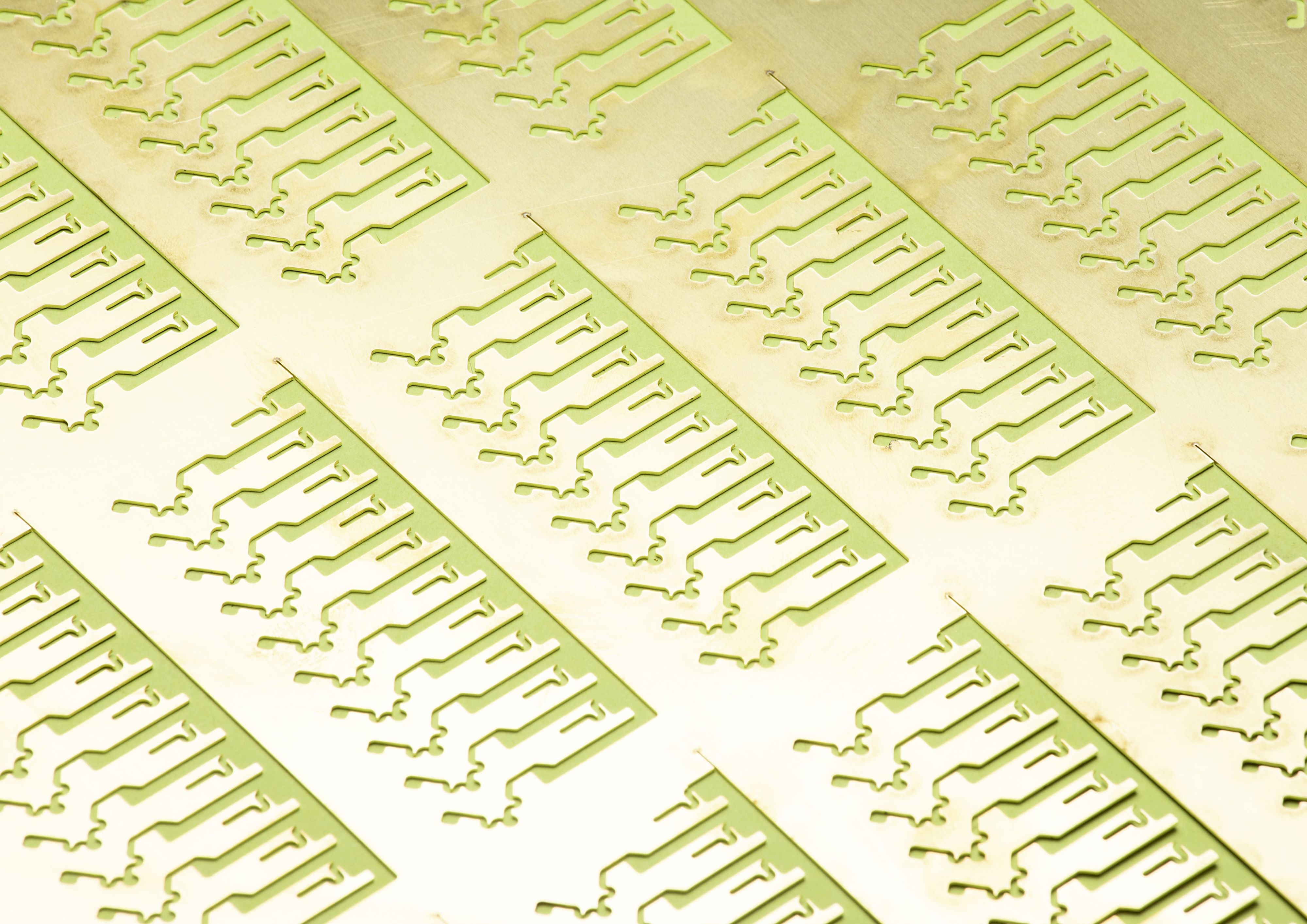

filigranes Messing-Laserteil mit Microjoints im Restgitter
TechnologyLaser cutting 2D
MaterialCopper-zinc alloys (brass)
Dimensions
Material thickness0.6 mm
Length10.9 mm
Width33.1 mm
Lotsize3000
ComplexityHigh
IndustriesElectrical industry
DescriptionFiligranes Laserteil aus Messing mit feiner Kontur. Die Teile bleiben über Microjoints prozesssicher im Restgitter angebunden und können so sauber weiterverarbeitet werden.
4 / 8

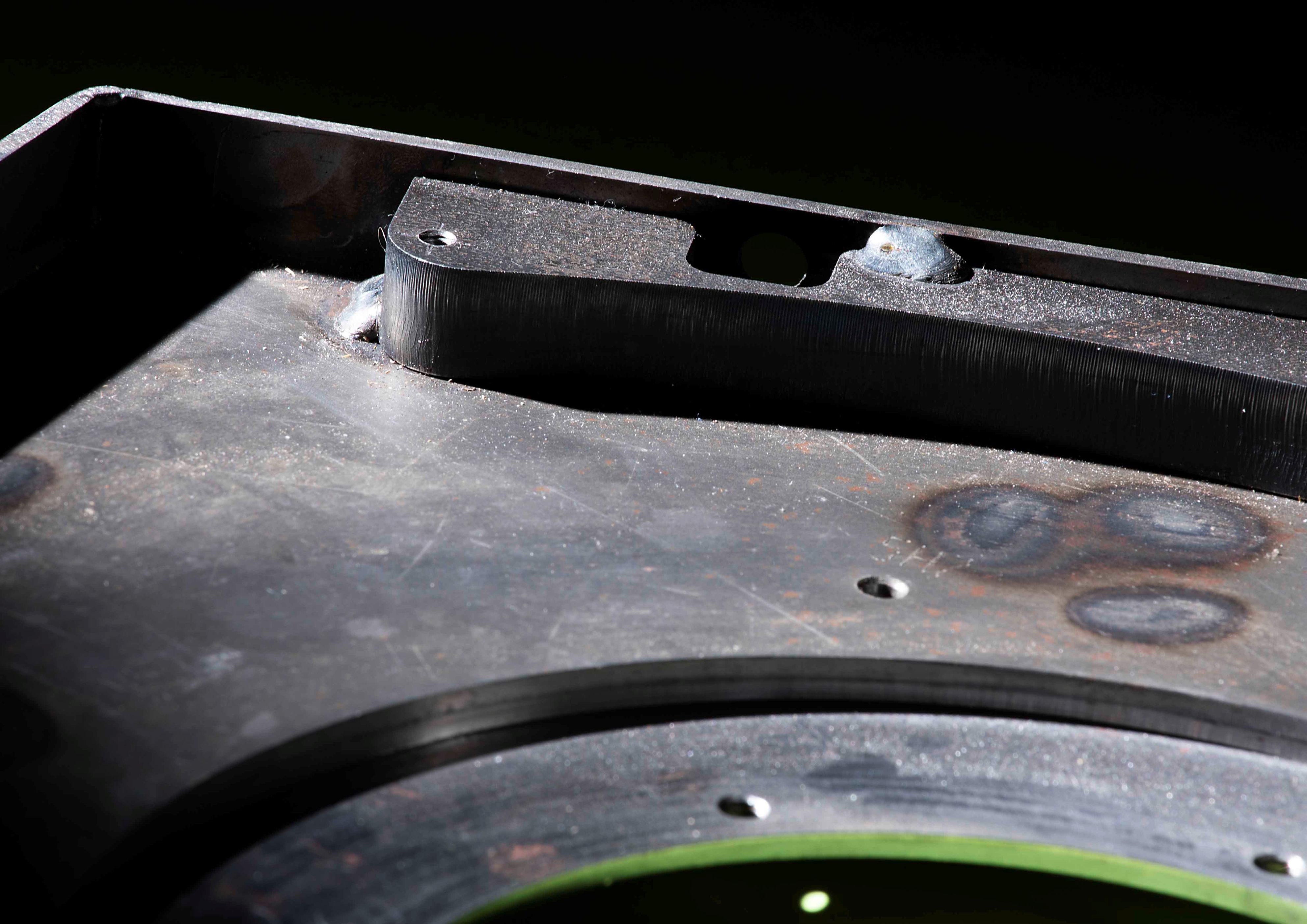

geschweißte Grundplatte aus Stahl mit Fräsbearbeitung
TechnologyInert gas shielded arc welding (MIG/MAG)
MaterialSteel
Dimensions
Height10 mm
Weight50 mm
Length800 mm
Width800 mm
ComplexityHigh
IndustriesAutomotive and vehicle construction
DescriptionGrundplatte aus Stahlblech in kleiner Losgröße gefertigt. Die Baugruppe wird von Hand MAG-geschweißt und durch ergänzende Fräsbearbeitung passgenau für die weitere Verwendung ausgeführt.
5 / 8

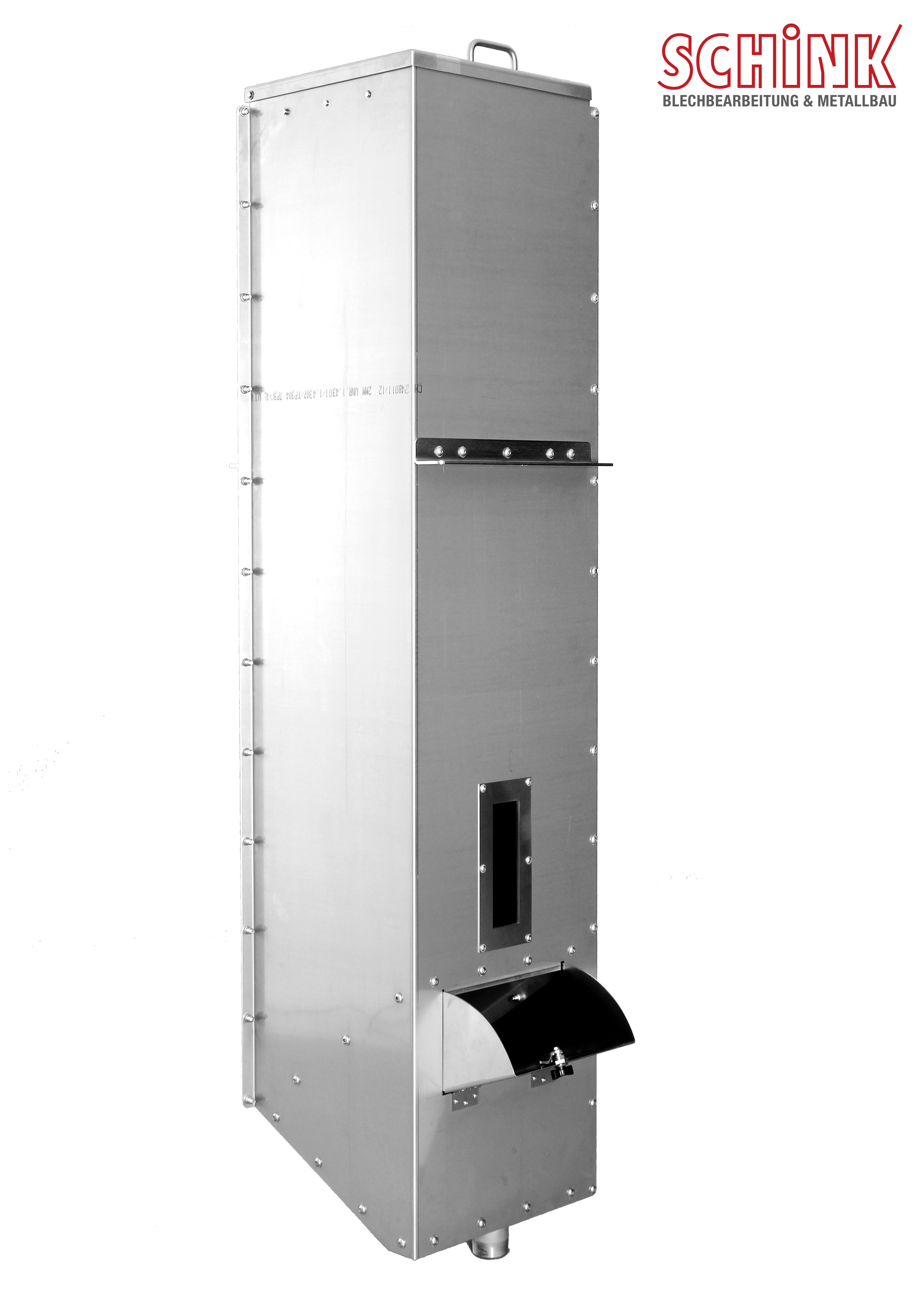

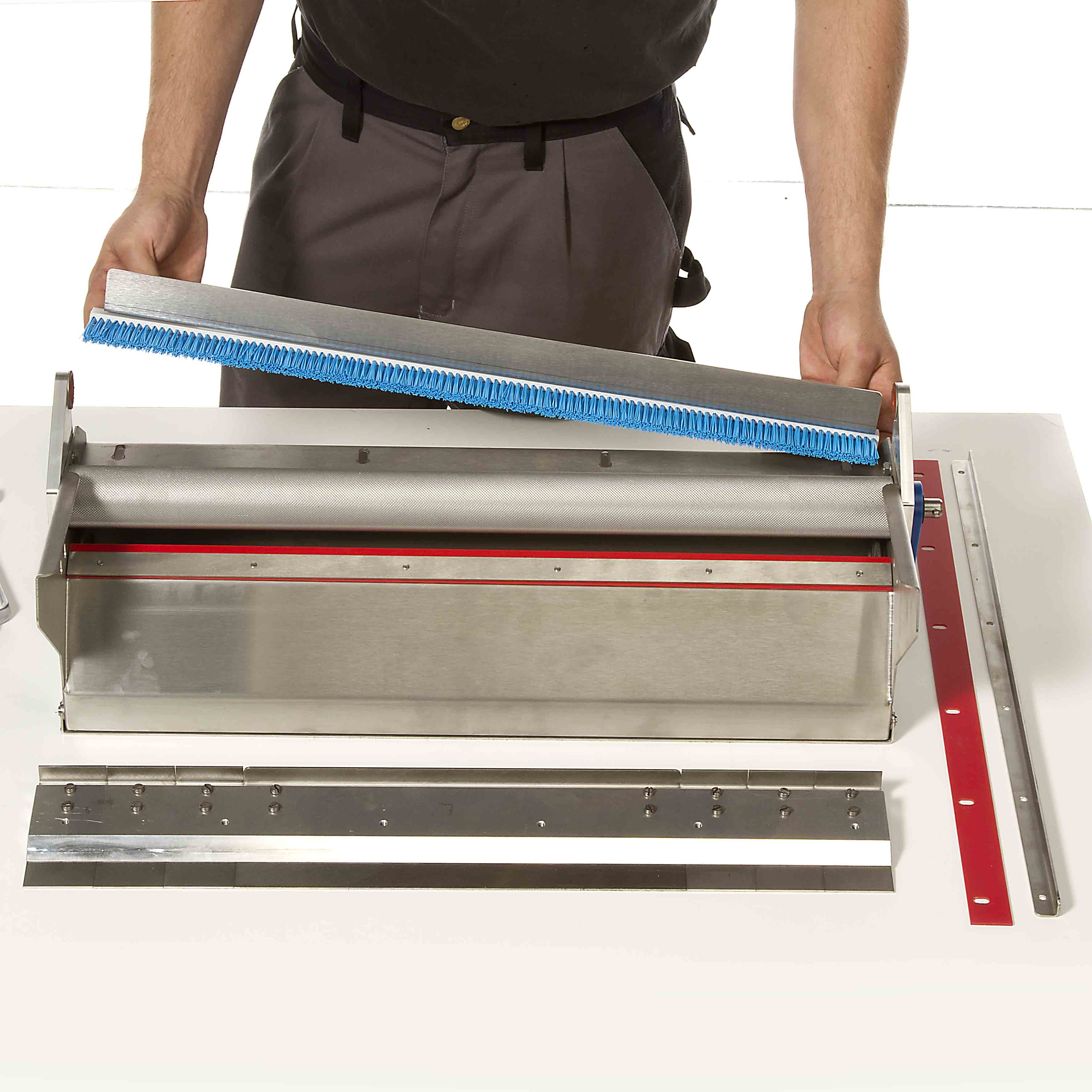

Komplett montierte Blechbaugruppe mit Zukaufteilen
TechnologyIndustrial / On-site-assembly
MaterialStainless steel (rust-proof V2A)
Dimensions
Weight30 mm
ComplexityHigh
IndustriesPlant engineering and construction
DescriptionKomplett montierte Baugruppe inklusive abgestimmter Zukaufteile. Durch die Zusammenführung von Eigenfertigung und Partnerkomponenten wie Kunststoffabstreifern und Wellen liefern wir eine passgenaue, montagefertige Lösung aus einer Hand.
6 / 8

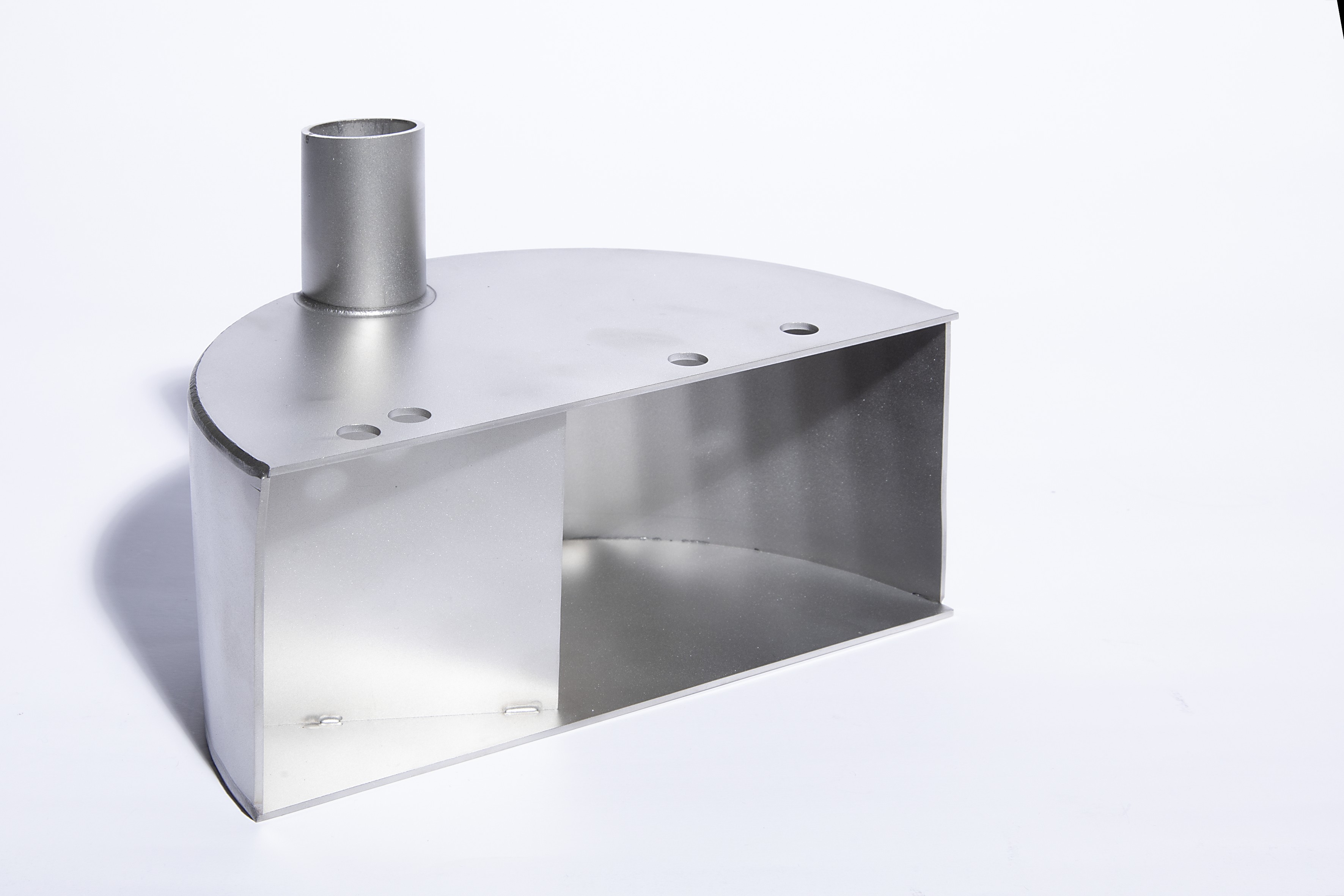

Edelstahlbaugruppe lasergeschweißt, präzise und verzugsarm gefertigt
TechnologyLaser-beam welding
MaterialStainless steel (rust-proof V2A)
Dimensions
Weight2 mm
Length200 mm
Diameter200 mm
Height200 mm
Width200 mm
ComplexityHigh
IndustriesPaper and printing machinery industry
DescriptionLasergeschweißte Baugruppe aus Edelstahl mit hoher Maßhaltigkeit und sauber ausgeführten Schweißnähten. Durch das Laserschweißen entsteht ein verzugsarmes Bauteil, das direkt weiterverarbeitet werden kann.
7 / 8

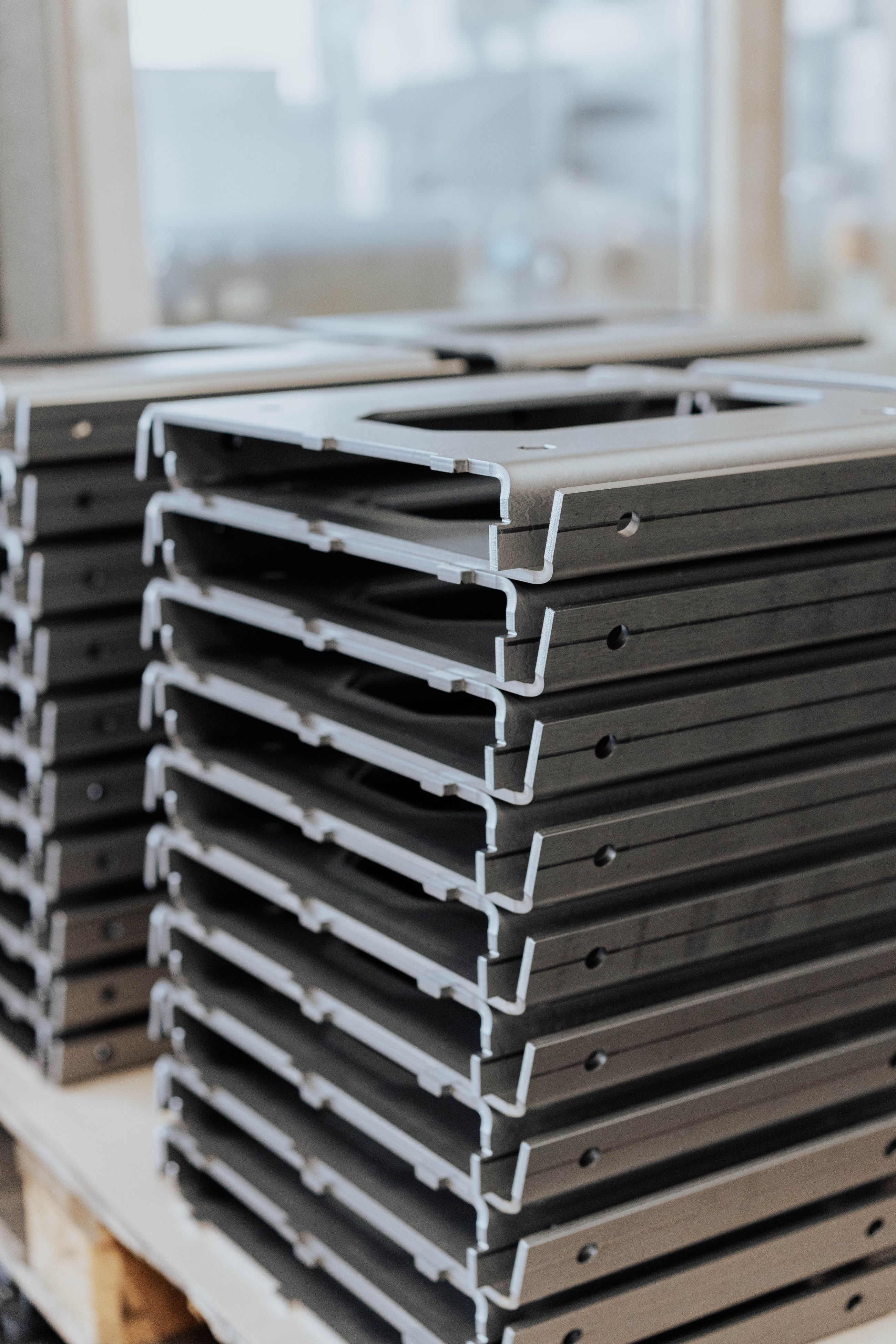

Laser-Kantteil aus Stahl 6 mm, wiederkehrende Serie
TechnologyBending / folding
MaterialSteel
Dimensions
Material thickness450 mm
Length350 mm
ComplexityMedium
IndustriesPlant engineering and construction
DescriptionWiederkehrendes Laser-Kantteil aus Stahl 6 mm. Durch die automatisierte Fertigung im Lasern und Kanten realisieren wir kurze Durchlaufzeiten vom Bestelleingang bis zur Lieferung.
8 / 8

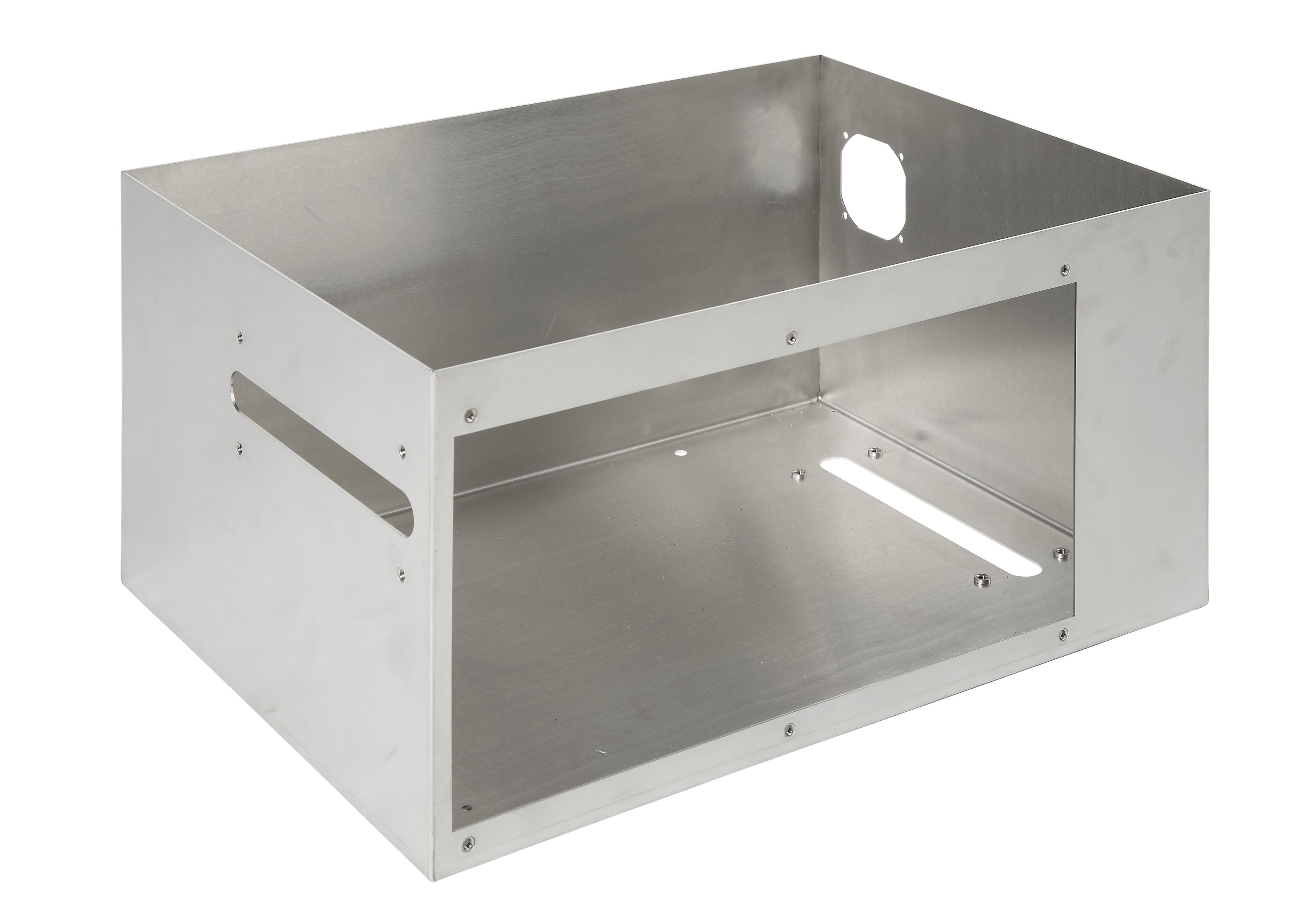

Edelstahlgehäuse lasergeschweißt, montiert, in Kleinserie gefertigt
TechnologyLaser-beam welding
MaterialStainless steel (rust-proof V2A)
Dimensions
Width220 mm
Diameter430 mm
Length550 mm
Weight7 mm
Height2 mm
ComplexityHigh
IndustriesMechanical engineering
DescriptionEdelstahlgehäuse gefertigt aus Laser-, Biege- und Schweißteilen, inklusive Entgraten und Montage. Die Baugruppe wird passgenau gefertigt und montagefertig geliefert, auch in wiederkehrenden Kleinserien.
Machinery (10)
1 / 10
TruLaser Center 7030 vollautomatisches Laserschneiden für stabile Prozesse und wirtschaftliche Serienfertigung
ManufacturerTRUMPF
ControlSiemens
Year of Construction2025
Technology
Laser cutting 2D
2 / 10

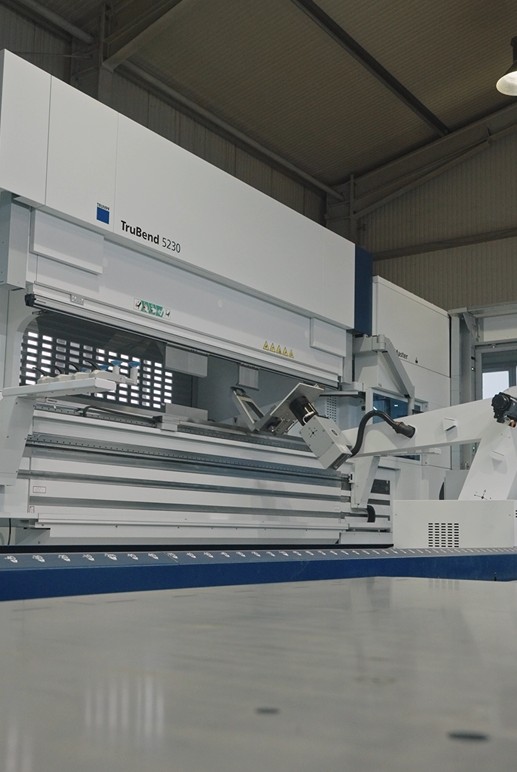

TruBend Cell 5000 automatisiertes Abkanten für präzise Winkel und gleichbleibende Qualität in der Serie
ManufacturerTRUMPF
ControlSiemens
Year of Construction2025
Technology
Bending / folding
3 / 10

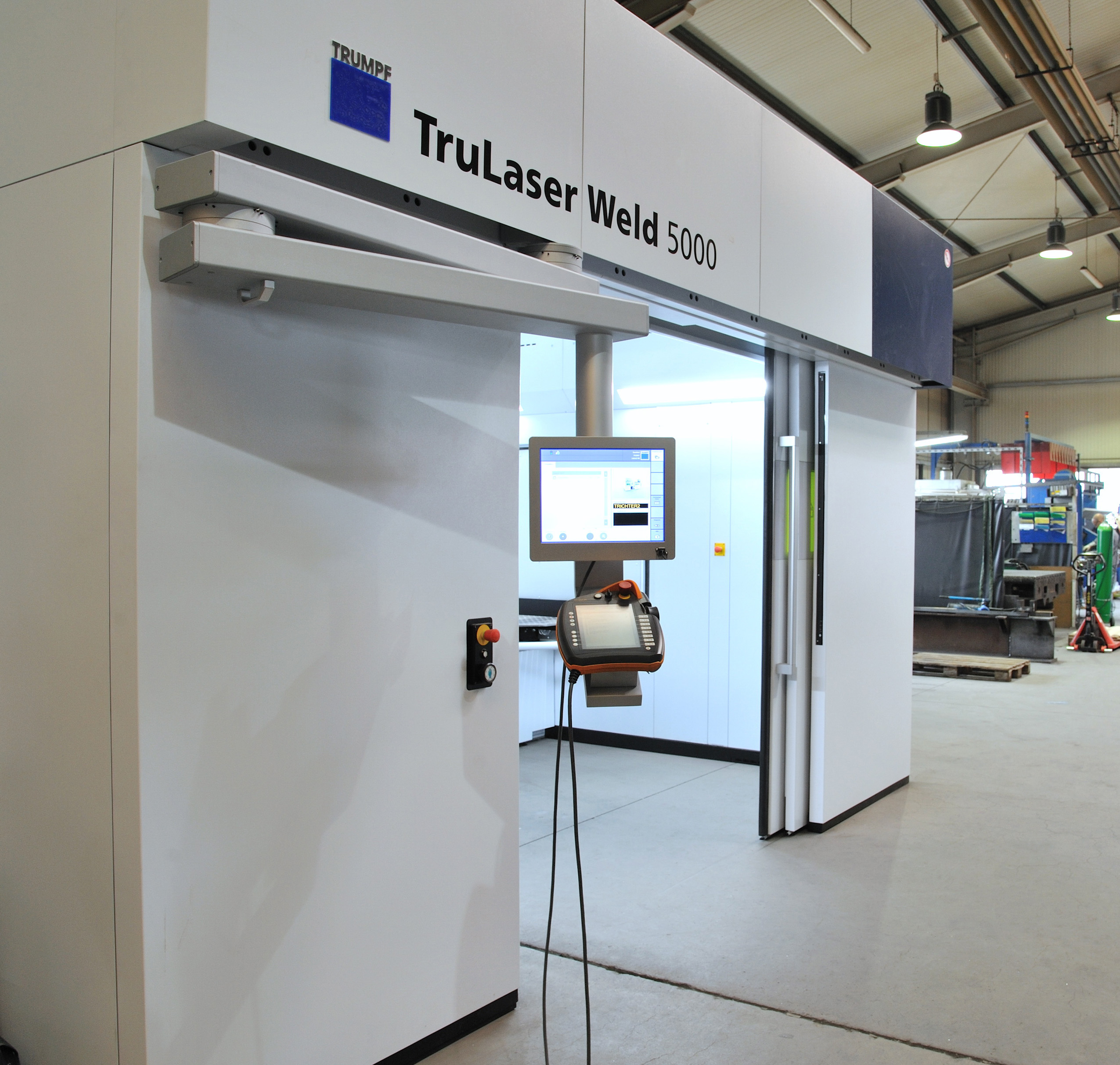

TruLaser Weld 5000 präzises Laserschweißen für verzugsarme Bauteile und saubere Schweißnähte
ManufacturerTrumpf
Control-
Year of Construction2017
Technology
Laser-beam welding
4 / 10

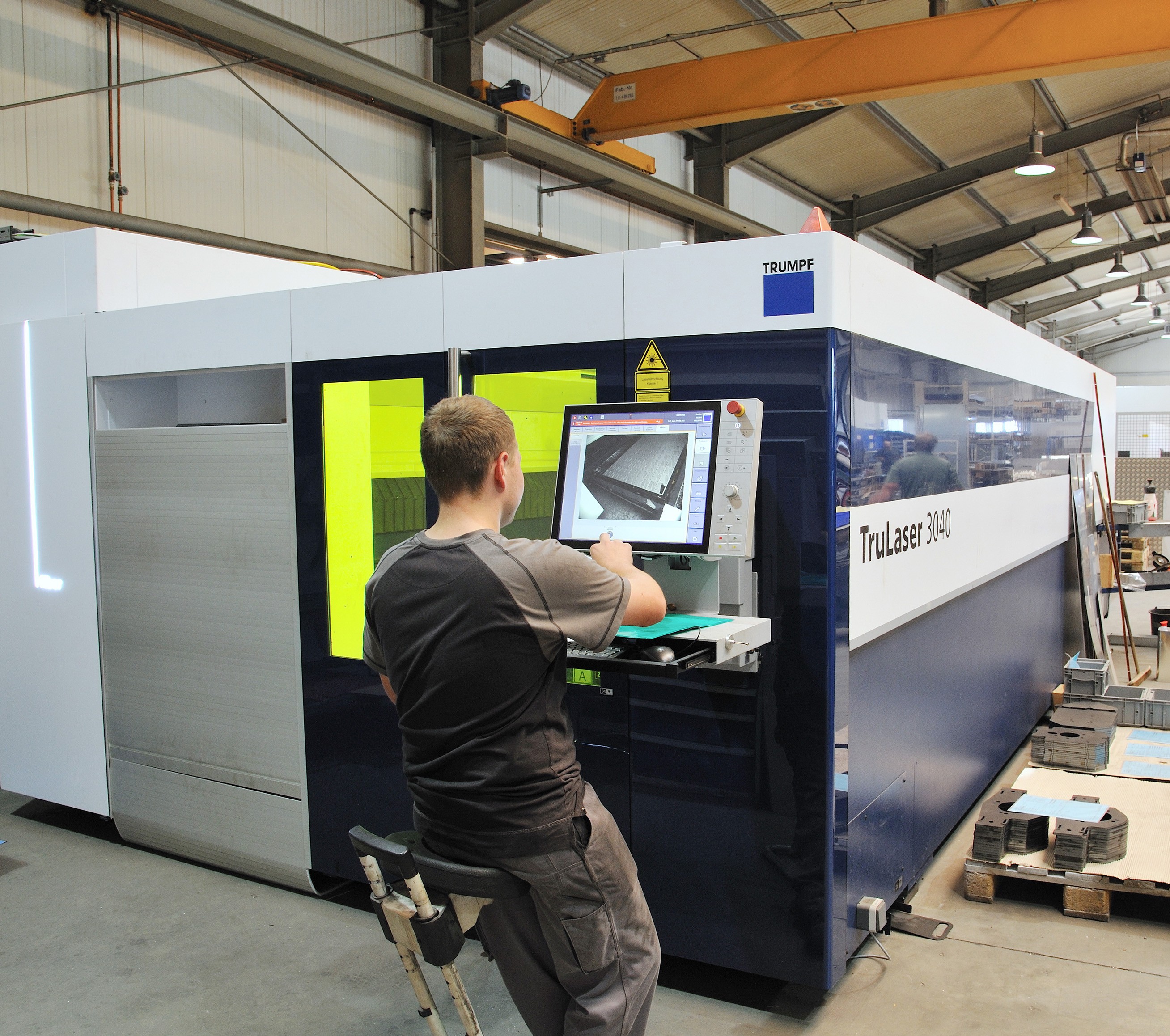

TruLaser 3040 flexibles Laserschneiden von Sonderformatblechen bis 4 x 2 m für wirtschaftliche Einzel- und Serienteile
ManufacturerTRUMPF
Control-
Year of Construction2017
Technology
Laser cutting 2D
5 / 10
TRUMATIC L3040
ManufacturerTRUMPF
ControlSinumerik 840D
Year of Construction2008
Technology
Laser cutting 2D
6 / 10

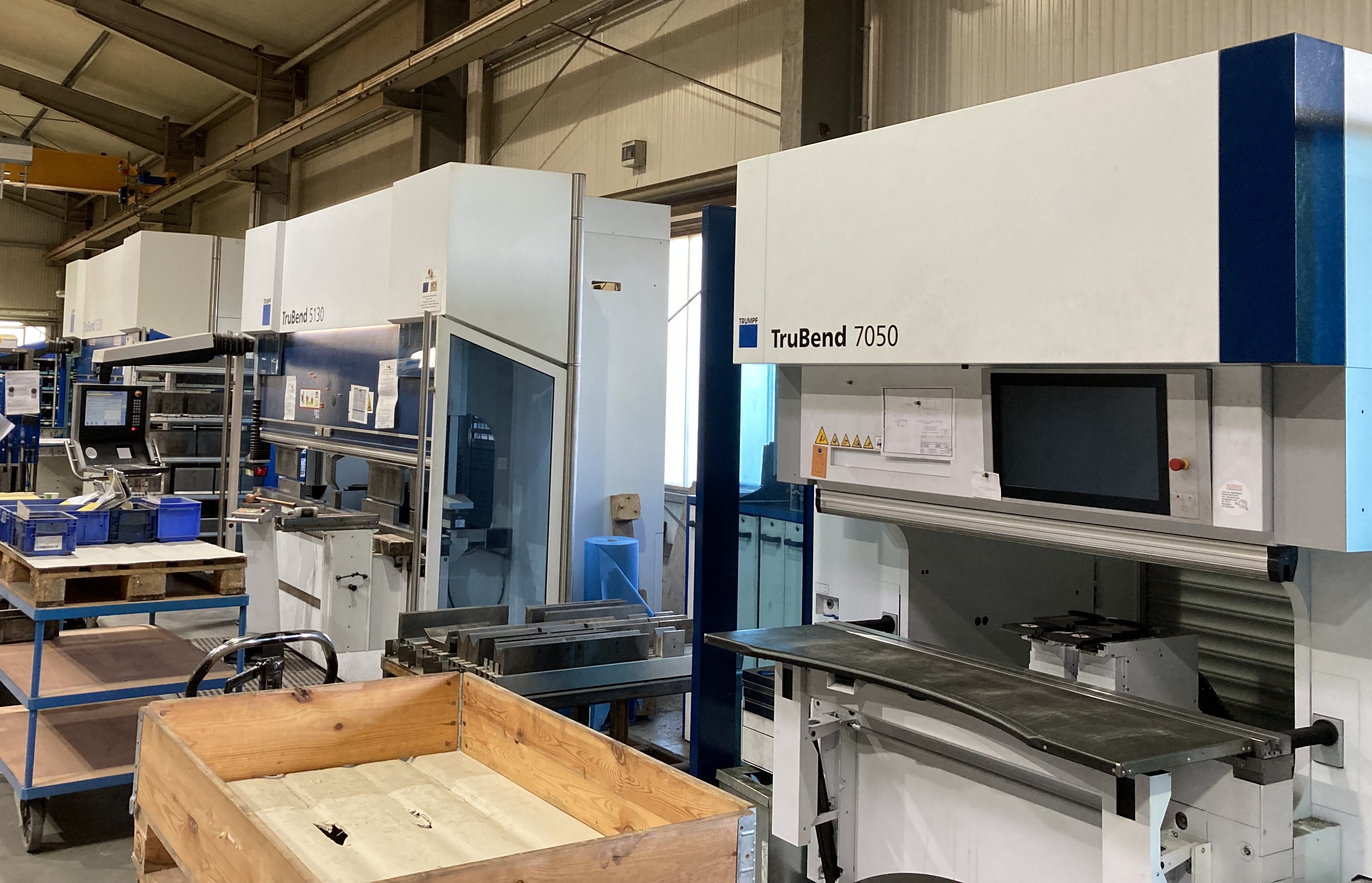

TrumaBend 7050 präzises Biegen auch bei kleineren und anspruchsvollen Bauteilen
ManufacturerTRUMPF
Control-
Year of Construction2021
Technology
Bending / folding
7 / 10

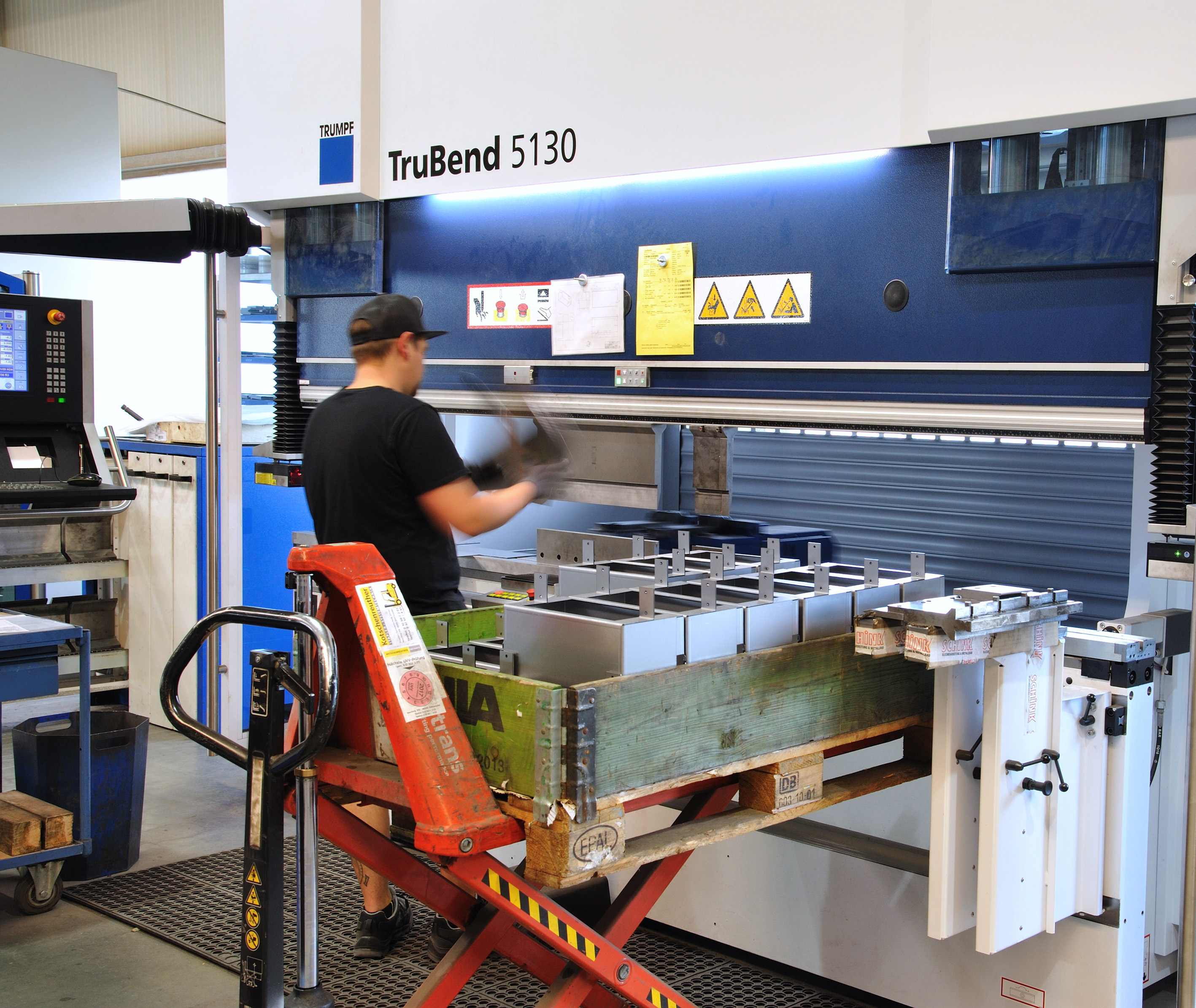

TrumaBend 5130 flexibles Abkanten von Standard- und Serienteilen bis 3 m Länge mit hoher Wiederholgenauigkeit
ManufacturerTRUMPF
Control-
Year of Construction2017
Technology
Bending / folding
8 / 10
TrumaBend V 5230 leistungsstarkes Abkanten großer Bauteile bis 4 m Länge mit messsystemgestützter Winkelkorrektur
ManufacturerTRUMPF
ControlTASC6000
Year of Construction2008
9 / 10

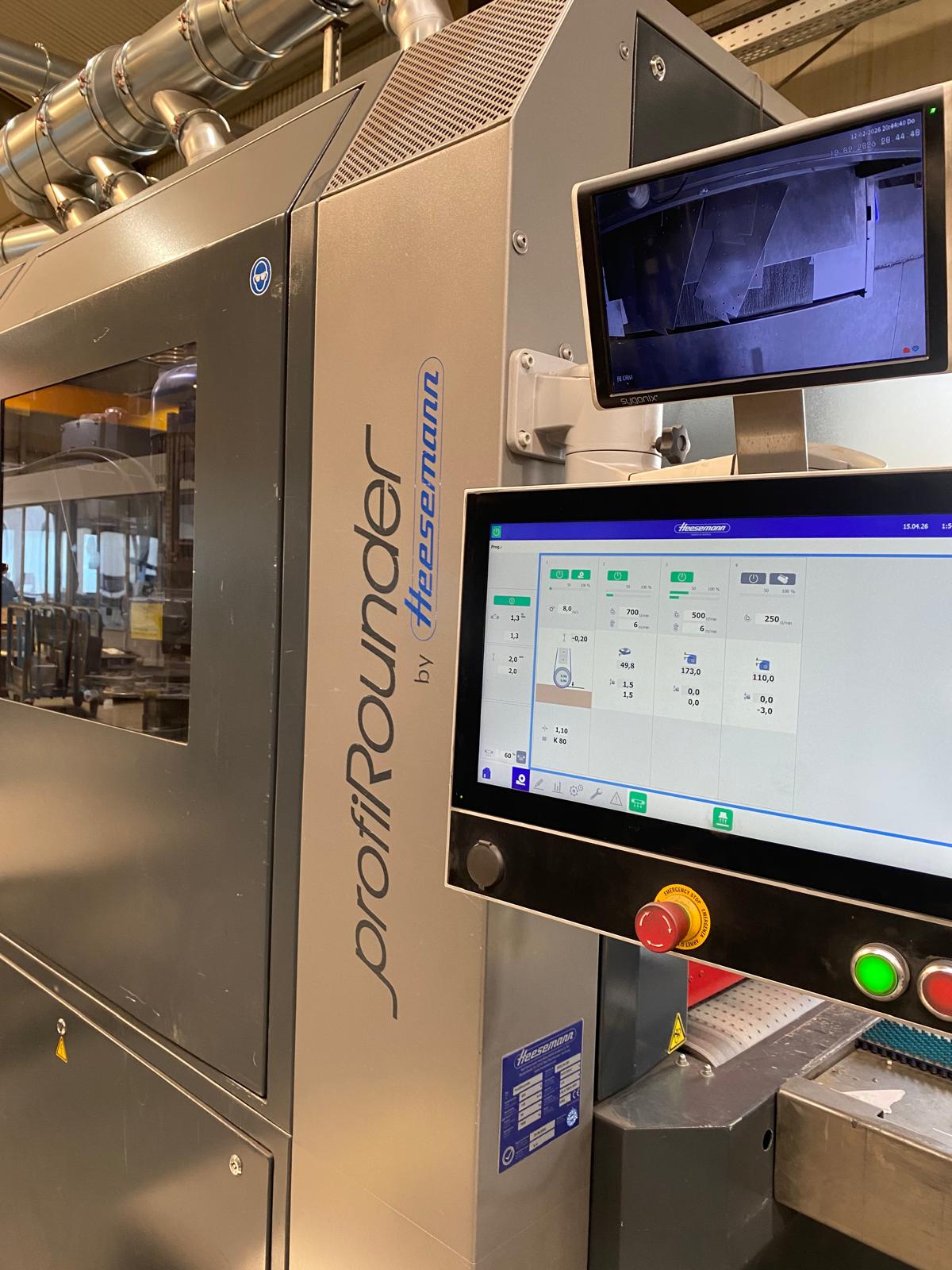

ProfiRounder maschinelles Entgraten für saubere Kanten und eine sichere Weiterverarbeitung
ManufacturerHeesemann
Control-
Year of Construction2022
Technology
Rotofinishing, barrel finishing
10 / 10

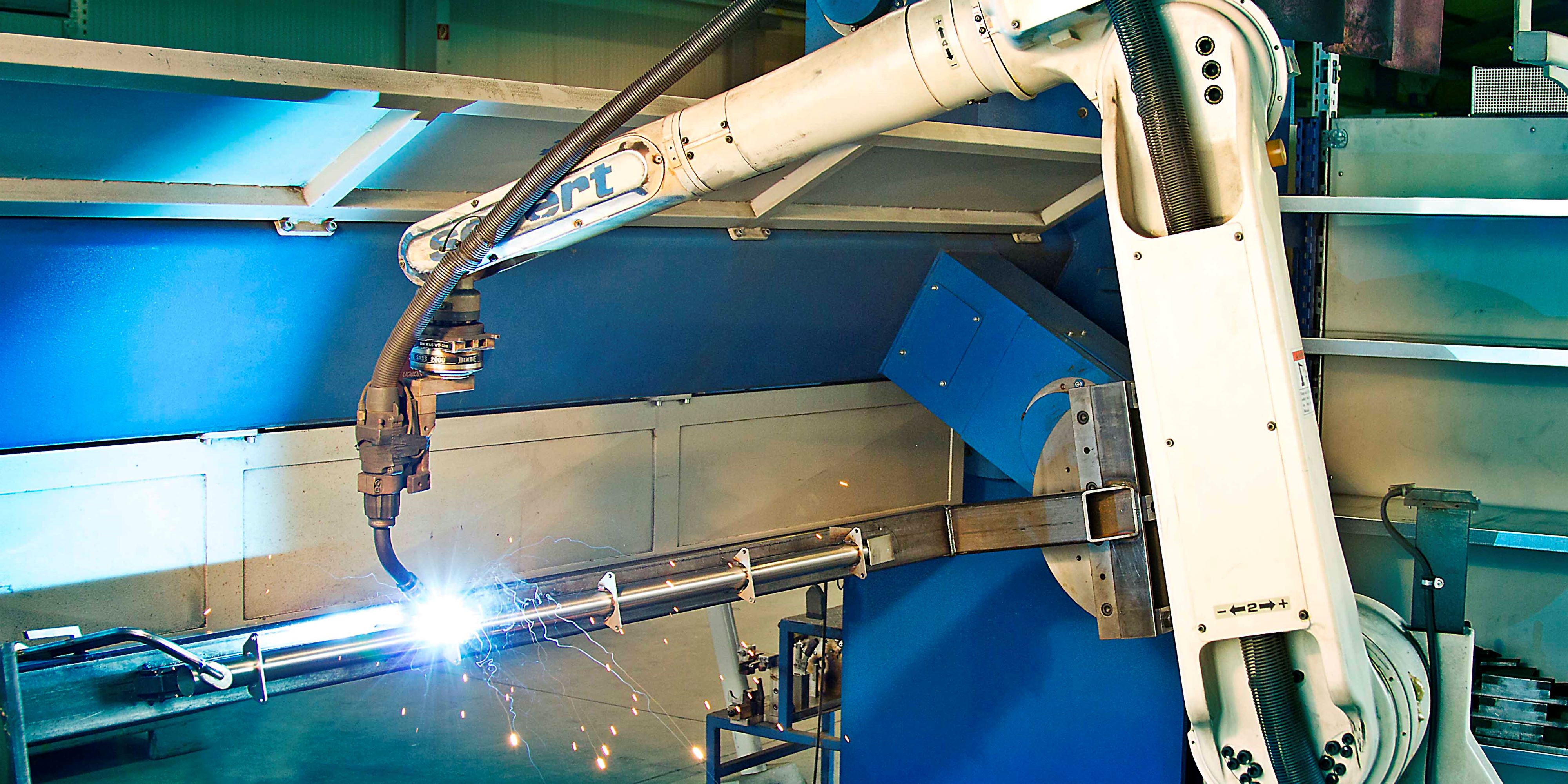

Schweißroboter reproduzierbare Schweißqualität für stabile Serien und gleichbleibende Ergebnisse, ideal für wiederkehrende Baugruppen
ManufacturerSevert
Year of Construction2005
Technology
Welded constructions (weldments)Inert gas shielded arc welding (MIG/MAG)Inert gas shielded arc welding (TIG)
8 Parts
Laser cutting 2D2
Inert gas shielded arc welding (MIG/MAG)2
Industrial / On-site-assembly1
Laser-beam welding2
Bending / folding1
10 Machinery
Laser cutting 2D3
Bending / folding3
Laser-beam welding1
Rotofinishing, barrel finishing1
Welded constructions (weldments)1
Inert gas shielded arc welding (MIG/MAG)1
Inert gas shielded arc welding (TIG)1
