Schmidt Automotive GmbH

Germany, 73463 Westhausen-Lippach

Overview

About Schmidt Automotive GmbH

Who we are

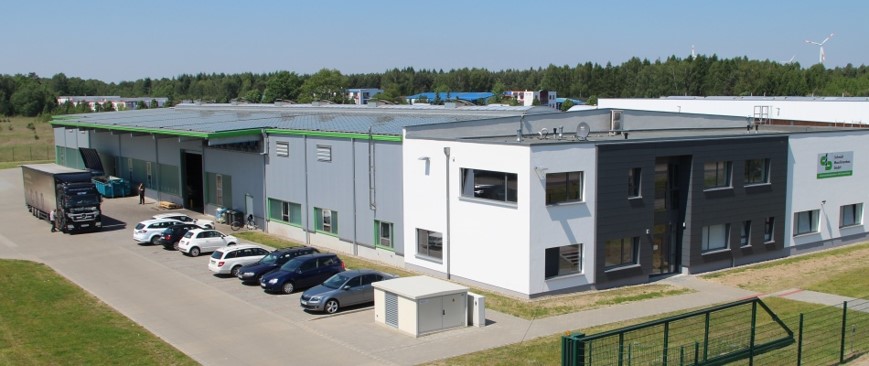

Welcome to Schmidt Automotive, we are pleased that you are here! Complex automotive components and sophisticated machine parts: That is Schmidt's competence as a developer and manufacturer. Economical manufacturing processes, precision and reliability at the highest technical level, a comprehensive quality management system, these are our strengths. Find out more about Schmidt - and specifically about how you can benefit from Schmidt's expertise and performance and visit our website with our image video. Our name is known and our performance is valued. Over the past few decades, Schmidt's customer database has been continuously filled with well-known companies. More than 390 employees are currently spread across three locations. Ready-to-install components and assemblies are manufactured at the headquarters in Westhausen, Swabia. In addition to the latest CNC machining technology, multi-stage manufacturing processes are also installed here. The location in Eberswalde in Brandenburg was founded in 2010 to create production capacities for automotive projects in particular. The state-of-the-art machine park currently covering 12,000 m² enables efficient large-scale production with a maximum degree of automation at the highest technical level. At the beginning of 2016, we started series production at our newest location in the USA in Auburn, Alabama. The classics - turning and milling - are still the central processes at Schmidt. Individually tailored to the respective product segment, Schmidt always has the right production facility, regardless of whether it is to be processed from the bar or in the chuck. Over the years, further manufacturing technologies have been continuously integrated into our process chains. This includes, for example, swaging and axial forming. For most components, there are also various downstream operations on the plan, such asB. hardening processes, cylindrical grinding and surface finish individually tailored to the component. Our quality management system is certified according to ISO / TS 16949: 2009. As a direct supplier to well-known OEMs, our quality structure is based on the rules and criteria of the VDA. In this context, tools such as failure mode and influence analyzes FMEA, statistical process control SPC and VDA supplier audits are part of our daily work.

Westhausen-Lippach, Germany

Member since 2020

Employees200 - 500

Certificates2

Turnover100 - 500 Mil.

Year of foundation1985

Marketing documents

DIN EN ISO - 14001 - Englisch DIN EN ISO - 14001 - Deutsch DIN EN ISO - 50001- Deutsch DIN EN ISO - 50001- Englisch IATF 16949 - Französisch IATF 16949 - Englisch IATF 16949 - Deutsch IATF 16949 - EW - Deutsch IATF 16949 - EW - Englisch

Competencies

Technologies

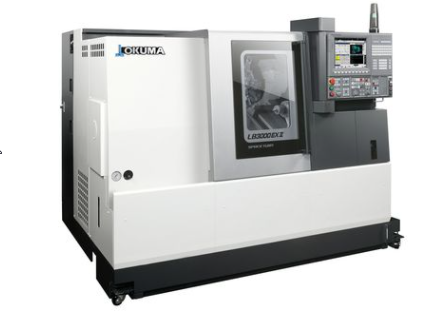

Turning

Technologies	Lotsize	Length	Diameter	Weight
Turning	100–100,000	20–400 mm	20–250 mm	—
Automatic turning (bar)	100–100,000	20–400 mm	20–250 mm	—
Swiss turning	200–200,000	50–400 mm	20–60 mm	—
Full-range turning (including milling)	100–100,000	20–400 mm	20–250 mm	—
Hard turning	100–100,000	50–400 mm	20–250 mm	—
Centering / end facing	100–100,000	50–500 mm	20–60 mm	—
Shaft machining	100–100,000	50–400 mm	20–60 mm	0–15 kg

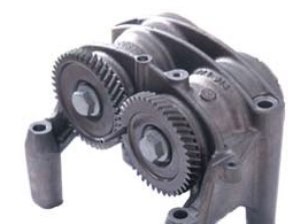

Gear Making

Technologies	Lotsize	Length	Diameter	Weight
Cylindrical gear / spur gear	50–100 k	15–100 mm	50–250 mm	—
Internal teeth	50–100 k	5–300 mm	50–250 mm	0–15 kg
Bevel gear wheel	50–100 k	50–300 mm	50–250 mm	0–15 kg

Threading

Technologies	Lotsize	Length	Diameter
Thread rolling	50–100 k	50–400 mm	20–250 mm

Assembly

Technologies	Weight
Mechanical assembly	0–250 kg

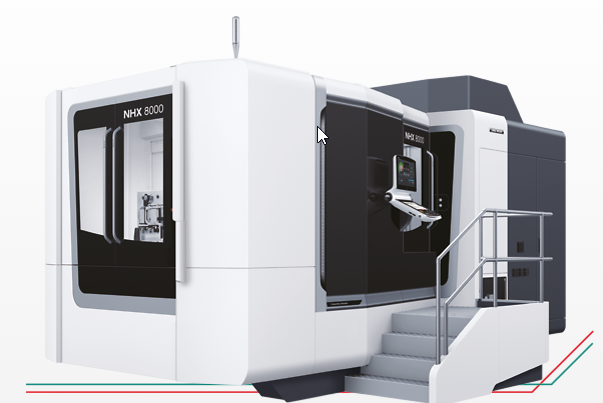

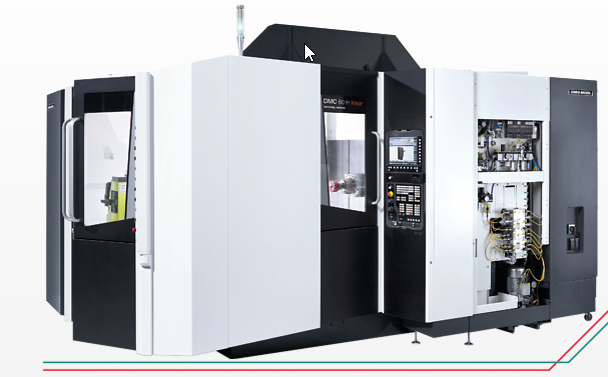

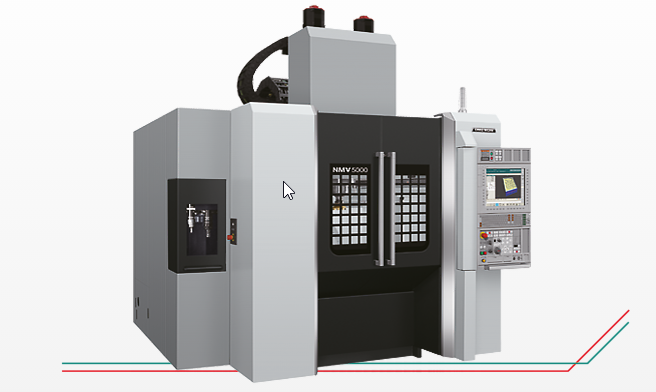

Milling

Technologies	Lotsize	Length	Width	Height	Diameter
Milling	100–100,000	100–1,400 mm	100–1,400 mm	100–800 mm	—
5-axis milling machines	100–100,000	100–800 mm	100–800 mm	100–1,400 mm	—
Full-range milling (including turning)	100–100,000	100–1,400 mm	100–1,400 mm	100–800 mm	20–100 mm

Solid Forming

Technologies	Lotsize	Length	Diameter
Rotary kneading / swaging (hollow section)	50–200 k	200–500 mm	20–50 mm
Rotary kneading / swaging (solid section)	50–200 k	200–500 mm	20–50 mm

Materials

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelCold extruding steel

Heavy metals

Copper-zinc alloys (brass)

Cast metals

Cast steelCast iron

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Industries

Drive and gear engineeringMechanical engineeringMilitary engineeringPrecision engineering, mechatronics and opticsSpecial purpose machinery manufacturingBuilding, agricultural and forestry machinery manufacturingAutomotive and vehicle constructionHydraulic and pneumatic industryElectrical industry

+1 moreShow less
