About SCHORPP Technologie GmbH
Who we are

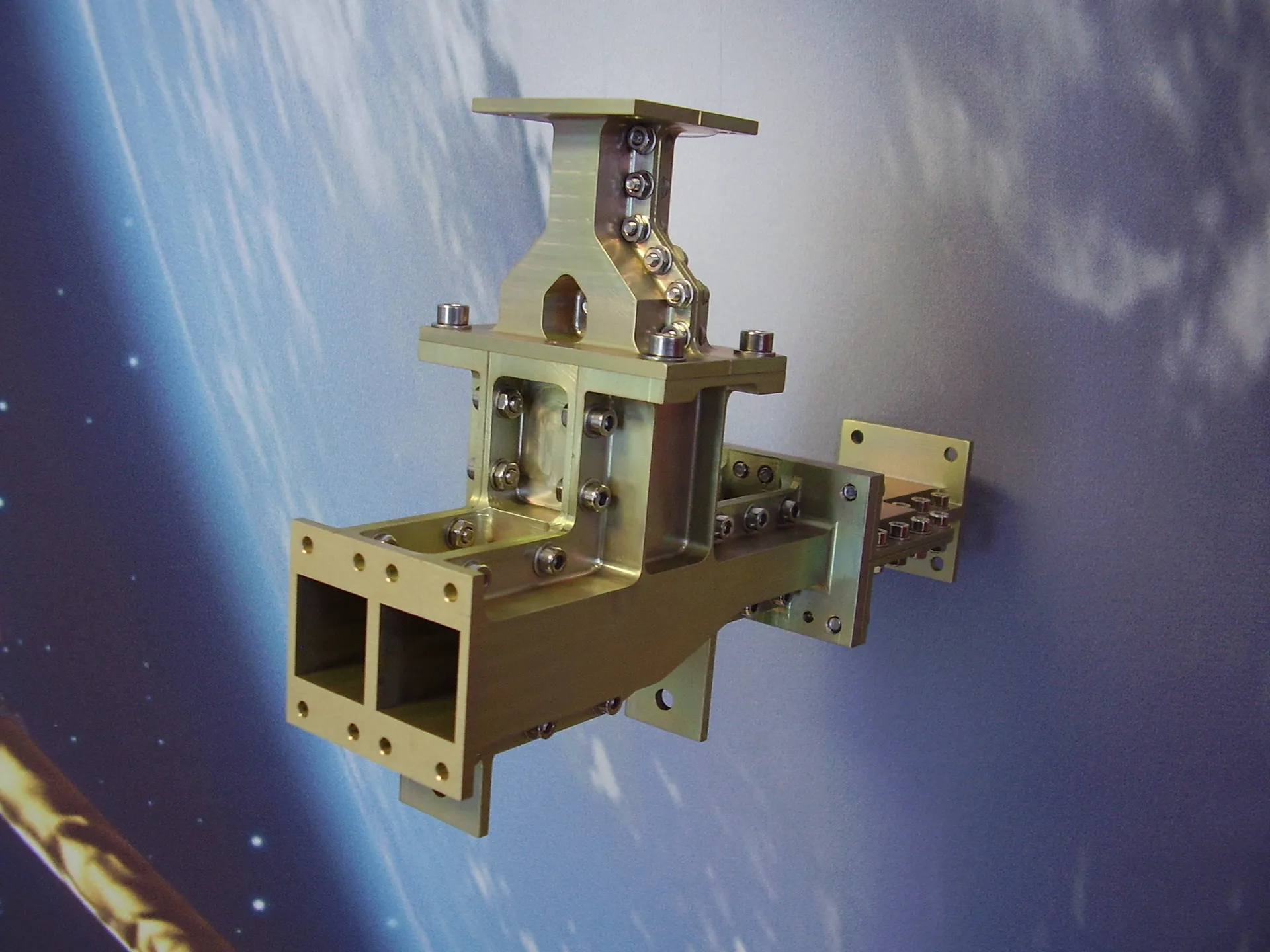

Schorpp technology was founded in 1995 by today's owner Harald Schorpp. At that time, a wire EDM and the tailored applications for small parts formed the business base. Until the year 2000 was developed and produced in Gütenbach, later in the university town Furtwangen. The machine park has been continuously expanded in the field of erosion and machining technology based on modern CNC technology. Schorpp technology produces fine mechanical components, which are used in aerospace applications, among others. High-precision Schorpp components are used in the earth observation satellites TerraSAR-X and in the associated radar unit TanDEM-X for 3D height measurements. In addition, Schorpp specializes in prototype construction and small batches, where wire and sink erosion is used. Even ceramic materials for extreme applications such as SiSiC, C / SiC, titanium borite or Sigradur® can be processed.
1 / 6
2 / 6
3 / 6
4 / 6
5 / 6
6 / 6
Schönwald, Germany
Member since 2019
Employees< 5
Turnover< 1 Mil.
Year of foundation1995
Competencies
Technologies
Etching and Spark Erosion
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Spark erosion wire cutting | 1–1,000 | 5–300 mm | 5–600 mm | 0.3–300 mm | 0–35 kg |
Spark erosion countersinking | 1–1,000 | 1–300 mm | 1–500 mm | 1–300 mm | 0–50 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Milling | 1–2,000 | 0–300 mm | 0–1,050 mm | 0–700 mm | — | — |
5-axis milling machines | 1–2,000 | 0–400 mm | 0–400 mm | 0–400 mm | — | — |
Form milling (3 D) | 1–1,000 | 0–350 mm | 0–650 mm | 0–250 mm | — | — |
Engraver milling | 1–1,000 | 1–400 mm | 1–650 mm | 1–300 mm | 1–2 mm | 0–50 kg |
Materials
Cast metals
Cast steelCast iron
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Plastics/synthetic materials
ThermoplasticsAcrylic (PMMA)Glass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materials
Non-metal inorganic materials
Ceramics
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Industries
Drive and gear engineeringPrecision engineering, mechatronics and opticsMedical technologyAerospace and aviation industry
Parts & Machines
Machinery (1)
1 / 1

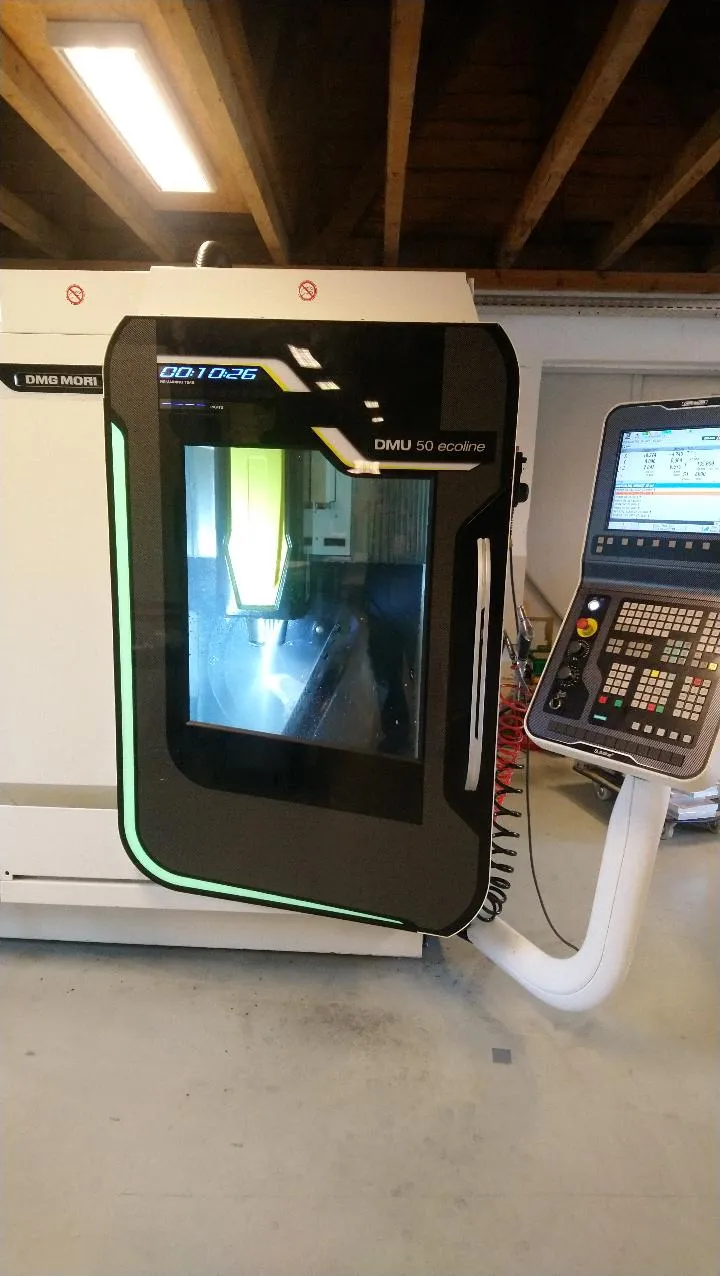

Eco 50
ManufacturerDMG
ControlSinumerik
1 Machinery
Contact
Location
Main locationWeißenbach 3, 78141 Schönwald, Germany
Company contact
Contact persons
HS
Harald Schorpp
