About SFB Schwäbische Formdrehteile GmbH & Co. KG
Who we are
We are your competent partner in fluid technology with four locations in and outside Germany - CNC long and short turned parts - Vertical turning - Assembly of final-tested mechanical components - grinding (inside, outside, in the passage etc.) - honing - milling - sandblasting - hard machining Complete machining on modern CNC machines (long and short turned parts, vertical turning) - complex workpieces (from rd3 mm to rd300 mm, vertical turning up to rd150mm) can be produced in batches from 1000 to 100,000 pieces - All steels, case-hardened and highly tempered nitriding steels, stainless steels, non-ferrous metals as well as extruded, sintered and forged blanks can be machined. Our precisely machined and accurately controlled individual parts are assembled with the supplied, controlled external parts and then tested. The end result is tested and perfectly functioning assemblies directly to the customer's assembly line.
1 / 4

2 / 4

3 / 4

4 / 4

Babenhausen, Germany
Member since 2008
Employees500 - 1000
Certificates3
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 1,000–25,000 | 2–510 mm | 2–42 mm |
Automatic turning (bar) | 1,000–25,000 | 2–510 mm | 2–42 mm |
Swiss turning | 500–25,000 | 2–320 mm | 2–25 mm |
Full-range turning (including milling) | 500–25,000 | 3–150 mm | 3–23 mm |
Hard turning | 1,000–25,000 | 2–510 mm | 2–42 mm |
Centering / end facing | 1,000–25,000 | 2–510 mm | 2–42 mm |
Threading
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Thread rolling | 10–25,000 | 5–40 mm | 3–20 mm | — |
Thread whirling | 500–25,000 | 10–200 mm | 5–20 mm | 0–0.5 kg |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–15 kg |
Electromechanical assembly | 0–100 kg |
Industrial / On-site-assembly | 0–100 kg |
Finishing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
External cylindrical grinding | 500–25,000 | 5–400 mm | — | — | 2–100 mm | — |
Internal cylindrical grinding | 500–5,000 | 10–150 mm | — | — | 10–150 mm | — |
Centreless grinding | 500–25,000 | 5–200 mm | — | — | 2–70 mm | 0–0.5 kg |
Circular honing - internal | 250–25,000 | 10–100 mm | 10–100 mm | 10–100 mm | 3–50 mm | 0–10 kg |
Surface grinding machine | 500–2,500 | 10–150 mm | 10–150 mm | 10–150 mm | — | 0–50 kg |
Coordinate jig grinding | 500–5,000 | 10–150 mm | 10–150 mm | 10–150 mm | — | 0–50 kg |
Shot blasting | 500–5,000 | 10–150 mm | 10–150 mm | 10–150 mm | — | 0–25 kg |
Rotofinishing, barrel finishing | 250–5,000 | 3–100 mm | 10–100 mm | 10–100 mm | — | — |
Cable Preparation
| Technologies | Diameter |
|---|---|
Cable preparation | 0–1,000 mm |
Gear Making
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Internal teeth | 20–2,500 | 10–200 mm | 10–150 mm | 0–50 kg |
Bevel gear wheel | 20–2,500 | 10–200 mm | 10–150 mm | 0–50 kg |
Assembly Group Manufacturing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Adhesive bonding | 500–10,000 | 20–400 mm | 20–400 mm | 20–400 mm | 20–400 mm | 0–15 kg | 20–400 mm |
Riveting | 500–10,000 | 20–400 mm | 20–400 mm | — | — | — | 20–400 mm |
Mechanical Engineering
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Apparatus engineering | 1,000–25,000 | 1–1,000 mm | 1–1,000 mm | 1–1,000 mm | 0–100 kg |
Tool building | 1,000–25,000 | 1–1,000 mm | 1–1,000 mm | 1–1,000 mm | 0–100 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Milling | 100–2,500 | 10–300 mm | 10–300 mm | 10–300 mm | — |
5-axis milling machines | 100–2,500 | 10–300 mm | 10–300 mm | 10–300 mm | — |
Full-range milling (including turning) | 100–5,000 | 10–150 mm | 10–300 mm | 10–300 mm | 10–300 mm |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Drilling / threading / tapping | 100–1,000 | 80–800 mm | 60–600 mm | 50–500 mm | 0–15 kg |
Labelling / marking
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Laser marking / Laser inscription | 10–25,000 | 3–150 mm | 3–150 mm | 3–150 mm | 3–150 mm |
Laser depth engraving | 10–25,000 | 3–150 mm | 3–150 mm | 3–150 mm | 3–150 mm |
Materials
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Plastics/synthetic materials
ThermoplasticsThermosetsElastomers
Cast metals
Cast steelCast iron
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Industries
Chemical industryInformation technology (hardware)Railway and rail vehicles industryAerospace and aviation industryMilitary engineeringHousehold appliance industryConstruction and architectural suppliesAir conditioning, refrigeration and ventilation industryFurniture industryMeasurement and control technique, laboratory equipmentTelecommunication industrySpecial purpose machinery manufacturingPlant engineering and constructionMechanical engineeringPackaging industryMedical technologyHydraulic and pneumatic industryPrecision engineering, mechatronics and opticsElectrical industryOffice machinery and suppliesLighting industryAutomation and control engineeringFittings engineeringShipbuilding industryDrive and gear engineeringPower generation and transmission industryMachine tool manufacturingApparatus engineeringMining and tunnel engineeringBuilding, agricultural and forestry machinery manufacturingAutomotive and vehicle constructionClean room technologyPaper and printing machinery industryBoiler, container and tank construction
Certificates
ISO 9001:2008
ISO 14001
ISO-TS 16949:2002
Parts & Machines
Parts (1)
1 / 1

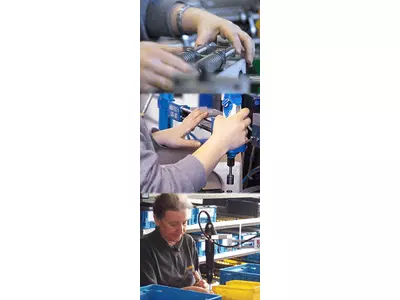

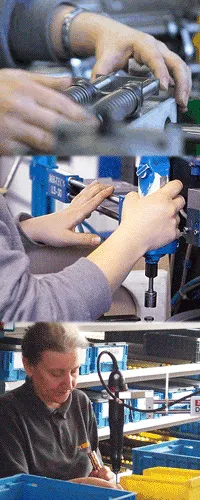

Montage mechanischer Baugruppen
DescriptionUnsere präzise bearbeiteten und exakt kontrollierten Einzelteile werden mit kontrollierten Fremdteilen montiert und anschließend geprüft<br>
<br>
Das Resultat:<br>
Geprüfte und perfekt funktionierende Baugruppen<br>
1 Part
Others1
