Sprick Technologies GmbH & Co. KG

Germany, 33106 Paderborn

Competencies

Technologies

Mould construction

Technologies	Length	Width	Height	Weight

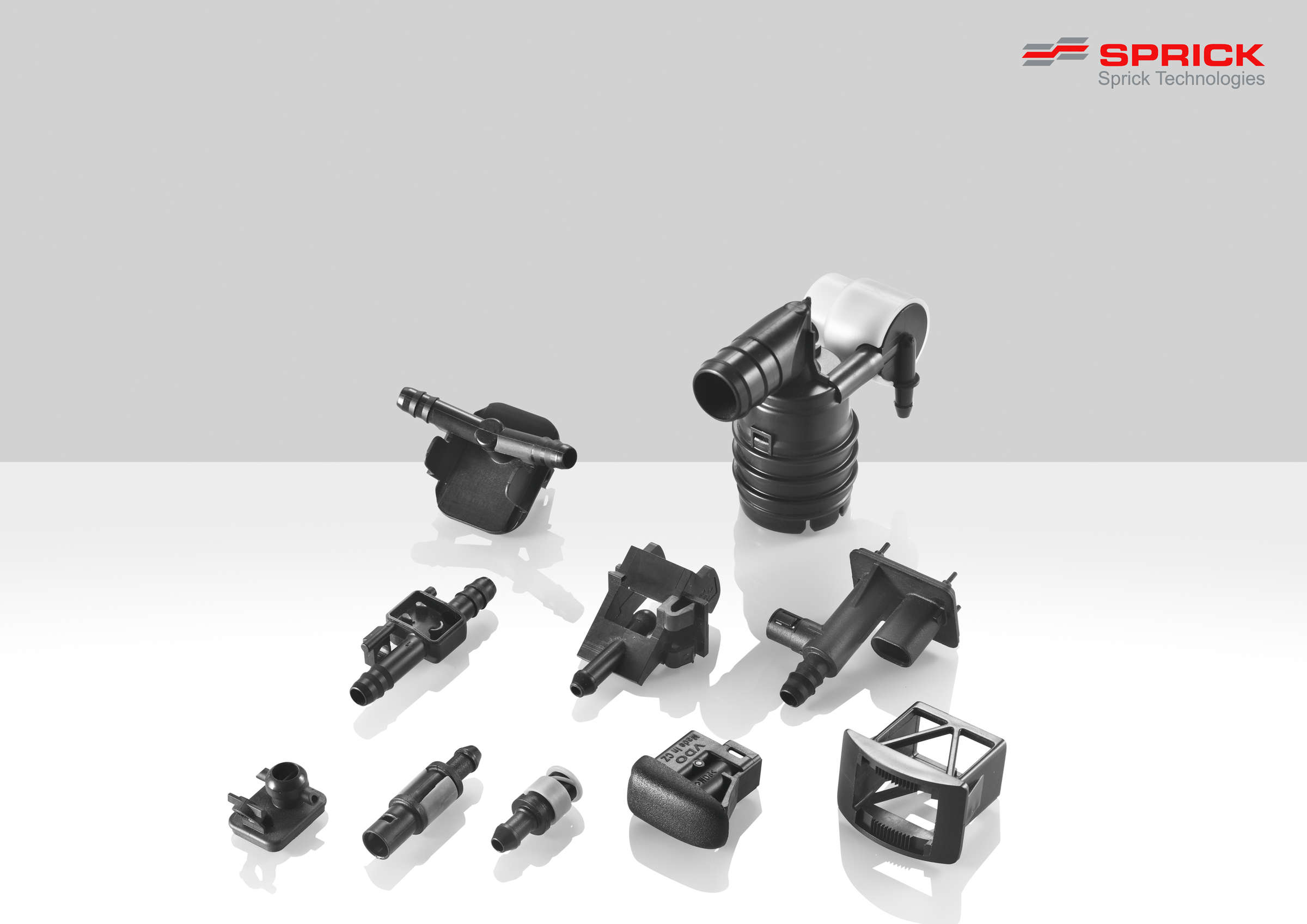

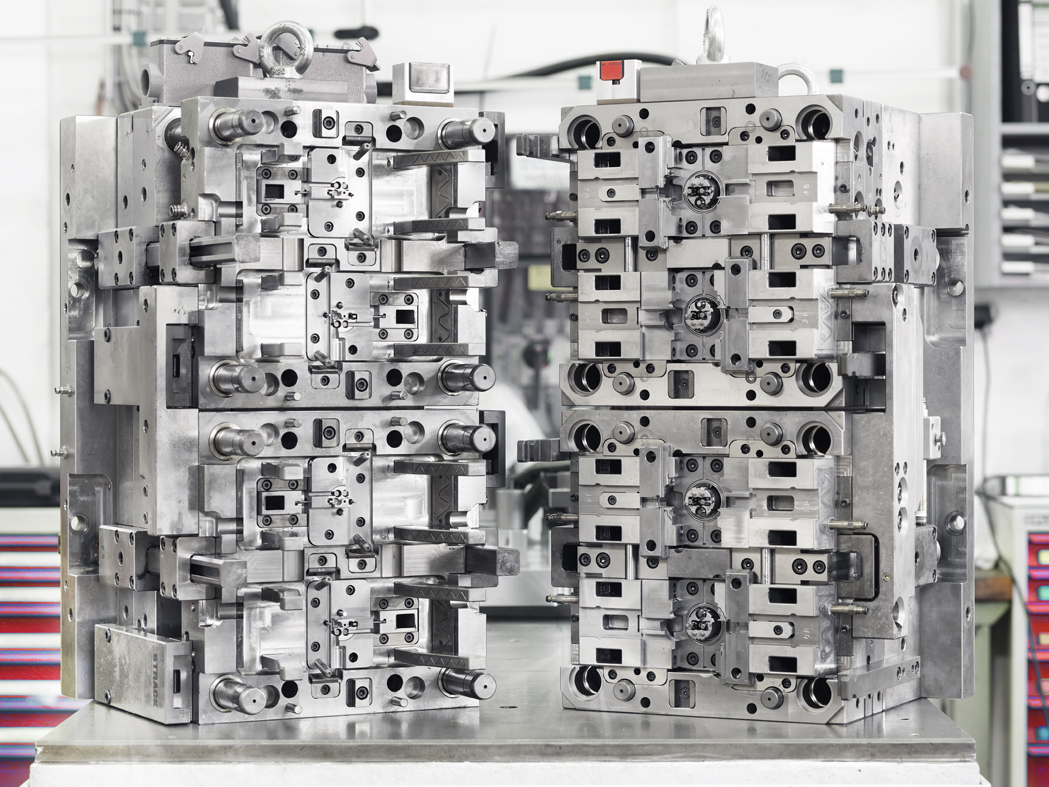

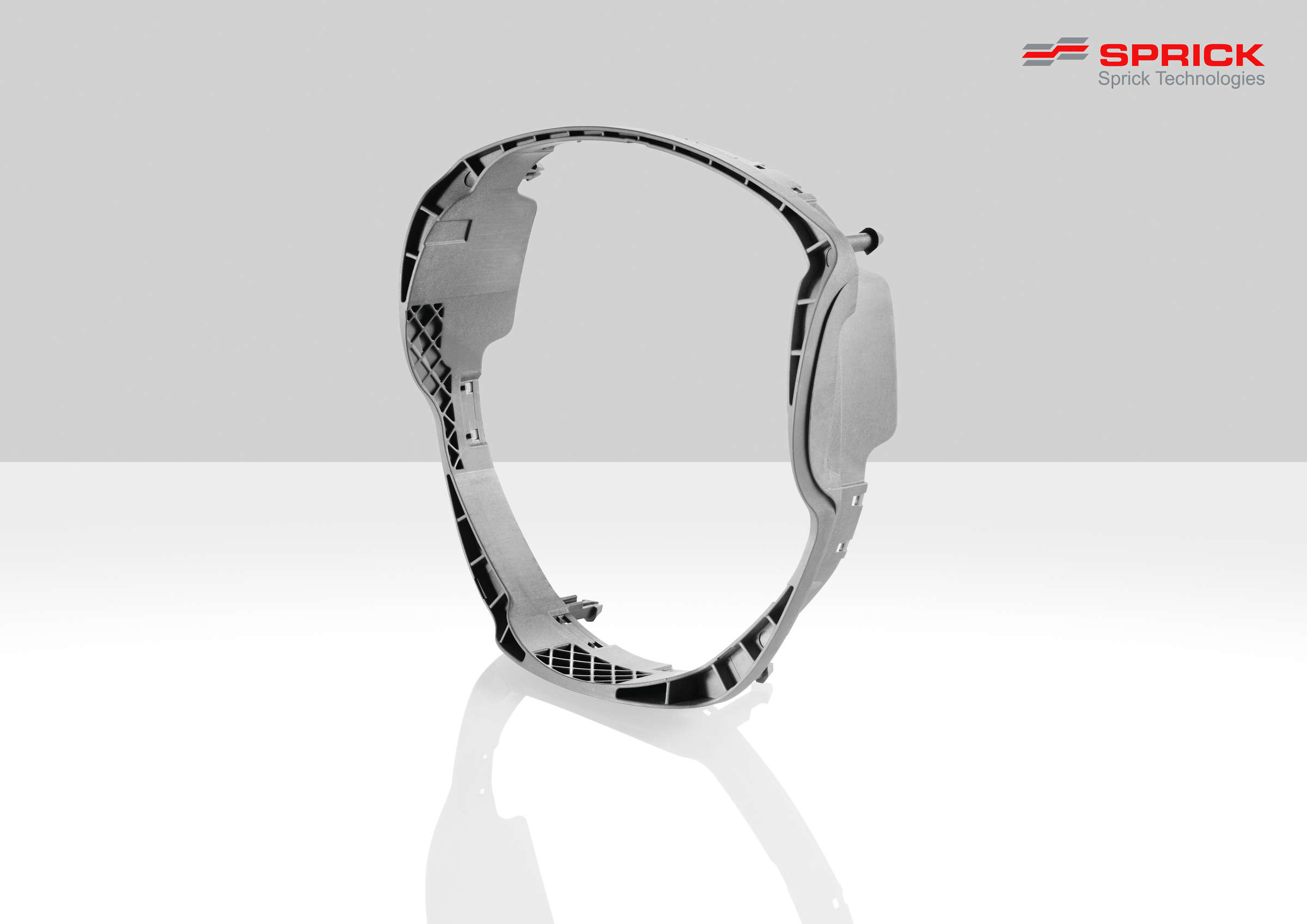

Injection moulds	10–1,200 mm	10–1,200 mm	10–1,200 mm	0–3,000 kg

Jigmaking

Technologies	Length	Width	Height	Diameter	Weight	Material thickness
Drilling / milling jigs	10–1,800 mm	10–1,200 mm	10–1,000 mm	from 0 mm	0–2,000 kg	from 0 mm

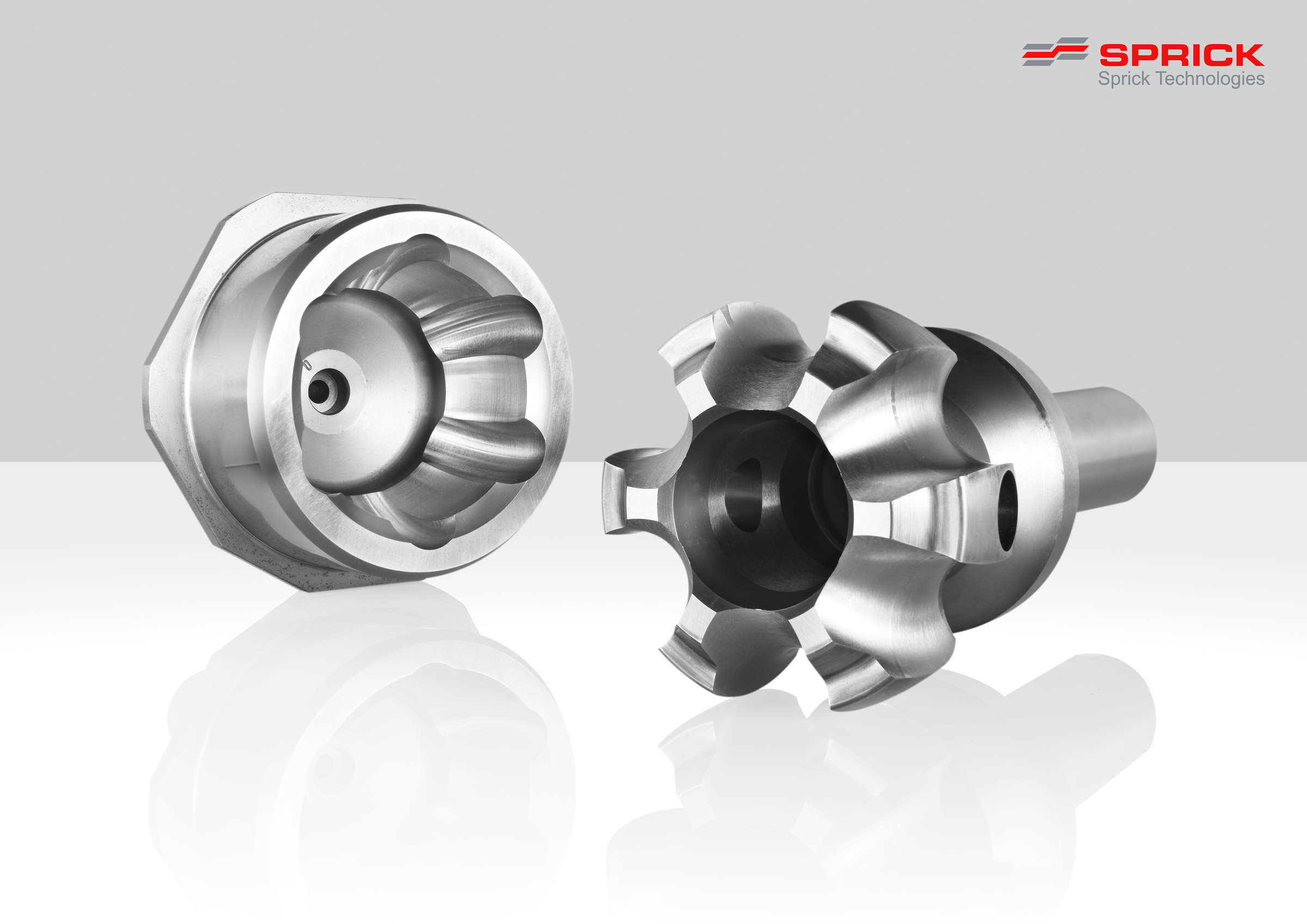

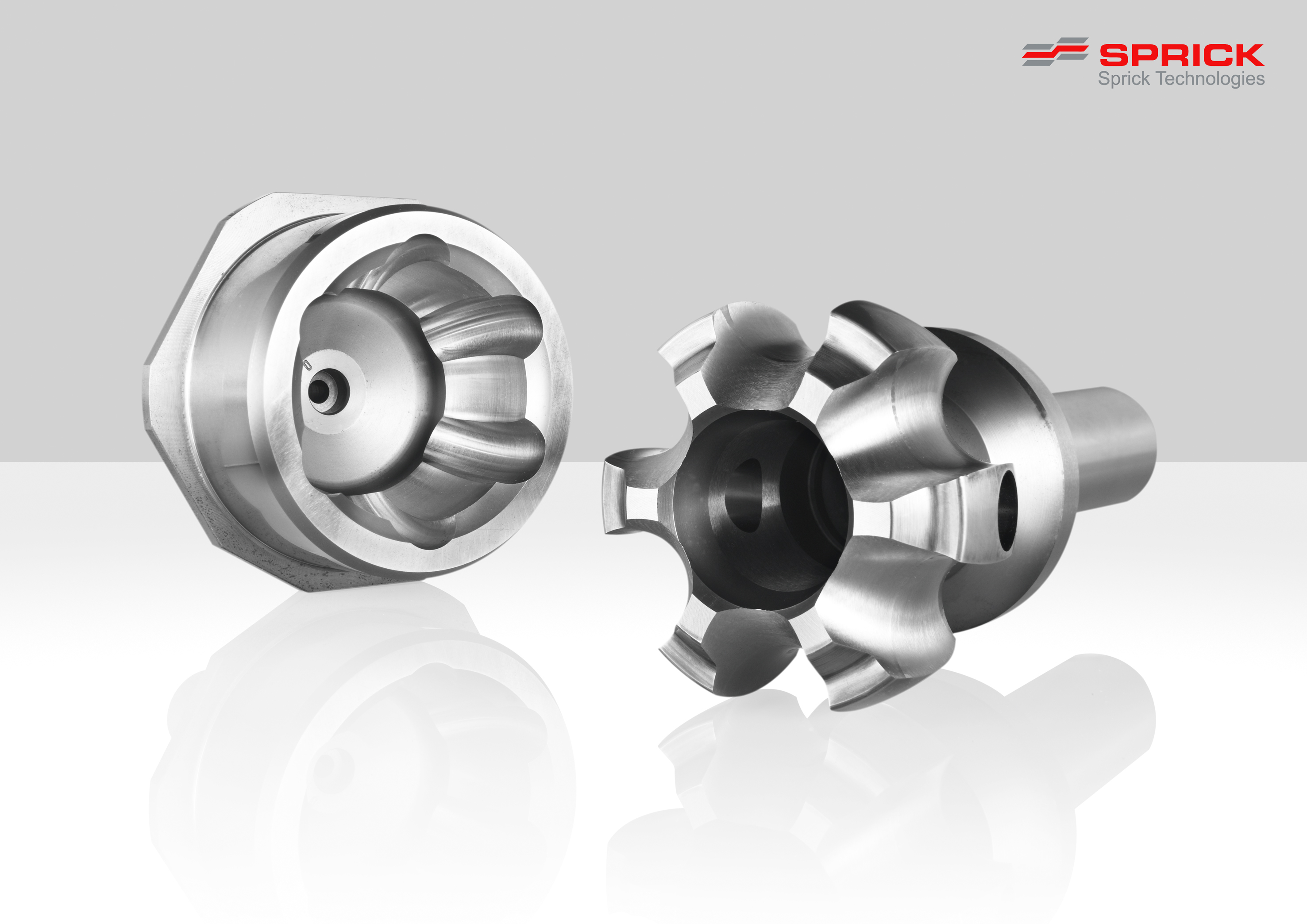

Gauges	10–1,800 mm	10–1,200 mm	10–1,000 mm	from 0 mm	0–1,000 kg	from 0 mm

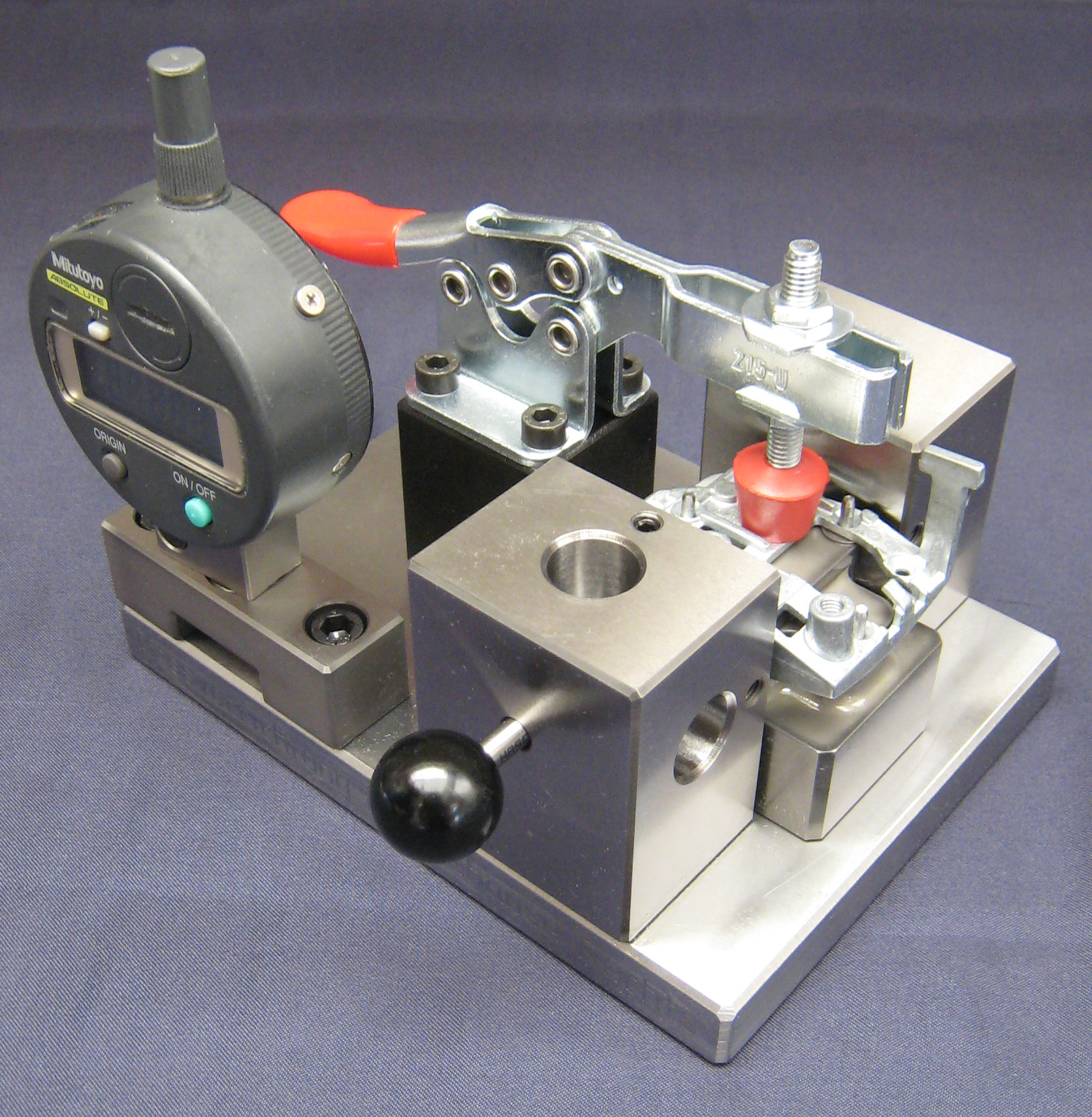

Measuring / testing jigs	10–1,800 mm	10–1,200 mm	10–1,000 mm	from 0 mm	0–1,000 kg	from 0 mm
Assembly jigs	10–1,800 mm	10–1,200 mm	10–1,000 mm	from 0 mm	0–2,500 kg	from 0 mm

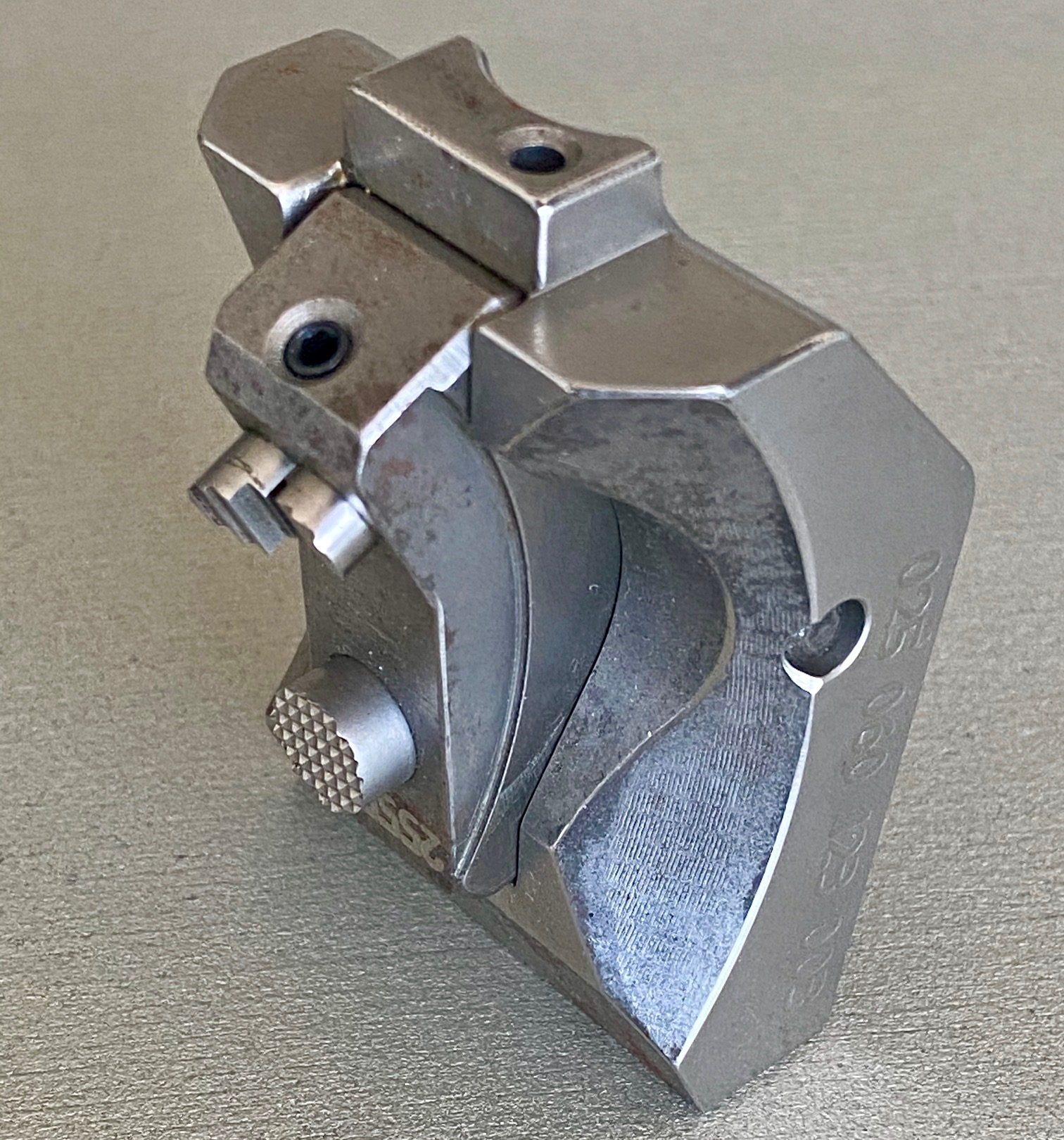

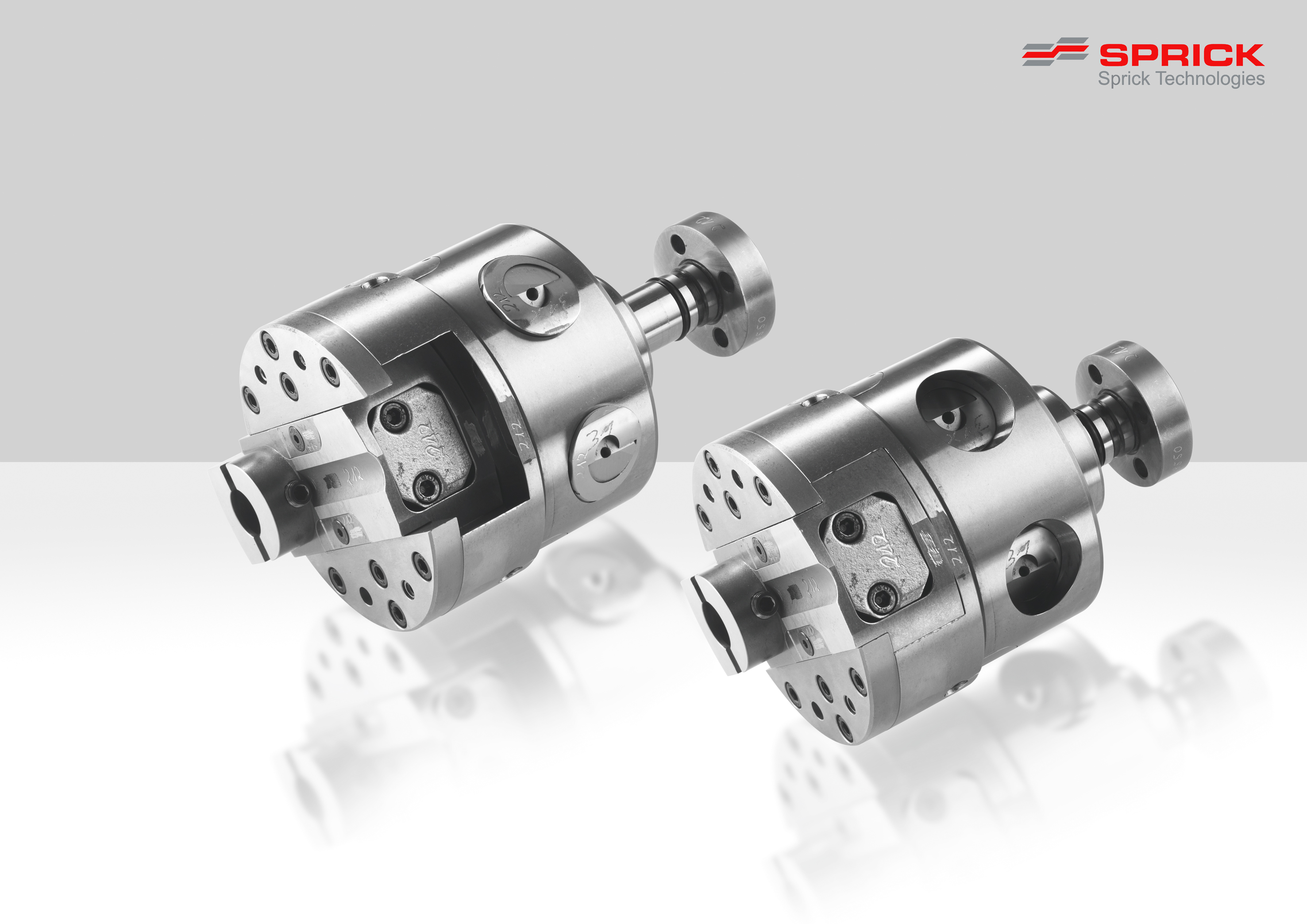

Clamping devices	10–1,800 mm	10–1,500 mm	10–1,500 mm	from 0 mm	0–2,000 kg	from 0 mm

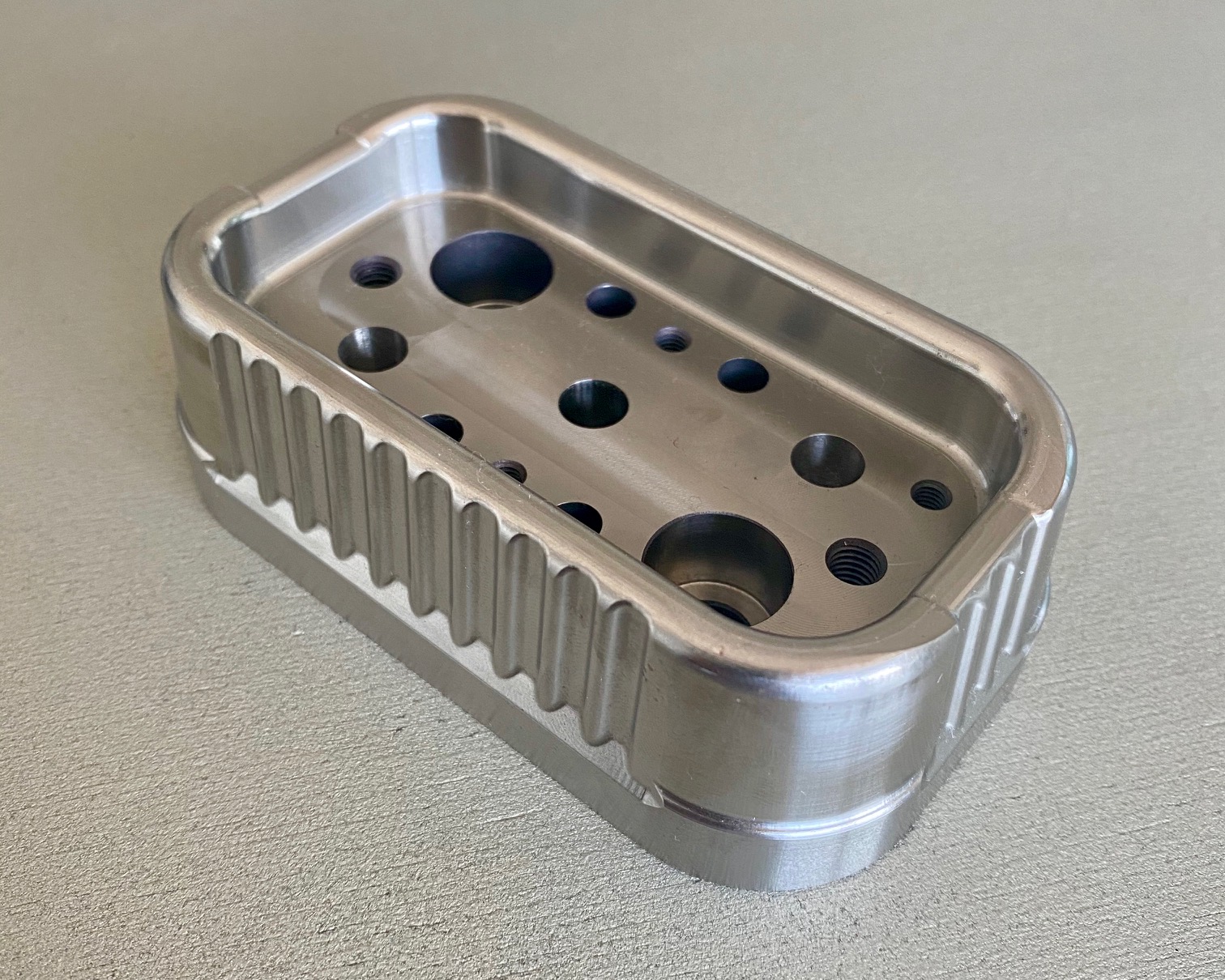

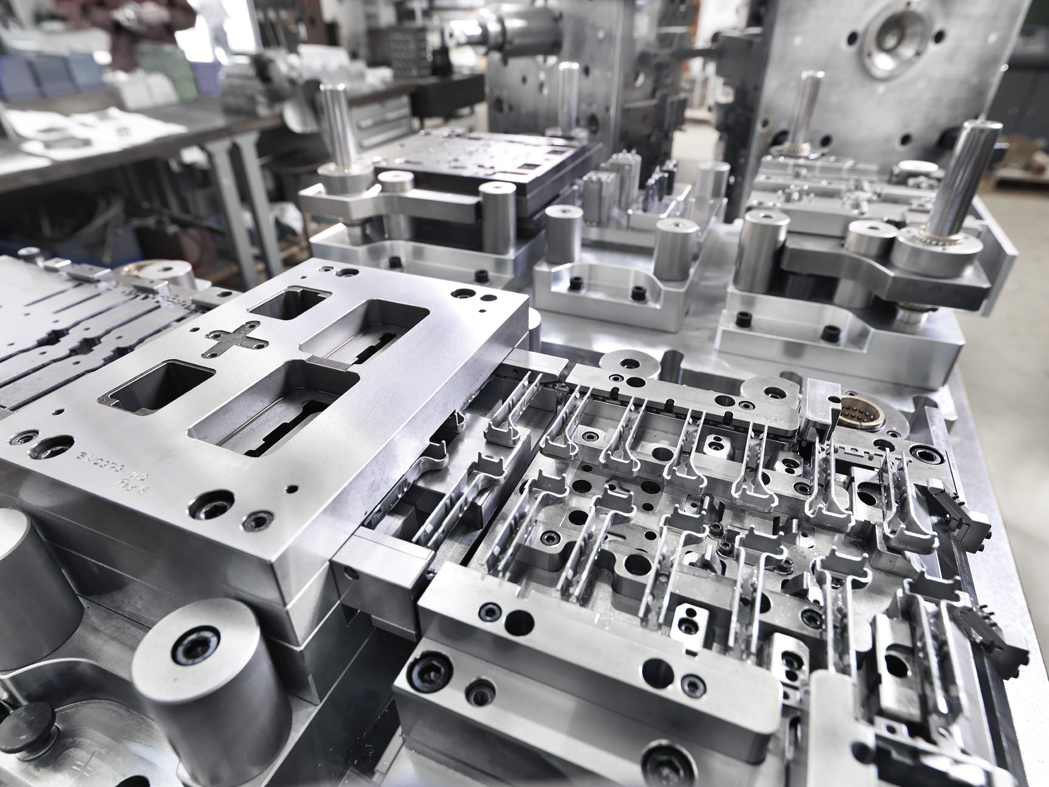

Cutting dies / deep drawing dies

Technologies	Length	Width	Height	Diameter	Weight	Material thickness
Punching / Cutting tools	10–1,200 mm	10–1,200 mm	10–1,200 mm	from 0 mm	0–3,500 kg	from 0 mm
Fineblanking tools	10–1,200 mm	10–1,200 mm	10–1,200 mm	from 0 mm	0–3,000 kg	from 0 mm
Trimming	10–1,200 mm	10–1,200 mm	10–1,200 mm	from 0 mm	0–3,000 kg	from 0 mm
Die replacement / wearing part manufacturing	from 0 mm	from 0 mm	from 0 mm	from 0 mm	from 0 kg	from 0 mm
Embossing / swage dies	10–1,200 mm	10–800 mm	10–1,000 mm	from 0 mm	0–2,000 kg	from 0 mm

Etching and Spark Erosion

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness

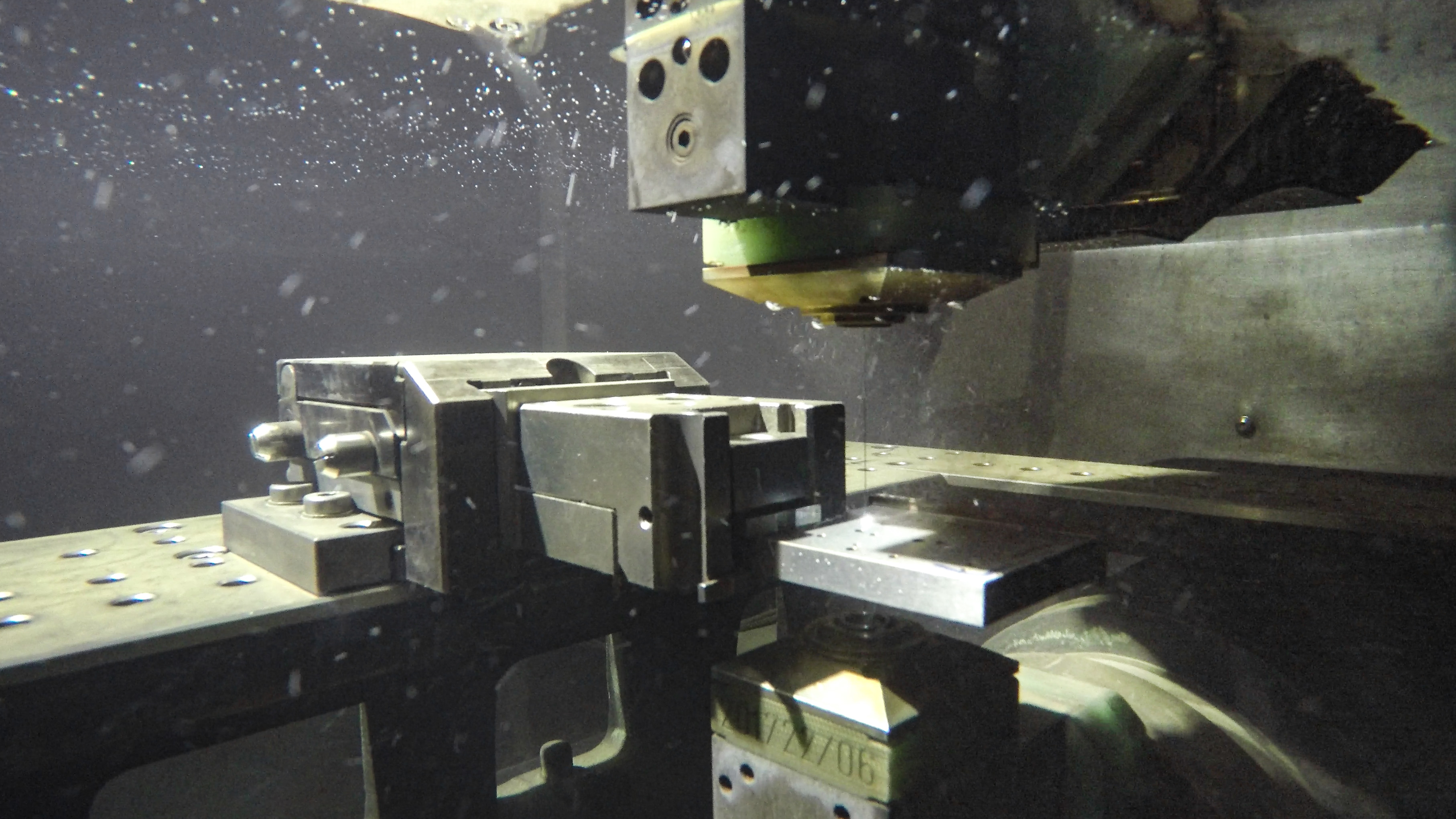

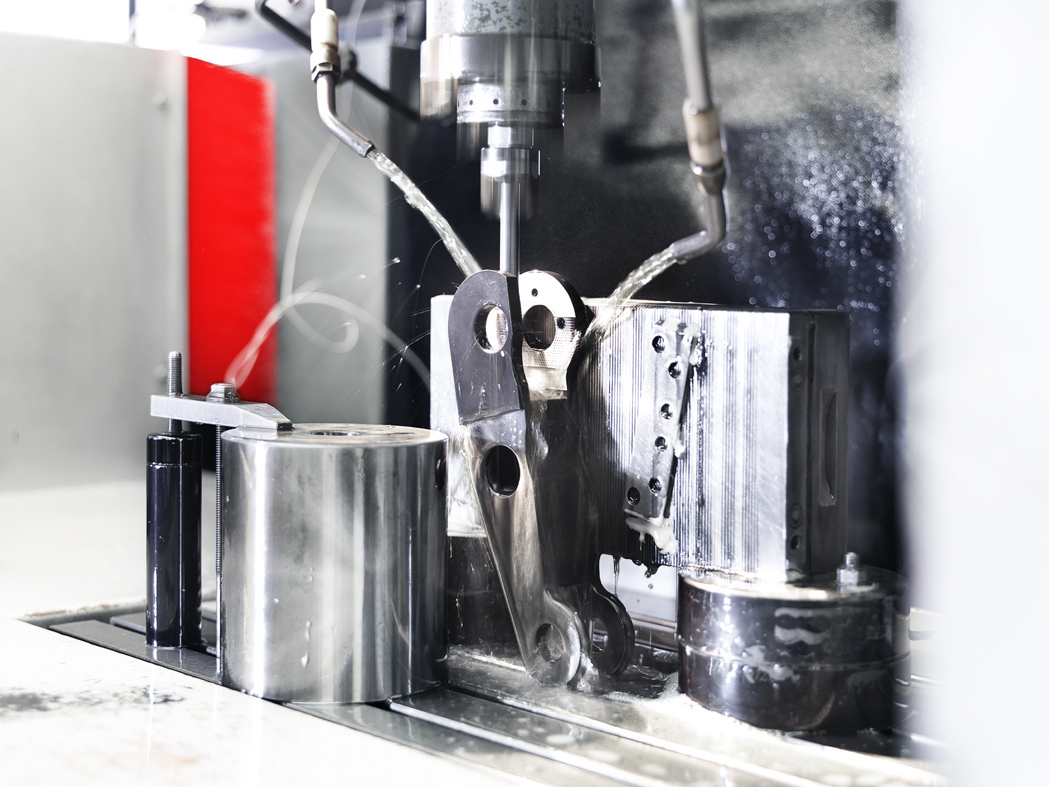

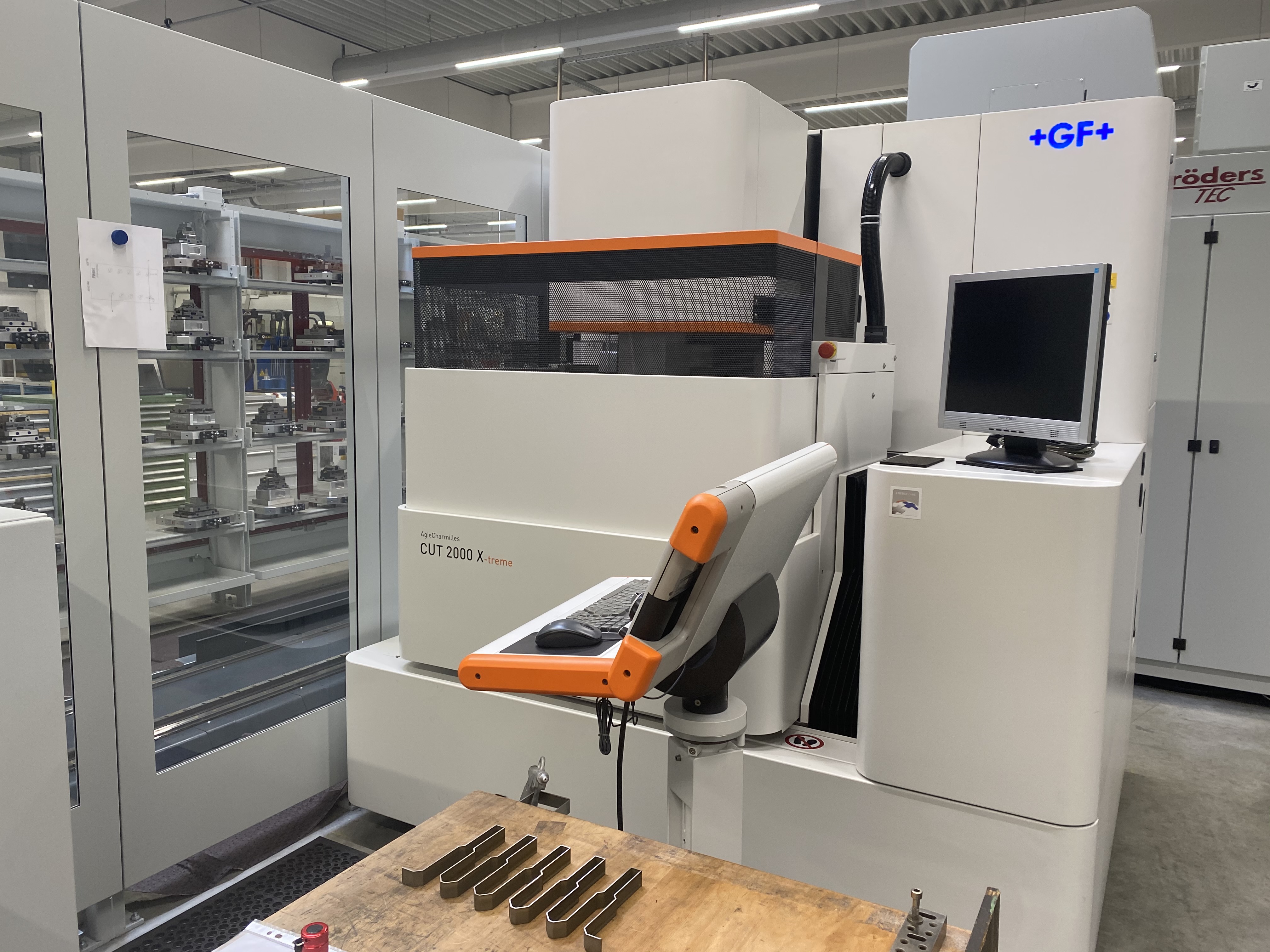

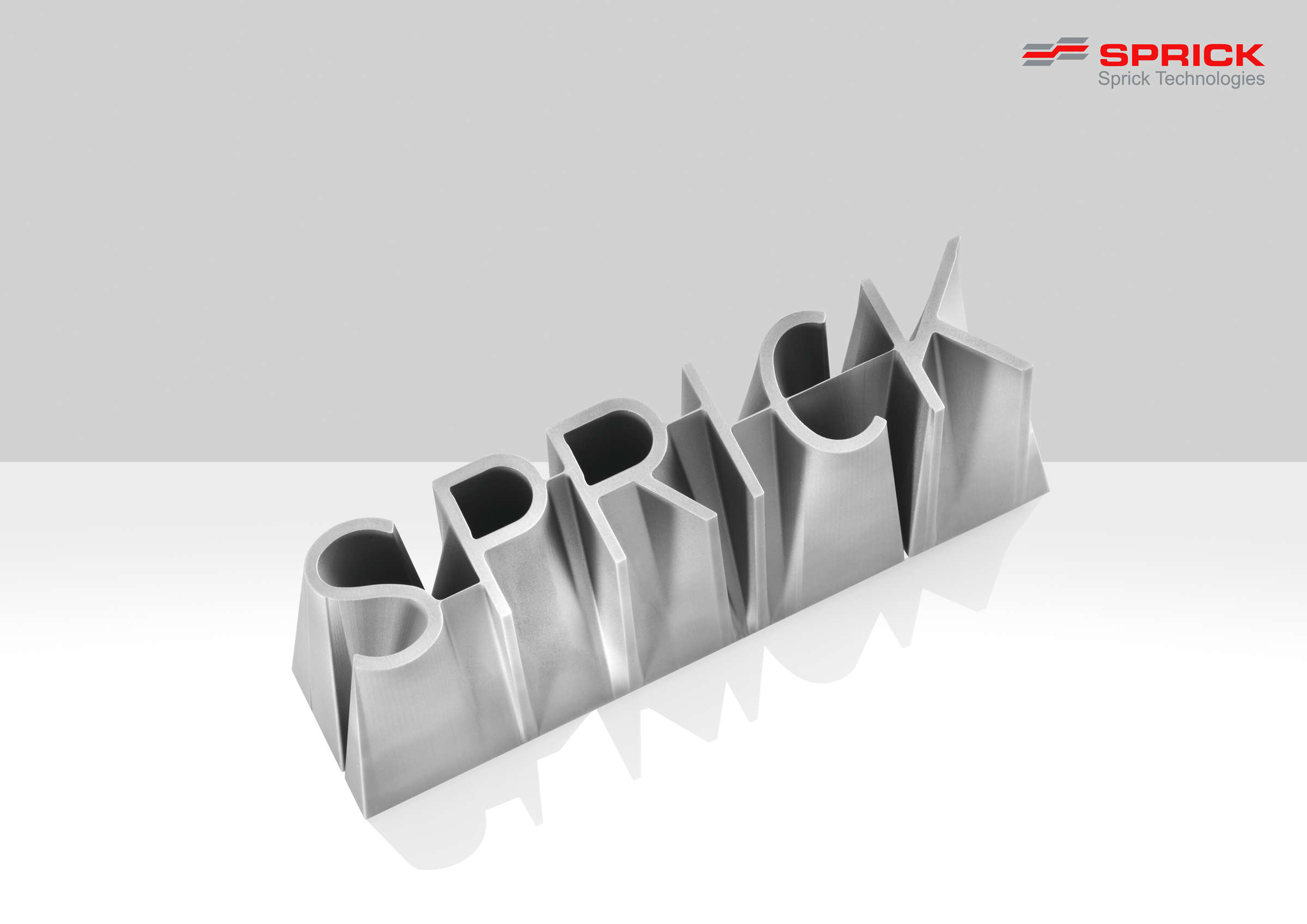

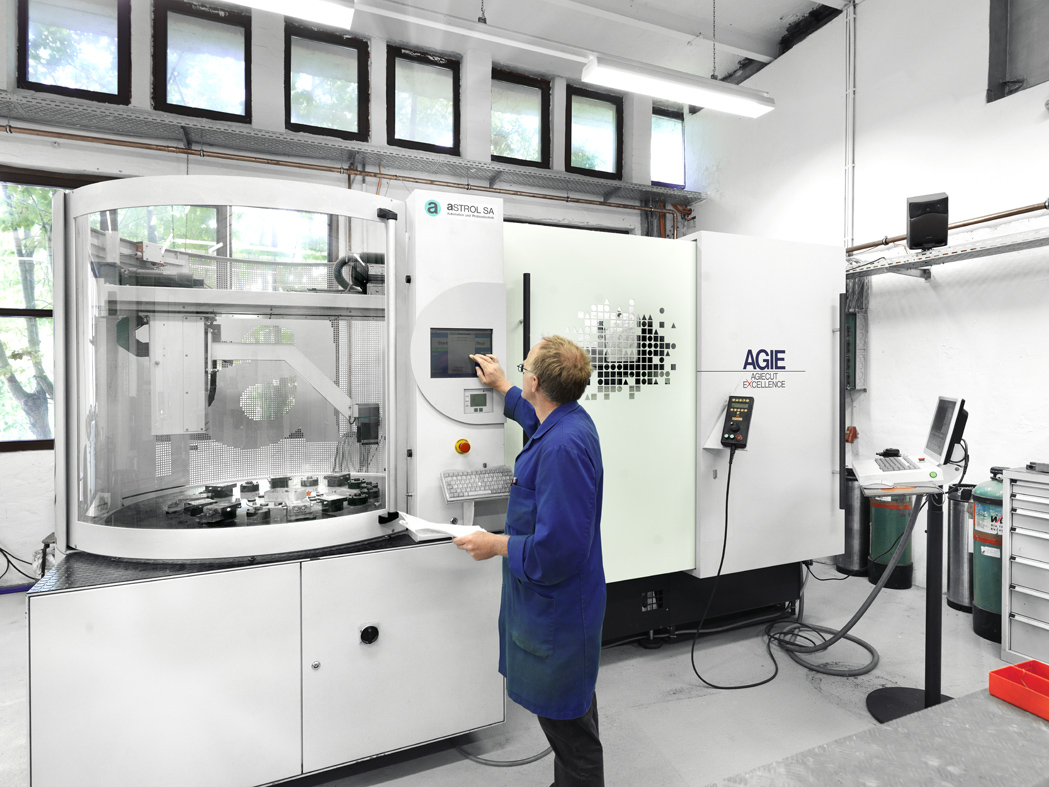

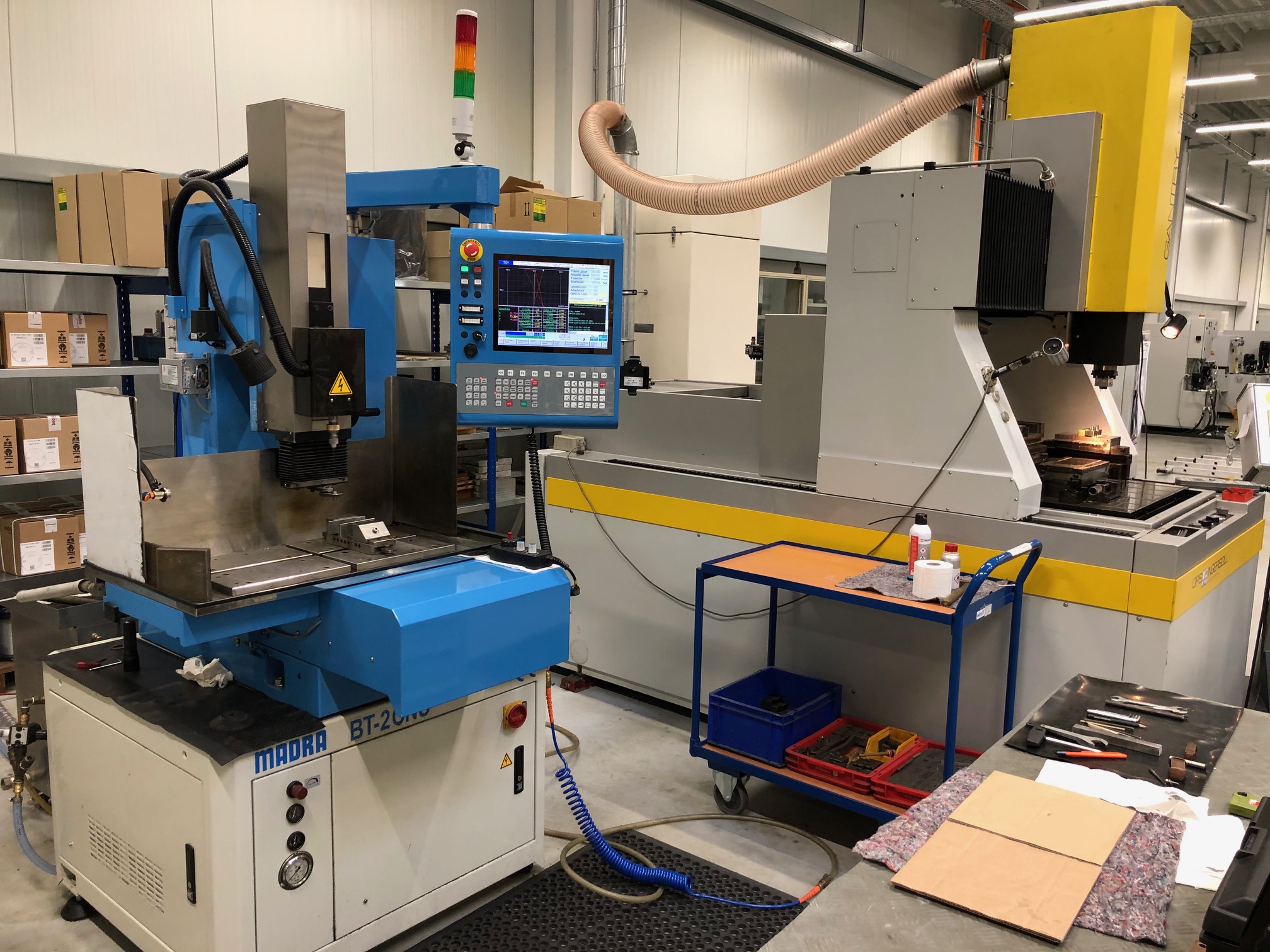

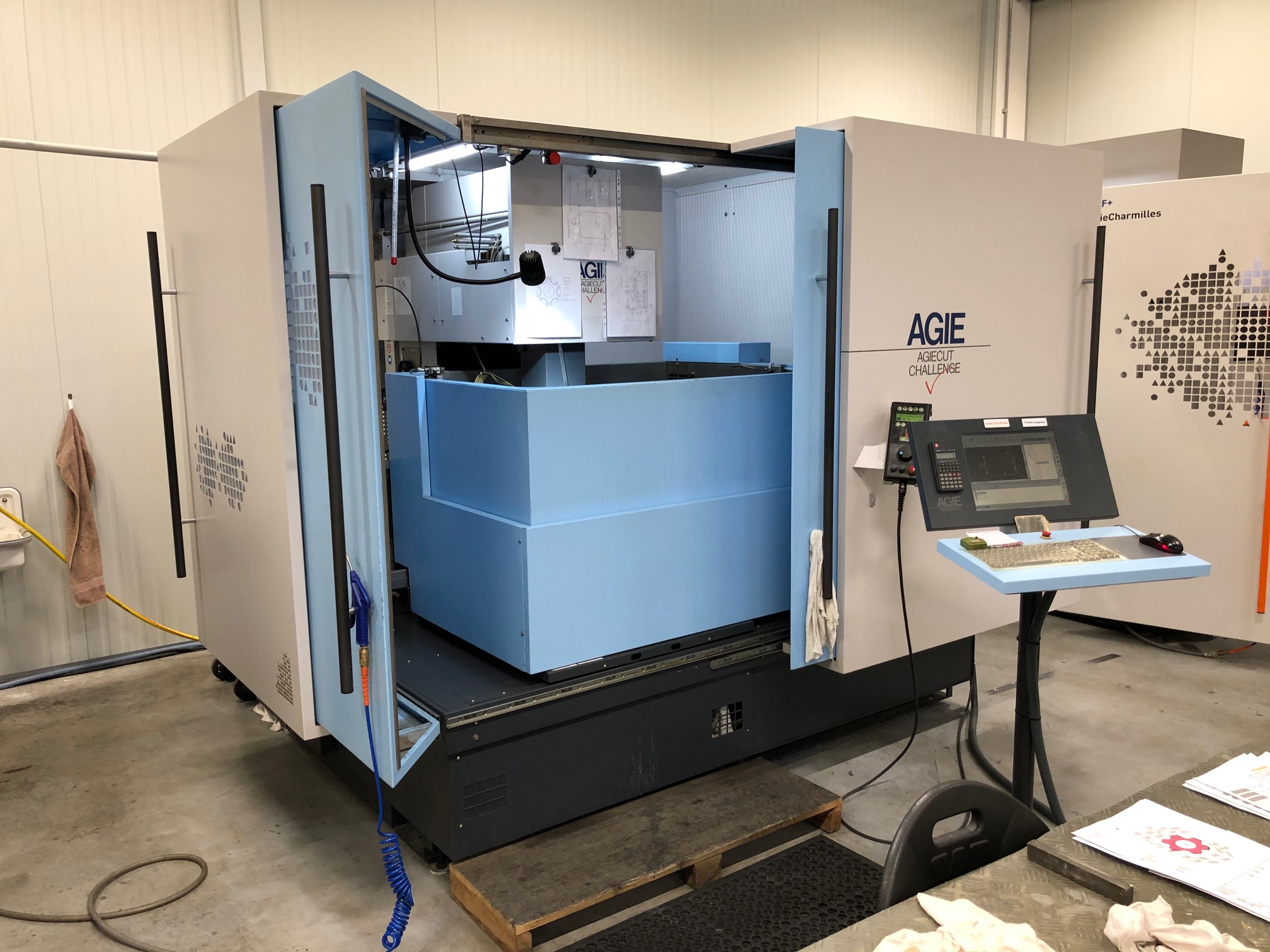

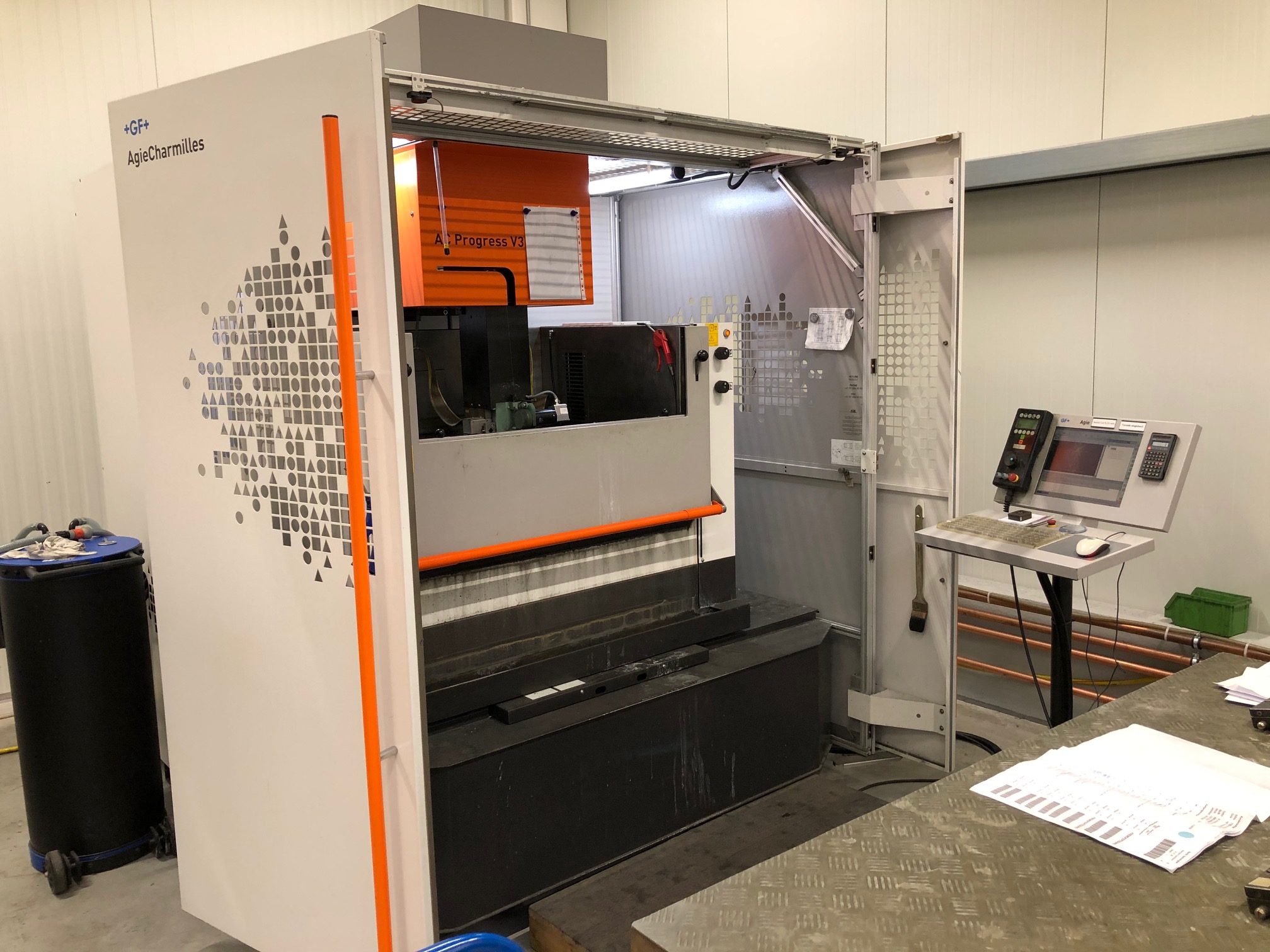

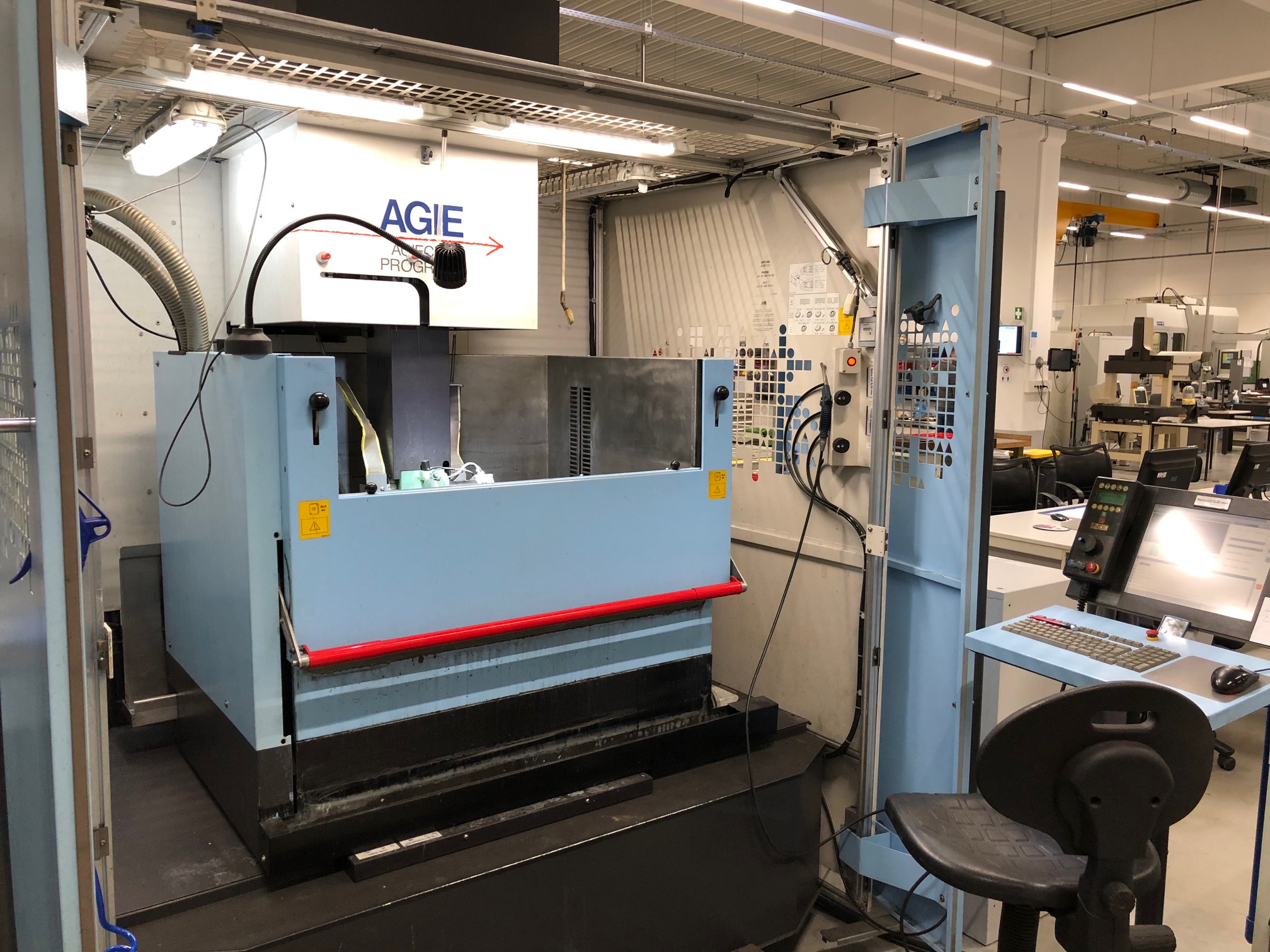

Spark erosion wire cutting	1–5,000	1–1,050 mm	1–800 mm	0.01–420 mm	from 0 mm	0–800 kg	from 0 mm
Spark erosion countersinking	1–500	5–800 mm	5–500 mm	5–450 mm	—	0–1,000 kg	—

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness

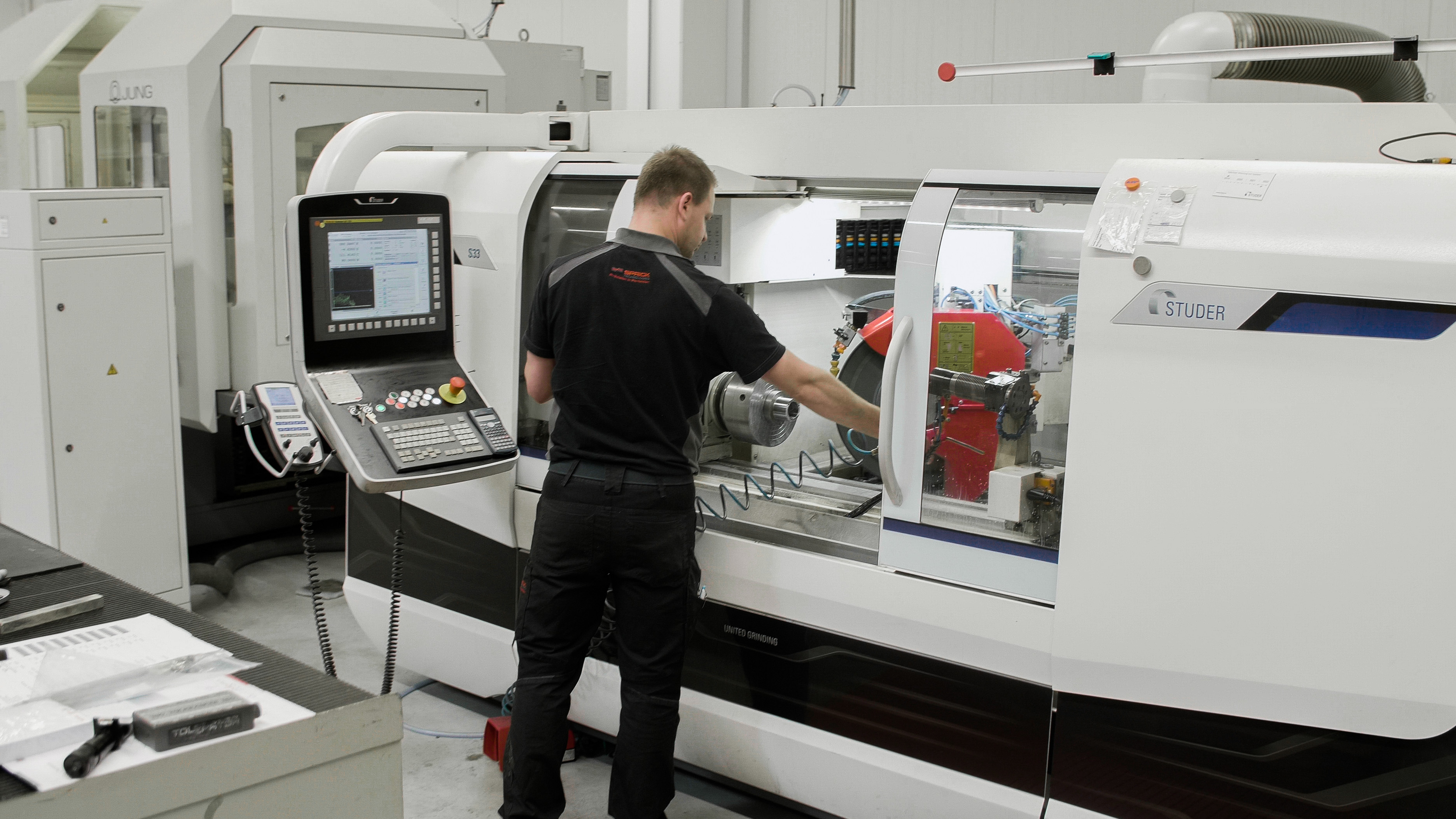

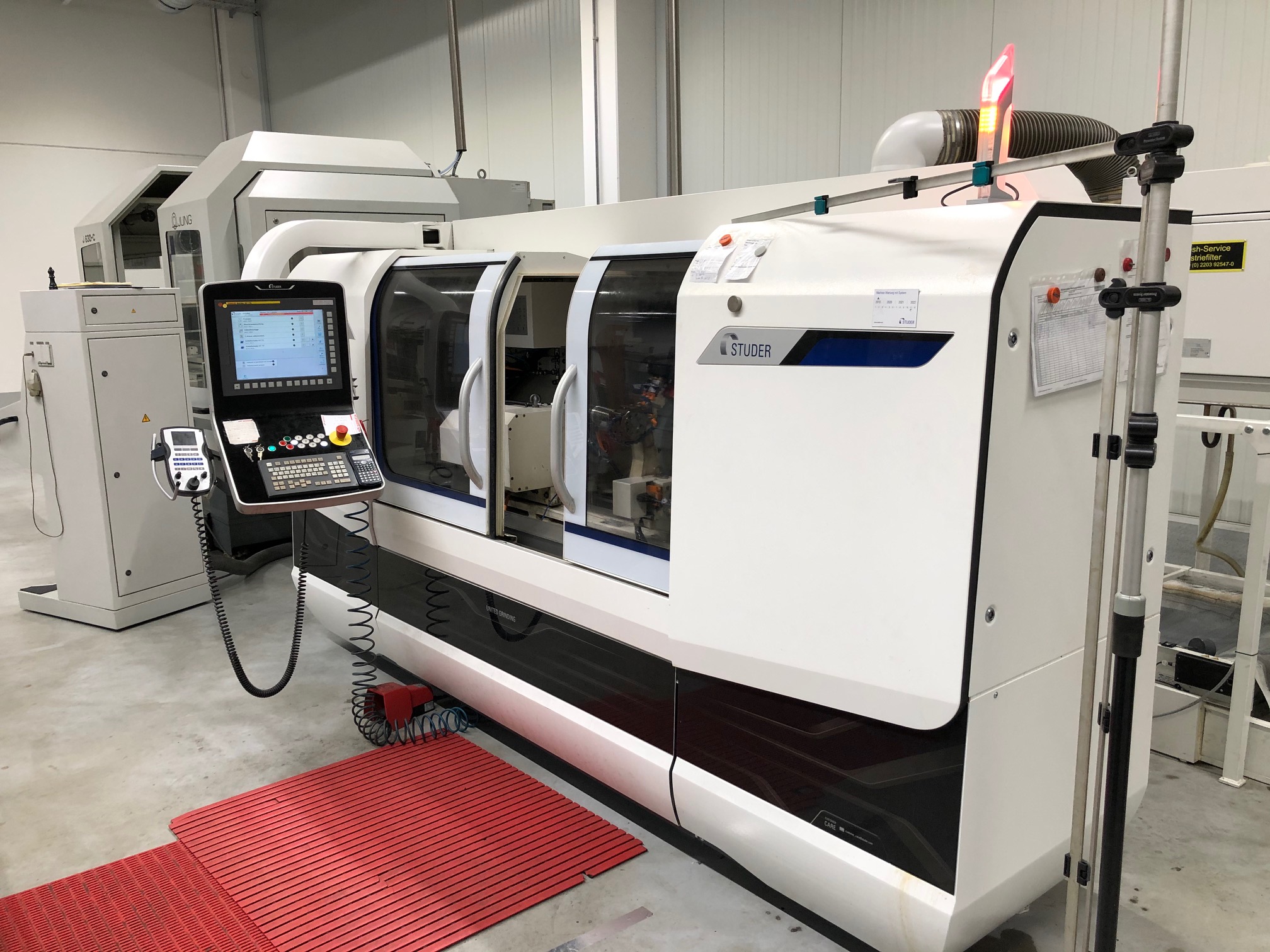

External cylindrical grinding	1–300	2–400 mm	—	—	1–200 mm	0–50 kg	—
Internal cylindrical grinding	1–300	1–600 mm	from 0 mm	from 0 mm	1–250 mm	from 0 kg	from 0 mm

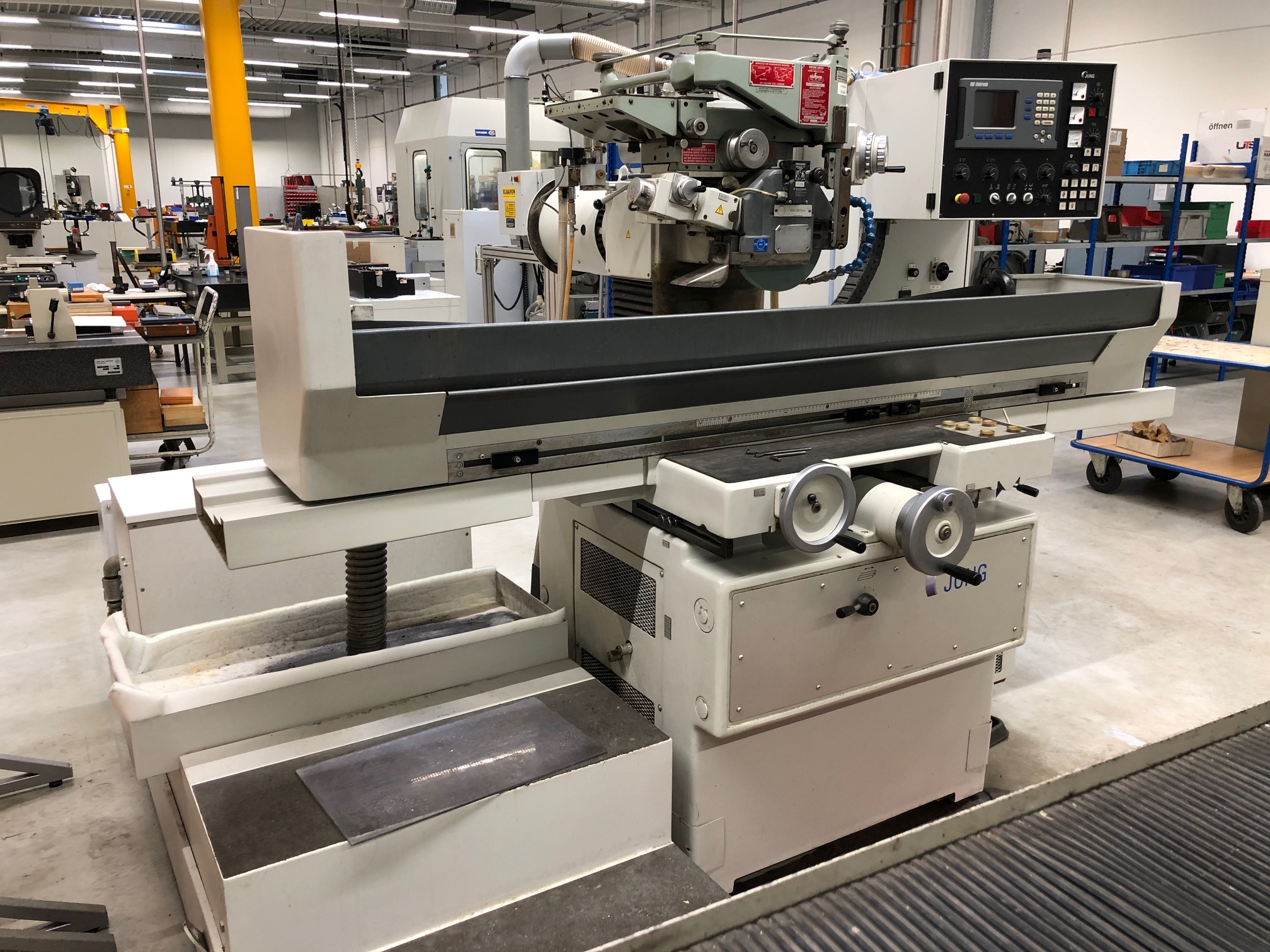

Surface grinding machine	1–200	1–800 mm	1–300 mm	0.1–400 mm	—	0–500 kg	—

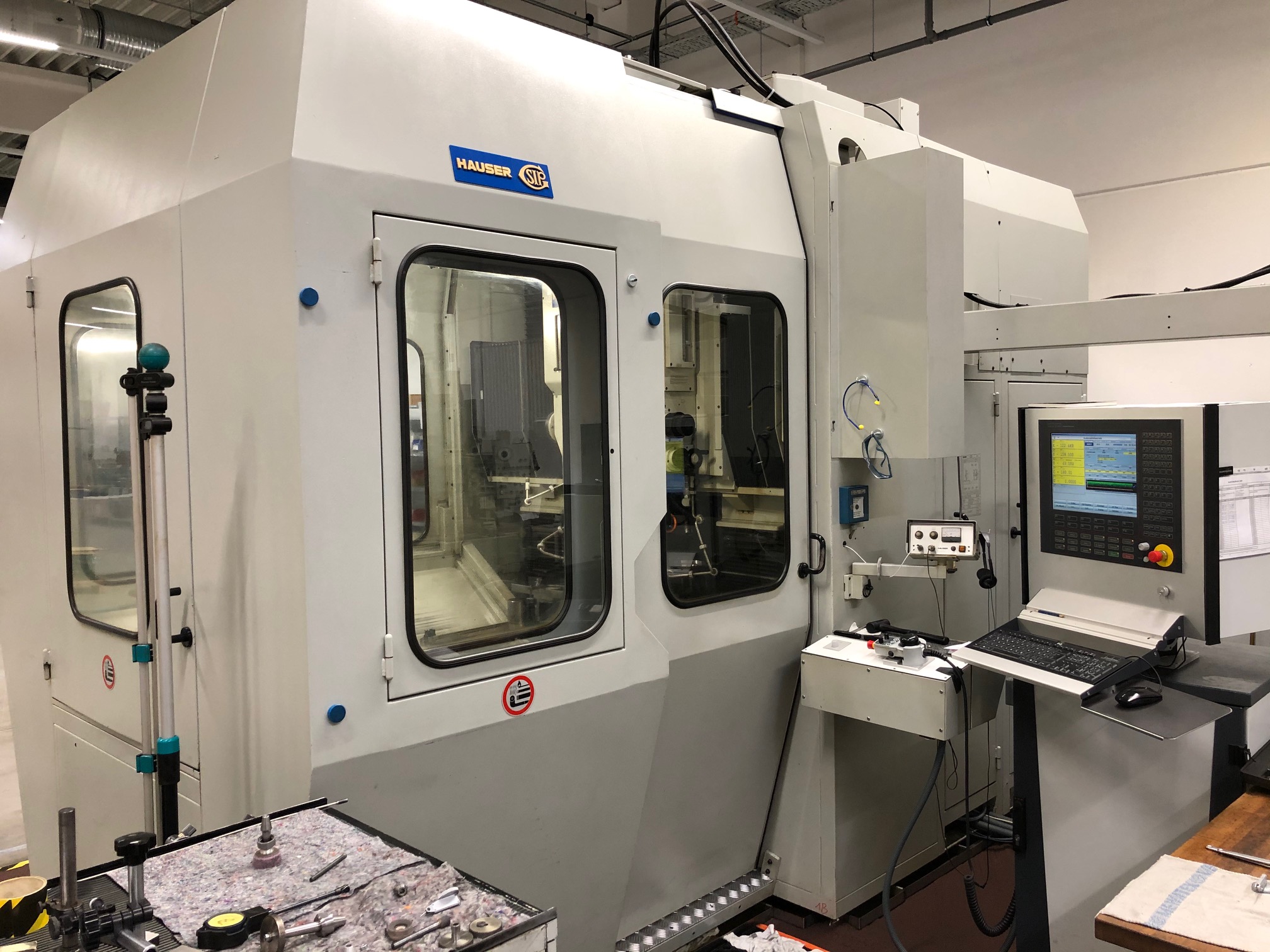

Coordinate jig grinding	1–200	1–1,100 mm	1–600 mm	1–500 mm	—	0–600 kg	—
Profile grinding	1–500	1–630 mm	1–360 mm	0.1–375 mm	0.1–100 mm	—	—

Assembly

Technologies	Weight
Mechanical assembly	0–500 kg
Electromechanical assembly	0–500 kg

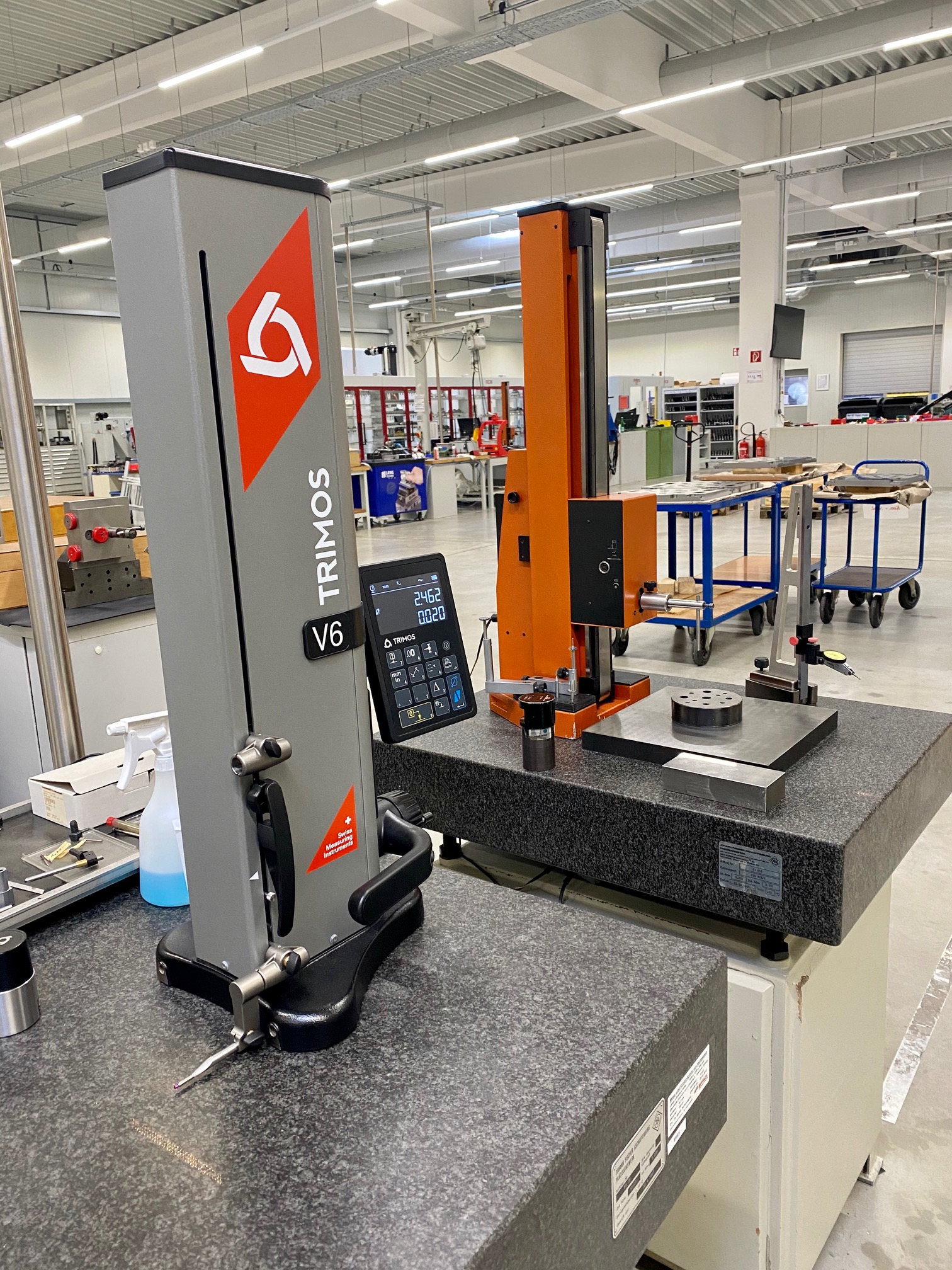

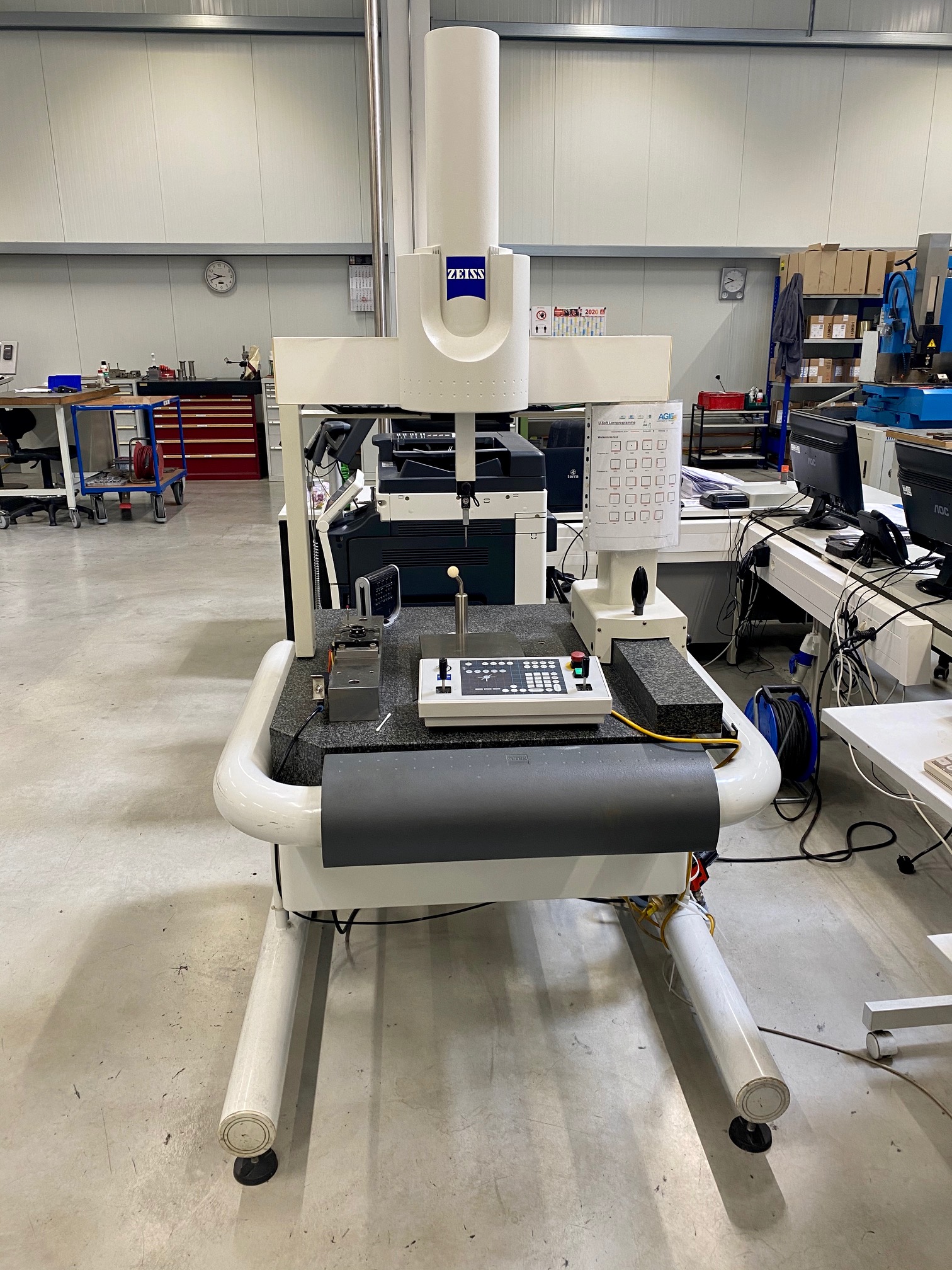

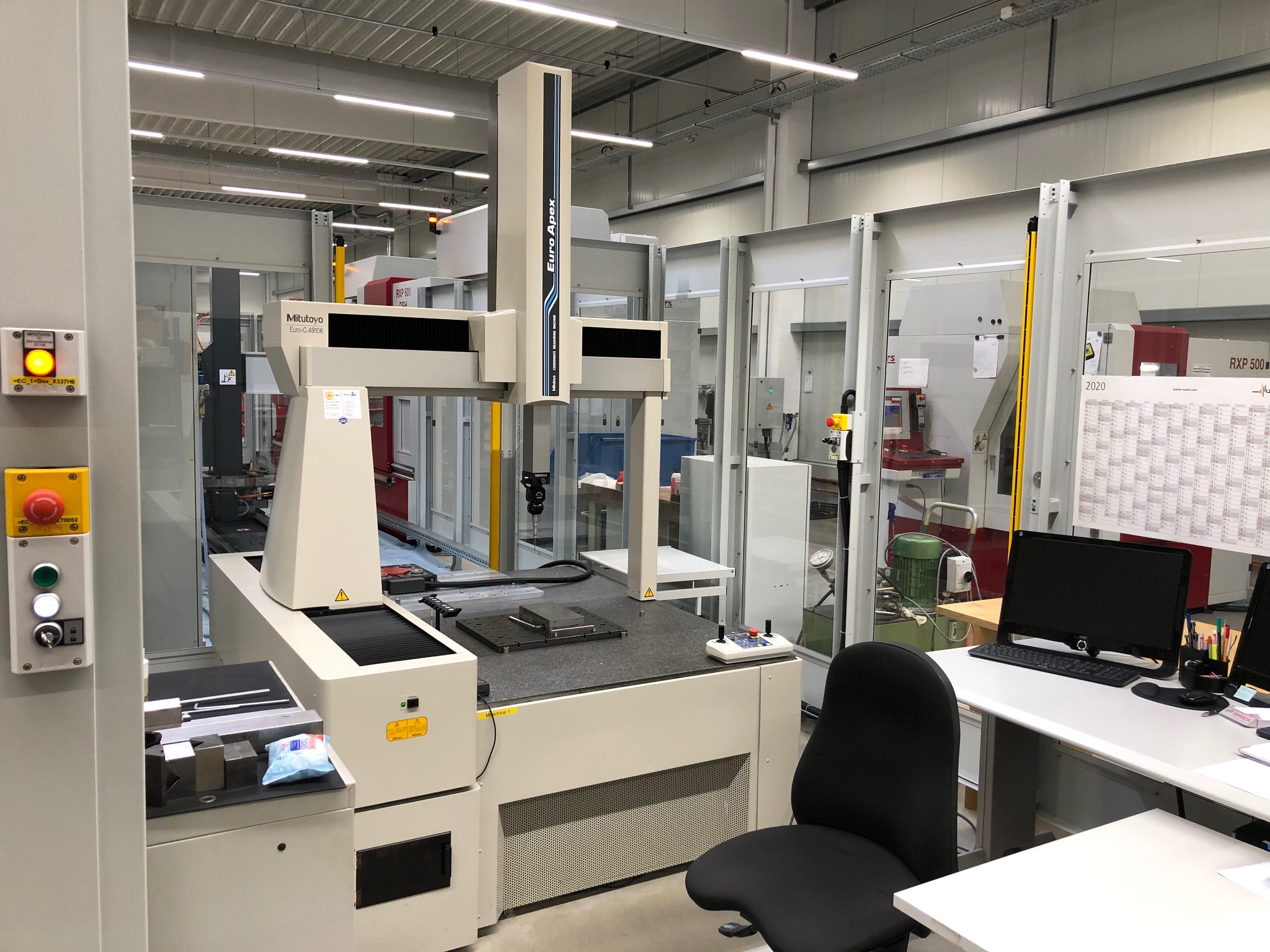

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight

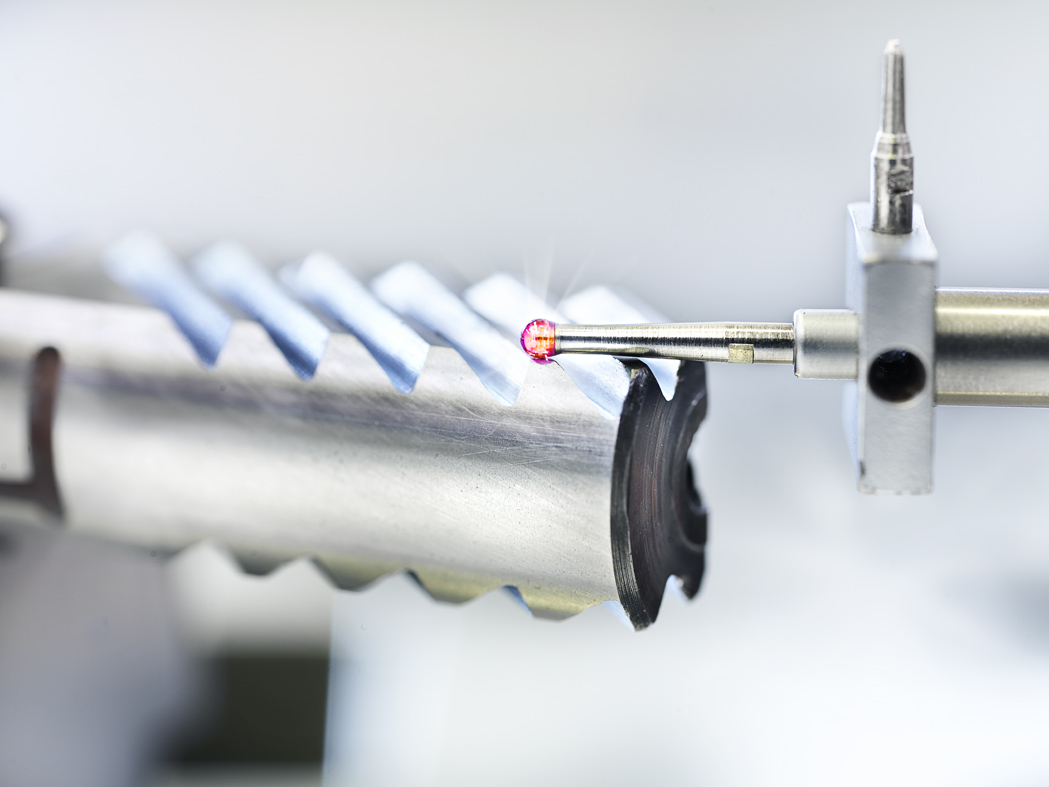

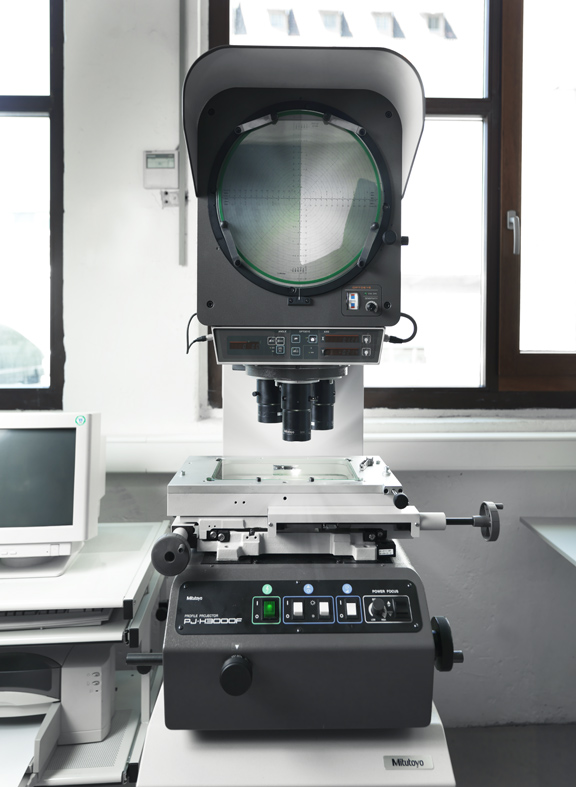

Measuring / testing	1–1,000 mm	1–1,000 mm	1–1,000 mm	1–750 mm	0–2,000 kg

Mechanical Engineering

Technologies	Lotsize	Length	Width	Height	Weight
Mechanical engineering	1–1,000	25–350 mm	25–350 mm	25–350 mm	0–300 kg

Gear Making

Technologies	Lotsize	Length	Diameter	Weight
Internal teeth	1–500	25–300 mm	10–500 mm	0–500 kg

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Milling	1–5,000	5–300 mm	5–300 mm	5–300 mm	—	—

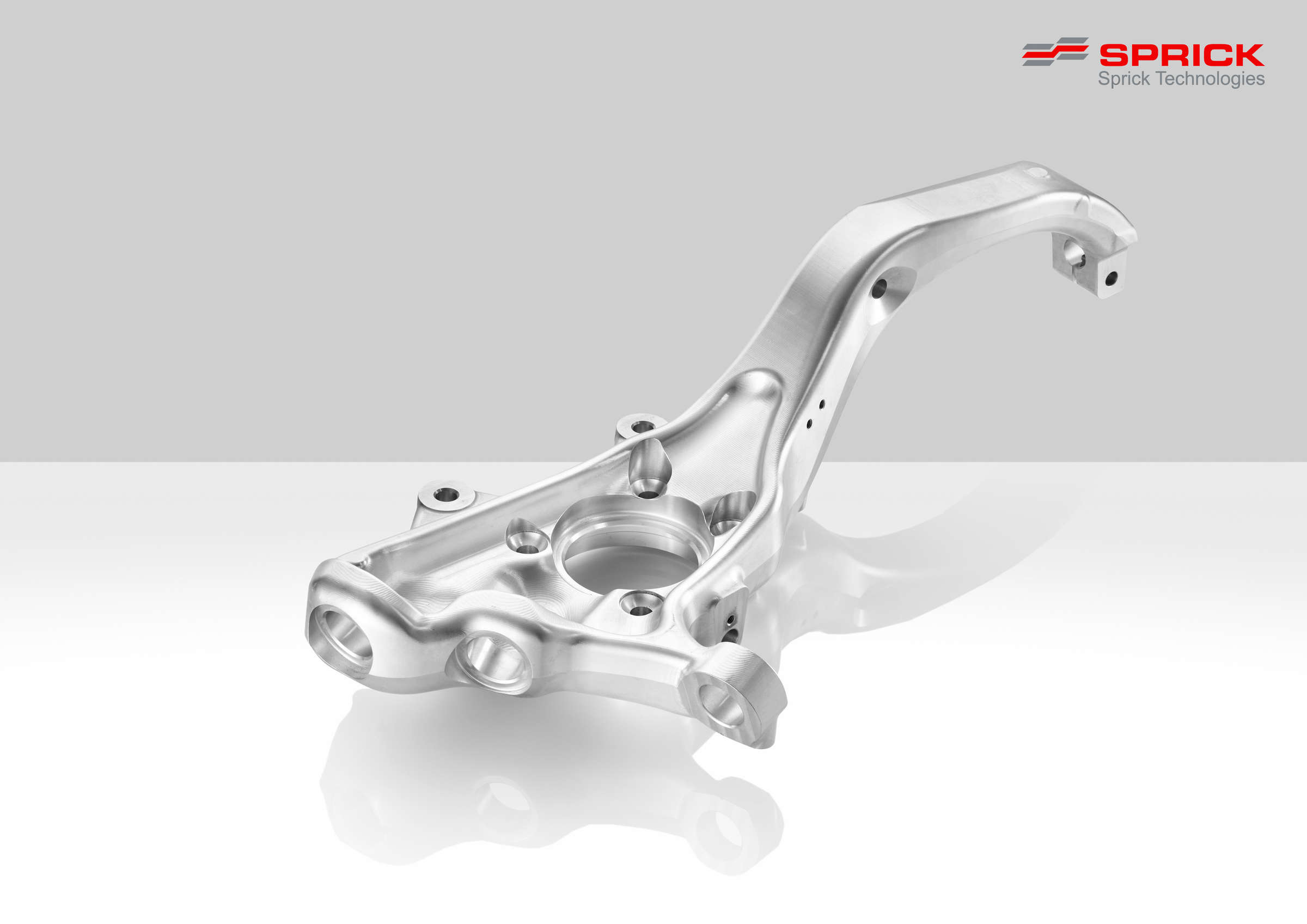

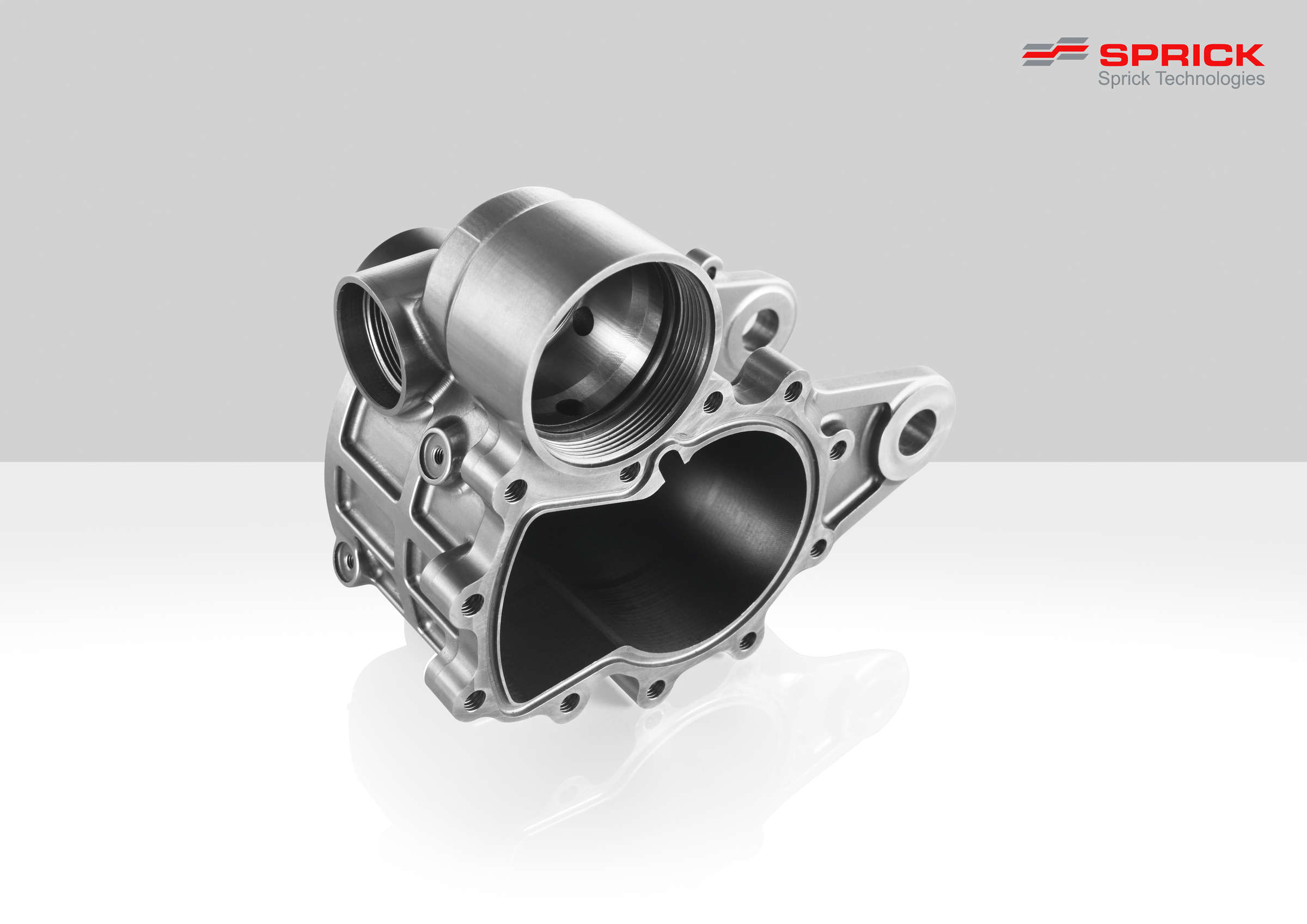

5-axis milling machines	1–5,000	1–300 mm	1–300 mm	1–300 mm	—	—
Form milling (3 D)	1–5,000	5–300 mm	5–300 mm	5–300 mm	—	—
Full-range milling (including turning)	1–5,000	5–300 mm	5–300 mm	5–300 mm	1–300 mm	—

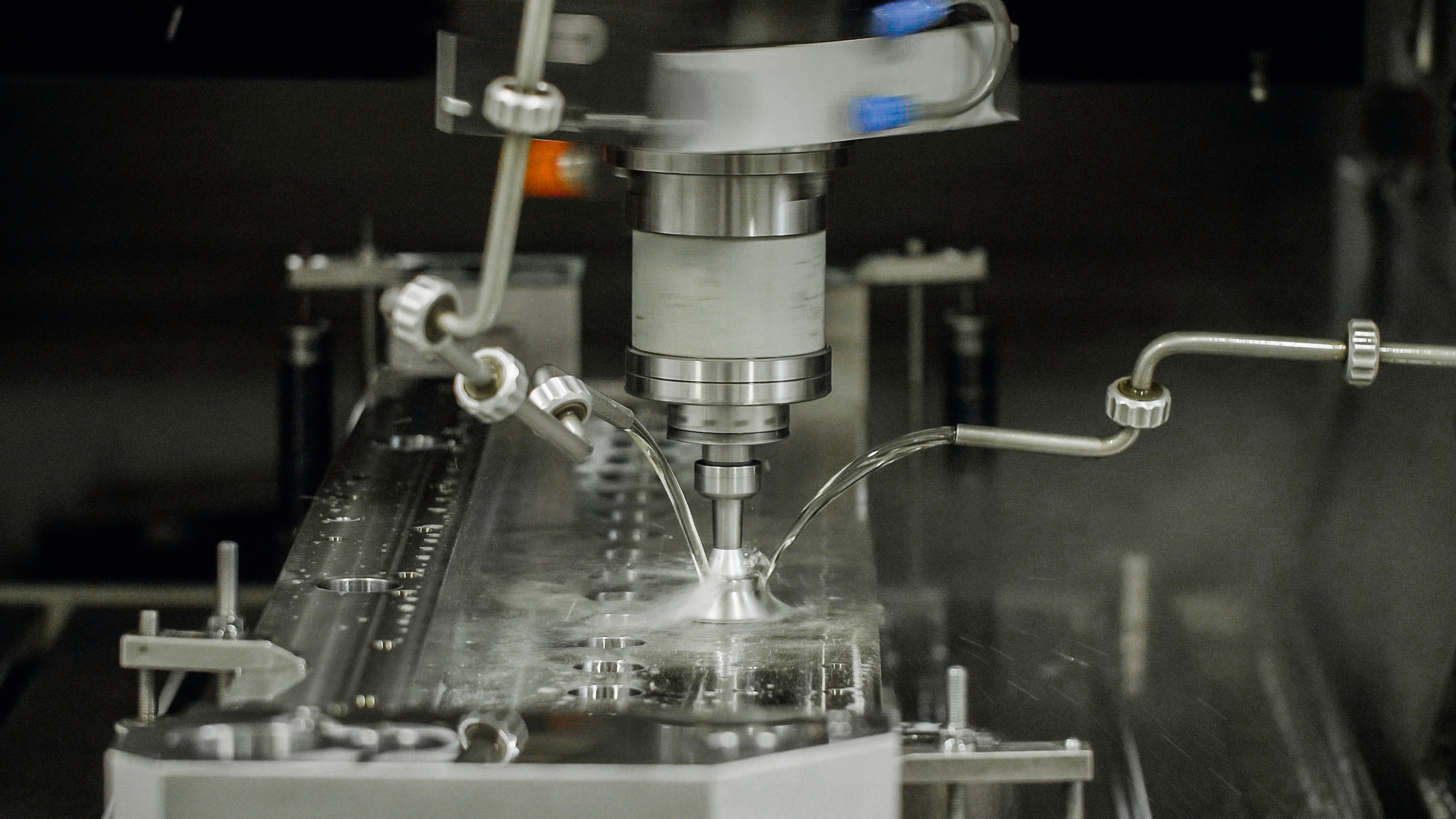

HSC milling	1–1,000	10–600 mm	10–450 mm	10–300 mm	—	0–600 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Weight
Drilling / threading / tapping	1–1,000	10–1,420 mm	10–1,000 mm	1–800 mm	0–2,000 kg

Materials

Non-metal inorganic materials

CeramicsCast mineralsGraphite

Sintered materials

Metal powder for formed partsMetal powder for hard metal

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Cast metals

Cast steelCast iron

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys

Natural materials

Wood/timber

Plastics/synthetic materials

ThermoplasticsThermosetsElastomersGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materials

Advanced Materials

Nickel alloy (Inconel, Monel, Hastelloy)Carbide

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Industries

Mechanical engineeringAerospace and aviation industrySpecial purpose machinery manufacturingPower generation and transmission industryMedical technologyMeasurement and control technique, laboratory equipmentDrive and gear engineeringClean room technologyAutomotive and vehicle constructionMilitary engineeringPackaging industryElectrical industryAutomation and control engineeringPlant engineering and constructionMachine tool manufacturingPrecision engineering, mechatronics and optics

+8 moreShow less
