Stoll Giroflex AG
Switzerland, 5322 Koblenz
Overview
About Stoll Giroflex AG
Who we are
We have been generations of specialists in the development and manufacture of high quality office chairs with the production site in Switzerland. Our high level of vertical offset us in a position to be able to react flexibly to changing market requirements. It shows consistently we have plenty of years of accumulated, in-depth knowledge in the processing of pipes, profiles and wires from steel and stainless steel. Our core competencies: - CNC cutting inclusive beveling and cleaning - Inert gas welding robot MAG, PPAW and TIG (GTAW), and manual welding. - CNC tube bending, depending on material up to Ø 34x2mm - CNC wire bending from coil or bar up to Ø 12mm - Powder coating, continuous system with upstream degreasing and phosphating To complete part machining we offer also: - Drilling (CNC), punching, stamping (Stierli), punching, deforming. - Trowalisieren (vibratory grinding) of serial parts - Assembly activities - Measure inclusive protocol creation (Faro 3D) - Own resources structure - Private fixture Translation by Google Translate
1 / 9
2 / 9
3 / 9
4 / 9
5 / 9
6 / 9
7 / 9
8 / 9
9 / 9
Koblenz, Switzerland
Member since 2015
Employees100 - 200
Certificates2
Year of foundation1871
Marketing documents
Competencies
Technologies
Wire & Spring Bending
| Technologies | Lotsize | Diameter |
|---|---|---|
Wire bending | 1–10,000 | 5–12 mm |
Pipe & Tube Manufacturing
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Pipe bending | 1–10,000 | 200–3,240 mm | 14–32 mm |
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 1–10,000 | 10–1,500 mm | 10–650 mm | 10–750 mm | 10–650 mm | 0–25 kg | 2.5–8 mm |
Inert gas shielded arc welding (Plasma) | 1–10,000 | 10–1,500 mm | 10–650 mm | 10–700 mm | 10–650 mm | 0–25 kg | 2.5–5 mm |
Inert gas shielded arc welding (TIG) | 1–10,000 | 10–1,500 mm | 10–650 mm | 10–700 mm | 10–650 mm | 0–25 kg | 2–3 mm |
Spot welding | 1–10,000 | — | — | — | — | — | 0.5–3 mm |
Manual electrode welding | 1–10,000 | 50–500 mm | 50–500 mm | 50–500 mm | 10–300 mm | 0–20 kg | 1–5 mm |
Soldering | 1–5,000 | 5–100 mm | 5–100 mm | 5–100 mm | 5–100 mm | 0–5 kg | — |
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Welded constructions (weldments) | 100–1,000 mm | 100–1,000 mm | 100–1,000 mm | 0–40 kg |
Machine frames / bases / racks | 100–1,000 mm | 100–1,000 mm | 100–1,000 mm | 0–40 kg |
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 1–10,000 | 5–1,000 mm | 5–300 mm |
Jigmaking
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Drilling / milling jigs | 50–1,000 mm | 50–1,000 mm | 50–1,000 mm | 0–50 kg |
Gauges | 50–1,000 mm | 50–1,000 mm | 50–1,000 mm | 0–50 kg |
Measuring / testing jigs | 50–1,000 mm | 50–1,000 mm | 50–1,000 mm | 0–50 kg |
Assembly jigs | 50–1,000 mm | 50–1,000 mm | 50–1,000 mm | 0–50 kg |
Welding jigs | 50–1,000 mm | 50–1,000 mm | 50–1,000 mm | 0–50 kg |
Clamping devices | 50–1,000 mm | 50–1,000 mm | 50–1,000 mm | 0–50 kg |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–50 kg |
Industrial / On-site-assembly | 0–20 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Milling | 1–5,000 | 5–250 mm | 5–250 mm | 5–250 mm | 0–20 kg |
Mechanical Engineering
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Handling technology | 1–1,000 | 50–1,000 mm | 50–1,000 mm | 50–1,000 mm | 0–50 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Sawing | 1–10,000 | 100–3,150 mm | 8–100 mm | 8–100 mm | 8–100 mm | — |
Drilling / threading / tapping | 1–10,000 | 50–250 mm | 50–250 mm | 50–250 mm | — | 0–20 kg |
Surface Treatment
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Powder coating | 1–10,000 | 5–1,900 mm | 5–500 mm | 5–1,000 mm | 0–20 kg |
Rotofinishing, barrel finishing | 100–1,000 | 5–100 mm | 5–100 mm | 5–100 mm | — |
Parts cleaning/degreasing | — | 5–1,900 mm | 5–130 mm | 5–900 mm | 0–30 kg |
Materials
Cast metals
Cast steelCast iron
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Light metals
Aluminium and aluminium alloys
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Tool steelCold extruding steel
Industries
Furniture industry
Certificates
ISO 9001:2008
ISO 14001
Parts & Machines
Parts (15)
1 / 15

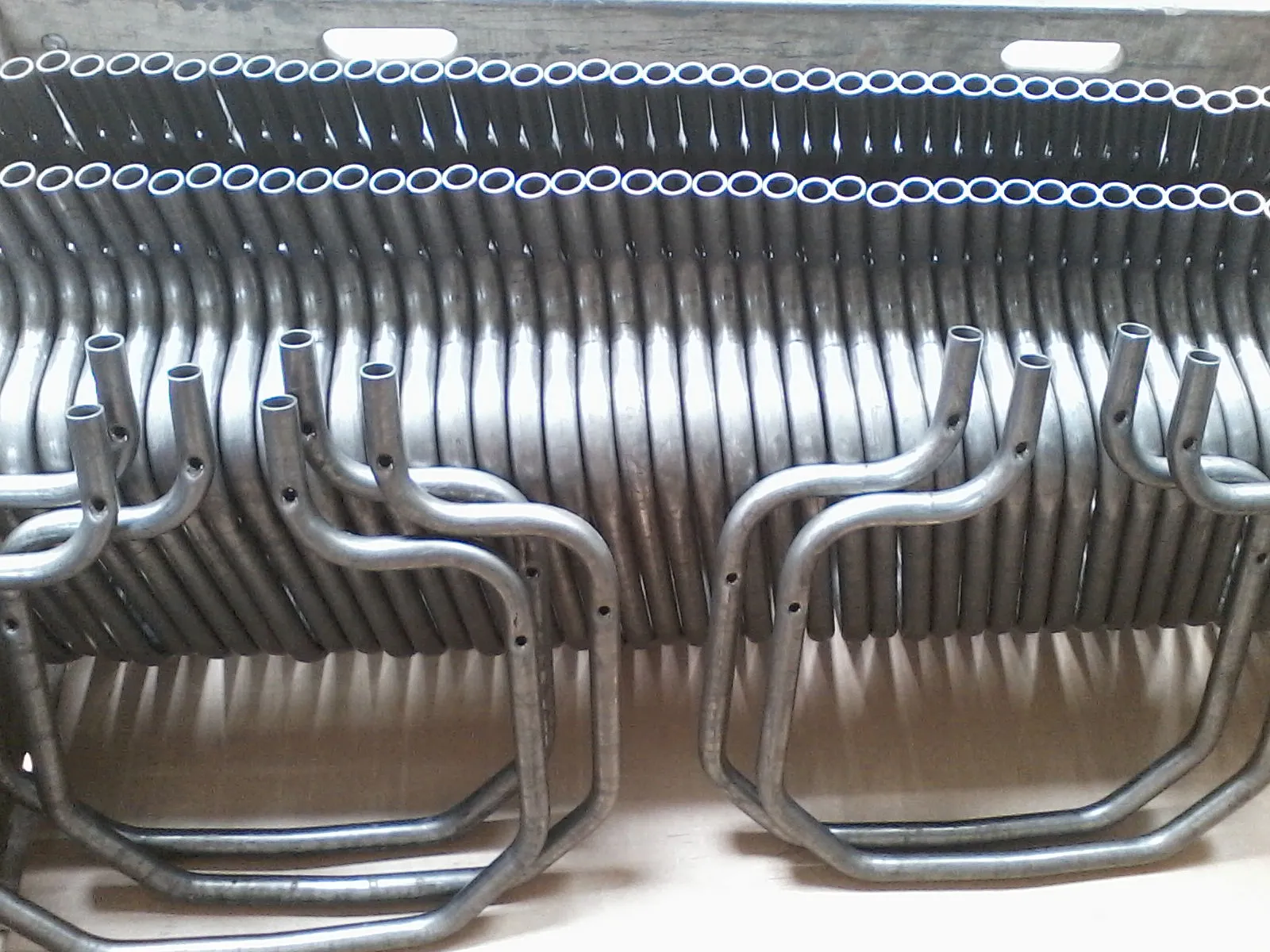

Rahmen gebogen
DescriptionRahmen komplett gebogen und gestanzt.
Material :
Rundrohr Ø 22 x 2.95, 1.0038, kaltgezogen, Schweissnaht innen abgehobelt
2 / 15

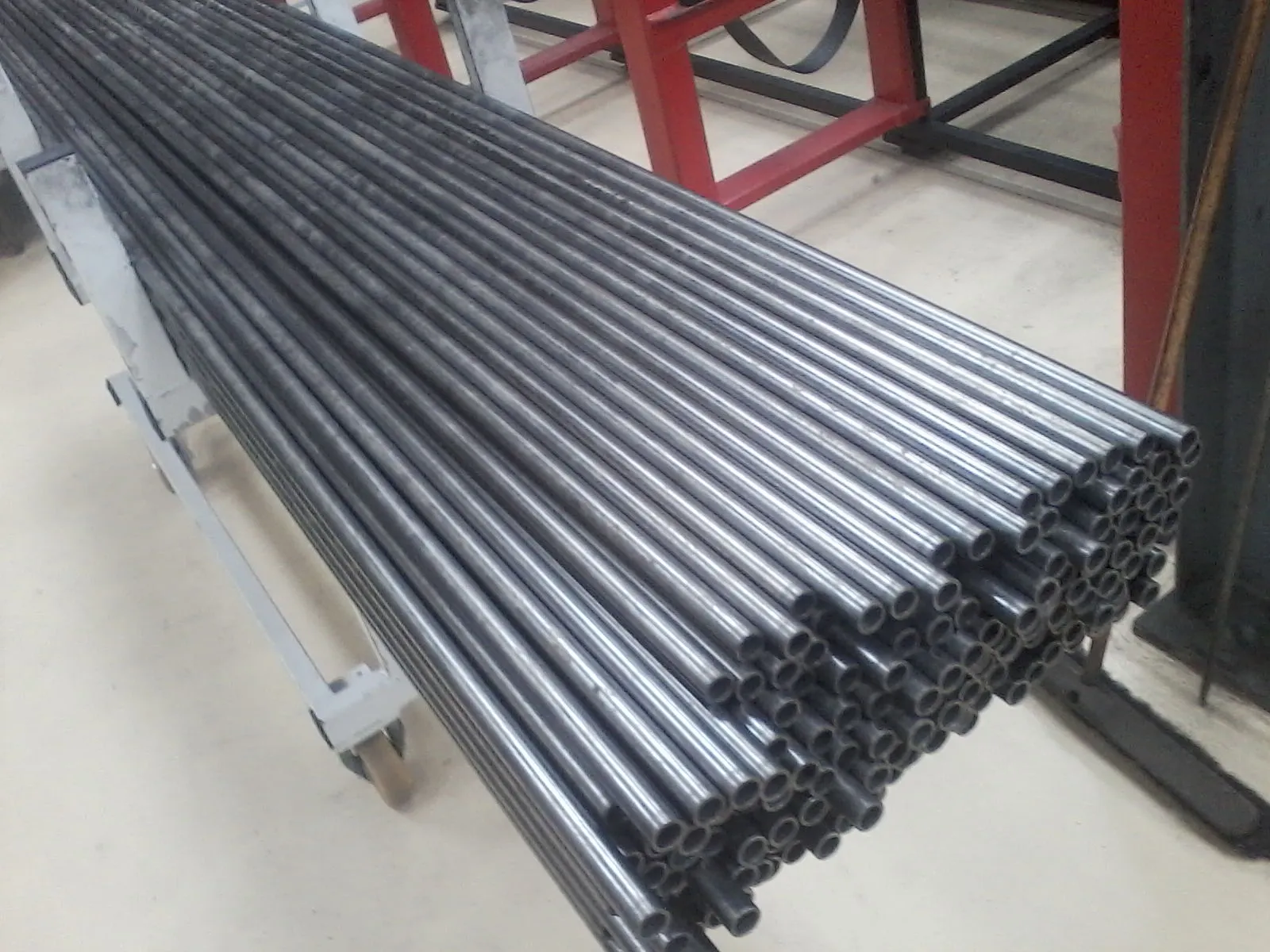

Rohre gesägt
DescriptionBeispielbild = Werkstoff ST37-2, L = 3.120mm, vollautomatisches Sägen, entgraten und reinigen mittels RSA Sägezentrum
3 / 15

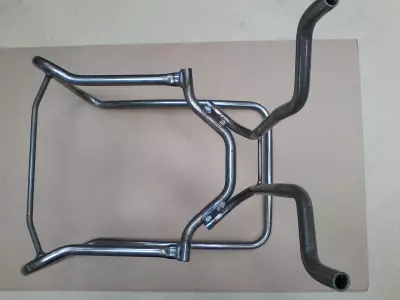

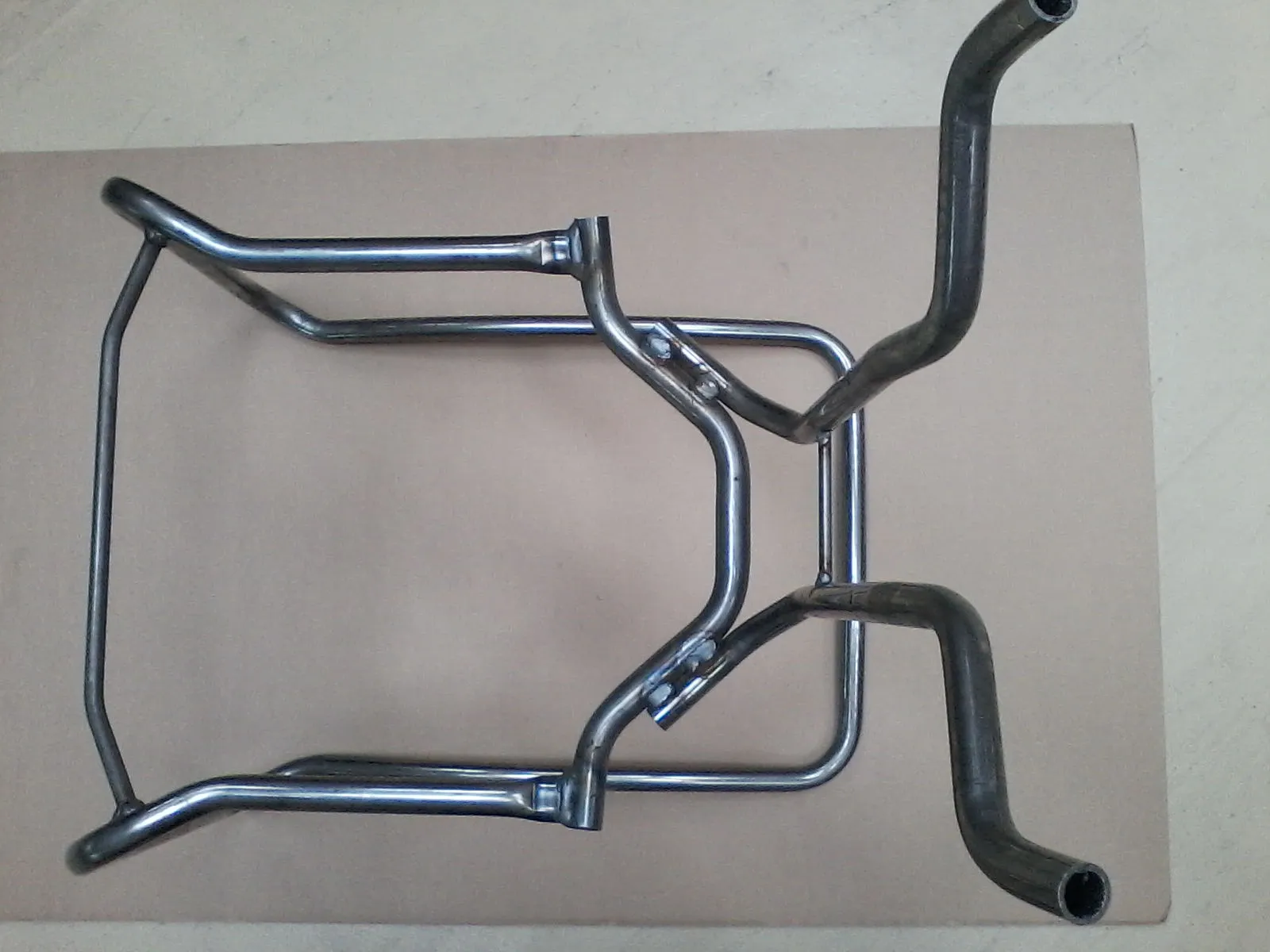

Gestell aus verschweissten Biegeteilen
DescriptionKonturenreiches (25 Biegeradien) Gestell aus S235-Rohren/Drähten verschiedener Durchmesser.
Arbeitsschritte :
Rohrbiegen Rechts/Links, Drahtbiegen, Prägen, MAG-Roboterschweissen, Richten
4 / 15

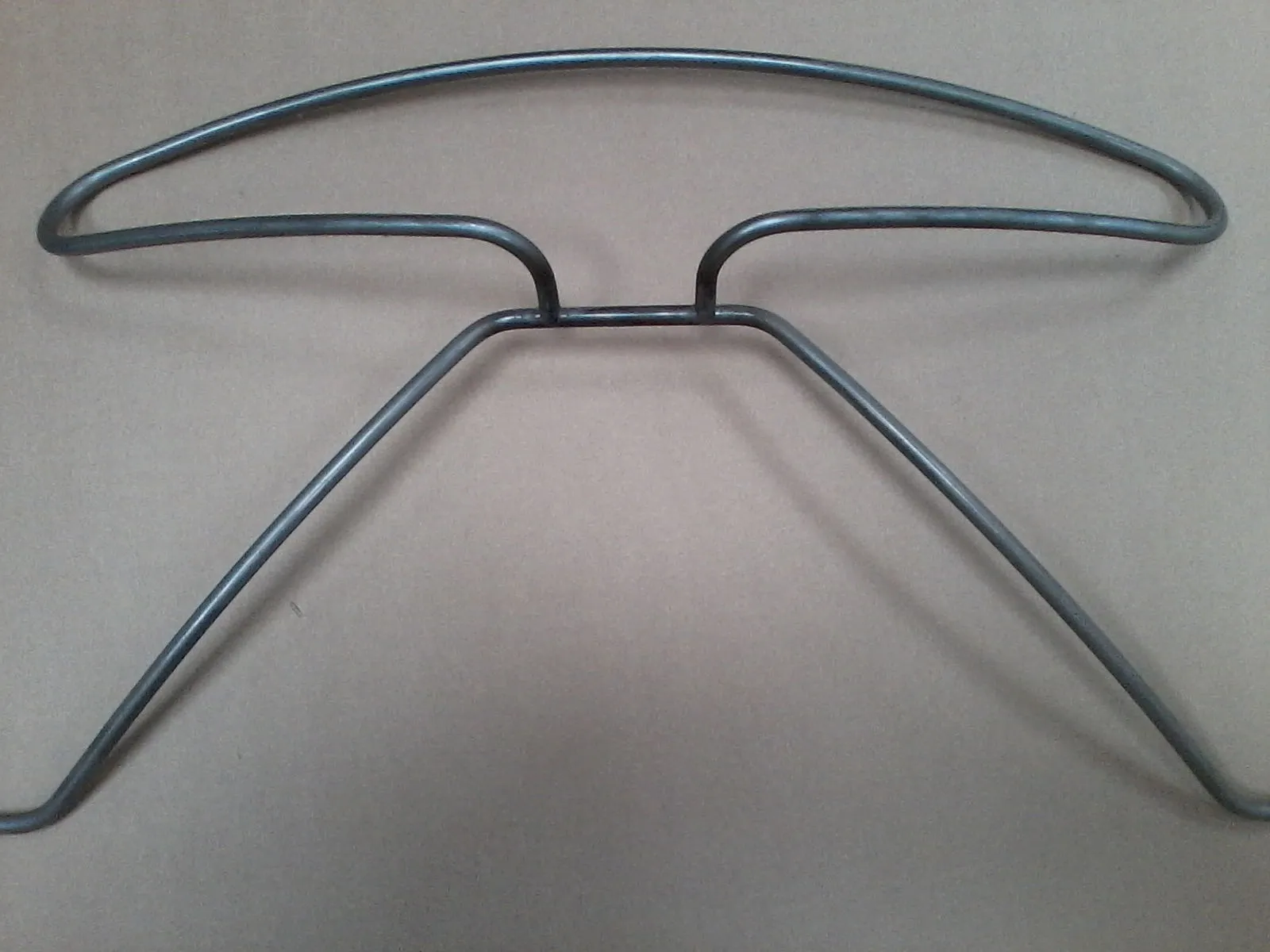

Kleiderbügel CNC gebogen und TIG (WIG)-verschweisst
DescriptionØ 7mm, ST37-2, Einzelteile komplett Fertiggebogen/gestossen, anschliessend TIG(WIG) verschweisst.
In Qualität ST37-2 haben wir die Querschnitte 5, 7 und 12mm ab Coil am Lager,
CrNi ( 1.4307) verarbeiten wir im Standard mit Ø 10mm ab Coil.
Andere Querschnitte auf Anfrage.
5 / 15

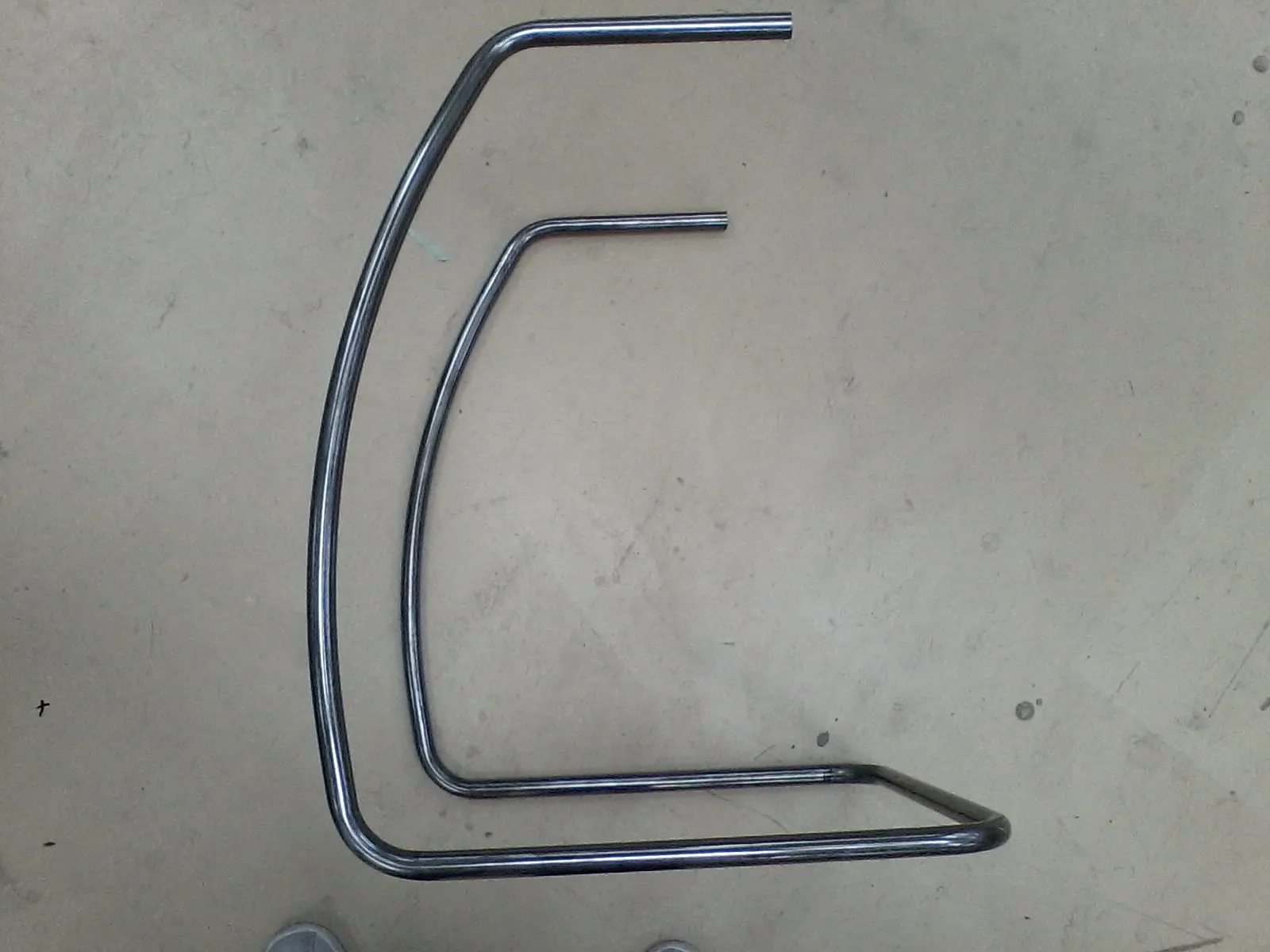

Gestell / Biegeteil
DescriptionGestell aus S235 ( Ø 22x3mm) mit geprägtem Radius r=1.000. Neben dem Prägen können Radien dieser Grösse auch direkt auf unserer Biegemaschine Mewag MD34 gestossen werden .
6 / 15

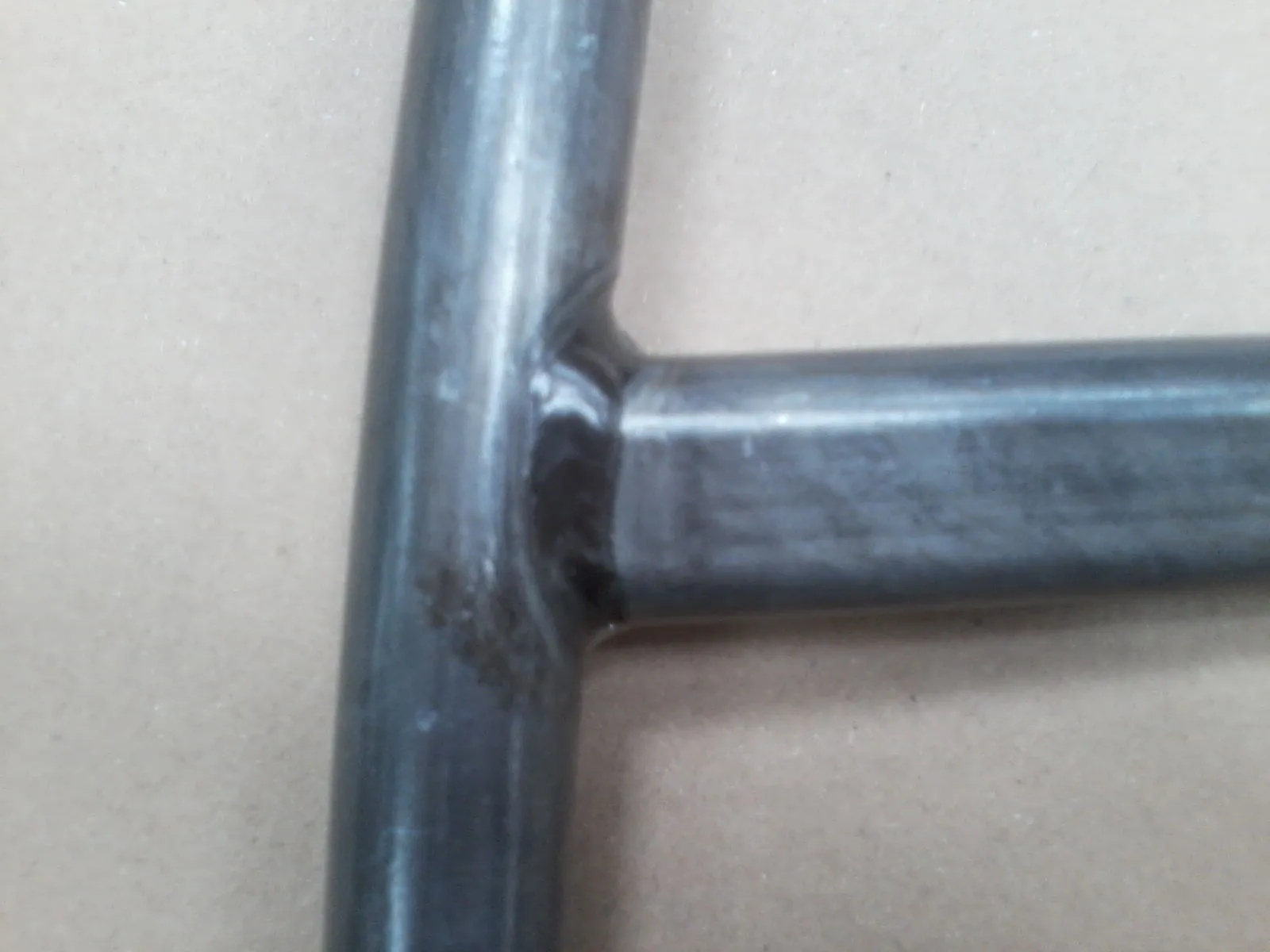

Profile aller Art, PPAW-verschweisst
DescriptionBeispiel Rundrohr 22x3 verschweisst mit Flachovalrohr 25x15x2, ST37-2.
Schweissverfahren = Pulverplasma, keine Nacharbeit der späteren Sichtnaht.
Das Verfahren ist sehr gut für das verschweissen von CrNi-Stählen geeignet
7 / 15

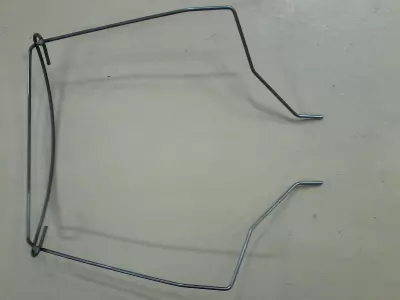

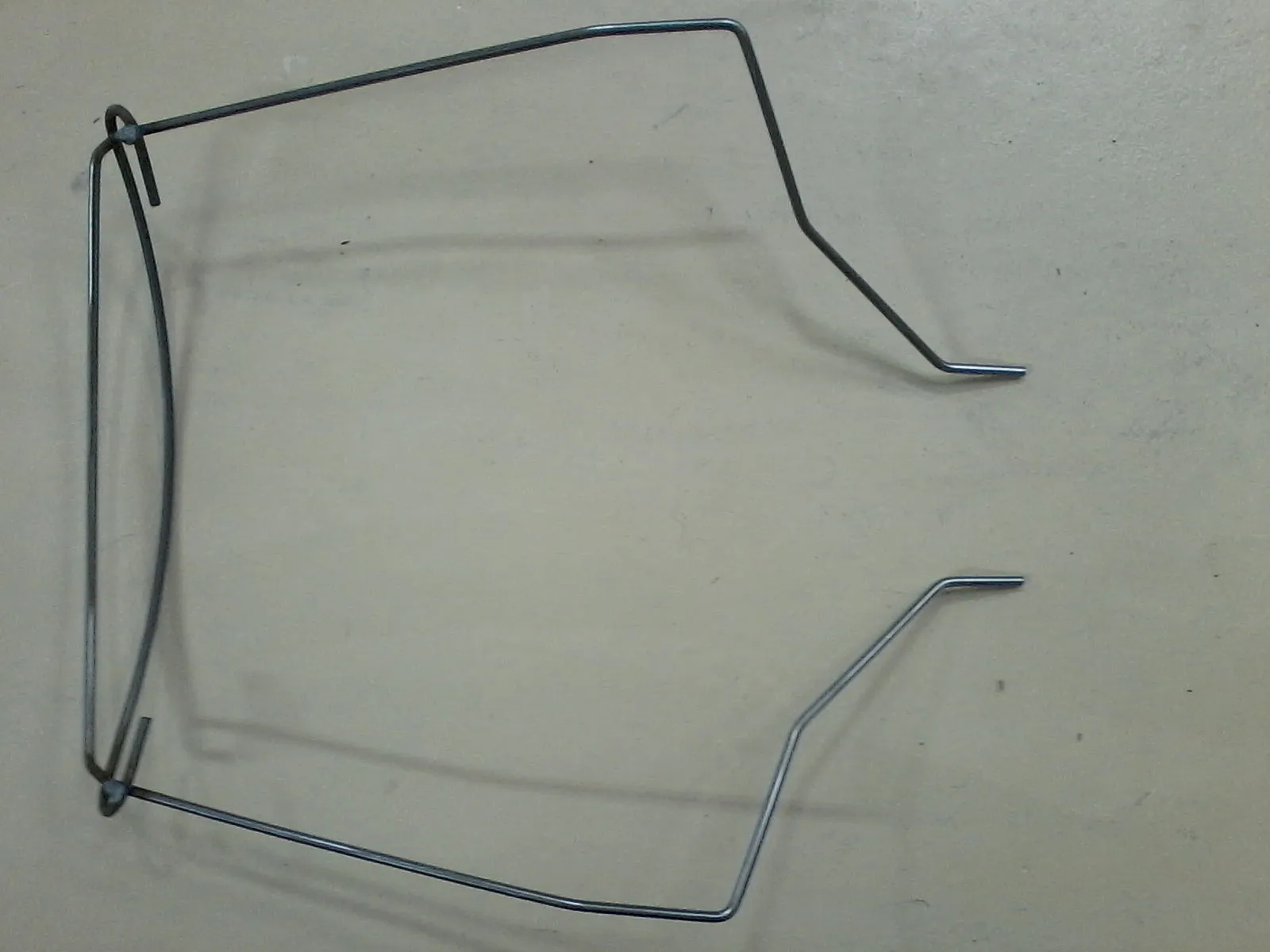

Rückendraht gebogen / MAG-verschweisst
DescriptionZweiteiliger Rückendraht, gebogen ab Coil, Ø 5mm, ST37-2, Drähte parallel zum vollautomatischen Biegen auf Wendetischanlage mittels Schutzgasschweissen verbunden.
8 / 15

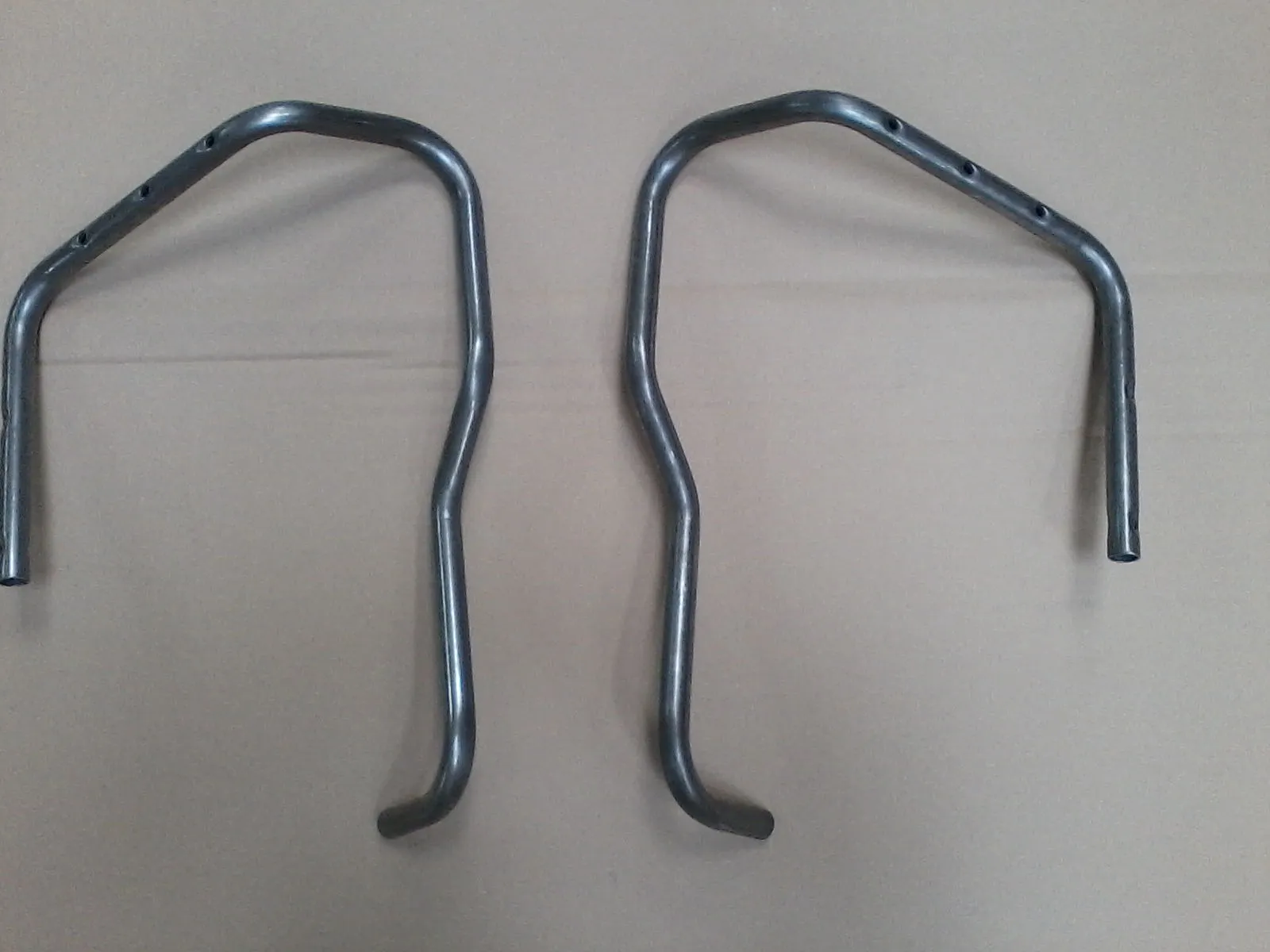

Bügel, gelocht
DescriptionBügel, Ø 20 x 2mm, CNC-gebogen, 3 gestanzte Bohrungen mit Einzug
9 / 15

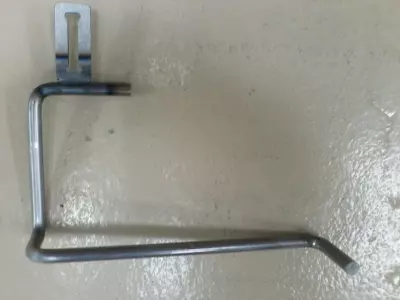

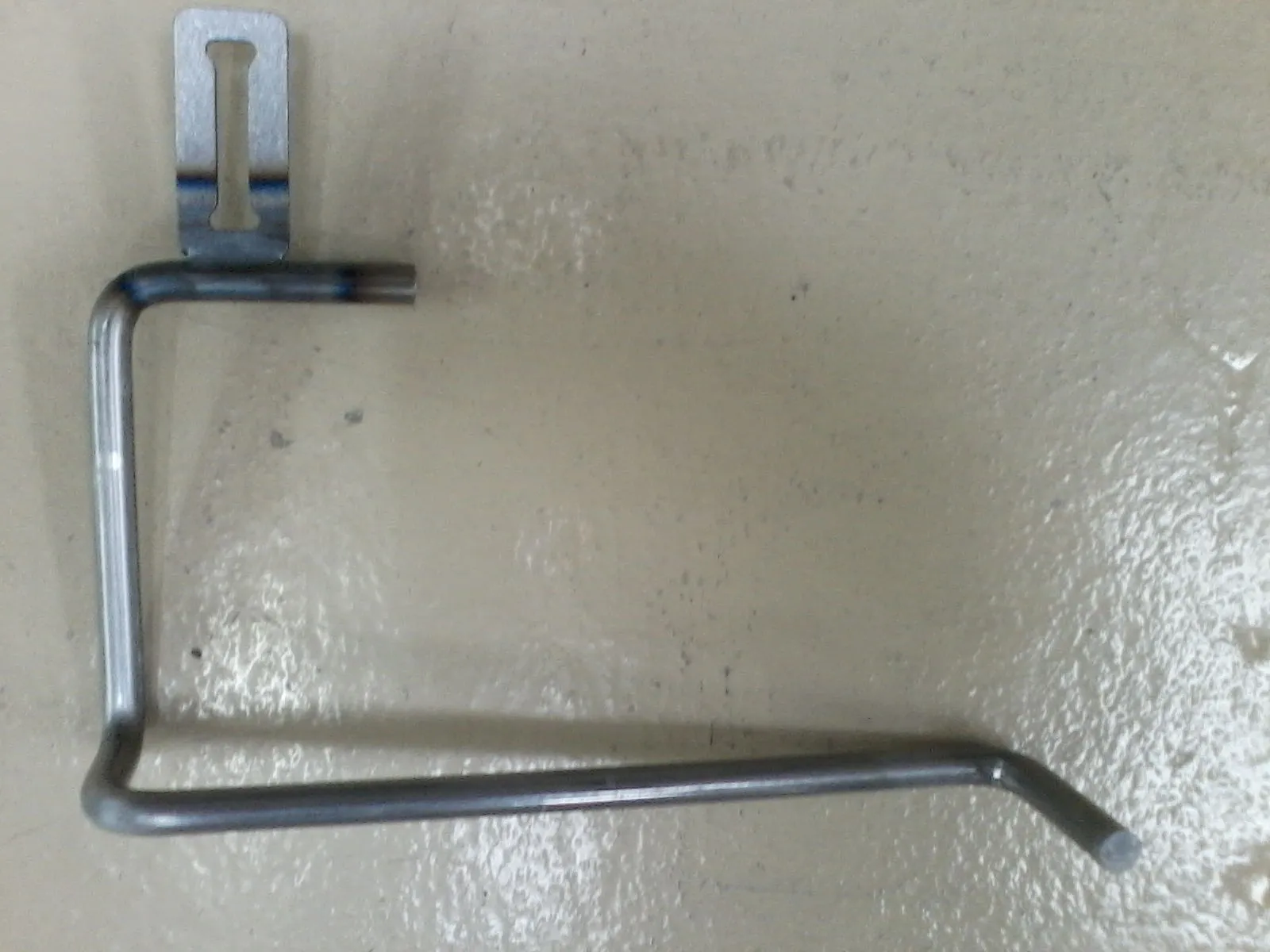

Hebel, TIG-geschweisst
DescriptionBedienungshebel aus Runddraht Ø 5mm, CNC-gebogen, mit Laserfitting verschweisst (TIG)
10 / 15

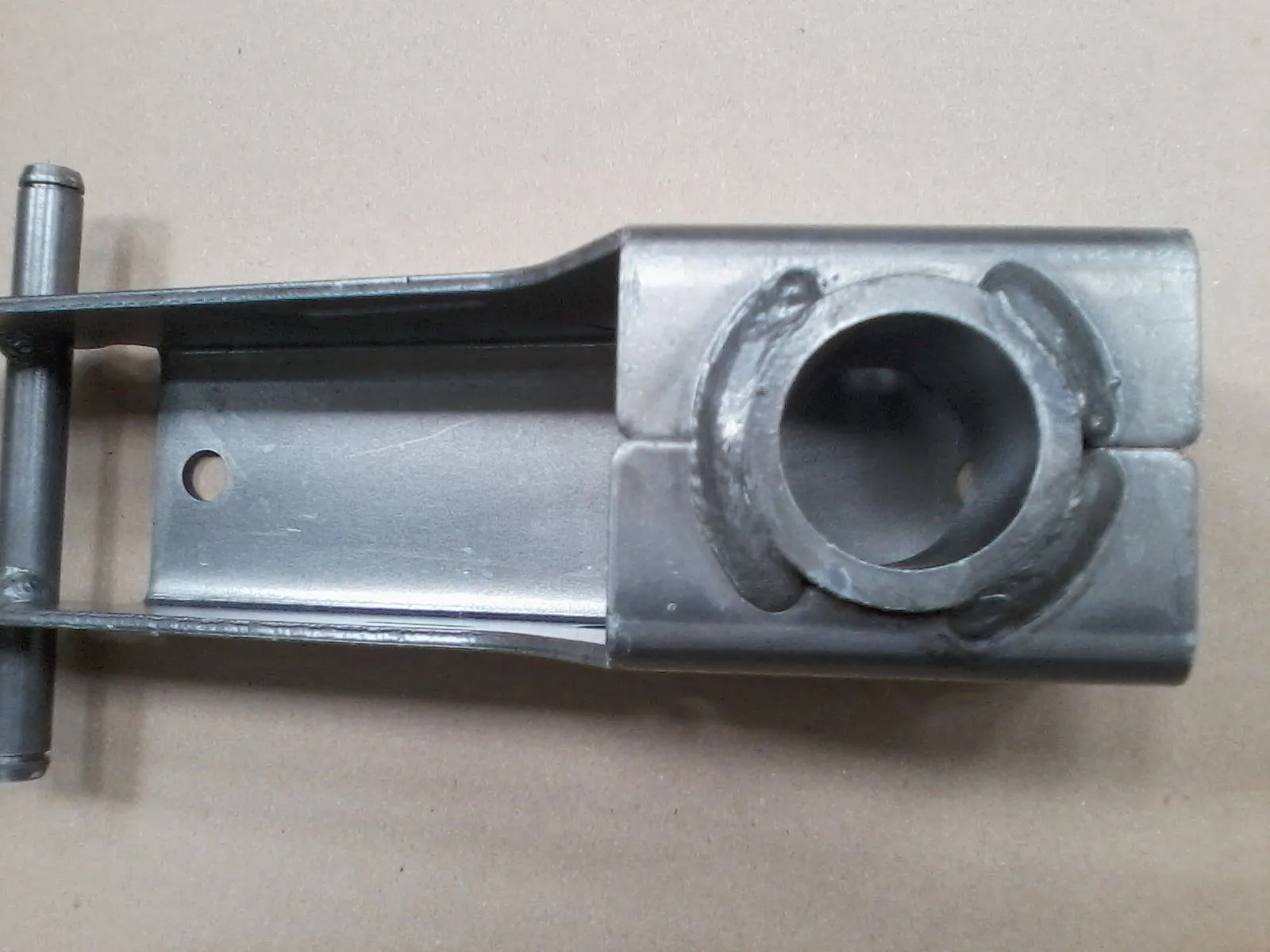

Träger, MAG-verschweisst
DescriptionFormbiegeteil aus Stahlblech, Führungshülse eingeschweisst (MAG)
11 / 15

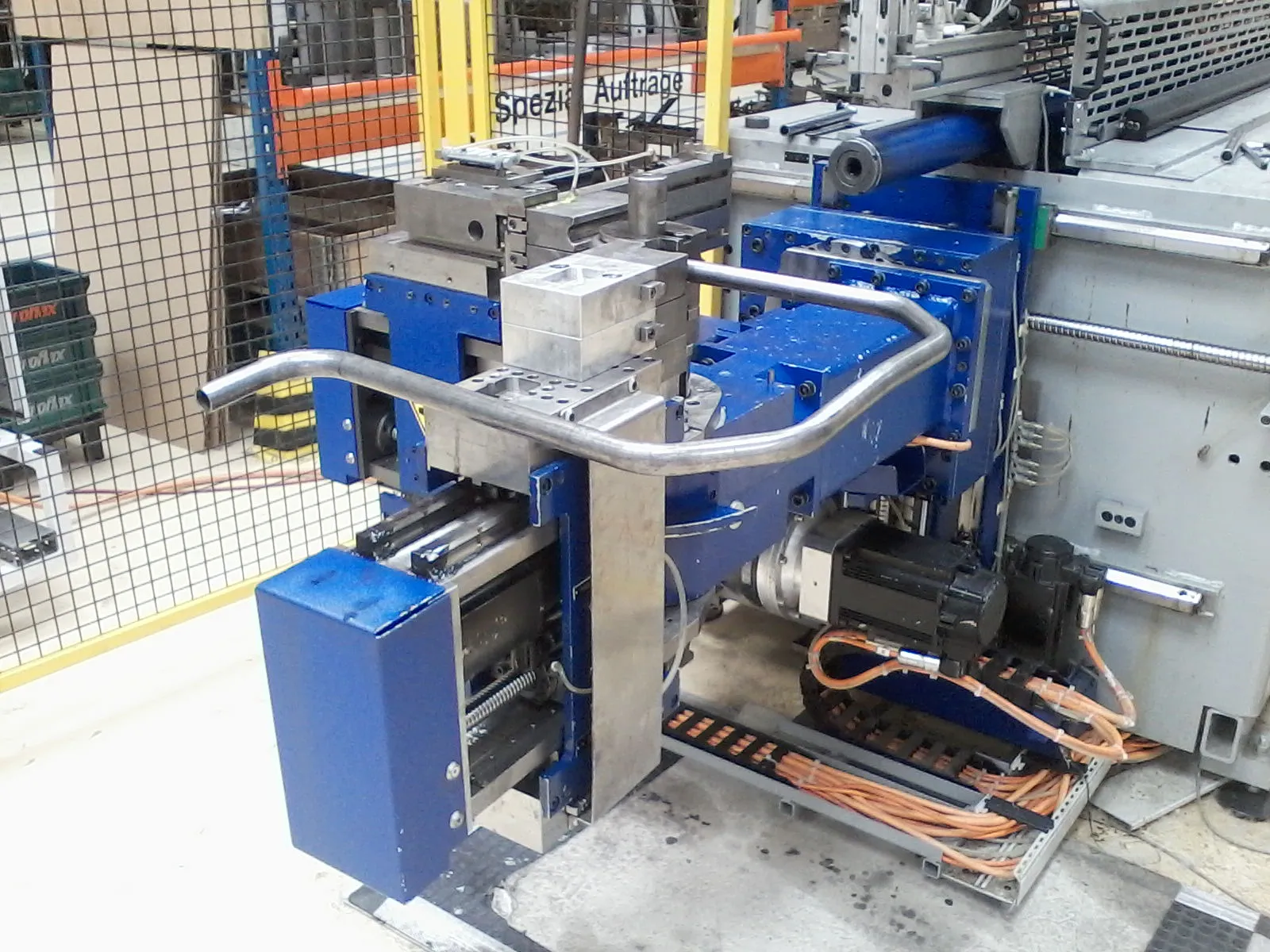

Rohrbiegen
DescriptionCNC Rohrbiegen eines Sitzträgers, Ø 22 x 3mm
12 / 15

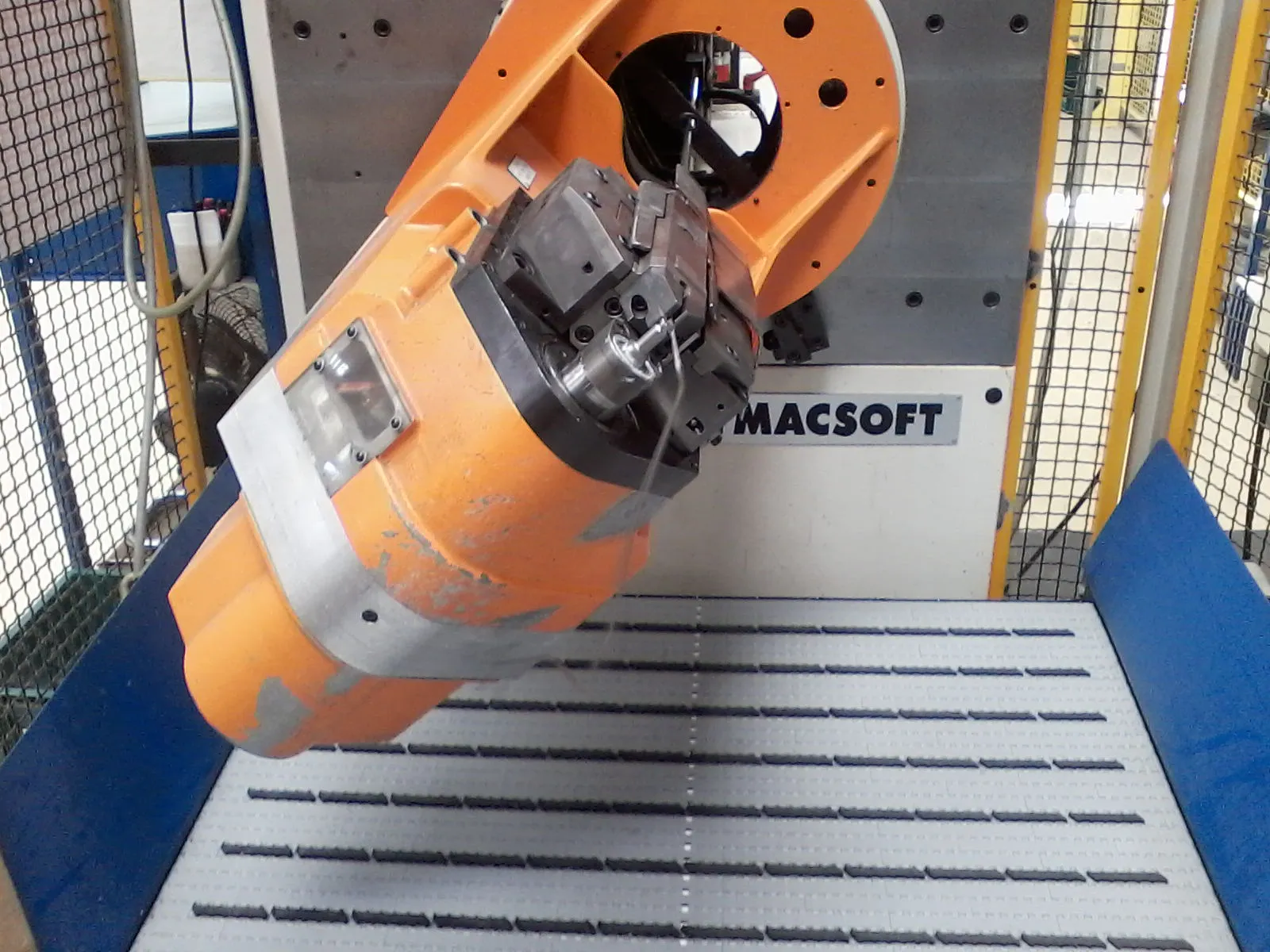

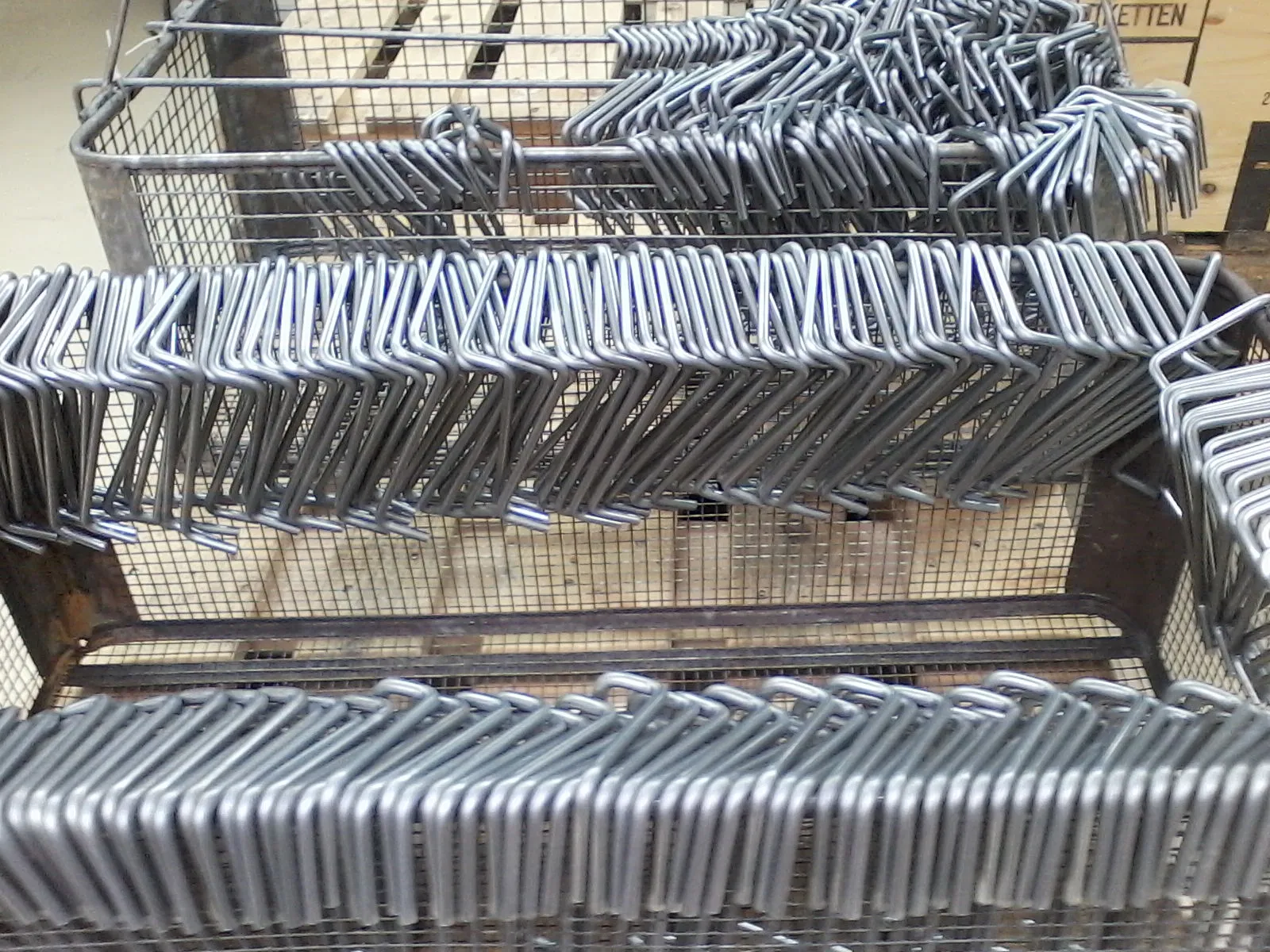

Drahtbiegen
DescriptionAb Coil vollautomatisches Serienbiegen-, und abtrennen von Stützdrähten, Ø 5mm, Material 1.4301
13 / 15

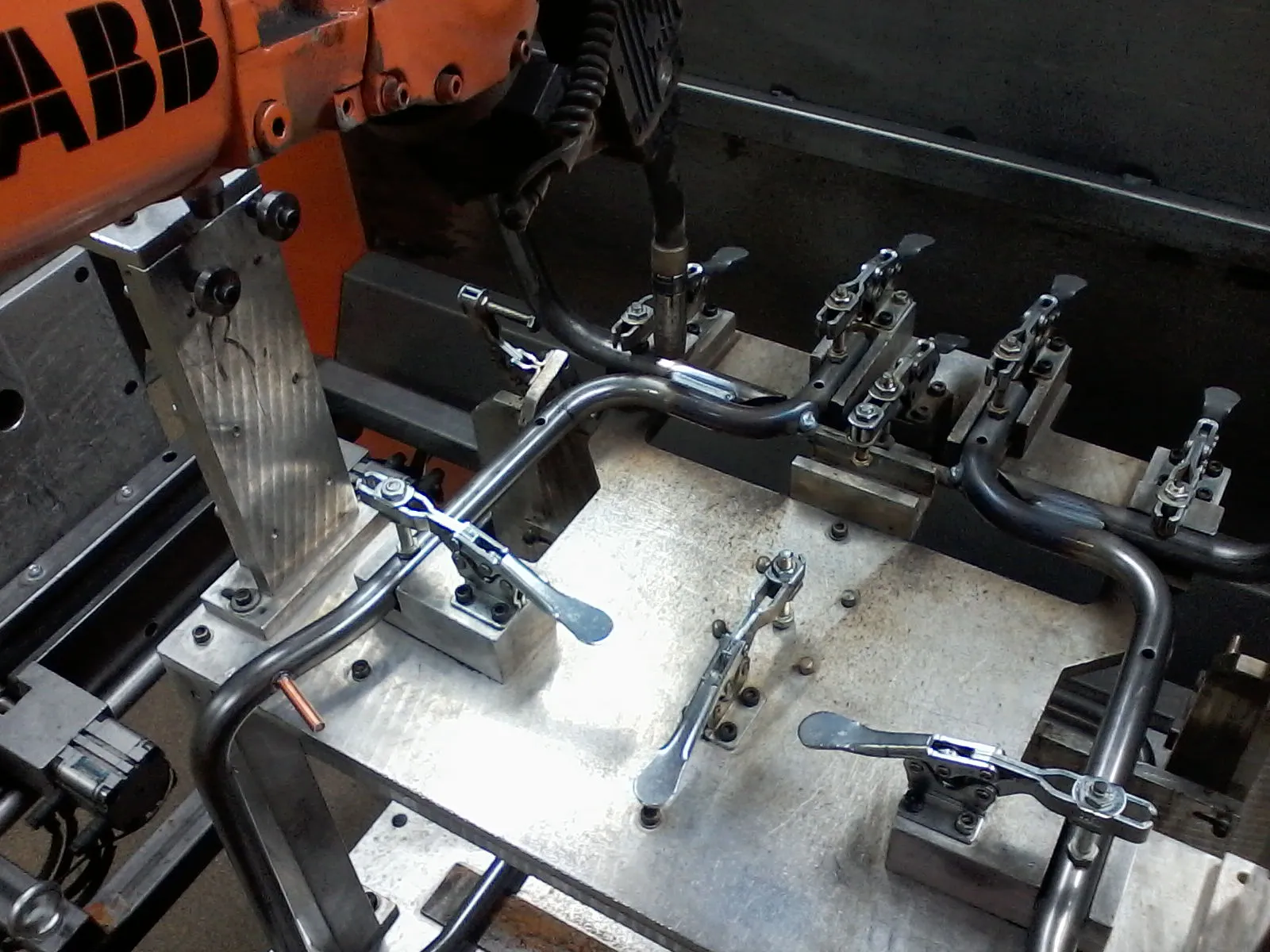

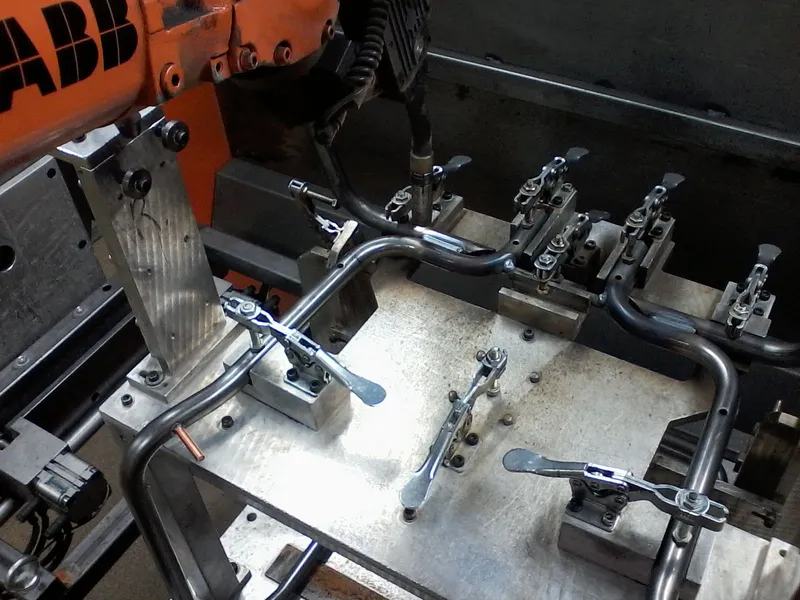

Roboterschweissen
DescriptionGestell aus Einzelteilen mit verschiedenen Querschnitten verschweisst ( MAG, Plasma, TIG)
14 / 15

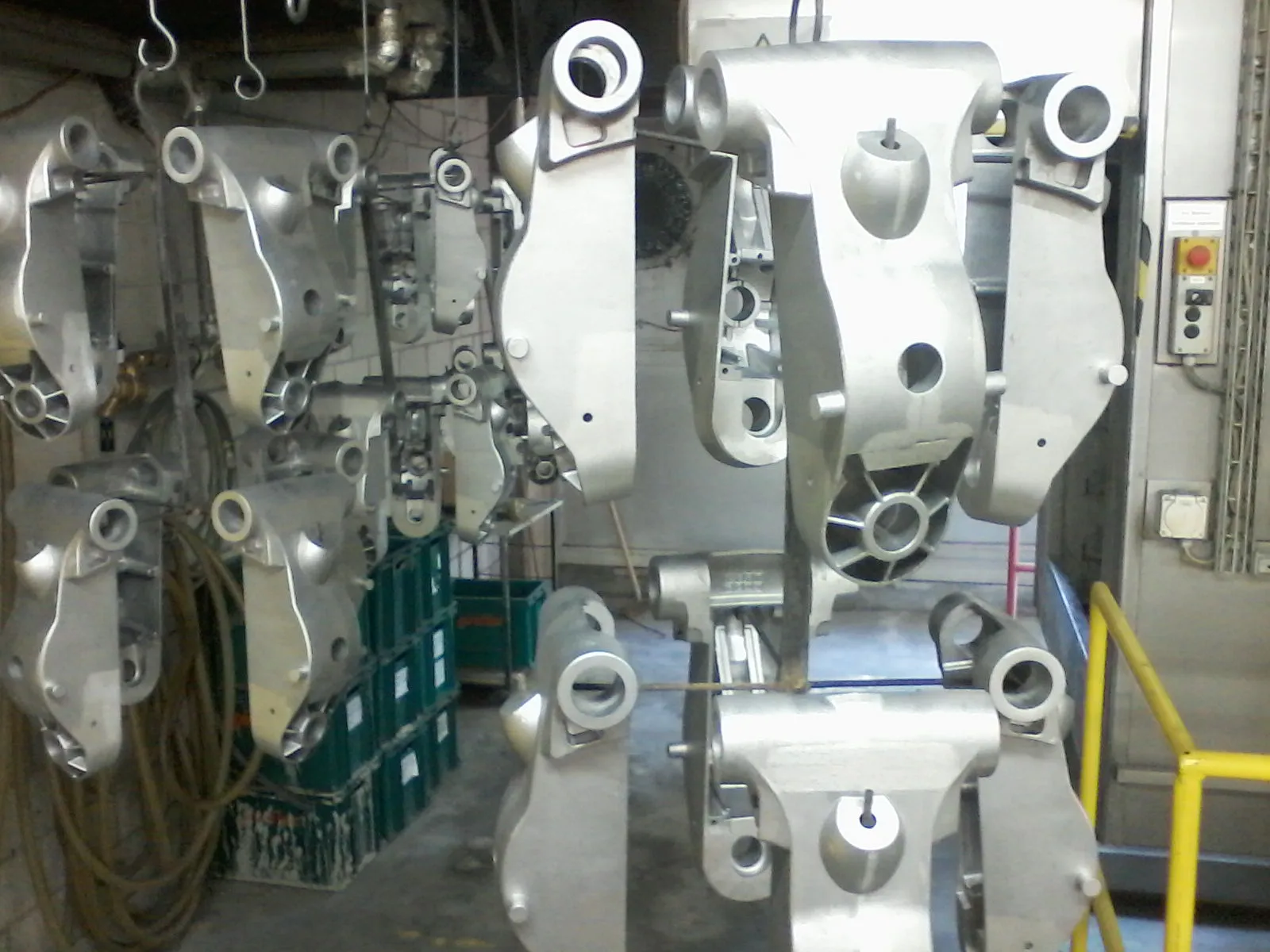

Pulverbeschichten
DescriptionPulverbeschichten von Aluminium-Gussteilen.
Kettenanlage : Reinigen, Phosphatieren, Beschichten
15 / 15

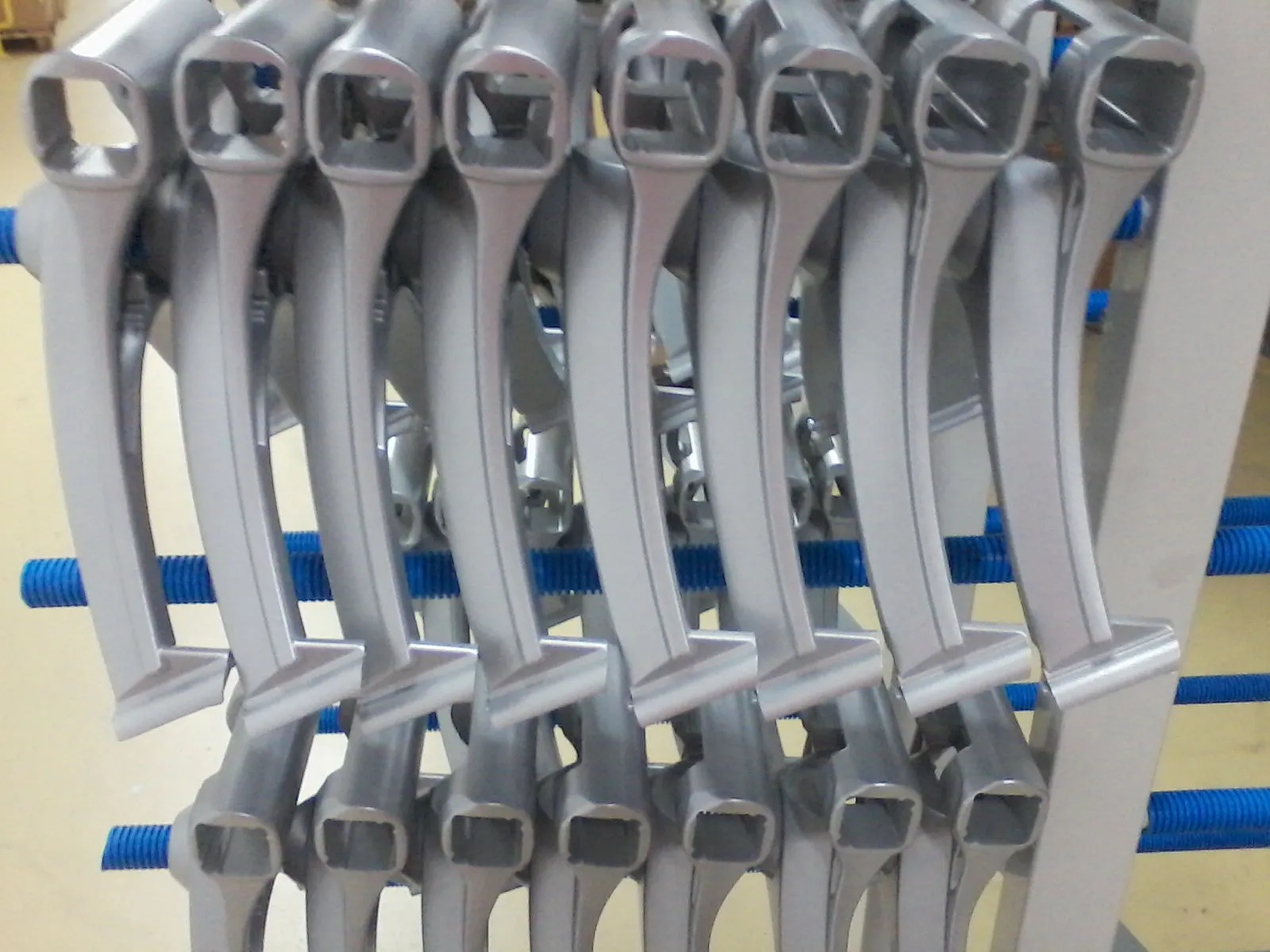

Pulverbeschichten 2
DescriptionSilbergrau beschichtete Sitzträger aus Aluminumguss
Machinery (6)
1 / 6

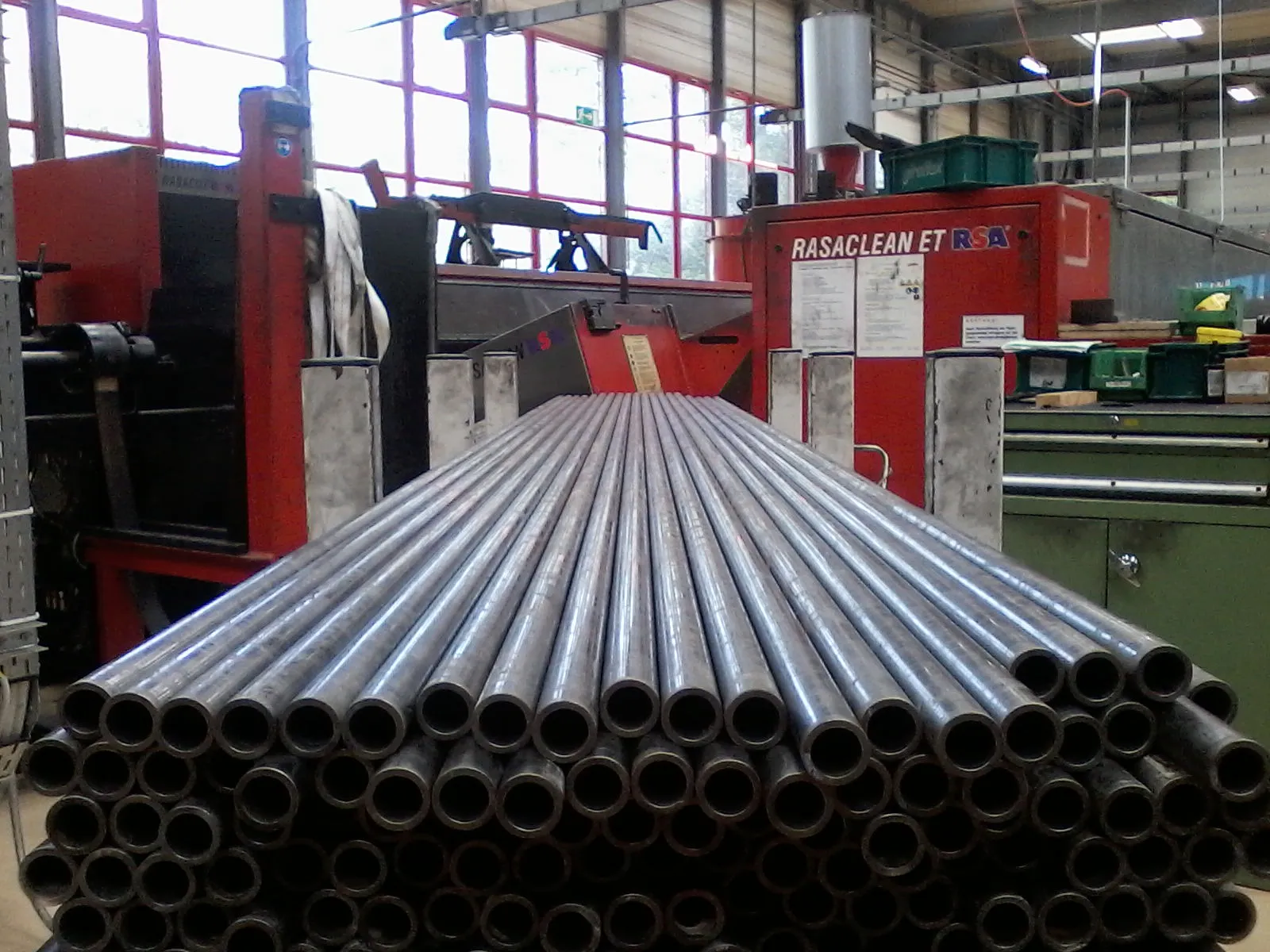

Vollautomat sägen, entgraten,reinigen
ManufacturerRSA
ControlRSA
Year of Construction2002
Technology
Sawing
2 / 6

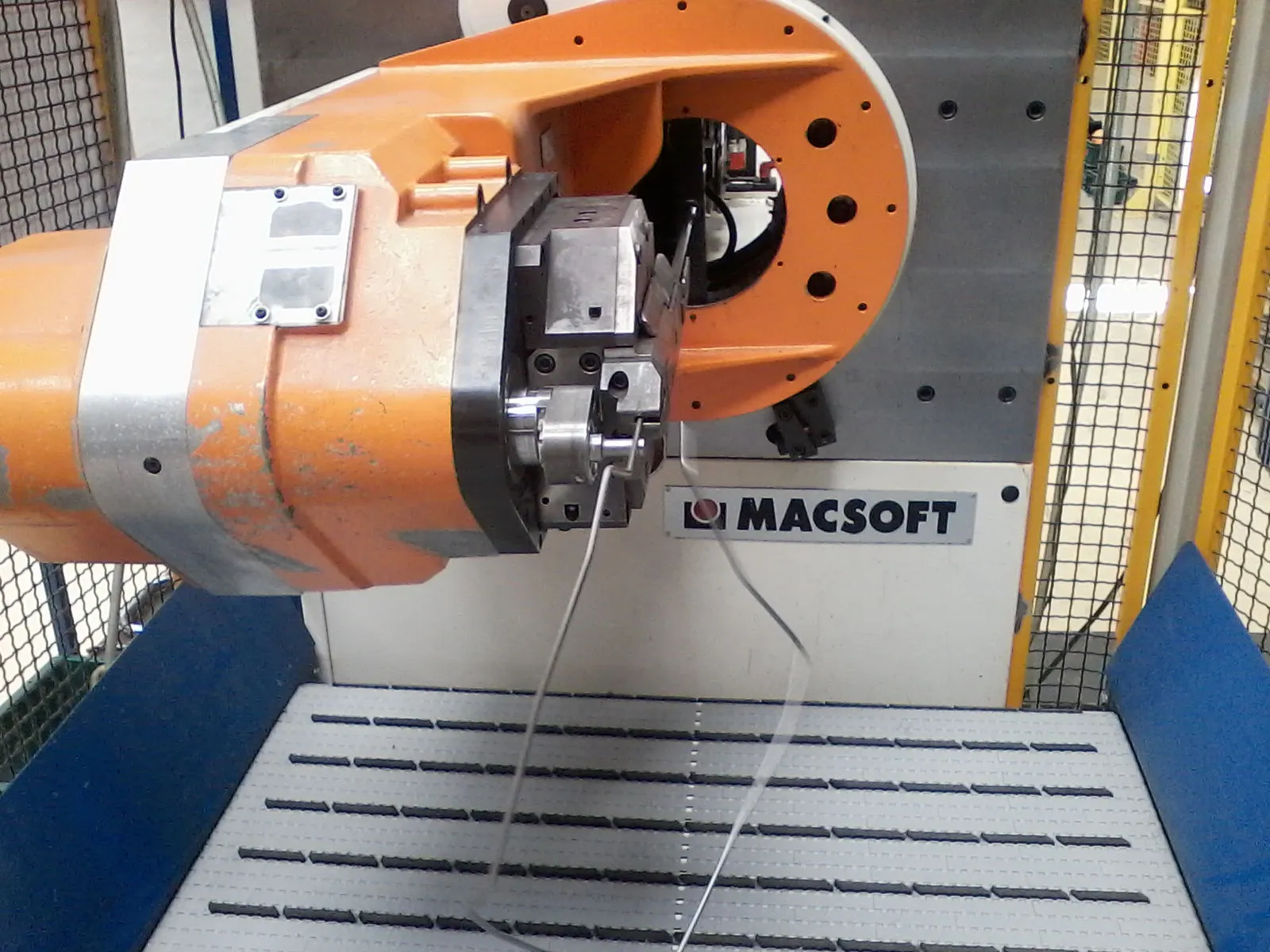

Macsoft
ManufacturerNummalliance
ControlMacsoft
Year of Construction1999
Technology
Wire bending
3 / 6
Mewag MD 34
ManufacturerDaetwyler
ControlMewag
Year of Construction2009
Technology
Pipe bending
4 / 6
Roboterschweissen
ManufacturerABB/ Yaskawa
ControlABB/Motoman
Year of Construction2000
Technology
Inert gas shielded arc welding (MIG/MAG)
5 / 6

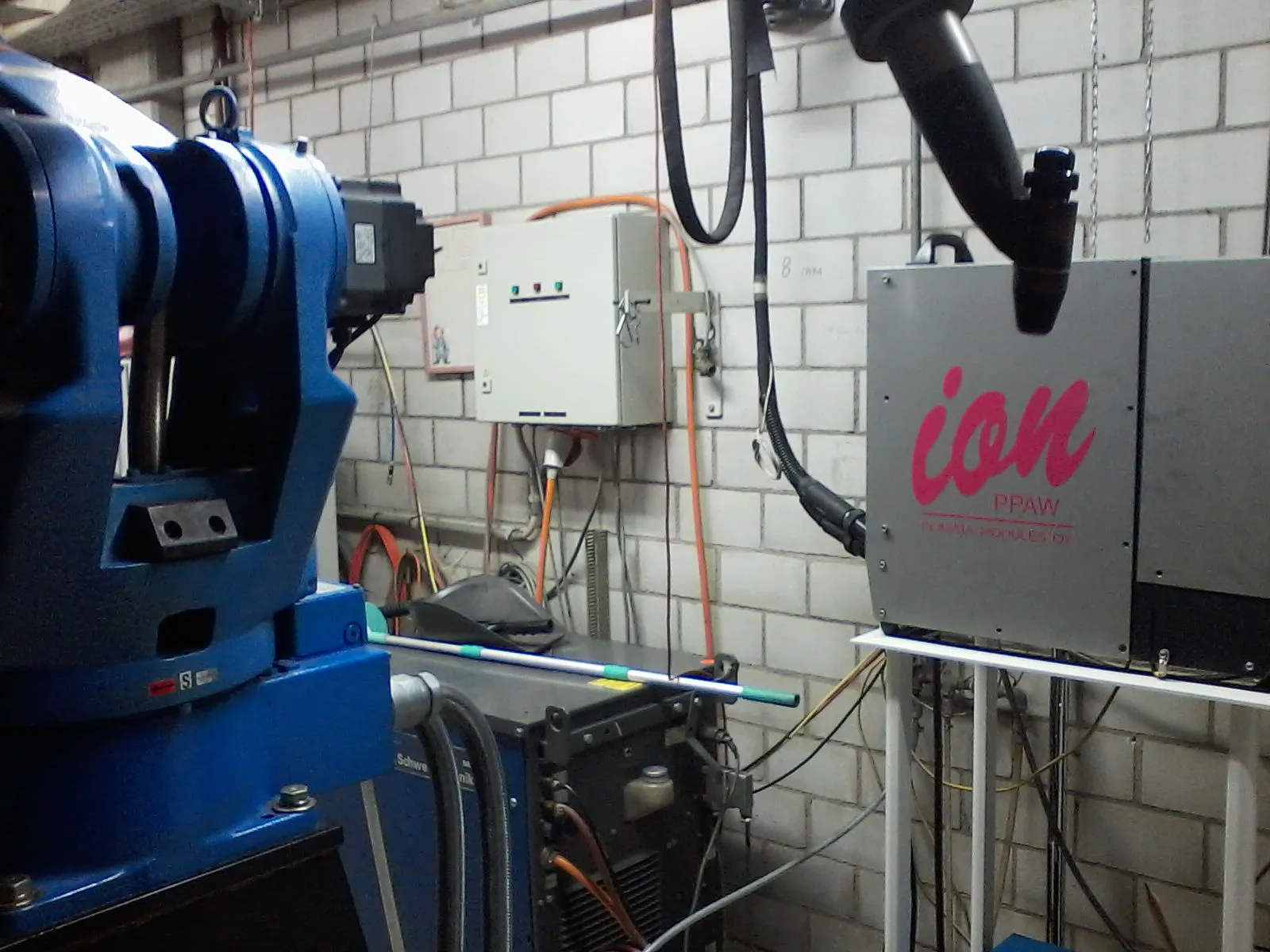

Pulverplasma-Roboterschweissen
ManufacturerYaskawa
ControlMotoman
Year of Construction2008
Technology
Inert gas shielded arc welding (Plasma)
6 / 6

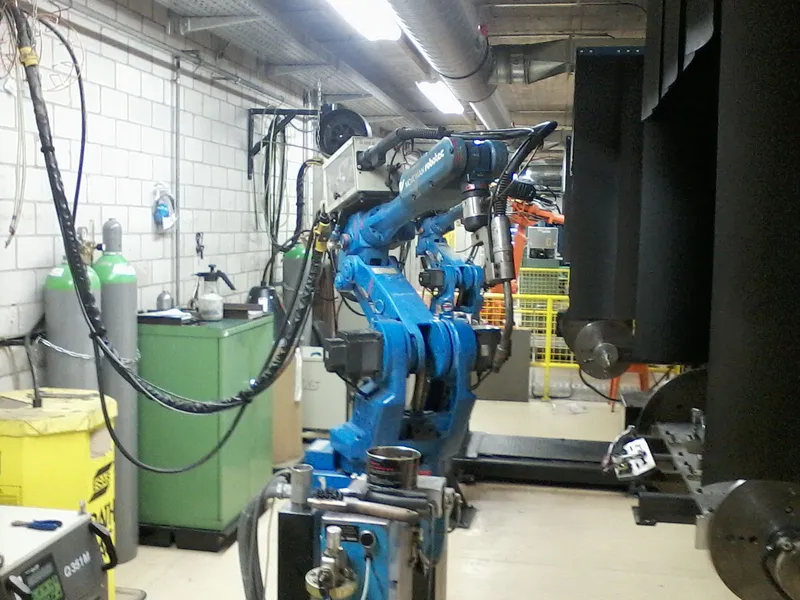

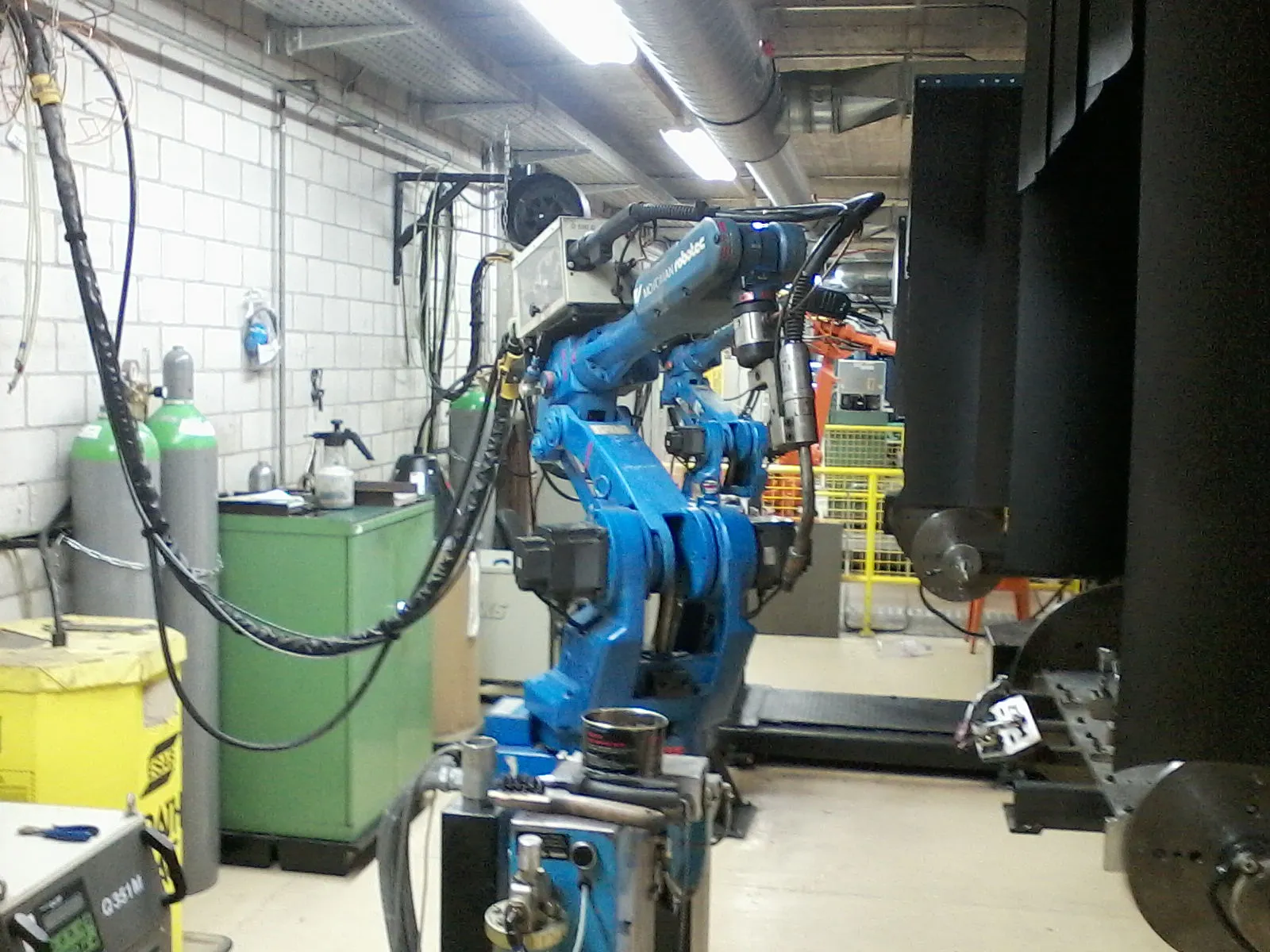

TIG-Roboterschweissen
ManufacturerYaskawa
ControlMotomann
Year of Construction2008
Technology
Inert gas shielded arc welding (TIG)
15 Parts
6 Machinery
Sawing1
Wire bending1
Pipe bending1
Inert gas shielded arc welding (MIG/MAG)1
Inert gas shielded arc welding (Plasma)1
Inert gas shielded arc welding (TIG)1
