About Sven & Gerhard Schmitt GbR
Who we are
Since June 2007 we have been working independently in machine and fixture construction as well as in contract machining. Our area of competence lies in the processing of customer-specific orders in general mechanical engineering, tool and mold making as well as special machine construction. We manufacture various components made of steel, stainless steel, aluminum, cast iron and plastics on our modern machines. We can also machine the most difficult components with up to 5 axes on our processing machines, with quantities of 1- 5000 pieces. cover.
1 / 6

2 / 6

3 / 6

4 / 6

5 / 6

6 / 6

Kirchheim, Germany
Member since 2020
Employees10 - 20
Certificates1
Turnover1 - 5 Mil.
Year of foundation2007
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Turning | 1–5,000 | 1–2,000 mm | 1–560 mm | — |
Full-range turning (including milling) | 1–5,000 | 1–400 mm | 1–250 mm | — |
Hard turning | 1–5,000 | 1–400 mm | 1–250 mm | — |
Shaft machining | 1–500 | 1–2,000 mm | 1–560 mm | 0–1,000 kg |
Jigmaking
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Drilling / milling jigs | 1–2,350 mm | 1–1,200 mm | 1–700 mm | 0–3,500 kg |
Gauges | 1–2,350 mm | 1–1,200 mm | 1–700 mm | 0–3,500 kg |
Measuring / testing jigs | 1–2,350 mm | 1–1,200 mm | 1–700 mm | 0–3,500 kg |
Assembly jigs | 1–2,350 mm | 1–1,200 mm | 1–700 mm | 0–3,500 kg |
Welding jigs | 1–2,350 mm | 1–1,200 mm | 1–700 mm | 0–3,500 kg |
Clamping devices | 1–2,350 mm | 1–1,200 mm | 1–700 mm | 0–3,500 kg |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–3,500 kg |
Measuring & Testing
| Technologies | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|
Measuring / testing | 1–580 mm | 1–500 mm | 1–500 mm | 1–580 mm | 0–500 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Milling | 1–5,000 | 1–2,350 mm | 1–1,200 mm | 1–700 mm | — | — |
5-axis milling machines | 1–5,000 | 1–800 mm | 1–800 mm | 1–500 mm | — | — |
Form milling (3 D) | 1–1,000 | 1–2,350 mm | 1–1,200 mm | 1–700 mm | — | — |
Full-range milling (including turning) | 1–5,000 | 1–2,350 mm | 1–1,200 mm | 1–700 mm | 1–500 mm | — |
HSC milling | 1–5,000 | 1–800 mm | 1–800 mm | 1–500 mm | — | 0–1,200 kg |
Deep-hole drilling | — | — | — | — | — | — |
Engraver milling | 1–5,000 | 1–2,350 mm | 1–1,200 mm | 1–700 mm | 1–1,200 mm | 0–3,500 kg |
Finishing
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Surface grinding machine | 1–1,000 | 1–800 mm | 1–400 mm | 1–300 mm | 0–1,000 kg |
Materials
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Cast metals
Cast steelCast iron
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Industries
Shipbuilding industryMilitary engineeringAerospace and aviation industryPower generation and transmission industryBuilding, agricultural and forestry machinery manufacturingMining and tunnel engineeringPlant engineering and constructionDrive and gear engineeringChemical industrySpecial purpose machinery manufacturingPackaging industryMedical technologyMechanical engineeringMachine tool manufacturingAutomotive and vehicle construction
Certificates
ISO 9001:2015
Parts & Machines
Parts (9)
1 / 9

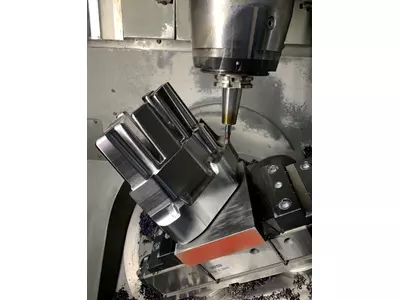

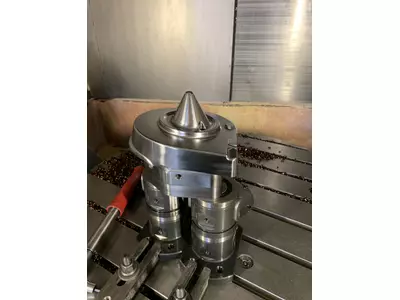

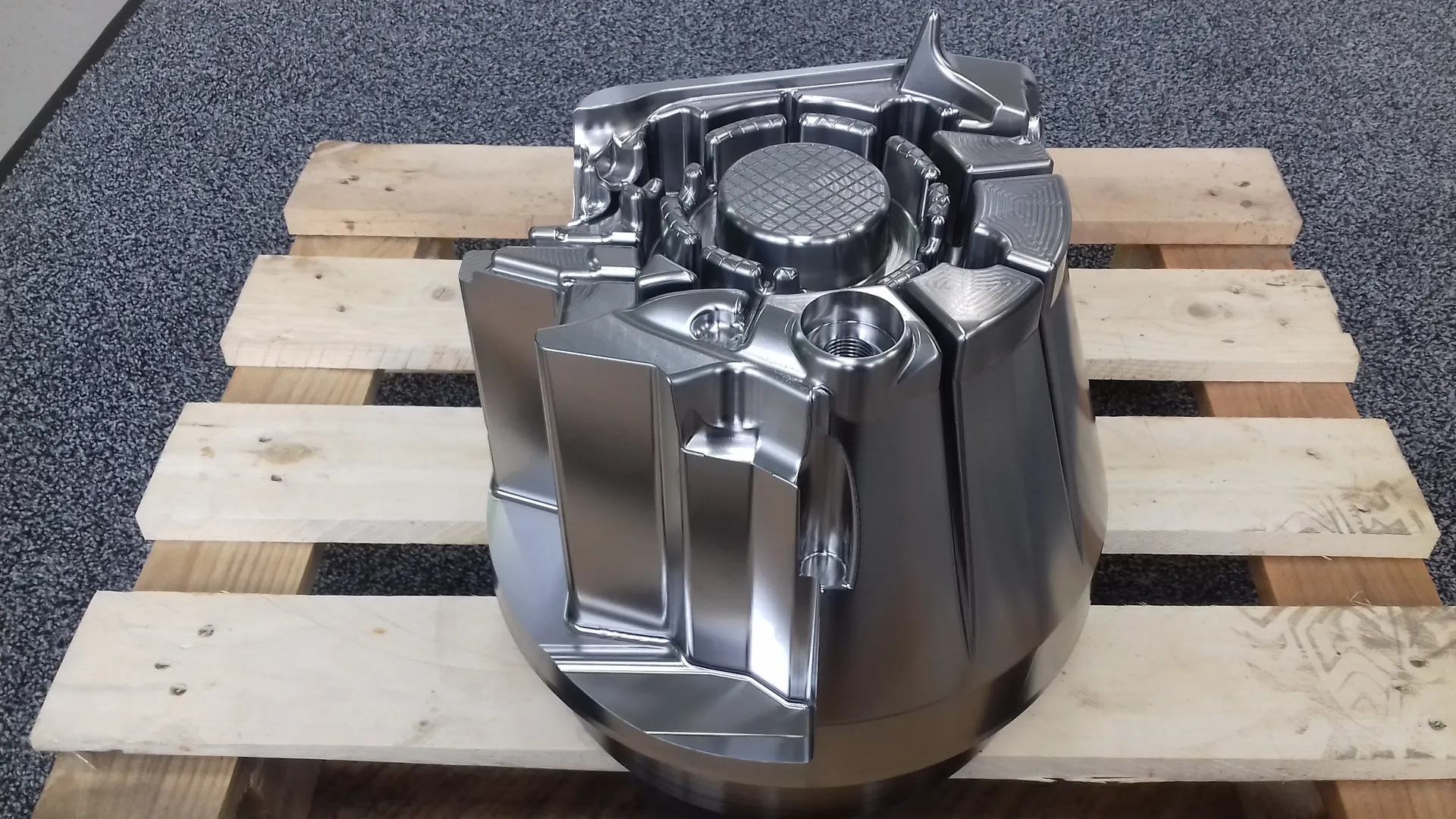

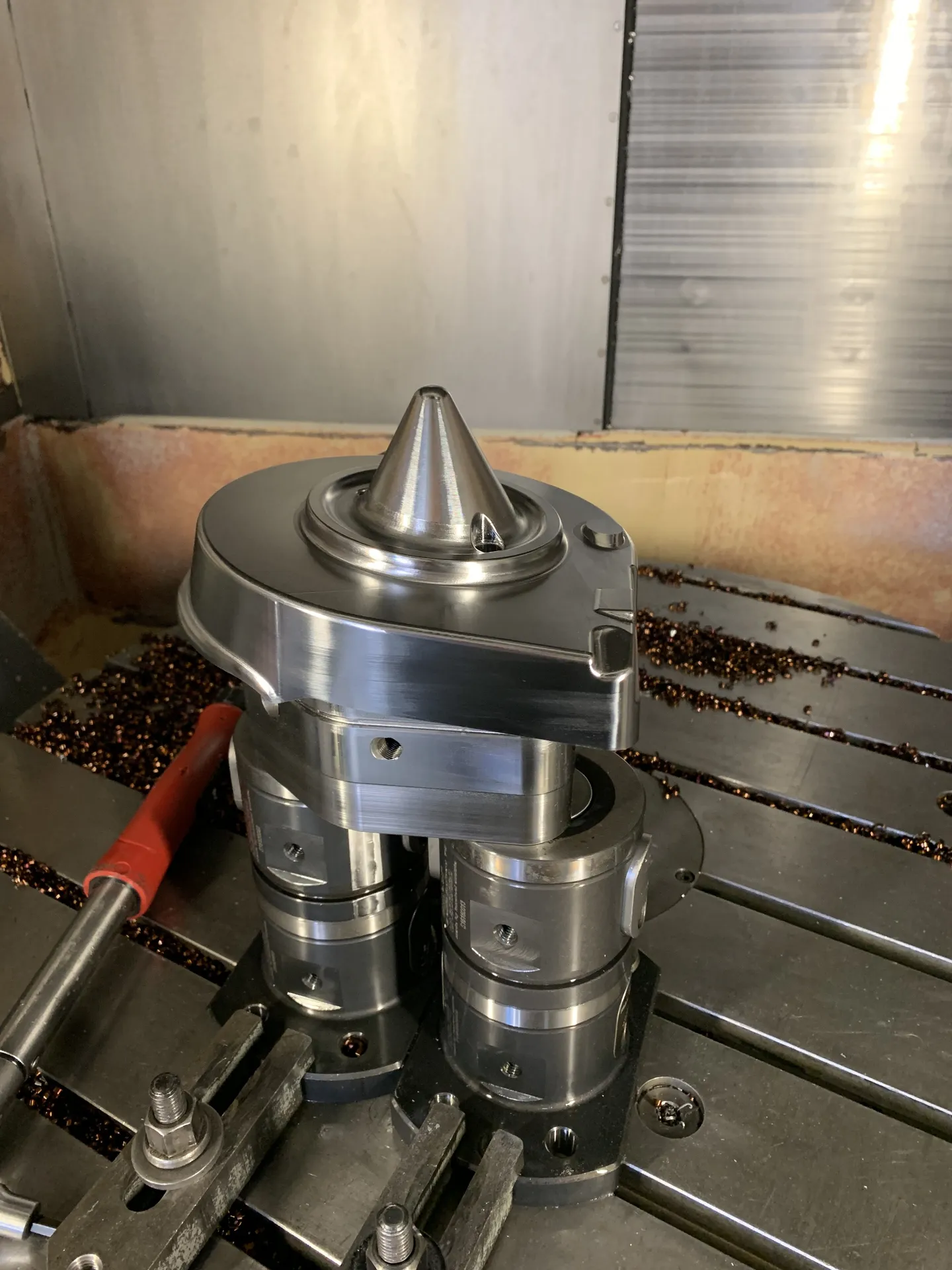

Teileinsatz Druckguss
TechnologyForm milling (3 D)
MaterialTool steel
Lotsize1
ComplexityLow
IndustriesAutomotive and vehicle construction
2 / 9

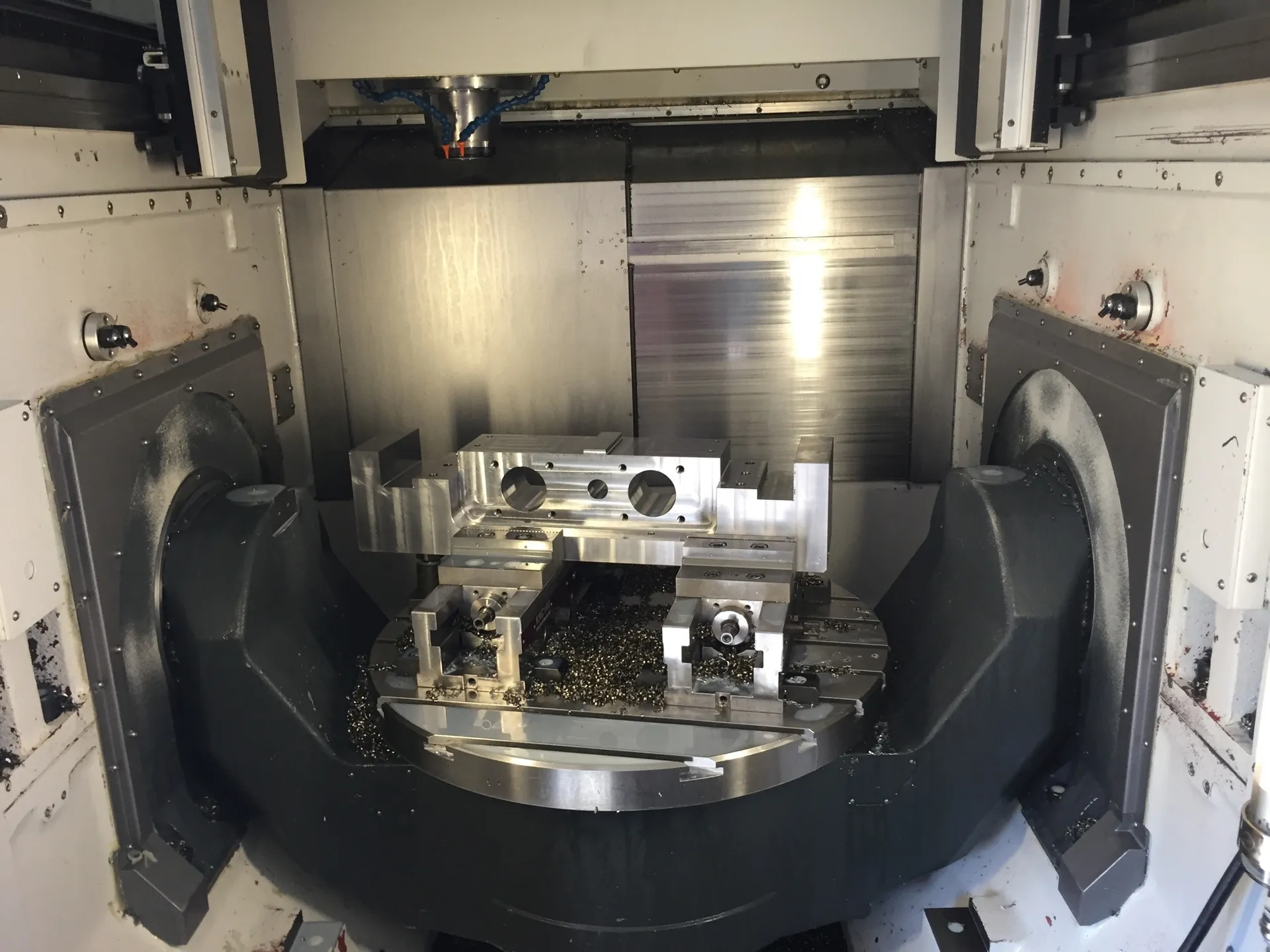

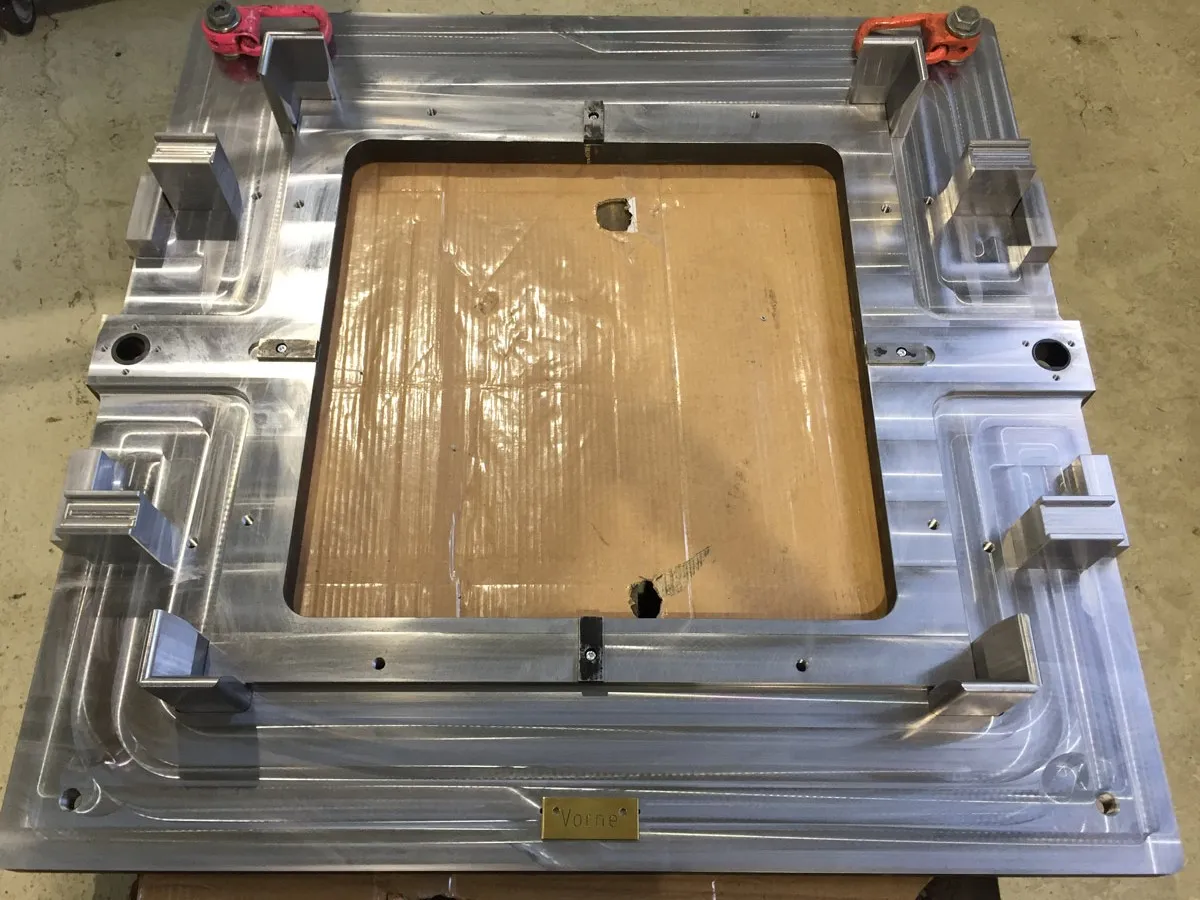

Grundplatte Maschinenbau
Technology5-axis milling machines
MaterialTool steel
Lotsize2
IndustriesMachine tool manufacturing
3 / 9

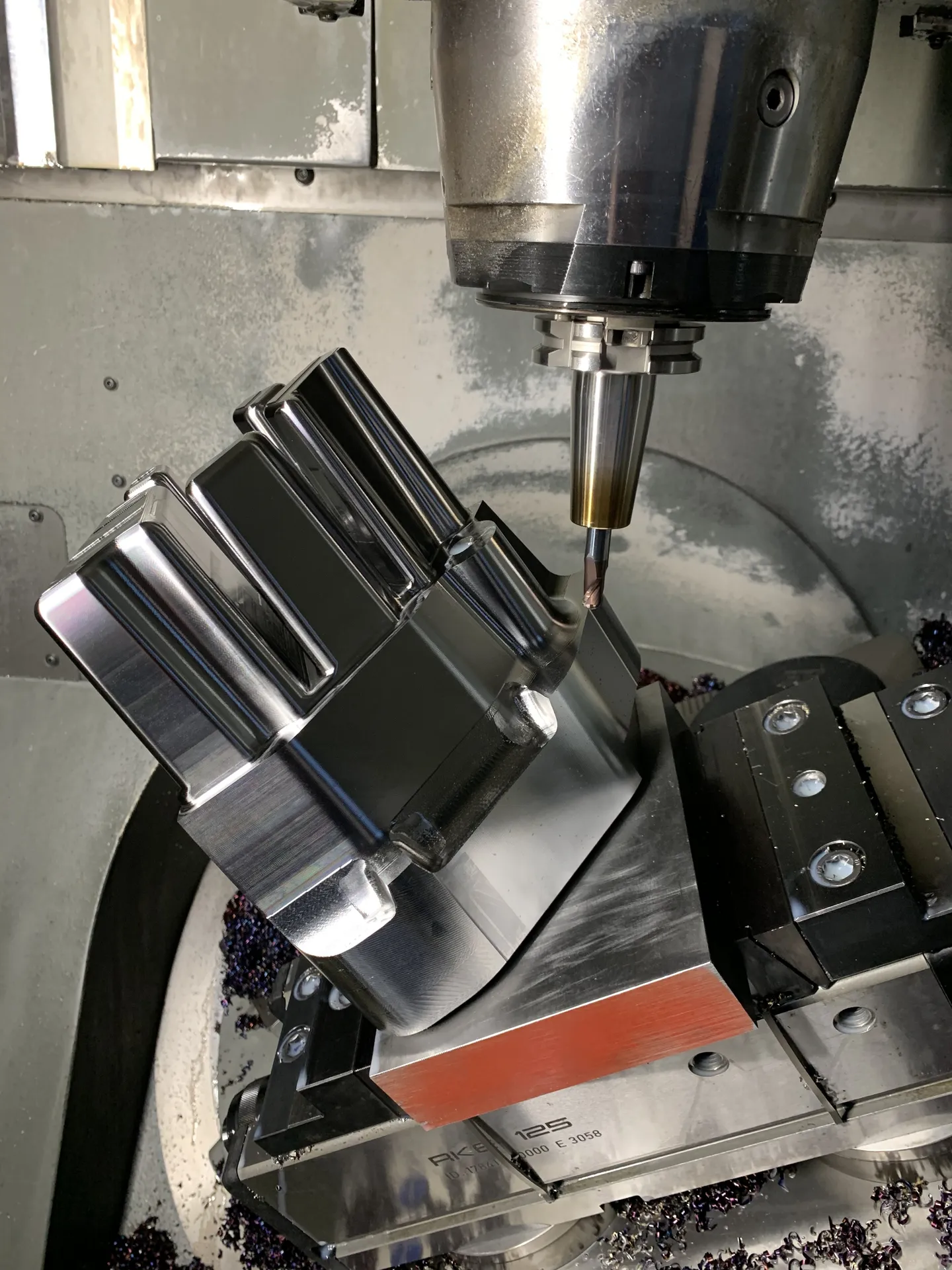

Teileinsatz Druckguss
Technology5-axis milling machines
MaterialTool steel
Lotsize2
ComplexityMedium
4 / 9

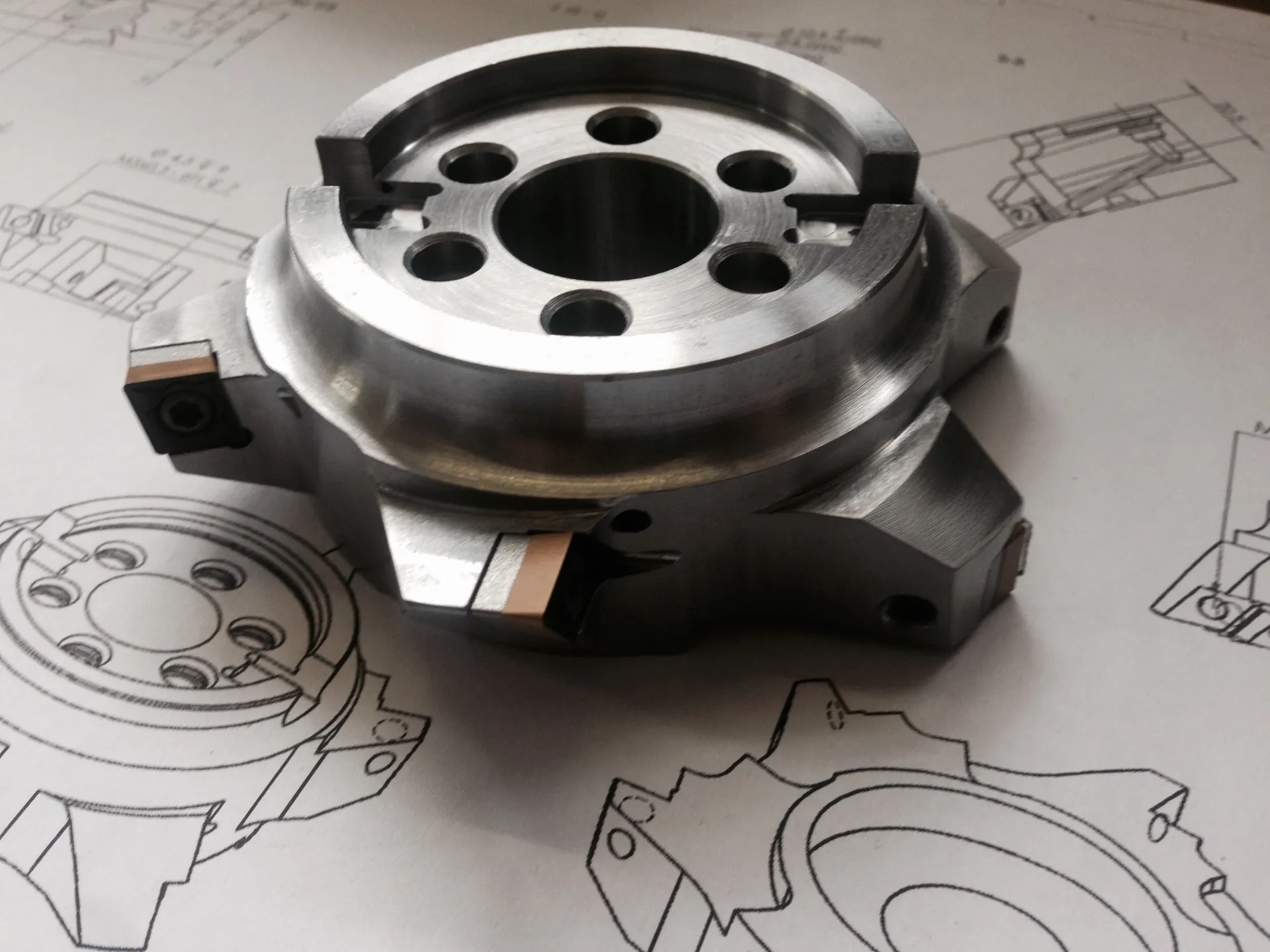

Multitool
Technology5-axis milling machines
MaterialCase hardening/tempering steel
Lotsize5
IndustriesMechanical engineering
5 / 9

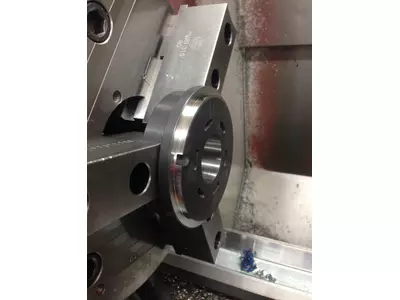

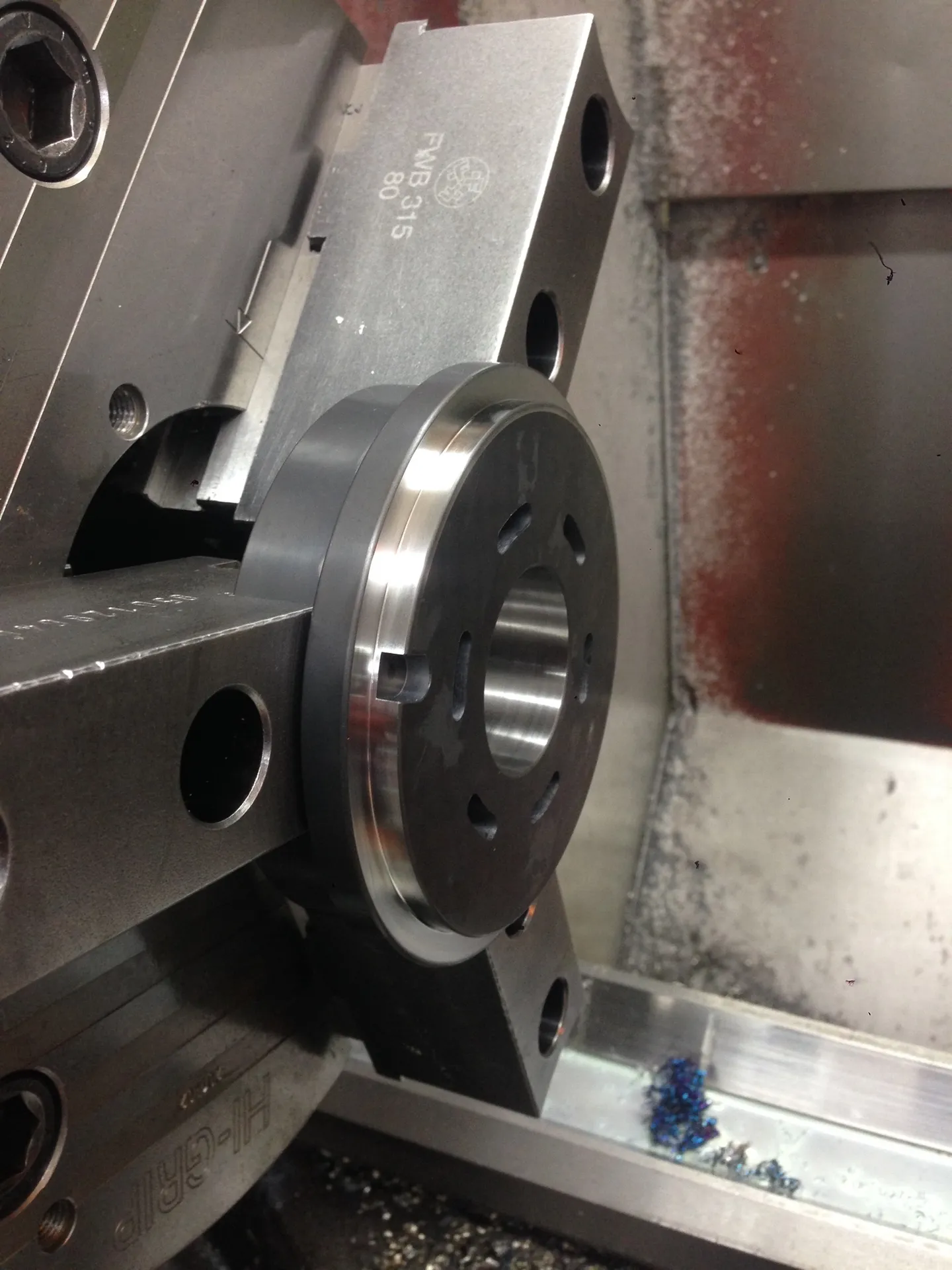

Matritze
TechnologyHard turning
MaterialTool steel
Lotsize2
IndustriesDrive and gear engineering
6 / 9

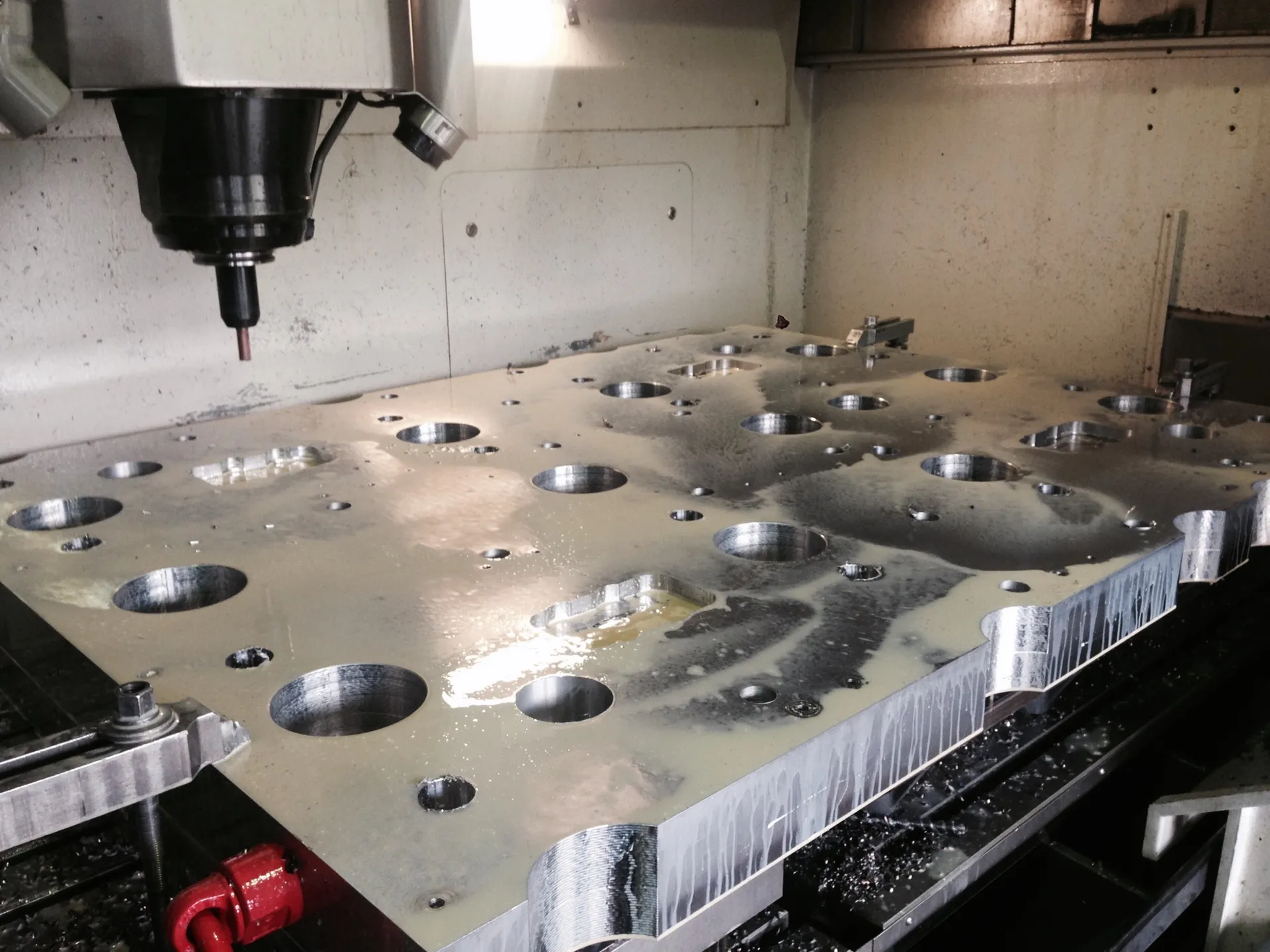

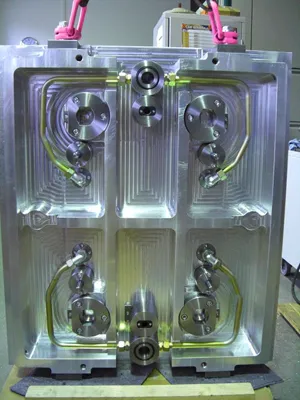

Grundplatte
TechnologyMilling
MaterialStructural steel
Lotsize1
7 / 9

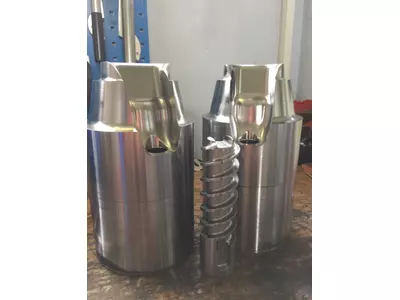

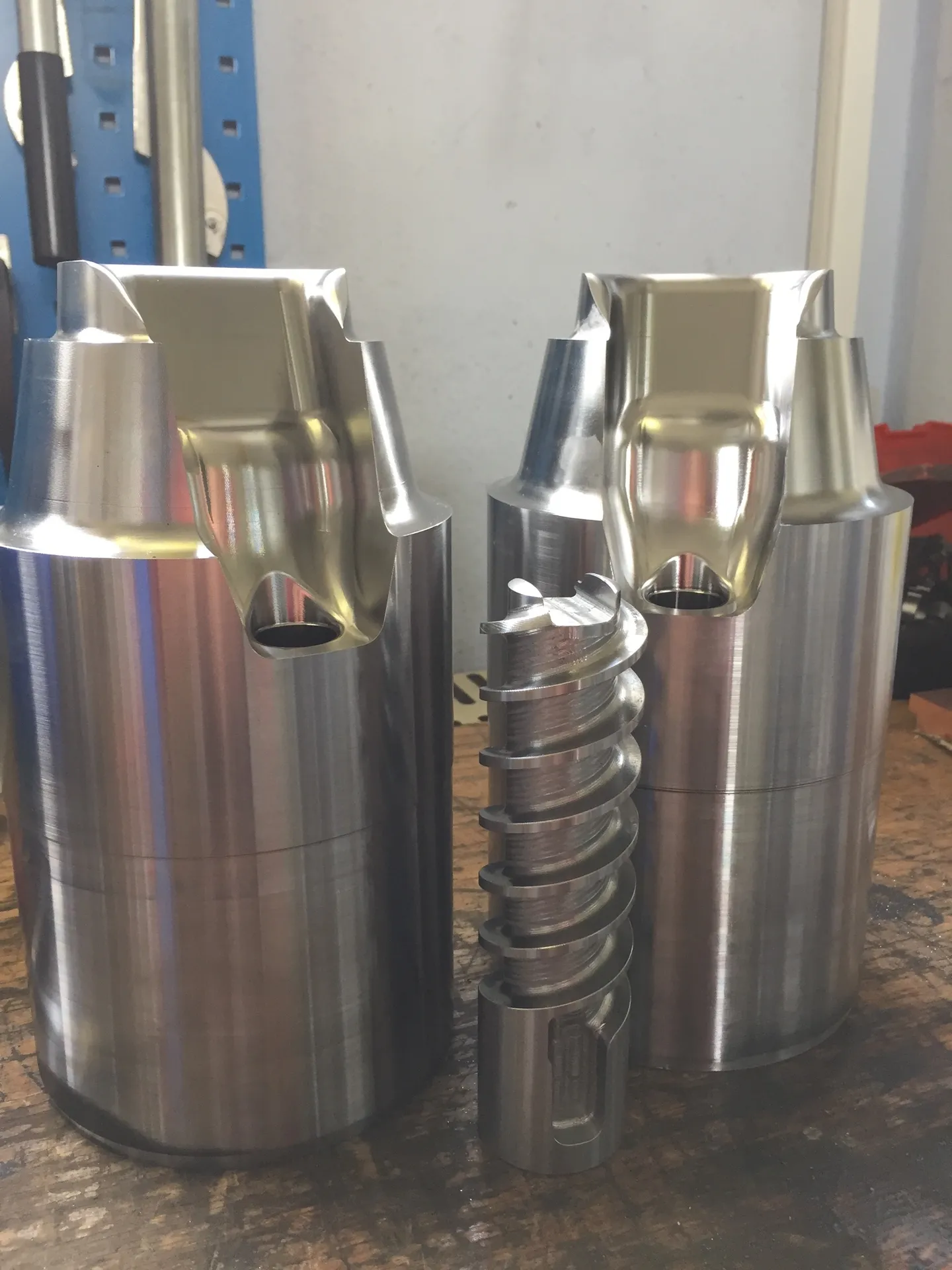

Kühleinsätze
TechnologyForm milling (3 D)
MaterialTool steel
Lotsize2
8 / 9

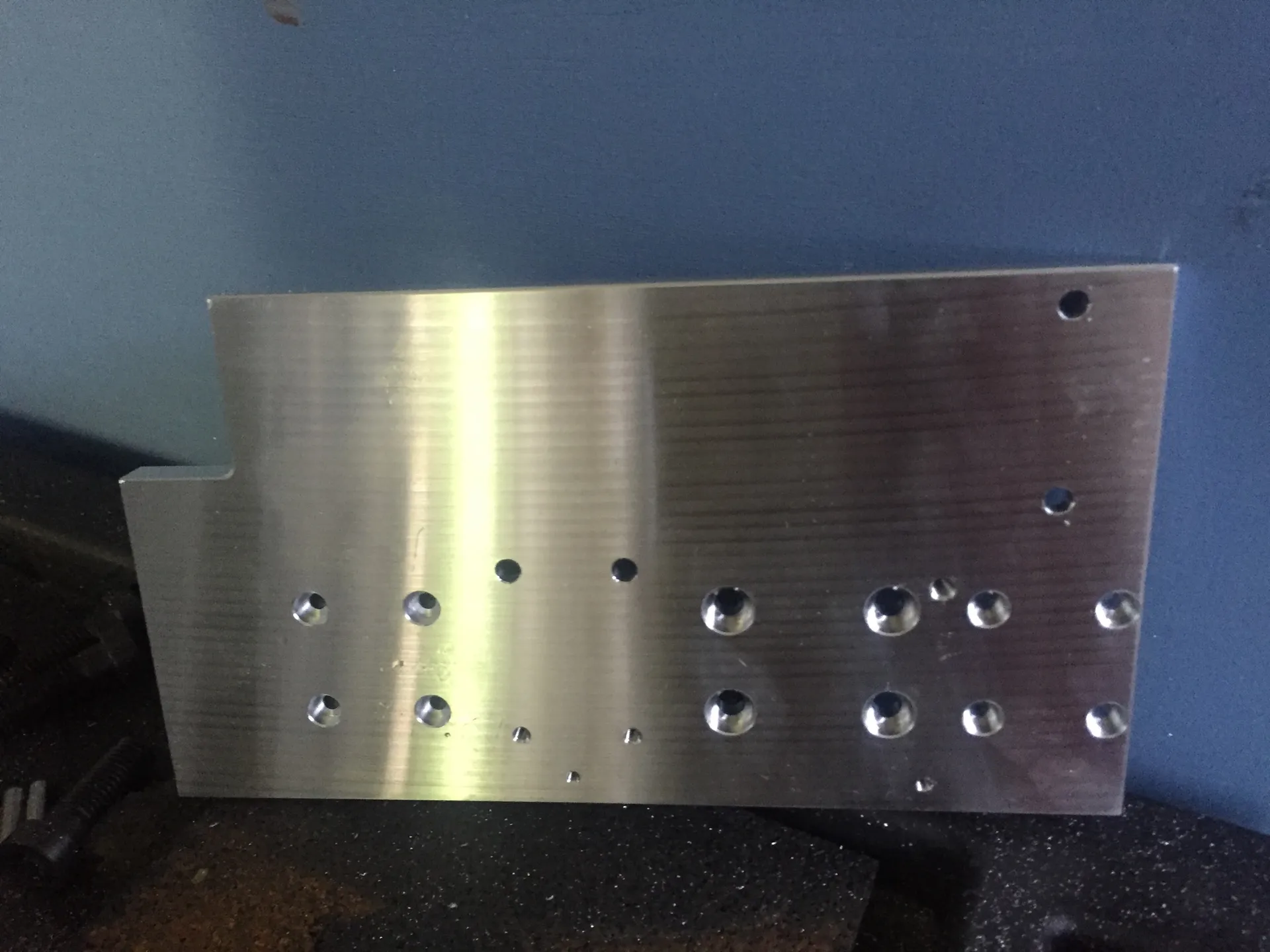

Grundplatte
TechnologyMilling
MaterialAluminium and aluminium alloys
Lotsize500
IndustriesMechanical engineering
9 / 9

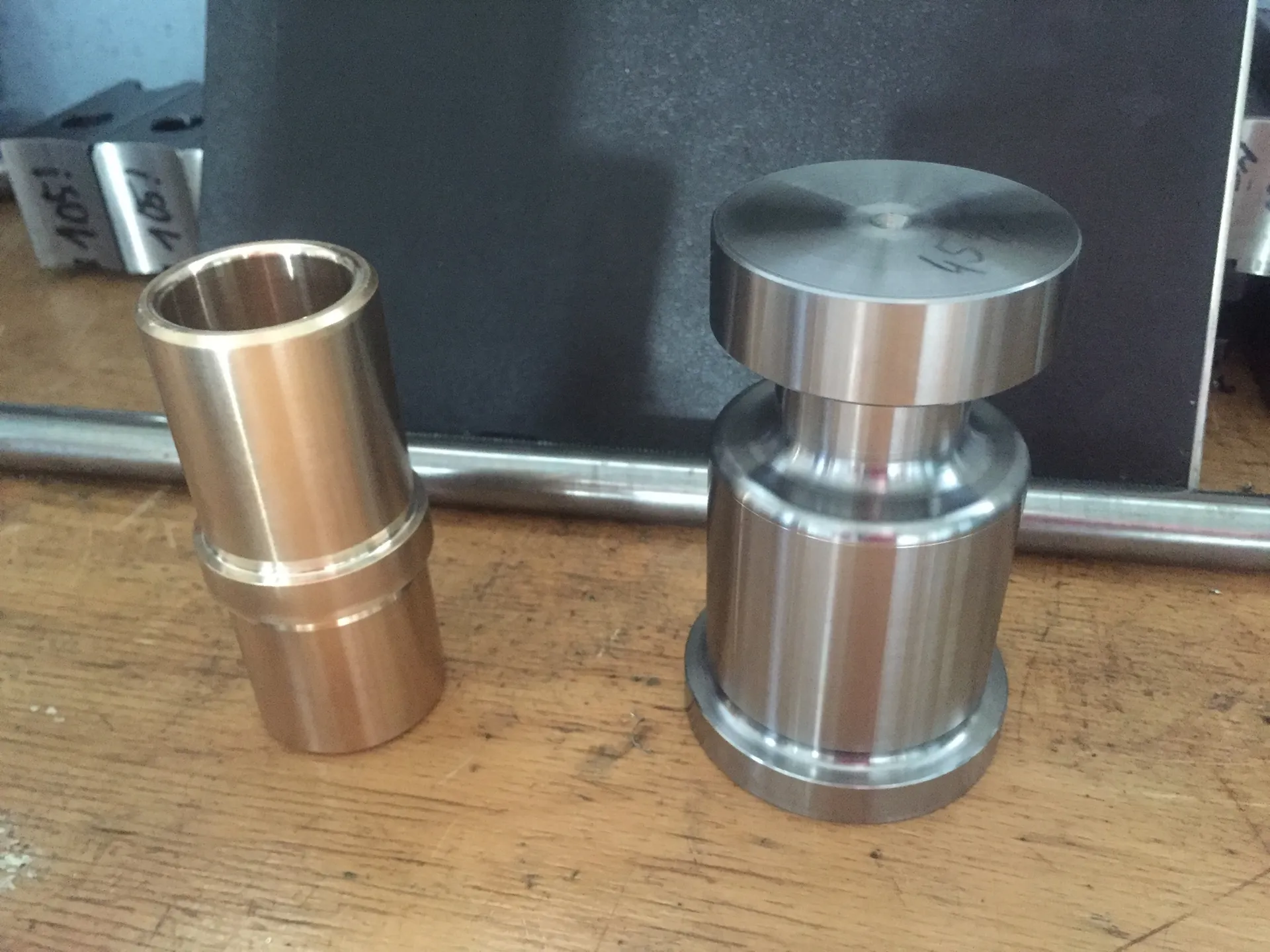

Führungsbuchse
TechnologyTurning
Lotsize100
Machinery (5)
1 / 5

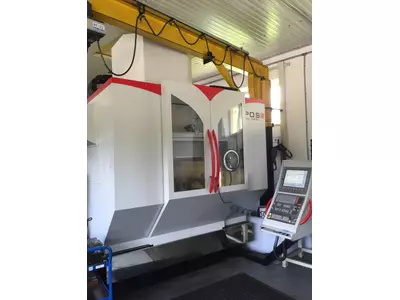

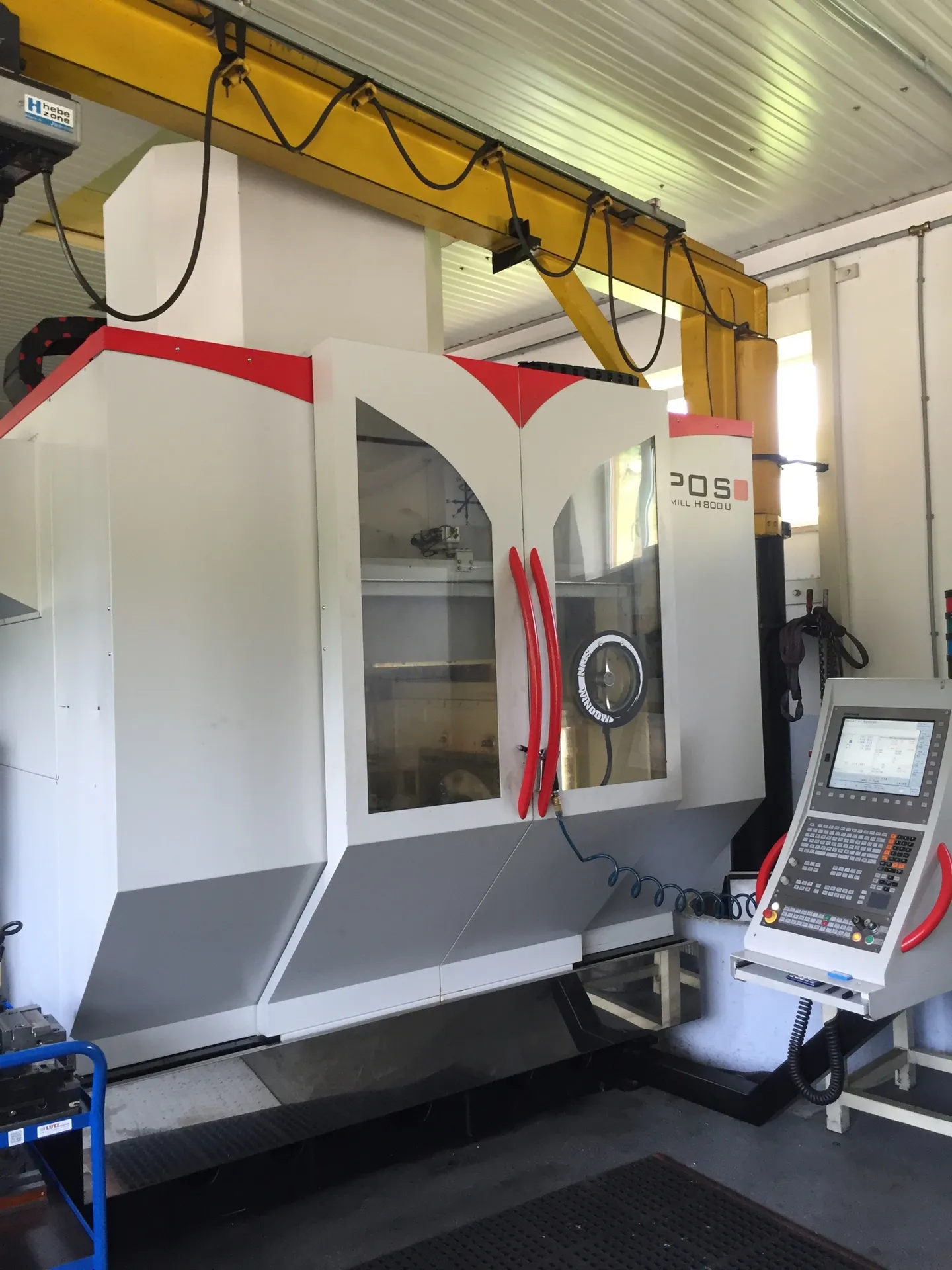

H800U
ManufacturerPOS Mill
ControlHEIDENHAIN
Year of Construction2014
Technology
GaugesForm milling (3 D)MillingEngraver millingHSC milling5-axis milling machinesDrilling / milling jigsMeasuring / testing jigsAssembly jigsWelding jigsClamping devices
2 / 5

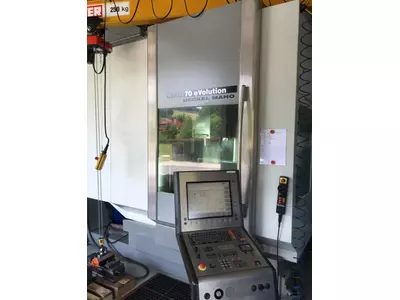

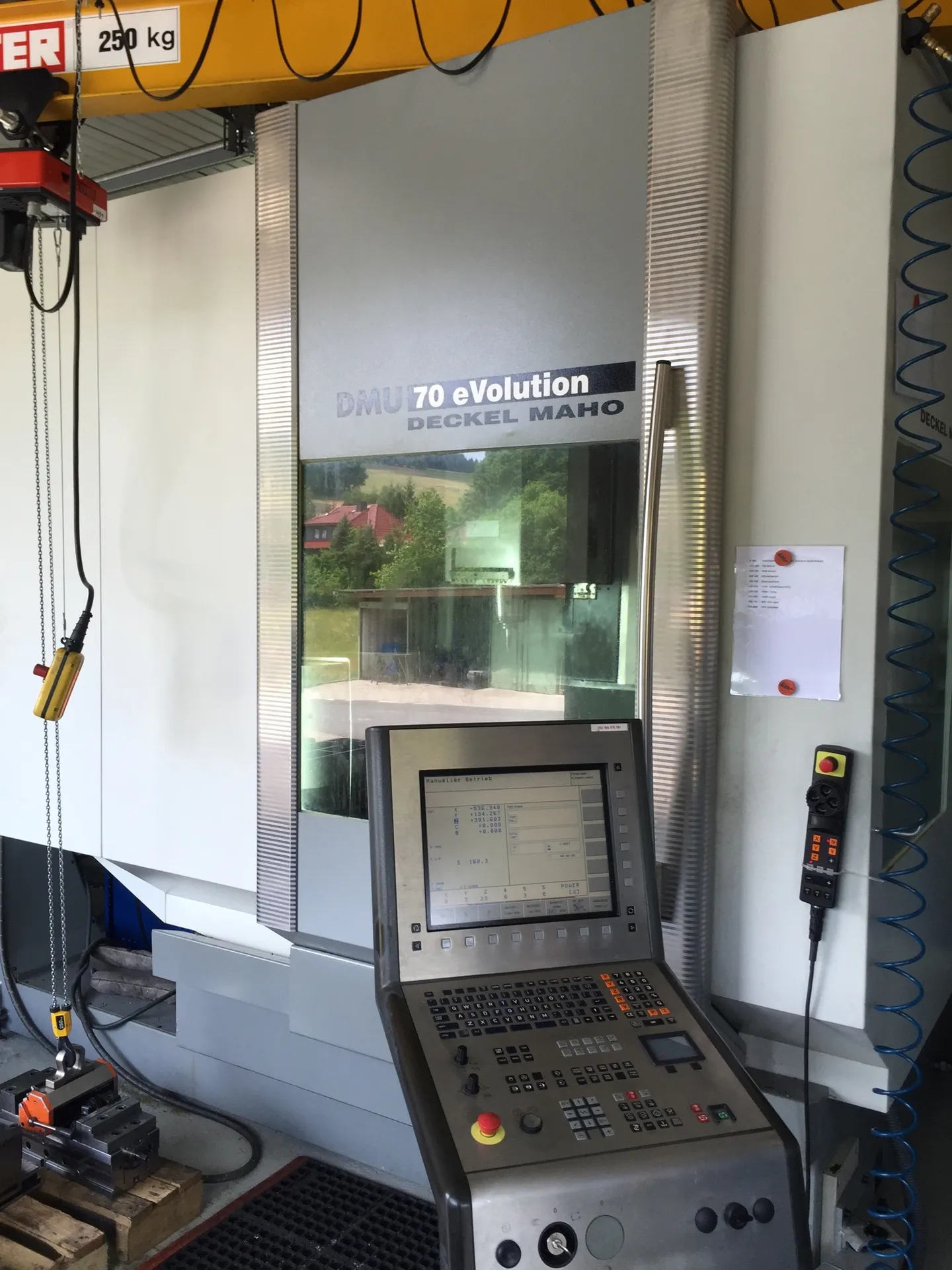

DMU 70 EVO
ManufacturerDMG Mori
ControlHEIDENHAIN
Year of Construction2006
Technology
Engraver millingClamping devicesMeasuring / testing jigsGaugesMillingForm milling (3 D)5-axis milling machinesDrilling / milling jigsWelding jigsHSC millingAssembly jigs
3 / 5

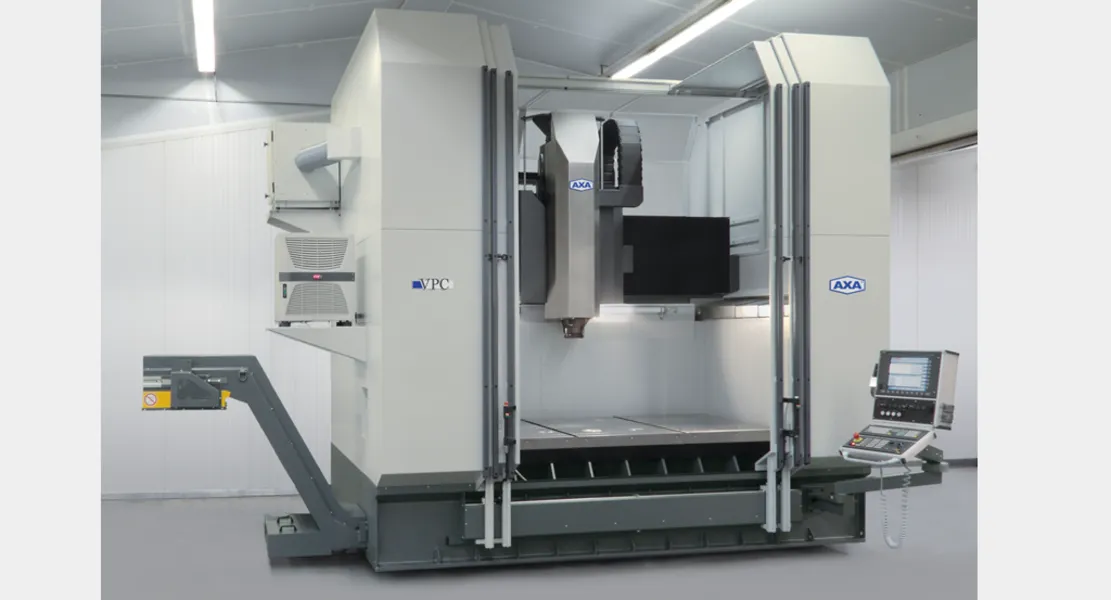

VPC 50
ManufacturerAXA
ControlHEIDENHAIN
Year of Construction2012
Technology
GaugesAssembly jigsWelding jigsClamping devicesForm milling (3 D)MillingDrilling / milling jigsMeasuring / testing jigs
4 / 5

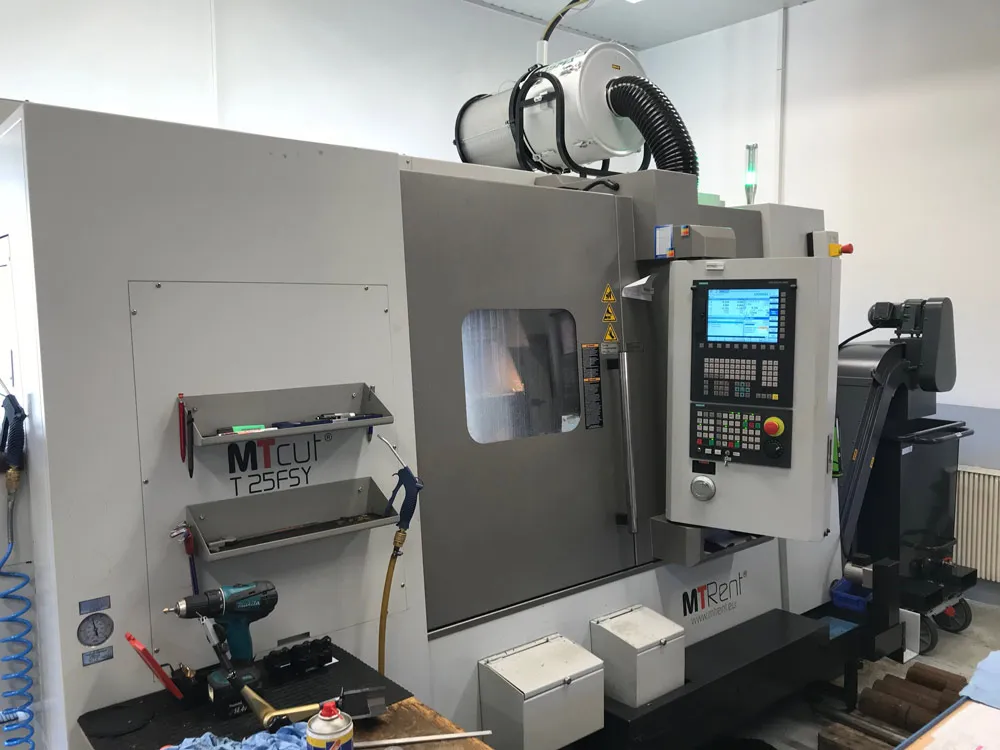

T25FSY
ManufacturerMT Rent
ControlSiemens 828D
Year of Construction2016
Technology
Full-range turning (including milling)TurningHard turning
5 / 5

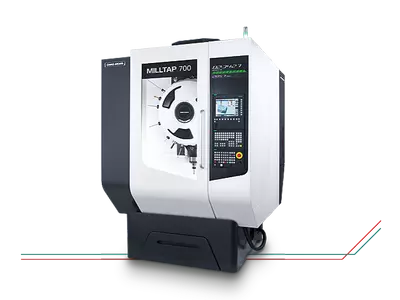

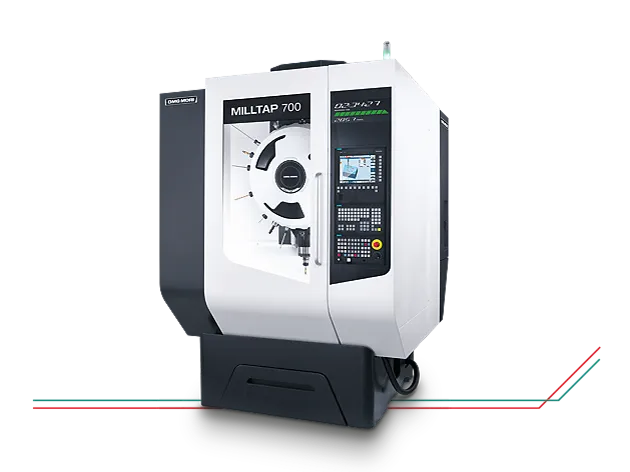

Milltap 700
ManufacturerDMG Mori
ControlSiemens 840D
Year of Construction2013
Technology
Form milling (3 D)Drilling / milling jigsAssembly jigsMeasuring / testing jigsWelding jigsClamping devicesEngraver millingHSC millingMillingGauges
9 Parts
Form milling (3 D)2
5-axis milling machines3
Hard turning1
Milling2
Turning1
5 Machines
Gauges4
Form milling (3 D)4
Milling4
Engraver milling3
HSC milling3
5-axis milling machines2
Drilling / milling jigs4
Measuring / testing jigs4
Assembly jigs4
Welding jigs4
Clamping devices4
Full-range turning (including milling)1
Turning1
Hard turning1
