Overview
About TS Quadrat GmbH
1 / 9

2 / 9

3 / 9

4 / 9

5 / 9

6 / 9

7 / 9

8 / 9

9 / 9

Walzbachtal, Germany
Member since 2022
Employees10 - 20
Certificates3
Turnover1 - 5 Mil.
Year of foundation2019
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 0–10 | 0–1,000 mm | 0–200 mm |
Sheet Metal Processing
| Technologies | Lotsize | Length | Width | Material thickness |
|---|---|---|---|---|
Laser cutting 2D | from 0 | from 0 mm | from 0 mm | 0–15 mm |
Bending / folding | 0–1,000 | 0–3,000 mm | — | from 0 mm |
Shearing (rectangular blank/strip) | 1–100 | — | — | 0–8 mm |
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Welded constructions (weldments) | from 0 mm | from 0 mm | from 0 mm | from 0 kg |
Machine frames / bases / racks | 0–8,000 mm | 0–4,000 mm | 0–3,000 mm | 0–10,000 kg |
Jigmaking
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Drilling / milling jigs | 0–2,000 mm | 0–2,000 mm | 0–2,000 mm | 0–2,000 kg |
Assembly jigs | 0–8,000 mm | 0–4,000 mm | 0–3,000 mm | 0–10,000 kg |
Welding jigs | 0–8,000 mm | 0–4,000 mm | 0–3,000 mm | 0–10,000 kg |
Clamping devices | 0–8,000 mm | 0–4,000 mm | 0–3,000 mm | 0–10,000 kg |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 1–10,000 kg |
Electromechanical assembly | 1–10,000 kg |
Mechanical Engineering
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Mechanical engineering | 1–100 | 0–8,000 mm | 0–4,000 mm | 0–3,000 mm | 0–10,000 kg |
Hydraulic engineering | 1–100 | 0–8,000 mm | 0–4,000 mm | 0–3,000 mm | 0–10,000 kg |
Pneumatic engineering | 1–100 | 0–8,000 mm | 0–4,000 mm | 0–3,000 mm | 0–10,000 kg |
Apparatus engineering | 1–500 | 0–8,000 mm | 0–4,000 mm | 0–3,000 mm | 0–10,000 kg |
Tool building | 1–500 | 0–8,000 mm | 0–4,000 mm | 0–3,000 mm | 0–10,000 kg |
Handling technology | 1–100 | 0–8,000 mm | 0–4,000 mm | 0–3,000 mm | 0–10,000 kg |
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | from 0 | from 0 mm | from 0 mm | from 0 mm | — | from 0 kg |
Inert gas shielded arc welding (TIG) | from 0 | from 0 mm | from 0 mm | from 0 mm | — | from 0 kg |
Laser-beam welding | 1–1,000 | 0–8,000 mm | 0–4,000 mm | 0–3,000 mm | 0–4,000 mm | 0–10,000 kg |
Stud welding | 1–1,000 | — | — | — | — | — |
Milling
| Technologies | Lotsize | Length | Width | Height |
|---|---|---|---|---|
Milling | 0–1,000 | 0–500 mm | 0–250 mm | 0–500 mm |
Assembly Group Manufacturing
| Technologies | Lotsize | Length | Width | Material thickness |
|---|---|---|---|---|
Riveting | 1–1,000 | 0–2,000 mm | 0–2,000 mm | 0–10 mm |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Sawing | 1–100 | 0–6,000 mm | 0–200 mm | 0–200 mm | 0–200 mm | — |
Drilling / threading / tapping | 1–1,000 | 0–6,000 mm | 0–2,000 mm | 0–1,000 mm | — | 0–2,000 kg |
Finishing
| Technologies | Lotsize | Length | Width | Height |
|---|---|---|---|---|
Rotofinishing, barrel finishing | 1–10,000 | 0–200 mm | 0–100 mm | 0–100 mm |
Materials
Plastics/synthetic materials
ThermoplasticsAcrylic (PMMA)Elastomers
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Industries
Hydraulic and pneumatic industryPlant engineering and constructionAutomation and control engineeringMechanical engineeringApparatus engineeringPrecision engineering, mechatronics and opticsSpecial purpose machinery manufacturing
Certificates

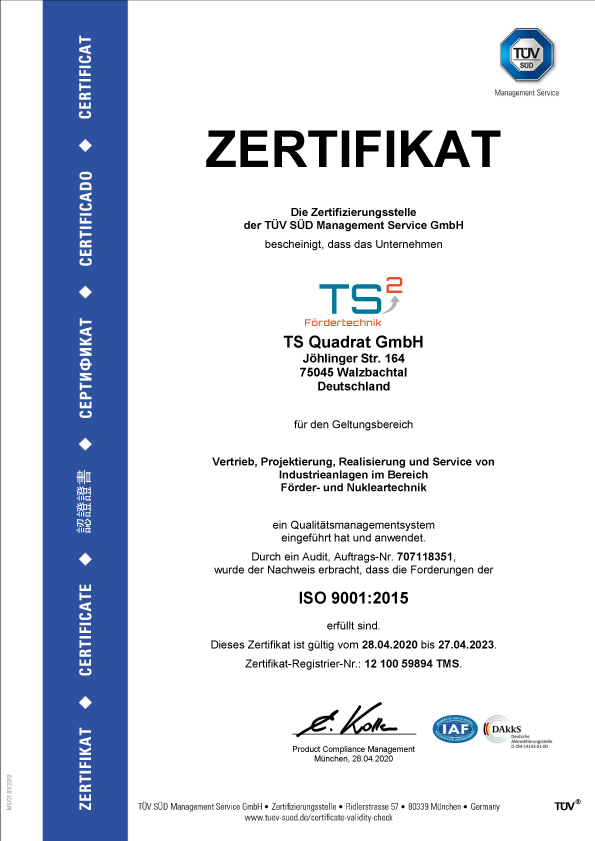

ISO 9001:2015
DIN EN 1090
DIN EN ISO 3834
Parts & Machines
Parts (4)
1 / 4

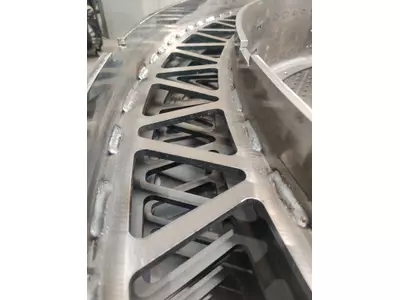

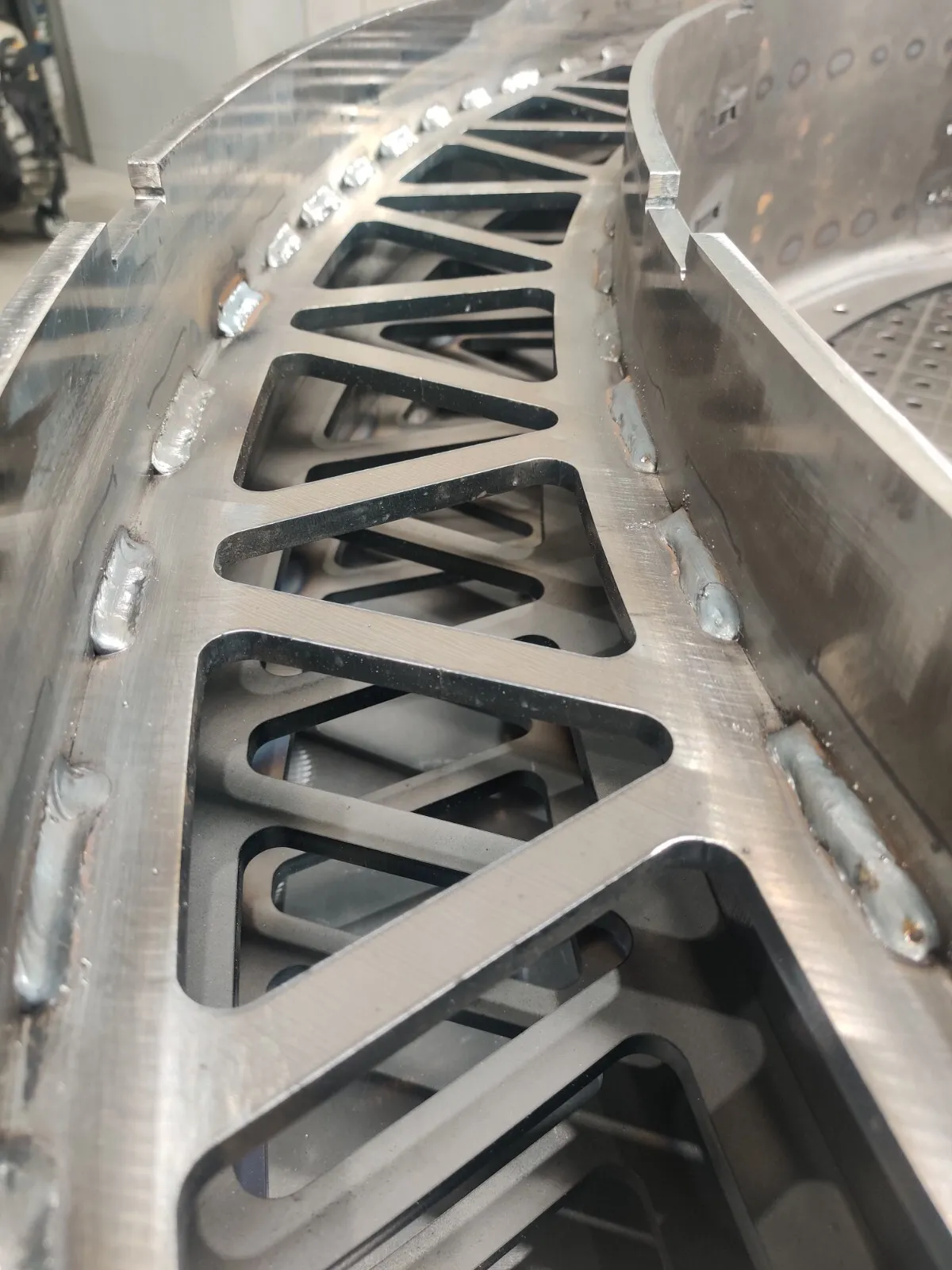

Schweißbaugruppe MAG
TechnologyInert gas shielded arc welding (MIG/MAG)
MaterialStructural steel
Lotsize1
Price per piece€2,000.00
2 / 4

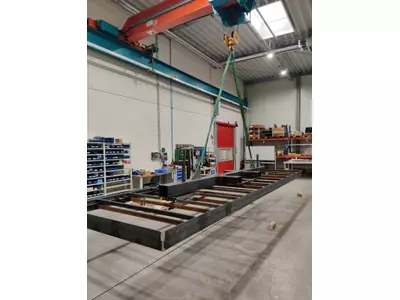

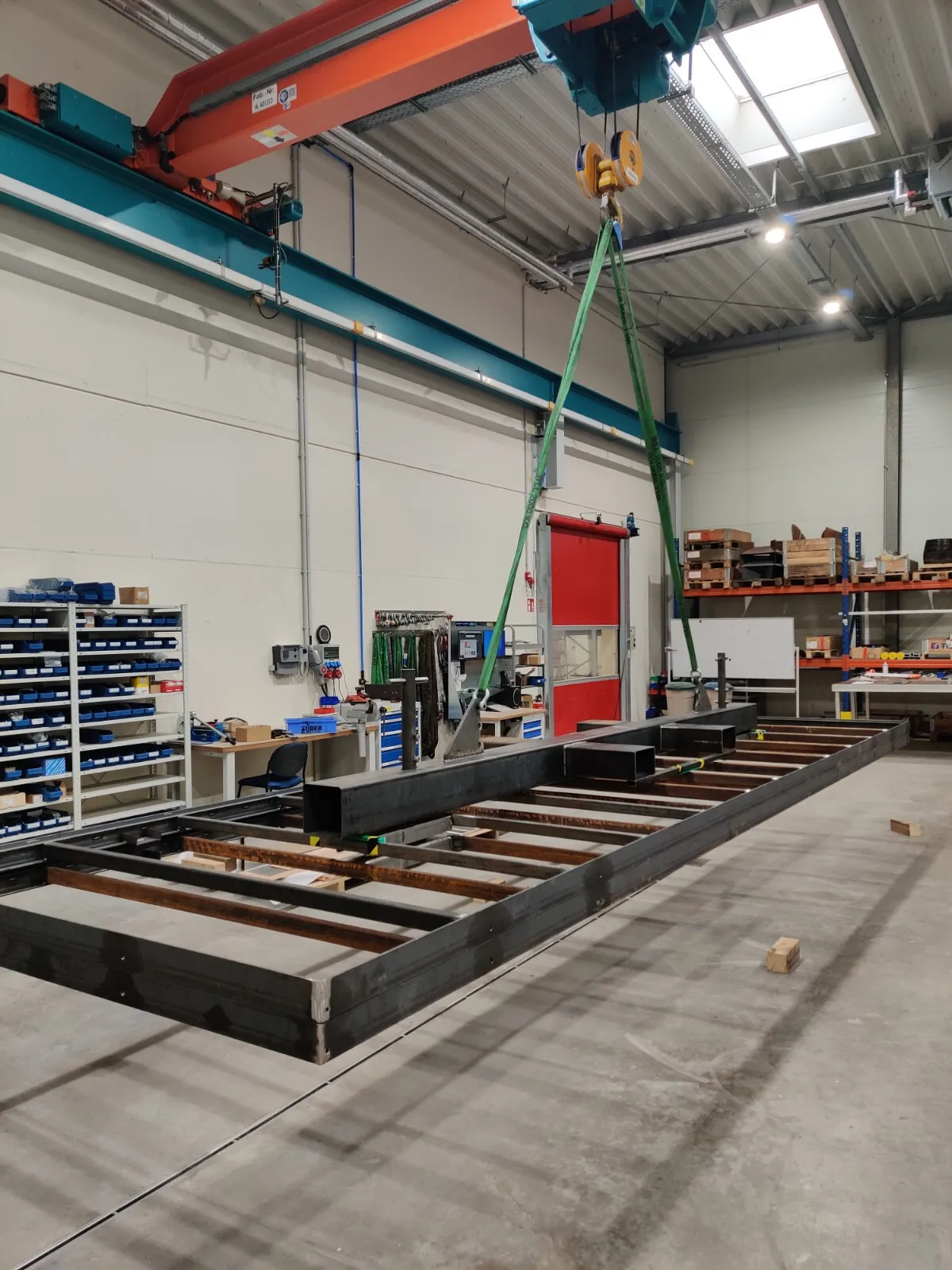

Plattformrahmen
TechnologyInert gas shielded arc welding (MIG/MAG)
MaterialStructural steel
Lotsize55
ComplexityLow
Price per piece€3,500.00
3 / 4

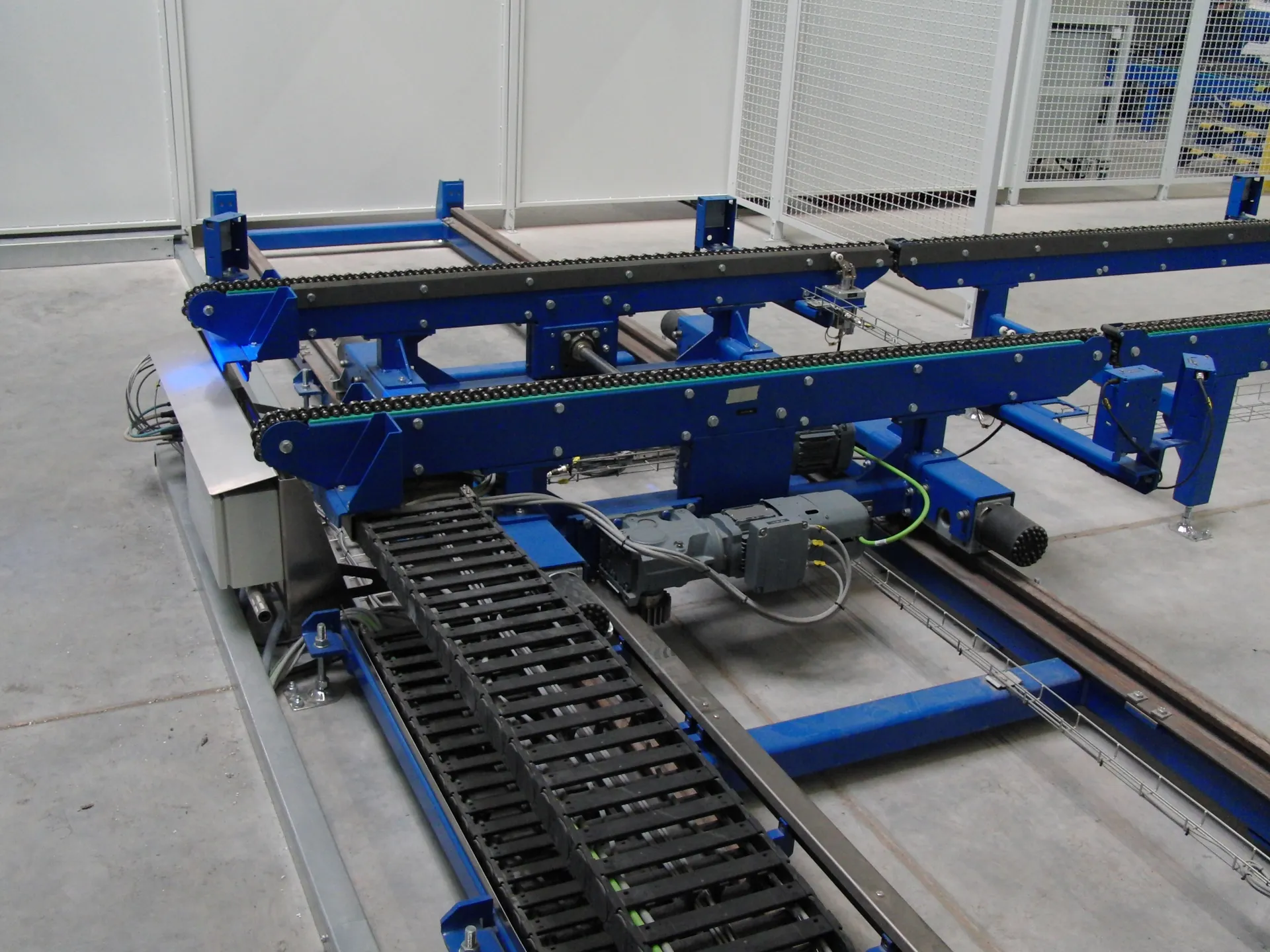

Kettenförderer
TechnologyMechanical engineering
MaterialStructural steel
Dimensions
Weight500 mm
Width1500 mm
Height550 mm
Length4000 mm
Lotsize1
ComplexityLow
Price per piece€8,000.00
4 / 4

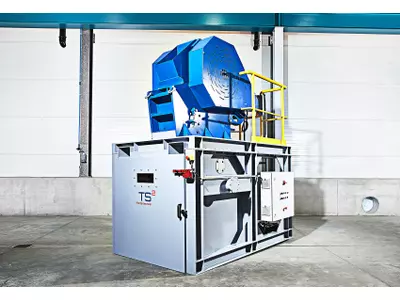

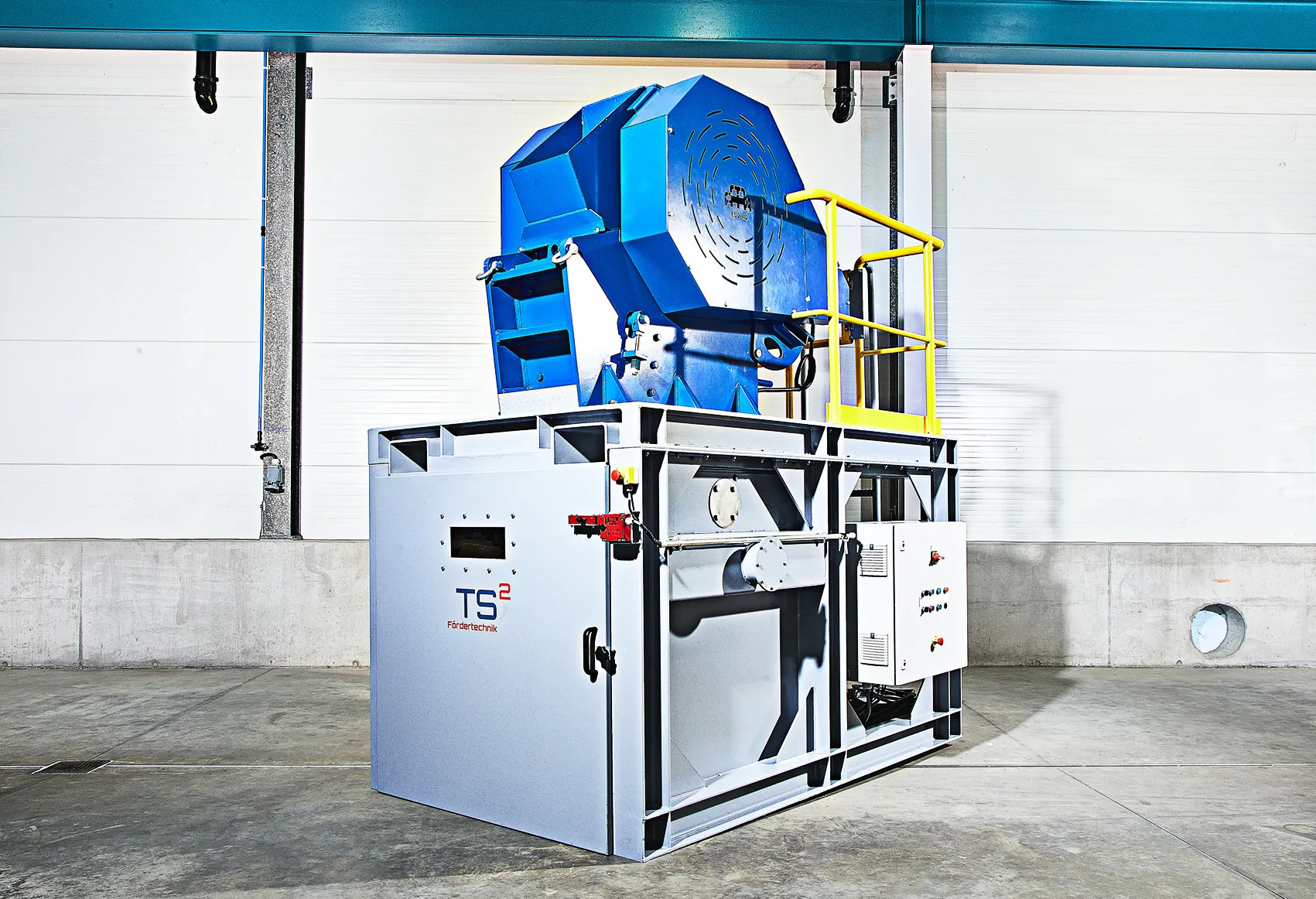

Betonbrecher
TechnologyMechanical engineering
MaterialStructural steel
Dimensions
Length4000 mm
Width1800 mm
Height4000 mm
Weight8000 mm
Lotsize1
ComplexityMedium
IndustriesSpecial purpose machinery manufacturing
Price per piece€250,000.00
Machinery (7)
1 / 7

DMG M1
ManufacturerDMG
ControlSiemens
Year of Construction2022
Technology
Milling
2 / 7

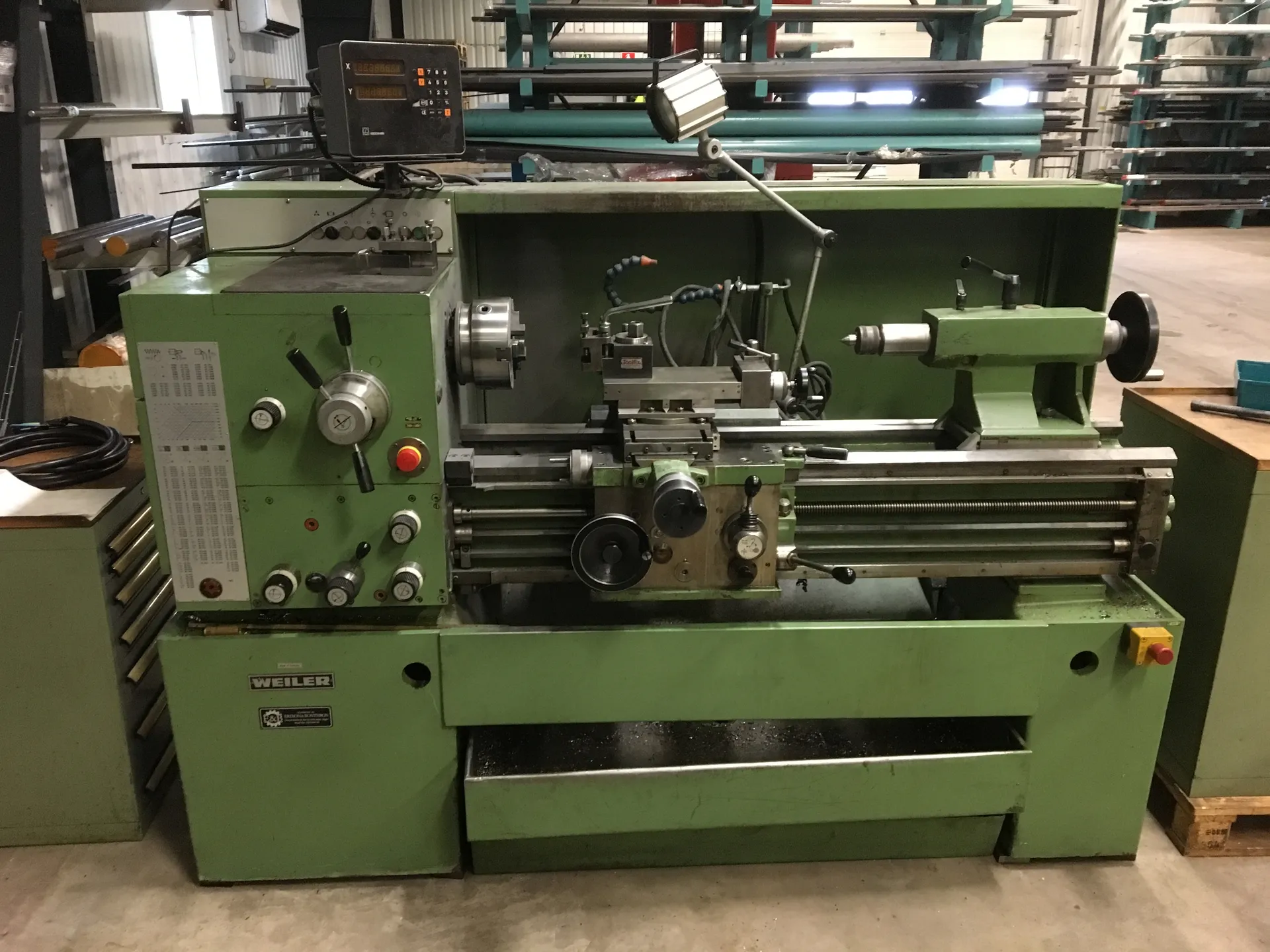

Weiler Commodor
ManufacturerWeiler
Controlkonv.
Year of Construction1995
Technology
Turning
3 / 7

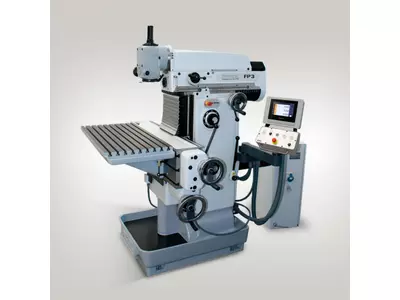

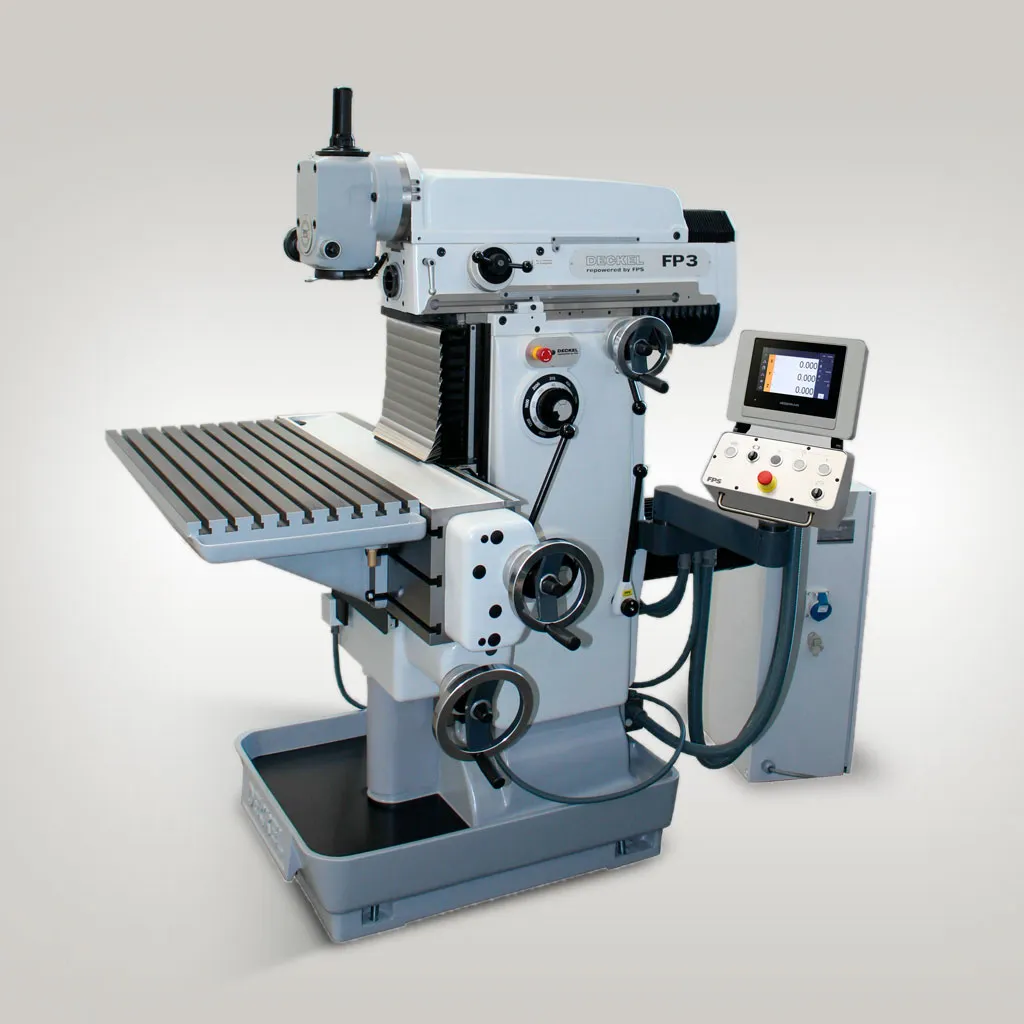

Deckel FP3
ManufacturerDeckel
Controlkonv.
Year of Construction1998
Technology
Milling
4 / 7

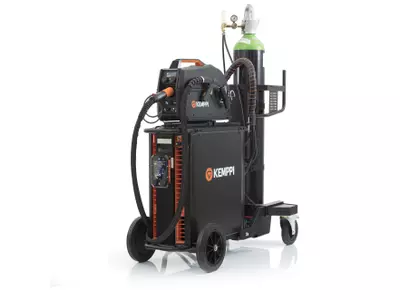

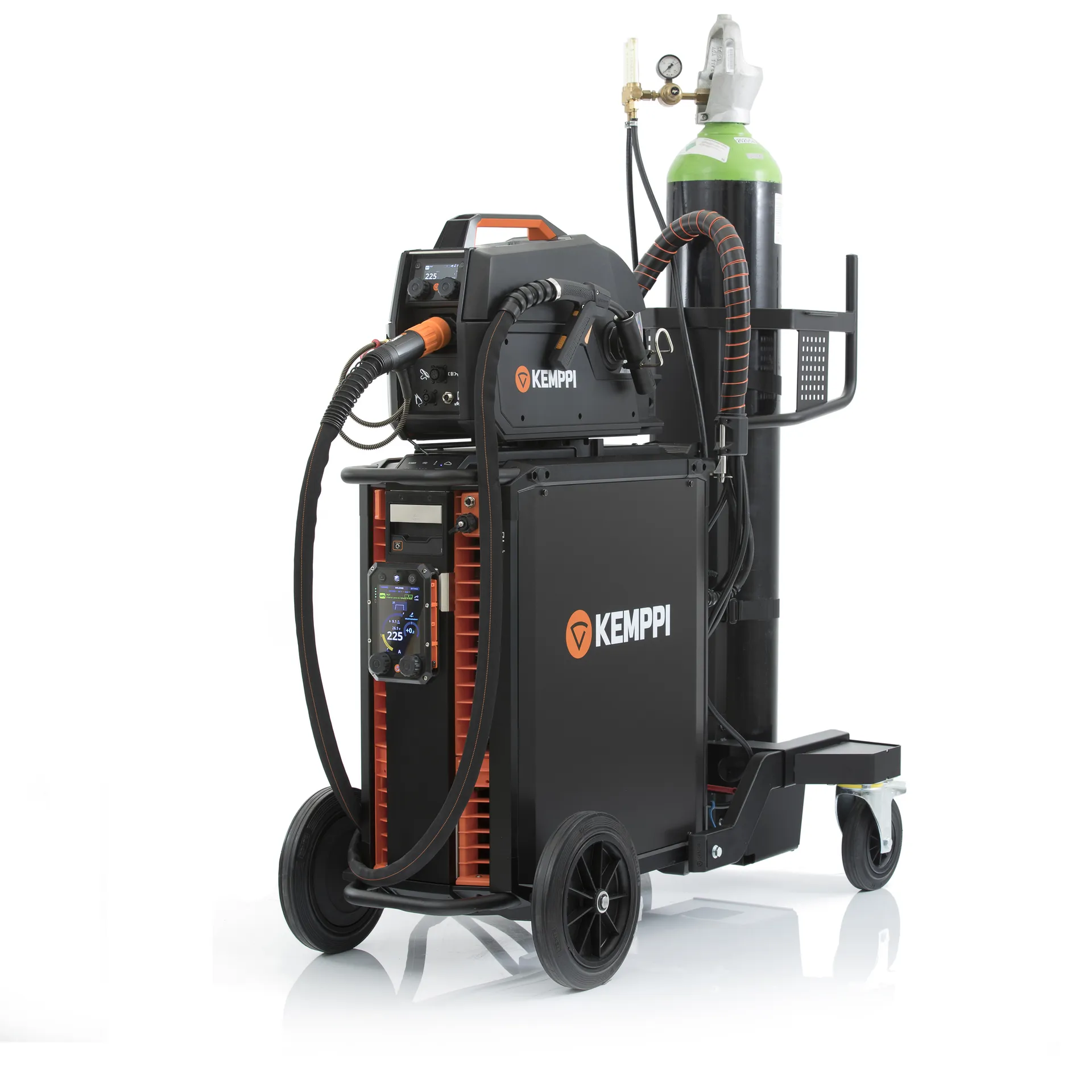

Kemppi
ManufacturerKemppi
ControlKemppi
Year of Construction2020
Technology
Inert gas shielded arc welding (MIG/MAG)
5 / 7

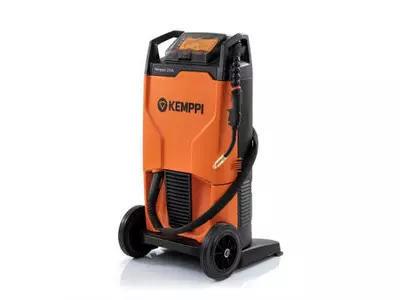

Kemppi Kempact
ManufacturerKemppi
ControlKemppi
Year of Construction2019
Technology
Inert gas shielded arc welding (MIG/MAG)
6 / 7

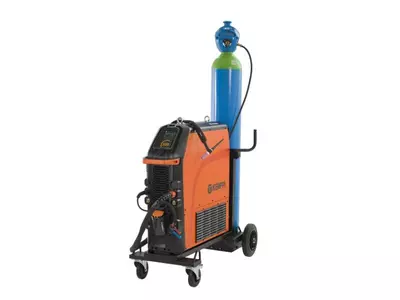

Kemppi Mastertig WIG ACDC
ManufacturerKemppi
ControlKemppi
Year of Construction2022
Technology
Inert gas shielded arc welding (TIG)
7 / 7

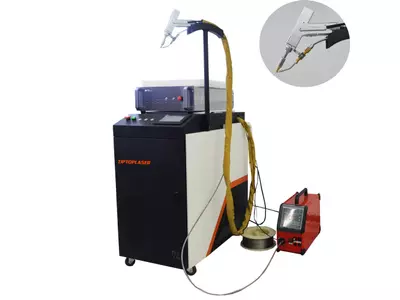

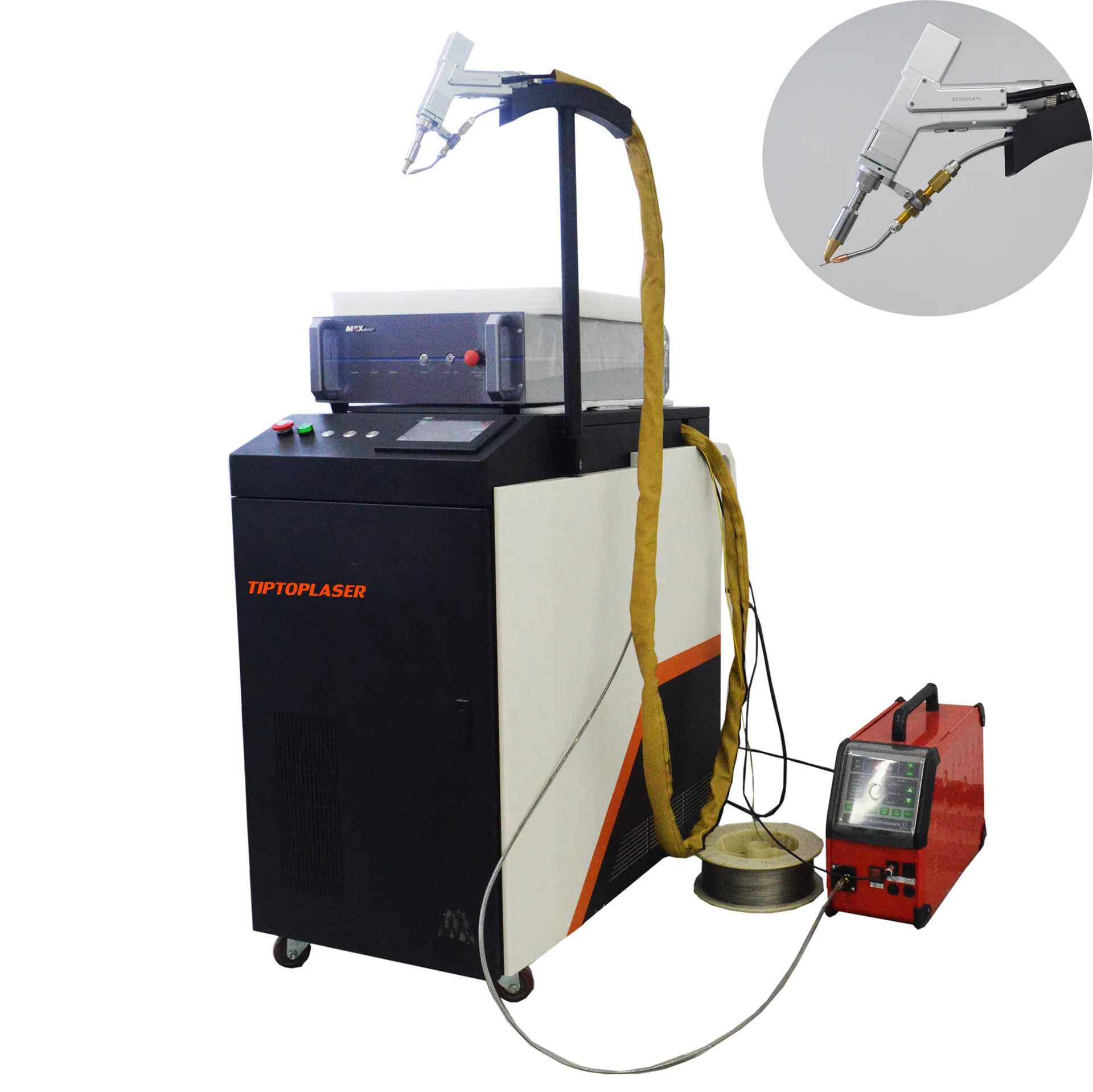

Laserschweißanlage
ManufacturerXT Laser
ControlXT
Year of Construction2021
Technology
Laser-beam welding
4 Parts
Inert gas shielded arc welding (MIG/MAG)2
Mechanical engineering2
7 Machines
Milling2
Turning1
Inert gas shielded arc welding (MIG/MAG)2
Inert gas shielded arc welding (TIG)1
Laser-beam welding1
