U. Eitner Formenbau, Erodier- & Kunststofftechnik GmbH

Germany, 64807 Dieburg

Overview

About U. Eitner Formenbau, Erodier- & Kunststofftechnik GmbH

Who we are

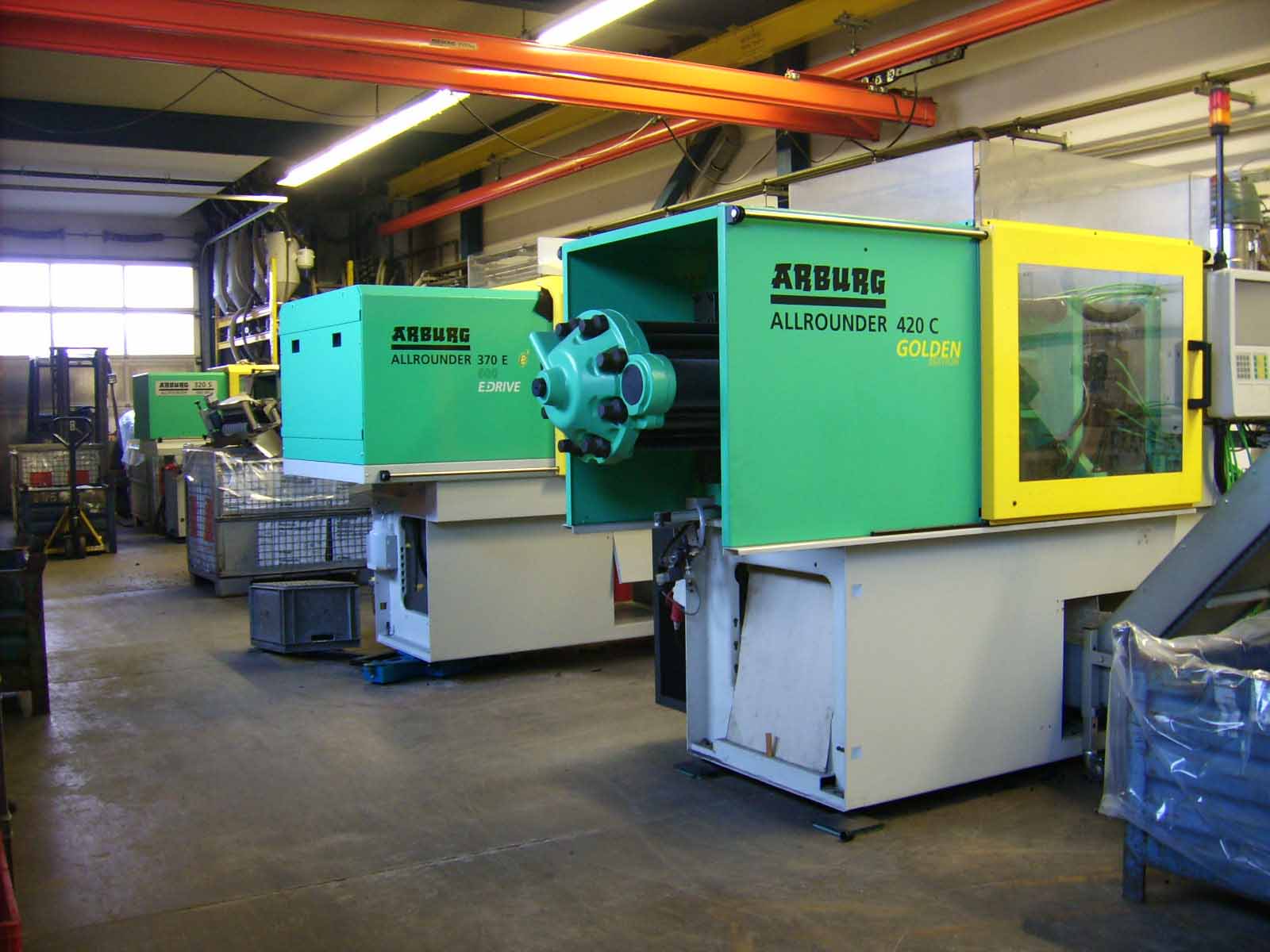

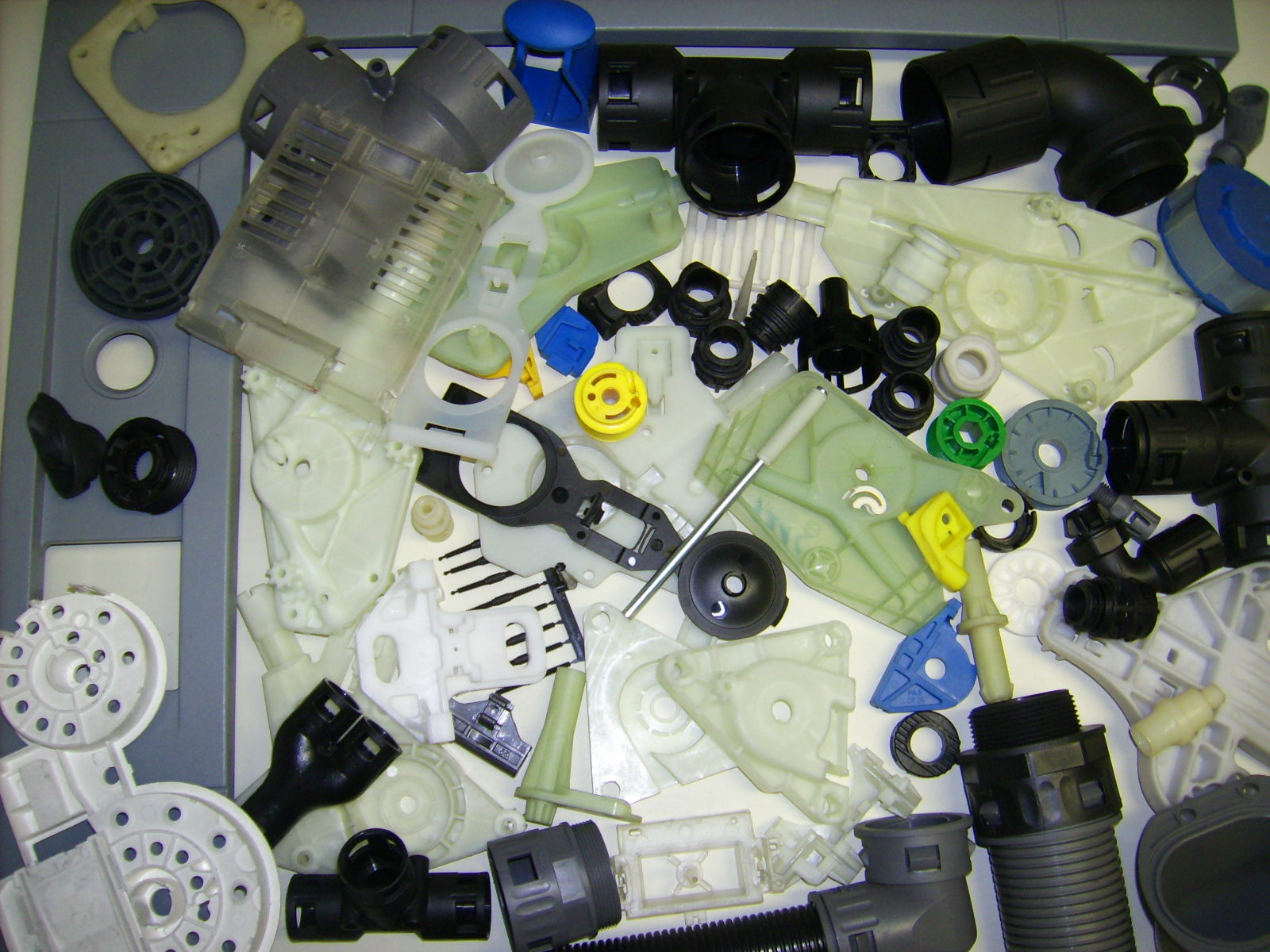

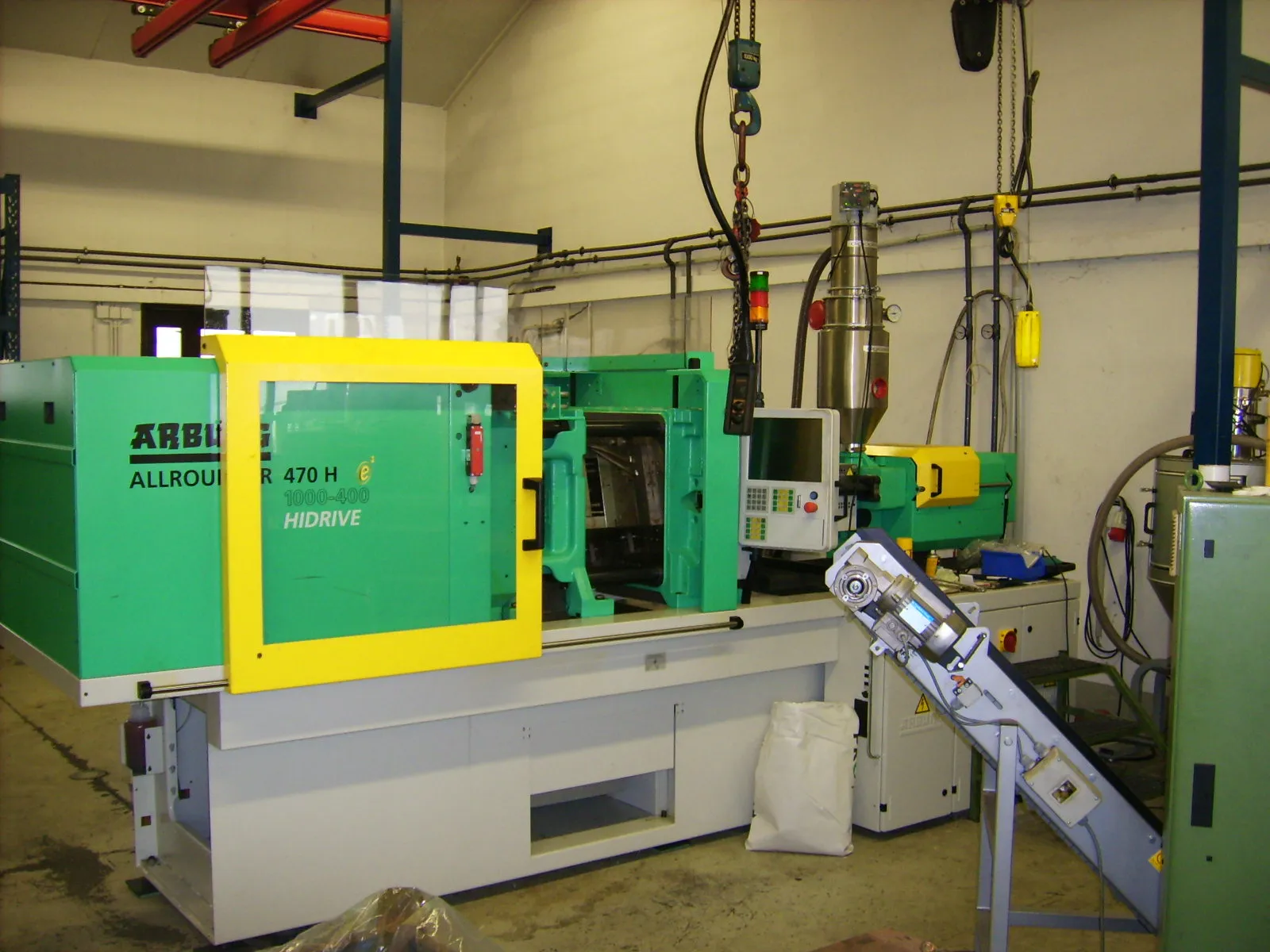

U. Eitner Tooling, EDM & Plastic GmbH Benzstr. 7 D-64807 Dieburg Ask us! For over 25 years we have manufactured to approximately 1500m ² and bearings on 1000m ² Tool and die All equipment needed for tool available eg Senk - and Wire EDM. Max 3T tool Total weight approx 25 Tools / year Engineering and CNC machining 4 CNC lathes and machining centers 4 Milling: Max X1800 - Y750 - Z750, 3, 4 and 5 axes. Rotate: Max diameter 800mm Plastic injection molding 10 Arburg injection molding machines, max. 150T, fully automated. Automotive, electrical and thermal engineering about 30 million plastic parts parts per year.

Dieburg, Germany

Member since 2013

Employees10 - 20

Certificates1

Turnover1 - 5 Mil.

Year of foundation1985

Marketing documents

Flyer

Competencies

Technologies

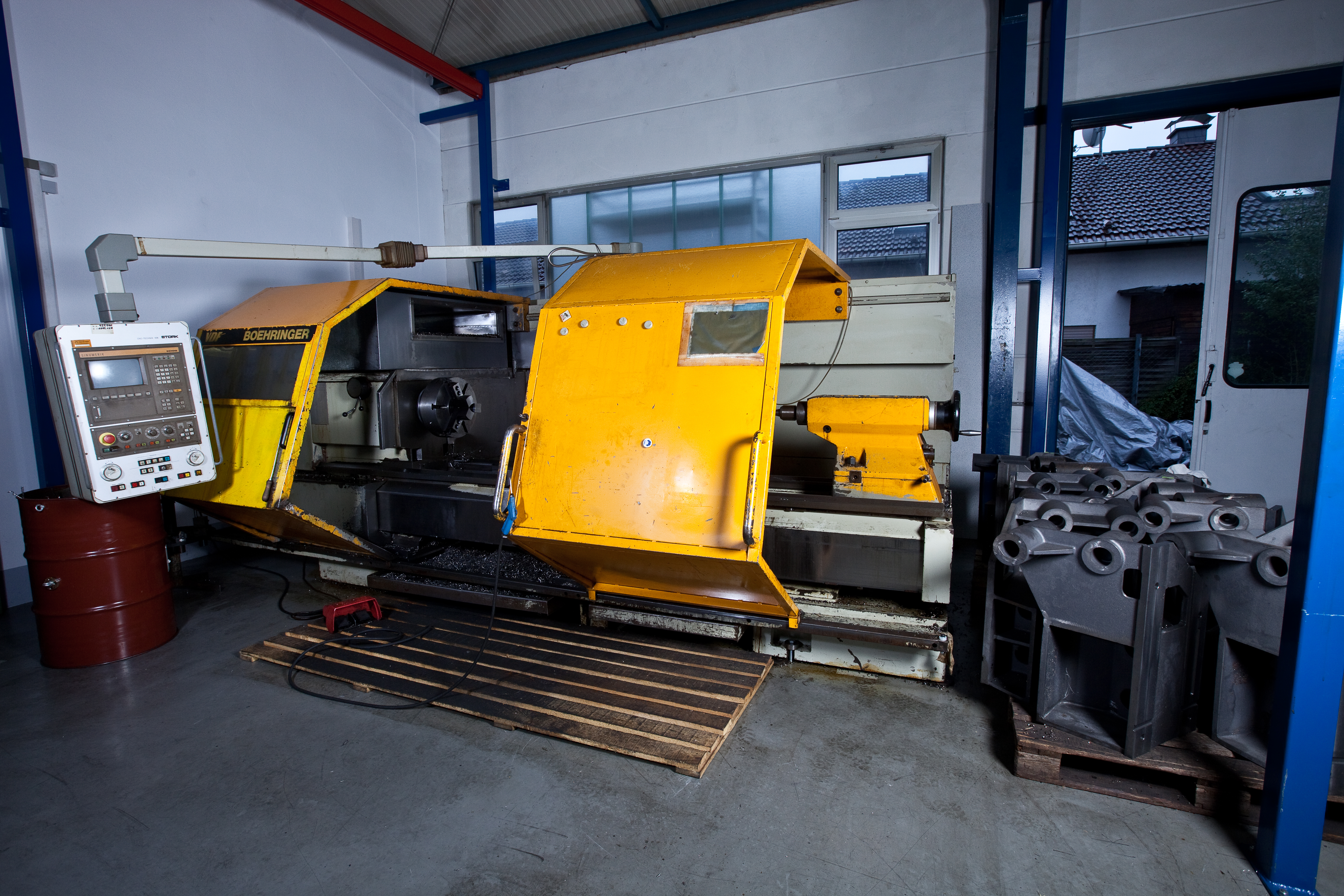

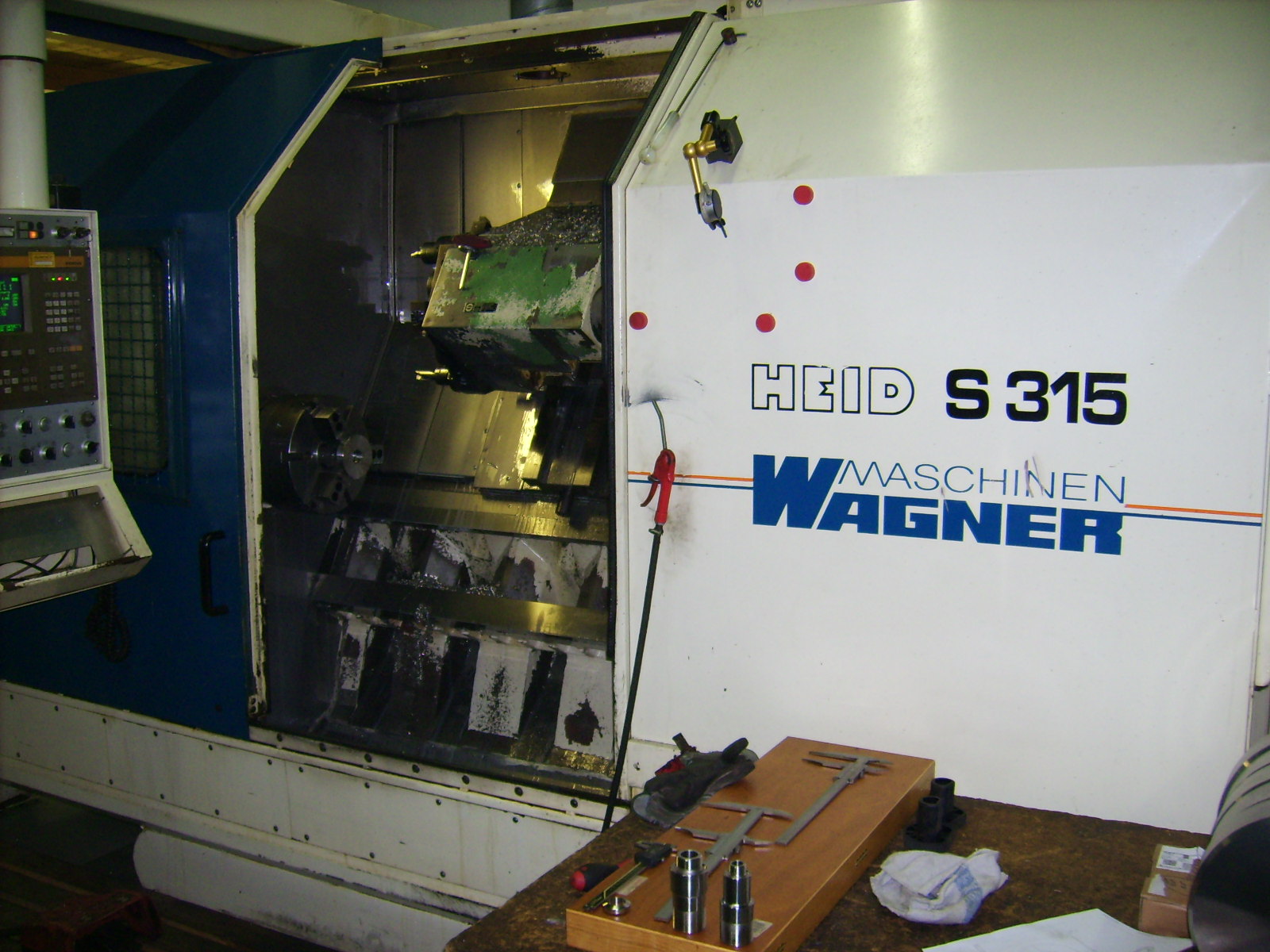

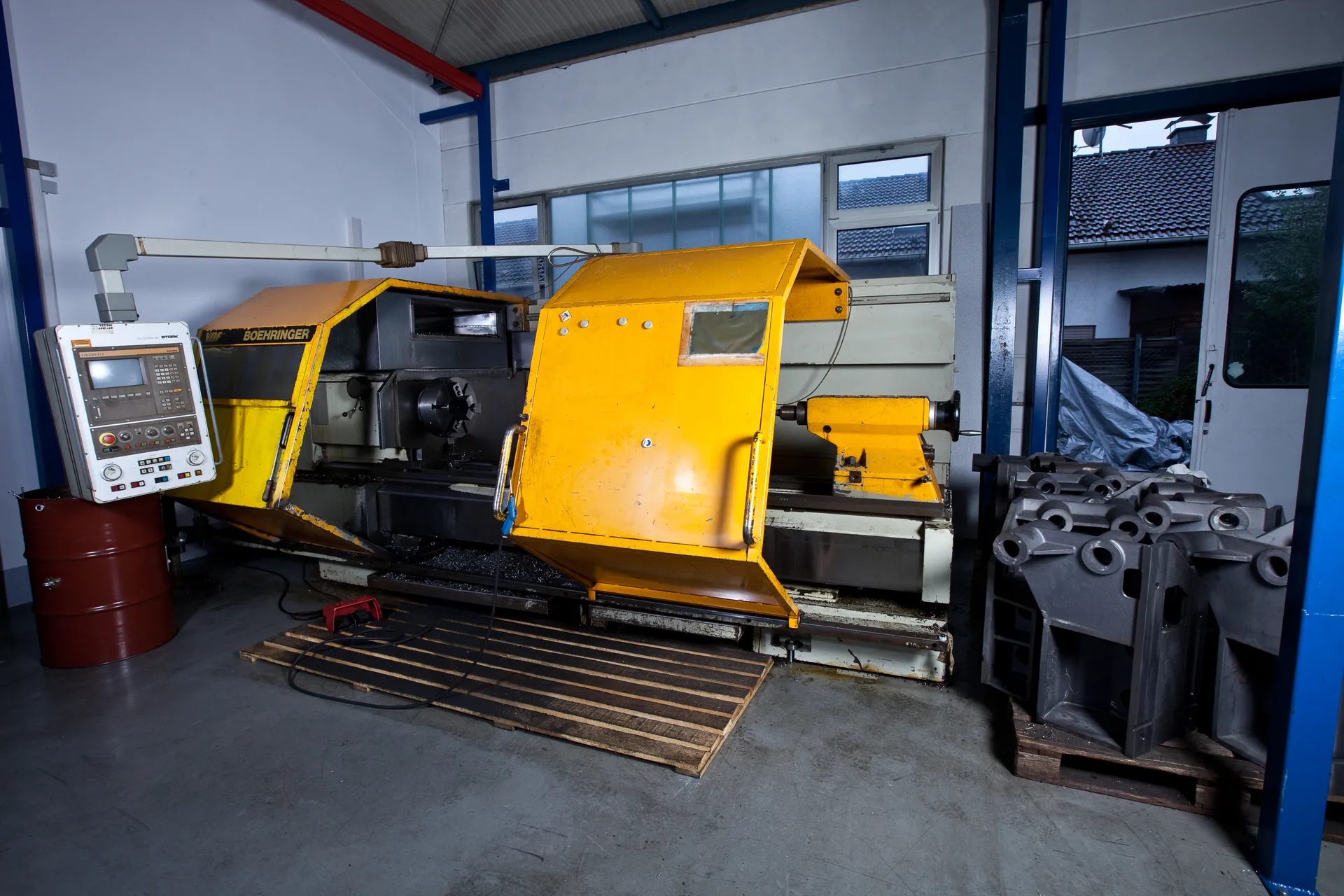

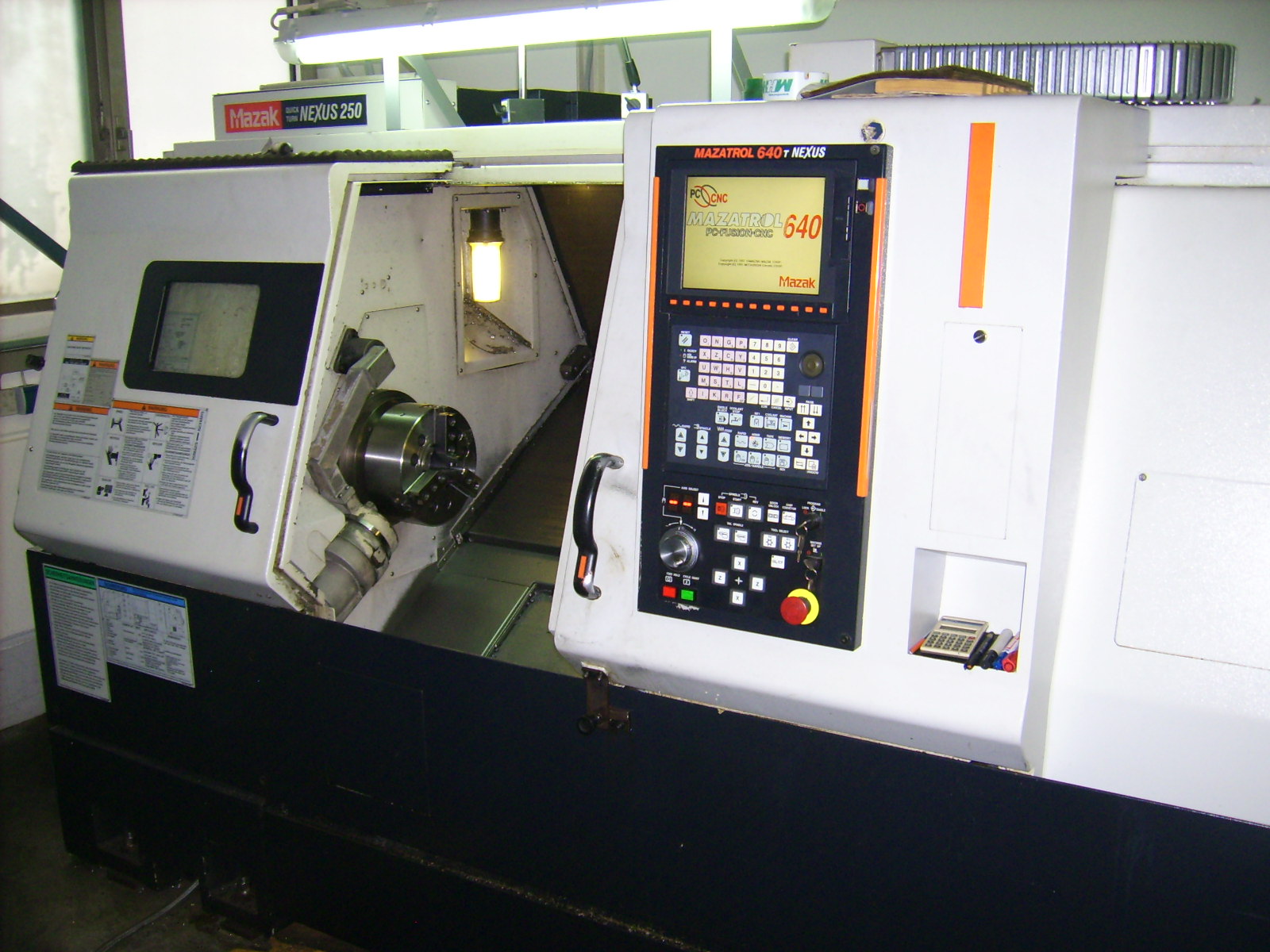

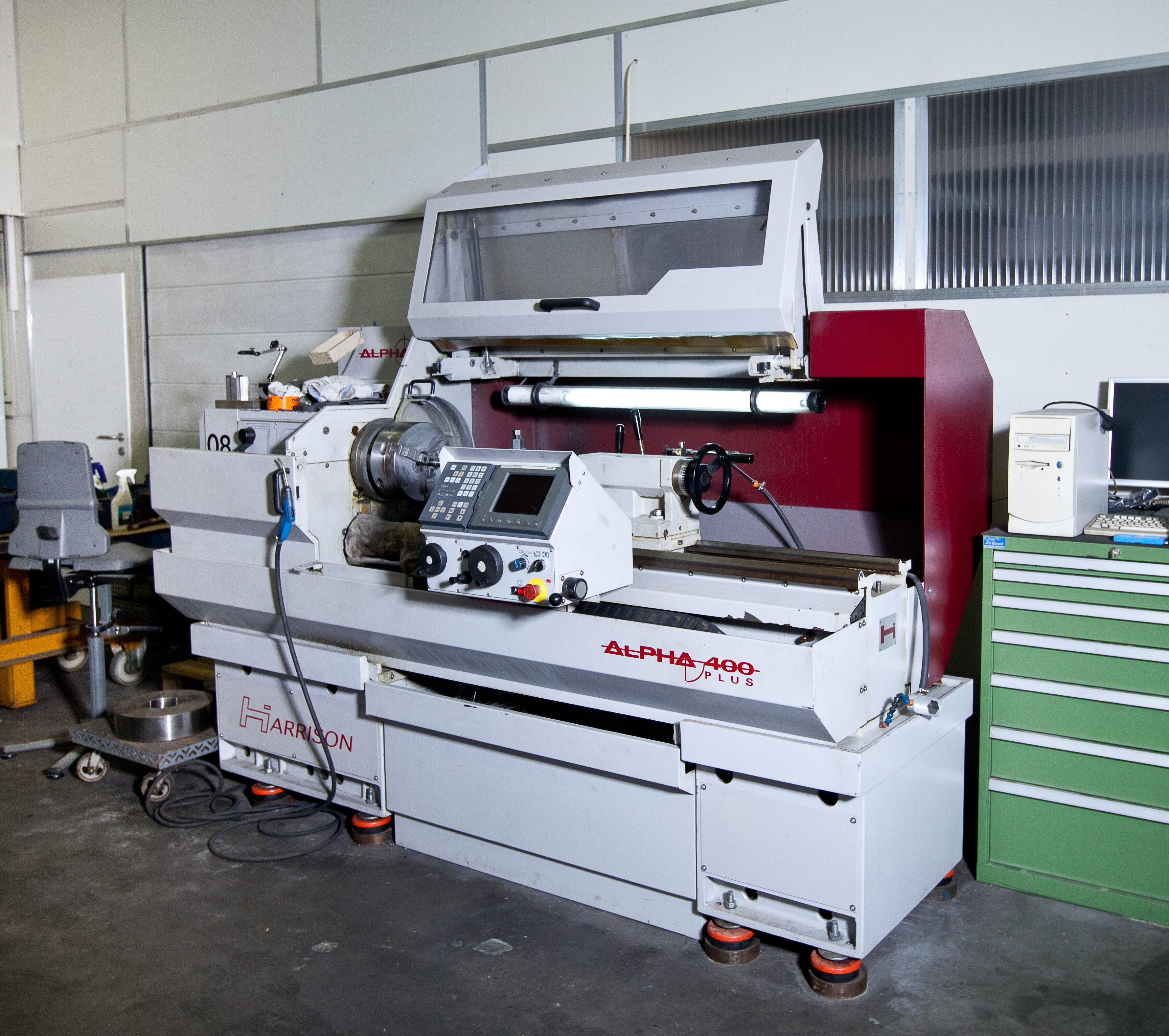

Turning

Technologies	Lotsize	Length	Diameter	Weight
Turning	1–500	5–1,500 mm	10–650 mm	—
Swiss turning	1–500	5–1,500 mm	10–650 mm	—
Full-range turning (including milling)	1–500	5–1,500 mm	10–650 mm	—
Hard turning	1–500	5–1,500 mm	10–650 mm	—
Shaft machining	1–500	5–1,500 mm	10–650 mm	0–1,000 kg

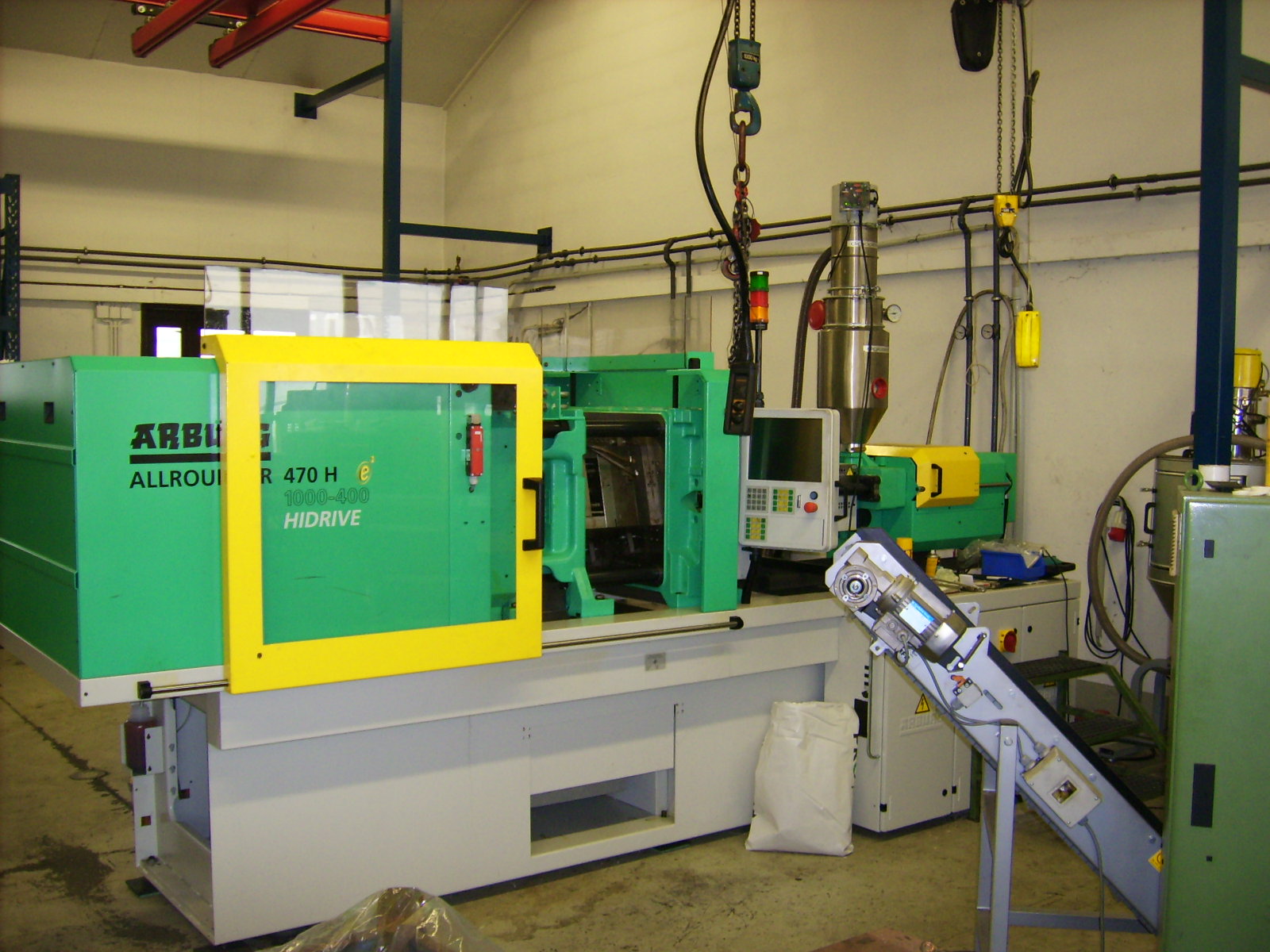

Injection Moulding, Extruding

Technologies	Lotsize	Length	Width	Height	Weight
Injection moulding	100–10 M	2–300 mm	2–300 mm	2–300 mm	0–0.5 kg
Injection-mould around inserts	100–10 M	2–300 mm	2–300 mm	2–300 mm	0–0.5 kg
Multi component injection moulding	100–10 M	2–300 mm	2–300 mm	2–300 mm	0–0.5 kg

Cutting tools (metal)

Technologies
Form milling cutter making
Carbide tipped contour cutting tool making
Carbide special drilling tool making
Special drilling tool making

Mould construction

Technologies	Length	Width	Height	Weight

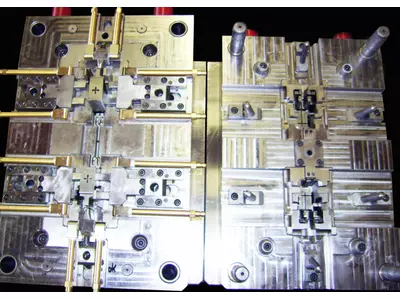

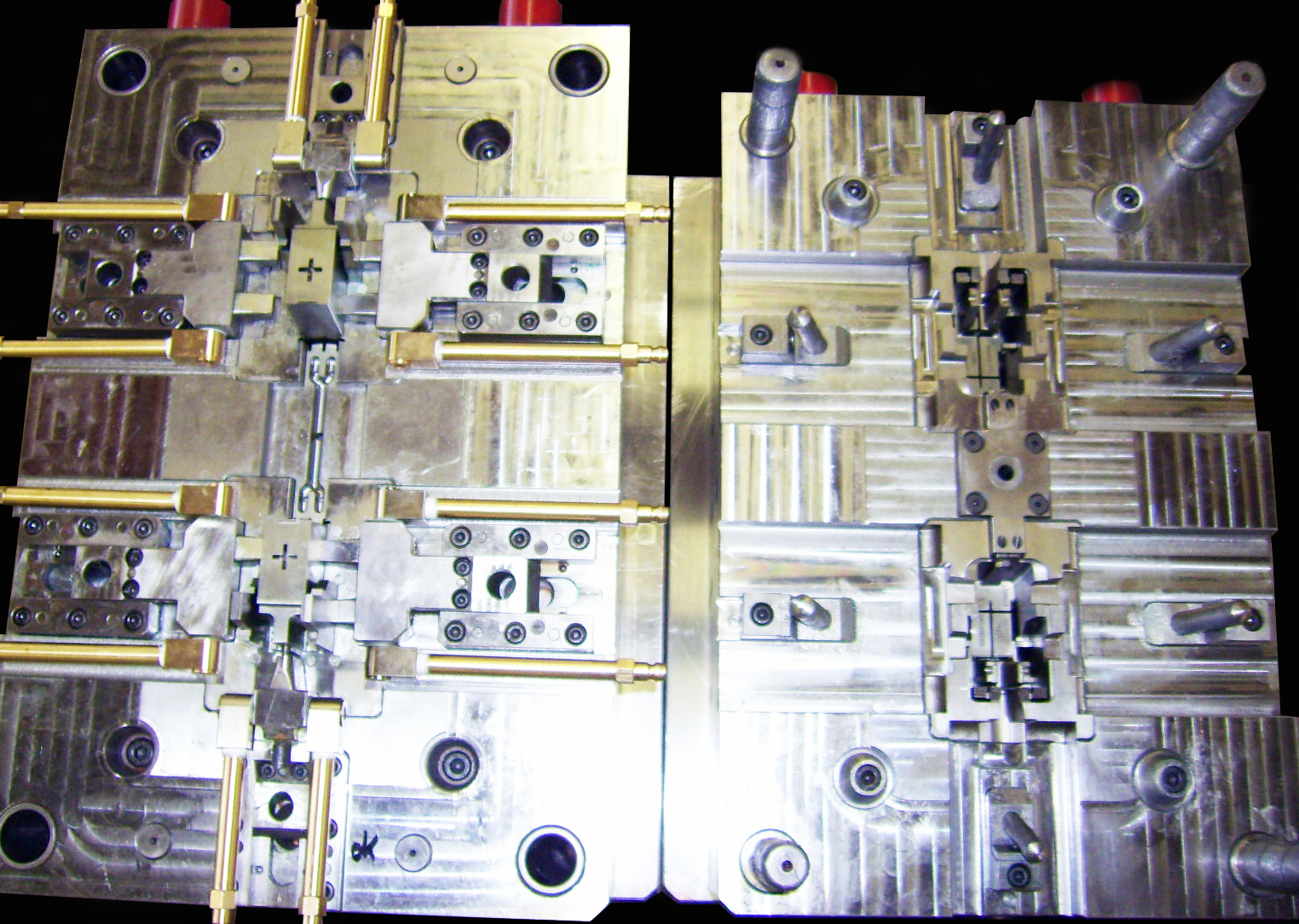

Injection moulds	3–1,600 mm	3–700 mm	3–600 mm	0–2,500 kg
Pressure die cast molds	3–1,600 mm	3–700 mm	3–600 mm	0–2,000 kg
Foam molds	3–1,600 mm	3–700 mm	3–600 mm	0–2,000 kg
Forging dies	3–1,600 mm	3–700 mm	3–600 mm	0–1,000 kg
Extrusion dies	3–1,600 mm	3–700 mm	3–600 mm	0–2,000 kg
Blow moulds	3–1,600 mm	3–700 mm	3–600 mm	0–2,000 kg

Jigmaking

Technologies	Length	Width	Height	Weight
Drilling / milling jigs	3–1,600 mm	3–700 mm	3–600 mm	0–1,000 kg
Gauges	3–1,600 mm	3–700 mm	3–600 mm	0–1,000 kg
Measuring / testing jigs	3–1,600 mm	3–700 mm	3–600 mm	0–1,000 kg
Assembly jigs	3–1,600 mm	3–700 mm	3–600 mm	0–1,000 kg
Welding jigs	3–1,600 mm	3–700 mm	3–600 mm	0–1,000 kg
Clamping devices	3–1,600 mm	3–700 mm	3–600 mm	0–1,000 kg

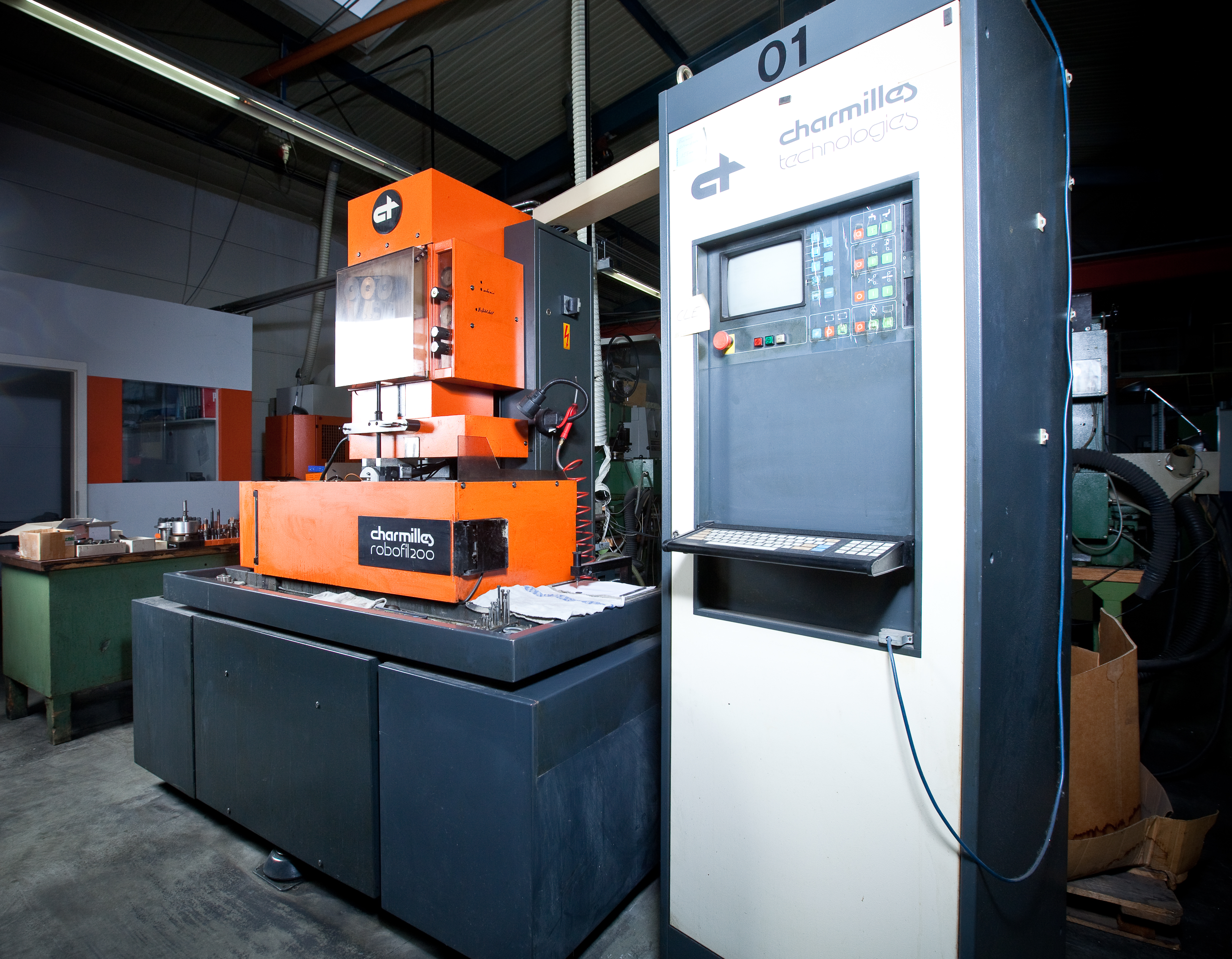

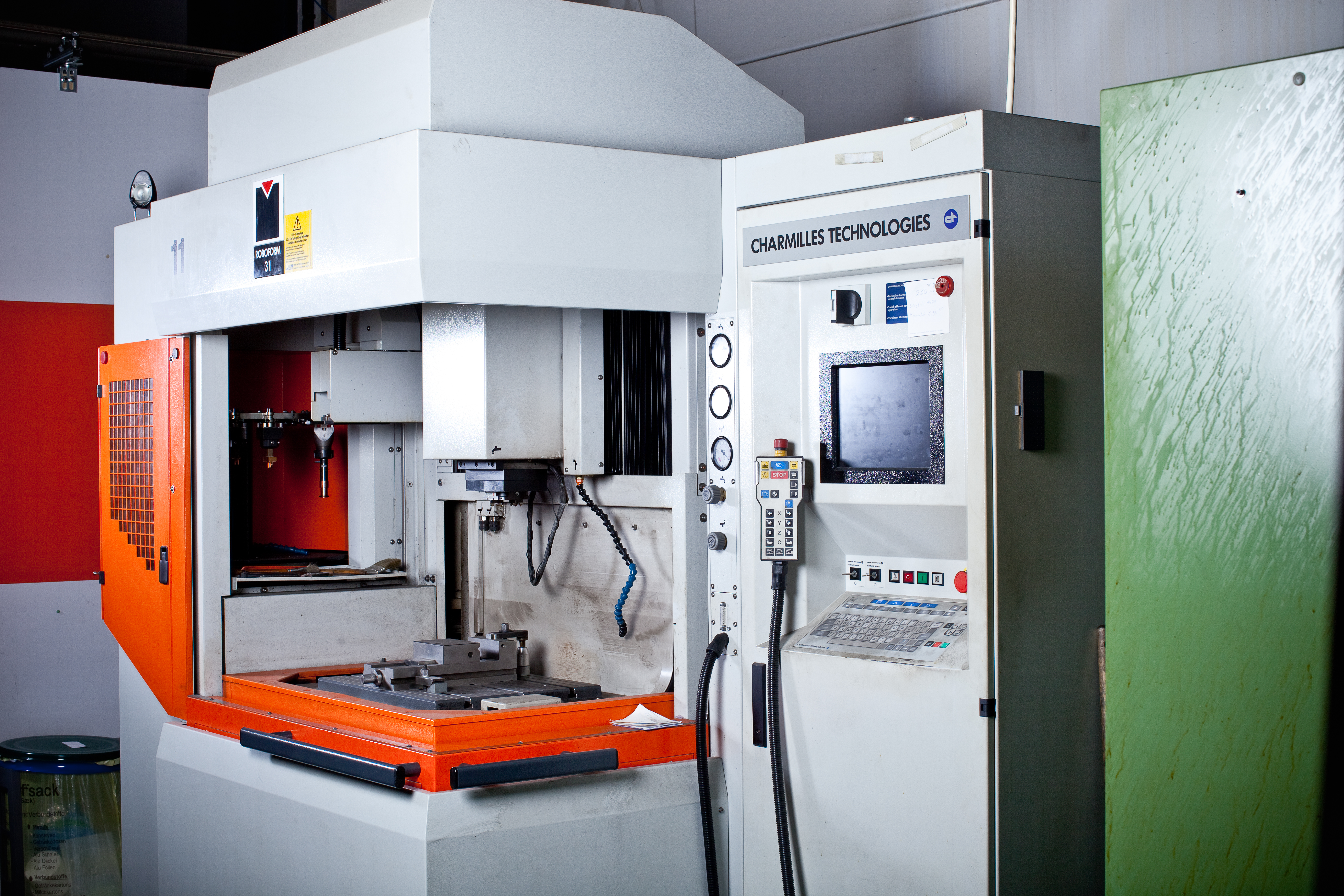

Etching and Spark Erosion

Technologies	Lotsize	Length	Width	Height	Weight

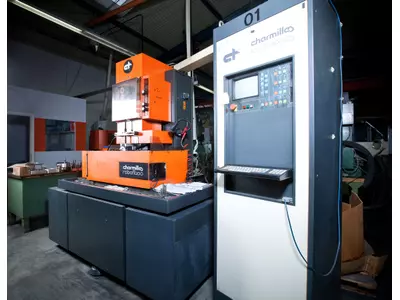

Spark erosion wire cutting	1–500	3–320 mm	3–200 mm	1–150 mm	0–10 kg

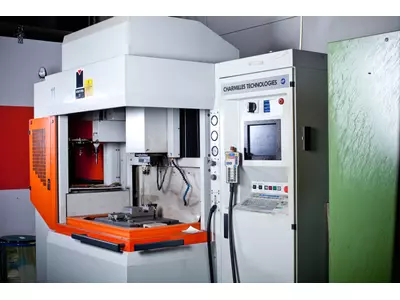

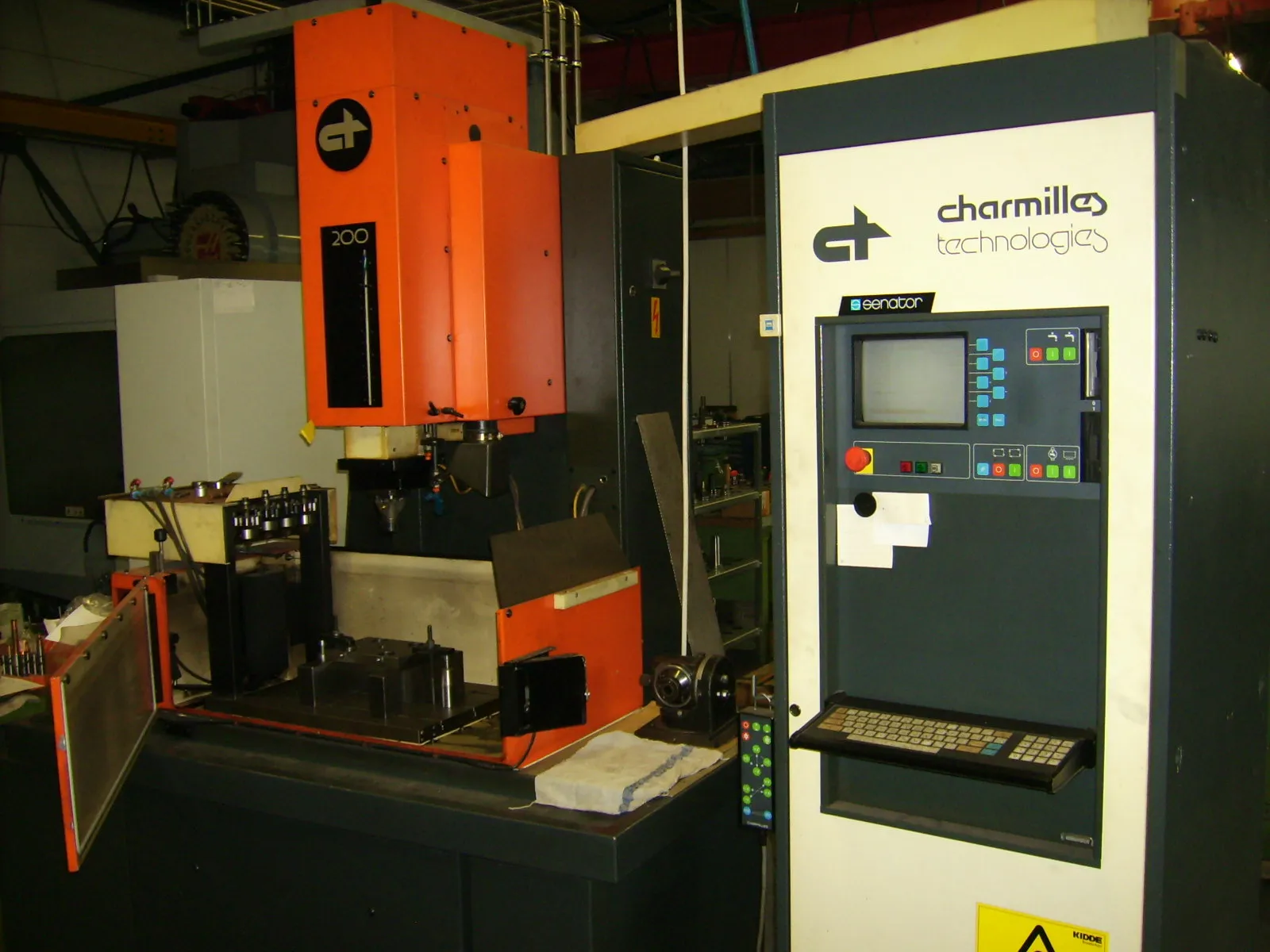

Spark erosion countersinking	1–500	3–300 mm	3–300 mm	1–300 mm	0–300 kg

Assembly

Technologies	Weight
Mechanical assembly	0–2,000 kg

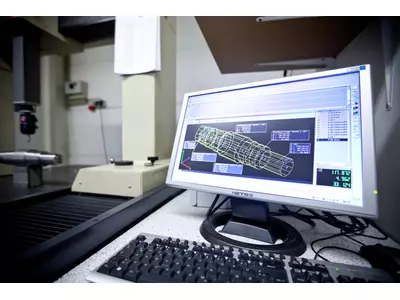

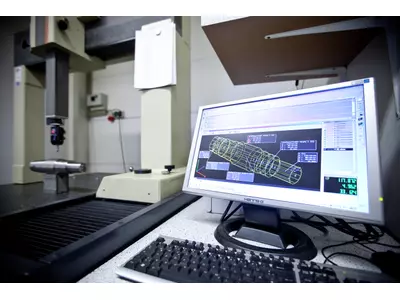

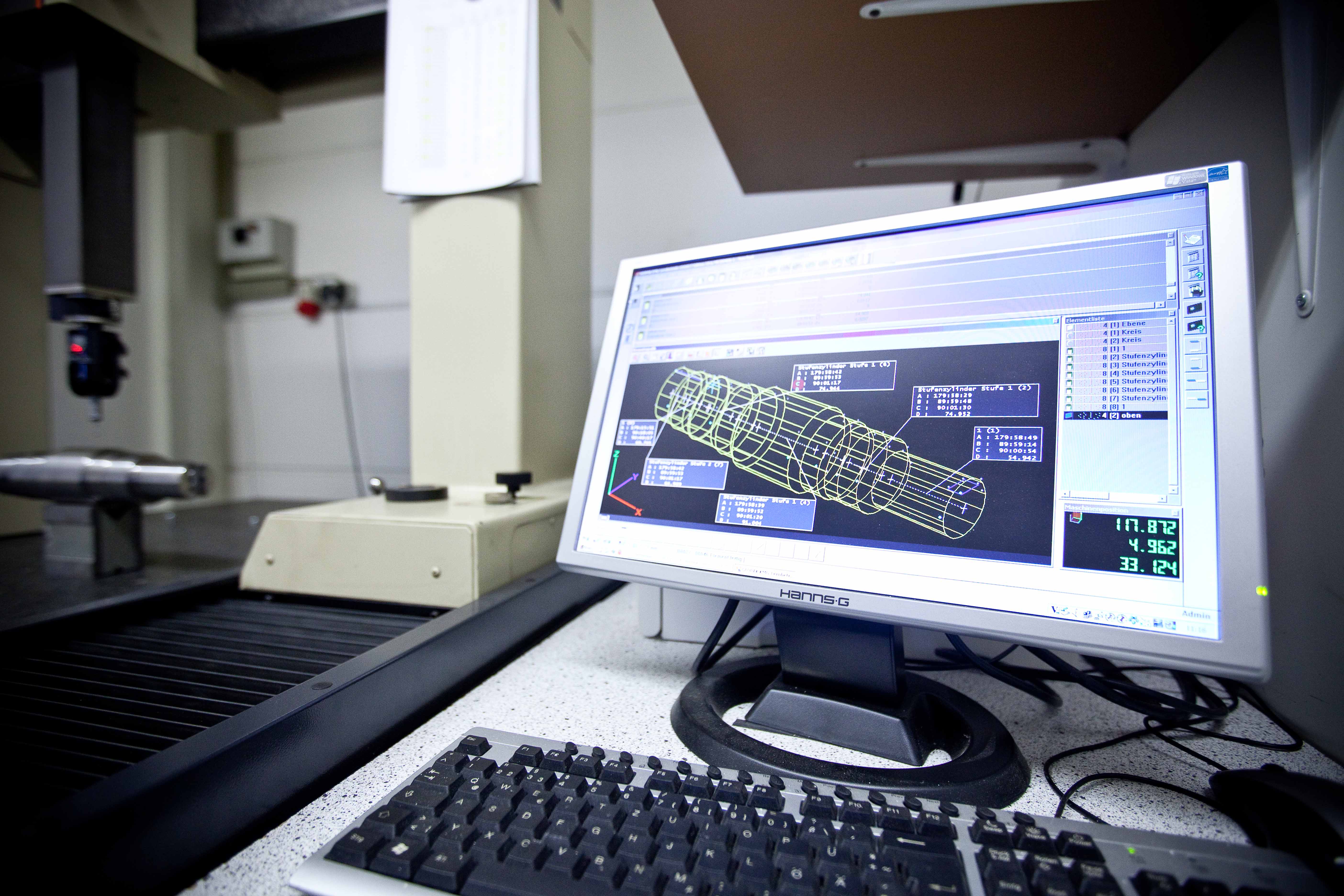

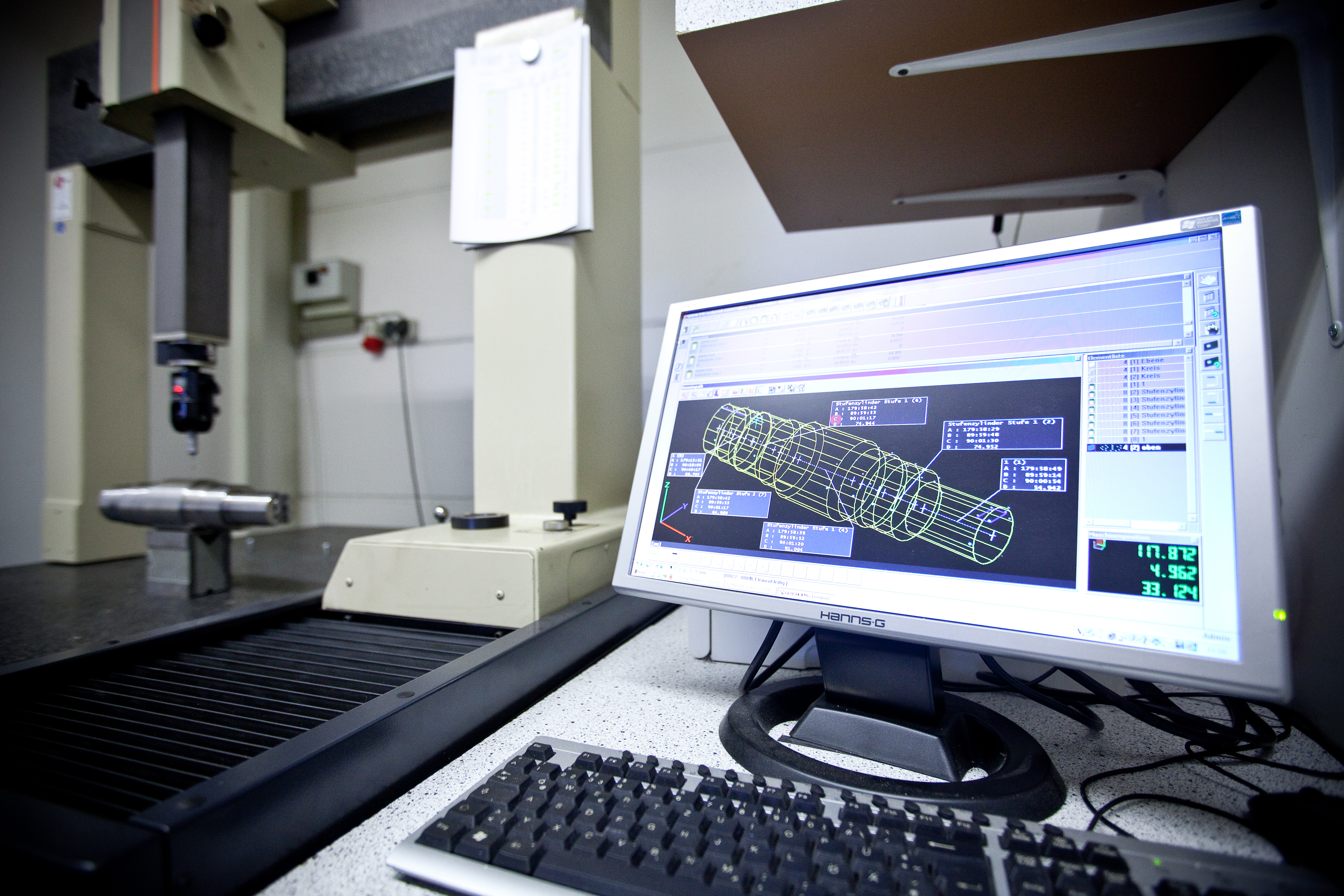

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight
Measuring / testing	3–500 mm	3–500 mm	3–400 mm	10–400 mm	0–250 kg

Threading

Technologies	Lotsize	Length	Diameter
Thread rolling	1–500	3–1,500 mm	10–650 mm

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
External cylindrical grinding	1–500	10–200 mm	—	—	10–200 mm	0–20 kg
Internal cylindrical grinding	1–500	1–100 mm	—	—	10–200 mm	—
Surface grinding machine	1–500	10–600 mm	10–350 mm	1–200 mm	—	0–100 kg
Coordinate jig grinding	1–500	10–300 mm	10–200 mm	10–50 mm	—	0–20 kg

Heat Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Case hardening/surface hardening	1–500	3–200 mm	3–100 mm	3–100 mm	10–100 mm	0–10 kg
Flame-hardening	1–500	3–200 mm	3–100 mm	3–100 mm	10–100 mm	0–10 kg
Annealing	1–500	3–200 mm	3–100 mm	3–100 mm	10–100 mm	0–10 kg
Hardening	1–500	3–200 mm	3–100 mm	3–100 mm	10–100 mm	0–10 kg
Induction hardening	1–500	3–200 mm	3–100 mm	3–100 mm	10–100 mm	0–10 kg
Vacuum annealing	1–500	3–200 mm	3–100 mm	3–100 mm	10–100 mm	0–10 kg
Hardening and tempering	1–500	3–200 mm	3–100 mm	3–100 mm	10–100 mm	0–10 kg

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness

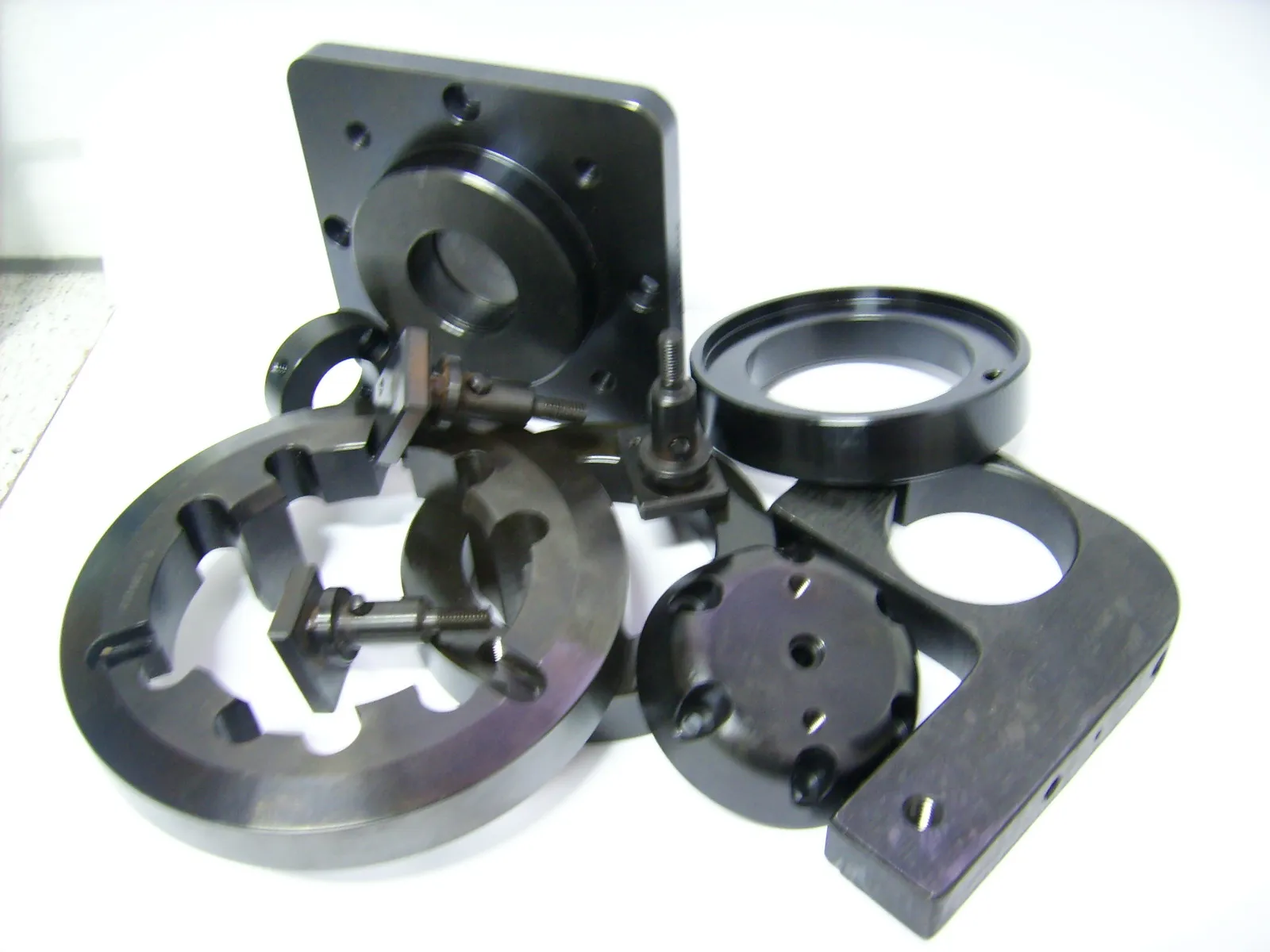

Blacking	1–500	3–400 mm	3–400 mm	3–400 mm	—	0–100 kg	—
Electroplating	1–500	3–400 mm	3–400 mm	3–400 mm	—	0–100 kg	—
Nickel plating	1–500	3–400 mm	3–400 mm	3–400 mm	—	0–100 kg	—
Galvanizing	1–500	3–400 mm	3–400 mm	3–400 mm	3–400 mm	0–100 kg	0.02–0.2 mm

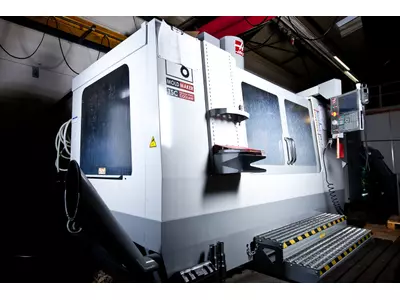

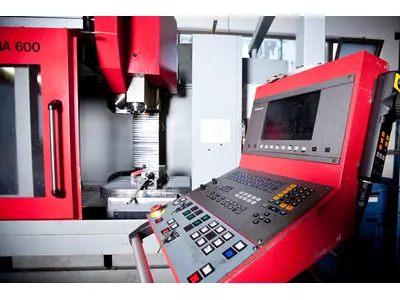

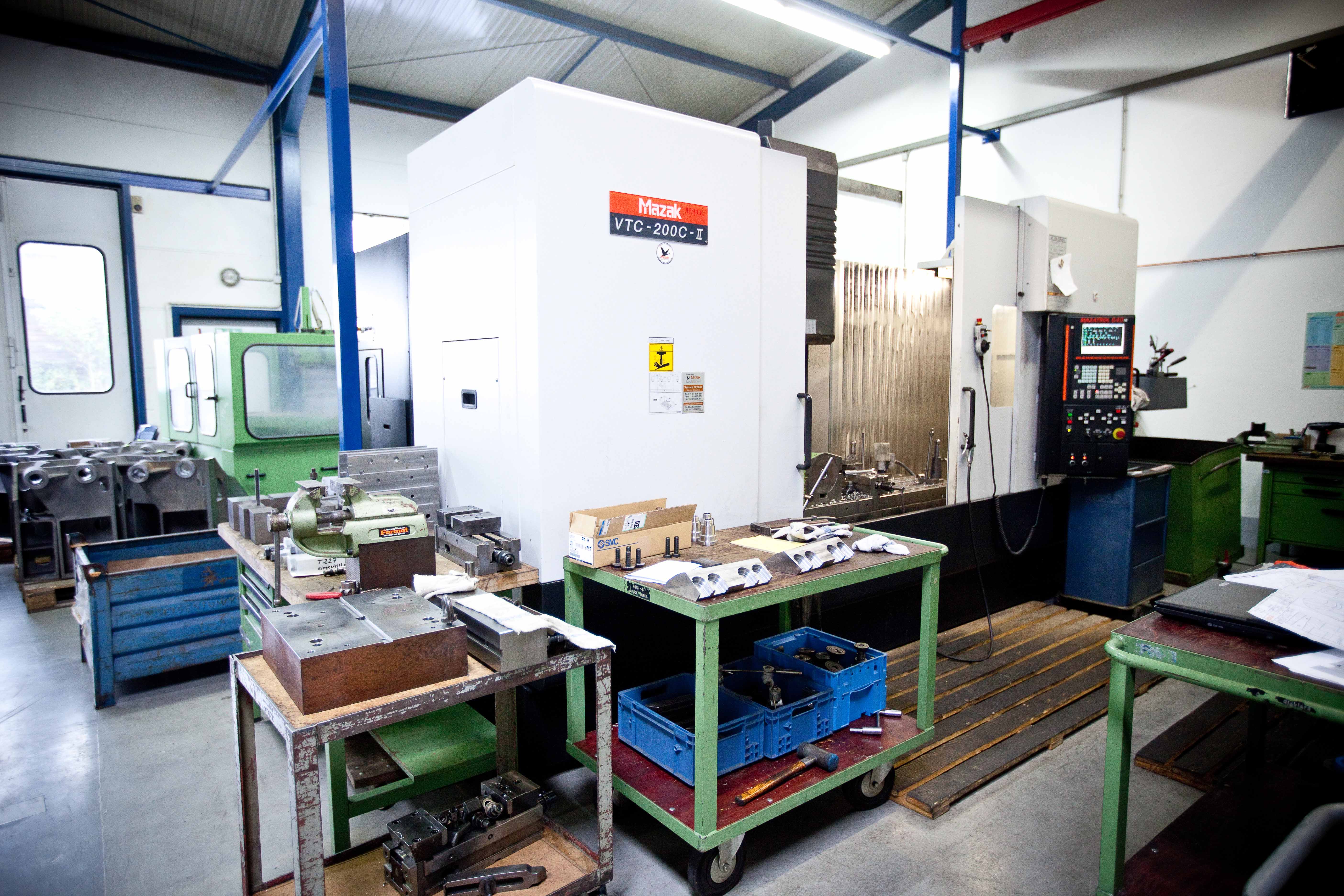

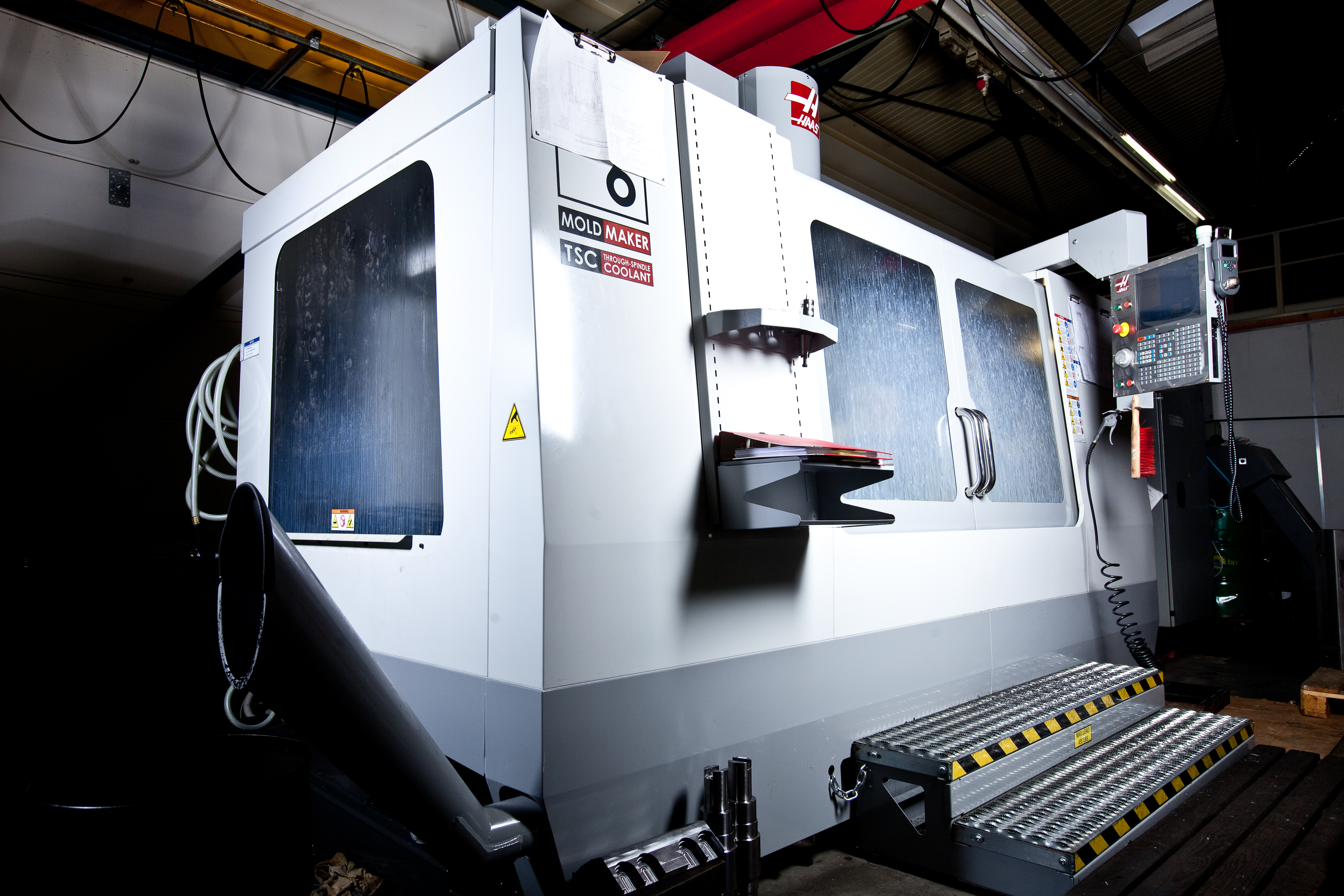

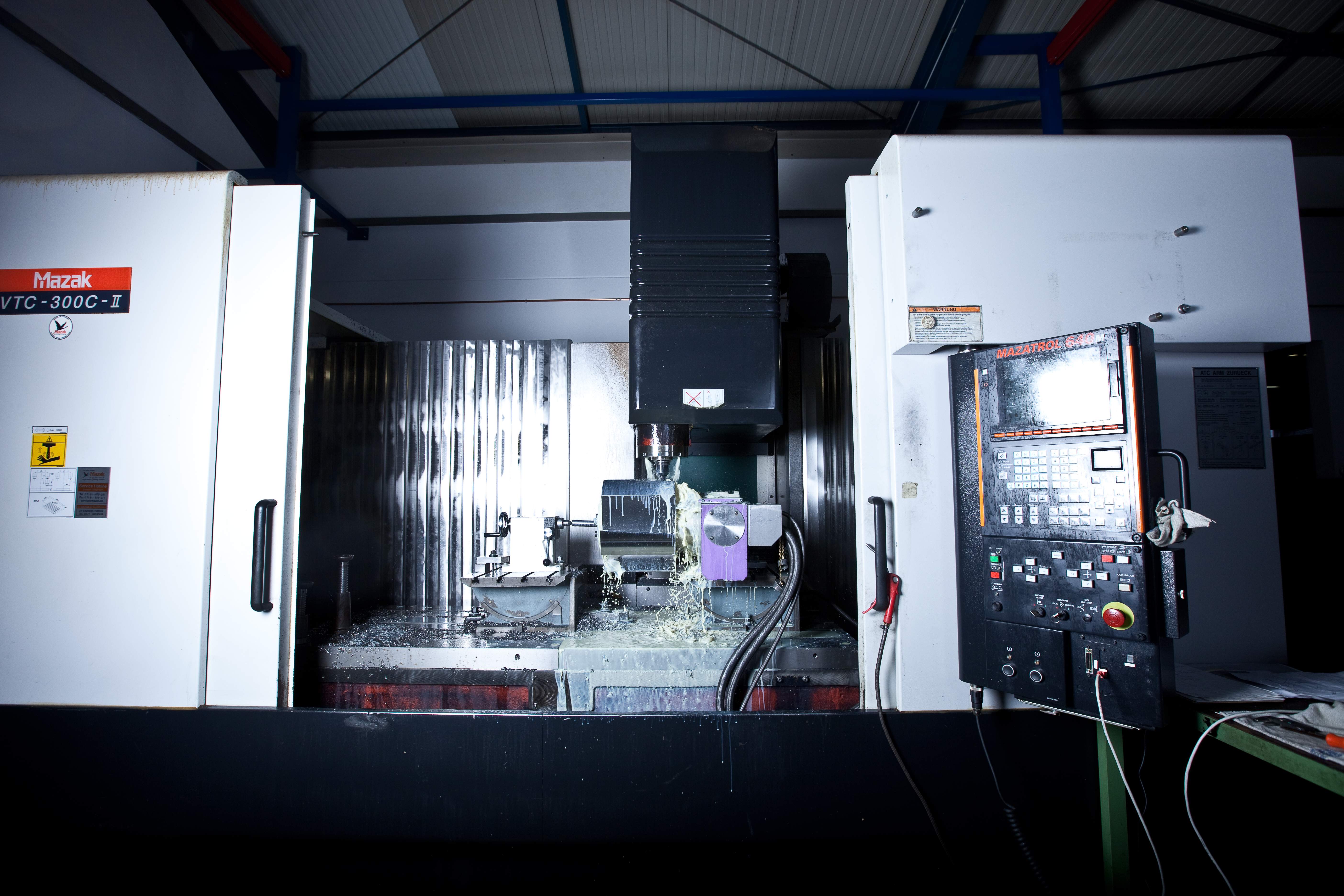

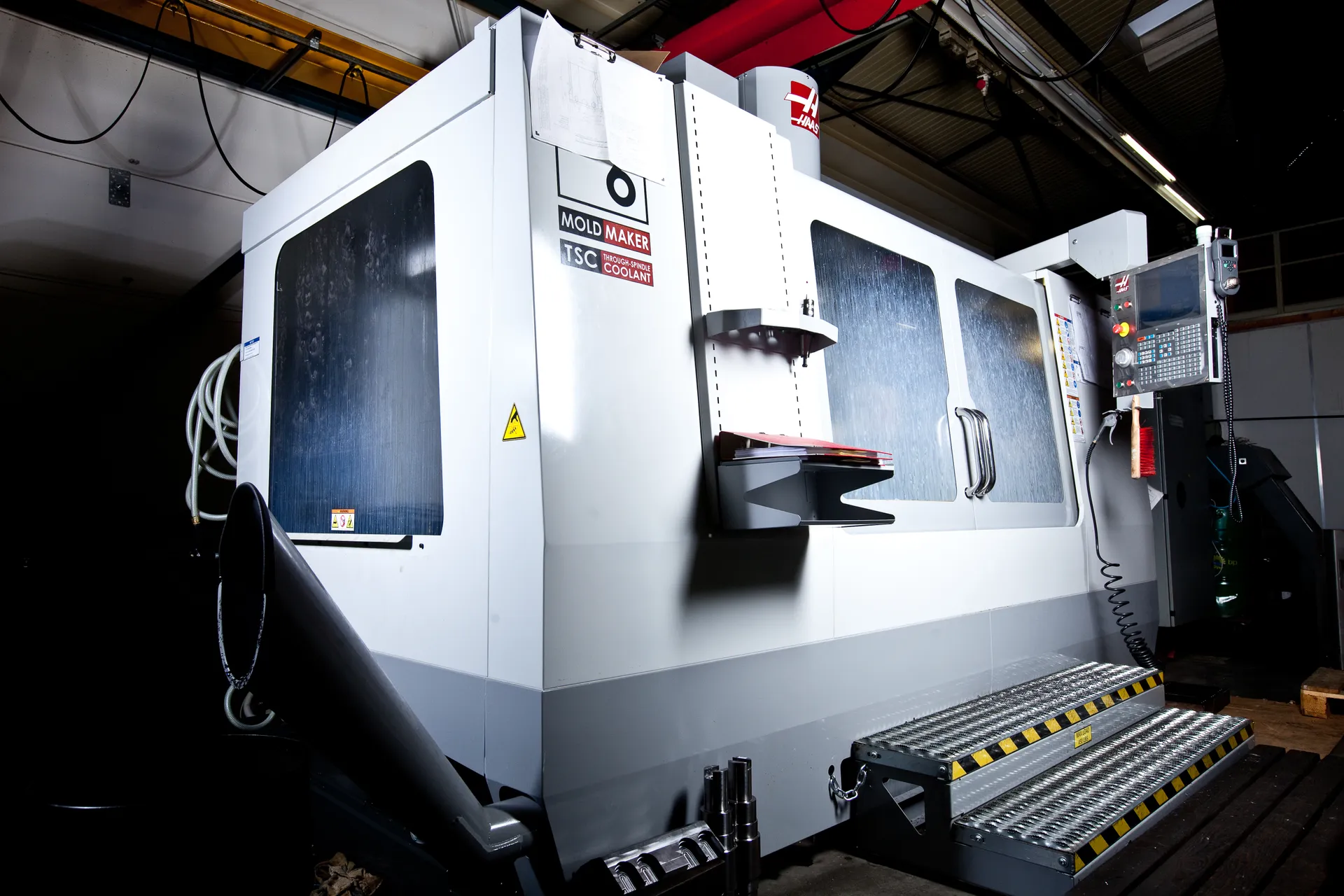

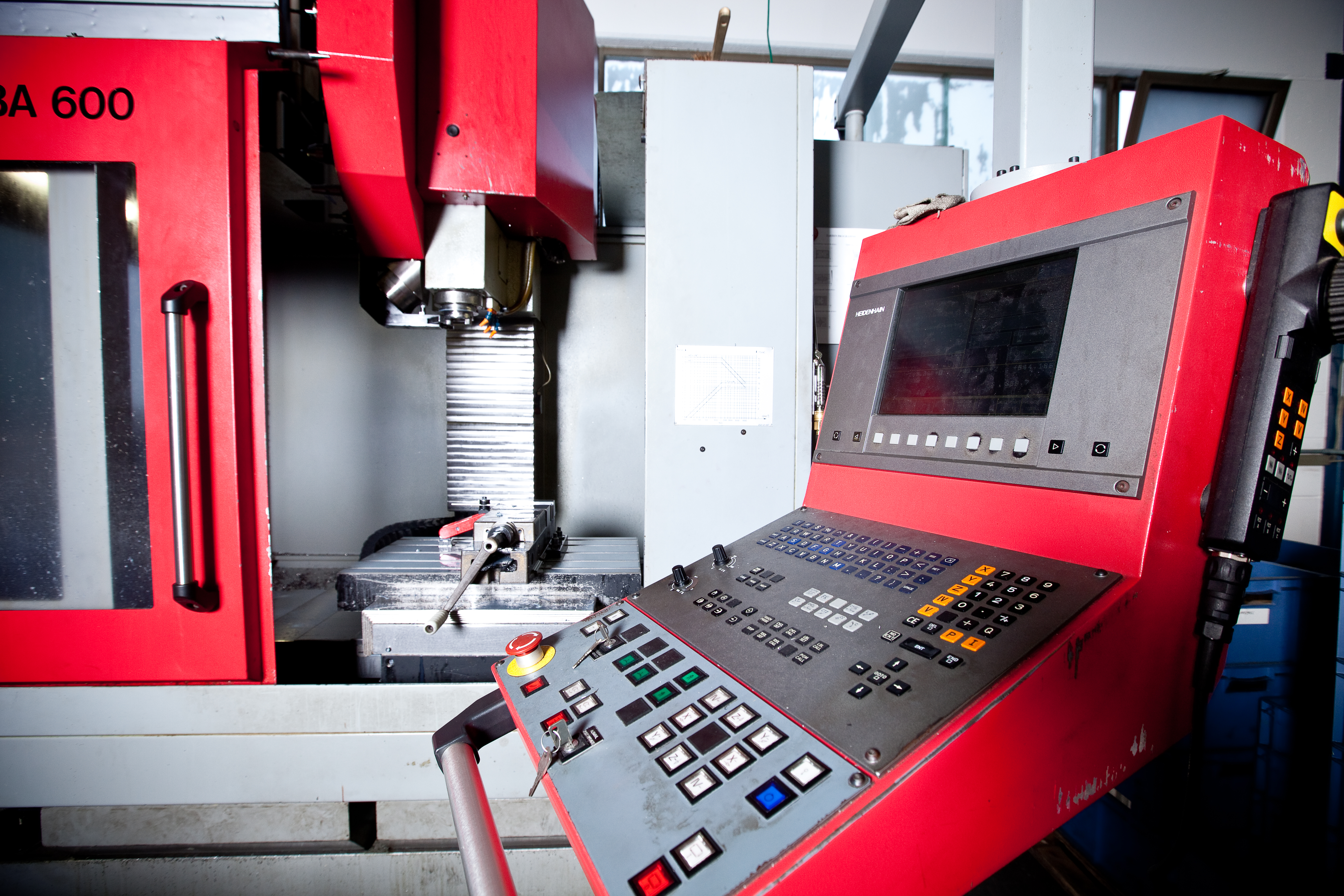

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Milling	1–500	3–1,600 mm	3–700 mm	3–600 mm	—	0–1,000 kg
Form milling (3 D)	1–500	3–1,600 mm	3–700 mm	3–600 mm	—	0–1,000 kg
HSC milling	1–500	3–1,600 mm	3–700 mm	3–600 mm	—	0–1,000 kg
Engraver milling	1–500	3–1,600 mm	3–700 mm	3–600 mm	25–500 mm	0–1,000 kg

Cutting dies / deep drawing dies

Technologies	Length	Width	Height	Weight
Trimming	3–1,600 mm	3–700 mm	3–600 mm	0–2,000 kg
Die replacement / wearing part manufacturing	—	—	—	—
Embossing / swage dies	3–1,600 mm	3–700 mm	3–600 mm	0–2,000 kg
Rod extrusion dies	3–1,600 mm	3–700 mm	3–600 mm	0–2,000 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Sawing	1–500	3–3,000 mm	3–400 mm	3–400 mm	10–400 mm	—
Drilling / threading / tapping	1–500	3–1,600 mm	3–700 mm	3–600 mm	—	0–1,000 kg

Labelling / marking

Technologies	Lotsize	Length	Width	Height	Diameter
Marking	1–500	3–300 mm	3–300 mm	3–300 mm	20–300 mm

Materials

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys

Plastics/synthetic materials

ThermoplasticsAcrylic (PMMA)High performance plasticGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materials

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Light metals

Aluminium and aluminium alloys

Cast metals

Cast steelCast iron

Advanced Materials

Nickel alloy (Inconel, Monel, Hastelloy)

Industries

Telecommunication industryAerospace and aviation industryInformation technology (hardware)Automotive and vehicle constructionAutomation and control engineeringPlant engineering and constructionConstruction and architectural suppliesMining and tunnel engineeringMedical technologySpecial purpose machinery manufacturingMachine tool manufacturingPackaging industryDrive and gear engineeringLighting industryAir conditioning, refrigeration and ventilation industryRailway and rail vehicles industryOffice machinery and suppliesMilitary engineeringChemical industryClean room technologyFurniture industryShipbuilding industryPaper and printing machinery industryMeasurement and control technique, laboratory equipmentMechanical engineeringFittings engineeringBuilding, agricultural and forestry machinery manufacturingHousehold appliance industryBoiler, container and tank construction Hydraulic and pneumatic industryElectrical industryApparatus engineeringPower generation and transmission industryPrecision engineering, mechatronics and optics

+26 moreShow less
