Vakuum-Technik Templin GmbH
Germany, 74080 Heilbronn
Overview
About Vakuum-Technik Templin GmbH
Who we are
Familienunternhemen, thereby - flexible - short distances - quickly Zertifizeirt Range of plastic thermoformed, routed. Max size 1200 x 2000 mm Thicknesses 1-14 mm all common thermoplastics
1 / 5
2 / 5
3 / 5
4 / 5
5 / 5
Heilbronn, Germany
Member since 2014
Employees10 - 20
Certificates2
Turnover1 - 5 Mil.
Year of foundation1960
Marketing documents
Competencies
Technologies
Forming (Plastics & Rubber)
| Technologies | Lotsize | Length | Width | Height | Weight | Material thickness |
|---|---|---|---|---|---|---|
Thermoforming | 1–1 M | 50–2,000 mm | 50–1,200 mm | 50–550 mm | 0–50 kg | 1.5–14 mm |
Jigmaking
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Drilling / milling jigs | 50–6,000 mm | 50–3,000 mm | 10–1,500 mm | 0–1,000 kg |
Gauges | 50–6,000 mm | 50–3,000 mm | 10–1,500 mm | 0–1,000 kg |
Clamping devices | 50–6,000 mm | 50–3,000 mm | 10–1,500 mm | 0–1,000 kg |
Joining (Plastics & Rubber)
| Technologies | Lotsize | Length | Width | Weight | Material thickness |
|---|---|---|---|---|---|
Hot plate / Heated tool welding | 1–1 M | — | — | 0–50 kg | — |
Ultrasonic welding | 1–1 M | 50–2,000 mm | 50–1,200 mm | — | 1–14 mm |
Hot gas welding | 1–10 M | — | — | 0–50 kg | — |
Cutting dies / deep drawing dies
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Deep-drawing dies | 1–2,000 mm | 100–1,200 mm | 1–600 mm | 0–100 kg |
Mould construction
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Modelmaking | 50–6,000 mm | 50–3,000 mm | 10–1,500 mm | 0–1,000 kg |
Vacuum deep-drawing moulds | 50–6,000 mm | 50–3,000 mm | 10–1,500 mm | 0–1,000 kg |
Machining (Plastics & Rubber)
| Technologies | Lotsize | Length | Width | Height |
|---|---|---|---|---|
Milling | 1–10 M | 50–2,000 mm | 50–1,200 mm | 50–550 mm |
Milling
| Technologies | Lotsize | Length | Width | Height |
|---|---|---|---|---|
5-axis milling machines | 1–10,000 | 1–2,000 mm | 1–1,400 mm | 1–600 mm |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Sawing | 1–10 M | 50–2,000 mm | 50–1,200 mm | 50–550 mm | 1–2 mm | — |
Drilling / threading / tapping | 1–10 M | 50–2,000 mm | 50–1,200 mm | 50–550 mm | — | 0–50 kg |
Materials
Light metals
Aluminium and aluminium alloys
Plastics/synthetic materials
ThermoplasticsAcrylic (PMMA)Glass fibre-reinforced plasticCarbon fibre-reinforced plastic
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steel
Cast metals
Cast iron
Industries
Precision engineering, mechatronics and opticsFurniture industryMedical technologySpecial purpose machinery manufacturingMechanical engineeringPaper and printing machinery industryConstruction and architectural suppliesAutomation and control engineeringHydraulic and pneumatic industryAerospace and aviation industryApparatus engineeringMachine tool manufacturingAutomotive and vehicle constructionRailway and rail vehicles industryElectrical industryPackaging industryBuilding, agricultural and forestry machinery manufacturing
Certificates
ISO 9001:2015
ISO 9001:2008
Parts & Machines
Parts (3)
1 / 3

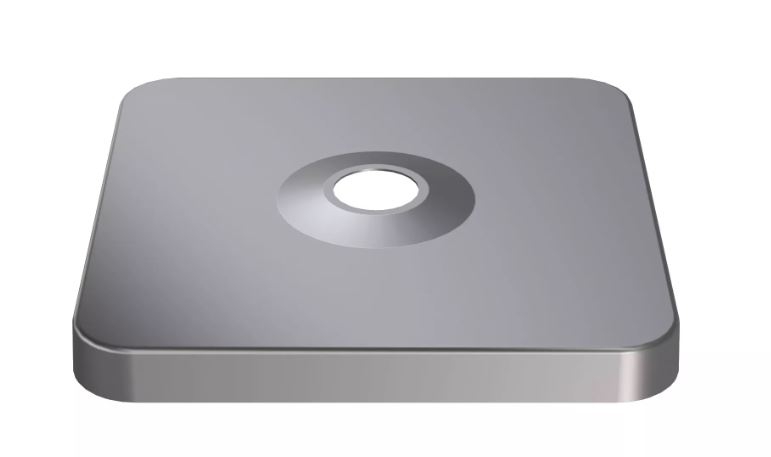

Sockelverkleidung
TechnologyDeep-drawing
MaterialThermoplastics
Dimensions
Material thickness3 mm
Width1000 mm
Height145 mm
Length1000 mm
Lotsize2000
ComplexityLow
2 / 3

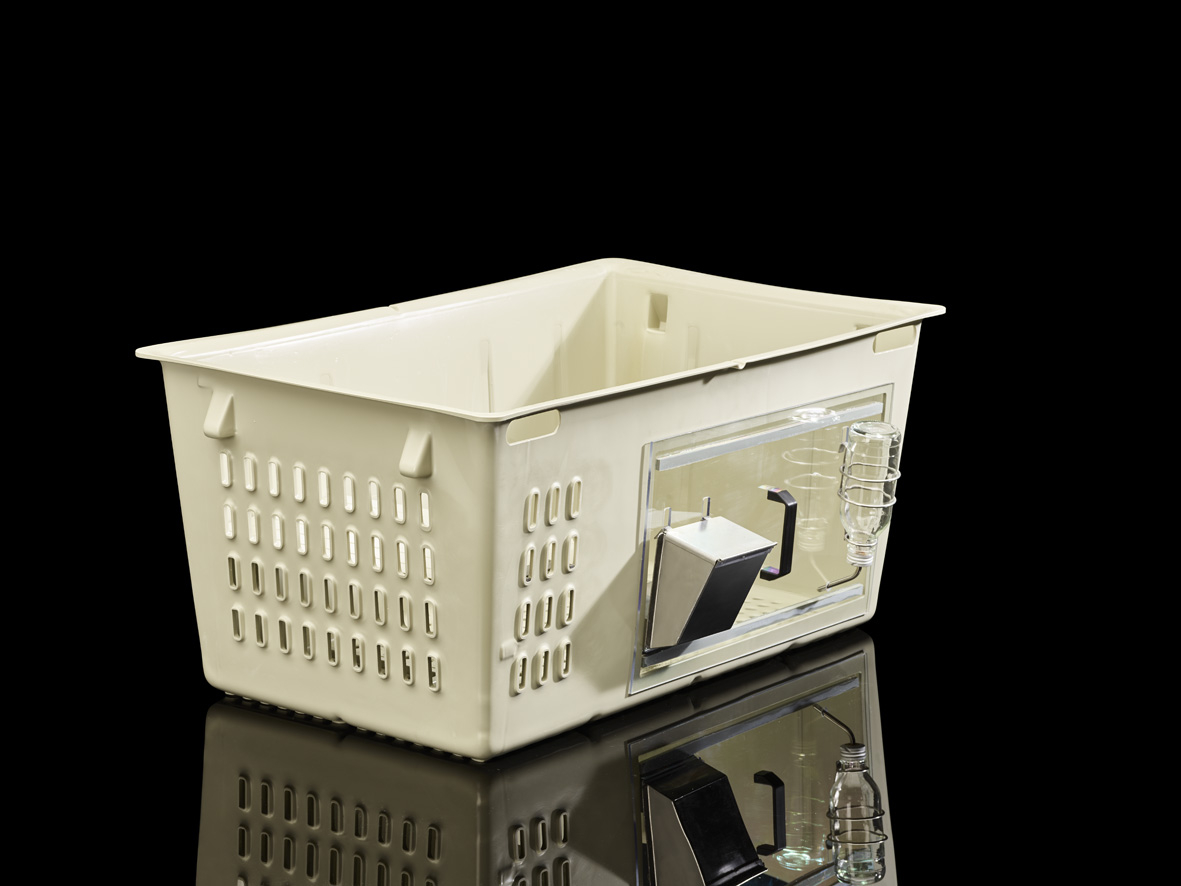

Hasenkäfig
TechnologyDeep-drawing
MaterialThermoplastics
Dimensions
Length1500 mm
Height400 mm
Material thickness12 mm
Width1000 mm
Lotsize700
ComplexityMedium
3 / 3
Maschineneverkleidung
TechnologyDeep-drawing
MaterialThermoplastics
Dimensions
Height200 mm
Width600 mm
Length1000 mm
Material thickness9 mm
Lotsize500
ComplexityLow
Machinery (3)
1 / 3
Geiss T10
ManufacturerGeiss
Year of Construction2020
2 / 3
Geiss T10
ManufacturerGeiss
3 / 3
Geiss CNC 10
ManufacturerGeiss
Year of Construction2022
3 Parts
Deep-drawing3
3 Machinery
Contact
Location
Main locationHünderstraße 5, 74080 Heilbronn, Germany
Company contact
Contact persons
ST
Sascha Templin
