Voigt Systemtechnik GmbH
Germany, 98701 Großbreitenbach
Overview
About Voigt Systemtechnik GmbH
Who we are
As a system supplier, we offer pre-finished from individual parts to complete assembly, everything from a single source - for seamless integration into your production and logistics. CNC machining: According to the specific requirements of our customers, we chipping annually 650 tons of aluminum, 35 tons of stainless steel, and titanium, copper, brass, zinc, magnesium and Plastic. We manufacture semi-finished and block blanks, edit, extrusions and castings on modern milling and turning centers. Components and assemblies: As a strategic partner, we take you next to the pure cutting performance, a variety of secondary processes from. Our services include: Parts manufacturing, assembly including material procurement and sub-contracting of external services Assembly production with internal and external parts, including purchasing, scheduling and logistics Engineering: Our Embedded R & D domain enables us, along with your developers to work on solutions together and work together to find cost-effective solutions. From our specific know-how mix of CAD, CAD / CAM, private device and special machine, the ideas and development expertise that we provide to you arise.
1 / 6
2 / 6
3 / 6
4 / 6
5 / 6
6 / 6

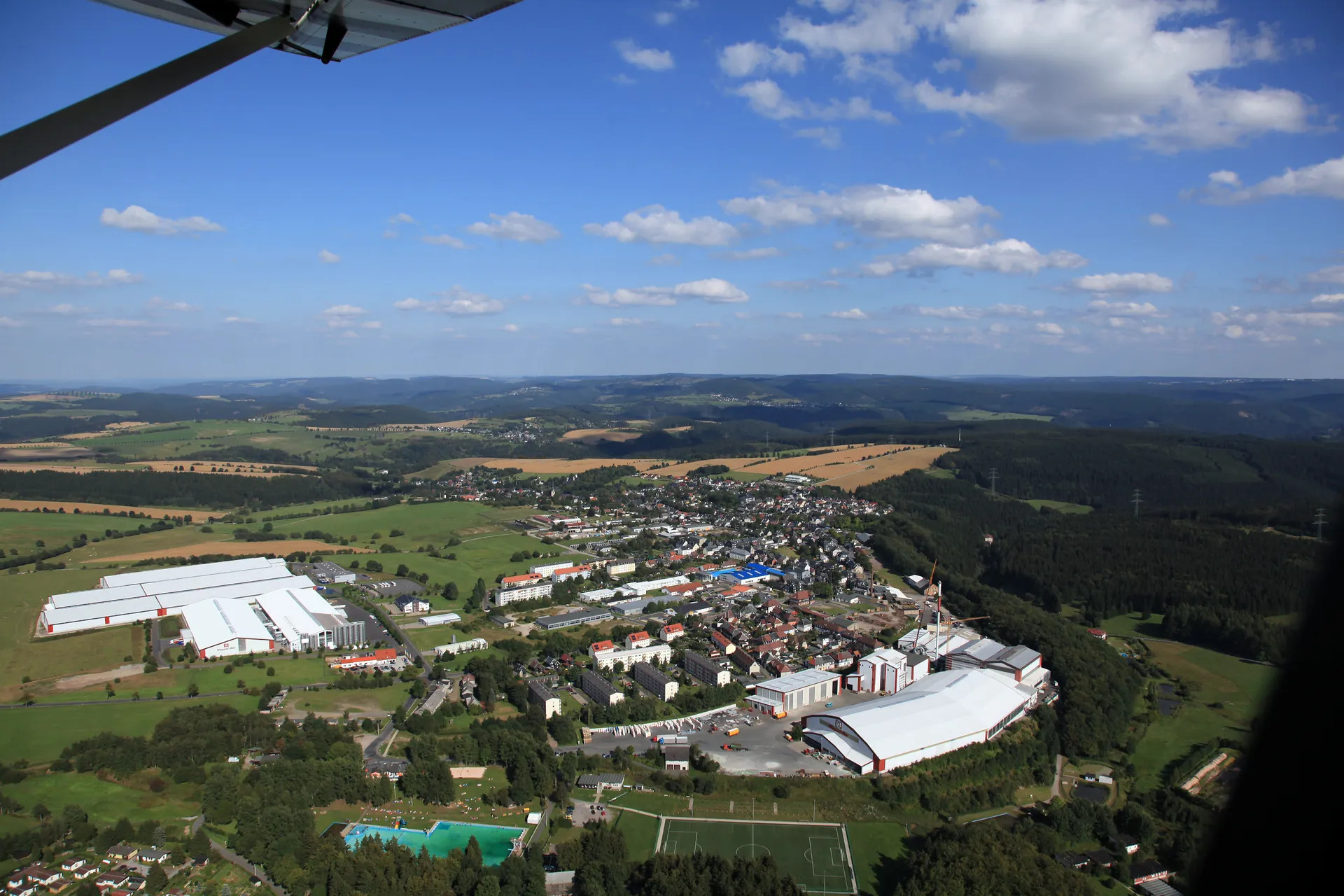

Großbreitenbach, Germany
Member since 2012
Employees100 - 200
Certificates2
Turnover5 - 10 Mil.
Year of foundation1990
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 5–1,000 | 5–500 mm | 10–400 mm |
Full-range turning (including milling) | 10–2,000 | 10–1,000 mm | 10–400 mm |
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 5–200 | 10–1,000 mm | 10–1,000 mm | 10–1,000 mm | 5–200 mm | 0–400 kg | 0.5–4 mm |
Inert gas shielded arc welding (TIG) | 5–200 | 10–1,000 mm | 10–1,000 mm | 10–1,000 mm | 5–200 mm | 0–400 kg | 0.5–4 mm |
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Welded constructions (weldments) | 50–2,000 mm | 50–2,000 mm | 50–2,000 mm | 0–1,000 kg |
Machine frames / bases / racks | 100–2,000 mm | 100–2,000 mm | 100–2,000 mm | 0–1,000 kg |
Finishing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
External cylindrical grinding | 5–200 | 10–600 mm | — | — | 10–200 mm | 0–20 kg | — |
Internal cylindrical grinding | — | — | — | — | — | — | — |
Belt grinding | 5–100 | — | 5–300 mm | — | — | — | 1–5 mm |
Surface grinding machine | 5–50 | 20–200 mm | 20–100 mm | 20–80 mm | — | 0–5 kg | — |
Rotofinishing, barrel finishing | 10–3,000 | 20–100 mm | 20–100 mm | 20–100 mm | — | — | — |
Machining (Extruded Profiles)
| Technologies | Width | Height | Weight |
|---|---|---|---|
Machining of extruded sections | 30–600 mm | 15–100 mm | 0–100 kg |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–20 kg |
Electromechanical assembly | 0–20 kg |
Industrial / On-site-assembly | 0–20 kg |
Measuring & Testing
| Technologies | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|
Measuring / testing | 5–1,800 mm | 5–1,200 mm | 5–800 mm | 5–300 mm | 0–100 kg |
Assembly Group Manufacturing
| Technologies | Lotsize | Length | Width | Height |
|---|---|---|---|---|
Adhesive bonding | — | — | — | — |
Potting of components | 5–200 | 50–500 mm | 50–500 mm | 50–500 mm |
Milling
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Milling | 5–2,000 | 5–3,000 mm | 5–1,000 mm | 5–1,000 mm | 0–500 kg |
Form milling (3 D) | 10–3,000 | 10–3,000 mm | 10–1,000 mm | 10–800 mm | 0–400 kg |
HSC milling | 10–3,000 | 10–3,000 mm | 10–1,000 mm | 10–800 mm | 0–400 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Sawing | 5–1,000 | 5–5,000 mm | 5–800 mm | 5–220 mm | 5–360 mm |
Surface Treatment
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Powder coating | 20–500 | 20–600 mm | 20–300 mm | 20–300 mm | 0–10 kg |
Parts cleaning/degreasing | — | 10–1,000 mm | 10–500 mm | 10–500 mm | 0–100 kg |
Sand blasting | 5–200 | — | — | — | — |
Labelling / marking
| Technologies | Lotsize | Length | Width |
|---|---|---|---|
Pad printing | 50–1,000 | 5–100 mm | 5–100 mm |
Materials
Plastics/synthetic materials
ThermoplasticsAcrylic (PMMA)High performance plasticThermosets
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steel
Certificates
ISO 9001:2008
EN 9100
Parts & Machines
Parts (16)
1 / 16

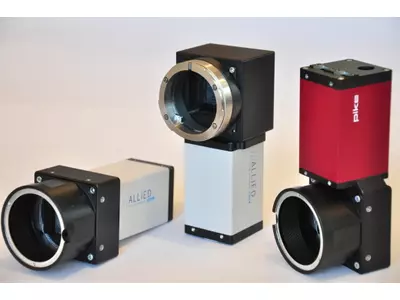

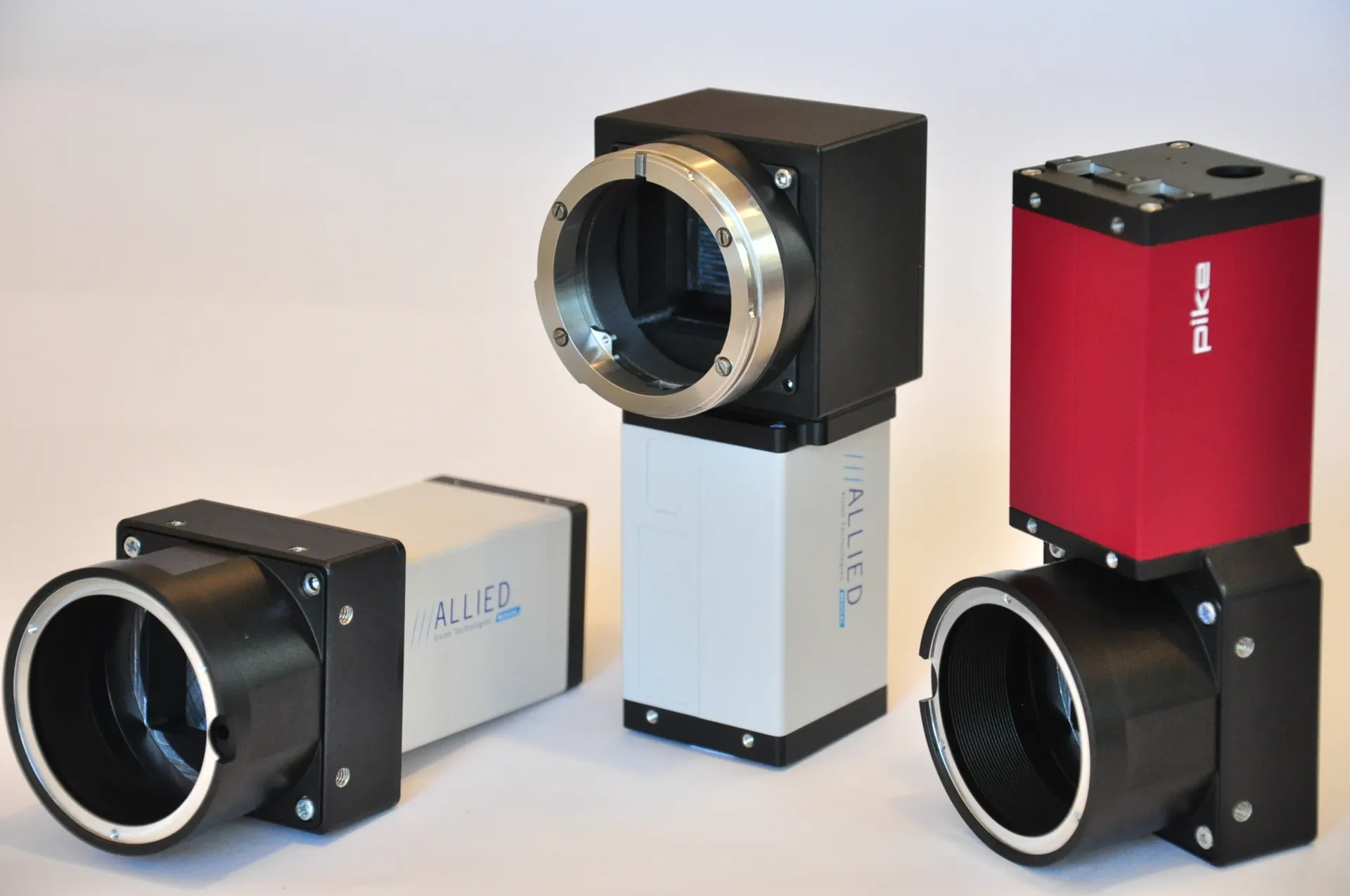

Gehäuse
Descriptionaus dem Vollen gefräst, gedreht, pulverbeschichtet, eloxiert, bedruckt
Losgrößen 50-300
2 / 16

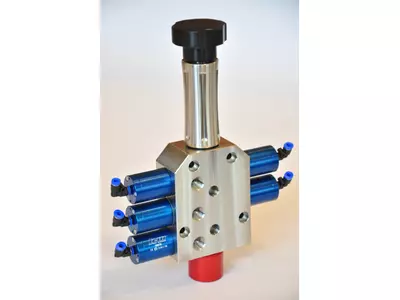

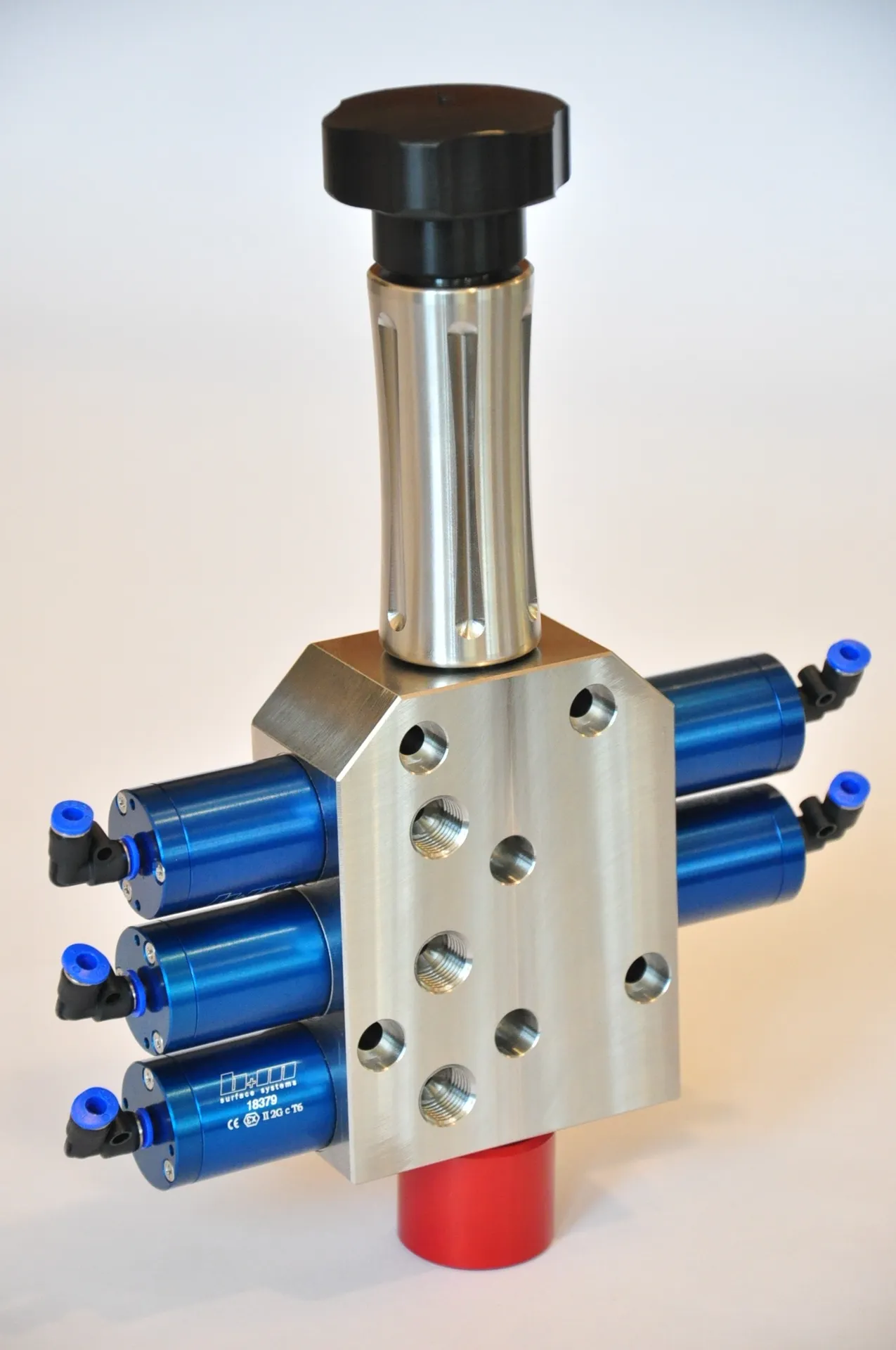

Edelstahlbaugruppe
Descriptiongefräst, gedreht, eloxiert, montiert, auf Funktion getestet
Losgrößen 10-30
3 / 16

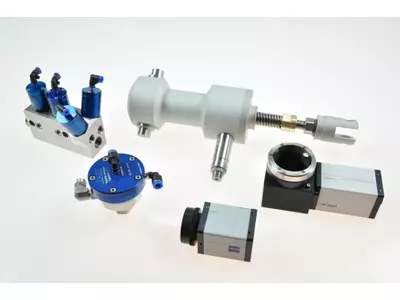

versch. Baugruppen
Descriptionaus dem Vollen gefräst, gedreht, Oberflächenverdelt, montiert
Losgrößen 20-200
4 / 16

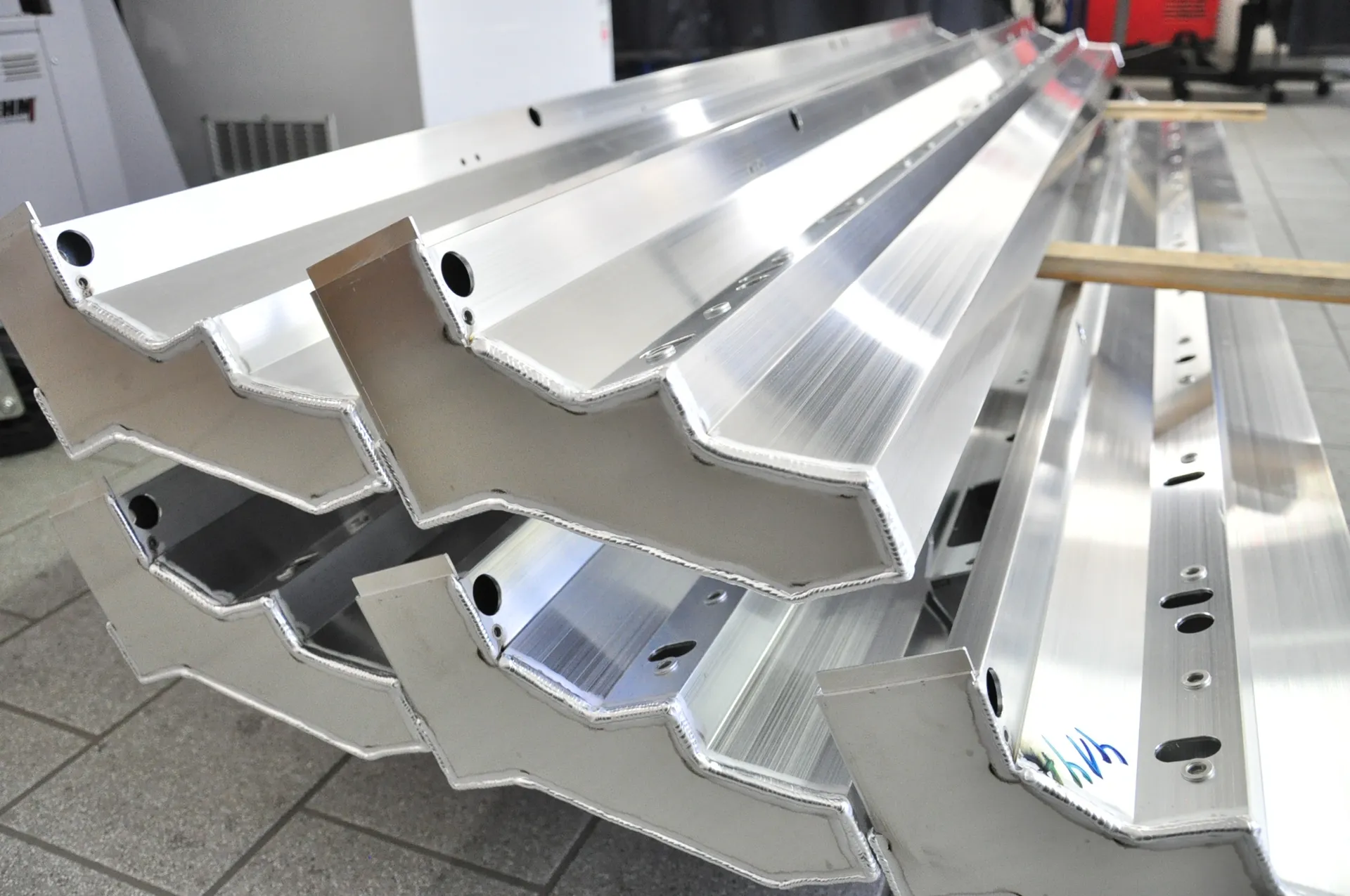

Profilbearbeitung
DescriptionWIG geschweißt vor dem Finish
Losgrößen 20-80 Satz
5 / 16

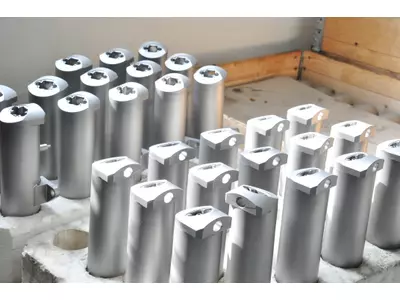

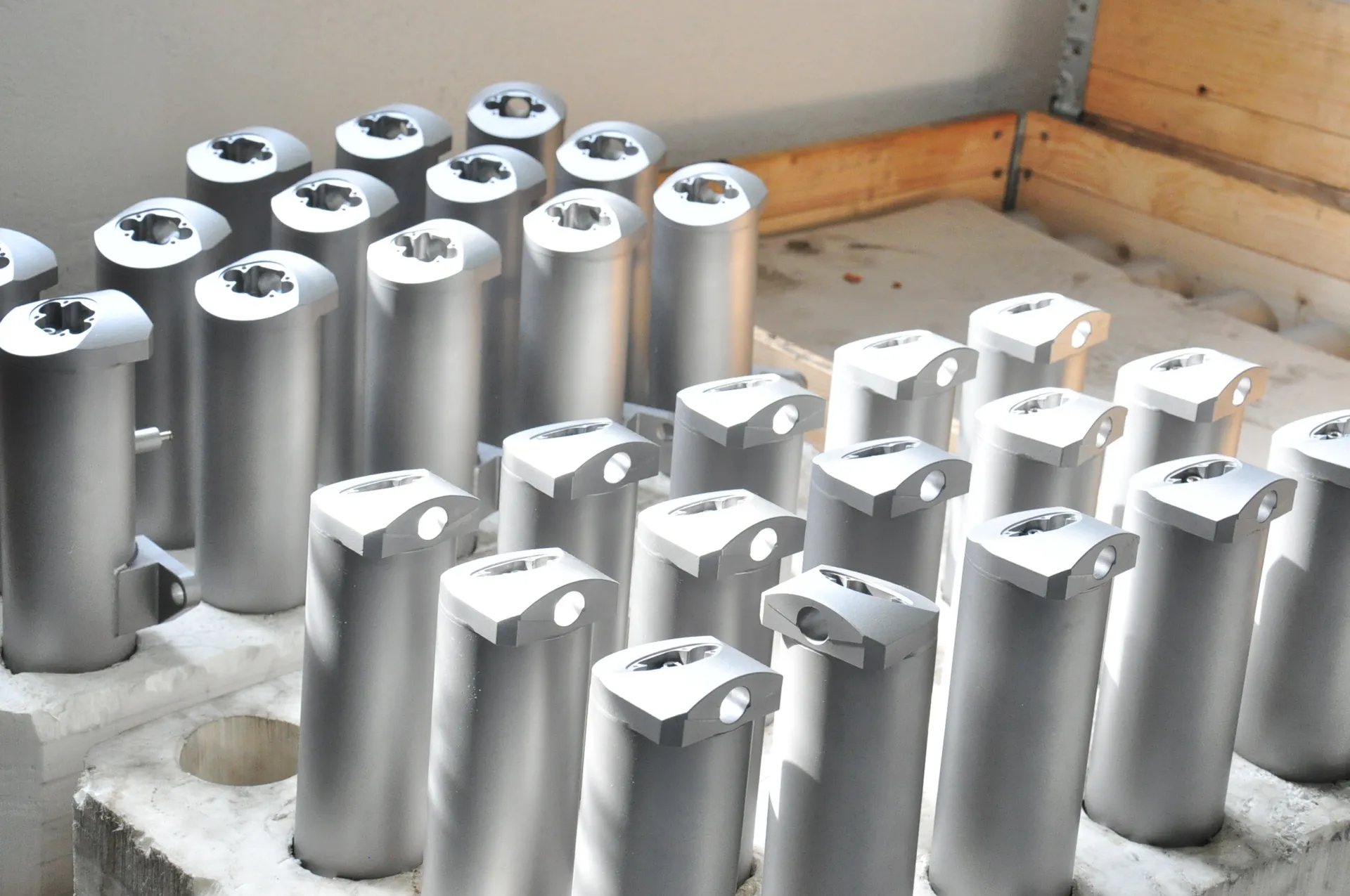

Edelstahlbaugruppen
Descriptiongedreht, gefräst, geschweißt, gestrahlt
Losgrößen 80-120
6 / 16

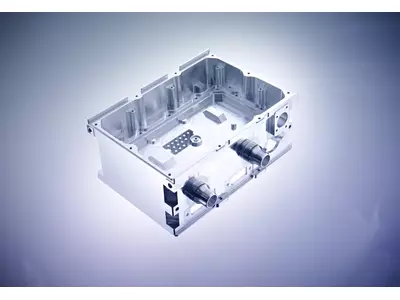

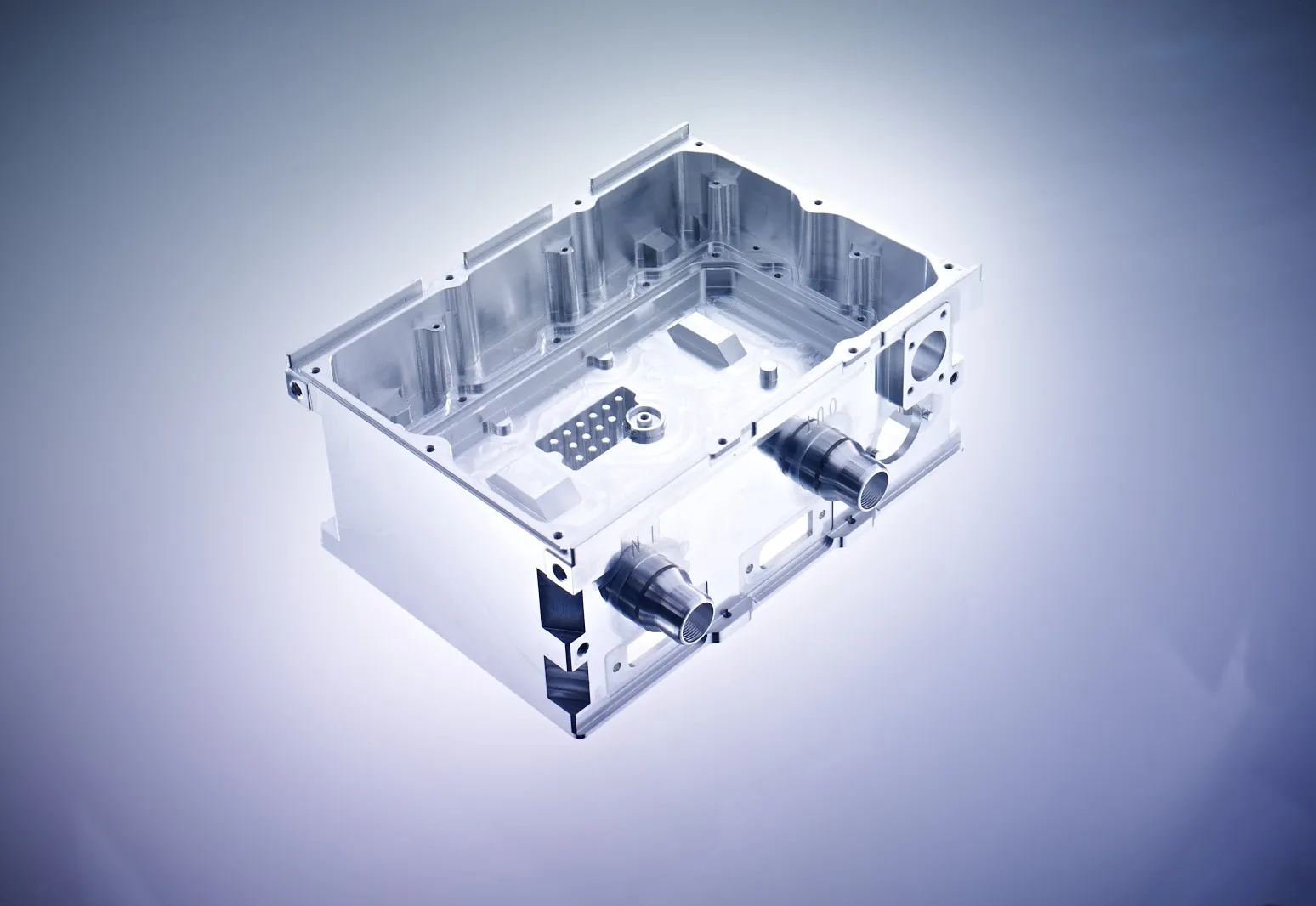

A Frästeil
DescriptionGehäuse, aus dem Vollen gefertigtLosgrößen 5-30
7 / 16

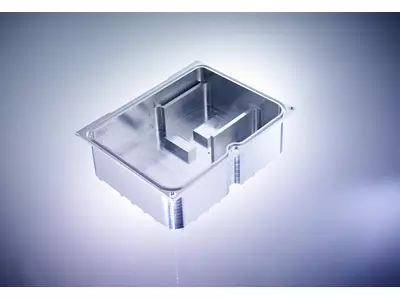

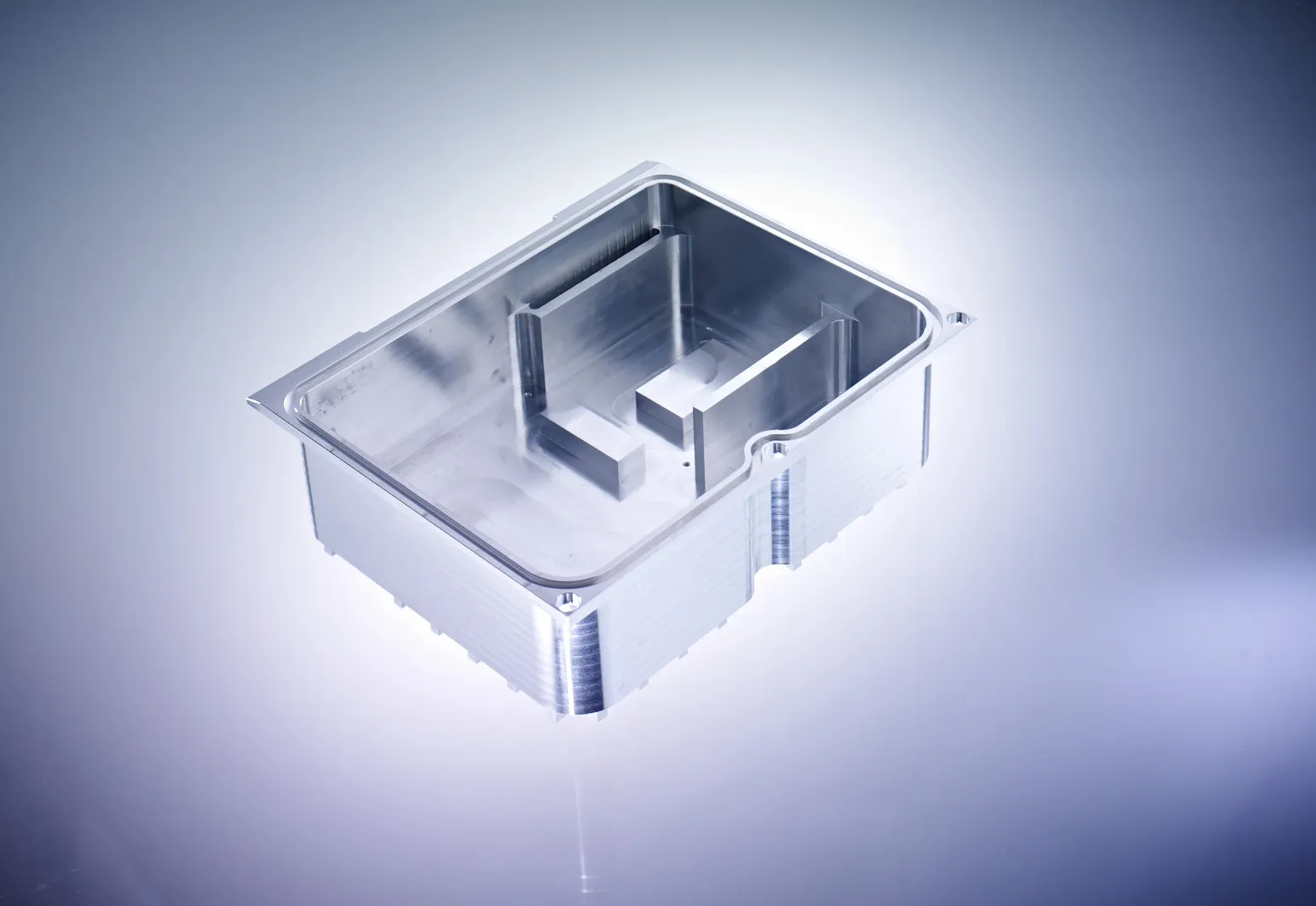

B Frästeil
DescriptionGehäusekasten
Losgrößen 30-80
8 / 16

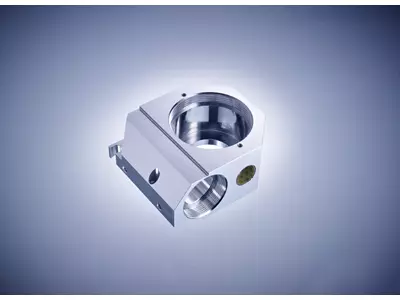

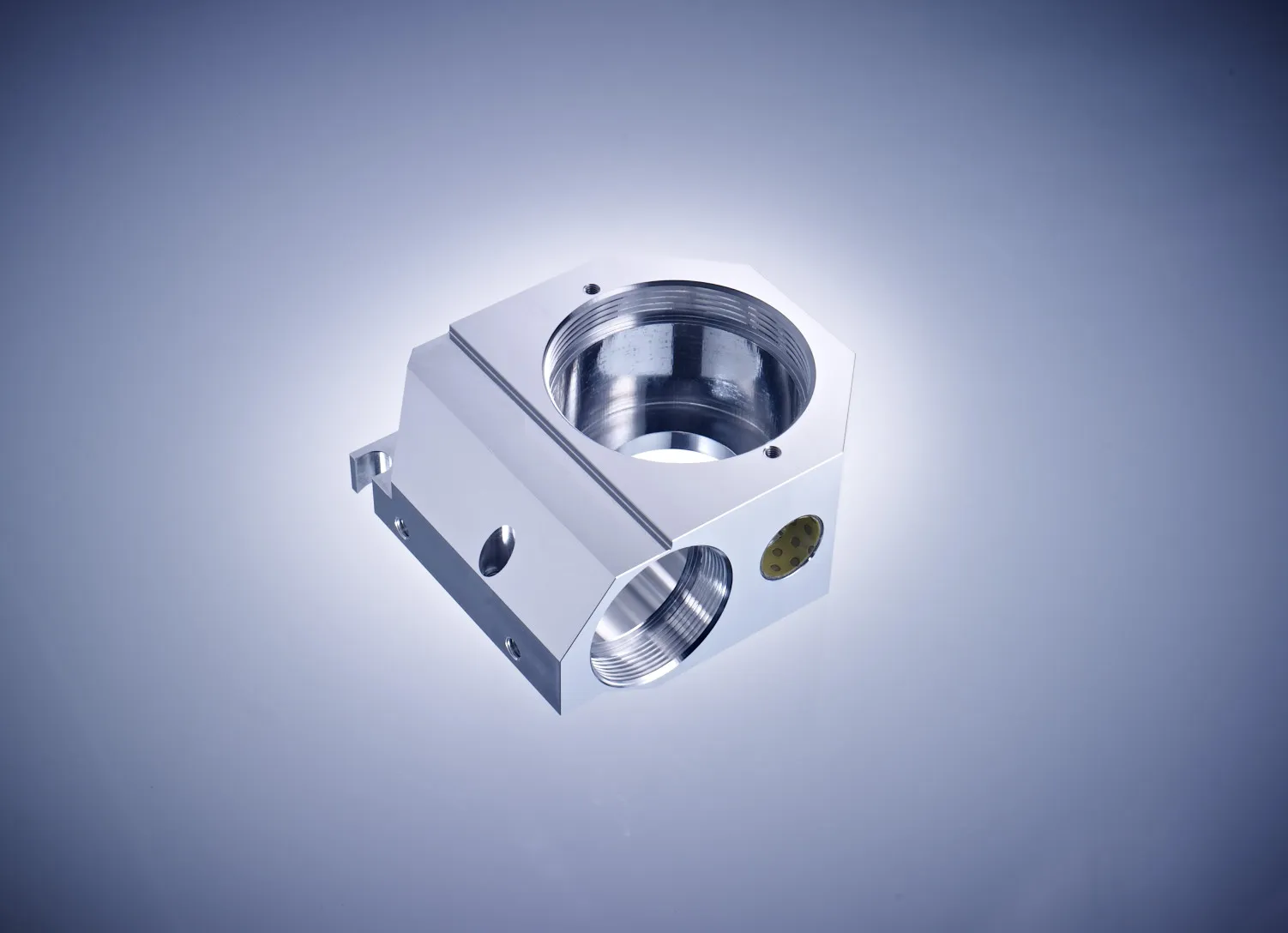

C Frästeil
DescriptionLagergehäuse aus dem Vollen gefräst und montiert
Losgrößen bis 200
9 / 16
D Frästeil
Descriptionaus dem Vollen gefräst, Losgrößen 10-40
10 / 16

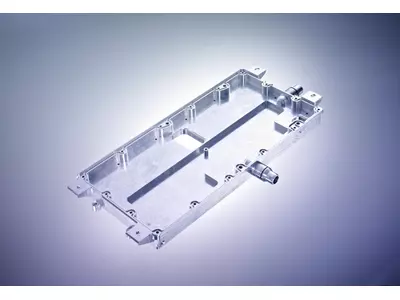

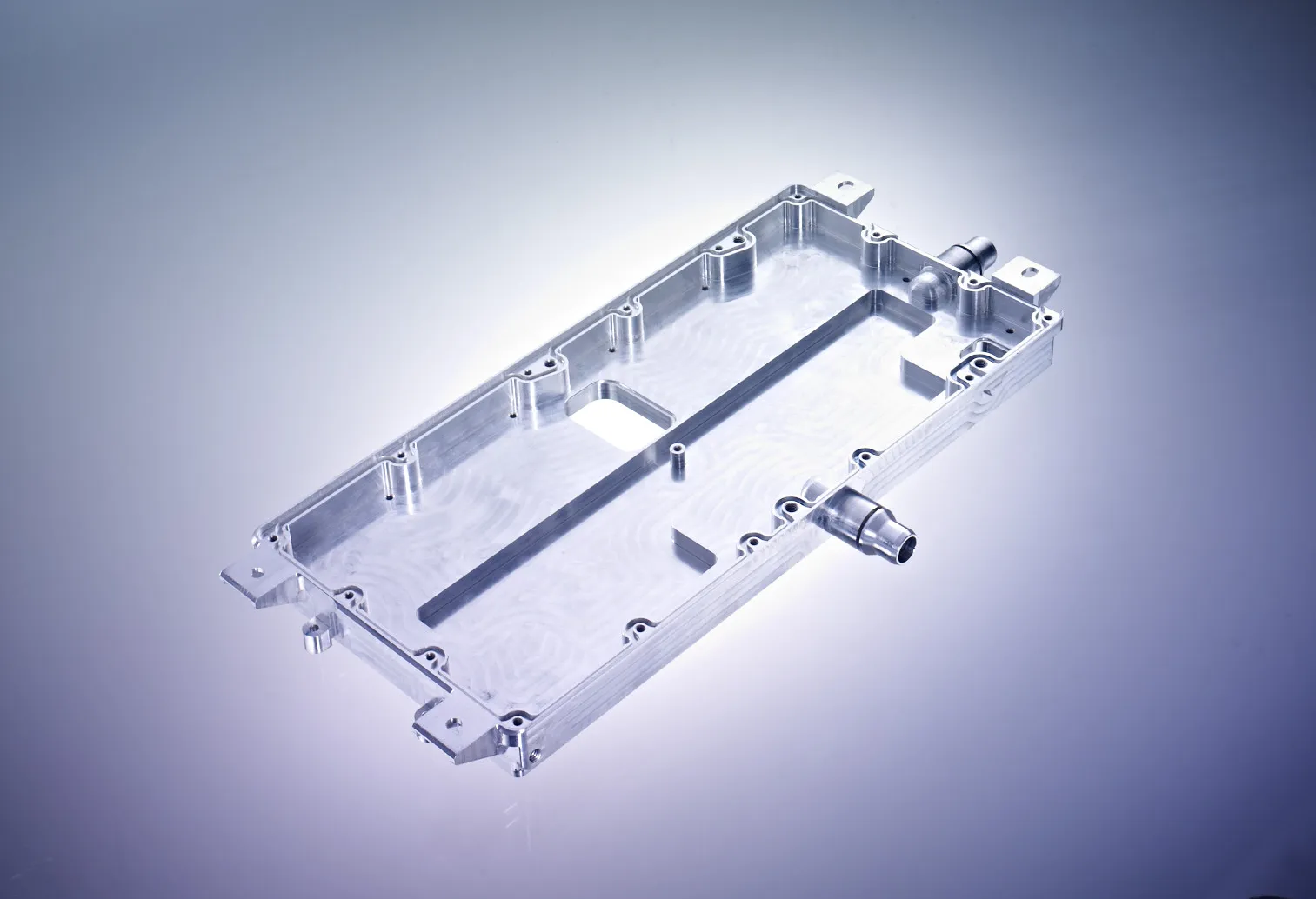

E Frästeil
Descriptionaus dem Vollen gefertigt
Losgrößen 30-60
11 / 16

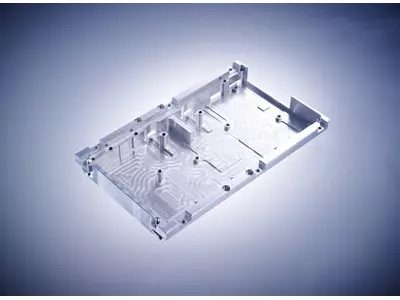

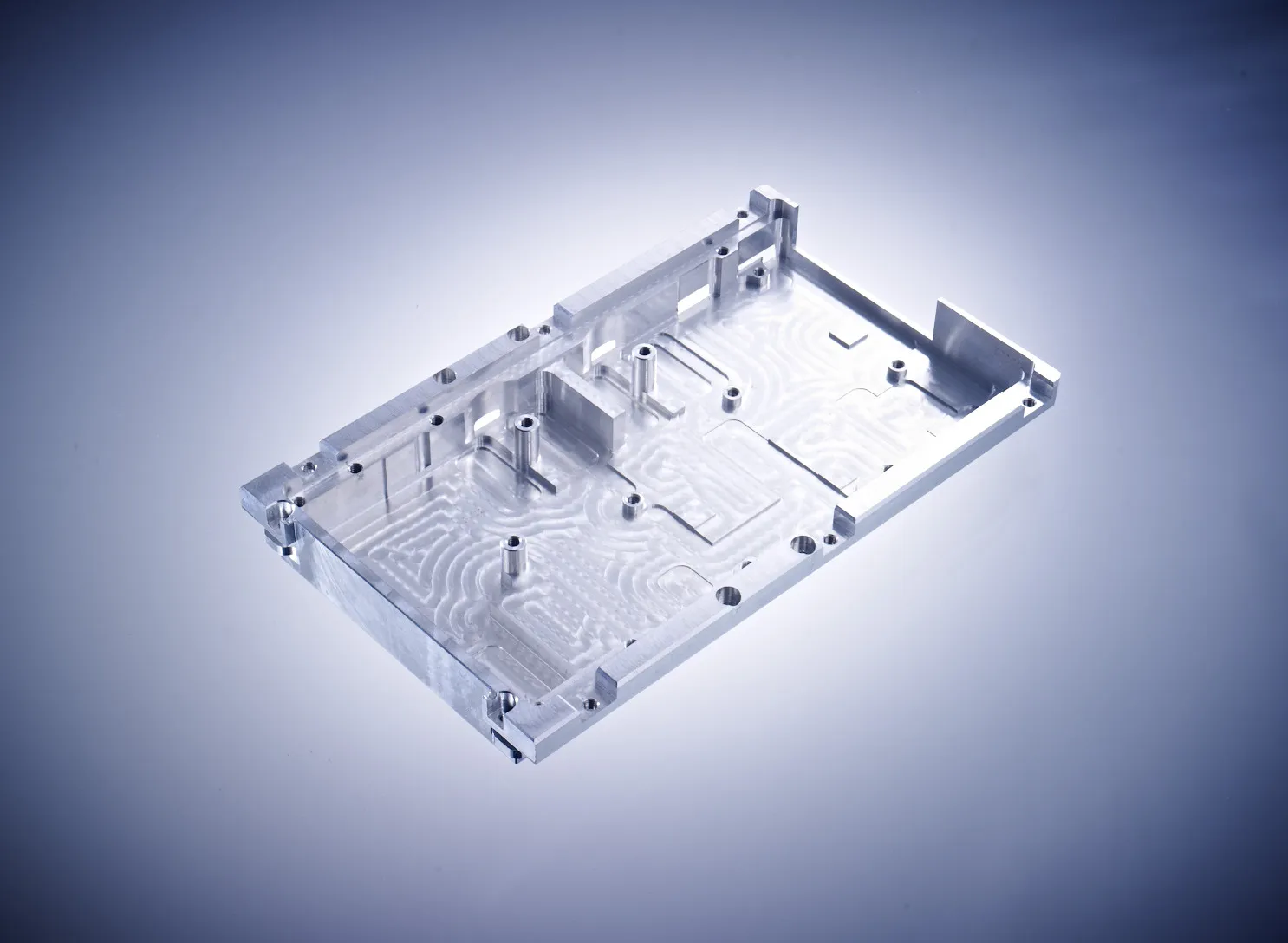

F FRästeil
DescriptionMontage- Kühlplatte
Losgrößen 120-300
12 / 16

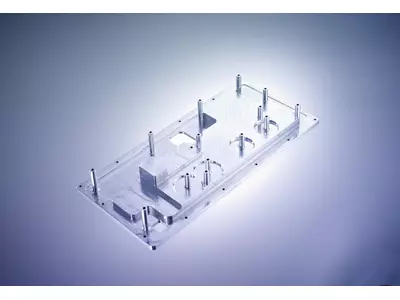

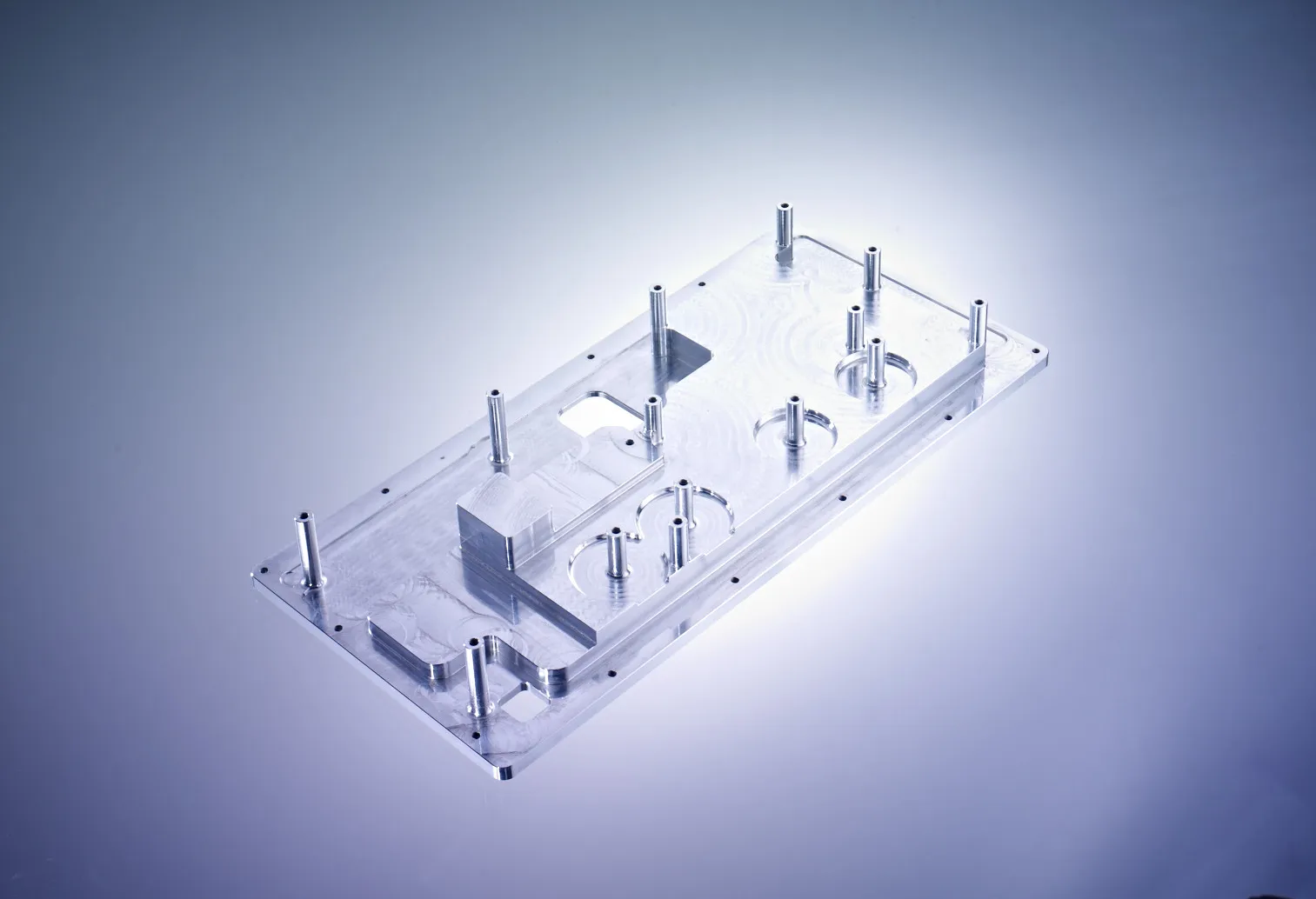

G Frästeil
DescriptionMontageplatte aus dem Vollen gefräst
Losgrößen 10-20
13 / 16

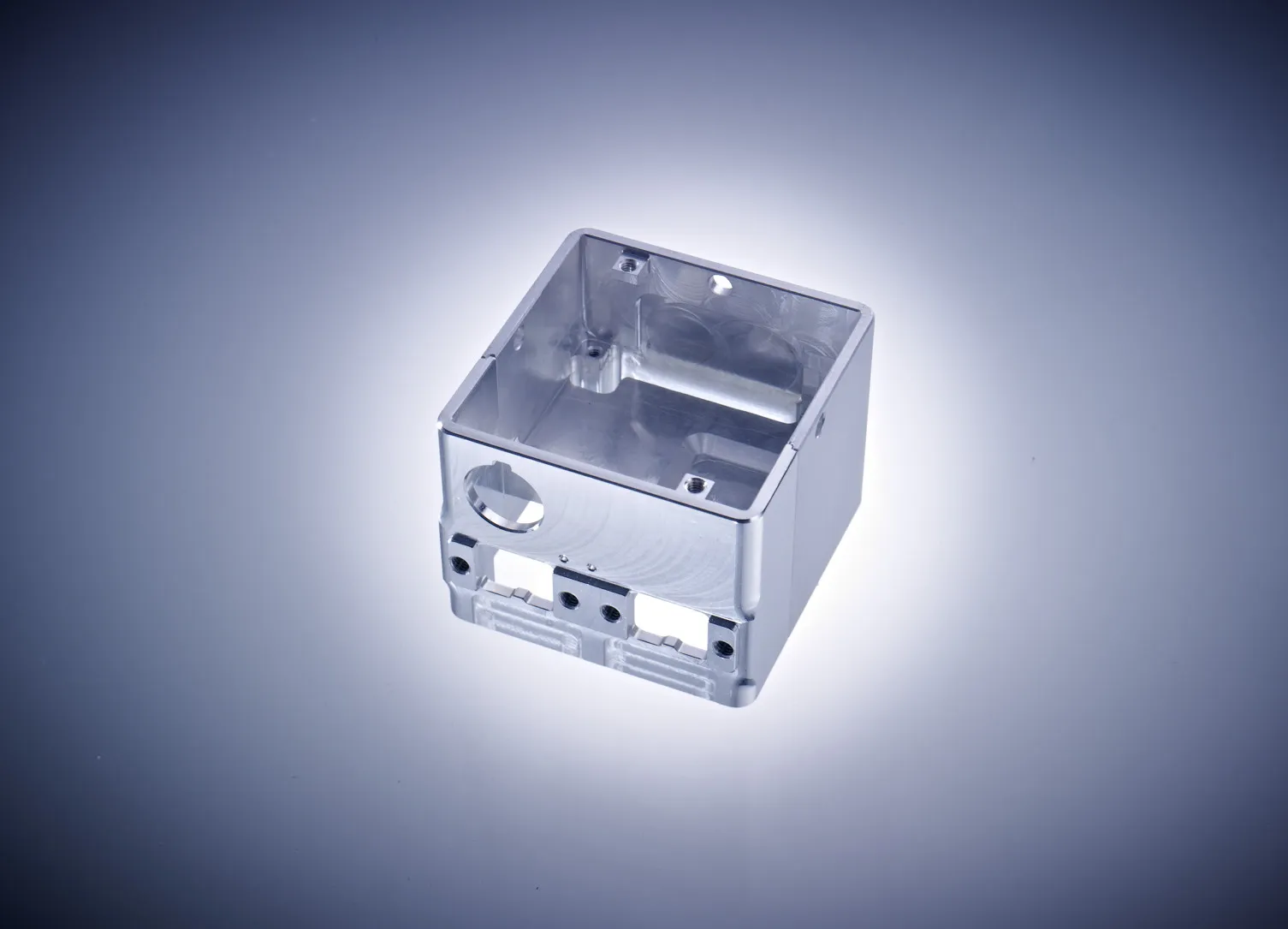

H Frästeile
DescriptionGehäusesatz, gefräst vor dem Pulvern und Drucken
Losgrößen 250-800
14 / 16

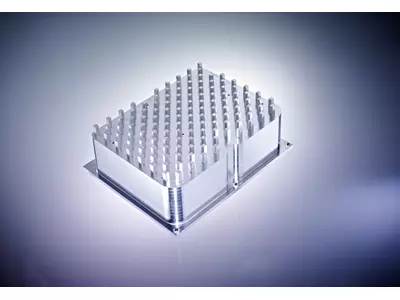

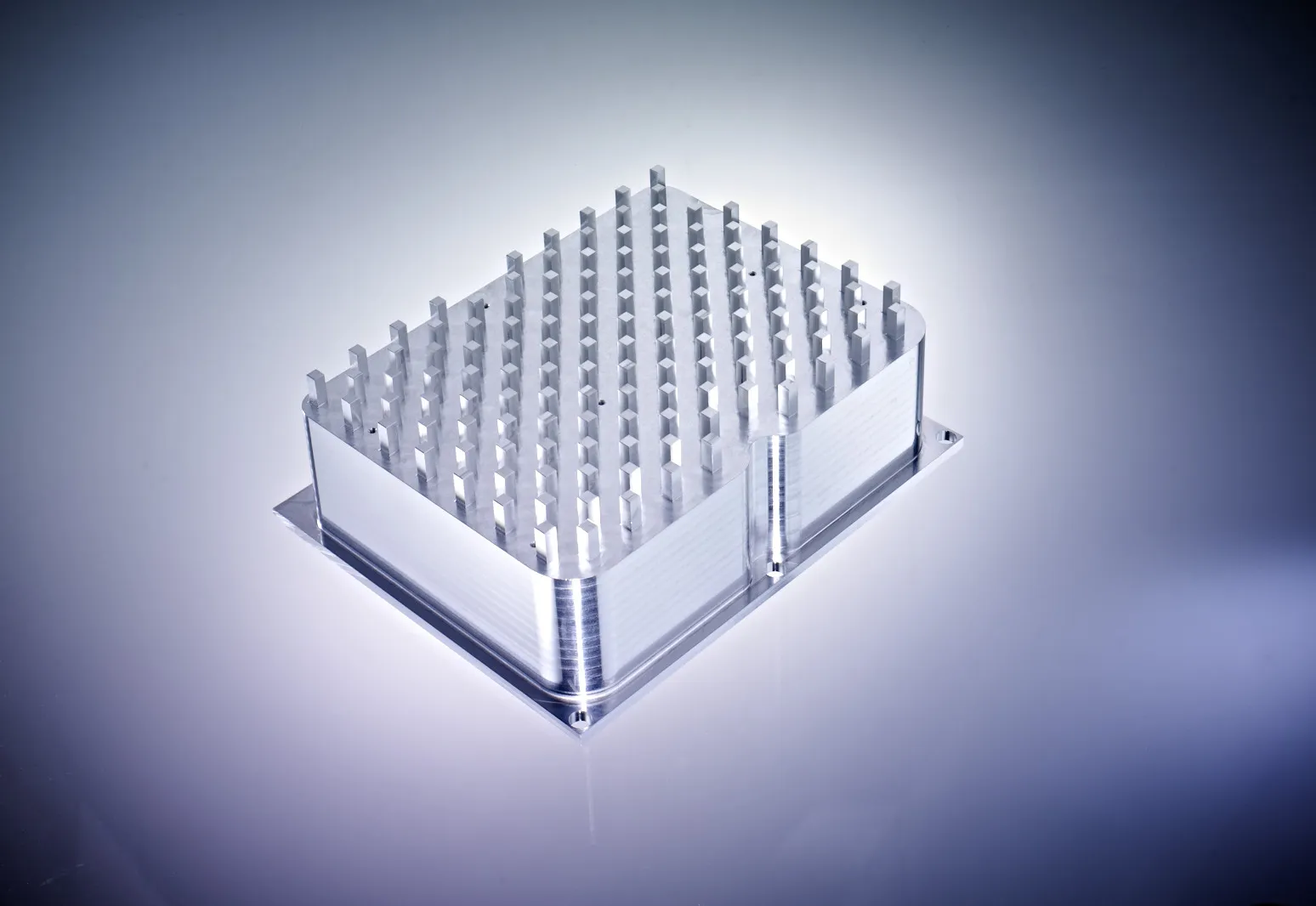

I Frästeil
DescriptionKühlgehäuse aus dem Vollen gefräst
Losgrößen 40-100
15 / 16

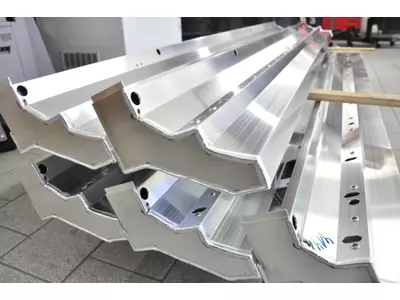

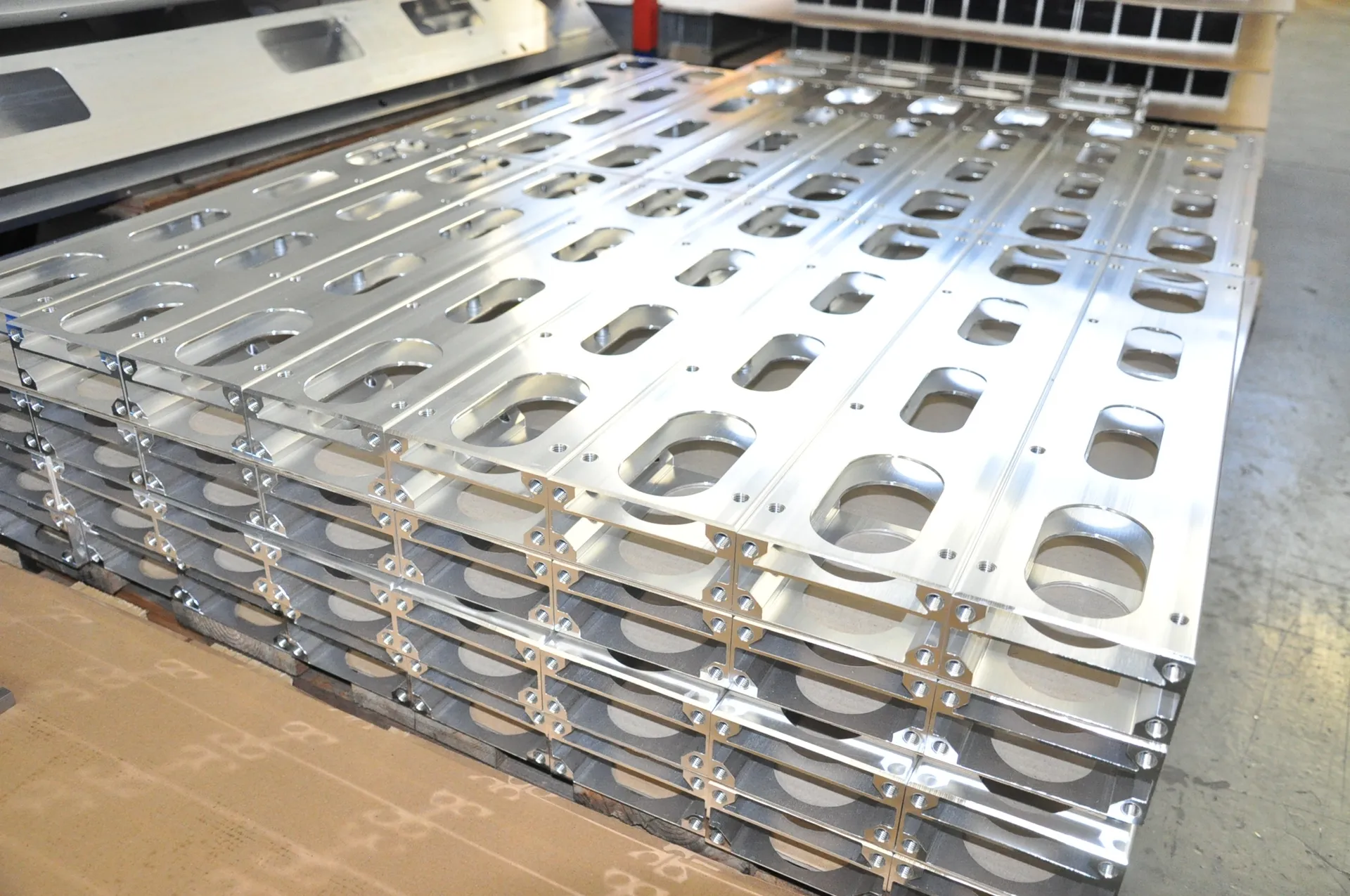

Profilbearbeitung
Descriptionaus 6m Profilstangen, gesägt, bearbeitet, entfettet und montiert, Losgrößen 80-250
16 / 16

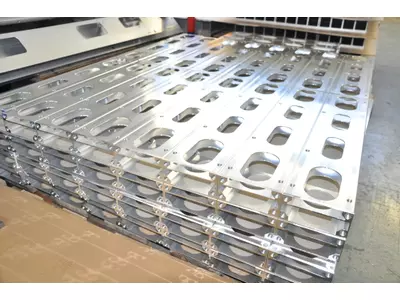

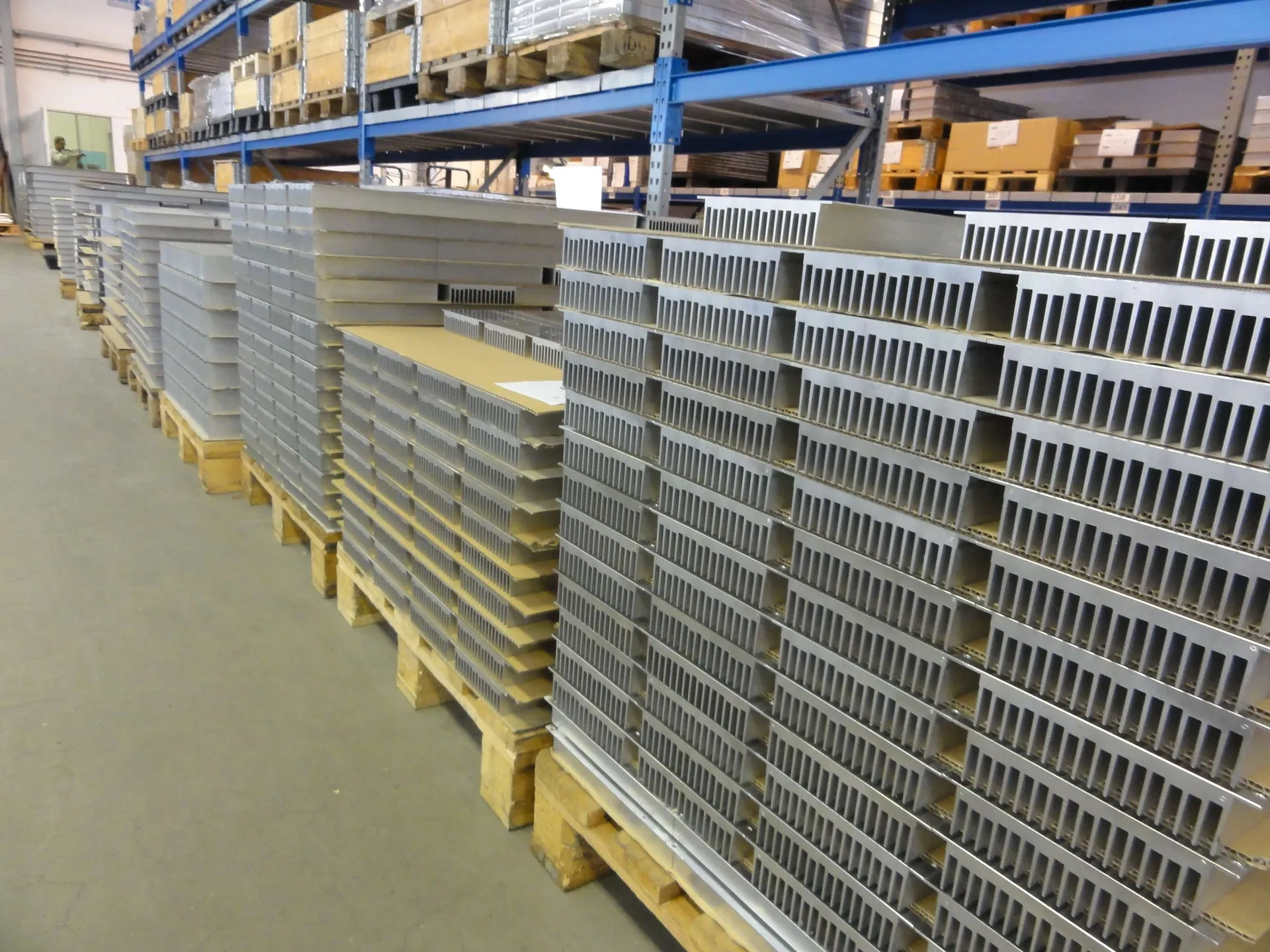

Profilbearbeitung
Descriptionverschiedenste Kühlprofile, Losgrößen 50-1000
Machinery (18)
1 / 18
brother TC 31-A
ManufacturerBROTHER
ControlFanuc
Year of Construction2007
Technology
Milling
2 / 18
brother TC 32B
ManufacturerBrother
ControlFanuc
Year of Construction2008
Technology
Milling
3 / 18
DMU 50 evlotion
ManufacturerDMG
ControlHeidehhain TI 530
Year of Construction2008
Technology
Milling
4 / 18
DMU 70
ManufacturerDMG
ControlHEIDENHAIN
Year of Construction2008
Technology
Milling
5 / 18
DMU 100
ManufacturerDMG
ControlHeidenhain iTNC 530
Year of Construction2012
Technology
Milling
6 / 18
Zeiss Accura
ManufacturerZeiss
Control-
Year of Construction2012
7 / 18
Brother TC 31 A
ManufacturerBrother
ControlFanuc
Year of Construction2003
Technology
Milling
8 / 18
DMC 144
ManufacturerDMG
ControlHeidenhain iTNC 530
Year of Construction2006
Technology
Milling
9 / 18
DMC 104
ManufacturerDMG
ControlHeidenhain iTNC 530
Year of Construction2007
Technology
Milling
10 / 18
DMC 64 linear
ManufacturerDMG
ControlHeidenhain iTNC 530
Year of Construction2008
Technology
Milling
11 / 18
CTX 420 linear
ManufacturerGIldemeister
ControlHEIDENAIN
Year of Construction2008
Technology
Turning
12 / 18
Haas VF10
ManufacturerHAAS
ControlHAAS CNC control system
Year of Construction2010
Technology
Milling
13 / 18
Hermle U630 T
ManufacturerHermle
ControlHeidenhain TNC 426
Year of Construction1997
Technology
Milling
14 / 18
Chiron FZ18W
ManufacturerChiron
ControlSinumerik
Year of Construction2000
Technology
Milling
15 / 18
Chiron FZ 12W
ManufacturerChiron
ControlSinumerik
Year of Construction1998
Technology
Milling
16 / 18
Chiron FZ 18L
ManufacturerChiron
ControlSinumerik
Year of Construction1996
Technology
Milling
17 / 18
Haas VF3
ManufacturerHaas
ControlHaas
Year of Construction2010
Technology
Milling
18 / 18
Haas VF-3SS
ManufacturerHaas
ControlHaas
Year of Construction2009
Technology
Milling
16 Parts
18 Machinery
Milling16
Turning1
Contact
Location
Main locationIlmenauer Str. 4, 98701 Großbreitenbach, Germany
Further locations98701 Großbreitenbach
Company contact
Contact persons
EF
Ernst Femböck
JV
Jens Voigt
