Vorrichtungsbau Giggel GmbH

Germany, 39359 Bösdorf (Oebisfelde-Weferlingen)

Competencies

Technologies

Pipe & Tube Manufacturing

Technologies	Lotsize	Length	Diameter
Pipe bending	1–10,000	30–3,000 mm	3–90 mm
Pipe forming	1–10,000	30–3,000 mm	3–90 mm

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness

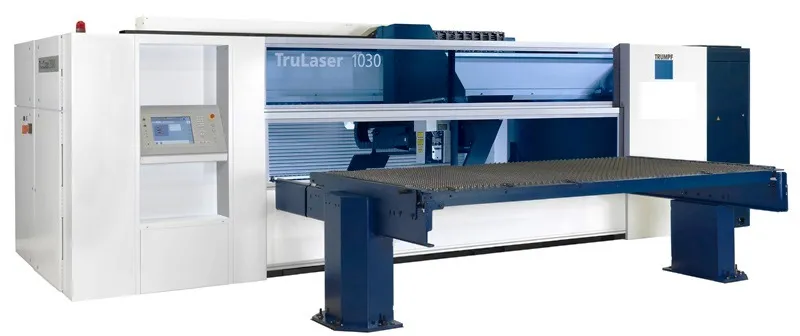

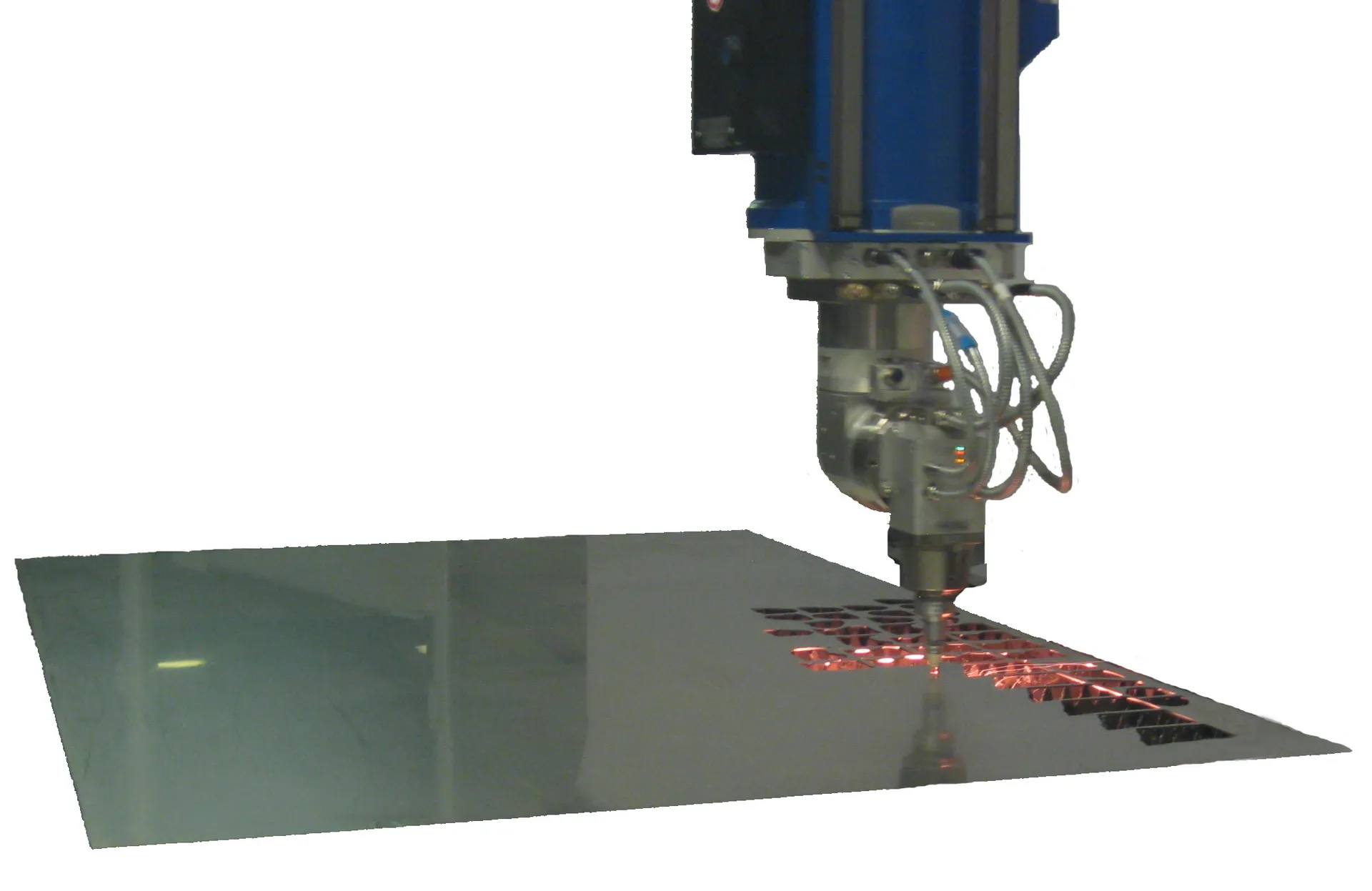

Laser cutting 2D	1–10,000	1–3,750 mm	1–1,250 mm	from 0 mm	from 0 mm	0–2,000 kg	0.1–8 mm

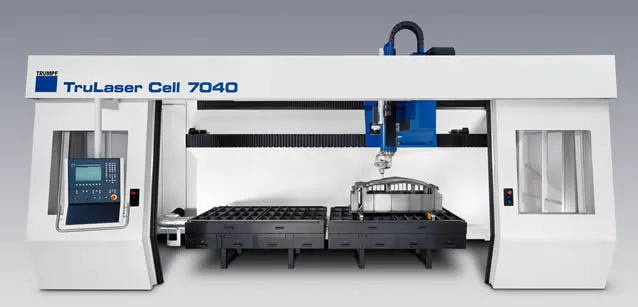

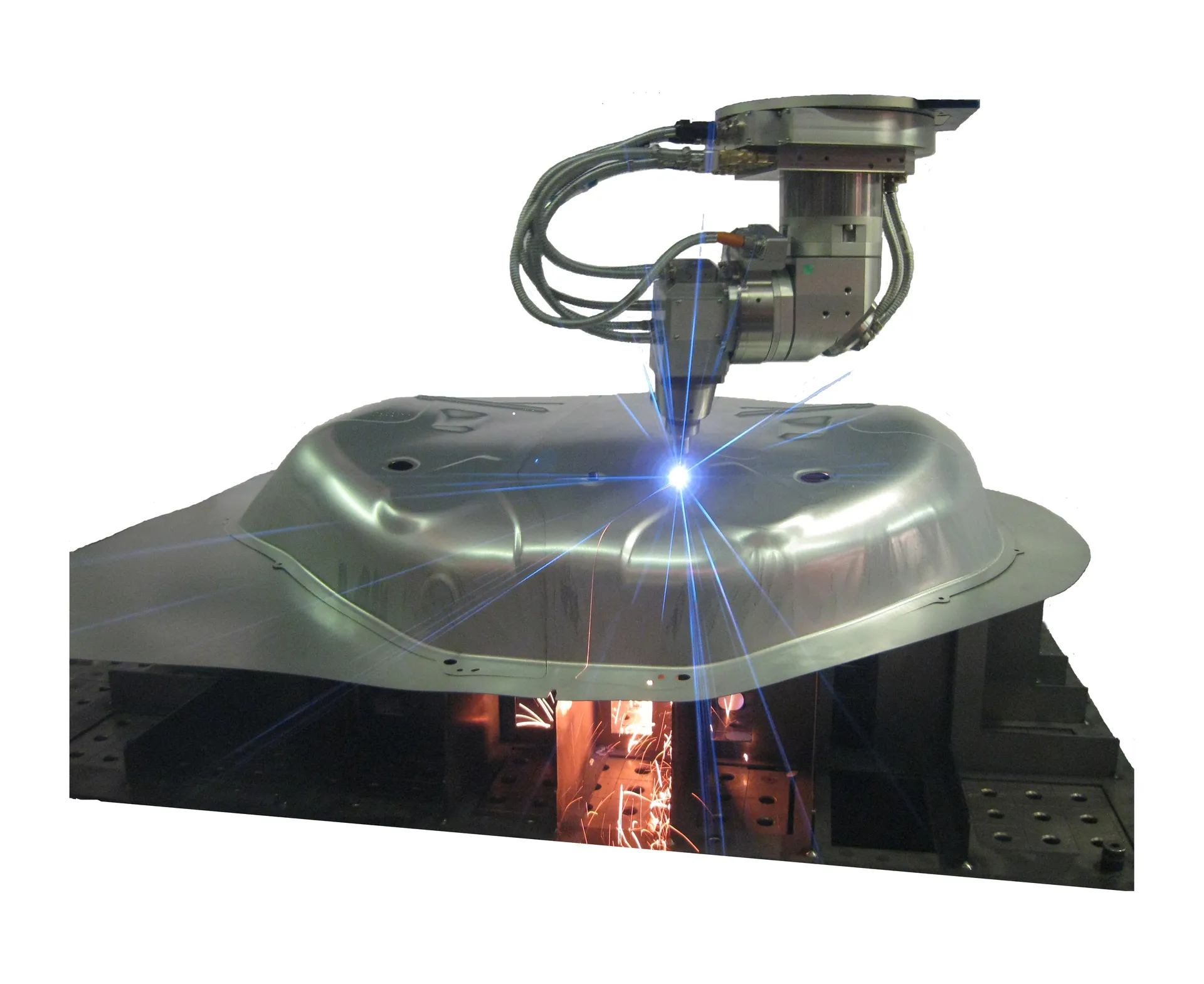

Laser cutting 3D	1–10,000	1–3,000 mm	1–1,000 mm	1–700 mm	from 0 mm	0–2,000 kg	0.1–8 mm

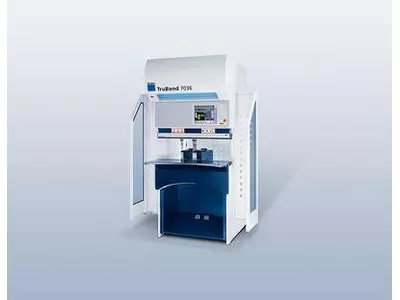

Bending / folding	1–5,000	10–3,000 mm	—	—	—	—	0.1–12 mm
Laser cutting, tube & section	1–5,000	1–1,500 mm	1–4,000 mm	1–1,000 mm	1–120 mm	0–5,000 kg	0.1–12 mm
Oxyacetylene cutting	—	—	—	—	—	—	—

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	1–5,000 mm	1–2,500 mm	1–2,500 mm	0–2,500 kg
Machine frames / bases / racks	1–5,000 mm	1–2,500 mm	1–2,500 mm	0–2,500 kg

Turning

Technologies	Lotsize	Length	Diameter

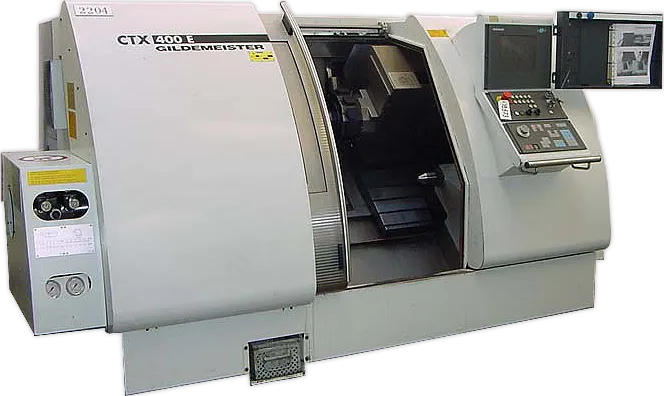

Turning	1–1,000	1–800 mm	1–500 mm
Full-range turning (including milling)	1–1,000	1–800 mm	1–500 mm
Centering / end facing	1–1,000	3–120 mm	3–120 mm

Welding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Inert gas shielded arc welding (MIG/MAG)	1–500	1–2,000 mm	1–1,000 mm	1–1,000 mm	6–500 mm	0–20 kg	0.5–20 mm
Inert gas shielded arc welding (Plasma)	1–500	1–2,000 mm	1–1,000 mm	1–1,000 mm	6–500 mm	0–20 kg	0.5–20 mm
Inert gas shielded arc welding (TIG)	1–500	1–2,000 mm	1–1,000 mm	1–1,000 mm	6–500 mm	0–20 kg	0.5–20 mm
Laser-beam welding	1–10,000	1–3,000 mm	1–1,000 mm	1–700 mm	1–1,000 mm	0–2,000 kg	from 0 mm
Spot welding	1–500	—	—	—	—	—	0.1–2 mm
Soldering	1–500	0.5–100 mm	0.5–500 mm	0.5–500 mm	0.5–3 mm	0–15 kg	—

Mould construction

Technologies	Length	Width	Height	Weight
Injection moulds	10–2,500 mm	10–1,500 mm	10–1,500 mm	0–1,500 kg
Modelmaking	10–2,500 mm	10–1,500 mm	10–1,500 mm	0–750 kg
Squeeze moulds	10–2,500 mm	10–1,500 mm	10–1,500 mm	0–1,500 kg
Vacuum deep-drawing moulds	—	—	—	—

Jigmaking

Technologies	Length	Width	Height	Weight
Drilling / milling jigs	10–2,500 mm	10–1,500 mm	10–1,500 mm	0–1,500 kg
Measuring / testing jigs	10–2,500 mm	10–1,500 mm	10–1,500 mm	0–1,500 kg
Assembly jigs	10–2,500 mm	10–1,500 mm	10–1,500 mm	0–1,500 kg
Welding jigs	10–2,500 mm	10–1,500 mm	10–1,500 mm	0–1,500 kg
Clamping devices	10–2,500 mm	10–1,500 mm	10–1,500 mm	0–1,500 kg

Measuring & Testing

Technologies
Measuring / testing

Assembly

Technologies
Mechanical assembly

Cutting dies / deep drawing dies

Technologies	Length	Width	Height	Weight
Follow-on composite tools	10–2,500 mm	10–1,500 mm	10–1,500 mm	0–1,500 kg
Deep-drawing dies	10–2,500 mm	10–1,500 mm	10–1,500 mm	0–1,500 kg
Die replacement / wearing part manufacturing	—	—	—	—

Sheet Metal Forming (Stamping, Deep-drawing)

Technologies	Lotsize
Deep-drawing	1–5,000
Plate rolling / bending	—

Heat Treatment

Technologies
Flame-hardening
Induction hardening

Milling

Technologies	Lotsize	Length	Width	Height	Weight
Milling	1–1,000	1–800 mm	1–1,350 mm	1–700 mm	0–2,500 kg

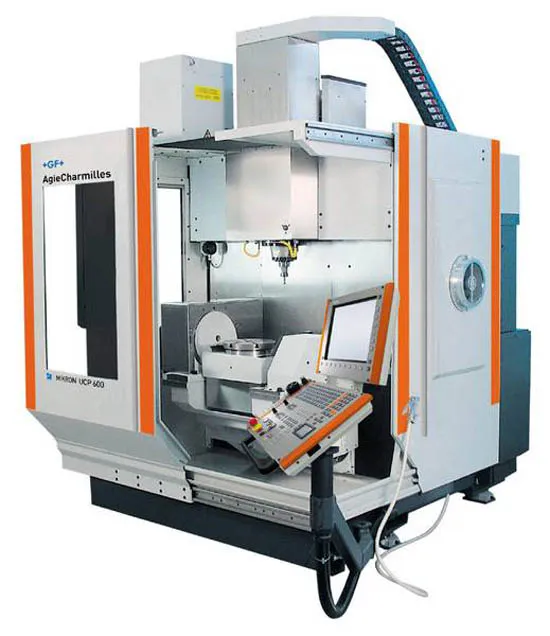

5-axis milling machines	1–1,000	1–1,200 mm	1–2,200 mm	1–2,800 mm	0–5,000 kg
Form milling (3 D)	1–1,000	1–1,200 mm	1–2,200 mm	1–2,800 mm	0–5,000 kg
HSC milling	1–1,000	1–500 mm	1–700 mm	1–900 mm	0–1,000 kg

Additive Manufacturing

Technologies
3D printing (general)

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter
Sawing	1–100	10–6,000 mm	10–270 mm	10–270 mm	10–270 mm

Finishing

Technologies
Shot blasting

Surface Treatment

Technologies
Spray-painting

Materials

Cast metals

Cast steelCast iron

Sintered materials

Metal powder for formed partsMetal powder for hard metal

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Advanced Materials

Carbide

Plastics/synthetic materials

Acrylic (PMMA)Carbon fibre-reinforced plastic
