Wagenbauer CNC Präzision und Technologie GmbH
Germany, 83730 Fischbachau
Overview
About Wagenbauer CNC Präzision und Technologie GmbH
Who we are

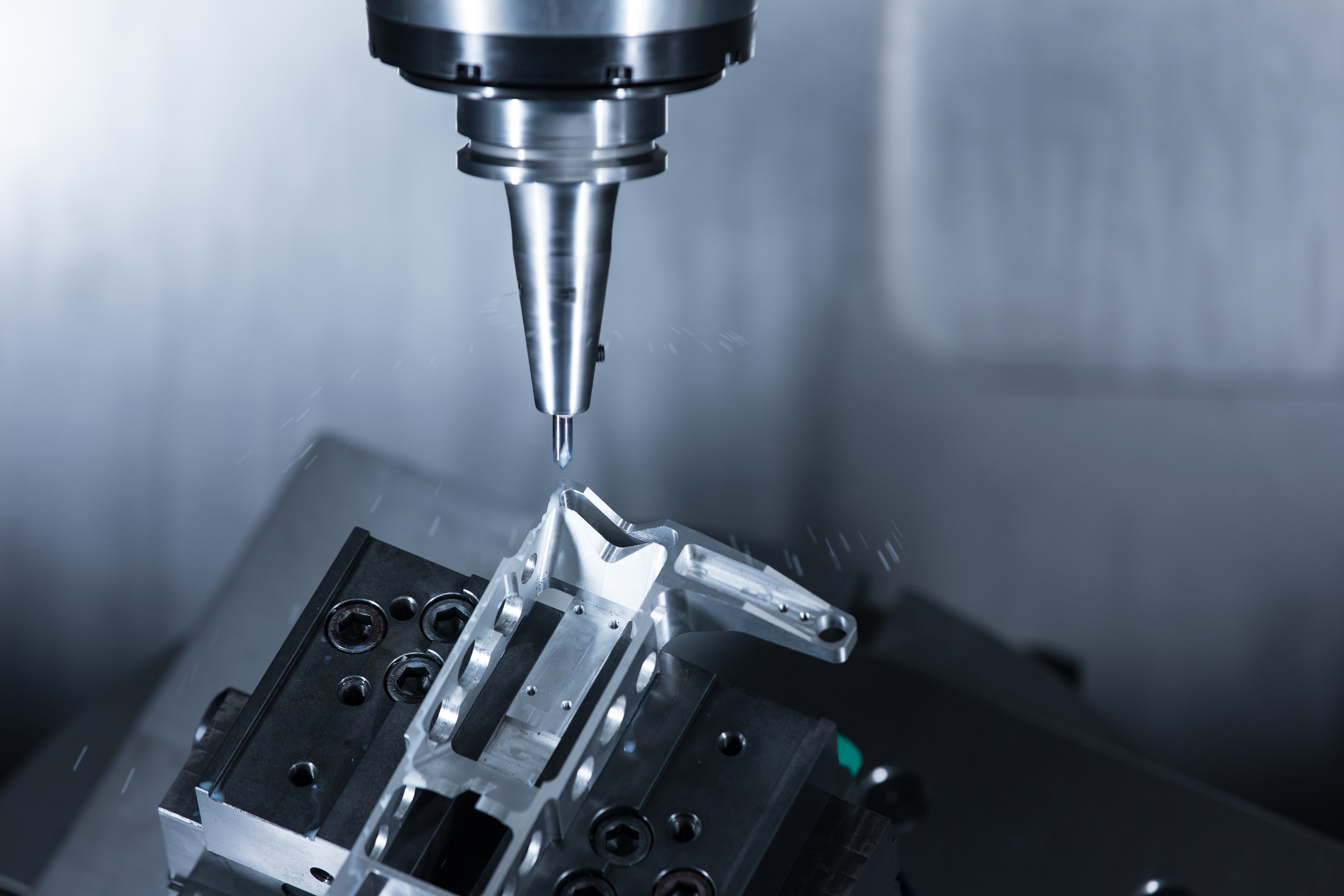

Wagenbauer CNC - GmbH Precision & technology Milled parts can be processed with up to 5 axes The Heidenhain iTNC 530 and TNC426 controls enable convenient programming on the machines. For complex components, we have a modern CAM system at our side. MILLING straight and helical gears up to module 2 are milled on 2 conventional microns. SAWING Working up to 220 mm in diameter is possible with a fully automatic band saw TOOTH SERVICES ROTATE Turned parts from 2 mm diameter can be processed The largest possible rod passage is 65 mm, the maximum turning length 550 mm The maximum turning diameter for inserts is 300 mm. Programming with Siemens Shopturn enables fast program creation even for individual parts. +++ new !! 3D measuring machine Carl Zeiss +++ digital height measuring device, roughness depth measuring device and all usual measuring devices are used It goes without saying that we create factory test certificates and initial sample test reports. MEASUREMENT AND QUALITY • Surface grinding • Cold burnishing • sandblasting • Organization of all common ones Surface treatments & hardening processes SURFACE & HARDNESS Our range of services also includes working with customers' construction to improve profitability. ADDITIONAL SERVICES • Assembly of modules • welded constructions • grinding work • Fixture construction • CAD / CAM manufacturing
1 / 4
2 / 4
3 / 4
4 / 4
Fischbachau, Germany
Member since 2020
Premium Member since 2026
Employees10 - 20
Certificates1
Turnover1 - 5 Mil.
Year of foundation2001
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Turning | 1–100 k | 2–1,500 mm | 2–600 mm | — |
Automatic turning (bar) | 1–100 k | 2–2,000 mm | 2–65 mm | — |
Full-range turning (including milling) | 1–100 k | 2–1,000 mm | 2–600 mm | — |
Hard turning | 1–100 k | 2–1,000 mm | 2–600 mm | — |
Broaching | 1–100 k | 2–500 mm | 2–600 mm | — |
Centering / end facing | 1–10,000 | 2–1,500 mm | 2–65 mm | — |
Shaft machining | 1–100 k | 2–500 mm | 2–600 mm | 0–1,500 kg |
Gear Making
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Internal teeth | 1–100 k | 1–800 mm | 1–800 mm | 0–1,500 kg |

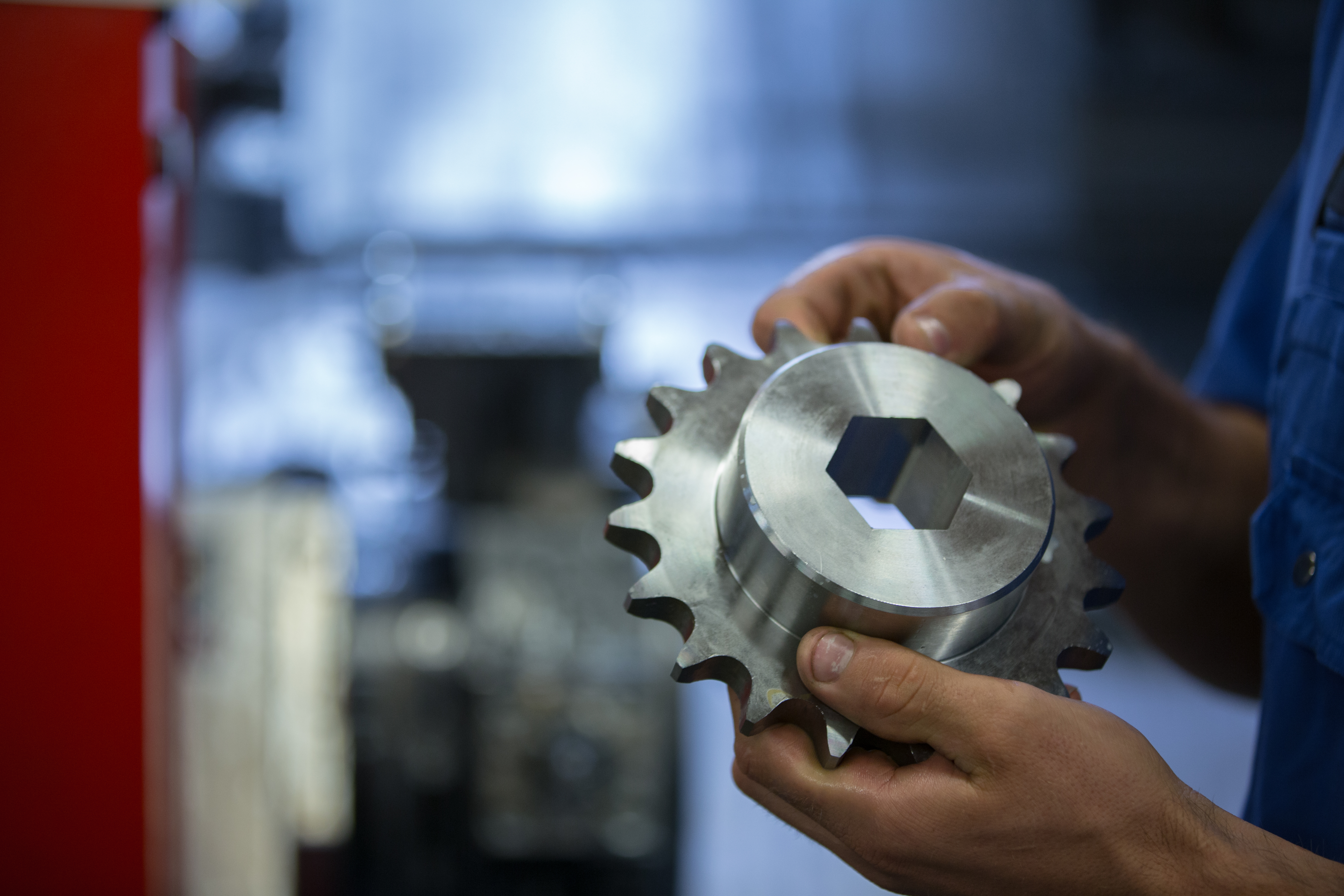

Sprocket (wheel) | 1–100 k | 1–500 mm | 1–800 mm | 0–1,500 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Milling | 1–100 k | 2–1,500 mm | 2–400 mm | 2–400 mm | — | — |
5-axis milling machines | 1–100 k | 2–400 mm | 2–400 mm | 2–400 mm | — | — |
Form milling (3 D) | 1–100 k | 2–400 mm | 2–400 mm | 2–400 mm | — | — |
Full-range milling (including turning) | 1–100 k | 2–1,000 mm | 2–600 mm | 2–600 mm | 2–600 mm | — |
HSC milling | 1–100 k | 2–400 mm | 2–400 mm | 2–400 mm | — | 0–1,500 kg |
Deep-hole drilling | 1–100 k | 2–400 mm | 2–400 mm | 2–400 mm | 2–600 mm | 0–1,500 kg |
Ultrasonic milling | 1–100 k | 2–400 mm | 2–400 mm | 2–400 mm | — | 0–1,500 kg |
Engraver milling | 1–100 k | 2–400 mm | 2–400 mm | 2–400 mm | 2–600 mm | 0–1,500 kg |
Labelling / marking
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Laser depth engraving | 1–100 k | 1–1,000 mm | 1–600 mm | 1–600 mm | 1–400 mm |
Materials
Cast metals
Cast steelCast iron
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Plastics/synthetic materials
ThermoplasticsHigh performance plasticThermosetsGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materialsNatural Fibre Composites (NFC)
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Industries
Precision engineering, mechatronics and opticsRailway and rail vehicles industryMeasurement and control technique, laboratory equipmentMining and tunnel engineeringElectrical industryChemical industryConstruction and architectural suppliesPackaging industryMedical technologyMilitary engineeringMechanical engineeringMachine tool manufacturingAerospace and aviation industryPower generation and transmission industryHydraulic and pneumatic industrySpecial purpose machinery manufacturing
Certificates
ISO 9001:2015
Parts & Machines
Parts (1)
1 / 1

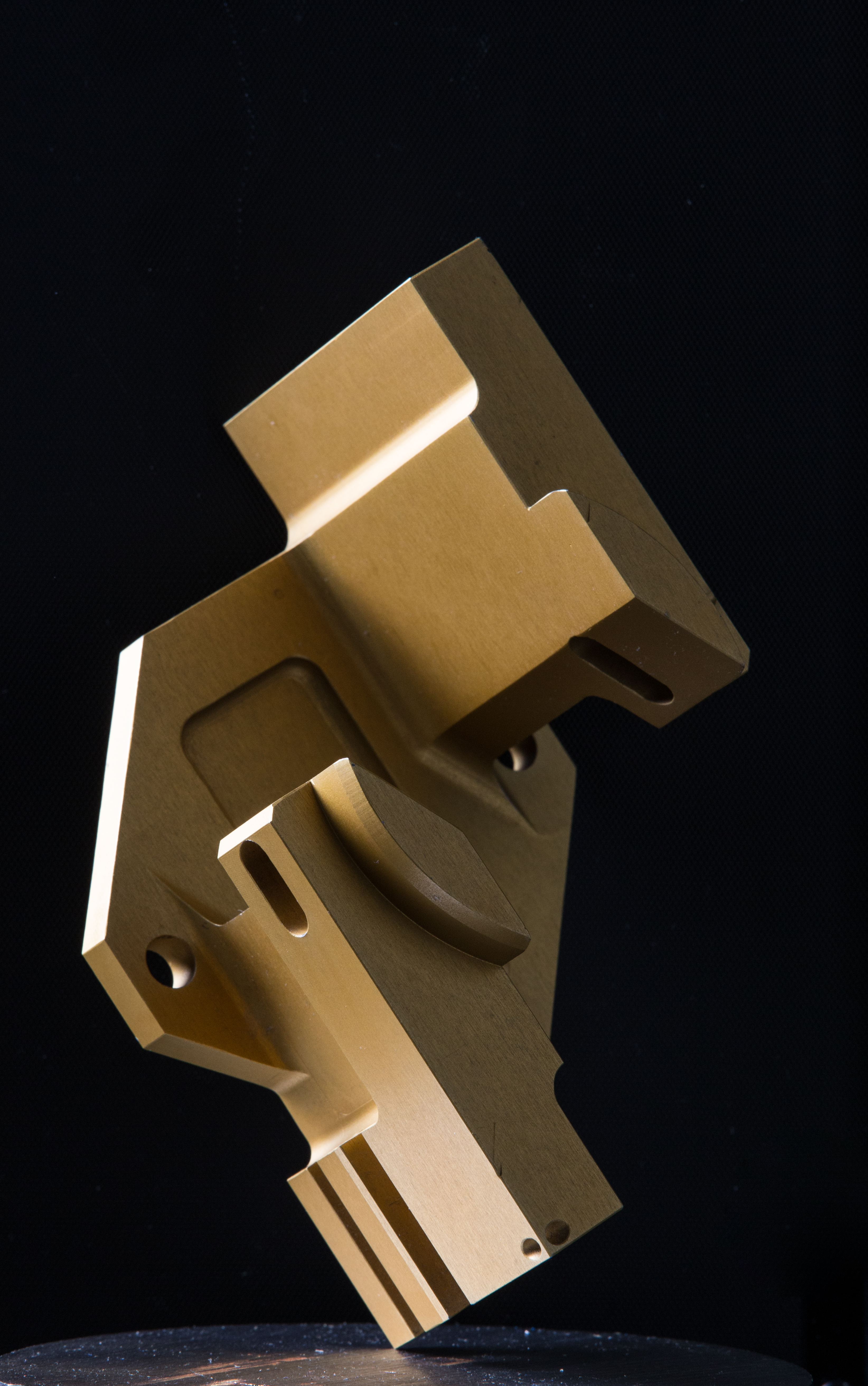

Strukturbauteil
Technology5-axis milling machines
MaterialAluminium and aluminium alloys
Lotsize1
ComplexityLow
IndustriesAerospace and aviation industry
Machinery (8)
1 / 8
GS 800 5-T
ManufacturerAlzmetall
ControlHaidenhain iTNC 530
Year of Construction2008
Technology
Milling5-axis milling machinesHSC millingDeep-hole drillingForm milling (3 D)
2 / 8
GS 800 5-T
ManufacturerAlzmetall
ControlHaidenhain iTNC 530
Year of Construction2010
Technology
Engraver millingMillingHSC milling5-axis milling machinesForm milling (3 D)
3 / 8
BAZ 15
ManufacturerAlzmetall
ControlHaidenhain TNC 426
Year of Construction2000
Technology
Engraver millingForm milling (3 D)Milling
4 / 8
Maxxturn 25
ManufacturerEmco
ControlSiemens 828
5 / 8
Maxxturn 45
ManufacturerEmco
ControlSiemens 840 d SL
6 / 8
Hyperturn 65
ManufacturerEmco
ControlSiemens 840 d SL
7 / 8
Abwälzverzahnungsfräsmaschine
ManufacturerMikron
8 / 8

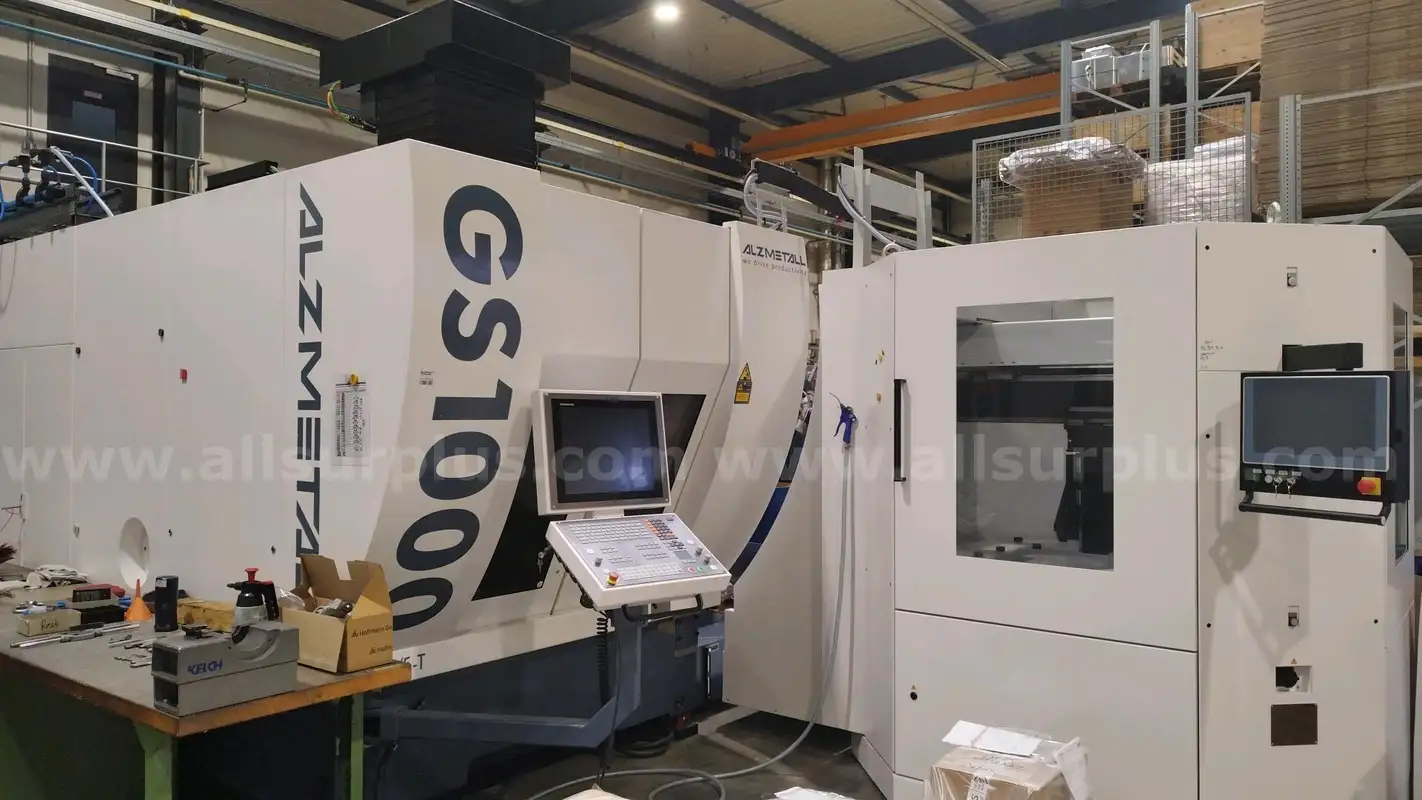

GS 1000 5-T (2x)
ManufacturerAlzmetall
ControlTNC 640
Year of Construction2022
Technology
5-axis milling machines
1 Parts
5-axis milling machines1
8 Machinery
Milling3
5-axis milling machines3
HSC milling2
Deep-hole drilling1
Form milling (3 D)3
Engraver milling2
Contact
Location
Main locationSteinwandstraße 8, 83730 Fischbachau, Germany
Company contact
Contact persons
VW
Vitus Wagenbauer
JW
Josef Wagenbauer
