Wenzel Metrology GmbH

Germany, 97859 Wiesthal

Overview

About Wenzel Metrology GmbH

Who we are

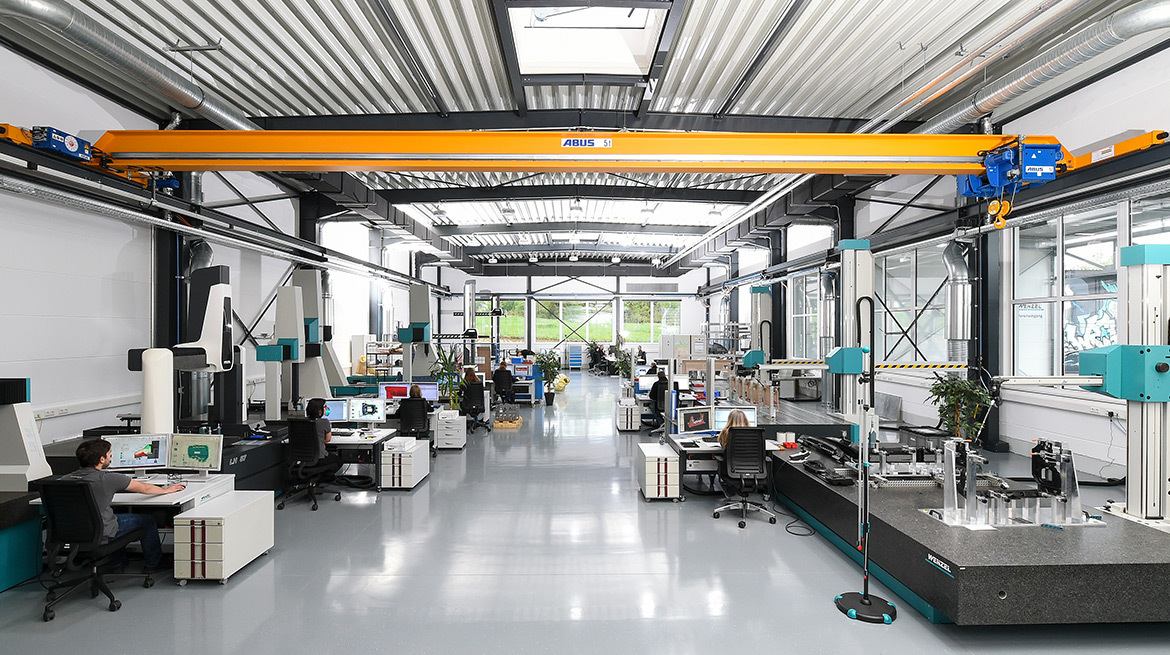

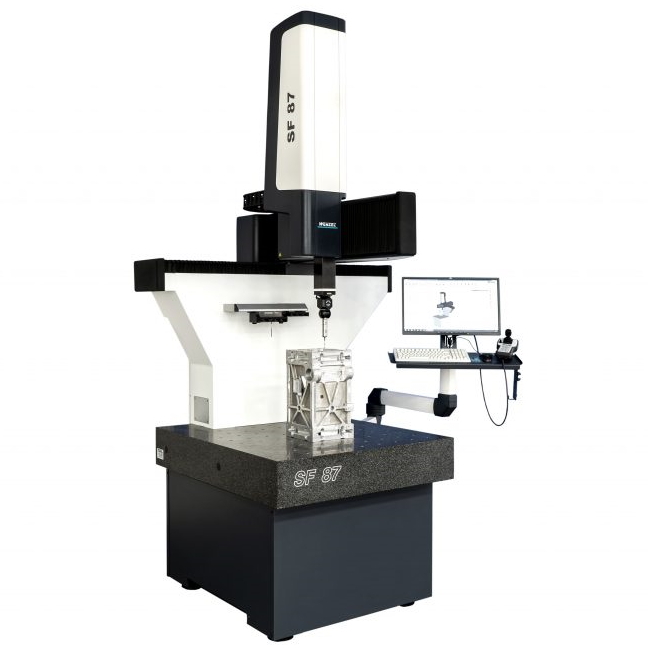

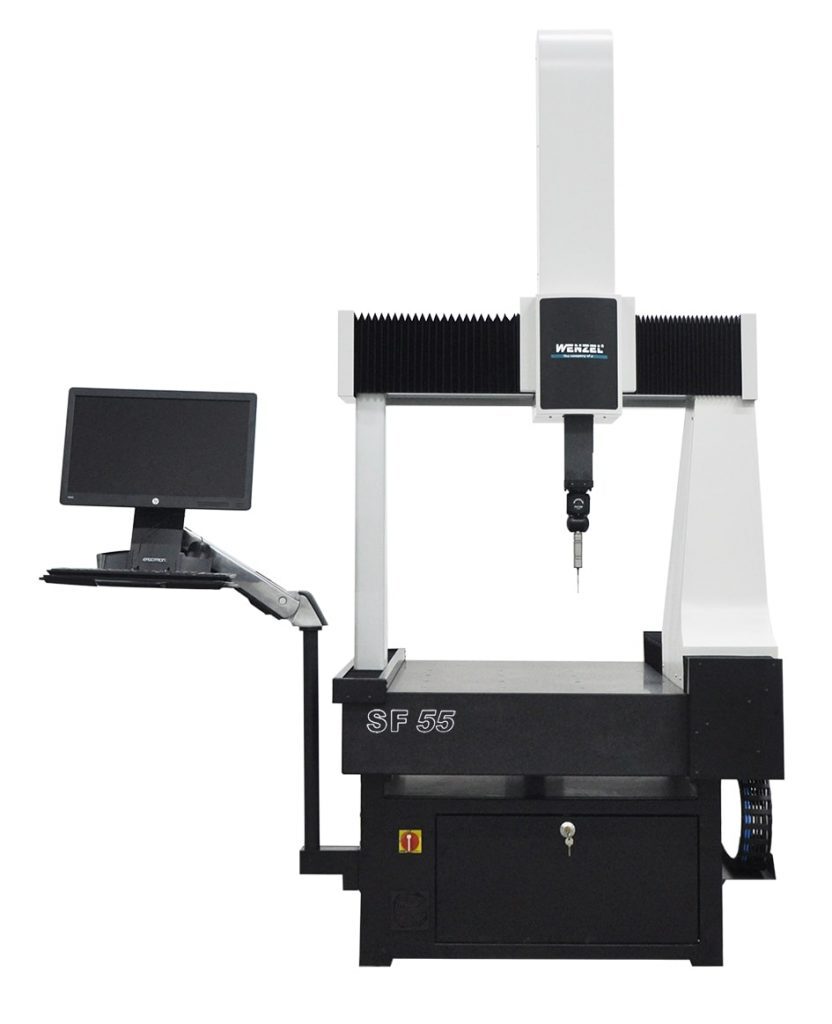

WENZEL stands for the highest precision and most modern solutions for industrial coordinate measuring technology. This includes coordinate measuring machines with tactile and optical sensors, multi-sensor systems, optical high speed scanning and computer tomography-based 3D X-ray measuring technology (CT). Our customers use WENZEL Metrology Systems in the Inspection Lab as well as directly supporting manufacturing on the Shop Floor. In addition to the measuring machines we also offer a comprehensive metrology software in WM | Quartis, which is used extensively for the measurement and analysis of parts across many industries, e.g. Automotive, Aerospace and Defense, Machine Building, as well as Plastics and Medical Device Manufacturing. Special solutions support reverse engineering and the analysis of gears and turbine blades. As a family-run company, we place particular emphasis on the quality and scope of our customer support. This offers you the best personal support you can get from a global player. Think global, act local – that is WENZEL.

Wiesthal, Germany

Member since 2021

Employees500 - 1000

Certificates2

Turnover50 - 100 Mil.

Year of foundation1968

Competencies

Technologies

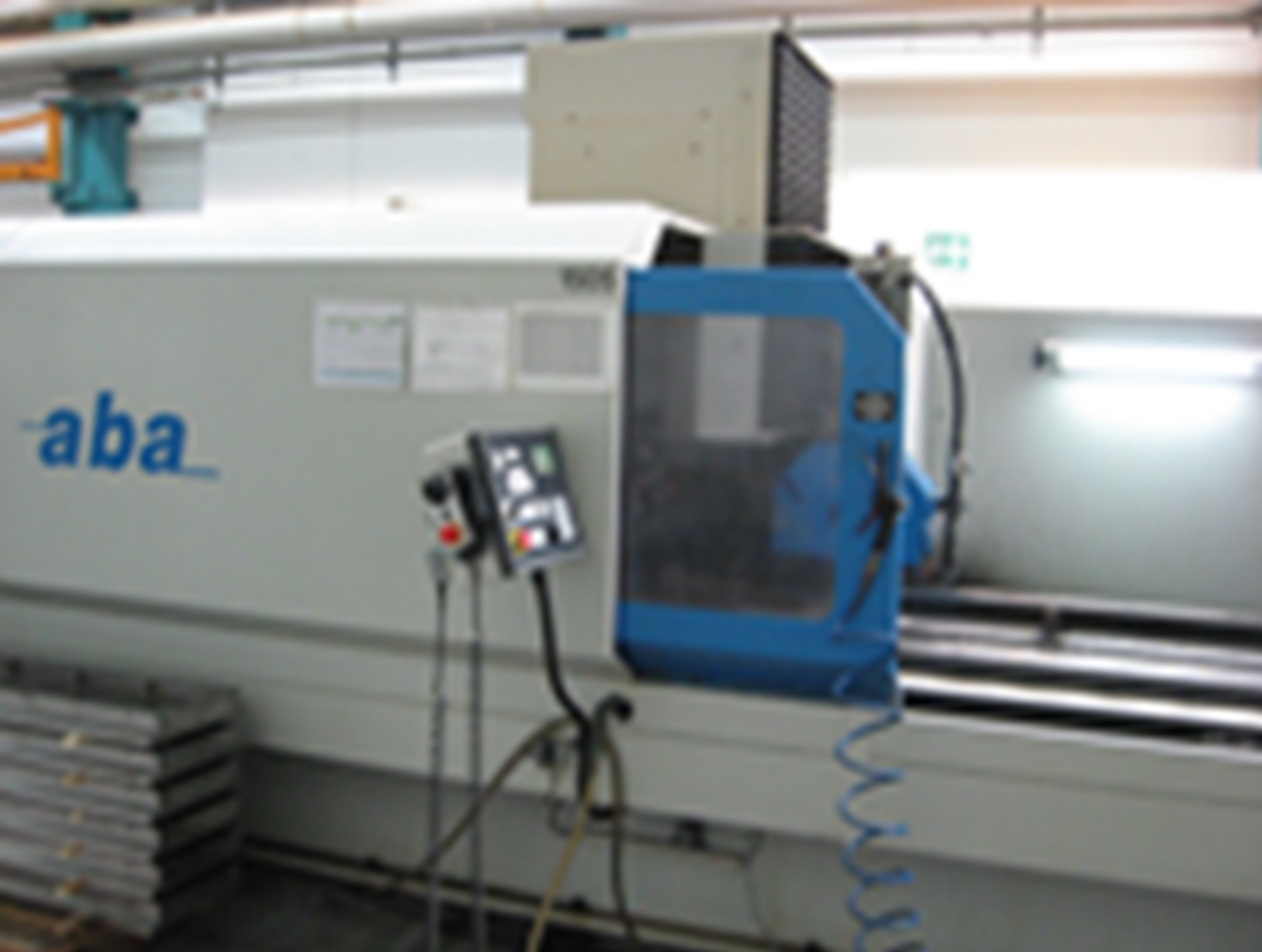

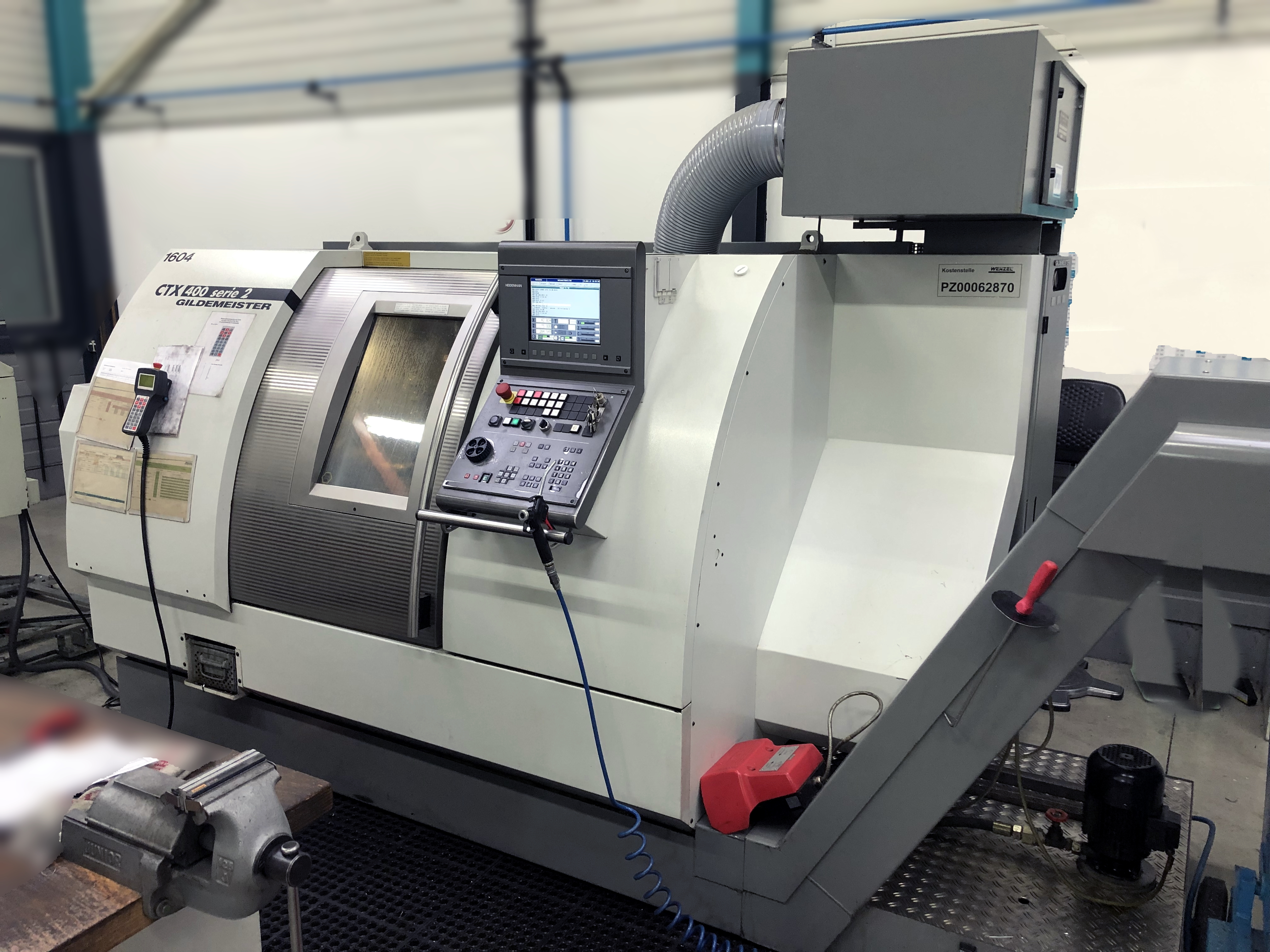

Turning

Technologies	Lotsize	Length	Diameter
Turning	0–1,000	0–1,000 mm	from 0 mm
Automatic turning (bar)	1–500	1–800 mm	1–65 mm

Welding

Technologies	Lotsize	Length	Width	Height	Weight
Inert gas shielded arc welding (MIG/MAG)	1–500	10–3,000 mm	10–2,000 mm	10–2,000 mm	0–1,000 kg
Inert gas shielded arc welding (TIG)	1–500	10–2,000 mm	10–2,000 mm	10–2,000 mm	0–1,500 kg

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	10–3,000 mm	10–2,000 mm	10–2,000 mm	0–5,000 kg
Machine frames / bases / racks	10–3,000 mm	10–1,500 mm	10–2,000 mm	0–5,000 kg

Cable Preparation

Technologies	Diameter
Cable preparation	0.1–50 mm

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight
Measuring / testing	10–4,000 mm	10–2,000 mm	10–1,500 mm	10–1,500 mm	0–10,000 kg

Assembly

Technologies	Weight
Mechanical assembly	0–30,000 kg
Electromechanical assembly	0–2,500 kg

Mechanical Engineering

Technologies	Lotsize	Length	Width	Height	Weight
Mechanical engineering	1–100	10–6,000 mm	10–2,500 mm	10–2,500 mm	0–25,000 kg
Pneumatic engineering	1–500	10–6,000 mm	10–2,500 mm	10–2,500 mm	0–10,000 kg

Jigmaking

Technologies	Length	Width	Height	Weight
Measuring / testing jigs	10–4,000 mm	10–2,000 mm	10–1,200 mm	0–10,000 kg
Assembly jigs	10–4,000 mm	10–2,500 mm	10–1,250 mm	0–10,000 kg
Clamping devices	10–4,000 mm	10–2,000 mm	10–1,250 mm	0–10,000 kg

Milling

Technologies	Lotsize	Length	Width	Height
Milling	1–1,000	1–4,000 mm	1–2,000 mm	1–1,250 mm

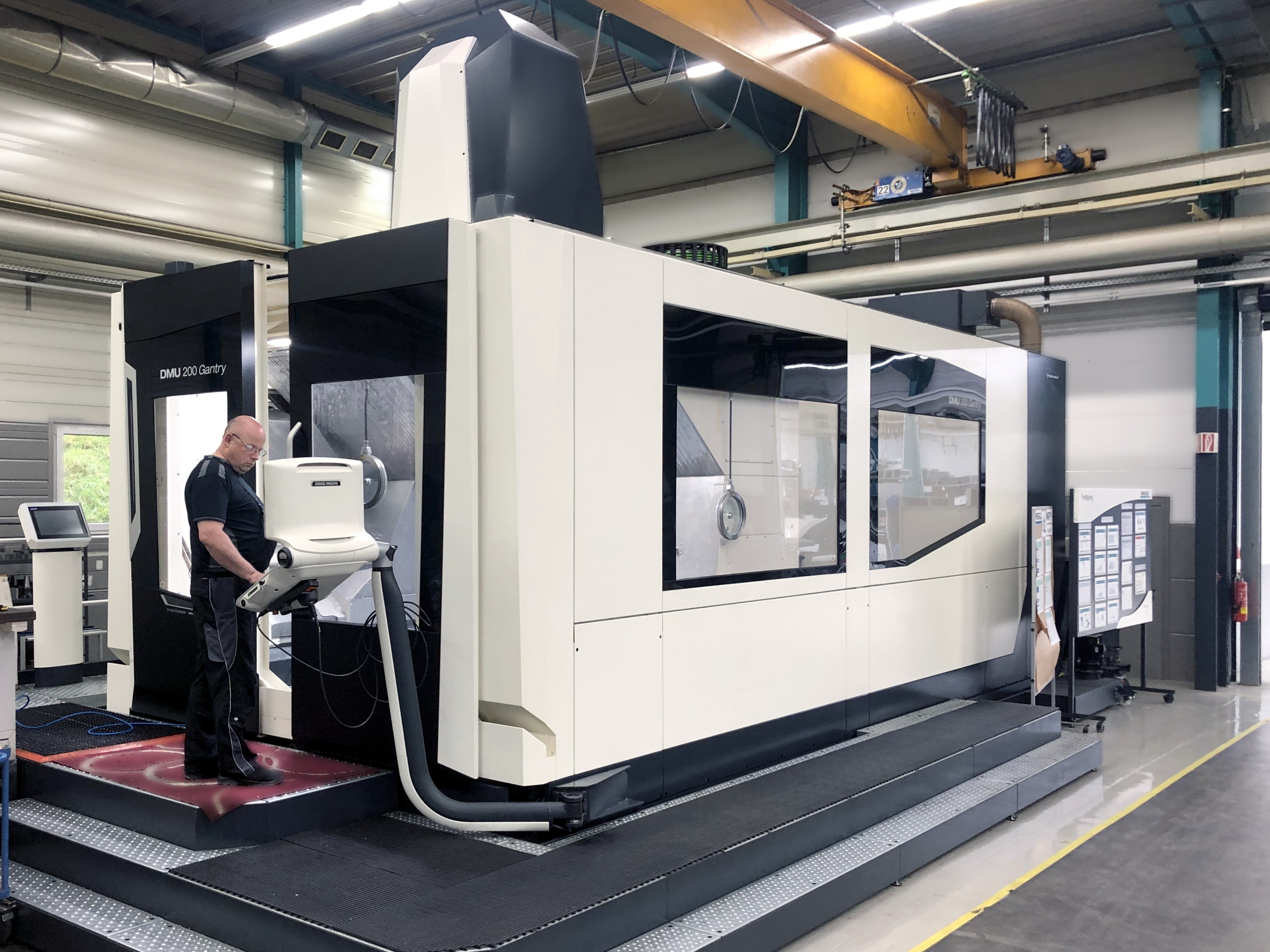

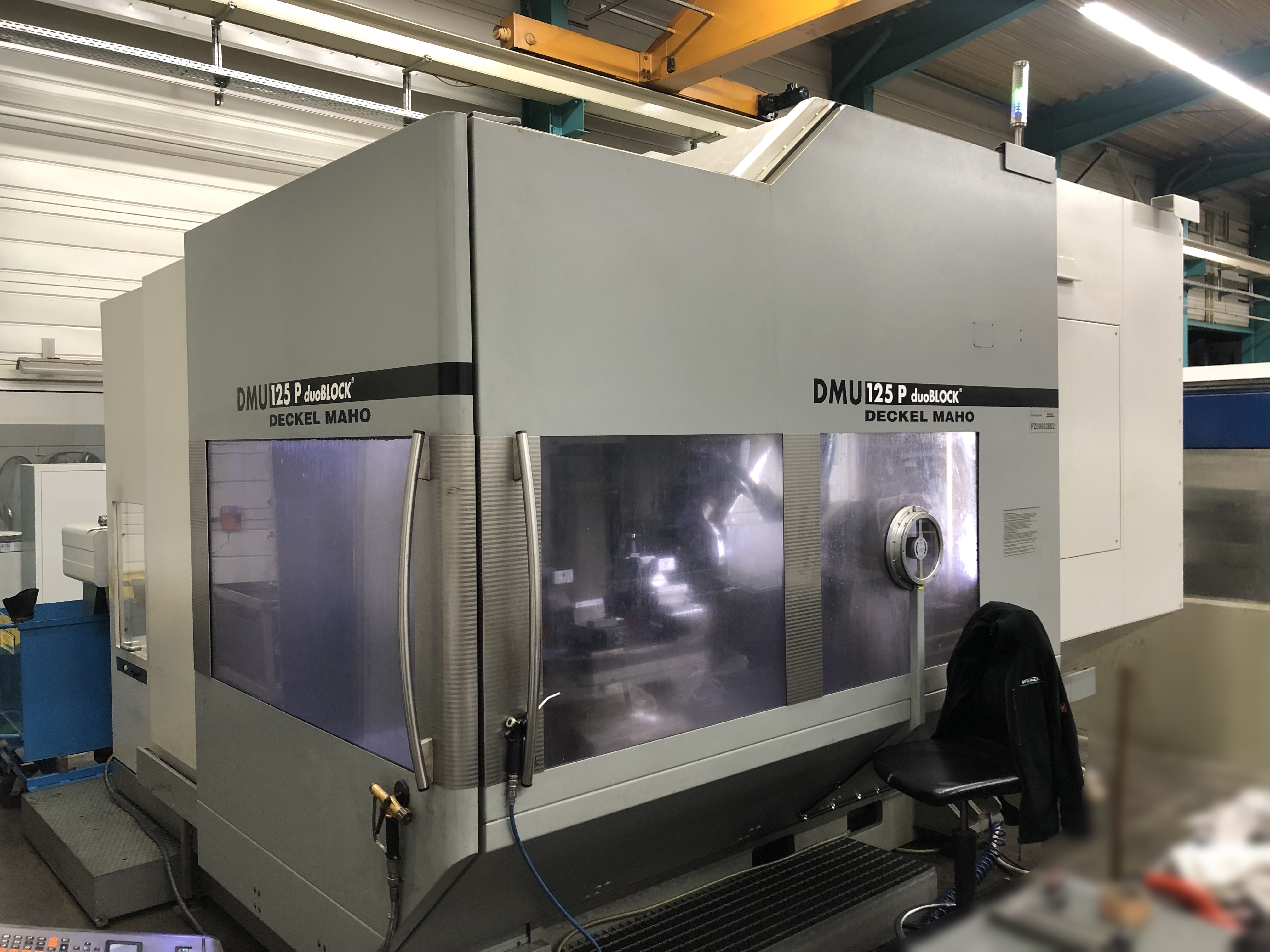

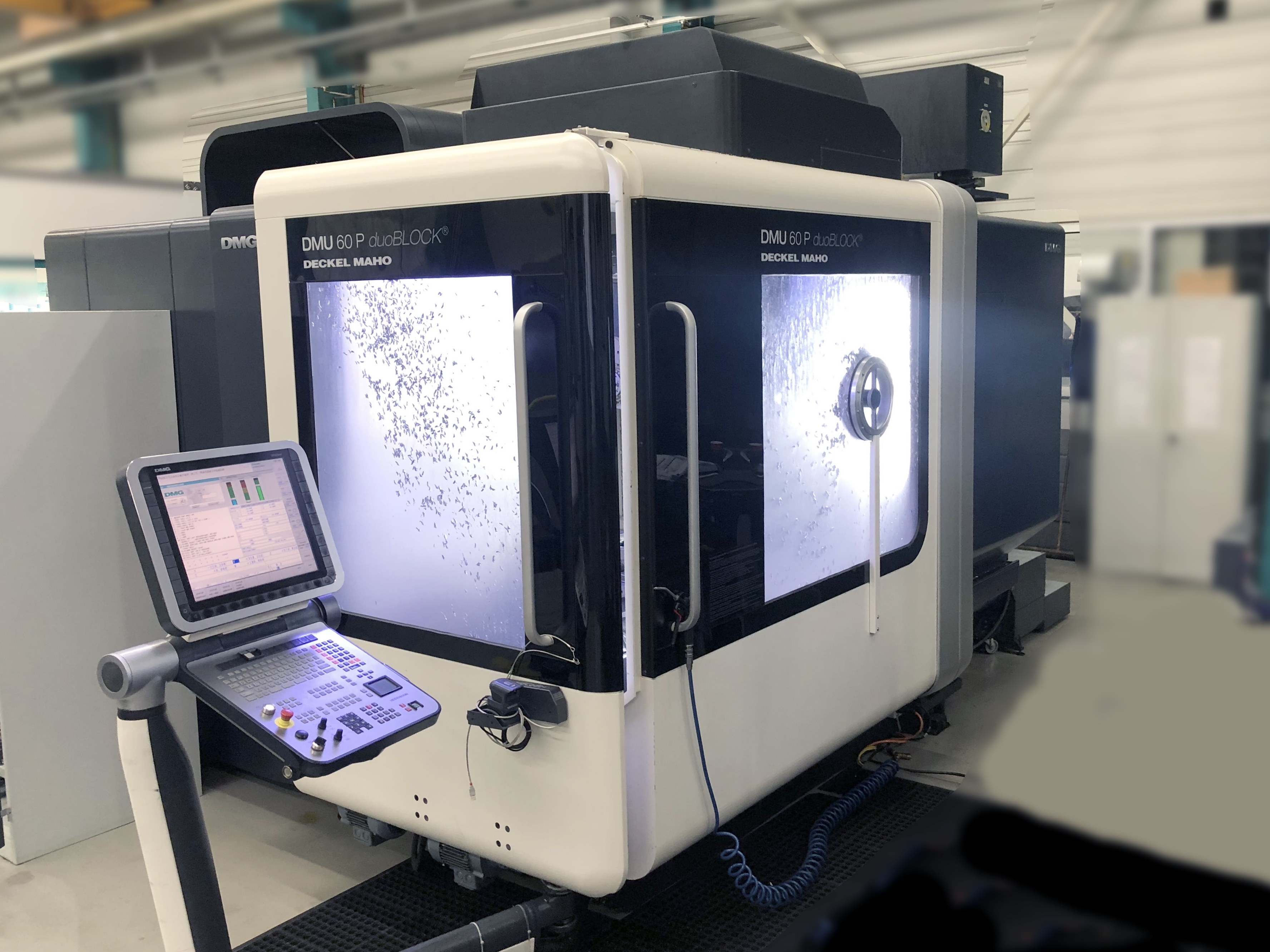

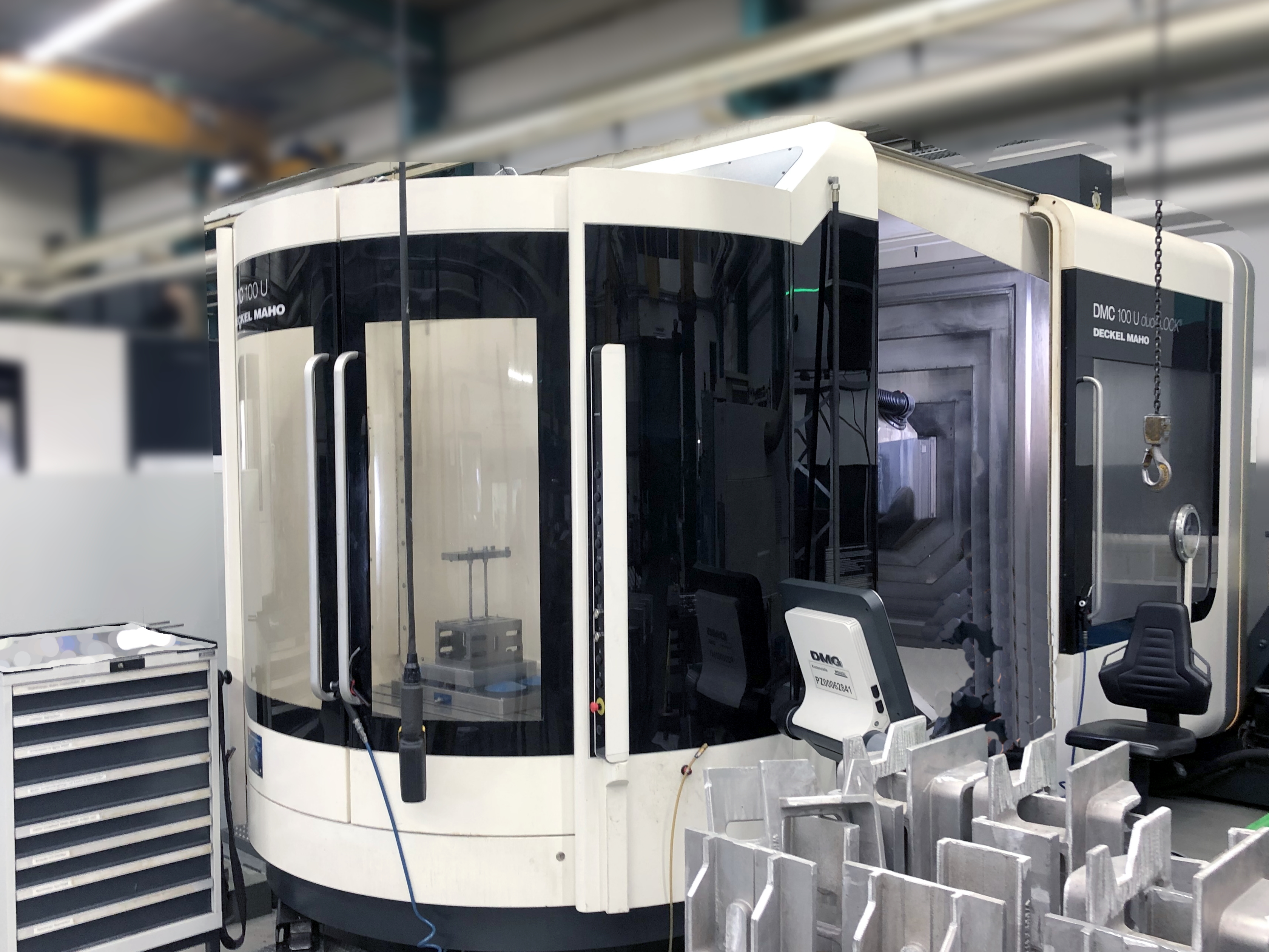

5-axis milling machines	1–500	1–4,000 mm	1–2,000 mm	1–1,250 mm
Form milling (3 D)	1–50	1–3,500 mm	1–1,500 mm	1–1,000 mm

Finishing

Technologies	Lotsize	Length	Width	Height	Weight

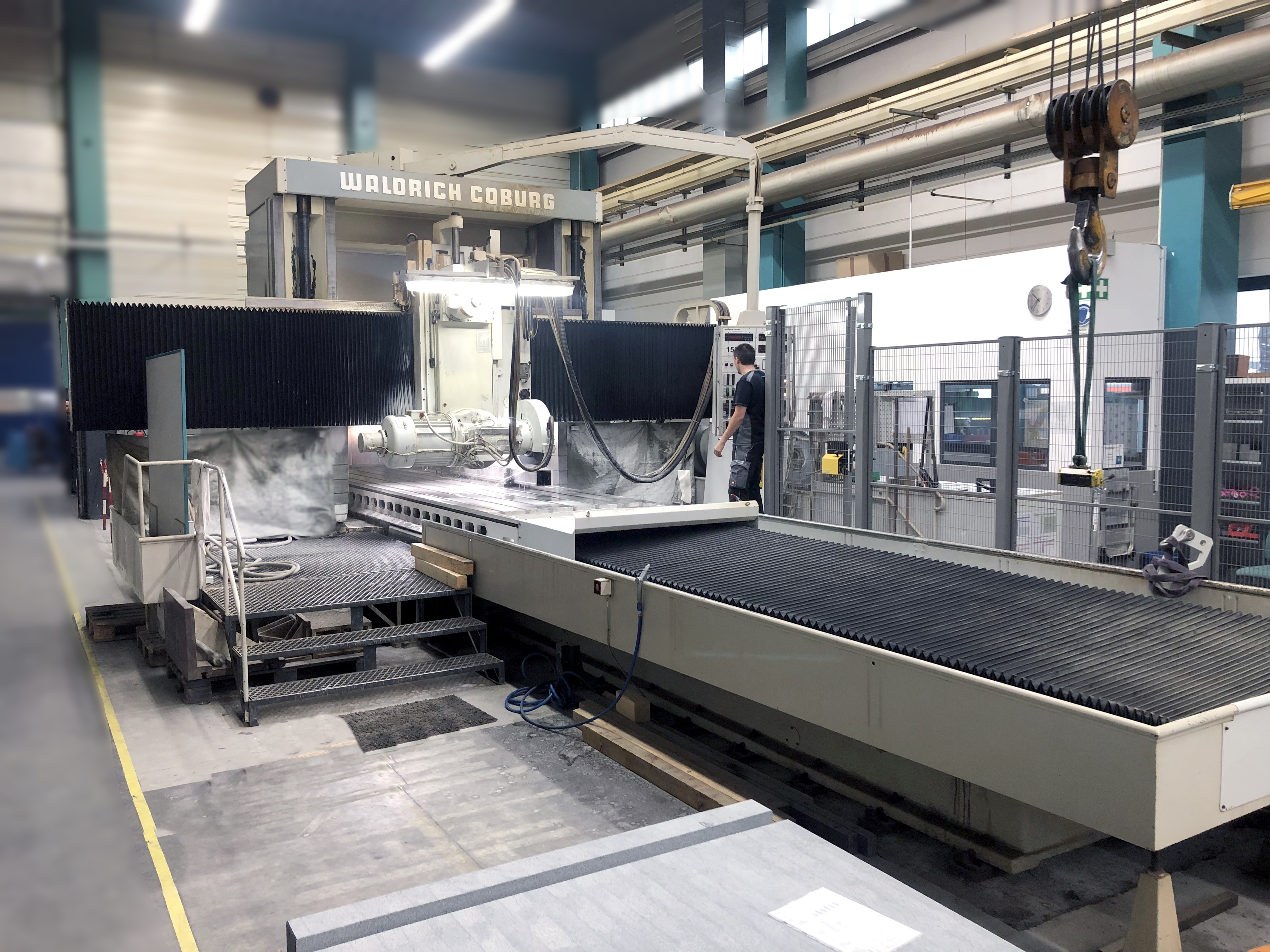

Surface grinding machine	1–500	10–6,000 mm	10–2,200 mm	10–1,200 mm	0–15,000 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight

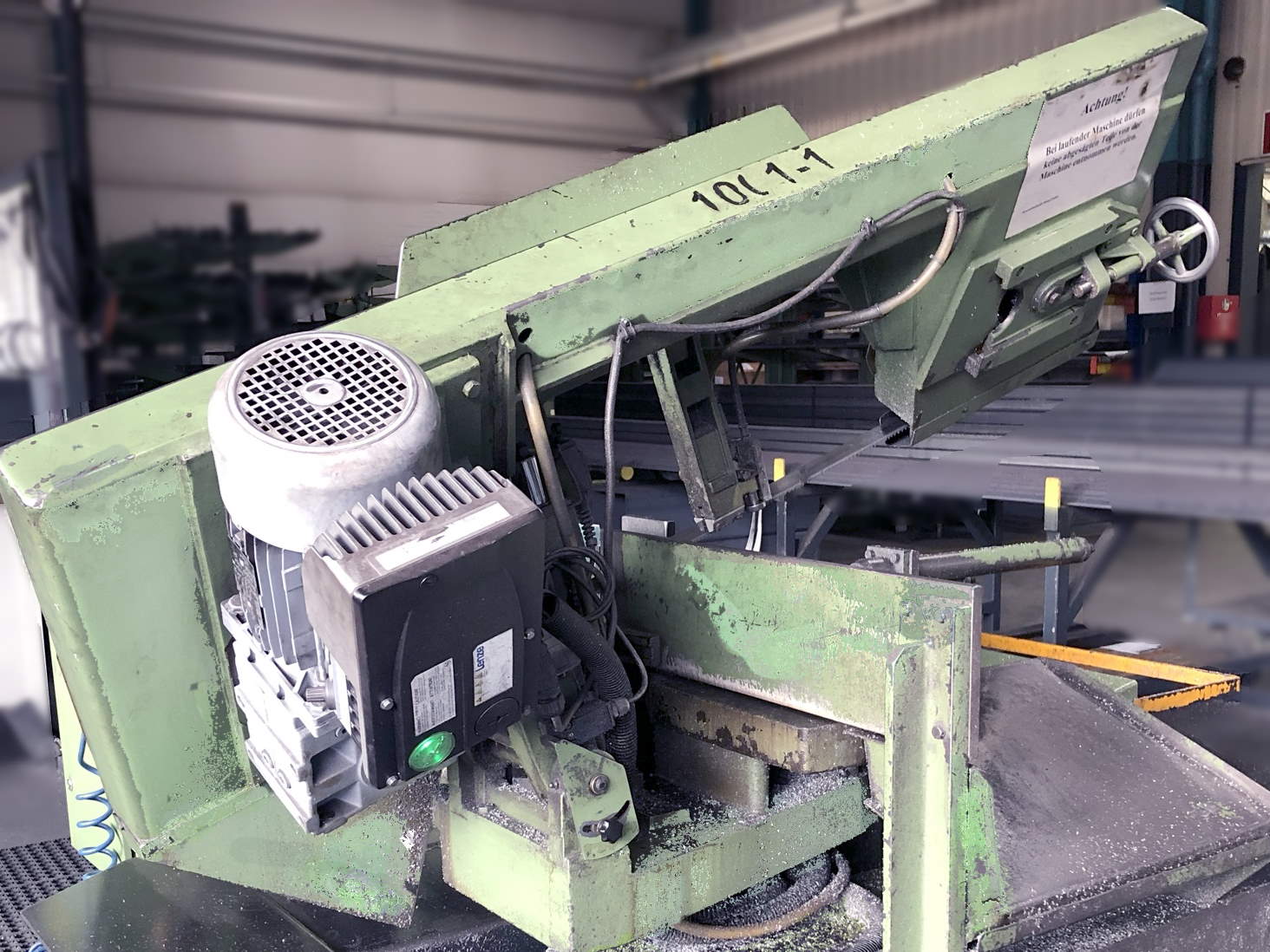

Sawing	1–500	1–4,000 mm	1–350 mm	1–350 mm	1–350 mm	—
Drilling / threading / tapping	1–500	1–4,000 mm	1–2,000 mm	1–1,250 mm	—	0–10,000 kg

Materials

Plastics/synthetic materials

ThermoplasticsThermosetsGlass fibre-reinforced plasticCarbon fibre-reinforced plastic

Heavy metals

Copper-zinc alloys (brass)

Cast metals

Cast steelCast iron

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steel

Light metals

Aluminium and aluminium alloys

Natural materials

Rock

Non-metal inorganic materials

Cast minerals

Industries

Measurement and control technique, laboratory equipmentAutomation and control engineeringApparatus engineeringPlant engineering and constructionMechanical engineeringPrecision engineering, mechatronics and opticsSpecial purpose machinery manufacturing
