Winkler Werkzeugbau GmbH

Germany, 82024 Taufkirchen

Competencies

Technologies

Injection Moulding, Extruding

Technologies	Lotsize	Length	Width	Height	Weight

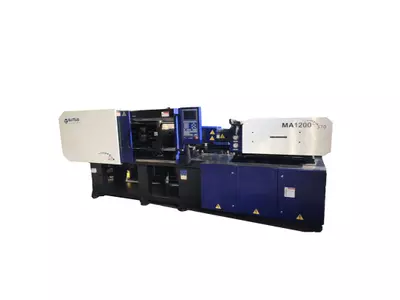

Injection moulding	1–10 M	1–300 mm	1–300 mm	1–250 mm	0–1.5 kg
Injection-mould around inserts	1–10 M	1–300 mm	1–300 mm	1–250 mm	0–20 kg

Mould construction

Technologies	Length	Width	Height	Weight
Injection moulds	1–500 mm	1–500 mm	1–500 mm	0–500 kg
Modelmaking	1–500 mm	1–500 mm	1–500 mm	0–500 kg

Jigmaking

Technologies	Length	Width	Height	Weight
Drilling / milling jigs	1–500 mm	1–500 mm	1–500 mm	0–500 kg
Gauges	1–500 mm	1–500 mm	1–500 mm	0–500 kg
Assembly jigs	1–500 mm	1–500 mm	1–500 mm	0–500 kg
Clamping devices	1–500 mm	1–500 mm	1–500 mm	0–500 kg

Etching and Spark Erosion

Technologies	Lotsize	Length	Width	Height	Weight
Spark erosion wire cutting	1–500	1–600 mm	1–400 mm	1–200 mm	0–500 kg
Spark erosion countersinking	1–1,000	1–600 mm	1–400 mm	1–200 mm	0–500 kg

Mechanical Engineering

Technologies	Lotsize	Length	Width	Height	Weight
Mechanical engineering	1–50	1–600 mm	1–400 mm	1–200 mm	0–500 kg
Pneumatic engineering	1–50	1–600 mm	1–400 mm	1–200 mm	0–500 kg
Tool building	1–50	1–600 mm	1–400 mm	1–200 mm	0–500 kg

Assembly

Technologies	Weight
Mechanical assembly	0–500 kg
Electromechanical assembly	0–500 kg
Industrial / On-site-assembly	0–500 kg

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
External cylindrical grinding	1–1,000	0–100 mm	—	—	0–50 mm	—
Internal cylindrical grinding	1–1,000	1–500 mm	—	—	1–50 mm	—
Surface grinding machine	1–1,000	1–400 mm	1–200 mm	1–200 mm	—	0–500 kg
Shot blasting	1–1,000	1–500 mm	1–500 mm	1–500 mm	—	0–50 kg

Turning

Technologies	Lotsize	Length	Diameter

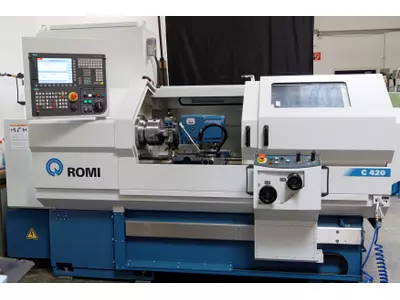

Turning	1–1,000	0–1,000 mm	0–200 mm
Full-range turning (including milling)	1–10,000	1–500 mm	1–200 mm

Additive Manufacturing

Technologies	Lotsize	Length	Width	Height

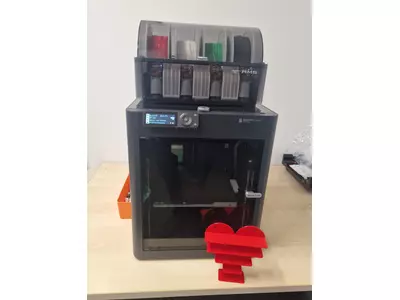

3D printing (general)	1–1,000	1–258 mm	1–258 mm	1–258 mm

Assembly Group Manufacturing

Technologies	Lotsize	Length	Width	Height
Potting of components	1–1 M	1–250 mm	1–250 mm	1–200 mm

Joining (Plastics & Rubber)

Technologies	Lotsize	Length	Width	Material thickness
Ultrasonic welding	10–20,000	10–150 mm	10–150 mm	2–5 mm

Labelling / marking

Technologies	Lotsize	Length	Width	Height	Diameter

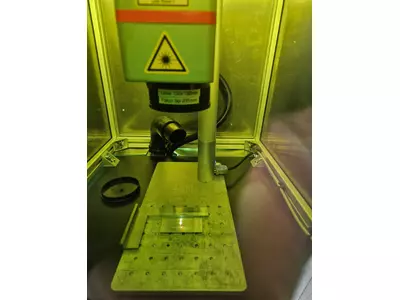

Laser marking / Laser inscription	1–10 M	1–250 mm	1–250 mm	1–50 mm	1–200 mm
Laser depth engraving	1–10 M	1–250 mm	1–250 mm	1–200 mm	1–200 mm

Materials

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Precious metals

SilverGoldPlatinumOther precious metals

Plastics/synthetic materials

ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsElastomersSilocone (LSR)Natural and vulcanised rubberGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materialsWood-Plastic-Composites (WPC)Natural Fibre Composites (NFC)

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Industries

Machine tool manufacturingPower generation and transmission industryElectrical industryPrecision engineering, mechatronics and opticsHydraulic and pneumatic industryAir conditioning, refrigeration and ventilation industryLighting industryAutomotive and vehicle constructionAutomation and control engineeringSpecial purpose machinery manufacturingMedical technologyMechanical engineeringAerospace and aviation industryBoiler, container and tank construction Plant engineering and constructionDrive and gear engineeringApparatus engineeringFittings engineering

+10 moreShow less
