About Zerspanungstechnik Beyer
Who we are
Welcome to Zerspanungstechnik Beyer, your reliable contract manufacturer for machining solutions from overseas on beautiful Chiemsee. Since 2007, we have been specialists in manufacturing parts, whether prototypes, individual parts, small, medium or large series, we offer you the ideal solution for your project. With our CNC machining centers, we are able to make from all machinable materials (e.g. steel, stainless steel, aluminum, plastic, etc.) to implement your projects with maximum precision and reliability. Customer satisfaction is our top priority, which is why we also offer an associated measurement report for our workpieces, if required. Don't hesitate to contact us, we will take care of your request.
1 / 3
2 / 3
3 / 3
Übersee, Germany
Member since 2021
Employees5 - 10
Certificates1
Turnover1 - 5 Mil.
Year of foundation2007
Marketing documents
Competencies
Technologies
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 1–10 kg |
Electromechanical assembly | 1–10 kg |
Turning
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Turning | 1–100 k | 1–470 mm | — | — | 1–240 mm | — |
Automatic turning (bar) | 1–100 k | 1–470 mm | — | — | 1–240 mm | — |
Full-range turning (including milling) | 1–100 k | 1–470 mm | — | — | 1–240 mm | — |
Deep-hole drilling | 1–1,000 | 20–30 mm | 1–15 mm | 20–100 mm | 1–15 mm | 0.1–20 kg |
Centering / end facing | 1–100 k | 1–470 mm | — | — | 1–240 mm | — |
Shaft machining | 1–100 k | 1–450 mm | — | — | 1–240 mm | 0.1–20 kg |
Measuring & Testing
| Technologies | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|
Measuring / testing | 1–200 mm | 1–200 mm | 1–200 mm | 1–200 mm | 0.1–10 kg |
Jigmaking
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Drilling / milling jigs | 1–500 mm | 1–250 mm | 1–250 mm | 0.1–20 kg |
Additive Manufacturing
| Technologies | Lotsize | Length | Width | Height |
|---|---|---|---|---|
Fused deposition modelling (FDM) | 1–200 | 1–300 mm | 1–300 mm | 1–300 mm |
Stereolithography (SLA) | 1–200 | 1–145 mm | 1–145 mm | 1–185 mm |
Surface Treatment
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Anodizing | 1–10,000 | 1–1,100 mm | 1–400 mm | 1–1,200 mm | — | 0–250 kg | — |
Blacking | 1–100 k | 1–1,000 mm | 1–600 mm | 1–550 mm | — | 0–600 kg | — |
Electropolishing | 1–100 k | 1–1,000 mm | 1–700 mm | 0–1 mm | — | — | — |
Electroplating | 1–100 k | 1–3,000 mm | 1–1,500 mm | 1–500 mm | — | 0–800 kg | — |
Powder coating | 1–100 k | 1–8,500 mm | 1–1,500 mm | 1–3,000 mm | — | 0–5,000 kg | — |
Rotofinishing, barrel finishing | 1–10,000 | 1–500 mm | 1–180 mm | 1–100 mm | — | — | — |
Parts cleaning/degreasing | 1–5,000 | 1–235 mm | 1–175 mm | 1–120 mm | — | 0–5 kg | — |
Galvanizing | 1–100 k | 1–3,000 mm | 1–1,500 mm | 1–500 mm | 1–240 mm | 0–800 kg | 1–500 mm |
Threading
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Thread grinding | 1–2 | 1–2 mm | 1–2 mm | 1–2 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Milling | 1–10,000 | 1–1,020 mm | 1–600 mm | 1–600 mm | — |
5-axis milling machines | 1–10,000 | 1–750 mm | 1–650 mm | 1–560 mm | — |
HSC milling | 1–10,000 | 1–750 mm | 1–650 mm | 1–560 mm | 0–600 kg |
Finishing
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Surface grinding machine | 1–100 | 10–400 mm | 10–150 mm | 5–100 mm | 0.1–10 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Sawing | 1–10,000 | 1–6,000 mm | 1–265 mm | 1–200 mm | 1–200 mm | — |
Drilling / threading / tapping | 1–1,000 | 1–100 mm | 1–15 mm | 1–100 mm | — | 0.1–20 kg |
Labelling / marking
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Laser marking / Laser inscription | 1–10,000 | 1–450 mm | 1–110 mm | 1–400 mm | 1–65 mm |
Materials
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Plastics/synthetic materials
ThermoplasticsAcrylic (PMMA)High performance plastic
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Cast metals
Cast steelCast iron
Industries
Machine tool manufacturingMedical technologyHydraulic and pneumatic industryAutomation and control engineeringElectrical industryDrive and gear engineeringPackaging industryFittings engineeringBuilding, agricultural and forestry machinery manufacturingMining and tunnel engineeringSpecial purpose machinery manufacturingMilitary engineeringPaper and printing machinery industryMechanical engineeringAerospace and aviation industryPlant engineering and constructionAutomotive and vehicle constructionAir conditioning, refrigeration and ventilation industryChemical industryRailway and rail vehicles industryMeasurement and control technique, laboratory equipmentShipbuilding industry
Certificates
No certificates
Parts & Machines
Machinery (6)
1 / 6

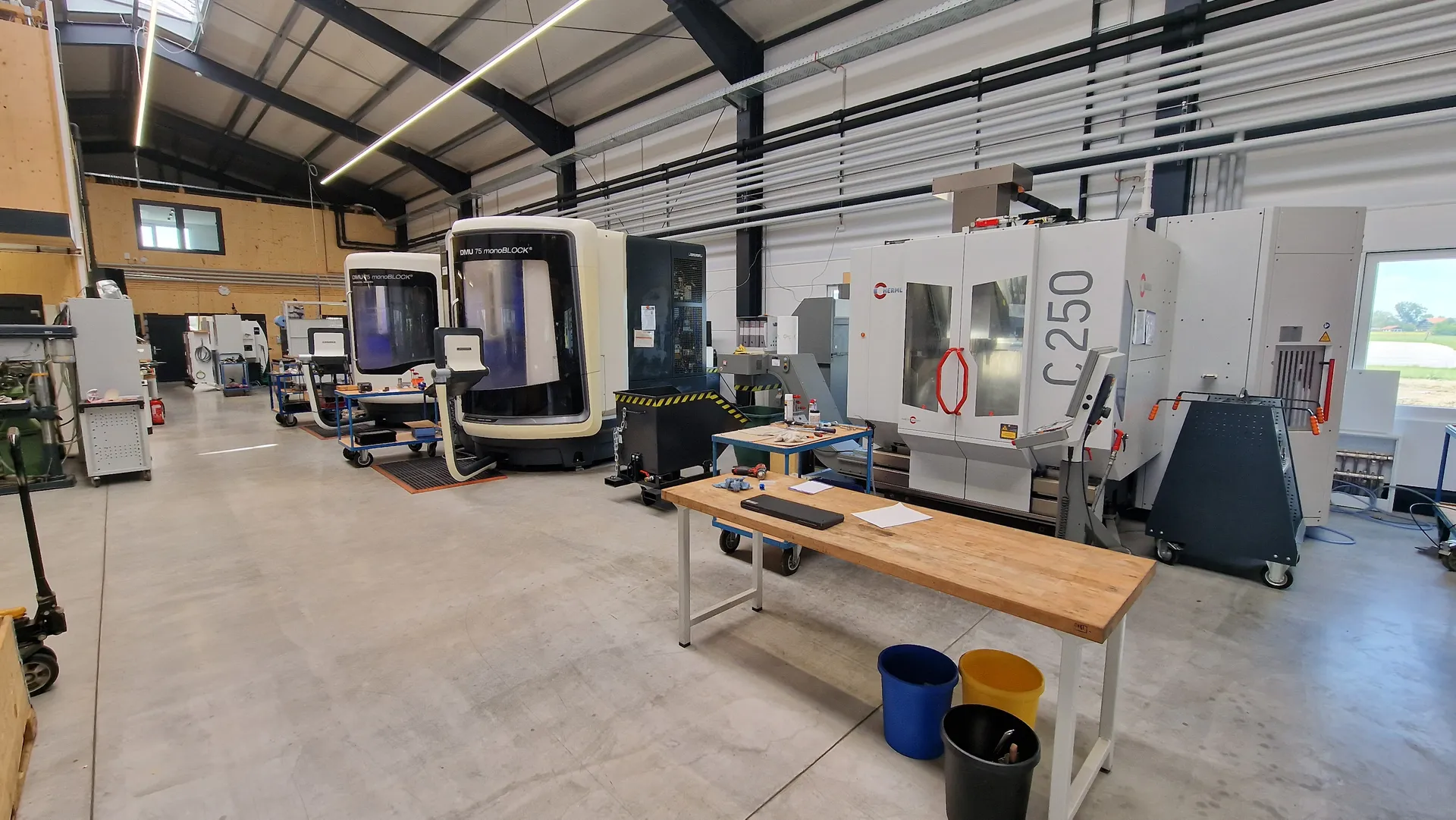

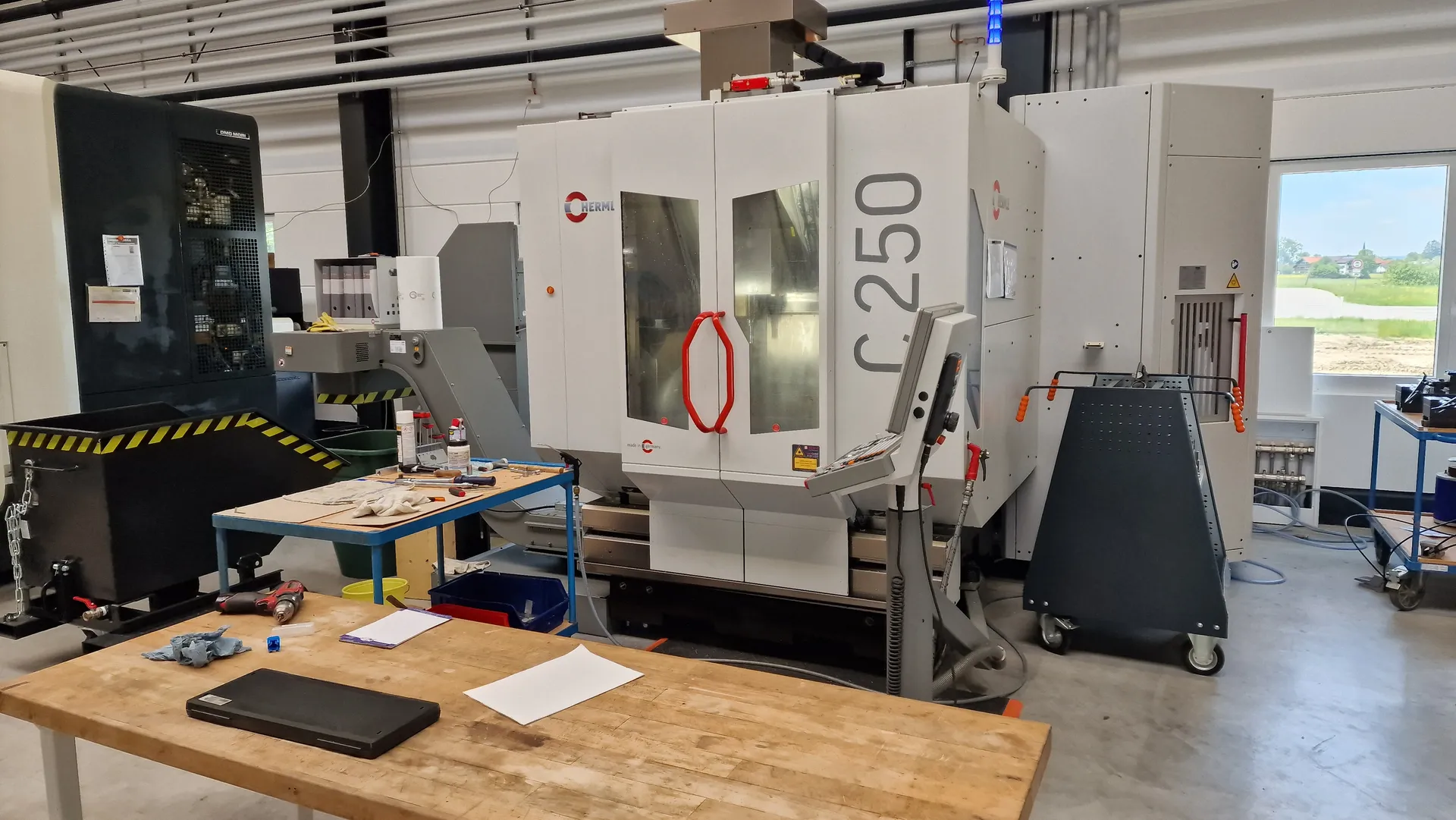

C 250
ManufacturerHermle
ControlHeidenhain
Year of Construction2022
Technology
Milling5-axis milling machines
2 / 6

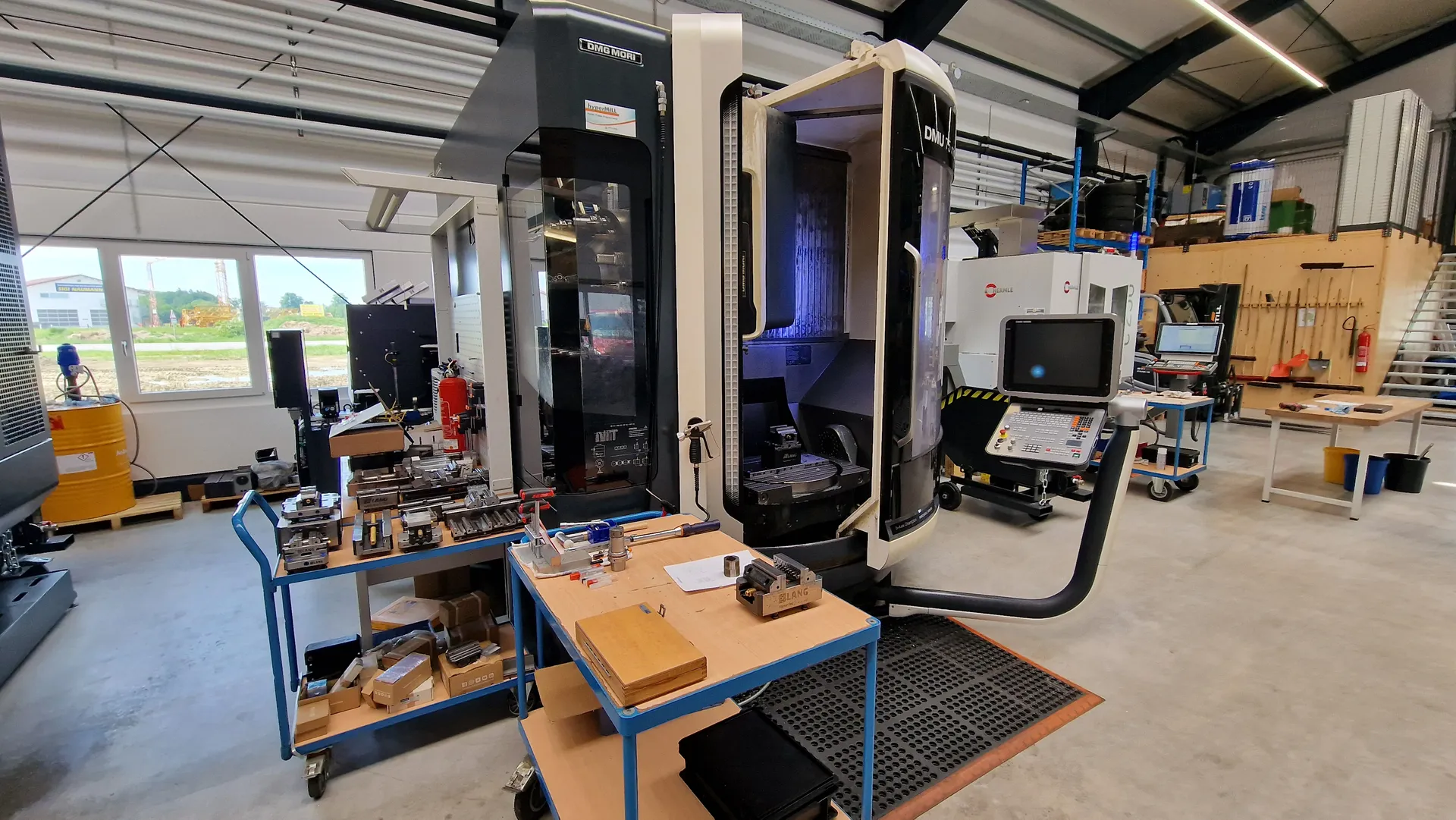

DMU 75 monoBLOCK
ManufacturerDMG MORI
ControlHeidenhain
Year of Construction2013
Technology
Milling5-axis milling machines
3 / 6

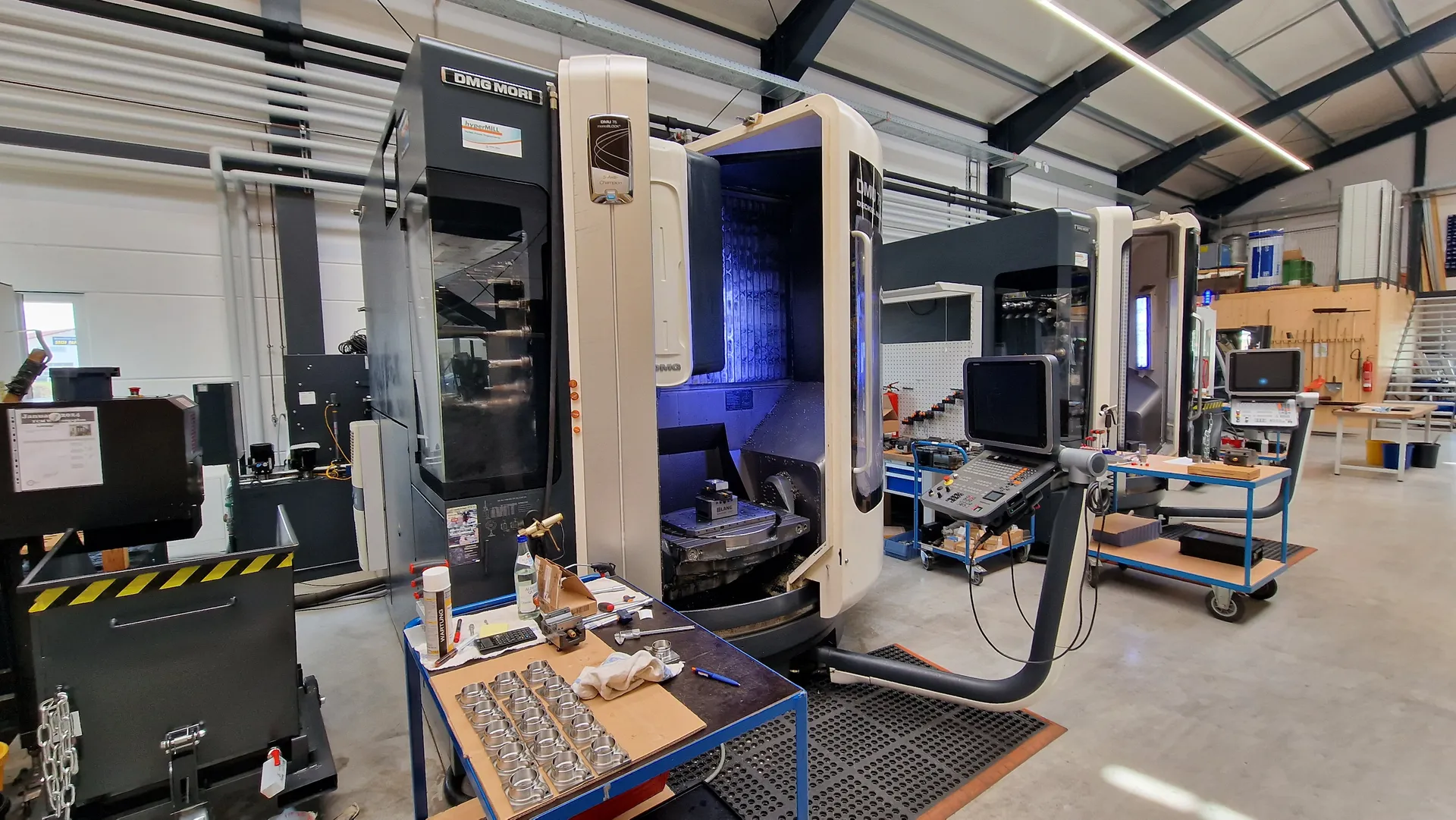

DMU 75 monoBLock
ManufacturerDMG MORI
ControlHeidenhain
Year of Construction2018
Technology
5-axis milling machinesMilling
4 / 6

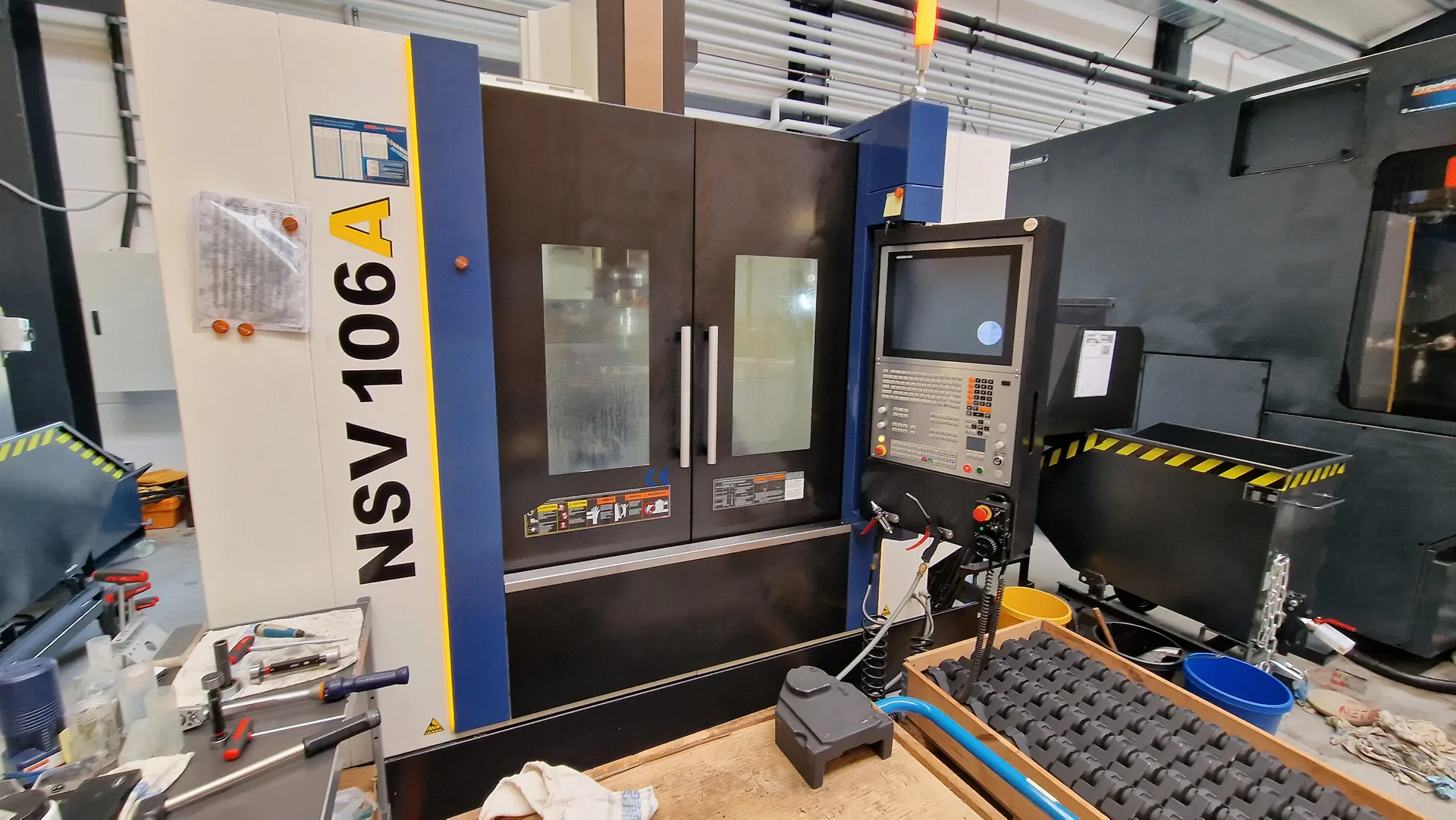

NSV 106A
ManufacturerYCM
ControlHeidenhain
Year of Construction2018
Technology
Milling
5 / 6

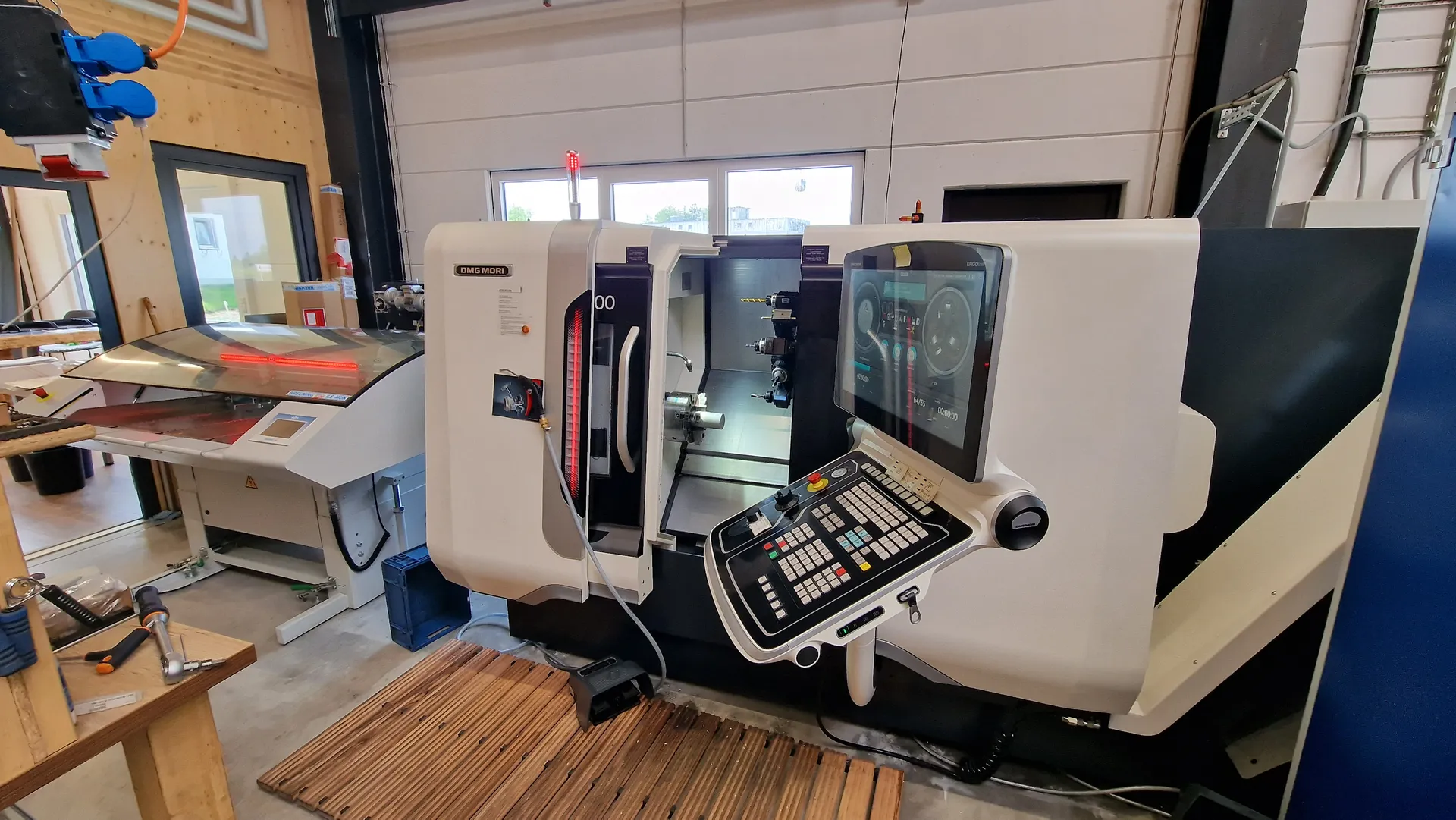

CTX alpha 500
ManufacturerDMG mori
ControlSiemens
Year of Construction2023
Technology
Turning
6 / 6

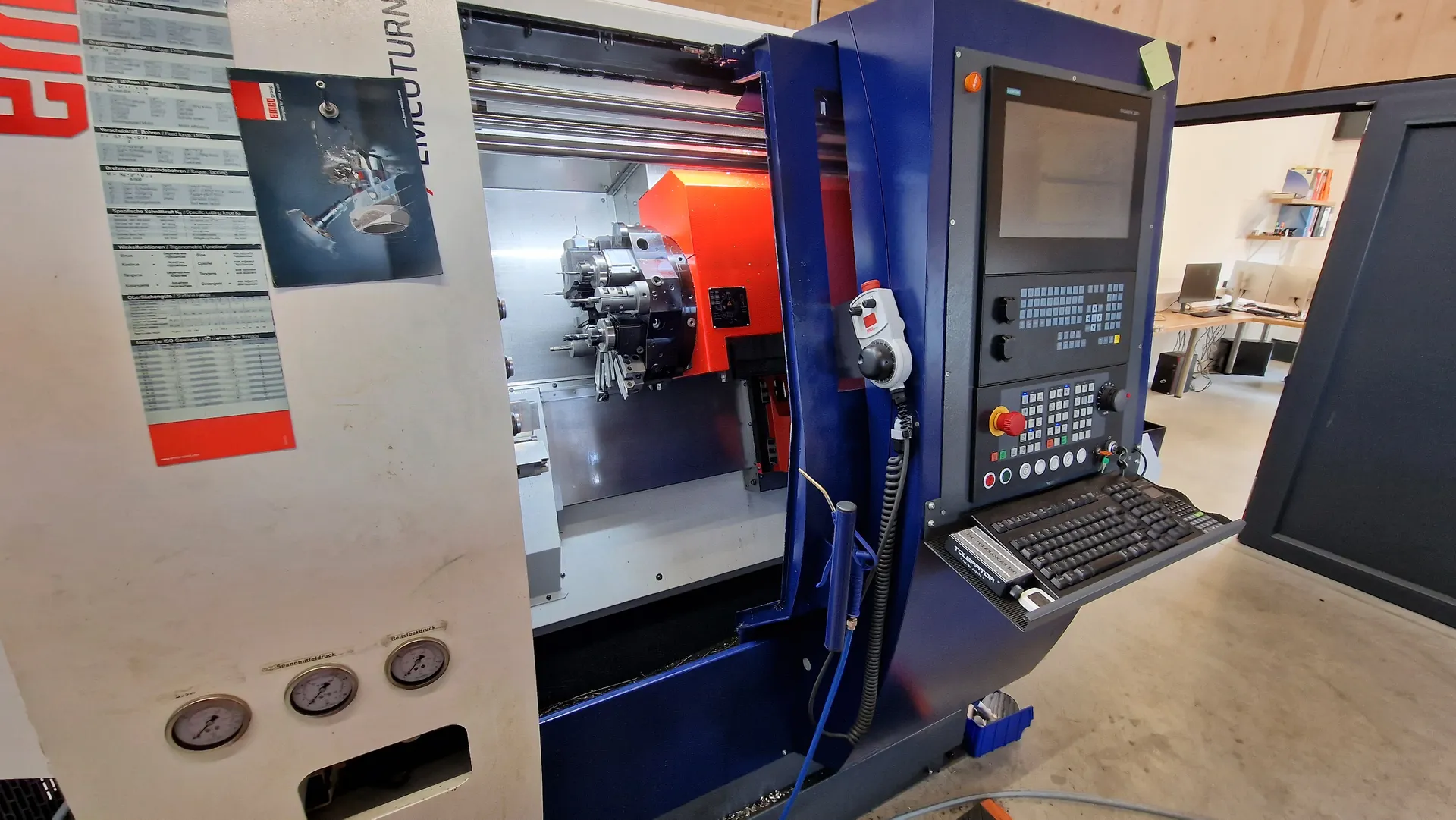

E 45
ManufacturerEmco
ControlSiemens
Year of Construction2020
Technology
Turning
6 Machinery
Milling4
5-axis milling machines3
Turning2
Contact
Location
Main locationAm Entenfled 4, 83236 Übersee, Germany
Company contact
Contact persons
LL
Ludwig Liedl
