Zerspanungstechnik Mungel
Germany, 63846 Laufach
Overview
About Zerspanungstechnik Mungel
Who we are

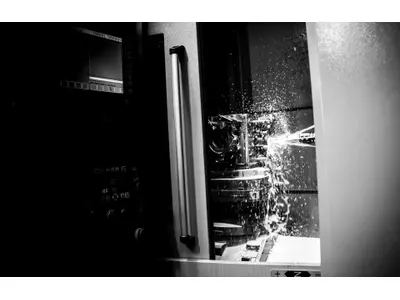

We are a young, dynamic company based in Laufach. Since the foundation, we have built up modern machinery for high-quality metalworking on a production area of more than 450m². From small to large series, from the raw part to the finished end product, we are your contract manufacturer. High quality and adherence to deadlines are a matter of course for us and are just as much a part of us as customer loyalty. Our 4 axis horizontal machining centers are equipped with up to 8 pallets and 150 tools to process large series. All vertical turning centers are equipped with powered tools and indexing belts to deliver competitive prices "Made in Germany".
1 / 6
2 / 6
3 / 6
4 / 6
5 / 6
6 / 6
Laufach , Germany
Member since 2021
Employees5 - 10
Certificates1
Year of foundation2015
Marketing documents
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Turning | 100–500 k | 25–3,200 mm | 50–320 mm | — |
Full-range turning (including milling) | 100–500 k | 20–1,000 mm | 50–300 mm | — |
Centering / end facing | 2–250 | 500–3,000 mm | 50–300 mm | — |
Shaft machining | 2–250 | 500–3,000 mm | 50–320 mm | 0–2,000 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Milling | 100–500 k | 0–650 mm | 0–650 mm | 0–650 mm | — |
5-axis milling machines | 100–500 k | 0–650 mm | 0–650 mm | 0–650 mm | — |
Form milling (3 D) | 100–1,000 | 0–650 mm | 0–650 mm | 0–650 mm | — |
Full-range milling (including turning) | 10–250 | 50–650 mm | 50–650 mm | 50–650 mm | 30–600 mm |
Materials
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Cast metals
Cast steelCast iron
Light metals
Aluminium and aluminium alloys
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steel
Industries
Railway and rail vehicles industryMechanical engineeringHydraulic and pneumatic industryMachine tool manufacturingAutomotive and vehicle constructionBuilding, agricultural and forestry machinery manufacturingPaper and printing machinery industry
Certificates
ISO 9001:2015
Parts & Machines
Parts (9)
1 / 9

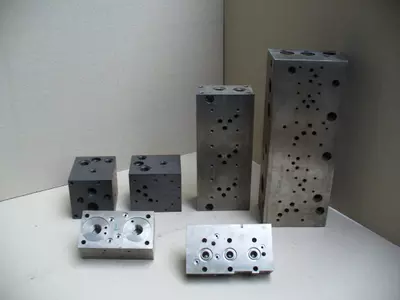

Steuerblöcke
TechnologyMilling
MaterialCast iron
Lotsize500
ComplexityLow
IndustriesHydraulic and pneumatic industry
DescriptionDiverse Steuerblöcke aus Strangguss GGG40.
Bearbeitung: Fräsen, Schleifen, Bohren, Tieflochbohren, Thermisch Entgraten (TEM),
2 / 9

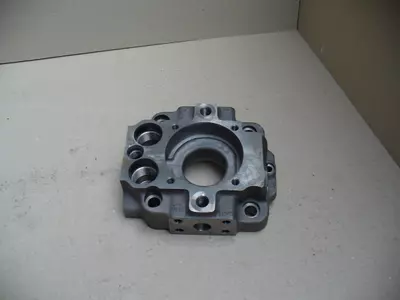

Pumpengehäuse
TechnologyFull-range milling (including turning)
MaterialCast iron
Dimensions
Length180 mm
Diameter84 mm
Height65 mm
Width155 mm
Lotsize16300
ComplexityLow
IndustriesHydraulic and pneumatic industry
DescriptionPumpengehäuse aus GGG40.
Bearbeitung: Drehen, Fräsen, Bohren, Entgraten
3 / 9

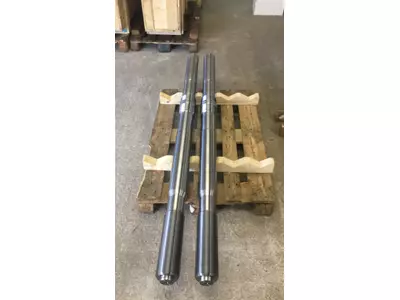

Kolbenstangen
TechnologyTurning
MaterialCase hardening/tempering steel
Lotsize250
IndustriesMechanical engineering
DescriptionKolbenstange aus Fertigmaterial 20MnV6:
Bearbeitung: Drehen
4 / 9

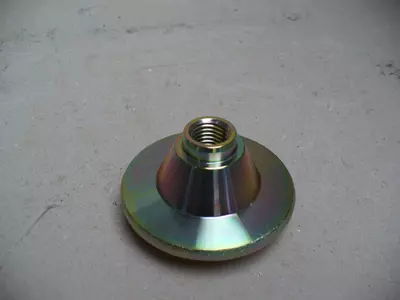

Adapterflansch
TechnologyTurning
MaterialCase hardening/tempering steel
Lotsize35000
IndustriesAutomotive and vehicle construction
DescriptionAdapterflansch aus Schmiederohling.
Bearbeitung: Drehen, Oberflächenbehandlung
5 / 9

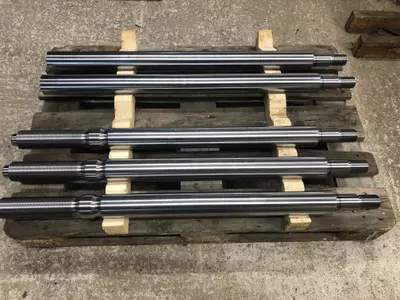

Kolbenstangen
TechnologyFull-range turning (including milling)
MaterialCase hardening/tempering steel
Lotsize120
ComplexityLow
IndustriesMechanical engineering
DescriptionKolbenstangen aus 42CrMo4V.
Bearbeitung: Drehen, Fräsen, Schleifen, Verchromen
6 / 9

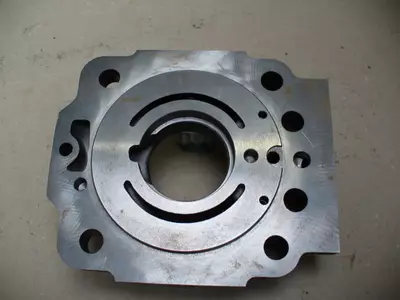

Steuerboden
TechnologyFull-range milling (including turning)
MaterialCast iron
Dimensions
Height75 mm
Width145 mm
Diameter84 mm
Length190 mm
Lotsize28650
ComplexityLow
IndustriesHydraulic and pneumatic industry
DescriptionSteuerboden aus GGG40.
Bearbeitung: Drehen, Fräsen, Bohren, Thermisches Entgraten (TEM))
7 / 9

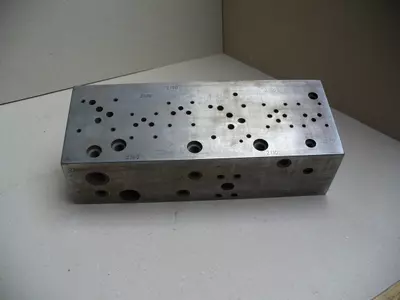

Steuerblock
TechnologyMilling
MaterialCast iron
Dimensions
Width150 mm
Length500 mm
Height140 mm
Lotsize800
ComplexityMedium
IndustriesHydraulic and pneumatic industry
DescriptionSteuerblock aus GGG40.
Bearbeitung: Fräsen, Schleifen, Bohren, Tieflochbohren, Thermisches Entgraten (TEM), Reinigen
8 / 9

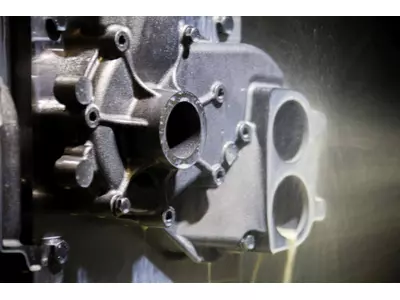

Gehäuse
TechnologyMilling
MaterialCast iron
Lotsize11720
ComplexityLow
IndustriesAutomotive and vehicle construction
DescriptionGehäuse aus GGG40.
Bearbeitung: Fräsen, Bohren, Spindeln, Entgraten,
9 / 9

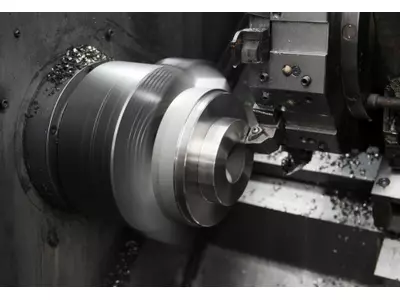

Flansch
TechnologyFull-range turning (including milling)
MaterialCase hardening/tempering steel
Lotsize6200
IndustriesMechanical engineering
DescriptionFlansch aus 42CrMo4V.
Bearbeitung: Drehen, Fräsen
Machinery (11)
1 / 11

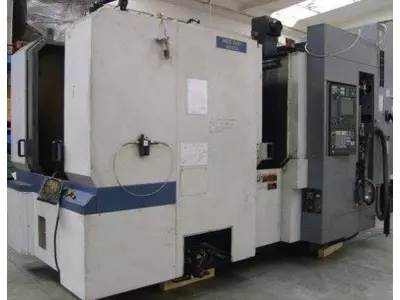

SH5000
ManufacturerMori Seiki
ControlFanuc
Year of Construction2009
Technology
Full-range milling (including turning)MillingForm milling (3 D)
2 / 11

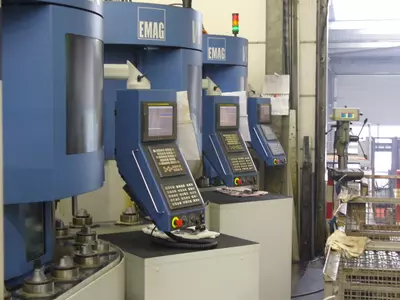

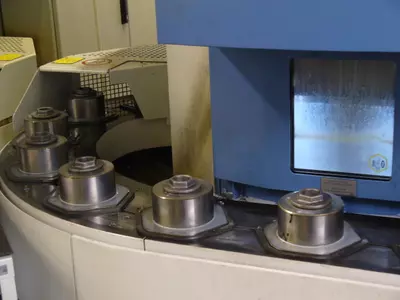

VL5
ManufacturerEMAG
ControlFanuc
Year of Construction2007
Technology
TurningFull-range turning (including milling)
3 / 11

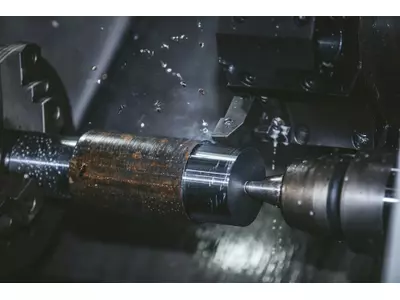

SuperTurn3
ManufacturerNakamura
ControlFanuc
Year of Construction2004
Technology
Shaft machiningTurning
4 / 11

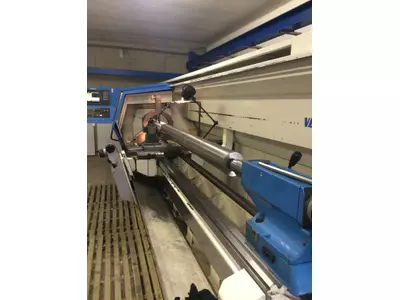

DUS560
ManufacturerVDF-Boehringer
ControlSiemens
Year of Construction2005
Technology
Shaft machiningTurningCentering / end facing
5 / 11

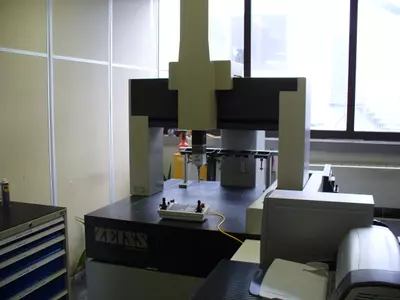

PMC850
ManufacturerZEISS
ControlCalypso
Year of Construction2006
6 / 11

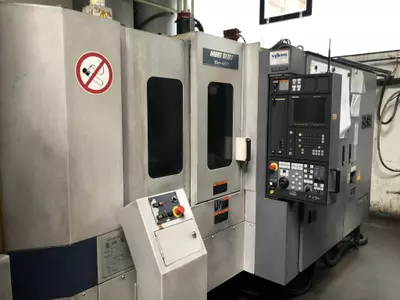

SH400
ManufacturerMorie Seiki
ControlFanuc
Year of Construction2002
Technology
Form milling (3 D)MillingFull-range milling (including turning)
7 / 11

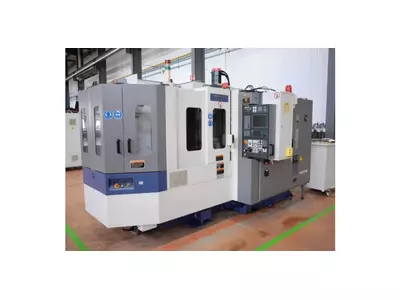

SH503
ManufacturerMorie Seiki
ControlFanuc
Year of Construction2003
Technology
Form milling (3 D)Full-range milling (including turning)Milling
8 / 11
VL5
ManufacturerEMAG
ControlFanuc
Year of Construction2006
Technology
TurningFull-range turning (including milling)
9 / 11
VL5
ManufacturerEMAG
ControlFanuc
Year of Construction2008
Technology
Full-range turning (including milling)Turning
10 / 11
SuperTurn3
ManufacturerNakamura
ControlFanuc
Year of Construction2000
Technology
Shaft machiningCentering / end facingTurning
11 / 11
Technology
Milling
9 Parts
Milling3
Full-range milling (including turning)2
Turning2
Full-range turning (including milling)2
11 Machinery
Full-range milling (including turning)3
Milling4
Form milling (3 D)3
Turning6
Full-range turning (including milling)3
Shaft machining3
Centering / end facing2
Contact
Location

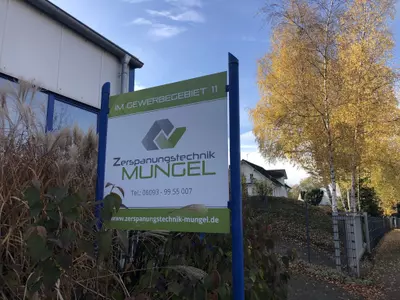

Main locationIm Gewerbegebiet 11, 63846 Laufach , Germany
Company contact
Contact persons
MM
Max- Ferdinand Mungel
