Competencies

Technologies

Sheet Metal Forming (Stamping, Deep-drawing)

Technologies	Lotsize	Length	Width	Diameter	Material thickness
Punching / pressing (Out-of-tool)	1–10 M	5–1,000 mm	5–1,000 mm	—	—
Stamping and bending machine (Bihler)	1–1 M	5–50 mm	5–50 mm	—	1–5 mm
Deep-drawing	1–10 M	—	—	—	—
Fineblanking / pressing	1–10 M	5–3,000 mm	5–1,500 mm	—	—
Spinning	1–10 M	—	—	100–500 mm	0.5–5 mm

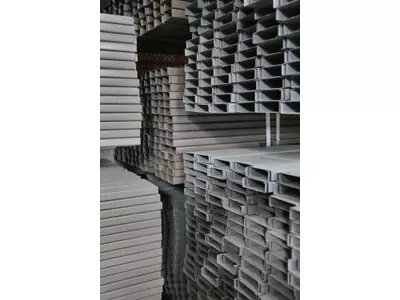

Roll forming	1–10 M	5–10,000 mm	5–200 mm	—	0.5–5 mm
Plate rolling / bending	1–10 M	—	5–600 mm	—	0.5–5 mm

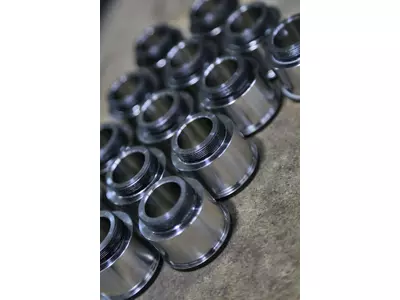

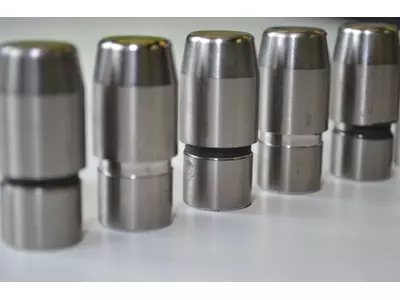

Turning

Technologies
Turning
Automatic turning (bar)
Swiss turning
Full-range turning (including milling)
Hard turning
Broaching
Deep-hole drilling
Centering / end facing
Shaft machining

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Weight	Material thickness
Laser cutting 2D	1–10 M	5–3,000 mm	5–1,500 mm	0–1,000 kg	0.5–8 mm
Bending / folding	1–10 M	20–3,000 mm	—	—	0.5–10 mm

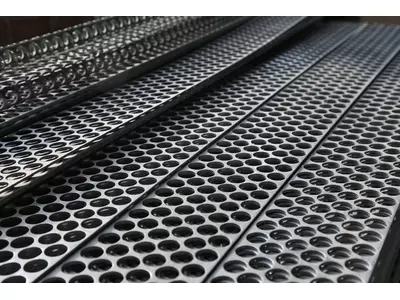

Punching / nibbling	1–10 M	5–600 mm	5–400 mm	0–100 kg	0.5–5 mm
Combined forming laser cutting / punching	1–10 M	2–3,000 mm	2–1,500 mm	0–1,000 kg	0.5–8 mm
Oxyacetylene cutting	1–10 M	20–1,500 mm	20–15,000 mm	0–2,000 kg	1–50 mm
Plasma fusion cutting	1–10 M	30–2,000 mm	30–1,500 mm	0–1,000 kg	2–50 mm
Plate straightening	1–10 M	—	20–1,500 mm	—	1–10 mm
Shearing (rectangular blank/strip)	1–10 M	—	—	—	1–20 mm

Etching and Spark Erosion

Technologies	Lotsize	Length	Width	Height	Weight
Spark erosion wire cutting	1–10 M	1–500 mm	1–500 mm	1–40 mm	0–100 kg

Heat Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Hardening	1–10 M	1–800 mm	1–400 mm	1–400 mm	1–400 mm	0–100 kg
Induction hardening	1–10 M	1–800 mm	1–400 mm	1–400 mm	1–400 mm	0–100 kg

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Molten metal immersion	1–10 M	1–6,000 mm	1–1,000 mm	1–1,000 mm	—	0–2,000 kg	—
Powder coating	1–10 M	1–3,000 mm	1–1,500 mm	1–1,500 mm	—	0–2,000 kg	—
Rotofinishing, barrel finishing	1–10,000	1–200 mm	1–5 mm	1–200 mm	—	—	—
Parts cleaning/degreasing	—	1–3,000 mm	1–1,500 mm	1–1,500 mm	—	0–2,000 kg	—
Sand blasting	1–10,000	1–3,000 mm	1–1,500 mm	1–1,500 mm	—	0–2,000 kg	—

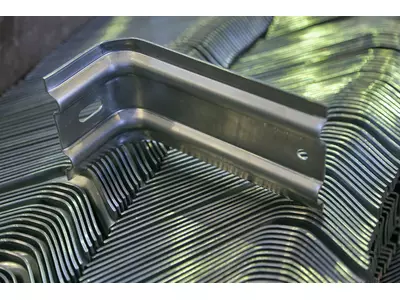

Galvanizing	1–10 M	1–3,000 mm	1–1,000 mm	1–1,000 mm	1–1,000 mm	0–1,000 kg	0.5–1,000 mm

Materials

Cast metals

Cast steelCast iron

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
