ZN-Metall GmbH
Germany, 84576 Teising
Overview
About ZN-Metall GmbH
Who we are
ZN-Metall GmbH, based in Teising, was founded in 2016 by Andreas Nold and Christian Zerbin. In the meantime, the production area has been expanded to a total of approx. 3.000 qm with a second location in Heldenstein. Our modern machinery, consisting of innovative machining centers, meets the highest requirements for all production components. This wide range of production, our motivated team and many years of experience in metalworking make us your ideal partner when it comes to manufacturing all types of components — from prototypes to series production — from individual parts to small and large series In our profile processing processes, we specialize in non-ferrous alloys. In this way, we combine our strengths and guarantee proven quality — tailored to your individual requirements. As a metal processing company, we produce according to your drawings in the required quality at competitive prices. In doing so, we always pay attention to the best compromise between optimal resource conservation, economic efficiency and production processes. For us, effective work processes are an essential part of order processing. From the blank to the finished product, we deliver everything from a single source.
1 / 7
2 / 7
3 / 7
4 / 7
5 / 7
6 / 7
7 / 7
Teising, Germany
Member since 2017
Employees20 - 50
Certificates1
Turnover10 - 20 Mil.
Year of foundation2016
Marketing documents
Competencies
Technologies
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–2,000 kg |
Industrial / On-site-assembly | 0–2,000 kg |
Pipe & Tube Manufacturing
| Technologies | Lotsize | Length | Width | Height | Diameter | Material thickness |
|---|---|---|---|---|---|---|
Pipe bending | from 1 | from 1,500 mm | — | — | from 50 mm | from 4 mm |
Laser cutting, tube & section | from 1 | from 0 mm | from 0 mm | from 0 mm | — | from 0 mm |
Machining (Extruded Profiles)
| Technologies | Width | Height | Weight |
|---|---|---|---|
Machining of extruded sections | 20–300 mm | 20–300 mm | 0–100 kg |
Sheet Metal Processing
| Technologies | Lotsize | Length | Width | Material thickness |
|---|---|---|---|---|
Laser cutting 2D | from 1 | from 0 mm | from 0 mm | from 0 mm |
Bending / folding | 1–50,000 | 1–3,000 mm | — | 0.5–4 mm |
Punching / nibbling | from 1 | from 0 mm | from 0 mm | from 0 mm |
Shearing (rectangular blank/strip) | 1–50,000 | — | — | 0.5–6 mm |
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Welded constructions (weldments) | 50–6,000 mm | 50–6,000 mm | 50–6,000 mm | 0–6,000 kg |
Machine frames / bases / racks | 50–6,000 mm | 50–6,000 mm | 50–6,000 mm | 0–6,000 kg |
Beam prefabrication | 50–6,000 mm | 50–6,000 mm | 50–6,000 mm | 0–2,000 kg |
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 1–5,000 | 50–6,000 mm | 50–6,000 mm | 50–6,000 mm | — | 0–500 kg | — |
Inert gas shielded arc welding (TIG) | 1–5,000 | 50–6,000 mm | 50–6,000 mm | 50–6,000 mm | — | 0–500 kg | — |
Manual electrode welding | 1–1,000 | 50–6,000 mm | 50–6,000 mm | 50–6,000 mm | 30–300 mm | 0–1,000 kg | 3–30 mm |
Stud welding | 1–5,000 | — | — | — | — | — | — |
Assembly Group Manufacturing
| Technologies | Lotsize | Length | Width | Material thickness |
|---|---|---|---|---|
Riveting | 1–100 k | 1–6,000 mm | 1–6,000 mm | 0.5–5 mm |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Sawing | 1–100 k | 10–6,000 mm | 10–300 mm | 10–300 mm | 10–300 mm | — |
Drilling / threading / tapping | 1–100 k | 10–6,000 mm | 10–6,000 mm | 10–6,000 mm | — | 0–200 kg |
Surface Treatment
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Powder coating | 1–1,000 | 1–6,000 mm | 1–2,000 mm | 1–2,000 mm | — | 0–500 kg | — |
Rotofinishing, barrel finishing | 1–10,000 | 5–200 mm | 5–200 mm | 5–200 mm | — | — | — |
Sand blasting | 1–1,000 | 100–6,000 mm | 50–6,000 mm | 50–6,000 mm | — | 0–500 kg | — |
Galvanizing | 1–1,000 | 50–6,000 mm | 50–6,000 mm | 50–6,000 mm | 50–500 mm | 0–1,000 kg | 3–30 mm |
Materials
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Industries
Power generation and transmission industryPlant engineering and constructionMechanical engineeringFurniture industry
Certificates
DIN EN 1090
Parts & Machines
Parts (2)
1 / 2

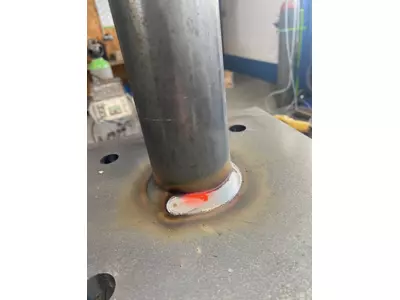

Konsole 1
TechnologyInert gas shielded arc welding (MIG/MAG)
MaterialSteel
Dimensions
Length250 mm
Width250 mm
Height800 mm
Weight15 mm
Lotsize0
2 / 2
Konsole 2
TechnologyInert gas shielded arc welding (MIG/MAG)
MaterialSteel
Dimensions
Height800 mm
Weight15 mm
Length250 mm
Width250 mm
Lotsize0
Machinery (7)
1 / 7

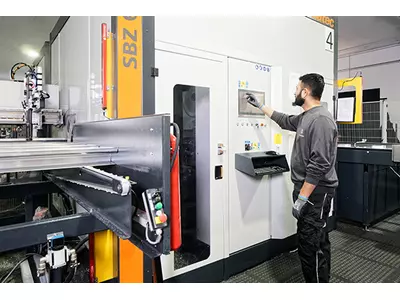

SBZ 628 XL Stabbearbeitungszentrum
Manufacturerelumatec
2 / 7

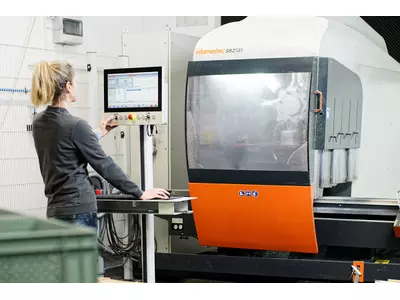

SBZ 131 Stabbearbeitungszentrum
Manufacturerelumatec
3 / 7

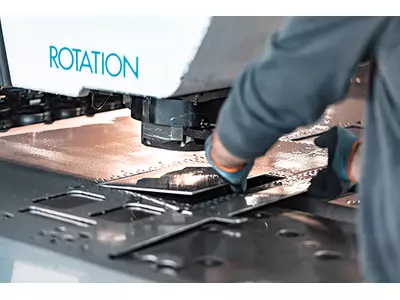

TC 200R
ManufacturerTrumpf
4 / 7

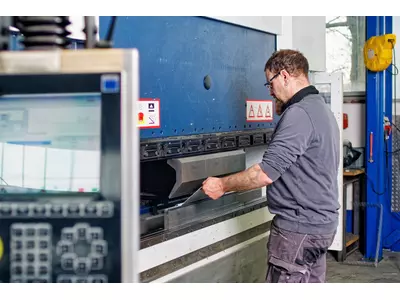

TruBend 3120
ManufacturerTrumpf
5 / 7

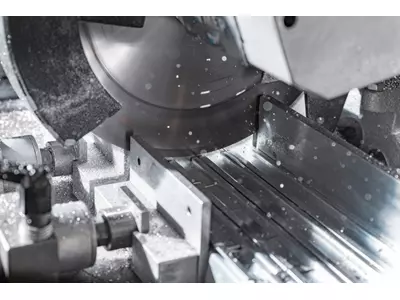

Cobra 352 NC 5.0
ManufacturerZimmer
6 / 7

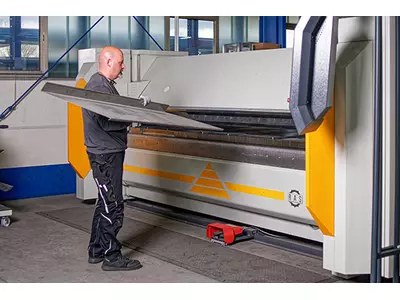

GIGAbend
ManufacturerRAS
7 / 7

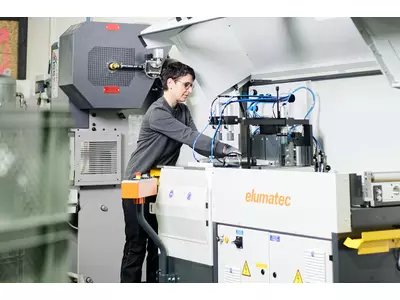

SA142/37
Manufacturerelumatec
2 Parts
Inert gas shielded arc welding (MIG/MAG)2
7 Machinery
Contact
Location

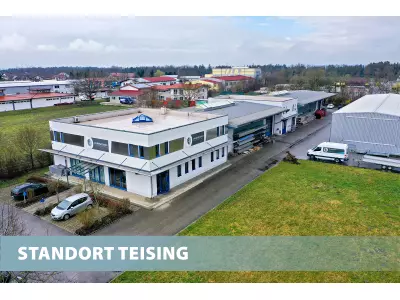

Main locationGewerbering 8a, 84576 Teising, Germany

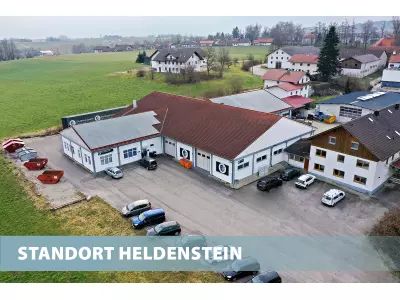

Further locationsHeldenstein
