ASM Metallbearbeitung

Germany, 42929 Wermelskirchen

Overview

About ASM Metallbearbeitung

Who we are

Welcome to asm! As a certified specialist company, we provide you with precision turned, milled and eroded parts with over 20 years of experience. We specialize in the CNC processing of complex high-tech components and rely on high-quality materials and the best quality of implementation. Our qualified employees support you with your project and work closely with you so that we can perfectly implement your individual ideas and requirements. With ultra-modern machines combined with our many years of experience, we focus on effectiveness and flexibility. Thanks to our 100% control and an “all-in-one service”, we offer the highest quality and safety in the long term and take full responsibility for the implementation of your project. Our products are guaranteed to be free from steel contamination! We rely on a high level of vertical integration and good cooperation partners in order to be able to offer you a wide range of services. With us, you not only receive high-quality CNC processing, but also active support with your project. Get in touch with us now and see for yourself.

1 / 1

Wermelskirchen, Germany

Member since 2023

Premium Member since 2024

Employees10 - 20

Certificates1

Turnover1 - 5 Mil.

Year of foundation1999

Marketing documents

asm-zertifikat_iso9001-2015_13.12.2024.pdfPDF File

Competencies

Technologies

Turning

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Turning	1–10,000	0–1,000 mm	—	—	4–435 mm	—
Full-range turning (including milling)	1–10,000	0–3,000 mm	—	—	4–800 mm	—
Hard turning	1–10,000	0–315 mm	—	—	4–435 mm	—
Deep-hole drilling	1–10,000	0–3,000 mm	0–800 mm	0–800 mm	0.1–30 mm	0–3,000 kg
Centering / end facing	1–10,000	0–3,000 mm	—	—	4–500 mm	—
Shaft machining	1–10,000	0–3,000 mm	—	—	4–500 mm	0–3,000 kg

Mould construction

Technologies	Lotsize	Length	Width	Height	Weight
Injection moulds	—	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Pressure die cast molds	—	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Gravity casting moulds	—	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Modelmaking	—	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Foam molds	1–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Squeeze moulds	—	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Vacuum deep-drawing moulds	—	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Forging dies	—	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Sintering	—	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Extrusion dies	—	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Blow moulds	—	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Weight
Anodizing	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Pickling	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Electropolishing	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	—
Electroplating	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Rotofinishing, barrel finishing	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	—
Powder coating	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Parts cleaning/degreasing	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Sand blasting	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Nickel plating	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg

Additive Manufacturing

Technologies	Lotsize	Length	Width	Height
Fused deposition modelling (FDM)	0–50,000	0–360 mm	0–360 mm	0–360 mm
3D printing (general)	0–50,000	0–360 mm	0–360 mm	0–360 mm

Etching and Spark Erosion

Technologies	Lotsize	Length	Width	Height	Weight

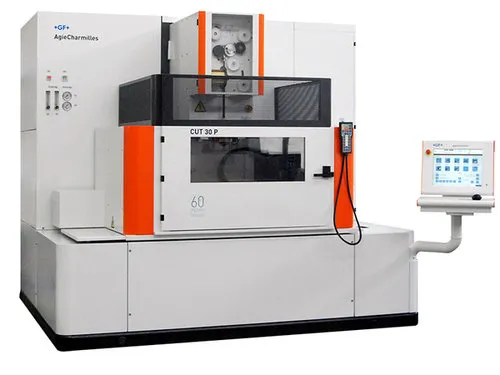

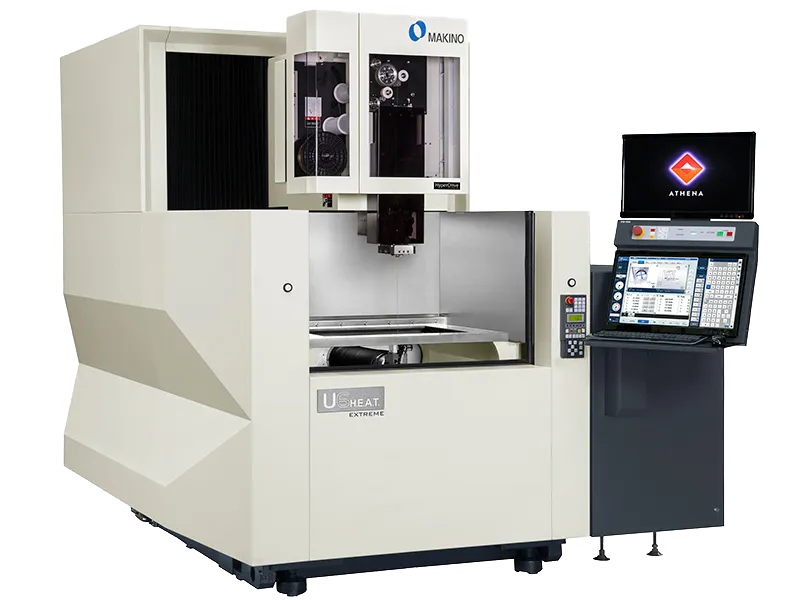

Spark erosion wire cutting	0–50,000	0–1,000 mm	0–800 mm	0–420 mm	0–1,500 kg

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Height	Weight	Material thickness
Laser cutting 2D	1–1,000	from 0 mm	0–1,500 mm	—	—	from 0 mm
Laser cutting 3D	1–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg	1–20 mm

Water jet cutting

Technologies	Lotsize	Length	Width	Material thickness
Water jet cutting 2D	from 1	from 0 mm	from 0 mm	from 0 mm

Cutting dies / deep drawing dies

Technologies	Length	Width	Height	Weight
Punching / Cutting tools	0–100 mm	0–100 mm	0–100 mm	0–100 kg
Fineblanking tools	0–100 mm	0–100 mm	0–100 mm	0–100 kg
Deep-drawing dies	0–1,000 mm	0–850 mm	0–850 mm	0–1,000 kg
Die replacement / wearing part manufacturing	—	—	—	—

Jigmaking

Technologies	Length	Width	Height	Weight
Drilling / milling jigs	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Gauges	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Measuring / testing jigs	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Assembly jigs	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Welding jigs	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg
Clamping devices	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg

Assembly

Technologies	Weight
Mechanical assembly	0–3,000 kg

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight

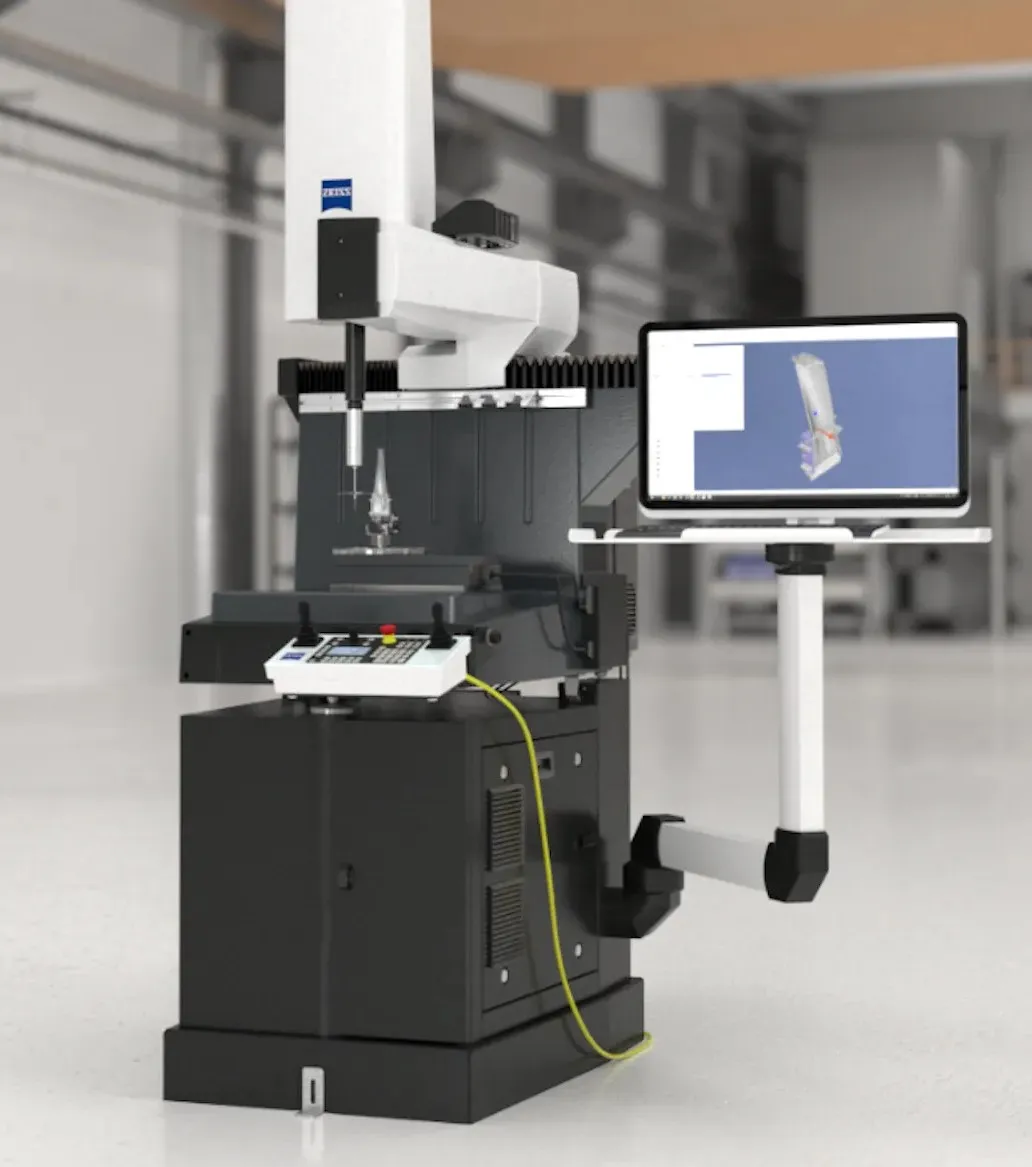

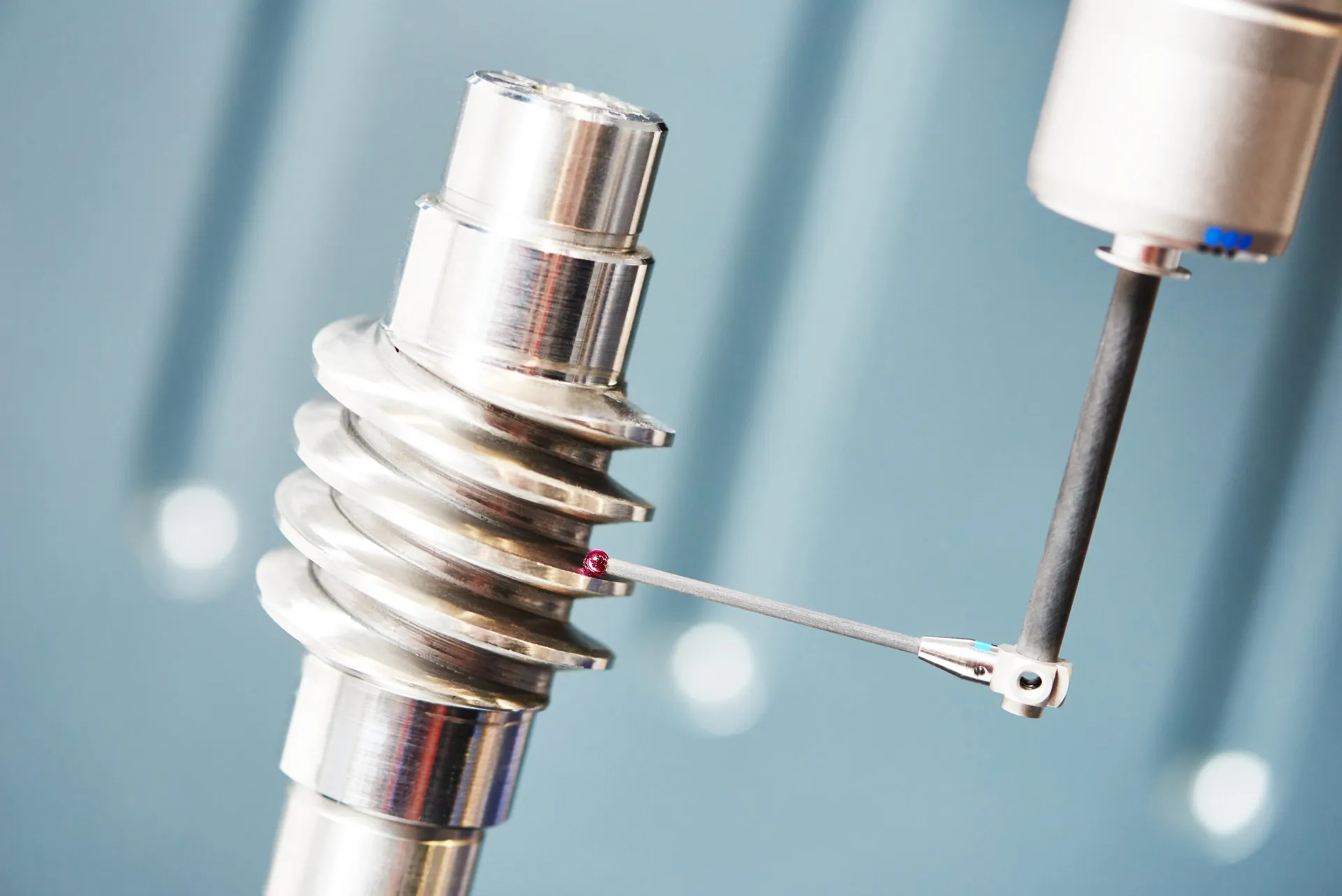

Measuring / testing	0–500 mm	0–500 mm	0–500 mm	1–500 mm	0–500 kg

Heat Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Case hardening/surface hardening	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–850 mm	0–3,000 kg
Annealing	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–850 mm	0–3,000 kg
Hardening	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–850 mm	0–3,000 kg
Vacuum annealing	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–850 mm	0–3,000 kg

Welding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Laser-beam welding	1–1,000	0–500 mm	0–500 mm	0–500 mm	1–600 mm	0–500 kg
Soldering	1–500	0–850 mm	0–850 mm	0–850 mm	4–850 mm	0–1,000 kg

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Milling	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	—	—
5-axis milling machines	0–50,000	0–3,000 mm	0–850 mm	0–850 mm	—	—
Form milling (3 D)	1–50,000	0–3,000 mm	0–850 mm	0–850 mm	—	—
Full-range milling (including turning)	1–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–850 mm	—
HSC milling	1–50,000	0–3,000 mm	0–850 mm	0–850 mm	—	0–1,000 kg
Engraver milling	1–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–850 mm	0–3,000 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Weight
Drilling / threading / tapping	1–50,000	0–3,000 mm	0–850 mm	0–850 mm	0–3,000 kg

Labelling / marking

Technologies	Lotsize	Length	Width	Height	Diameter
Laser marking / Laser inscription	1–50,000	0–400 mm	0–400 mm	0–300 mm	0–400 mm

Materials

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Plastics/synthetic materials

ThermoplasticsHigh performance plastic

Precious metals

SilverGoldPlatinumOther precious metals

Advanced Materials

Nickel alloy (Inconel, Monel, Hastelloy)CarbideSilicium

Non-metal inorganic materials

Ceramics

Industries

Shipbuilding industryBoiler, container and tank construction Paper and printing machinery industryAir conditioning, refrigeration and ventilation industryOffice machinery and suppliesConstruction and architectural suppliesApparatus engineeringFittings engineeringPrecision engineering, mechatronics and opticsAutomotive and vehicle constructionBuilding, agricultural and forestry machinery manufacturingHydraulic and pneumatic industryMechanical engineeringDrive and gear engineeringInformation technology (hardware)Lighting industryAutomation and control engineeringMedical technologyMeasurement and control technique, laboratory equipmentMilitary engineeringSpecial purpose machinery manufacturingTelecommunication industryFurniture industryElectrical industryAerospace and aviation industryHousehold appliance industryPlant engineering and constructionMining and tunnel engineeringChemical industryRailway and rail vehicles industryPower generation and transmission industryClean room technologyPackaging industry

+25 moreShow less
