Overview
About Dradin & Fils Sprl (Ets)<br>Your Aluminium Finished Part<br>Gravity Die Casting - Anodizing
Who we are
Our vocation is the mass production of articles out of die-cast aluminium alloy, in metal chill casting by gravity as well as their finishes. Also the aluminium alloys that can be anodized ( Al-Mg ), although quite often " refused " by foundries because of the difficulties in implementation. As the foundry has an integrated buffing and anodization workshop, we are particularly qualified in making aspects parts and producing and delivering a finished product. (www.dradin.com)
1 / 9
2 / 9
3 / 9
4 / 9
5 / 9
6 / 9
7 / 9
8 / 9
9 / 9
Huy, Belgium
Member since 2003
Employees5 - 10
Certificates1
Year of foundation1955
Competencies
Technologies
Surface Treatment
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Anodizing | 200–5,000 | 10–2,500 mm | 1–100 mm | 10–600 mm | 0–100 kg |
Casting
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Gravity die casting | 50–50,000 | 10–1,000 mm | 3–50 mm | 10–1,000 mm | 0–15 kg |
Pressure die casting | 50–50,000 | 10–1,000 mm | 3–50 mm | 10–1,000 mm | 0–15 kg |
Mould construction
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Gravity casting moulds | 30–1,200 mm | 10–400 mm | 10–600 mm | 0–800 kg |
Finishing
| Technologies | Lotsize | Width | Material thickness |
|---|---|---|---|
Belt grinding | 50–50,000 | 10–1,000 mm | 1–500 mm |
Materials
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloys
Industries
Packaging industryElectrical industryOffice machinery and suppliesConstruction and architectural suppliesPaper and printing machinery industryAerospace and aviation industryMining and tunnel engineeringPower generation and transmission industryFittings engineeringDrive and gear engineeringHydraulic and pneumatic industryBoiler, container and tank construction Railway and rail vehicles industrySpecial purpose machinery manufacturingInformation technology (hardware)Building, agricultural and forestry machinery manufacturingApparatus engineeringClean room technologyMachine tool manufacturingAir conditioning, refrigeration and ventilation industryTelecommunication industryPrecision engineering, mechatronics and opticsMechanical engineeringAutomotive and vehicle constructionFurniture industryMedical technologyChemical industryLighting industryPlant engineering and constructionAutomation and control engineeringHousehold appliance industryMeasurement and control technique, laboratory equipmentMilitary engineeringShipbuilding industry
Certificates
No certificates
Parts & Machines
Parts (6)
1 / 6

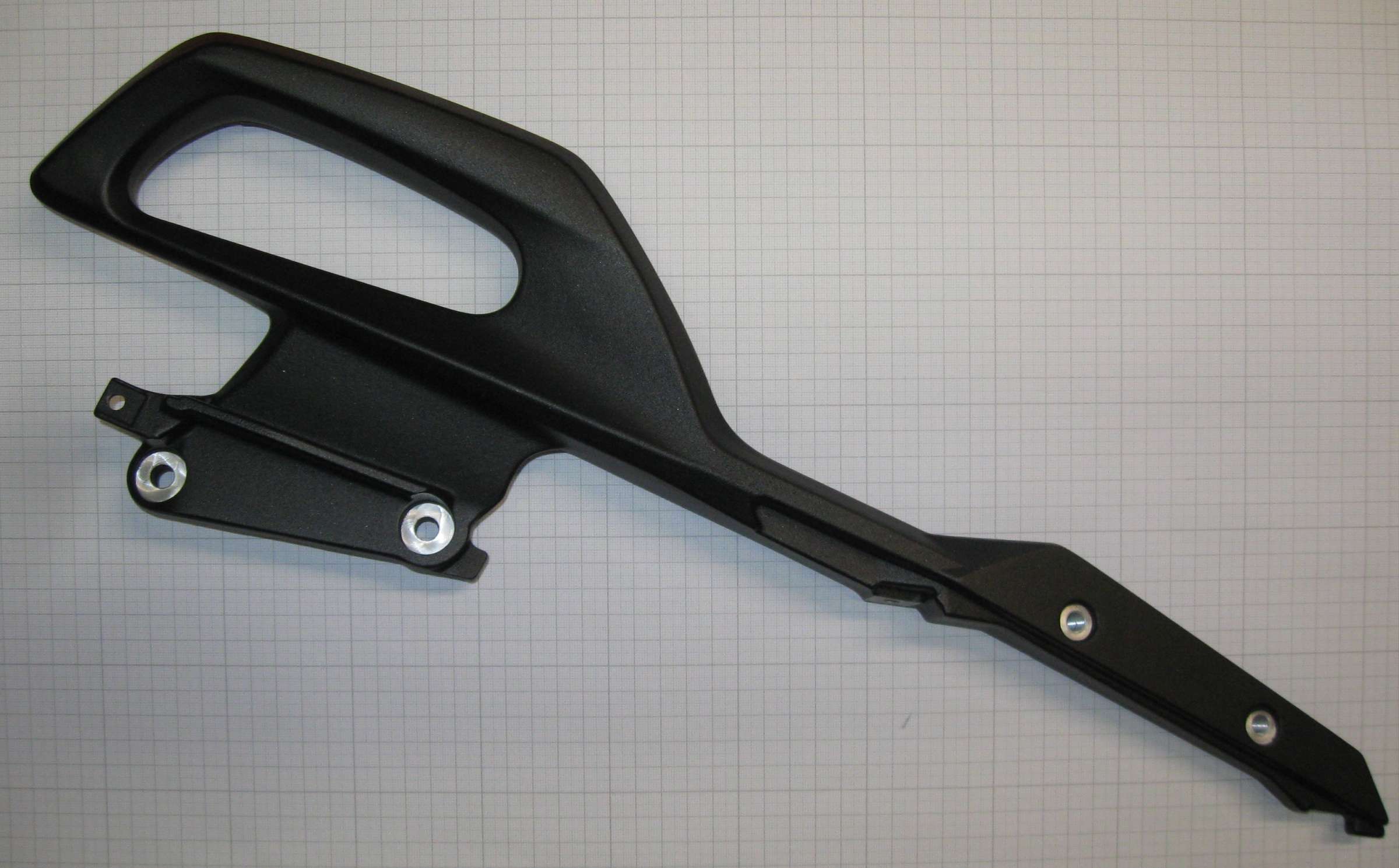

Carrier for motorcyle
DescriptionView of a carrier side used on Honda motorcycle. Lenght~=570 mm.
The success was to make the part straight that is checked and with a very accurate finition.
2 / 6

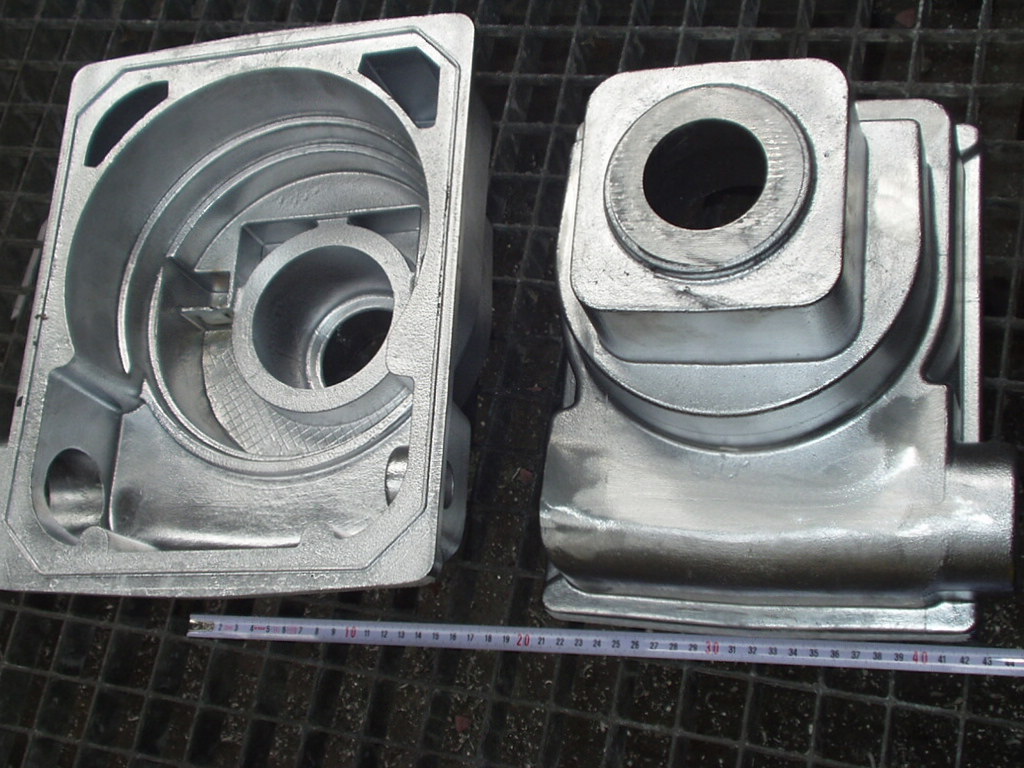

Gear casing for Actuator
DescriptionParts of 5 kg in AlSi9Cu3, 250 items per production batch. LxWxH~= 220x170x175 mm.
Success is to made a gravity casting with very thick walls right next to thin walls with good quality metallurgy.
3 / 6

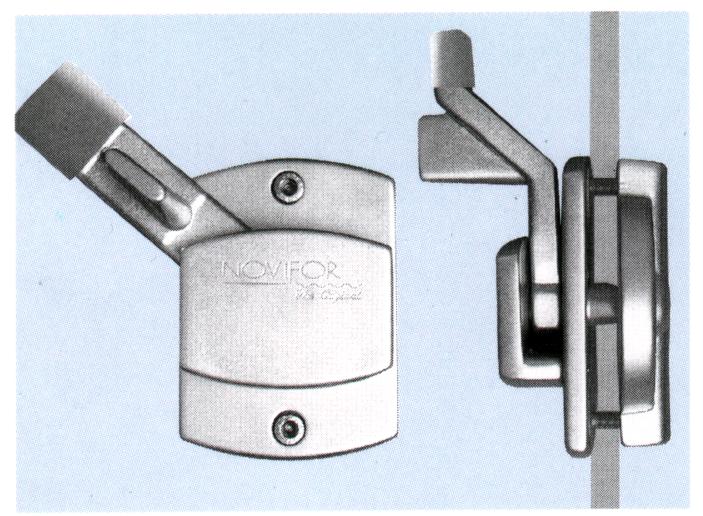

cabin lock, anodized
DescriptionThis cabin lock has four casted parts being, tapped, anodized, customer logo marked and assembled in our workshops.
Success is to make a set which include four anodized parts.
4 / 6

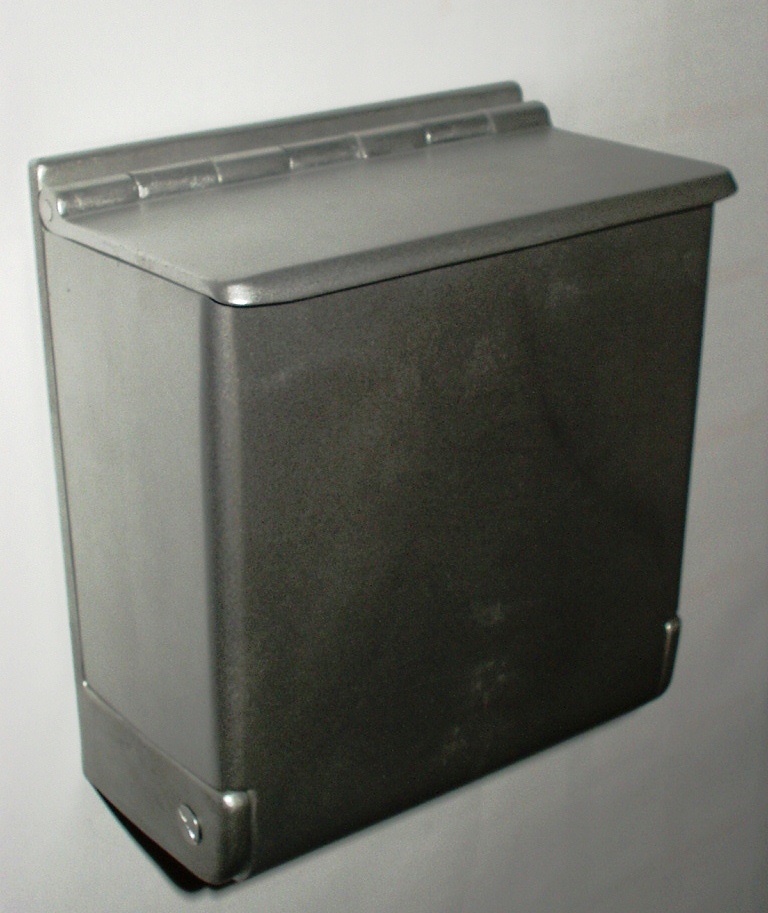

Light Frames, light fittings
DescriptionMany parts for light building. This one is designed to be resistant to vandalism and impacts
5 / 6

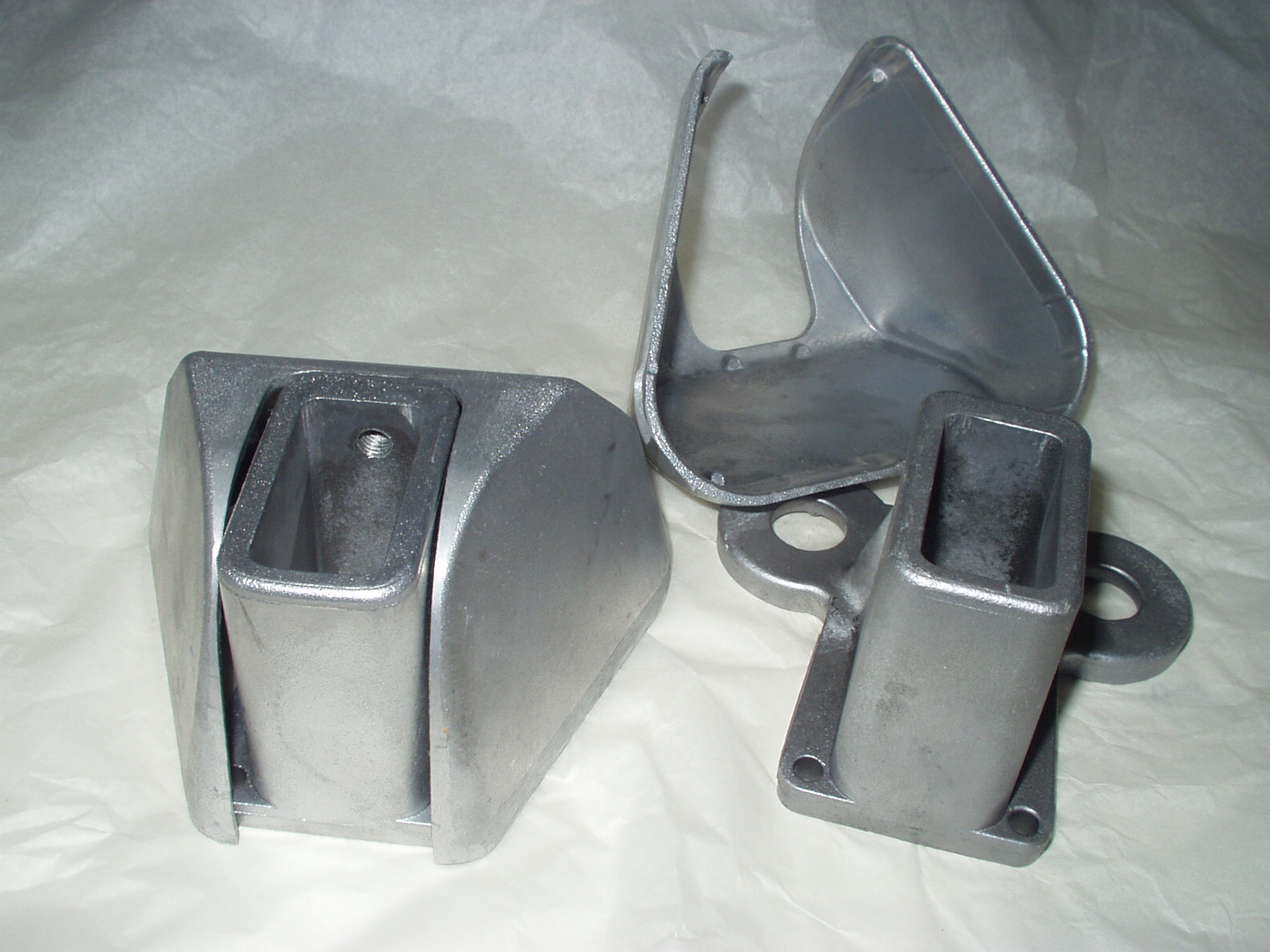

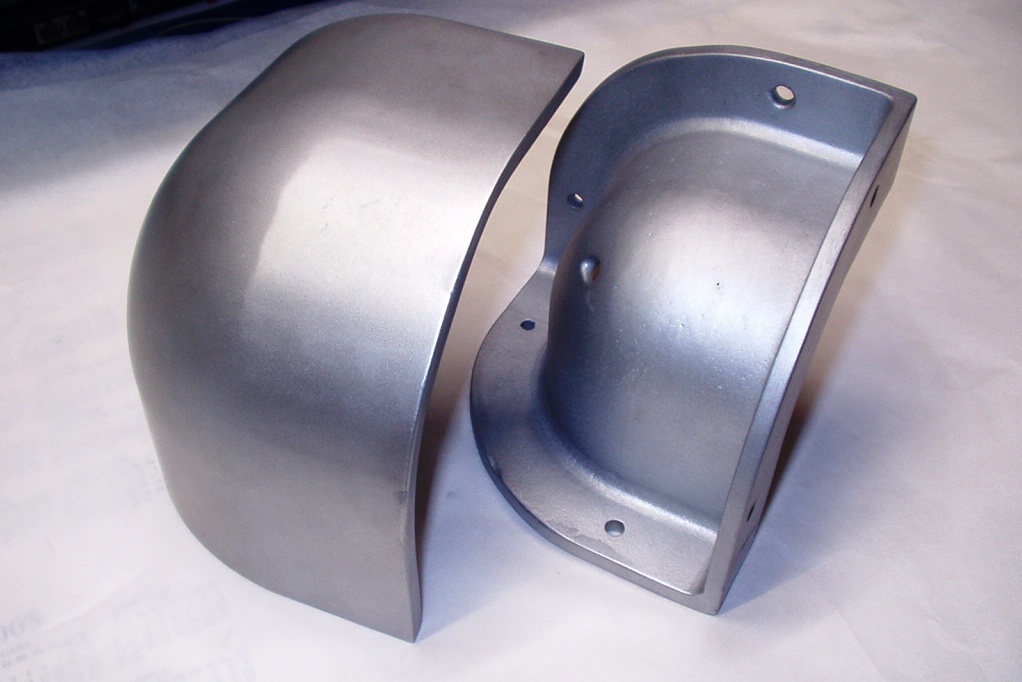

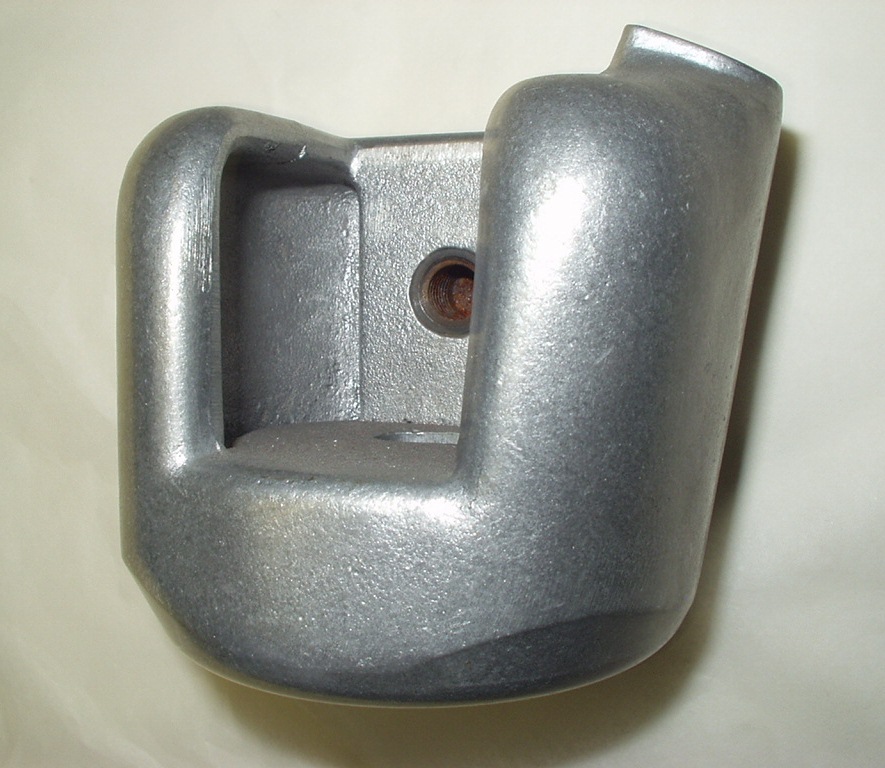

Foot railing + its Cover
DescriptionMany parts like corners, endpiece ... for building. Here is a view of a foot and his cover.
The success is to develop a foot with the resistance strenght of the international standard but with the advantage of avoiding heat treatment.
And to manage for casting the cover at a very small thickness of ~=3mm
6 / 6
Handles for Railway
DescriptionMany different castings, mainly with polishing, anodizing of powdercoating. This one show an handle for railway in France. The success is to cast for 4 inserts inside the casting and to made it with a thickness of 2 mm!
6 Parts
Contact
Location
Main locationChaussée de Waremme 162, 4500 Huy, Belgium
Company contact
Contact persons
RF
René FREDRICH
SD
Serge Dradin
