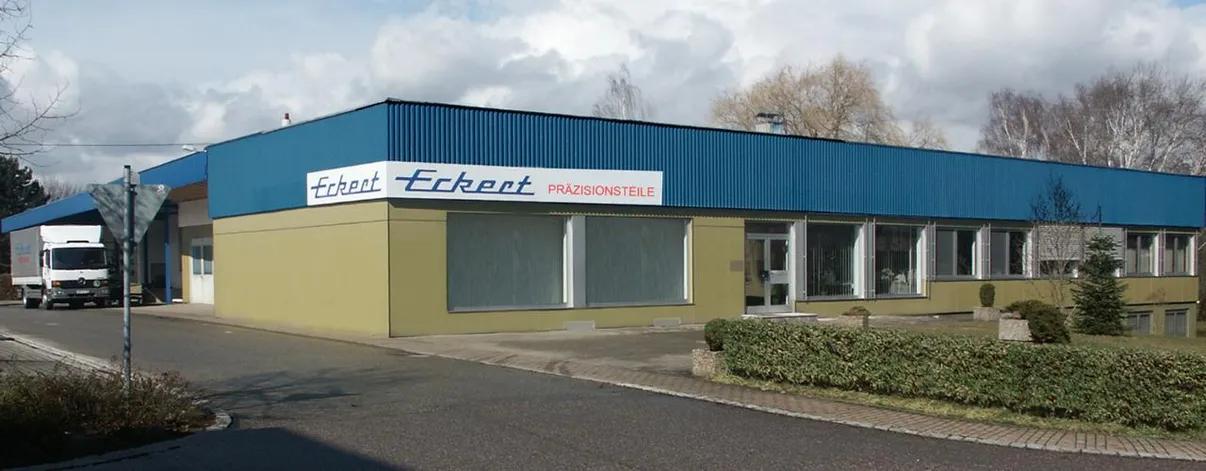

Eckert Präzisionsteile KG

Germany, 74635 Belzhag

Overview

About Eckert Präzisionsteile KG

Who we are

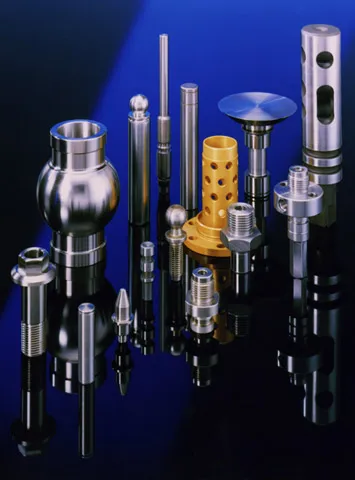

We manufacture precision parts in the areas of CNC turning, milling and grinding in small, medium and large series. In the centerless grinding passage we have a high degree of automation through efficient grinding systems. We grind steel, aluminum, brass and hard chrome. By super-finishing we achieve surface finishes down to Ra 0.04 microns and Rz 0.4. Special know-how we have in the processing of stainless chromium-nickel steels. As an A-supplier for renowned equipment manufacturers reliability and delivery reliability is a matter of course.

1 / 1

Belzhag, Germany

Member since 2008

Employees20 - 50

Certificates1

Turnover1 - 5 Mil.

Year of foundation1970

Competencies

Technologies

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness

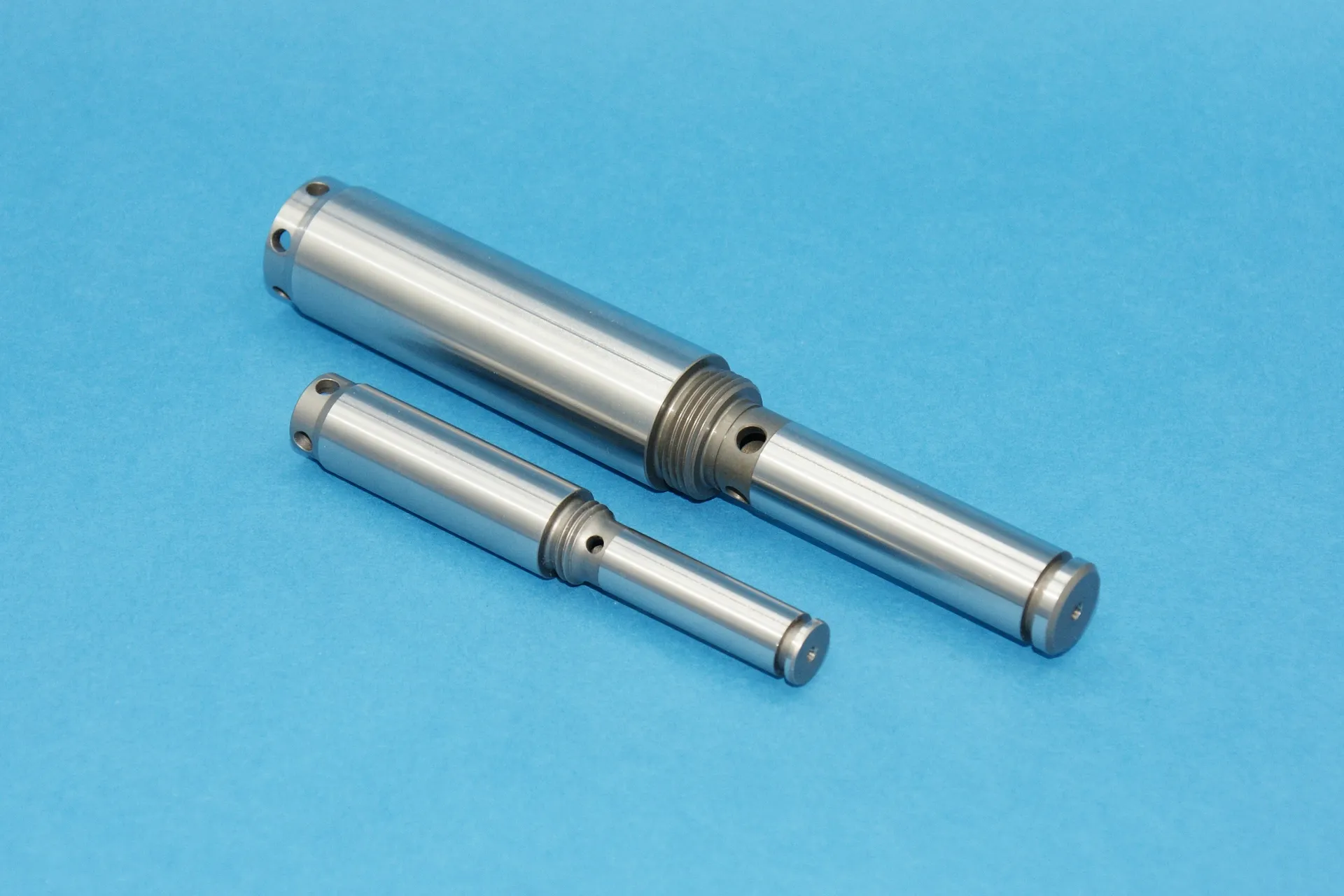

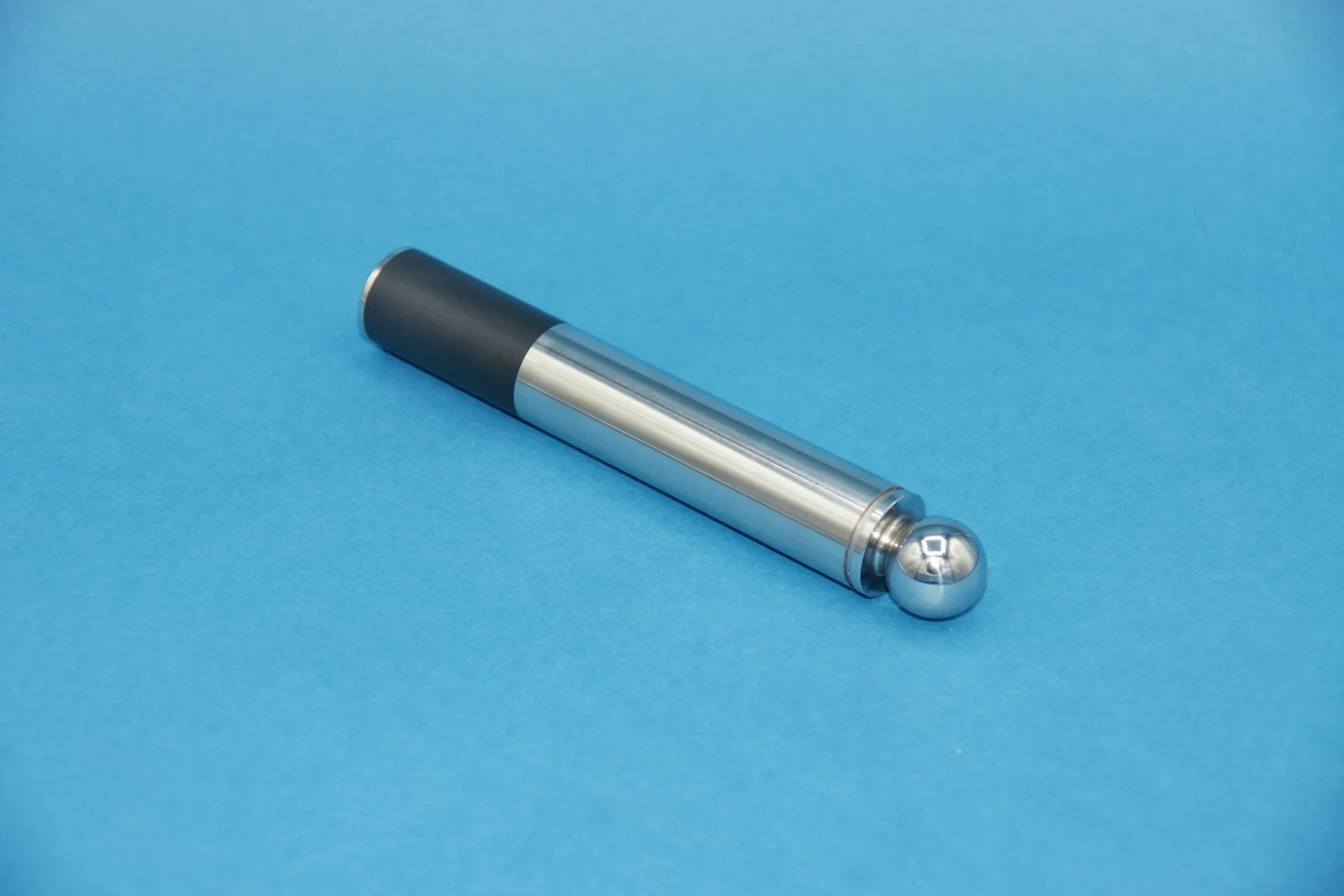

External cylindrical grinding	1–100 k	1–500 mm	—	—	4–150 mm	—	—
Centreless grinding	5–50,000	10–280 mm	from 0 mm	from 0 mm	3–150 mm	0–15 kg	from 0 mm
Circular honing - external	1–100 k	5–300 mm	—	—	4–100 mm	0–30 kg	—
Roller finishing internal	1–100 k	1–300 mm	—	—	1–100 mm	0–50 kg	—
Roller finishing external	1–100 k	1–200 mm	—	—	1–50 mm	0–50 kg	—

Turning

Technologies	Lotsize	Length	Diameter	Weight

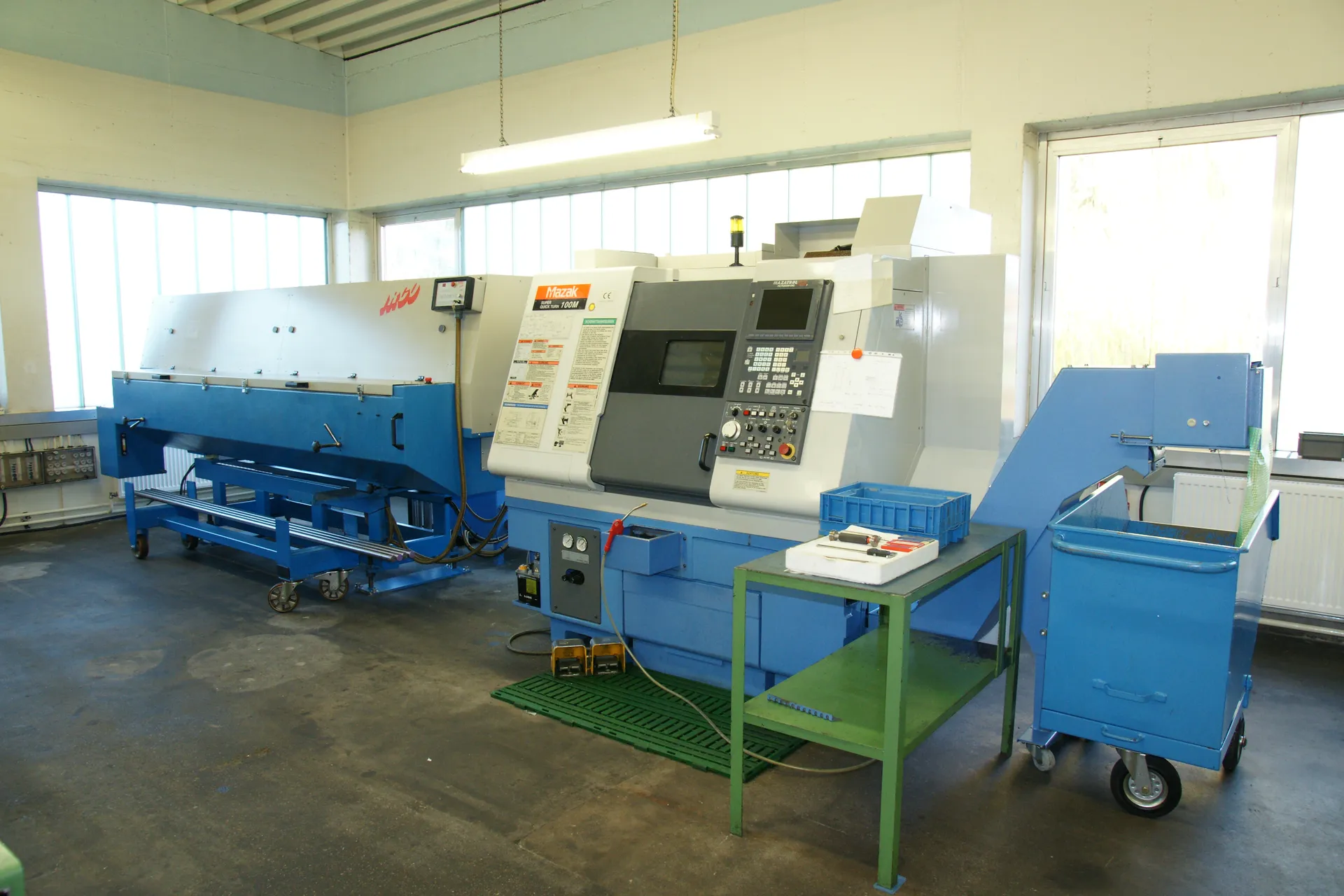

Turning	100–15,000	1–1,000 mm	2–250 mm	—
Automatic turning (bar)	500–100,000	1–400 mm	3–51 mm	—
Swiss turning	100–500 k	1–160 mm	3–20 mm	—
Full-range turning (including milling)	1–100 k	1–400 mm	3–300 mm	—
Shaft machining	5–100 k	1–1,000 mm	4–300 mm	0–50 kg

Heat Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Carbonitriding	1–500 k	1–300 mm	1–300 mm	1–300 mm	1–300 mm	0–20 kg
Case hardening/surface hardening	1–500 k	1–300 mm	1–300 mm	1–300 mm	1–300 mm	0–20 kg
Annealing	1–500 k	1–300 mm	1–300 mm	1–300 mm	1–300 mm	0–20 kg
Hardening	1–500 k	1–300 mm	1–300 mm	1–300 mm	1–300 mm	0–20 kg
Induction hardening	1–500 k	1–300 mm	1–300 mm	1–300 mm	1–300 mm	0–20 kg
Nitriding processes	1–500 k	1–300 mm	1–300 mm	1–300 mm	1–300 mm	0–20 kg
Vacuum annealing	1–500 k	1–300 mm	1–300 mm	1–300 mm	1–300 mm	0–20 kg
Hardening and tempering	1–500 k	1–300 mm	1–300 mm	1–300 mm	1–300 mm	0–20 kg

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Blacking	1–500 k	1–300 mm	1–300 mm	1–300 mm	—	0–20 kg	—
Chromatizing	1–500 k	1–300 mm	1–300 mm	1–300 mm	—	0–20 kg	—
Nickel plating	1–500 k	1–300 mm	1–300 mm	1–300 mm	—	0–20 kg	—
Galvanizing	1–500 k	1–300 mm	1–300 mm	1–300 mm	1–300 mm	0–20 kg	1–300 mm

Milling

Technologies	Lotsize	Length	Width	Height	Diameter
Milling	1–10,000	1–400 mm	1–400 mm	1–400 mm	—
Full-range milling (including turning)	1–100 k	1–300 mm	1–300 mm	1–300 mm	3–300 mm

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Sawing	1–100 k	1–1,000 mm	1–400 mm	1–400 mm	1–400 mm	—
Drilling / threading / tapping	1–100 k	1–400 mm	1–400 mm	1–400 mm	—	0–50 kg

Labelling / marking

Technologies	Lotsize	Length	Width	Height	Diameter
Laser marking / Laser inscription	1–500 k	1–300 mm	1–300 mm	1–300 mm	1–300 mm

Materials

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloys

Plastics/synthetic materials

ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsGlass fibre-reinforced plasticCarbon fibre-reinforced plastic

Advanced Materials

Nickel alloy (Inconel, Monel, Hastelloy)

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
