FMS<br>Fränkischer Maschinen- <br>und Stahlbau GmbH
Germany, 97469 Gochsheim
Overview
About FMS<br>Fränkischer Maschinen- <br>und Stahlbau GmbH
Who we are
The FMS is a supplier of steel construction, mechanical engineering, plant engineering and special engineering. Products: Are manufactured both precursors and fully machined, ready to mount assemblies as tanks, pressure vessels, equipment, welded constructions. Related, we can run our assemblies by mounting particularly in the areas of control technology and control technology to a complete machine. Materials: From the unique production to average lot size FMS provides high-quality welding construction of structural steels, stainless steels, aluminum alloys.With our welding robot, we are able to produce large batches in the MAG process. Welding process: MMA, MAG, MIG, TIG, submerged arc welding, stud welding, spot welding. In addition, we also perform contract work in the area of Stellite. Non-destructive testing: Radiographic examinations, ultrasound examinations, Magnetpulverprfungen, dye penetrant. Destructive tests: Tensile tests, Charpy impact test, macrosection examination Leak tests: Water pressure test up to 95 bar, SF6 gas leak test (helium or SF6 gas to a maximum of 1 x 10-8) Our machinery allows you to: - The complete machining of demanding long turning parts and short turned parts: turning up to 2.1m, drilling and milling to 2.5 m, measuring up to 5 m, edging up to 4.5 m, discs up to 3 m, sawing up to 1 m - The surface treatment: sand blasting according to DIN, glass bead blasting, spray galvanizing, paint baking oven with
1 / 6
.jpg)
2 / 6
3 / 6
4 / 6
5 / 6
6 / 6
Gochsheim, Germany
Member since 2008
Employees100 - 200
Certificates2
Year of foundation1937
Competencies
Technologies
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|
Welded constructions (weldments) | 1–2,500 mm | 1–2,500 mm | 1–2,500 mm | from 0 mm | 0–10,000 kg | from 0 mm |
Machine frames / bases / racks | 1–2,500 mm | 1–2,500 mm | 1–2,500 mm | from 0 mm | 0–10,000 kg | from 0 mm |
Assembly
| Technologies | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|
Mechanical assembly | from 0 mm | from 0 mm | from 0 mm | from 0 mm | 0–20,000 kg | from 0 mm |
Electromechanical assembly | from 0 mm | from 0 mm | from 0 mm | from 0 mm | 0–20,000 kg | from 0 mm |
Industrial / On-site-assembly | from 0 mm | from 0 mm | from 0 mm | from 0 mm | 0–20,000 kg | from 0 mm |

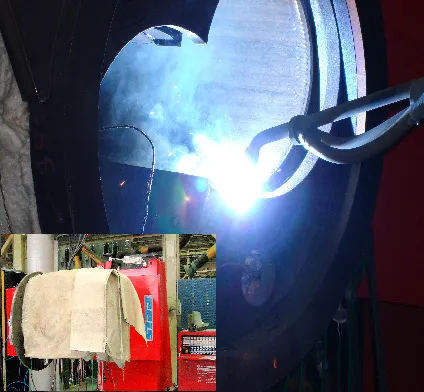

Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 1–1,000 | 50–10,000 mm | 50–5,000 mm | 50–5,000 mm | 50–5,000 mm | 0–10,000 kg | 2–50 mm |
Inert gas shielded arc welding (TIG) | 1–1,000 | 10–5,000 mm | 10–2,000 mm | 10–2,000 mm | 10–2,000 mm | 0–10,000 kg | 1–25 mm |
Robot welding | 10–5,000 | 300–12,000 mm | 300–2,500 mm | 300–2,500 mm | from 0 mm | 0–5,200 kg | from 0 mm |
Submerged-arc welding | 1–1,000 | 350–6,000 mm | 350–3,500 mm | 350–3,500 mm | 350–3,500 mm | 0–20,000 kg | 3–50 mm |
Stud welding | 1–1,000 | from 0 mm | from 0 mm | from 0 mm | from 0 mm | from 0 kg | from 0 mm |
Surface Treatment
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Surfacing / build-up welding | 1–1,000 | 50–5,000 mm | 50–5,000 mm | 50–5,000 mm | 50–5,000 mm | 0–10,000 kg | 2–10 mm |
Materials
Light metals
Aluminium and aluminium alloys
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)
Cast metals
Cast steel
Precious metals
Other precious metals
Industries
Chemical industryMachine tool manufacturingMechanical engineeringAutomotive and vehicle constructionApparatus engineeringAutomation and control engineeringPower generation and transmission industryBoiler, container and tank construction Aerospace and aviation industryPlant engineering and constructionMilitary engineeringSpecial purpose machinery manufacturingAir conditioning, refrigeration and ventilation industryRailway and rail vehicles industryPackaging industryElectrical industryPaper and printing machinery industry
Certificates
ISO 9001:2008
ISO 14001
Parts & Machines
Parts (8)
1 / 8

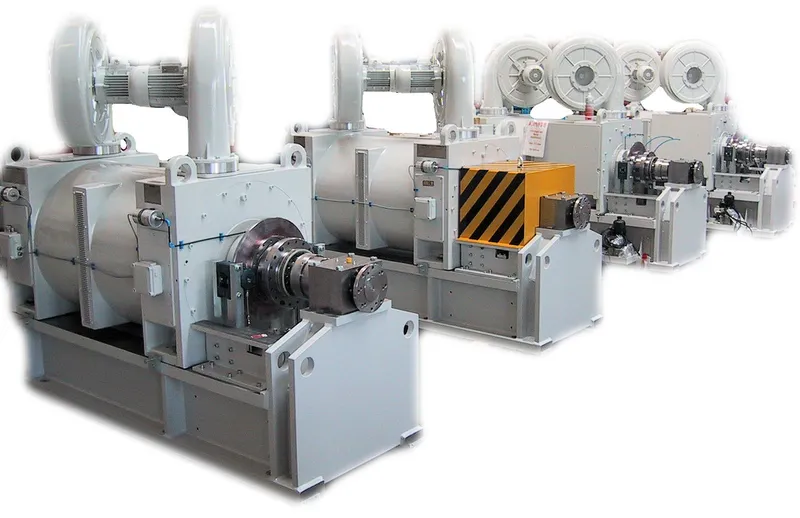

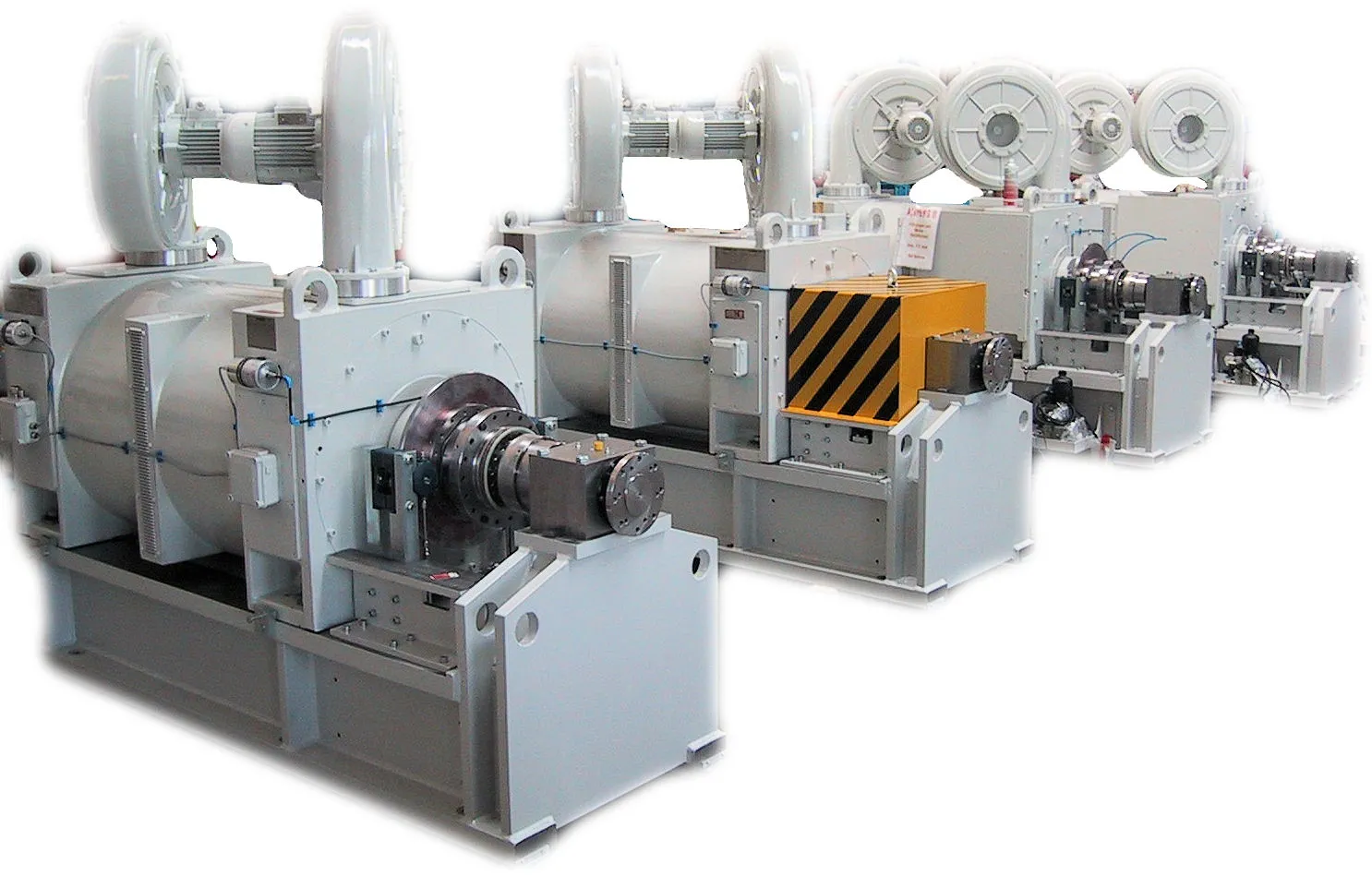

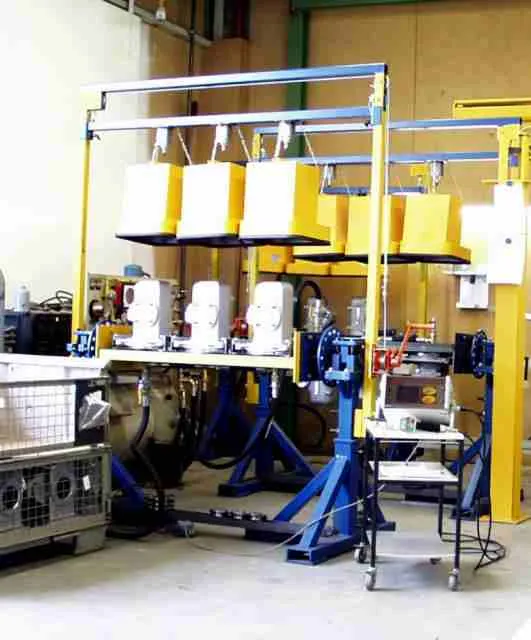

Komponenten für Prüfeinrichtungen
Description= zum Testen von Motor und Getriebe
Präzisionsmontage im µm-Bereich bei FMS
2 / 8

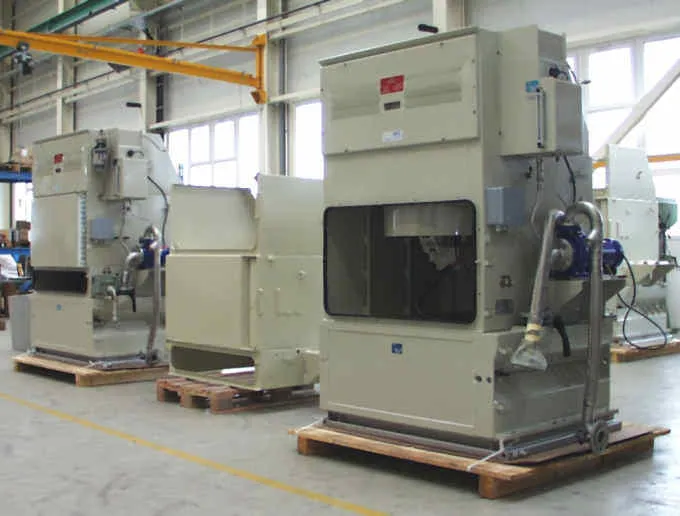

Kühlanlage für elektrisch angetriebene Lokomotiven
DescriptionSchweißbau, mechanische Bearbeitung, Pulverbeschichtung, Montage, Druckprobe, Dichtheitsprüfung, Dokumentation, Abnahme durch die DB
3 / 8

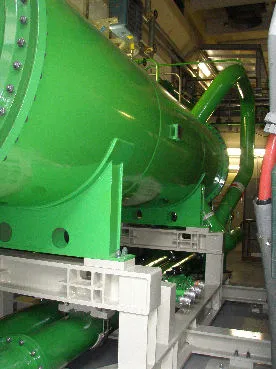

Rahmenunterkonstruktion für Kühlergehäuse
DescriptionErforderliche Zulassungen:
- Regel KTA 1401 (kerntechnische Anlagen)
- DIN 18800-7:2008-11 Klasse E für dynamisch belastete Bauteile und DIN 15018 für Krane und Kranbahnen
4 / 8

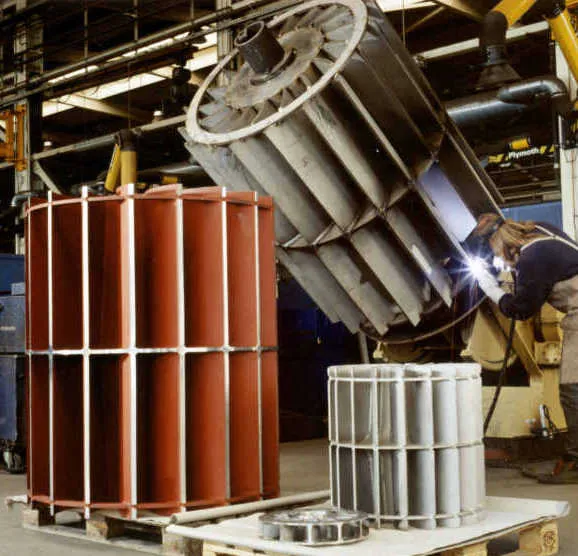

Pumpenlaufrad für Flüssigkeitsring-Vakkumpumpen zur Vakuumerzeugung
DescriptionDokumentation, Schweißbau, Mechanische Bearbeitung, Oberflächenbehandlung
5 / 8

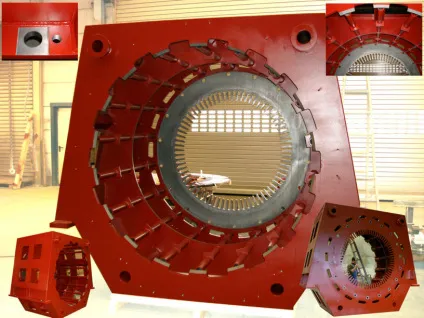

Gehäuse für luftgekühlte Großmotoren
Description= werden eingesetzt in der Pharma- und Petrochemie sowie in Kraftwerken
6 / 8

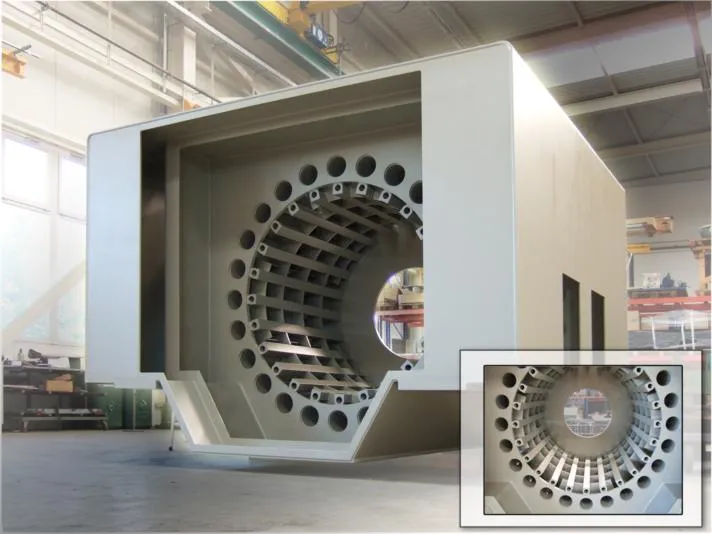

Ständergehäuse für Statoren
Description= werden als Antriebe in der Stromerzeugung eingesetzt, insbesondere in Kraftwerken
7 / 8

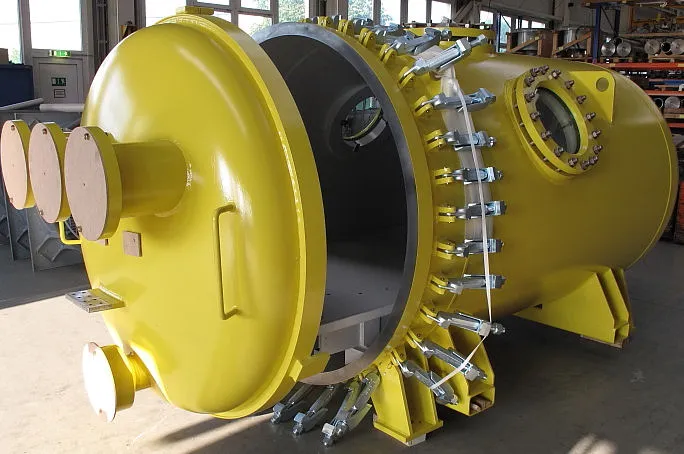

Prüf- und Druckbehälter in Sonderanfertigung
Description= Bereich Energieübertragung - mit Schaugläsern NW 400
Druck- und Berstversuche für die Schaugläser
TÜV-Abnahme der Druck- und Dichtsprüfung (mit SF6-Gas)
8 / 8

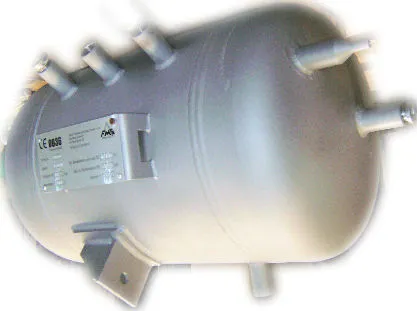

Druckbehälter
Description= nach Kategorie IV DGRL97/23 EG für den Schiffbau
Erforderliche Zulassungen:
- Germanischer Lloyd
- ISO 9001:2008
- DIN EN 473
- DIN EN ISO 3834-2
Machinery (16)
1 / 16

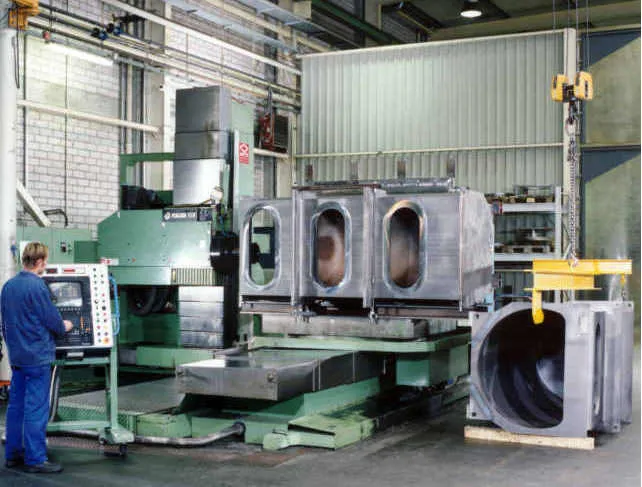

Bohrwerke Futura 110 MMT
ManufacturerSan Rocco
ControlHeidenhain TNC 407, CNC Steuerung
Technology
Machine frames / bases / racksWelded constructions (weldments)
2 / 16
Bohrwerke Futura 110 und MMT
ManufacturerSan Rocco
ControlHeidenhain TNC 355 4 Achsen, Heidenhain TNC 407 (CNC-Steuerung)
Technology
Welded constructions (weldments)Machine frames / bases / racks
3 / 16

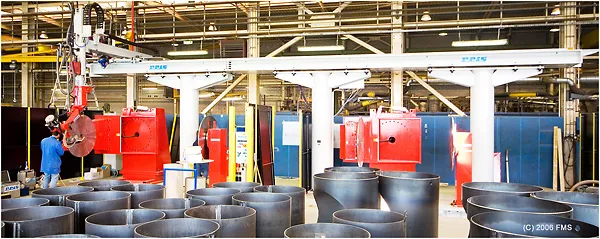

Schweißroboter, Verfahrlänge 2 m
ManufacturerReis
Control-
Year of Construction2006
Technology
Inert gas shielded arc welding (TIG)Machine frames / bases / racksMechanical assemblyIndustrial / On-site-assemblyStud weldingSurfacing / build-up weldingWelded constructions (weldments)Inert gas shielded arc welding (MIG/MAG)Electromechanical assemblyShearing (rectangular blank/strip)Submerged-arc weldingRobot welding
4 / 16
Maho 800 E 2
Manufacturer-
ControlCNC 432 4.-Achsen, Verfahrwege X=800mm, Y=500 mm, Z=550 mm
Technology
Industrial / On-site-assemblyMechanical assemblyElectromechanical assembly
5 / 16
diverse Geräte
ManufacturerFronius
Control-
Year of Construction2006
Technology
Surfacing / build-up weldingInert gas shielded arc welding (MIG/MAG)
6 / 16
diverse
ManufacturerFronius
Control-
Year of Construction2006
Technology
Inert gas shielded arc welding (TIG)
7 / 16
UP-Geräte
Manufacturerdiverse
Control-
Year of Construction1970
Technology
Submerged-arc welding
8 / 16
diverse
ManufacturerSoyer, Atlas
Control-
Year of Construction2003
Technology
Stud welding
9 / 16
Dreiwalzen-Rundbiegemaschine
ManufacturerSchäfer
ControlMax. Länge 1050 mm, Max. Dicke ca. 20 mm
Technology
Machine frames / bases / racksWelded constructions (weldments)
10 / 16
Hydraulische Vierwalzen-Rundbiegemaschine
ManufacturerFaccin
ControlL=3050mm, D=24mm
Technology
Welded constructions (weldments)Machine frames / bases / racks
11 / 16
Blechschere Typ S16-3000
ManufacturerMengele
Control-
Year of Construction1980
Technology
Shearing (rectangular blank/strip)
12 / 16
Mazak ASV 35/60, Bearbeitungszentrum Vertikal
ManufacturerMazak
ControlMazak DIN Teilapparat 4. Achse
Technology
Machine frames / bases / racksWelded constructions (weldments)
13 / 16

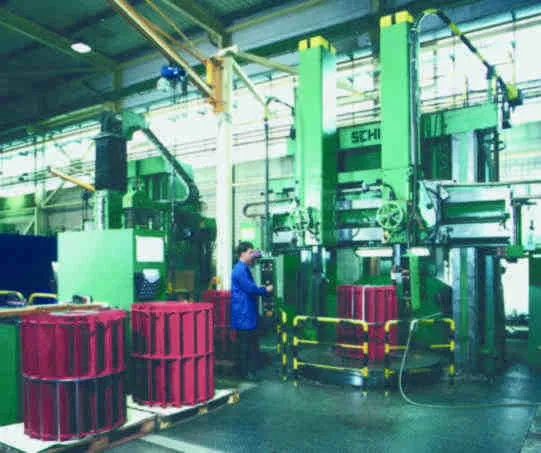

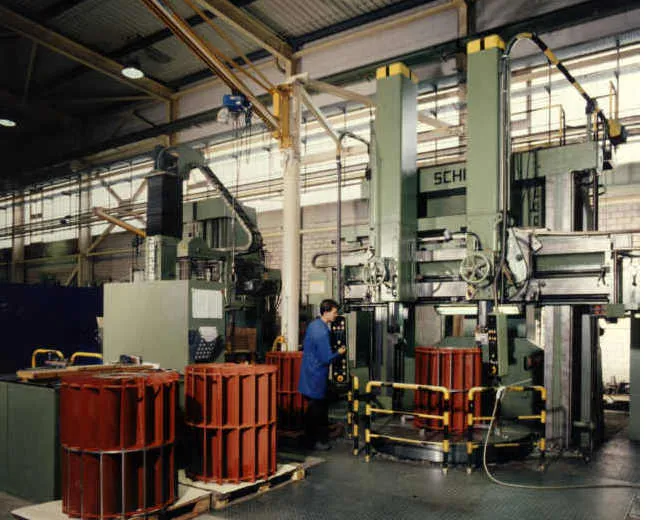

Zweiständer-Karussell-Drehmaschine Schies AG
ManufacturerSchiess
Controlmanuell, Digitalanzeige
Technology
Welded constructions (weldments)Machine frames / bases / racks
14 / 16
Karussell-Drehmaschine Jungenthal Ju 5 - 3 D
ManufacturerJungenthal
ControlSinumerik 840D
Technology
Welded constructions (weldments)Machine frames / bases / racks
15 / 16
Kopfdrehmaschne Meuser M3L
ManufacturerMeuser
Controlmanuell, Digitalanzeige
Technology
Machine frames / bases / racksWelded constructions (weldments)
16 / 16
Kopfdrehmaschine
Manufacturergildemeister NEF Plus 500
ControlZyklengesteuert, manuell plus
Technology
Machine frames / bases / racksWelded constructions (weldments)
8 Parts
16 Machinery
Machine frames / bases / racks10
Welded constructions (weldments)10
Inert gas shielded arc welding (TIG)2
Mechanical assembly2
Industrial / On-site-assembly2
Stud welding2
Surfacing / build-up welding2
Inert gas shielded arc welding (MIG/MAG)2
Electromechanical assembly2
Shearing (rectangular blank/strip)2
Submerged-arc welding2
Robot welding1
Contact
Location
Main locationLindestraße 16, 97469 Gochsheim, Germany
Company contact
Contact persons
TG
Tobias Gensler
BL
Burkard Lösch
DR
Daniel Reitberger
AK
Andreas Kiesel
