Overview
About LA FONTE ARDENNAISE
Who we are
Production of cast iron components 1. EN 1561 GJL-150, GJL-200, GJL-250, GJL-300 2. EN 1563, GJS-400-18, GJS-400-15, GJS-450-10, GJS-500-7, GJS-500-7, GJS-600-3, GJS-700-3, GJS-800 -2, Low Temperature: GJS-400-18LT, GJS-350-22-LT 3. EN-GJS-SiMo: No. 5.3111 / 5.3112 / 5.3113 / 5.3114 / 5.3115 / 5.3116 / 5.3117 / 5.3118 / 5.3119 Piece weights: from 0.2 to 45 kg for gray cast iron (GJL), 0.2 to 26 kg for ductile iron (GJS) 10 x DISA vertical moulding lines in the group. Max box size: 850 x 650 on DISA 250C Further processing with 140 CNC machines Assembly Coating: own KTL system, powder coating Offers from approx. 200 parts per year
1 / 1

VIVIER AU COURT, France
Member since 2018
Employees> 1000
Certificates5
Turnover100 - 500 Mil.
Year of foundation1927
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 100–50,000 | 100–600 mm | 30–460 mm |
Full-range turning (including milling) | 100–50,000 | 100–600 mm | 30–460 mm |
Broaching | 1–100 k | 1–200 mm | 10–60 mm |
Casting
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Machine moulding (sand casting) | 100–50,000 | 100–500 mm | 100–600 mm | 100–350 mm | 0–45 kg |
Gravity die casting | 100–20,000 | 10–1,000 mm | 10–1,000 mm | 10–1,000 mm | 0–200 kg |
Low-pressure casting | 20–20,000 | 10–1,000 mm | 10–1,000 mm | 10–1,000 mm | 0–200 kg |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–45 kg |
Milling
| Technologies | Lotsize | Length | Width | Height |
|---|---|---|---|---|
5-axis milling machines | 100–50,000 | 50–500 mm | 100–600 mm | 50–350 mm |
Materials
Light metals
Aluminium and aluminium alloys
Cast metals
Cast iron
Industries
Power generation and transmission industryBuilding, agricultural and forestry machinery manufacturingAutomotive and vehicle constructionFittings engineeringChemical industryAir conditioning, refrigeration and ventilation industryDrive and gear engineeringRailway and rail vehicles industryHydraulic and pneumatic industry
Certificates
ISO 9001:2015
ISO 9001:2008
ISO 14001
ISO-TS 16949:2009
IATF 16949:2016
Parts & Machines
Parts (14)
1 / 14

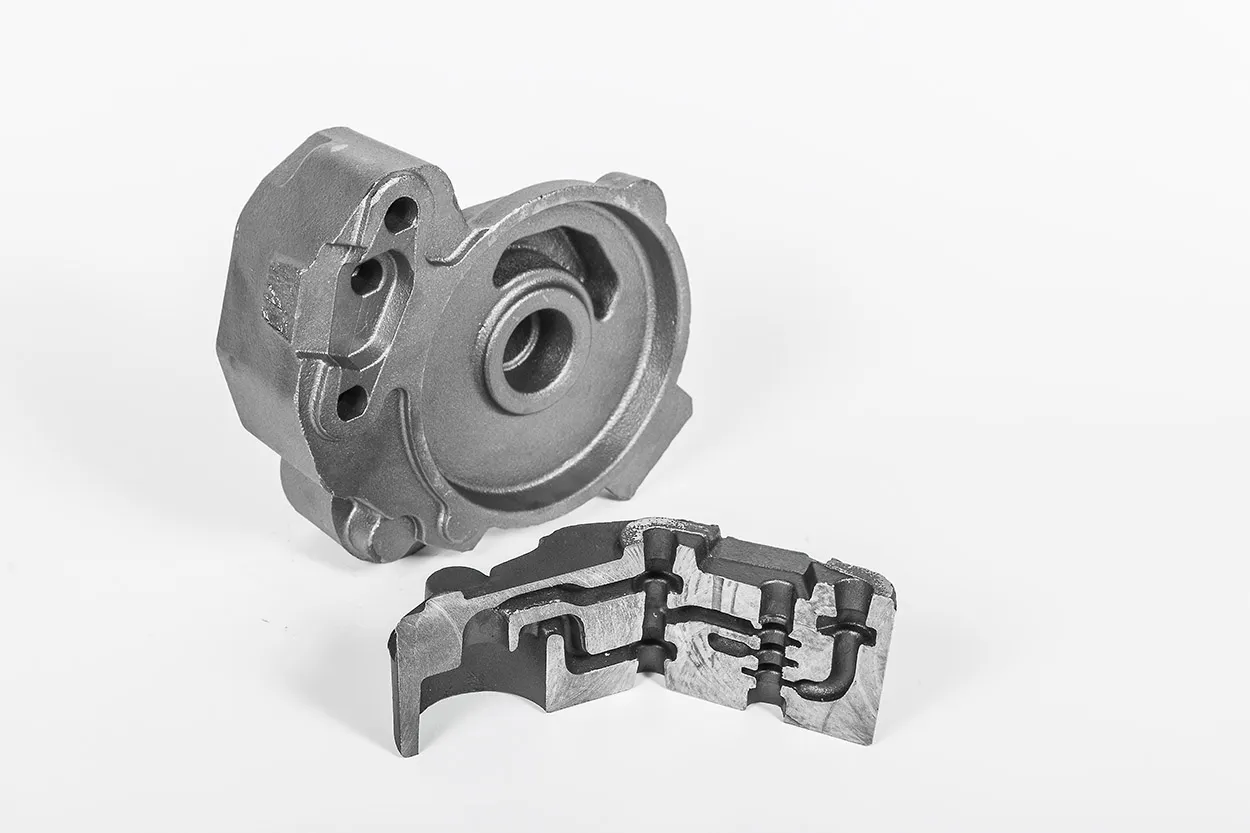

Hydraulic Housing
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Height350 mm
Length300 mm
Weight12 mm
Width85 mm
Lotsize300
ComplexityHigh
DescriptionGehäuse (Hydraulik), GJS-500-7
2 / 14

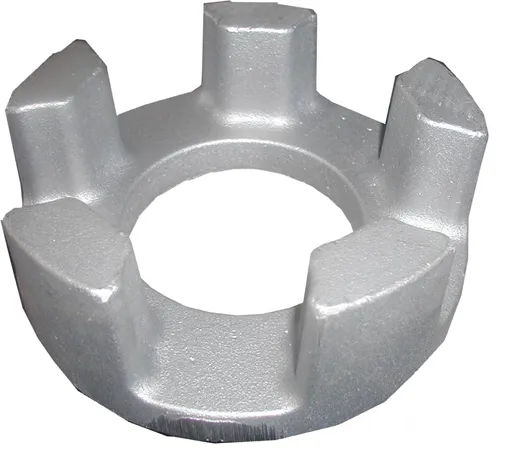

Planetary Carrier Heavy Truck
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Width350 mm
Length350 mm
Weight22 mm
Height180 mm
Lotsize5000
ComplexityMedium
DescriptionPlanetenträger NfZ, GJS-500-7
3 / 14

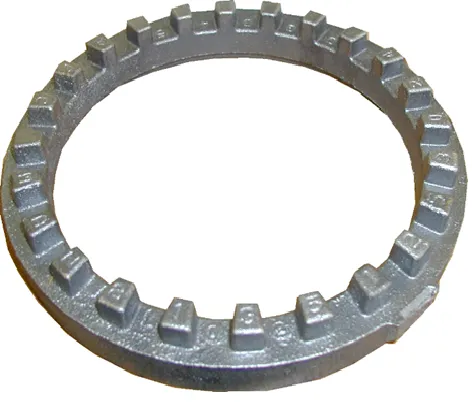

Threaded Ring Truck
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Weight3 mm
Length350 mm
Height35 mm
Width350 mm
Lotsize20
ComplexityLow
4 / 14

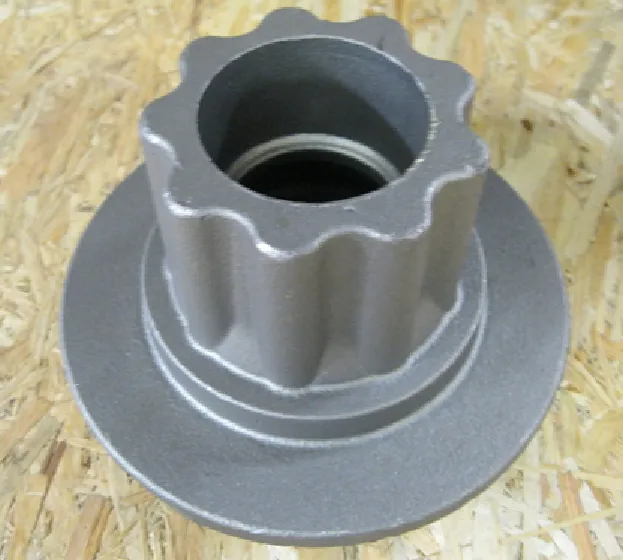

HUB Truck
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Width200 mm
Weight3.5 mm
Height120 mm
Length200 mm
Lotsize1
ComplexityLow
5 / 14

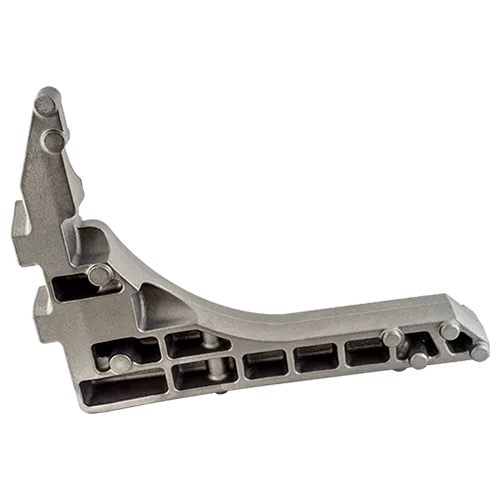

Bracket
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Weight3 mm
Width60 mm
Height300 mm
Length280 mm
ComplexityMedium
6 / 14

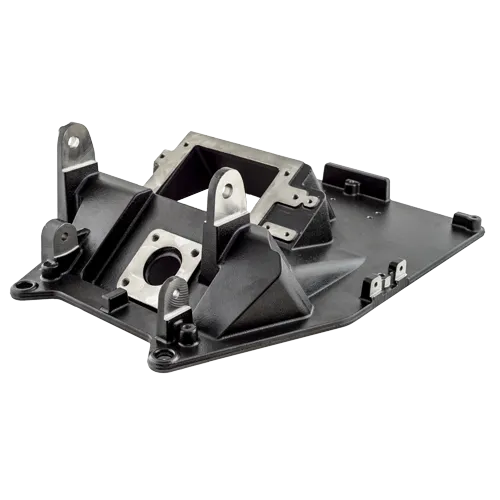

Pedal Box
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Width120 mm
Height340 mm
Length300 mm
Weight12 mm
ComplexityHigh
7 / 14

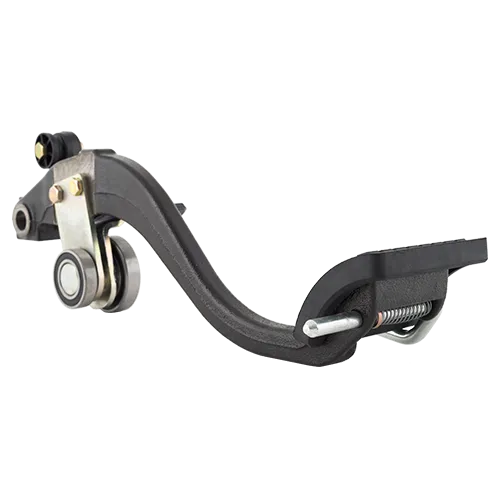

Pedal Assembly
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Width65 mm
Height100 mm
Length400 mm
Weight3 mm
ComplexityMedium
8 / 14

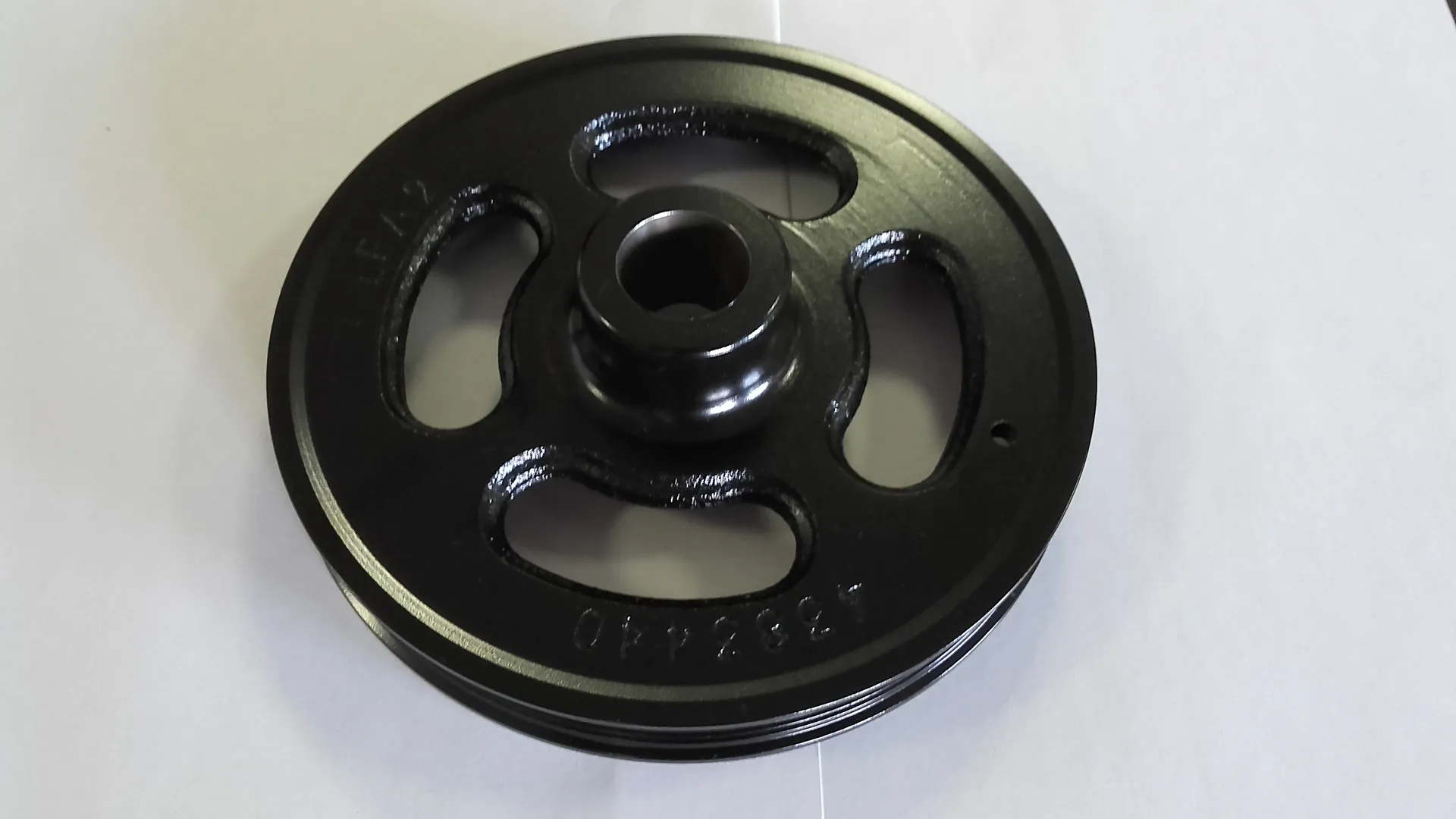

Pulley
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Width45 mm
Height300 mm
Length300 mm
Weight8 mm
ComplexityLow
9 / 14

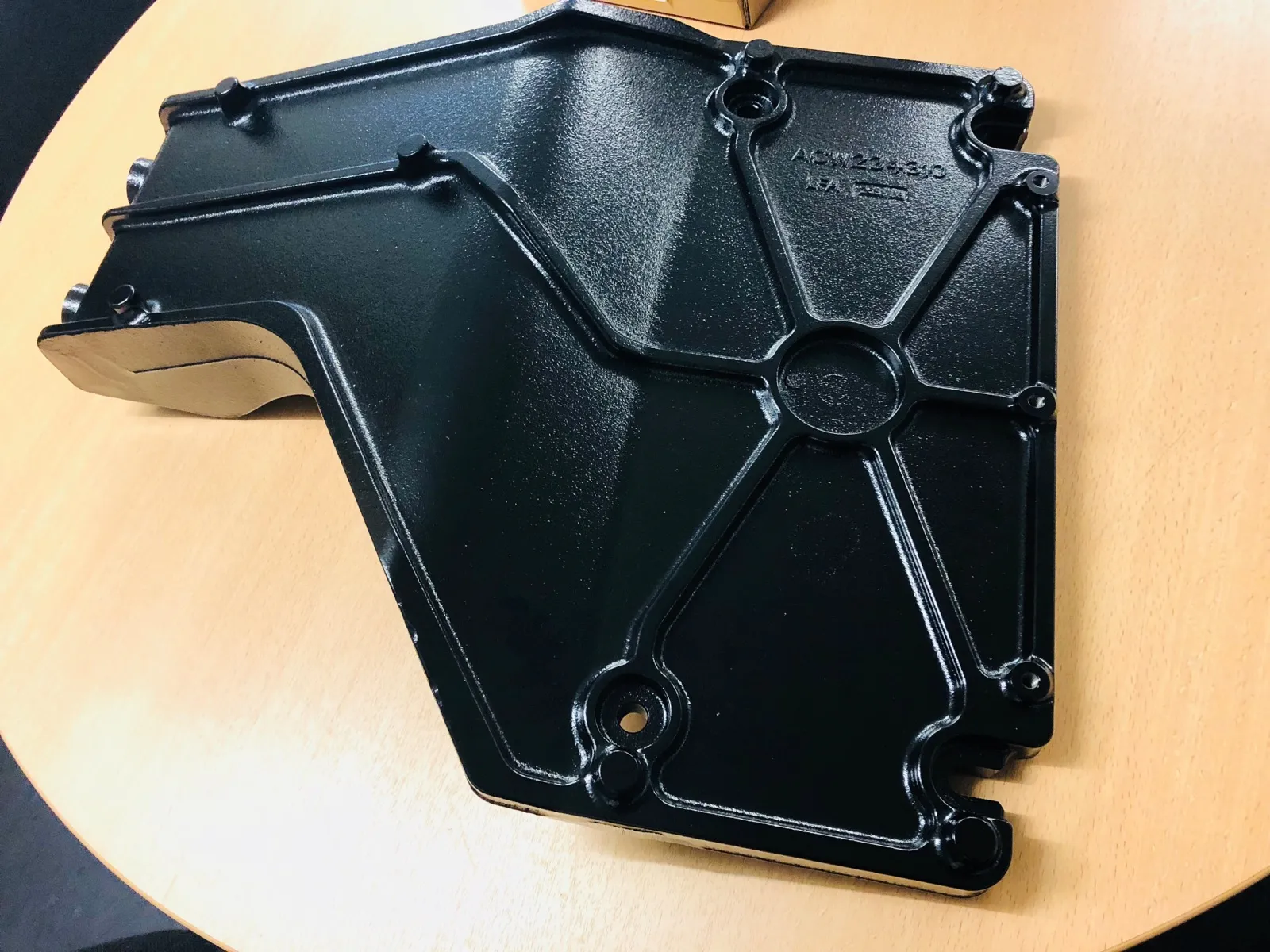

Frame Bracket
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Height360 mm
Width35 mm
Length330 mm
Weight12 mm
ComplexityMedium
10 / 14

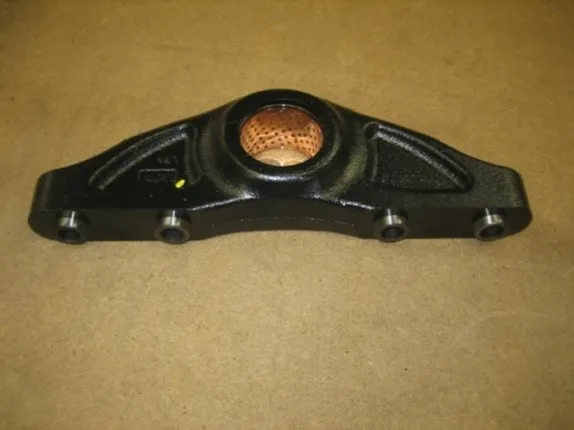

Bushing Assembly
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Weight7 mm
Length250 mm
Height80 mm
Width60 mm
11 / 14

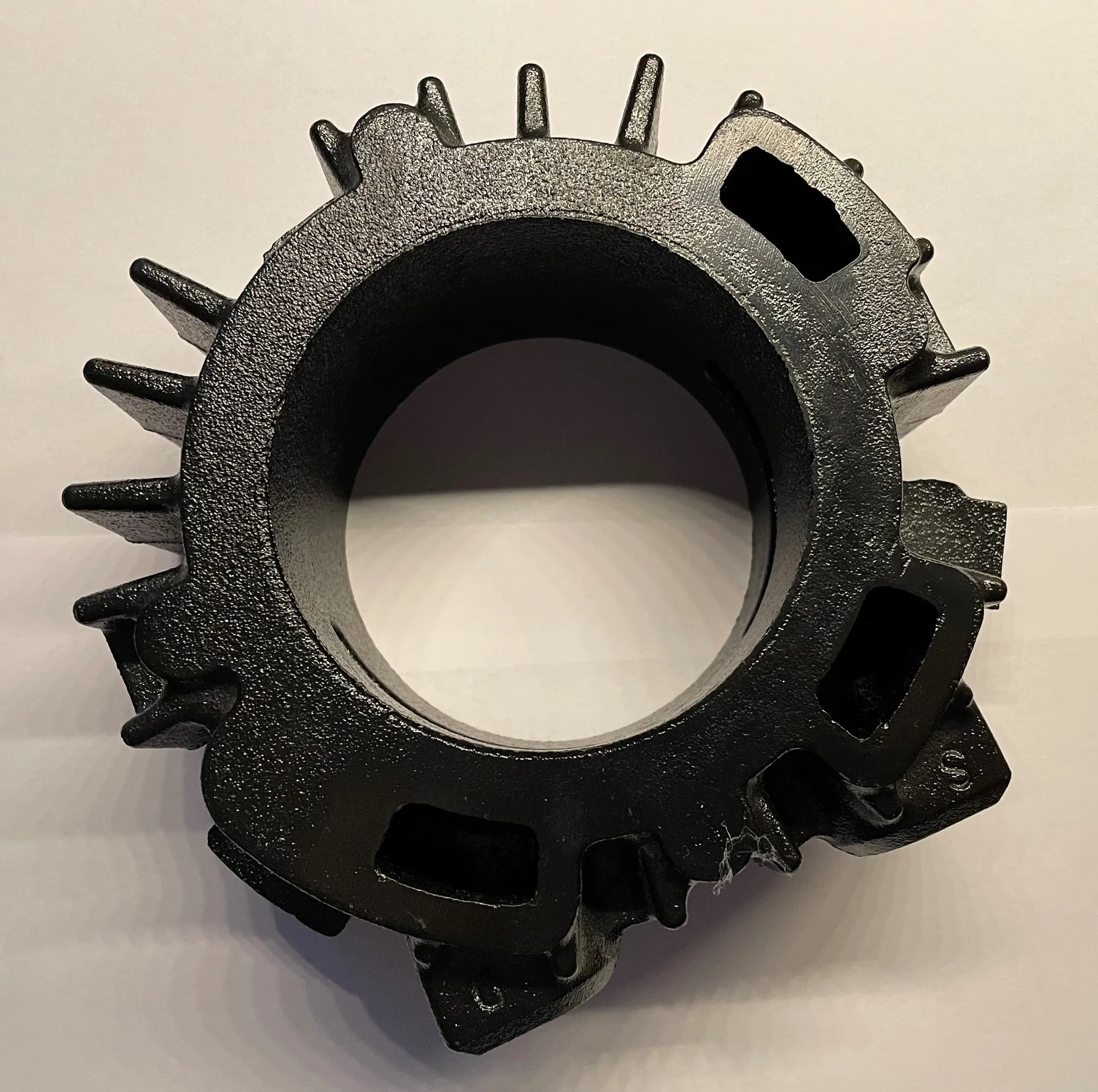

Pump Housing
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Width200 mm
Height50 mm
Length200 mm
Weight2 mm
ComplexityHigh
12 / 14

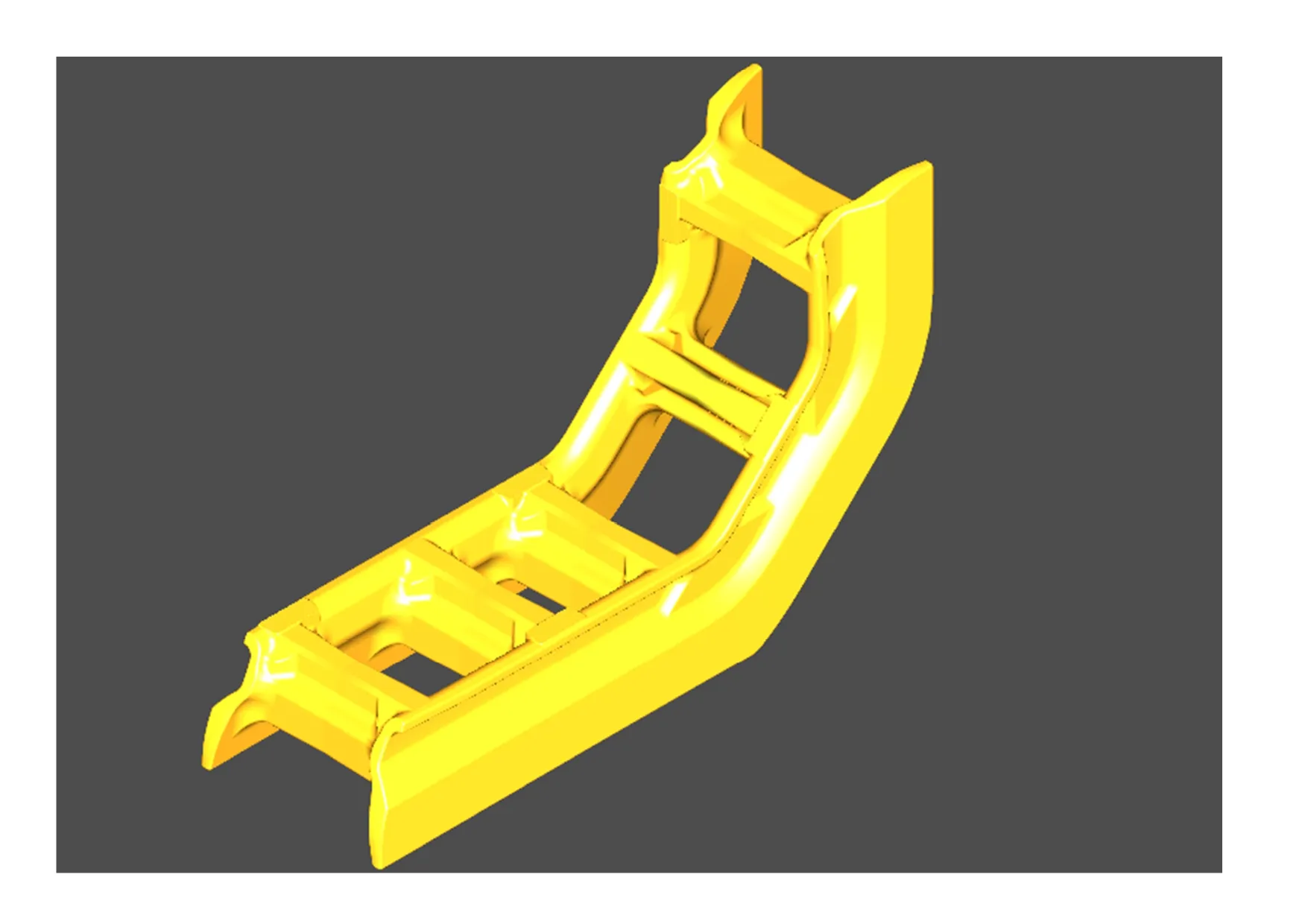

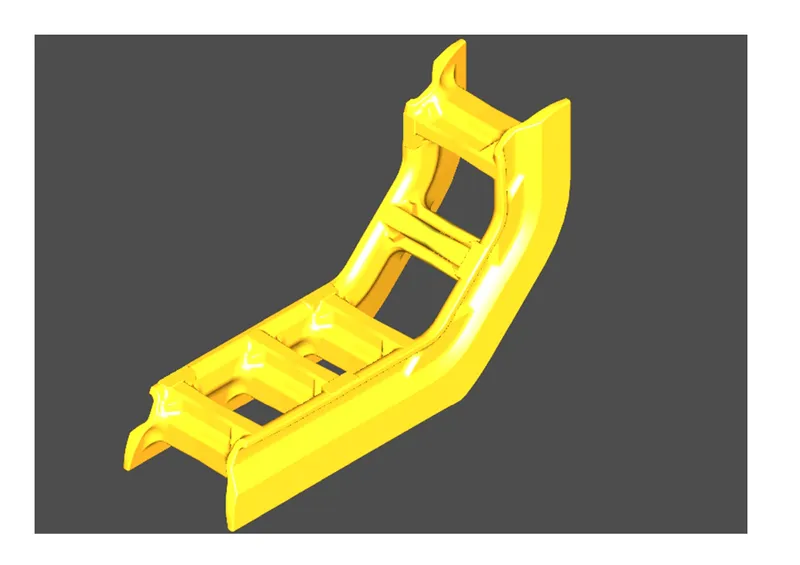

Hydraulic Fixture
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Width250 mm
Height130 mm
Length450 mm
Weight12 mm
ComplexityMedium
13 / 14

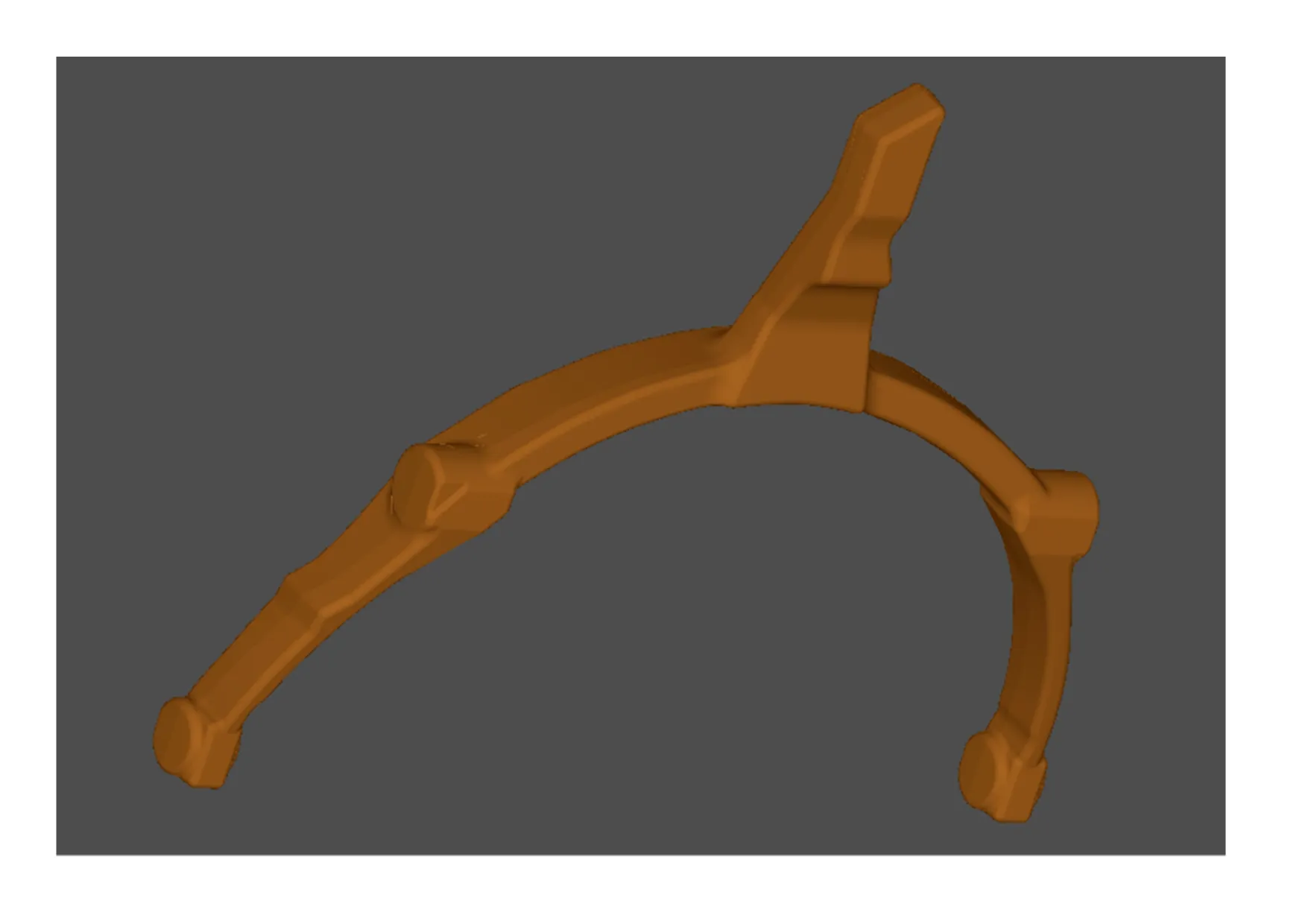

Shift Fork Truck
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Height60 mm
Width300 mm
Length340 mm
Weight2 mm
ComplexityHigh
14 / 14

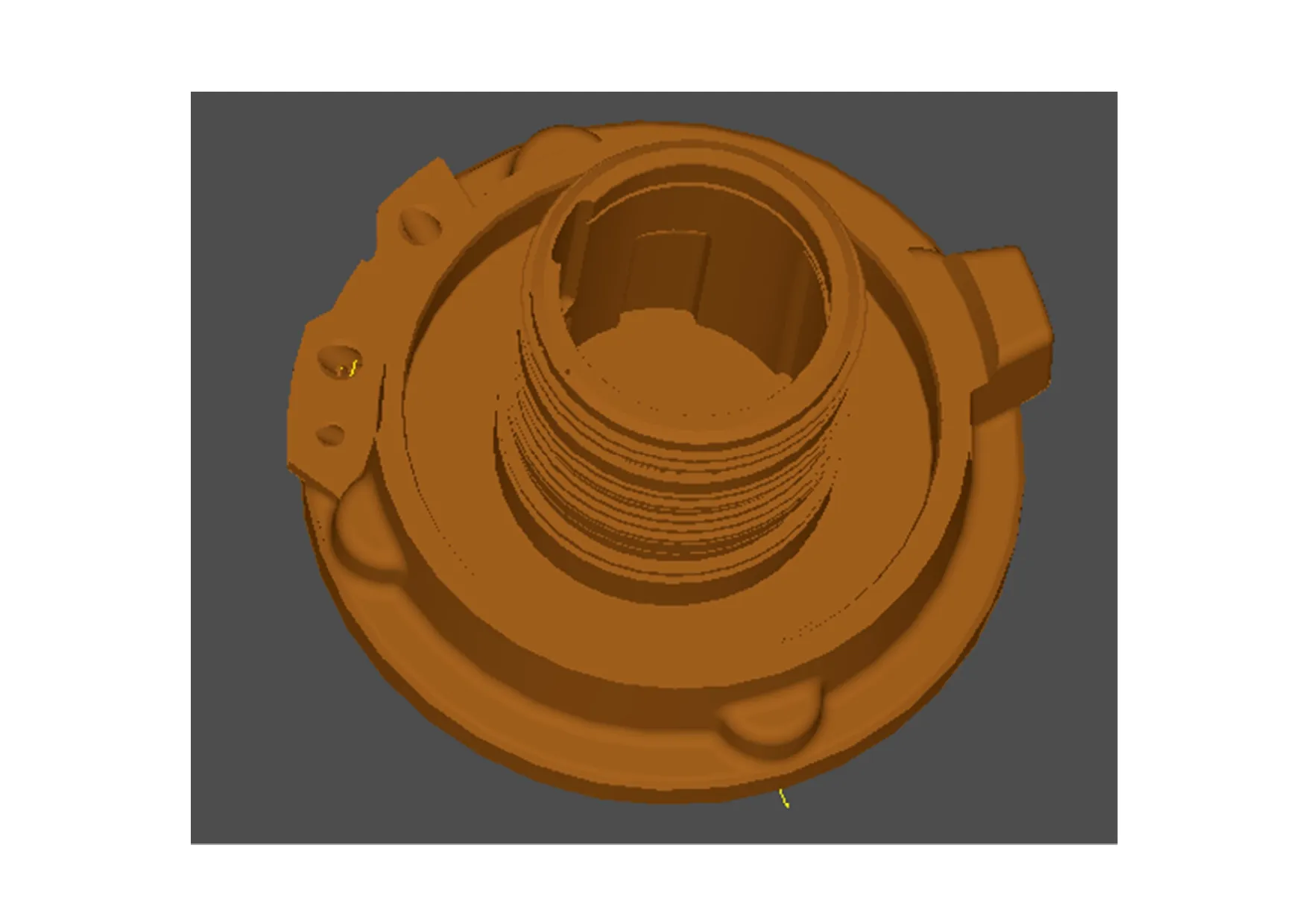

Hub Transmission
TechnologyMachine moulding (sand casting)
MaterialCast iron
Dimensions
Width200 mm
Height120 mm
Length200 mm
Weight4 mm
ComplexityHigh
Machinery (2)
1 / 2

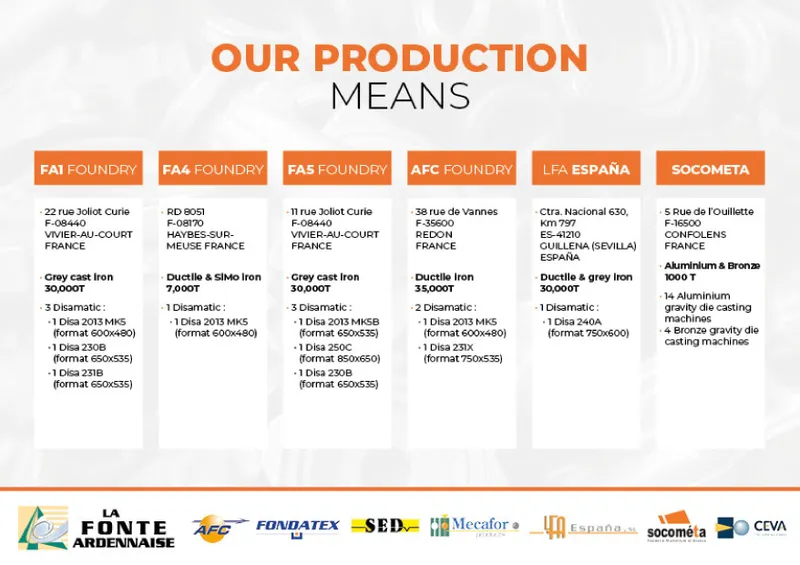

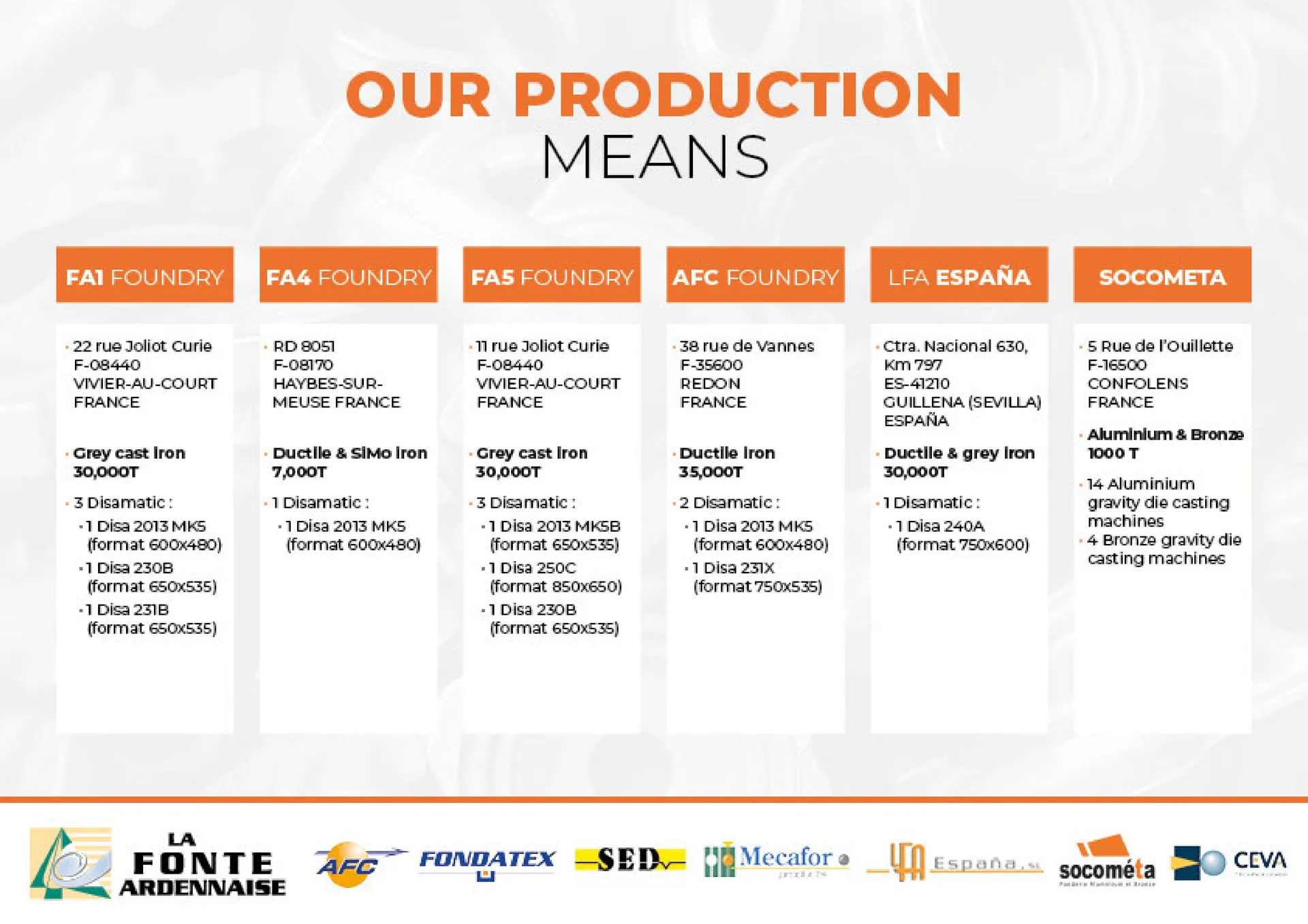

DISAMATIC
ManufacturerDISA
ControlDISA Experts
Year of Construction2020
Technology
5-axis milling machinesFull-range milling (including turning)Turning
2 / 2

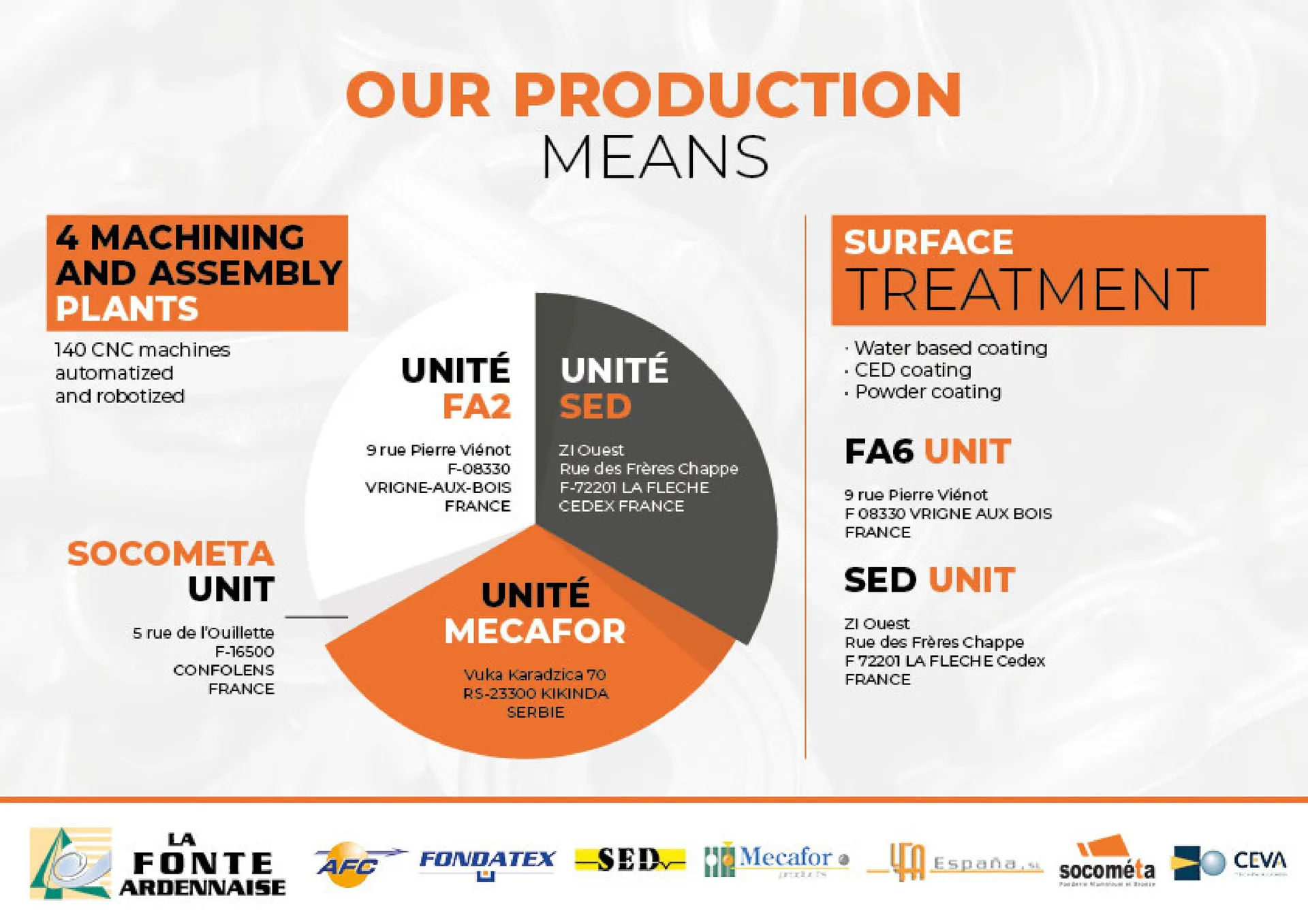

Heller, Biglia, Mazak
ManufacturerHeller, Biglia, Mazak
ControlManufacturer Experts
Year of Construction2020
Technology
BroachingMilling5-axis milling machinesFull-range milling (including turning)Drilling / threading / tappingTurningFull-range turning (including milling)
14 Parts
Machine moulding (sand casting)14
2 Machines
5-axis milling machines2
Full-range milling (including turning)2
Turning2
Broaching1
Milling1
Drilling / threading / tapping1
Full-range turning (including milling)1
