Sotler GmbH

Austria, 8010 Graz

Overview

About Sotler GmbH

Who we are

Regardless of whether it is a prototype, small or large series, thanks to our many years of experience in the field of machining, we always have a suitable solution for you

1 / 2

2 / 2

Graz, Austria

Member since 2021

Employees20 - 50

Certificates2

Turnover5 - 10 Mil.

Year of foundation1953

Marketing documents

sotler-folder_web-A4-2.pdfPDF File

Competencies

Technologies

Mould construction

Technologies	Lotsize	Length	Width	Height	Weight
Injection moulds	—	10–1,000 mm	10–500 mm	10–500 mm	1–250 kg
Pressure die cast molds	—	10–1,000 mm	10–500 mm	10–500 mm	1–250 kg
Modelmaking	—	10–1,000 mm	10–500 mm	10–500 mm	1–250 kg
Foam molds	1–1,000	10–1,000 mm	10–500 mm	10–500 mm	1–250 kg
Squeeze moulds	—	10–1,000 mm	10–500 mm	10–500 mm	1–250 kg
Vacuum deep-drawing moulds	—	10–1,000 mm	10–500 mm	10–500 mm	1–250 kg
Forging dies	—	10–1,000 mm	10–500 mm	10–500 mm	1–250 kg
Sintering	—	10–1,000 mm	10–500 mm	10–500 mm	1–250 kg
Extrusion dies	—	10–1,000 mm	10–500 mm	10–500 mm	1–250 kg
Blow moulds	—	10–1,000 mm	10–500 mm	10–500 mm	1–250 kg

Turning

Technologies	Lotsize	Length	Diameter	Weight
Turning	100–500 k	from 0 mm	from 0 mm	—
Automatic turning (bar)	1,000–100,000	0–800 mm	10–100 mm	—
Full-range turning (including milling)	100–10,000	0–100 mm	0–200 mm	—
Hard turning	100–1,000	10–200 mm	10–200 mm	—
Shaft machining	100–300 k	50–2,000 mm	10–500 mm	0–250 kg

Cutting dies / deep drawing dies

Technologies	Length	Width	Height	Weight
Punching / Cutting tools	10–1,000 mm	10–500 mm	10–500 mm	0–250 kg
Fineblanking tools	10–1,000 mm	10–500 mm	10–500 mm	0–250 kg
Deep-drawing dies	10–1,000 mm	10–500 mm	10–500 mm	0–250 kg
Trimming	10–1,000 mm	10–500 mm	10–500 mm	0–250 kg
Die replacement / wearing part manufacturing	—	—	—	—
Embossing / swage dies	10–1,000 mm	10–500 mm	10–500 mm	0–250 kg

Jigmaking

Technologies	Length	Width	Height	Weight
Drilling / milling jigs	10–1,000 mm	10–500 mm	10–500 mm	0–250 kg
Gauges	10–1,000 mm	10–500 mm	10–500 mm	0–250 kg
Measuring / testing jigs	10–1,000 mm	10–500 mm	10–500 mm	0–250 kg
Assembly jigs	10–1,000 mm	10–500 mm	10–500 mm	0–250 kg
Welding jigs	10–1,000 mm	10–500 mm	10–500 mm	0–250 kg
Clamping devices	10–1,000 mm	10–500 mm	10–500 mm	0–250 kg

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight
Measuring / testing	10–250 mm	10–250 mm	10–250 mm	10–250 mm	0–50 kg

Assembly

Technologies	Weight
Mechanical assembly	0–50 kg

Solid Forming

Technologies	Lotsize	Weight
Drop forging	15,000–500,000	0–10 kg

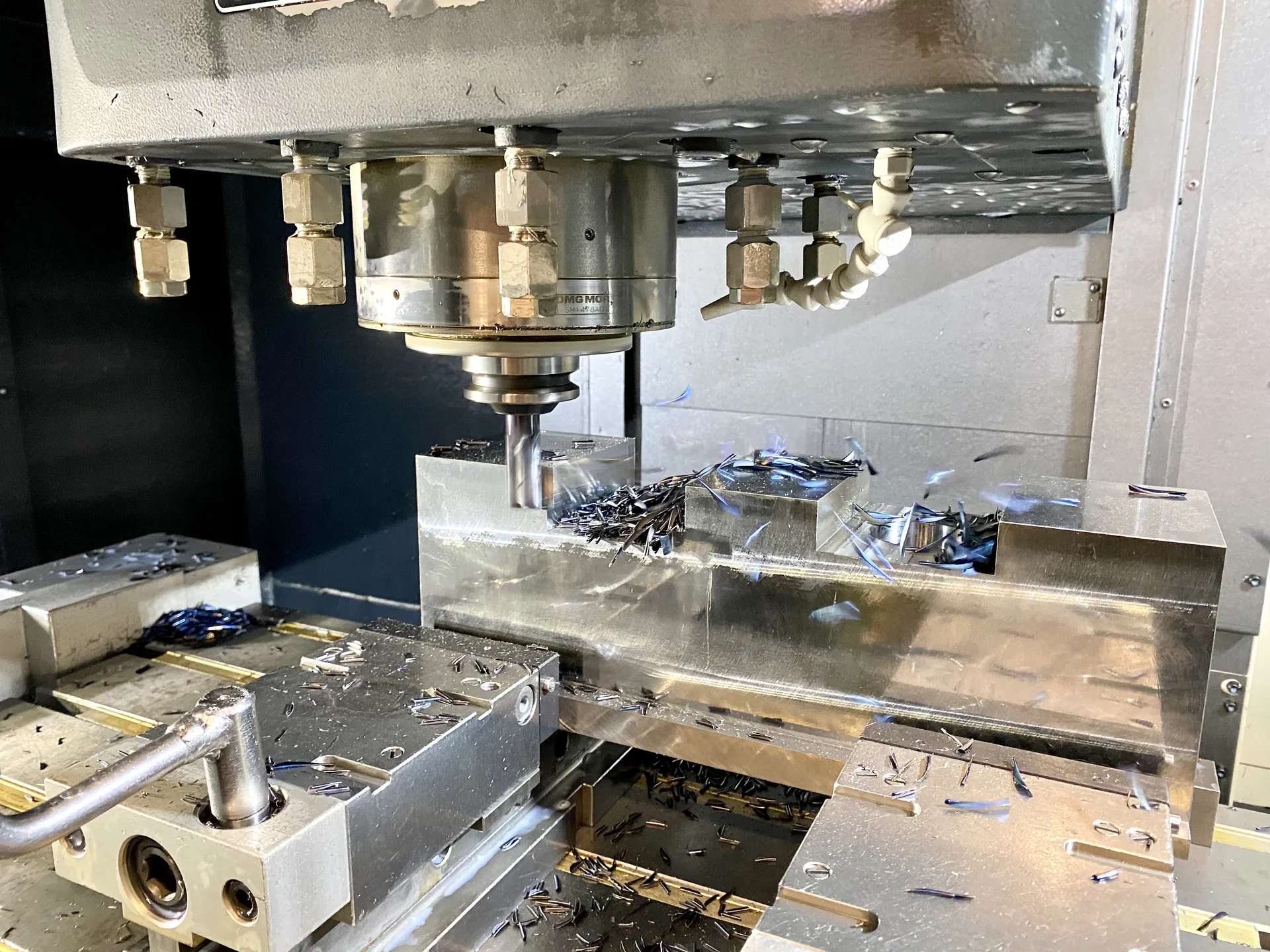

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Milling	100–10,000	0–3,000 mm	0–1,000 mm	0–500 mm	—	—
Form milling (3 D)	100–10,000	0–3,000 mm	0–1,000 mm	0–500 mm	—	—
HSC milling	100–10,000	10–1,000 mm	10–500 mm	10–500 mm	—	1–250 kg
Engraver milling	100–10,000	10–1,000 mm	10–500 mm	10–500 mm	10–500 mm	0–250 kg

Finishing

Technologies	Lotsize	Length	Width	Height	Weight
Surface grinding machine	1–20	30–400 mm	30–200 mm	5–200 mm	0–30 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter
Sawing	100–1,000	10–2,000 mm	10–250 mm	10–250 mm	10–250 mm

Materials

Plastics/synthetic materials

ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsElastomersGlass fibre-reinforced plasticCarbon fibre-reinforced plastic

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Cast metals

Cast steelCast iron

Industries

Packaging industryConstruction and architectural suppliesHydraulic and pneumatic industryPlant engineering and constructionDrive and gear engineeringRailway and rail vehicles industryOffice machinery and suppliesAerospace and aviation industryHousehold appliance industryBuilding, agricultural and forestry machinery manufacturingAutomotive and vehicle constructionMilitary engineeringTelecommunication industryLighting industryChemical industryElectrical industryInformation technology (hardware)Air conditioning, refrigeration and ventilation industryBoiler, container and tank construction Apparatus engineeringAutomation and control engineeringPower generation and transmission industryFurniture industryPrecision engineering, mechatronics and opticsMedical technologyPaper and printing machinery industryShipbuilding industryFittings engineeringMeasurement and control technique, laboratory equipmentMechanical engineeringSpecial purpose machinery manufacturingMachine tool manufacturingMining and tunnel engineering

+25 moreShow less
