Alform Metallpräzisionsteile GmbH & CO. KG

Germany, 65232 Taunusstein

Competencies

Technologies

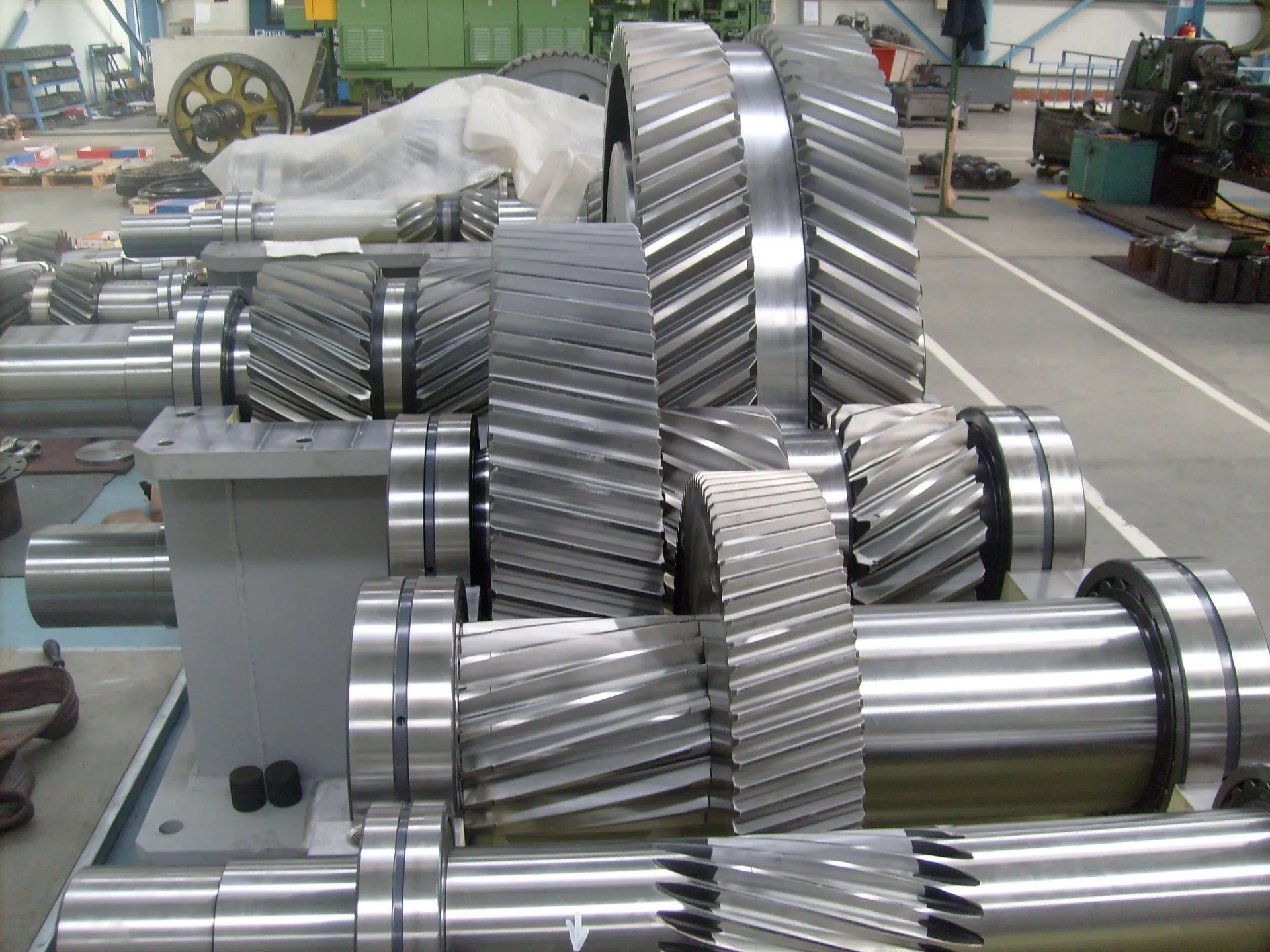

Gear Making

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Cylindrical gear / spur gear	1–50,000	10–800 mm	—	—	25–5,000 mm	—
Bevel gear wheel	1–50,000	10–800 mm	—	—	25–5,000 mm	0–20,000 kg
Rack (toothed)	1–1,000	200–4,000 mm	20–400 mm	30–200 mm	25–2,500 mm	0–20,000 kg

Welding

Technologies	Lotsize	Length	Width	Height	Weight
Inert gas shielded arc welding (MIG/MAG)	1–500 k	40–4,000 mm	40–4,000 mm	40–4,000 mm	0–20 kg
Inert gas shielded arc welding (TIG)	1–500 k	40–4,000 mm	40–4,000 mm	40–4,000 mm	0–20 kg

Turning

Technologies	Lotsize	Length	Diameter	Weight
Turning	10–500 k	1–720 mm	10–500 mm	—
Automatic turning (bar)	10–500 k	10–300 mm	6–42 mm	—
Full-range turning (including milling)	10–500 k	1–7,000 mm	42–2,500 mm	—
Broaching	1–50,000	1–1,000 mm	3–1,700 mm	—
Centering / end facing	10–500 k	10–1,000 mm	10–2,500 mm	—

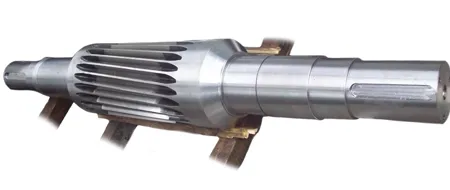

Shaft machining	1–500 k	30–6,000 mm	30–2,500 mm	0–20,000 kg

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	40–15,000 mm	40–15,000 mm	40–15,000 mm	0–20,000 kg
Machine frames / bases / racks	40–4,000 mm	40–4,000 mm	40–4,000 mm	0–20 kg

Casting

Technologies	Lotsize	Length	Width	Height	Weight
Machine moulding (sand casting)	100–100,000	20–500 mm	20–500 mm	20–500 mm	0–200 kg
Gravity die casting	1–10,000	20–400 mm	20–400 mm	20–400 mm	0–30 kg
Pressure die casting	1–2 M	5–300 mm	5–300 mm	5–300 mm	0–15 kg
Hand moulding (sand casting)	1–500	300–3,000 mm	300–3,000 mm	300–3,000 mm	0–10,000 kg

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
External cylindrical grinding	1–500 k	10–4,000 mm	—	—	10–2,500 mm	—
Centreless grinding	1–500 k	10–4,000 mm	—	—	10–4,000 mm	0–20,000 kg
Surface grinding machine	1–500 k	10–4,000 mm	10–4,000 mm	10–2,500 mm	—	0–20,000 kg
Rotofinishing, barrel finishing	1–5 M	10–4,000 mm	10–4,000 mm	10–4,000 mm	—	—

Solid Forming

Technologies	Lotsize	Weight

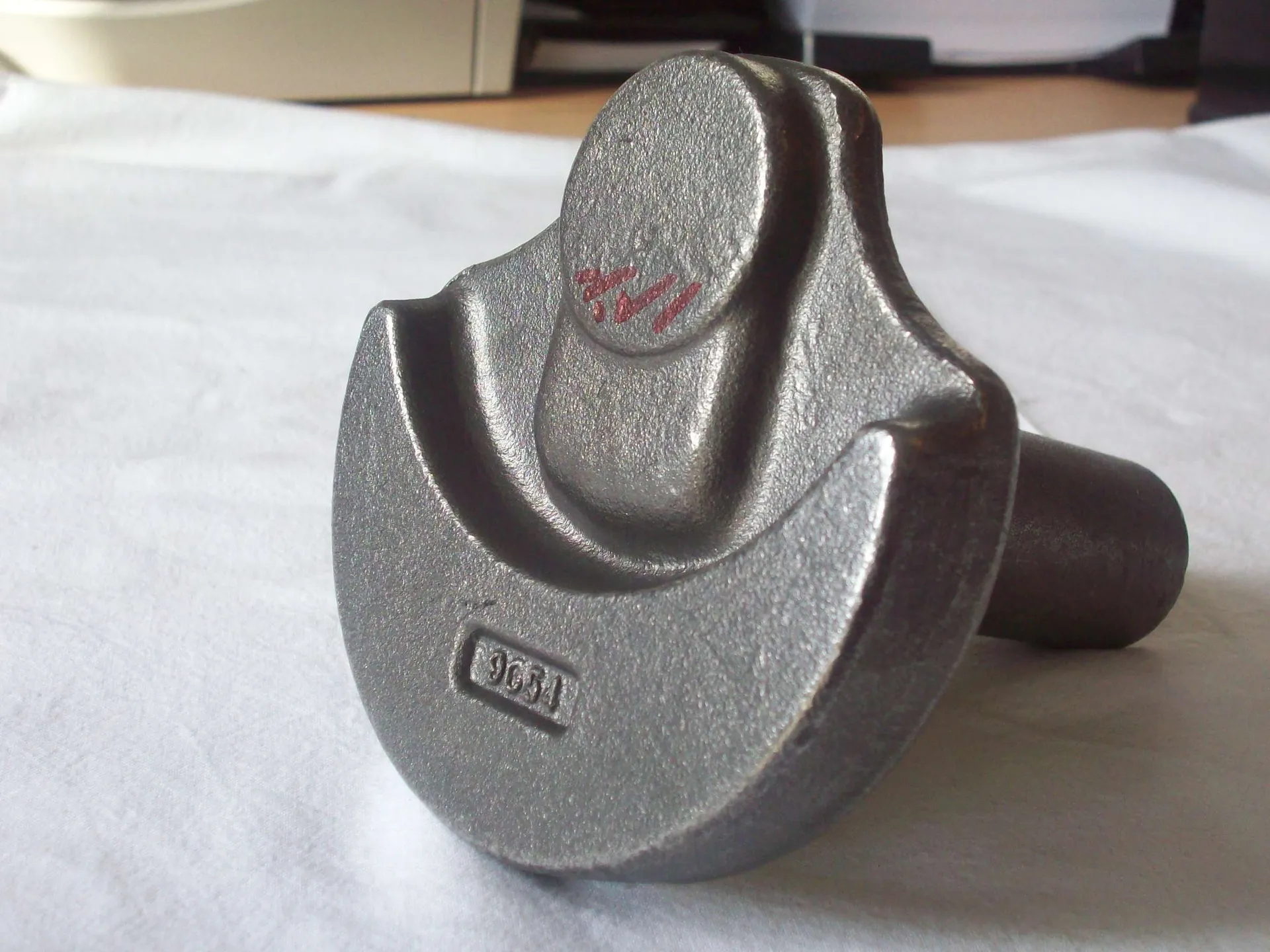

Drop forging	500–300,000	0–30 kg

Machining (Extruded Profiles)

Technologies	Width	Height	Weight
Machining of extruded sections	10–400 mm	10–6,000 mm	0–100 kg

Threading

Technologies	Lotsize	Length	Diameter	Weight
Worm milling	1–50,000	25–400 mm	25–230 mm	0–40 kg
Worm grinding	1–50,000	25–400 mm	25–230 mm	0–40 kg

Milling

Technologies	Lotsize	Length	Width	Height	Weight
Milling	1–5,000	10–1,740 mm	10–760 mm	10–660 mm	—
Form milling (3 D)	1–5,000	10–1,740 mm	10–760 mm	10–660 mm	—
HSC milling	1–5,000	10–1,740 mm	10–760 mm	10–660 mm	0–1,400 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Weight
Drilling / threading / tapping	1–5,000	10–1,740 mm	10–760 mm	10–660 mm	0–1,400 kg

Materials

Cast metals

Cast steelCast iron

Light metals

Aluminium and aluminium alloys

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelCold extruding steel

Industries

Automotive and vehicle constructionMechanical engineeringConstruction and architectural suppliesAutomation and control engineeringRailway and rail vehicles industryLighting industryPackaging industryClean room technologyFittings engineeringBuilding, agricultural and forestry machinery manufacturingMining and tunnel engineeringPrecision engineering, mechatronics and opticsMachine tool manufacturingPaper and printing machinery industryMeasurement and control technique, laboratory equipmentAerospace and aviation industryApparatus engineeringPower generation and transmission industryPlant engineering and constructionDrive and gear engineeringSpecial purpose machinery manufacturingAir conditioning, refrigeration and ventilation industryShipbuilding industryMedical technologyHydraulic and pneumatic industryElectrical industry
