Fritz Bölling GmbH
Germany, 58791 Werdohl (Deutschland)
Overview
About Fritz Bölling GmbH
Who we are
We are German manufacturer of high quality aluminum castings, which are mainly produced in permanent mold. We have a separate tool and model. We are in Werdohl in the Sauerland in the state of North Rhine-Westphalia. Our standard range includes machines keypads in the materials, aluminum, steel, plastic, cast iron, ductile iron and corrosion-resistant steel castings. We manufacture in particular handwheels in sizes 55-800 mm diam. aluminum and cast iron, and in sizes 80-400 mm diam. made of stainless steel castings. The individual one-off production of welded steel pipes and corrosion-resistant steel pipe handwheels is possible. Steel hand wheels made of stainless steel and powder coated steel are also available in sizes 100 - available as standard production parts 400 mm. We have delivery options for various casting, forging, sintering metal and plastic parts of almost all technologies. We offer these parts also processed completely finished. We do wage-clearing in the size range 3-45 mm through. We provide certified quality. Our customer base includes clients across the EU, Switzerland and Japan. With us you can correspond in German, English and Russian. Machine controls 1 Hand wheels made of stainless steel sheet 2 Hand wheels made of stainless steel casting 3 Hand wheels made of aluminum 4 Hand wheels made of cast iron 5 Handles 6 Ball Knobs 7 Clamping Levers 8 Star Cross Handles 9 Fittings made of aluminum handwheels 10 Valves made of cast iron handwheels Material size range [mm] 1 1.4571 Ø 80-400 2 1.4301 Ø 70, 160, 200, 250 3 GK-AlSi9Cu3 Ø 55-800 GK-AlSi 12 (Cu) ditto 4 EN-GJL 200 (GG 20) Ø 80-800 5 Thermoplastic M 6 - M 12; thermoset M 6 - M 16; Aluminum M 6 - M 16; steel M 6 - M 16 6 Thermoplastic Ø 16 - 32; thermoset Ø 12-60; Aluminium Ø 16 - 50; steel Ø 16-50 7 Steel Ø 16-50 1.4305 / 14301 Ø 16-40 8 Thermoplastic Ø 25 - 80; thermoset Ø 25 - 80; Aluminium Ø 40 - 80, gray cast iron Ø 32-100 9 Ripple ring DIN 390 Ø 63-200; spokes DIN 3220 Ø 160-280; spokes DIN 3319 Ø 125-315 630 + 10 Ripple ring DIN 390 Ø 63-160; spokes DIN 3220 Ø 120-500; spokes DIN 3319 Ø 100-630 METHOD Everything from one source, that is your advantage We have to bring several ways your castings in the form. Depending on the product we produce in gravity die casting, sand casting or wax molding process (Lost Wax). The planning and production of the mold is the task of our tool. Here in close collaboration with you the special form. We manufacture, depending on quantity and casting molds, models or lost duration models. The casting material is melted in our Crucible and then shaped. The further processing takes place primarily in the company. PRODUCTS Diversity is our program We operate in our own company and foundry melt. We manufacture machines keypads from the materials aluminum, steel, plastic, cast iron (gray iron and ductile iron), cast steel, brass, bronze and corrosion-resistant steel casting (stainless NiCr cast). We have a lot in store for you Many of our machines controls are stored as semi-finished goods. We deliver fast and customized according to your special requirements. A few product groups we keep in stock as blanks. Here is an even greater diversity processing is given. They are processed in our production according to your specifications: eg provided with abnormal bores, four edges or a special ...
1 / 1
Werdohl (Deutschland), Germany
Member since 2003
Premium Member since 2006
Employees20 - 50
Certificates1
Turnover1 - 5 Mil.
Year of foundation1928
Competencies
Technologies
Casting
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Machine moulding (sand casting) | 50–10,000 | 5–600 mm | 5–400 mm | 5–350 mm | from 0 mm | 0–30 kg | from 0 mm |
Gravity die casting | 50–100 k | 3–1,000 mm | 3–1,000 mm | 3–700 mm | — | 0–30 kg | — |
Pressure die casting | 1,000–10 M | 2–600 mm | 2–500 mm | 2–500 mm | — | 0–3 kg | — |
Investment casting | 50–1 M | 2–600 mm | 2–500 mm | 2–300 mm | — | 0–25 kg | — |
Low-pressure casting | 1,000–1 M | 5–400 mm | 2–800 mm | 5–800 mm | — | 0–20 kg | — |
Hand moulding (sand casting) | 1–100 | 10–1,200 mm | 10–1,200 mm | 10–750 mm | — | 0–3,000 kg | — |
Centrifugal casting | 500–1 M | 2–200 mm | — | — | 2–20 mm | 0–1 kg | — |
Sintering & Powder Pressing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Sintering | 500–1 M | 2–300 mm | 2–300 mm | 2–300 mm | 2–300 mm | 0–3 kg |
Mould construction
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Broaching | 1–30,000 | 8–200 mm | 6–36 mm |
Mechanical Engineering
| Technologies |
|---|
Handling technology |
Materials
Cast metals
Cast steelCast iron
Sintered materials
Metal powder for formed partsMetal powder for hard metal
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelCold extruding steel
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Plastics/synthetic materials
ThermoplasticsThermosetsGlass fibre-reinforced plastic
Industries
Special purpose machinery manufacturingPlant engineering and constructionChemical industryMilitary engineeringMeasurement and control technique, laboratory equipmentShipbuilding industryBoiler, container and tank construction Furniture industryDrive and gear engineeringConstruction and architectural suppliesElectrical industryAir conditioning, refrigeration and ventilation industryBuilding, agricultural and forestry machinery manufacturingMining and tunnel engineeringMachine tool manufacturingMechanical engineeringFittings engineeringHydraulic and pneumatic industryApparatus engineeringRailway and rail vehicles industryPower generation and transmission industryAerospace and aviation industryPaper and printing machinery industryPackaging industry
Certificates
No certificates
Parts & Machines
Parts (2)
1 / 2
Gussteile
DescriptionWir sind deutscher Hersteller hochwertiger Gussteile aus Aluminium, die hauptsächlich im Kokillengussverfahren gefertigt werden. Wir verfügen über einen eigenen Werkzeug- und Modellbau.
2 / 2

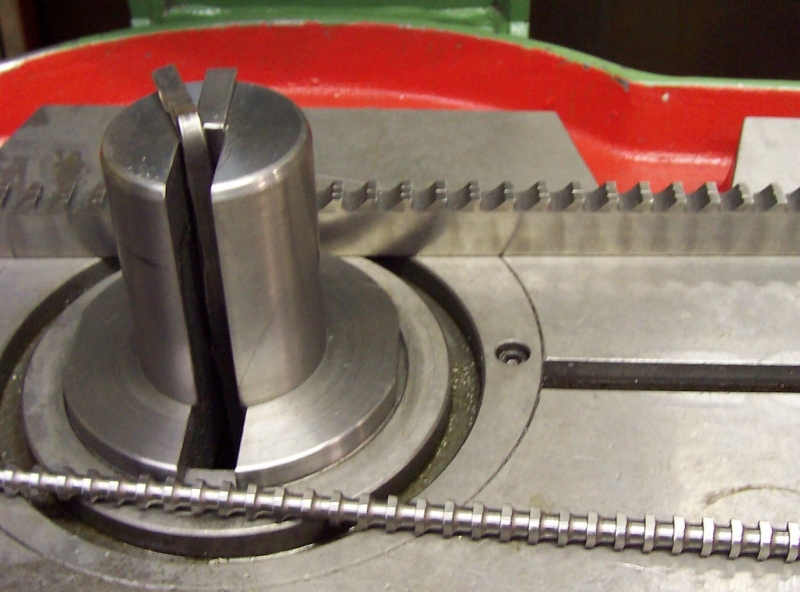

Lohnarbeit, die sich für Sie auszahlt
DescriptionWir fertigen Keilnuten in fast alle metallischen Werkstoffe von 3 - 16 mm nach DIN 6885.1.<br>
Außerdem räumen wir Bohrungen von Ø 10 - 45 mm. <br>
Vierkante fertigen wir ab der SW 6 - 36 mm.<br>
<br>
Andere Profile wie z.B. Kerbverzahnungen sind auf Anfrage ebenfalls lieferbar. <br>
Unsere Räummaschinen haben eine Zugkraft von 3 - 10 Tonnen<br>
Machinery (2)
1 / 2
RSIZ6/1000
ManufacturerRausch
Control-
Year of Construction2003
2 / 2
RS 4 / 1200
ManufacturerRausch
Control-
Year of Construction2004
2 Parts
2 Machinery
Contact
Location
Main locationAn der Tumpe 19, 58791 Werdohl (Deutschland), Germany
Further locations58791 Werdohl (Sauerland)
Bundesland: Nordrhein-Westfalen (NRW)
Regierungsbezirk: Arnsberg
Kreis: Märkischer Kreis
Bundesland: Nordrhein-Westfalen (NRW)
Regierungsbezirk: Arnsberg
Kreis: Märkischer Kreis
Company contact
Contact persons
MB
Michael Bölling
