GSB aluminium GmbH

Germany, 42327 Wuppertal

Overview

About GSB aluminium GmbH

Who we are

Die-cast zinc Only the standard program of "precision die casting parts" now includes as 1500 products - and there are almost daily more: Components for closure systems, components for industrial housing, supply industry, processing, assembly manufacturing Examples: Handles - troughs - case parts - Hinges - Corner connector - Fasteners - Fasteners Machining Excellent products of the highest quality: the production of complicated machining parts, components or entire modules is the most modern machinery manufacturing technology: Precision machining parts made of all materials, stainless steel turned parts, finishing, finishing by thermal and galvanic treatment, assembly manufacturing, packaging and order picking Aluminum die casting / die forging This allows the spectrum in the field of aluminum production is best described: aluminum castings, die forgings, machining, assembly manufacturing Examples: spring plate - Motor Mounts - flanges, connectors Drive Technology In the area of drive technology gears, complete axles and transmissions parts for special vehicle to be manufactured. These are our own product development as well as the extensive capabilities of the ILS manufacturing network from rapid prototyping to assembly available.

1 / 2

2 / 2

Wuppertal, Germany

Member since 2001

Employees100 - 200

Certificates2

Turnover20 - 50 Mil.

Year of foundation1921

Competencies

Technologies

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
External cylindrical grinding	—	0–750 mm	from 0 mm	from 0 mm	0–250 mm	—	from 0 mm
Internal cylindrical grinding	—	—	from 0 mm	from 0 mm	—	from 0 kg	from 0 mm
Surface grinding machine	—	—	—	0–400 mm	from 0 mm	—	from 0 mm
Rotofinishing, barrel finishing	500–100,000	5–500 mm	5–300 mm	5–100 mm	—	—	—

Turning

Technologies	Lotsize	Length	Diameter
Turning	1–50,000	1–1,500 mm	3–720 mm
Automatic turning (bar)	100–100,000	5–30 mm	3–65 mm
Full-range turning (including milling)	1–10,000	1–1,500 mm	1–720 mm

Gear Making

Technologies	Length	Width	Height	Diameter	Material thickness
Cylindrical gear / spur gear	0–695 mm	from 0 mm	from 0 mm	0–630 mm	from 0 mm

Solid Forming

Technologies	Lotsize	Weight
Drop forging	500–100,000	0–3 kg

Casting

Technologies	Lotsize	Length	Width	Height	Weight
Pressure die casting	10–50,000	5–500 mm	5–500 mm	5–500 mm	0–12.5 kg

Threading

Technologies	Length	Width	Height	Diameter	Material thickness
Worm milling	0–425 mm	from 0 mm	from 0 mm	0–630 mm	from 0 mm

Milling

Technologies	Lotsize	Length	Width	Height	Diameter
Milling	0–10,000	0–1,250 mm	0–800 mm	0–850 mm	—
Full-range milling (including turning)	1–10,000	1–1,250 mm	1–800 mm	1–850 mm	1–720 mm

Welding

Technologies	Lotsize	Length

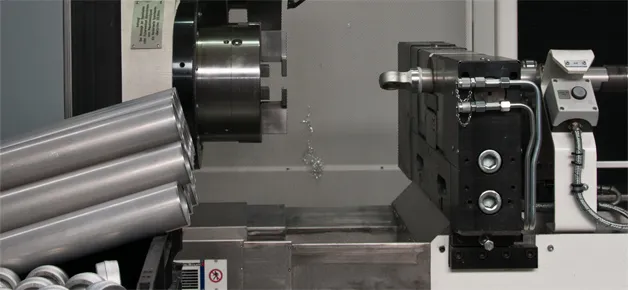

Friction welding	200–100,000	100–1,500 mm

Materials

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys

Light metals

Aluminium and aluminium alloys

Cast metals

Cast steelCast iron

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Industries

Railway and rail vehicles industryMachine tool manufacturingHydraulic and pneumatic industrySpecial purpose machinery manufacturingMechanical engineeringMilitary engineeringAir conditioning, refrigeration and ventilation industryElectrical industryMining and tunnel engineeringPower generation and transmission industryPrecision engineering, mechatronics and opticsAutomotive and vehicle constructionConstruction and architectural suppliesPaper and printing machinery industryChemical industryBuilding, agricultural and forestry machinery manufacturingDrive and gear engineeringMedical technologyAerospace and aviation industryPackaging industryAutomation and control engineering

+13 moreShow less
