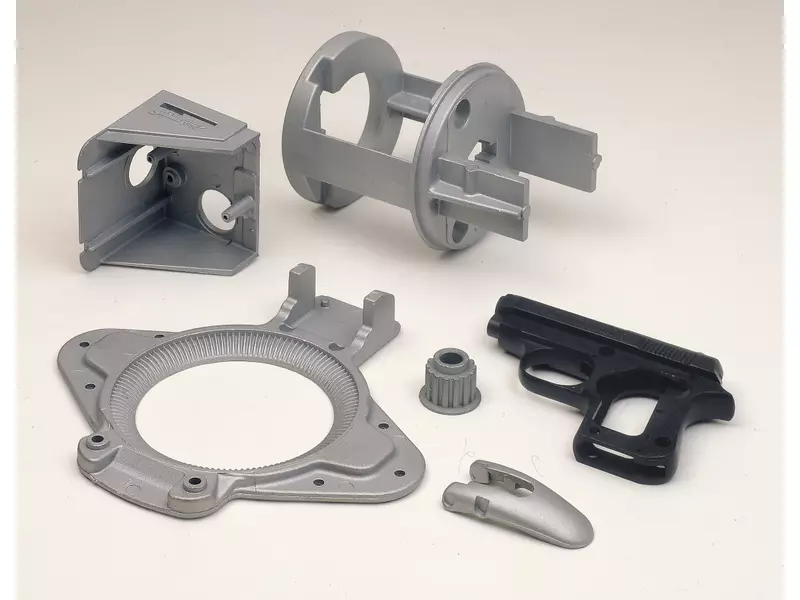

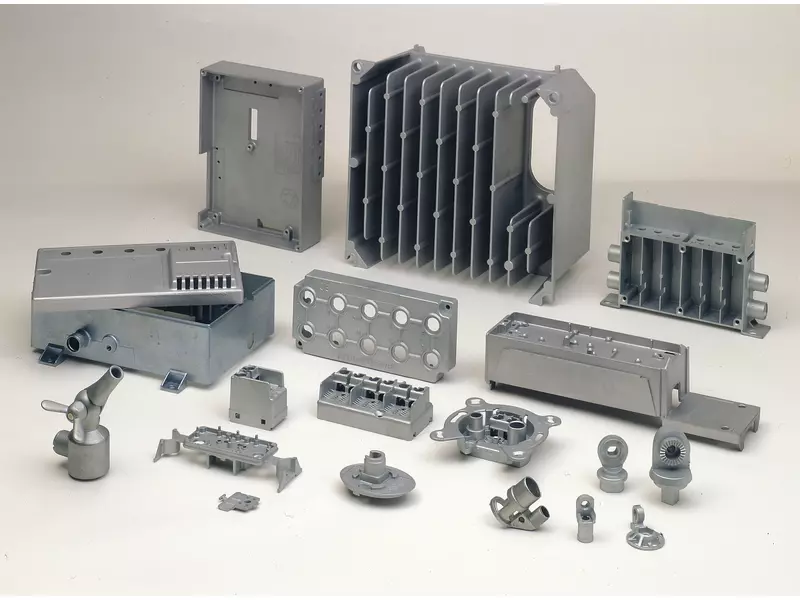

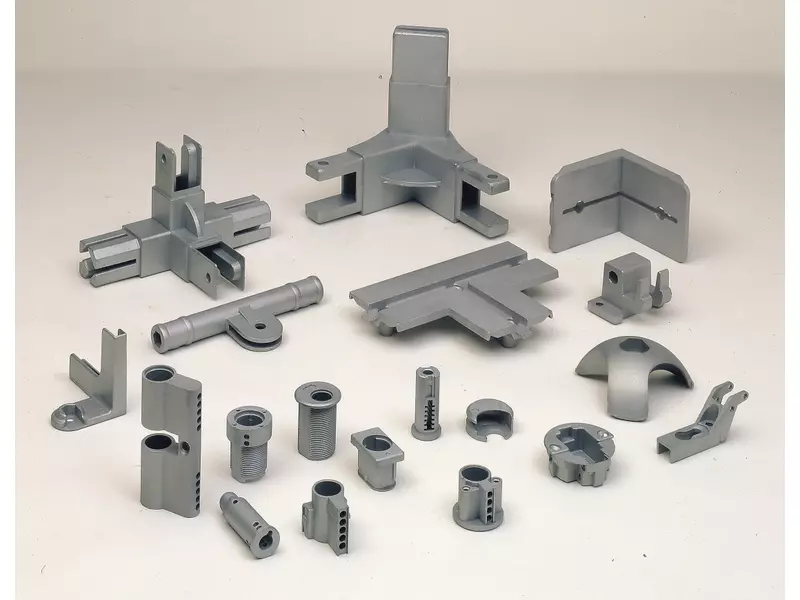

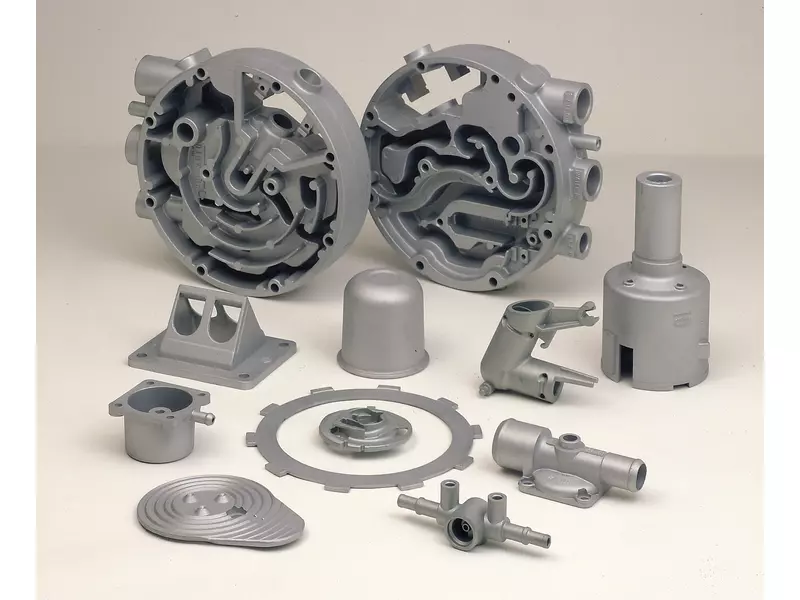

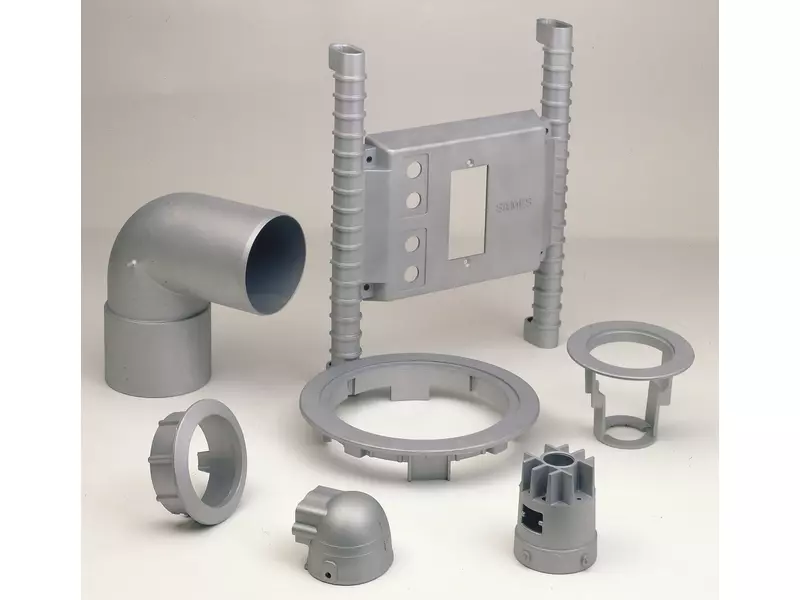

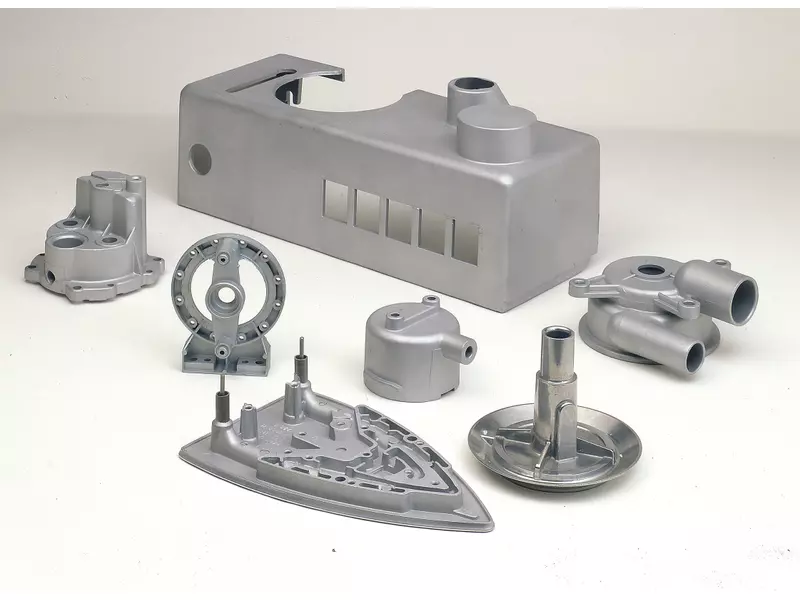

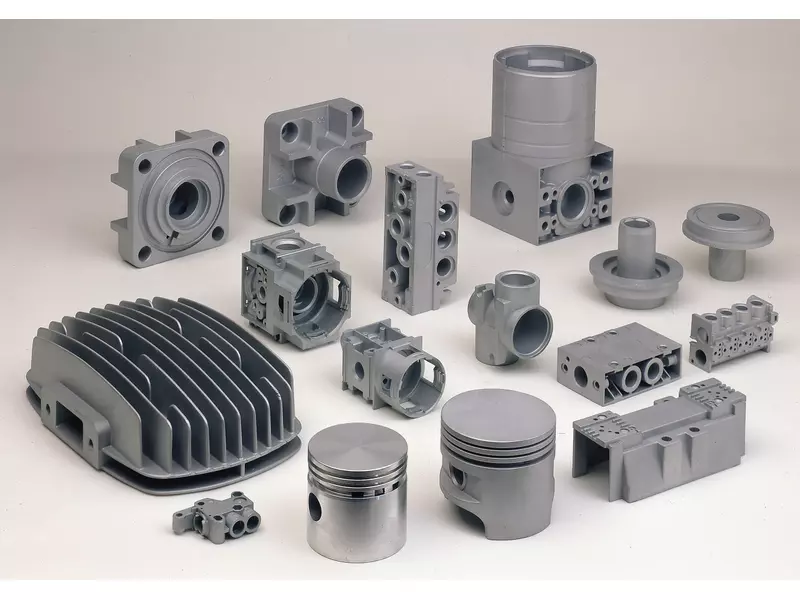

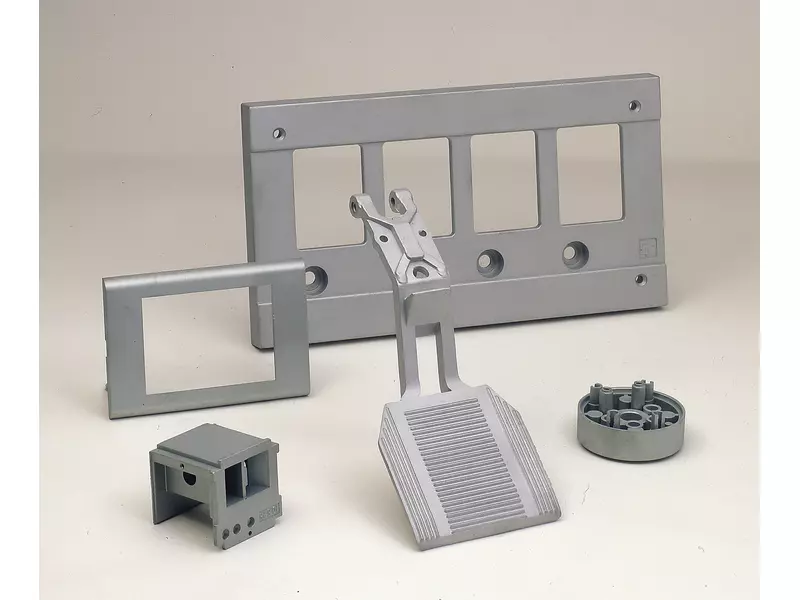

Mechanical machining of: >> Castings of aluminum and zinc alloys >> Aluminum from solid material Design of castings of aluminum and zinc in sand casting, permanent mold and die casting with partner companies. Casting finishing (plastering, shot peening)

We are German manufacturer of high quality aluminum castings, which are mainly produced in permanent mold. We have a separate tool and model. We are in Werdohl in the Sauerland in the state of North Rhine-Westphalia. Our standard range includes machines keypads in the materials, aluminum, steel, plastic, cast iron, ductile iron and corrosion-resistant steel castings. We manufacture in particular handwheels in sizes 55-800 mm diam. aluminum and cast iron, and in sizes 80-400 mm diam. made of stainless steel castings. The individual one-off production of welded steel pipes and corrosion-resistant steel pipe handwheels is possible. Steel hand wheels made of stainless steel and powder coated steel are also available in sizes 100 - available as standard production parts 400 mm. We have delivery options for various casting, forging, sintering metal and plastic parts of almost all technologies. We offer these parts also processed completely finished. We do wage-clearing in the size range 3-45 mm through. We provide certified quality. Our customer base includes clients across the EU, Switzerland and Japan. With us you can correspond in German, English and Russian. Machine controls 1 Hand wheels made of stainless steel sheet 2 Hand wheels made of stainless steel casting 3 Hand wheels made of aluminum 4 Hand wheels made of cast iron 5 Handles 6 Ball Knobs 7 Clamping Levers 8 Star Cross Handles 9 Fittings made of aluminum handwheels 10 Valves made of cast iron handwheels Material size range [mm] 1 1.4571 Ø 80-400 2 1.4301 Ø 70, 160, 200, 250 3 GK-AlSi9Cu3 Ø 55-800 GK-AlSi 12 (Cu) ditto 4 EN-GJL 200 (GG 20) Ø 80-800 5 Thermoplastic M 6 - M 12; thermoset M 6 - M 16; Aluminum M 6 - M 16; steel M 6 - M 16 6 Thermoplastic Ø 16 - 32; thermoset Ø 12-60; Aluminium Ø 16 - 50; steel Ø 16-50 7 Steel Ø 16-50 1.4305 / 14301 Ø 16-40 8 Thermoplastic Ø 25 - 80; thermoset Ø 25 - 80; Aluminium Ø 40 - 80, gray cast iron Ø 32-100 9 Ripple ring DIN 390 Ø 63-200; spokes DIN 3220 Ø 160-280; spokes DIN 3319 Ø 125-315 630 + 10 Ripple ring DIN 390 Ø 63-160; spokes DIN 3220 Ø 120-500; spokes DIN 3319 Ø 100-630 METHOD Everything from one source, that is your advantage We have to bring several ways your castings in the form. Depending on the product we produce in gravity die casting, sand casting or wax molding process (Lost Wax). The planning and production of the mold is the task of our tool. Here in close collaboration with you the special form. We manufacture, depending on quantity and casting molds, models or lost duration models. The casting material is melted in our Crucible and then shaped. The further processing takes place primarily in the company. PRODUCTS Diversity is our program We operate in our own company and foundry melt. We manufacture machines keypads from the materials aluminum, steel, plastic, cast iron (gray iron and ductile iron), cast steel, brass, bronze and corrosion-resistant steel casting (stainless NiCr cast). We have a lot in store for you Many of our machines controls are stored as semi-finished goods. We deliver fast and customized according to your special requirements. A few product groups we keep in stock as blanks. Here is an even greater diversity processing is given. They are processed in our production according to your specifications: eg provided with abnormal bores, four edges or a special ...

- Fully automatic moulding plant - Laser controlled - Casting weight from 5kg to 90kg - Medium to large series - GJL-150 to GJL-300 - GJS-400 to GJS-700

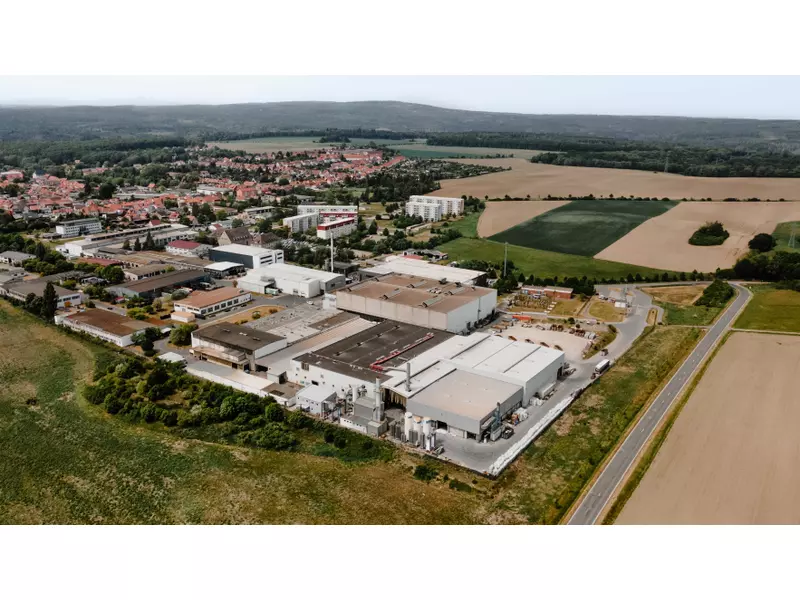

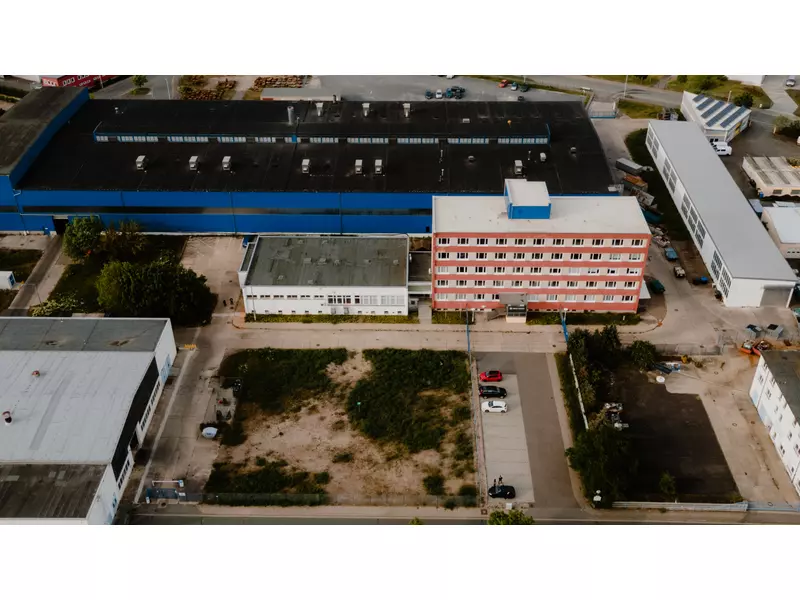

foundry group 4 locations as a foundry 1 location with mechanical processing

Stainless Steel - centrifugal casting Herststeller The company was founded in 1960 by Klaus Kuhn, and was designed from the beginning to the production of stainless steel rotationsverdichtetem. Core element of the high quality of our Kuhn-stainless steel is the centrifugal casting process, which is constantly being developed by the company. The alloy spectrum is virtually unlimited and is continuously adapted to the needs of our customers. It will be made on medium-and high-alloy chromium-chromium-nickel steels, down to the iron-free nickel-and cobalt-based alloys standard and special alloys of cast iron (Ni-resist) and cast steel. Klaus Kuhn made according to your design specifications. The finishing is our strength. The extensive production of our mechanical processing (conventional lathes, CNC machines, machining centers, large lathes, boring lathes, etc.) allow us to use our products in a variety of industries around the world, all from one source. Dimensional ranges / Key Facts: max. Outer diameter = 1500 mm min. Outer diameter = 56mm max. Coating weight = 5to depending on the wall
