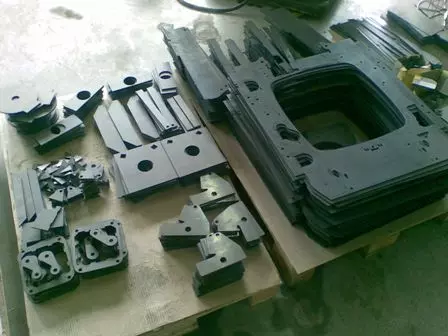

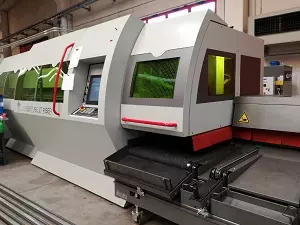

Lasers A laser penetrates contact sheets, tubes and profiles. At the point where the focused beam impinges upon the workpiece, the metal begins to melt away. This results in a narrower kerf, barely wider than the beam itself We use the laser beam fusion cutting as a separation method for stainless steel, aluminum, brass, bronze and titanium. The combination of our 4000-watt laser system from Trumpf with the Fladder-deburring providing its customers a number of special advantages: We can produce almost any shape. The material heats up hardly and does not warp. The cutting edges are straight, free of burrs and clean. The components can be processed immediately. Bending Bent parts can be found in technical applications in ever-increasing numbers. They enable materials, weight and cost savings. However, precisely bent sheet metal parts require extensive knowledge of materials, precise work preparation and true machine powerhouses. We work with a Trumpf press brake with 6-axis stop, automatic angle measurement system and 230 tons of pressure. In our work, preparing the optimum bend sequence is determined to create its processing using 3-D software. In addition to the geometry of the bending portion, the empirically determined characteristics of the material are considered. This can be programmed and produced within a very short time even complicated bent parts. Welding Stainless materials are now available in great variety. Exact knowledge of their behavior during welding are therefore a fundamental prerequisite for the quality-oriented performing welding operations. And: Stainless materials do not come around a corresponding weld-treatment if they are to remain rust-free. As specialists in stainless materials, we offer our clients professional solutions around the welding and finishing of steel and aluminum. We perform the welding process TIG, MAG and MIG and spot welding and stud welding. As a post-treatment process, we have preferably pickling and passivation, but also sanding or bead blasting. Edit Machine parts, panels, framing, or container - in addition to welded joints play mechanical joining techniques an essential role in the structural design of composite systems. The additional mechanical processing of sheet metal, pipes and profiles fits into our production flow seamlessly. We manufacture holes, eyelets, threads and cuts and can offer our customers the manufacture of turned and milled parts made of rustproof materials as well as the riveting, bonding, welding or bolts injection of standard parts. Surface As specialists in stainless steel and aluminum we are very familiar with the decorative design of the product surfaces.We advise you gladly. Because the right surface treatment affects not only the appearance of the products. Also, the strength and the cleaning behavior are influenced by it. Depending on the application or customer preference, the method of glass bead blasting, grinding, polishing, electro polishing, chromating, anodizing and powder coating available. Labels can be designed as a laser marking, engraving or the screen printing method.

Welding and machine components, large components, concrete-filled welded structures Our customers include leading manufacturers of textile machinery, machine tools, Printing machinery, lifting equipment, special purpose machines, packaging machines

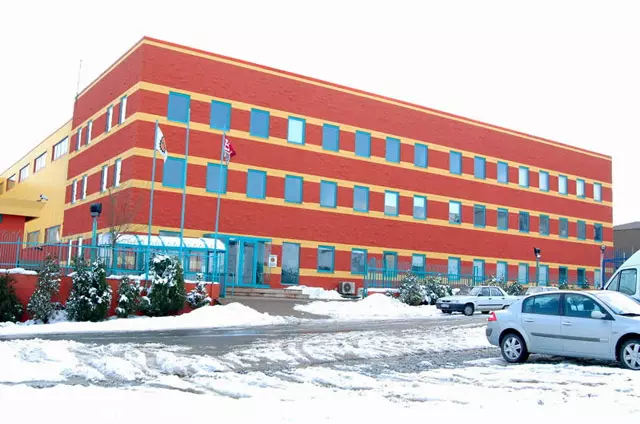

Gamelsa, a company belonging to Televes Corporation, was created in 1984 as a subsidiary specialising in the design and manufacturing of metal structures for added-value products that integrate both mechanical and electronic elements. - All kinds of machined sheet and pipes-metal pieces. Cutting, folding, soldering, painting and assembling. - Hole punching up to 8 m/m. - Laser cutting (Hi-Las) up to 20 m/m in steel and 20 m/m in stainless steel. - Stamping up to 400 Tn. - Soldering: MIG, TIG and LASER. - Powder coating. Pieces up to 6 x 2 x 1 m. - Silk screen painting and tampography. Activities of Subcontraction (outsourcing): Machining of sheet and tube by processes of CNC punching, nibbling, laser cutting, bending, welding, surface treatment, painting and marking. Component mounting and subassemblies. MEASURE AND MONITORING EQUIPMENT - 1 Three-Dimensional measurement machine 3000X1500X1500(1um. Resolution) - 1 Scanner for sheet up to 2.500X2.500 mm. - 1 Digital caliper in each workstation mirocmeters - Micrometers - Hardness meter - Roughness meter - Measuring of thickness recovery in ferrous an non-ferrous materials - Thermography for painting curing - Microprocessor color analysis REFERENCE SECTORS Electronic and comunications (Matv and Satelite), Road, Sea and Railway Transport Vehicles, Food Process Industry, Hospital Equipment, Urban Furniture TOTAL QUALITY MANAGEMENT EN-ISO 9001:2008 CERTIFIED TÜV Reinland Reg. No. 0.04.14069 EN-ISO 3834-2:2006 CERTIFIED TÜV Reinland Reg. No. 00/140031 EN-ISO 15085-2 CERTIFIED TÜV Reinland Reg. No. 15085/CL2/350/0/14

We have over 18 years of high production and materials expertise in sheet metal & tube processing. We put in innovative technology combined with the expertise of our staff of 40. We continually invest in modern production tool in the development of our employees. Modern machinery and 3D CAD-CAM systems are for us for years, of course, as well as our IT system that meets the current standard. In the processing of high-quality materials such as stainless steel and titanium, we continuously develop new manufacturing processes. Due to the technology and product portfolio, our customers see us as a full service provider and problem solver for sophisticated and custom products.

WEIMANN, is synonymous when it comes to sheet metal processing and galvanizing. For more than 50 years, we are the experts in these fields. We solve your problems on time, economically and in excellent quality. At our continuous development of our dedicated employees are significantly involved. In order to be steadily the required requirements of our customers, we make our industrial and commercial offspring from themselves. These are all the guarantors of our success!

Our Company The most modern techniques and machines in production, and timely methods of work, professionally qualified and motivated employees are a prerequisite for us for the highest quality standards and customer satisfaction. This objective covers all areas of our company. Be it. In consulting, construction, sheet metal fabrication, welding and joining, surface treatment, assembly, or in perfect logistics Since 1850, our company deals with the treatment and processing of metals. In these many years, we have a know-how acquired it allows us to professionally skillful solutions to problems in sheet metal processing to offer. The services We are a contract manufacturing operation for sheet metal processing, which is at the highest level and precise quality will satisfy the demands of our clients and highly appreciated by our services and our expertise. This is supported by the latest technology, which ensures a quality-and quantity-oriented production. Our quality management system according to DIN EN ISO 9001:2000 emphasizes the importance of well-functioning metal process chain for the benefit of our customers.

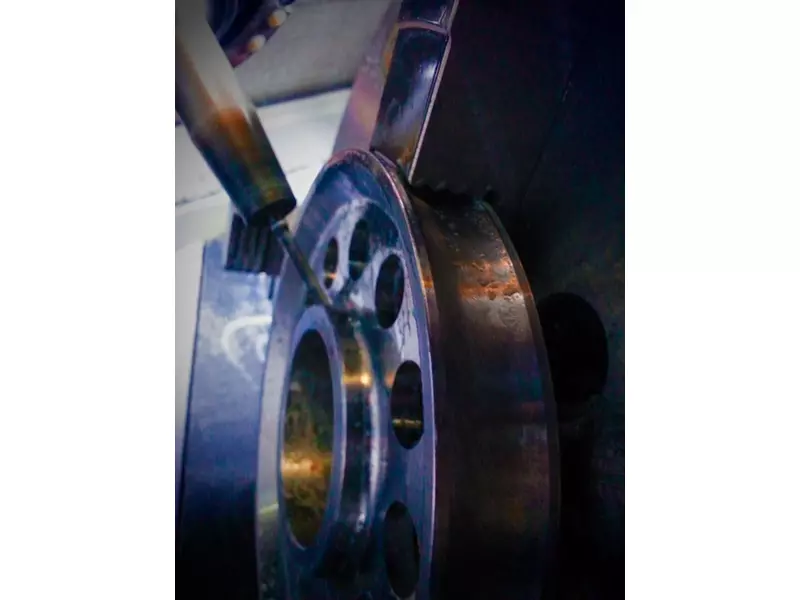

Manufacturing without limits: turning, milling, eroding, grinding, engraving, laser marking, ... benefit from our hughe and various collection of machines on four locations. Your stock stads by us - over 4.000 materials, alu, steel, stainless steel, titanium, tec. plastic, ceramic-glass, ... We twist for you - ask for impossibilities, our sheet metal forming realizes it. The word is colorful - our longterm experience of perfect surface finishes. Quality is no accident - our optimized quality management. Save paper, time and nerves - the best quality in the right place at the right time, all from a single source. We look forward to all questions, not only to inquiries. For more than 30 years Mühlbauer AG has been a proven partner for the provision of high quality precision components. It all started with a small lathe, from that we have developed into a globally operating company, which realizes all wishes concerning precision around the globe. From consulting, construction and prototype construction via manufacturing including surface finishing up to the installation of complex single components or whole machines, we have everything you will need for an optimum result.

We are a medium sized family owned which specializes besides the production and installation of road signs on the design and manufacture of specially designed steel structures (including stainless steel), as well as small series. When needed, we work out solutions for you with the latest 3D CAD software to create static calculations and manufacturing the components. On request, Galvanized and powder coated. A particular specialization we have in the field of traffic engineering (masts, brackets, height limitations). Another manufacturing focus is the production of sheet metal enclosures which are developed by us or given by you. Welding to: DIN18800-7, Class C Quality assurance according to DIN EN ISO 3834-3

We manufacture according to drawings following products: Turned parts of Dm Dm 3 to 65 as a rod rotating parts -Rotational parts to Dm 120 -Frassteile to 300x500x200 Assembly -------------------------------------------------------------------------------------------------------- All our Produtke are made on CNC machines. At the time are in our production: - 13 CNC turning machines (Traub TNC30, 42, 65; Traub TNS30/42D; V200 INDEX, INDEX GE42, 65; Nakamura SC250, Maier ML26 ...) -3 CNC machining centers (TRAUB TVC350P, Schmid VMC1000) -Various machines (sawing, Nahcbearbeitungsmaschinen, vibratory finishing machines, presses ..) -------------------------------------------------------------------------------------------------------- We produce parts in small to medium-sized amount in almost all machinable materials. To see our quality Tete pay short delivery OPENING HOURS, little complaints and zuverlasigkeit. --------------------------------------------------------------------------------------------------------- More info can be found on our internet site or just give us a call.

Sub-contract deep-hole drilling Drill diameter 1 - 100 mm (solid drilling). Drill depth up to 2000 mm (78 3/4 inches) from one side and up to 4000 mm (157 1/2 inches) from both sides. centrical and eccentrical (asymmetric) drillings, if desired as well in oblique planes. In any free cutting material up to an hardness of about 43 HRC respectively an tensile strengh of about 1300N/mm². Workpieces up to a weight of 5.5 tons can be transported by our forklifts and gantry cranes. On our depp-hole drilling centres we can provide additional work besides deep-hole drilling such as tapping, reaming and 2.5D milling operations.

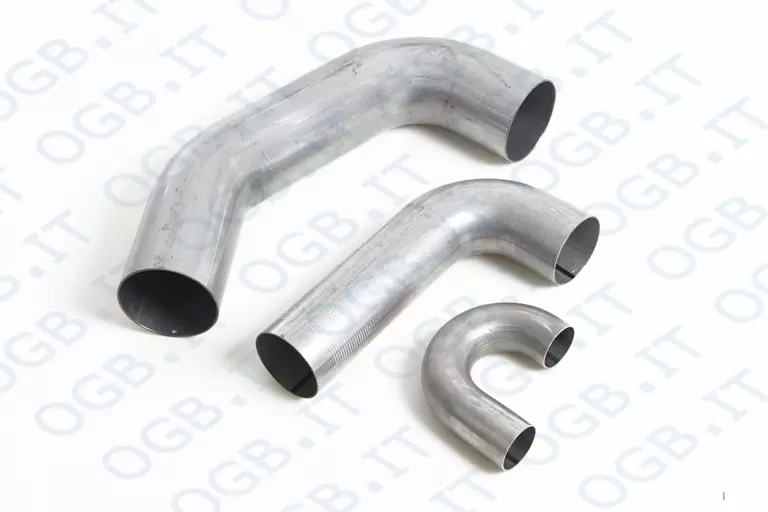

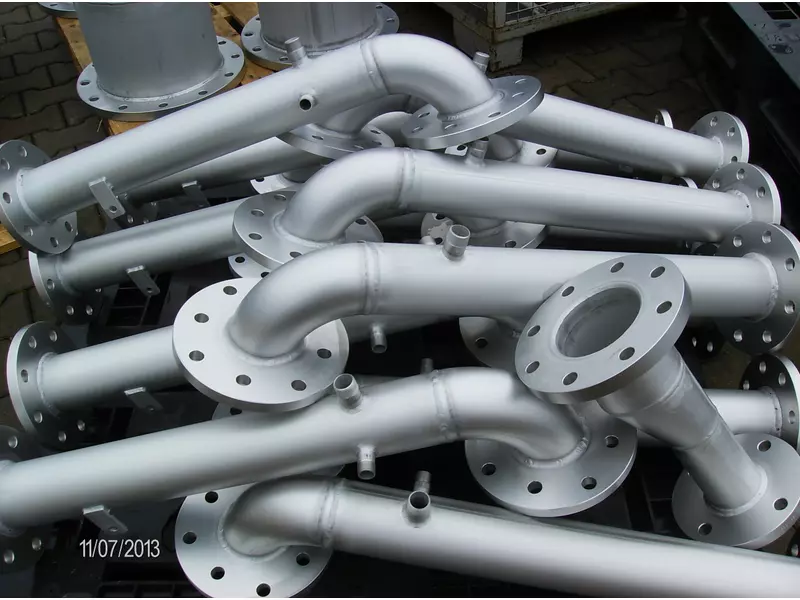

With us, you gain a professional partner in the area of pipe bending and welding technology with over 30 years of experience. From the production of individual parts to the series delivery of coated and assembled components, you can count on us at any time.

Anker Schroeder is a family owned steel forming. The upset forging is heaviest anchors and long turning parts for the steel construction industry, hydraulic steel structures, bridge construction, building construction and heavy engineering.

The Albert Biebl GmbH since 1998 been supplying fully assembled tubes for agricultural machinery, construction machinery and automotive industries.

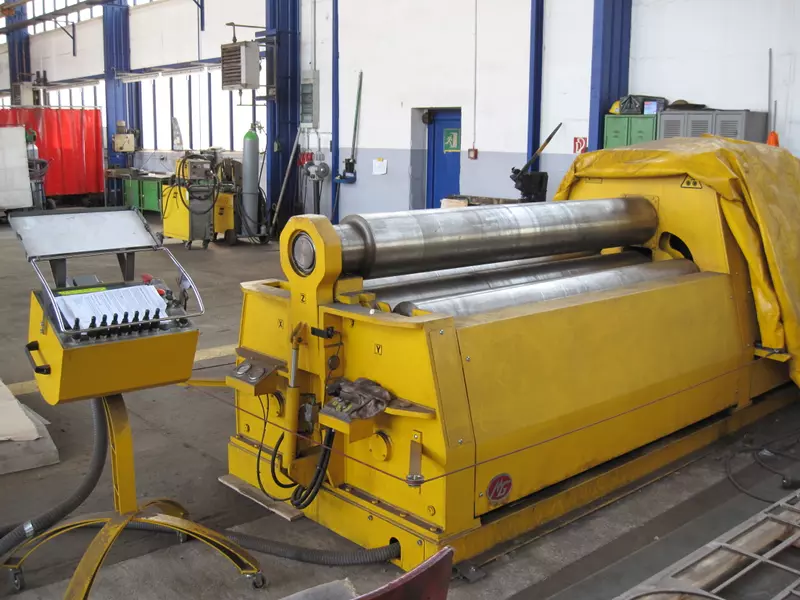

Founded in 1992, Maschinen- und Metallbau Respondeck GmbH is a medium-sized company for high-quality metal processing in the cutting and non-cutting area. As a contract manufacturer and supplier with state-of-the-art machinery, we mill, turn, bend, roll, saw and weld a wide variety of metals for customers from the region as well as large international corporations - across industries, from prototypes to assemblies to large series.

We manufacture seamless tubes of non-ferrous metals. E.G. EN-AW 6060 aluminum, bronze CW 453 K, copper CW024A + CW004A, nickel silver, brass CW 508 CW 507 L + L + 2.0371 and Monel Alloy 400th from an outer diameter of 0.30 mm. In providing a suitable machine, we also like to edit their pipes in wage labor. Incidentally, we also her tubes cut to length.

The Pfister Metall GmbH & Co. KG, formerly established as M. Pfister Drahtwarenfabrik in 1927 for the production of wire products of all kinds developed in the last two Decades to a specialist for sheet metal processing. By change of name in 2001, Pfister metal received GmbH & Co. KG your name. We work with the most modern machinery and qualified Staff to a consistent high quality assurance to obtain. Our team is Powerful and operates cost-conscious the benefit of our customers. CNC sheet metal and tube forming equipment, CNC milling Surface treatment

The FME company is a supply firm for precision mechanics and medical technology. We offer everything concerned with precision mechanics, from series prototype to complete subassemblies ready to install.

25 years of quality and service for our customers With profound expertise and many years of industry experience in the production of functional prototypes, we provide individual support to our customers. Getting started is crucial. IGW's work starts where ideas become top quality: in the development and production of prototypes and small series. As a manufacturer, we quickly and precisely translate the requirements of the engine and automotive industries into testable individual components and assemblies. Our DEKRA certified management system ensures compliance with the highest quality requirements at all times.
