About UF Industries Unruh & Friesen oHG

Who we are

Welcome to the UF Industries GbR. For more than 20 years, we have been bundling the necessary skills for everything to do with drawing parts in a separate department. Our employees advise and support you in the procurement of tailor-made special and drawing parts and produce high-quality and precise turned, milled and combination parts for you according to drawings - even in demanding geometries and in small batch sizes. Quality and function are our top priority. In order to achieve this, we are constantly developing ourselves and our portfolio. True to the motto: If you stop getting better, you stop being good! Our aim is to be able to offer an efficient and optimal solution for every specific, mechanical-technical requirement based on a drawing or sample. If required, we offer you fast and goal-oriented support in the realization of your constructions. Especially in the project phase, it is of crucial importance to choose the best, most modern and at the same time most cost-effective production technology. We would also be happy to optimize existing construction parts together with you.

1 / 2

2 / 2

Espelkamp, Germany

Member since 2020

Premium Member since 2023

Employees5 - 10

Certificates1

Turnover5 - 10 Mil.

Year of foundation2020

Marketing documents

UF_Industries_Broschuere.pdfPDF File

Competencies

Technologies

Injection Moulding, Extruding

Technologies	Lotsize	Length	Width	Height	Weight
Injection moulding	from 1	1–300 mm	1–300 mm	1–300 mm	0.05–0.5 kg
Extrusion (profile)	1–10 M	—	1–100 mm	1–100 mm	—
Injection-mould around inserts	1–10 M	1–100 mm	1–100 mm	1–100 mm	0–100 kg

Water jet cutting

Technologies	Lotsize	Length	Width	Material thickness
Water jet cutting 2D	from 1	1–1,500 mm	1–1,500 mm	1–15 mm

Casting

Technologies	Lotsize	Length	Width	Height	Weight
Machine moulding (sand casting)	from 1	100–500 mm	100–500 mm	100–500 mm	5–100 kg
Gravity die casting	5–100 k	100–2,000 mm	100–2,000 mm	100–1,000 mm	0–50 kg
Pressure die casting	from 1	from 0 mm	from 0 mm	from 0 mm	from 0 kg
Investment casting	5–100 k	100–5,000 mm	100–2,000 mm	100–5,000 mm	0–30 kg
Low-pressure casting	100–100,000	100–5,000 mm	100–5,000 mm	100–5,000 mm	0–30 kg
Hand moulding (sand casting)	50–100 k	500–5,000 mm	500–5,000 mm	500–5,000 mm	0–30 kg

Forming (Plastics & Rubber)

Technologies	Lotsize	Length	Width	Height	Weight	Material thickness
Thermoforming	1–10 M	1–100 mm	1–100 mm	1–100 mm	0–100 kg	1–20 mm

Turning

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Turning	1–50 M	from 1 mm	—	—	from 1 mm	—
Automatic turning (bar)	from 1	from 1 mm	—	—	from 1 mm	—
Swiss turning	1–50 M	from 1 mm	—	—	from 1 mm	—
Full-range turning (including milling)	1–50 M	from 1 mm	—	—	from 1 mm	—
Hard turning	1–5 M	1–5,000 mm	—	—	1–1,000 mm	—
Broaching	1–50 M	1–5,000 mm	—	—	1–5,000 mm	—
Deep-hole drilling	1–10 M	1–5,000 mm	1–5,000 mm	1–5,000 mm	1–5,000 mm	0–50 kg
Centering / end facing	1–10 M	1–5,000 mm	—	—	1–5,000 mm	—
Shaft machining	1–10 M	1–5,000 mm	—	—	1–5,000 mm	0–50 kg

Pipe & Tube Manufacturing

Technologies	Lotsize	Length	Width	Height	Diameter	Material thickness
Pipe bending	5–500 k	5–1,000 mm	—	—	20–200 mm	1–20 mm
Laser cutting, tube & section	from 10	500–2,000 mm	50–100 mm	50–100 mm	—	3–5 mm
Flange bending, profile bending	5–100 k	—	1–20 mm	—	—	1–20 mm
Hydroforming	5–500 k	—	—	—	—	—

Sheet Metal Forming (Stamping, Deep-drawing)

Technologies	Lotsize	Length	Width	Height	Diameter	Material thickness
Punching / pressing (Out-of-tool)	1–10 M	1–500 mm	1–500 mm	—	—	0.1–2 mm
Stamping and bending machine (Bihler)	from 1	1–100 mm	1–40 mm	—	—	1–4 mm
Deep-drawing	1–10 M	1–2,000 mm	1–2,000 mm	1–2,000 mm	—	0.5–20 mm
Fineblanking / pressing	1–10 M	0.01–500 mm	0.01–500 mm	—	—	—
Spinning	1–10 M	—	—	—	0.1–200 mm	0.1–200 mm
Roll forming	1–10 M	1–1,000 mm	1–1,000 mm	—	—	1–100 mm
Plate rolling / bending	1–10 M	—	5–1,000 mm	—	—	0.1–200 mm

Solid Forming

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Drop forging	5–50,000	—	—	—	—	0–5 kg
Impact extrusion	100–1 M	1–1,000 mm	—	—	1–1,000 mm	—
Bar extrusion	100–1 M	5–100 mm	5–100 mm	5–100 mm	2–100 mm	—
Open die forging	5–100 k	—	—	—	—	0–5 kg

Wire & Spring Bending

Technologies	Lotsize	Diameter

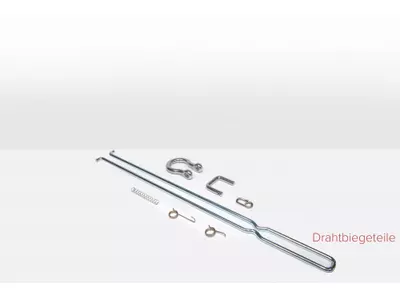

Wire bending	5–500 k	0.1–10 mm
Spring bending	5–500 k	0.1–10 mm

Sintering & Powder Pressing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Sintering	100–100,000	100–5,000 mm	100–5,000 mm	100–5,000 mm	2–3,000 mm	0–30 kg

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Milling	1–50 M	from 1 mm	from 1 mm	from 1 mm	—	—
5-axis milling machines	1–50 M	from 1 mm	from 1 mm	from 1 mm	—	—
Form milling (3 D)	1–50 M	from 1 mm	from 1 mm	from 1 mm	—	—
Full-range milling (including turning)	1–10 M	1–5,000 mm	1–5,000 mm	1–5,000 mm	1–5,000 mm	—
HSC milling	1–10 M	1–5,000 mm	1–5,000 mm	1–5,000 mm	—	0–20 kg
Deep-hole drilling	1–10 M	1–1,000 mm	1–500 mm	1–500 mm	1–500 mm	0–30 kg

Materials

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Cast metals

Cast steelCast iron

Plastics/synthetic materials

ThermoplasticsElastomersSilocone (LSR)Natural and vulcanised rubberGlass fibre-reinforced plastic

Precious metals

SilverGoldPlatinumOther precious metals

Industries

Medical technologyChemical industryOffice machinery and suppliesMining and tunnel engineeringBuilding, agricultural and forestry machinery manufacturingApparatus engineeringHousehold appliance industryElectrical industryMilitary engineeringAutomation and control engineeringPlant engineering and constructionLighting industryAutomotive and vehicle constructionDrive and gear engineeringAir conditioning, refrigeration and ventilation industryMeasurement and control technique, laboratory equipmentPrecision engineering, mechatronics and opticsPackaging industryTelecommunication industryMachine tool manufacturingSpecial purpose machinery manufacturingShipbuilding industryClean room technologyPaper and printing machinery industryMechanical engineeringAerospace and aviation industryBoiler, container and tank construction Information technology (hardware)Hydraulic and pneumatic industryPower generation and transmission industryFurniture industryConstruction and architectural suppliesRailway and rail vehicles industryFittings engineering

+26 moreShow less

Certificates

ISO 9001:2015
