About VDM Giesstechnik GmbH & Co. KG
Who we are

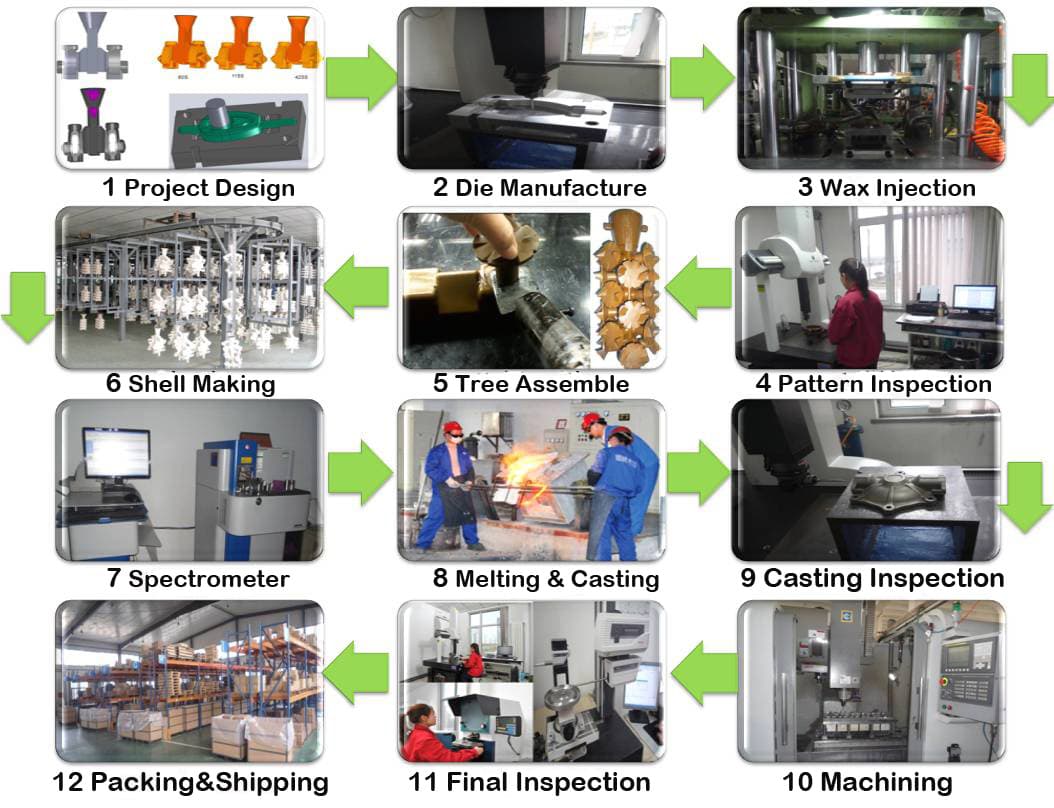

Import / export of: Investment Casting Sand casting Forgings Turned parts of stainless steel, steel, bronze, copper Stampings Pressing and deep drawing components We are a medium sized import / export company and would like to offer and deliver your requirements for the following products, of course, with all the necessary inspection certificates according to PED 97/23/EC and / or AD2000 and automotive TS16949: - Made in the lost wax investment castings in stainless steel (eg 1.4308, 14408, 1.4362, 1.4462, 1.4581, 1.4571, 1.4404, 1.4852, 1.4749, 1.4517, etc.) or cast steel (eg 1.0619), heat-treated steels, tool steels, heat resistant steels and stainless steels Please note that a lot of turned and milled parts can be cheaper to produce investment casting! - Sand casting hand molded parts made of stainless steel, use weights between 10 kg and 3000 kg Investment Casting Materials see above - Stainless steel flanges according to DIN, EN, ANSI or your drawing - Punching pressing and deep drawing components from TS16949 certified manufacturing - Turning and milling parts from stainless steel, cast steel, copper - Forgings of stainless steel, seamless rolled rings, flanges of any kind Your advantage: We offer access to the most interesting Asian price levels without any risk. We are your contractor, you pay for the goods only after delivery and inspection, we ensure the quality permanently on the ground in Asia through its own QA inspectors.
1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8
Schüttorf, Germany
Member since 2007
Employees5 - 10
Certificates5
Turnover1 - 5 Mil.
Year of foundation2001
Marketing documents
Competencies
Technologies
Sintering & Powder Pressing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Sintering | 1,000–50,000 | 20–500 mm | 50–300 mm | 50–300 mm | 50–400 mm | 0–2 kg | from 0 mm |
Metal injection moulding (MIM) | 5,000–500,000 | 5–100 mm | 5–50 mm | 5–100 mm | from 0 mm | 0–0.1 kg | from 0 mm |
Casting
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Machine moulding (sand casting) | 1,000–1 M | 80–5,000 mm | 80–5,000 mm | 80–5,000 mm | — | 0–5,000 kg | — |
Gravity die casting | 10–5,000 | 300–900 mm | 300–900 mm | 300–900 mm | from 0 mm | 0–15 kg | from 0 mm |
Pressure die casting | 1,000–1 M | 10–500 mm | 10–500 mm | 10–500 mm | from 0 mm | 0–5 kg | from 0 mm |
Investment casting | 50–10 M | 1–500 mm | 1–500 mm | 1–500 mm | from 0 mm | 0–50 kg | from 0 mm |
Hand moulding (sand casting) | 1–10,000 | 200–6,000 mm | 200–2,500 mm | 50–800 mm | from 0 mm | 0–5,000 kg | from 0 mm |
Solid Forming
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Drop forging | 10–10,000 | — | — | — | — | 0–5,000 kg | — |
Impact extrusion | 10–100 k | 100–1,500 mm | — | — | 20–1,500 mm | — | — |
Open die forging | 1–10 M | — | — | — | — | 0–1,999 kg | — |
Ring rolling | 20–500 k | 20–300 mm | from 0 mm | from 0 mm | 100–1,500 mm | 0–3,000 kg | from 0 mm |
Materials
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steel
Light metals
Aluminium and aluminium alloys
Cast metals
Cast steelCast iron
Non-metal inorganic materials
Ceramics
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)Carbide
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloys
Sintered materials
Metal powder for formed partsMetal powder for hard metal
Industries
Furniture industryLighting industryAir conditioning, refrigeration and ventilation industryElectrical industryMining and tunnel engineeringMilitary engineeringMedical technologyRailway and rail vehicles industryBuilding, agricultural and forestry machinery manufacturingDrive and gear engineeringAutomotive and vehicle constructionMachine tool manufacturingMeasurement and control technique, laboratory equipmentBoiler, container and tank construction Paper and printing machinery industrySpecial purpose machinery manufacturingPower generation and transmission industryChemical industryFittings engineeringPrecision engineering, mechatronics and opticsHydraulic and pneumatic industryAerospace and aviation industryShipbuilding industryPlant engineering and constructionApparatus engineeringMechanical engineering
Certificates
ISO 9001:2015
ISO-TS 16949:2002
ISO-TS 16949:2009
IATF 16949:2016
VDA 6.2
Parts & Machines
Parts (4)
1 / 4
Feinguss
DescriptionEdelstahl Feingussteile für Armaturen, Fittings, Beschläge oder als Ersatz für Ihre bisherigen Drehteile aus der Stange und Frästeile!
2 / 4
3 / 4
4 / 4
Machinery (2)
1 / 2
diverse
ManufacturerMazak
Control-
Technology
Turning
2 / 2
Wasserglasverfahren
ManufacturerWachsausschmelzverfahren
Control-
Year of Construction2000
Technology
Investment casting
4 Parts
2 Machinery
Turning1
Investment casting1
Contact
Location
Main locationOststraße 15, 48465 Schüttorf, Germany
Further locationsSchüttorf, Germany Shijiazhuang Jiangyin XinXiang Cangzhou, China
